APRS Automatic Packet Reporting System (système de suivi automatique par paquets) Wittenheim 19 octobre 2012 par Jean-Pierre F 5 AHO
• Système imaginé par Bob Bruninga WB 4 APR en 1992. • En VHF: modulation AFSK 1200 bauds en FM • Protocole AX 25 classe F 2 D • Mono fréquence 144, 800 MHz • Autres fréquences 433, 800 MHz + décamétrique en FSK classe F 1 D
• La transmission se fait en mode « unproto » , en temps réel et en mode texte. • Les trames peuvent être relayées. • L’utilisation la plus connue de l’APRS est la transmission de positions • Mais il est également possible de transmettre des messages genre mini SMS, d’interroger des stations automatiques ou météo.
Le réseau APRS
Digipeater
Digipeater Gateway Internet

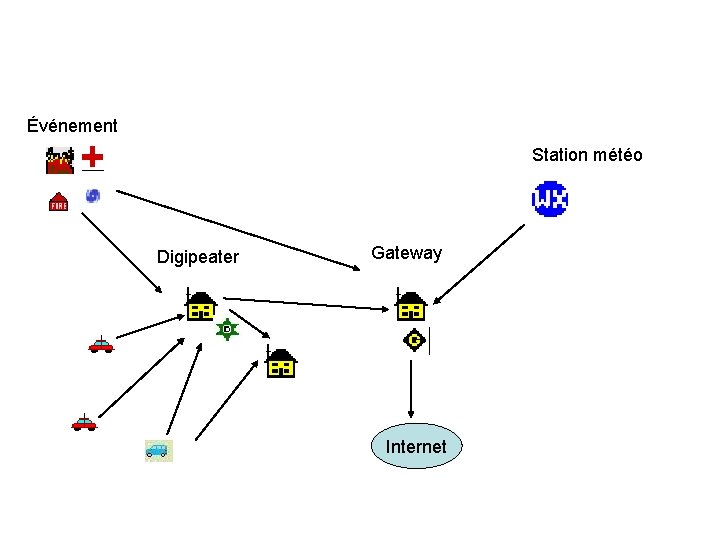

Événement Station météo Digipeater Gateway Internet
VHF 144. 800 MHz Internet (ADSL) Événement GSM / Edge / 3 G Station météo Digipeater Gateway Tracker smartphone Internet
Les mobiles Événement VHF 144. 800 MHz Internet (ADSL) GSM / Edge / 3 G Station météo Digipeater Gateway Tracker smartphone Internet
1575 MHz 144. 800 MHz GPS 5 / 12 V BF modulation TRACKER PTT TX 144. 800 MHz NMEA 12 V Équipement mobile de base (unidirectionnel et aveugle)
1575 MHz 144. 800 MHz GPS 5 / 12 V BF modulation TRACKER PTT TX + RX 144. 800 MHz NMEA BF ou détection de porteuse 12 V Équipement mobile (bidirectionnel) 12 V
1575 MHz GPS + affichage 5 / 12 V 144. 800 MHz Affichage BF modulation TRACKER PTT NMEA TX + RX 144. 800 MHz BF ou détection de porteuse 12 V Équipement mobile (bidirectionnel + affichage) 12 V
Byonics Kit 33$ Kit 65$ Tracker + TX 10 W 150 $ GPS 69 $

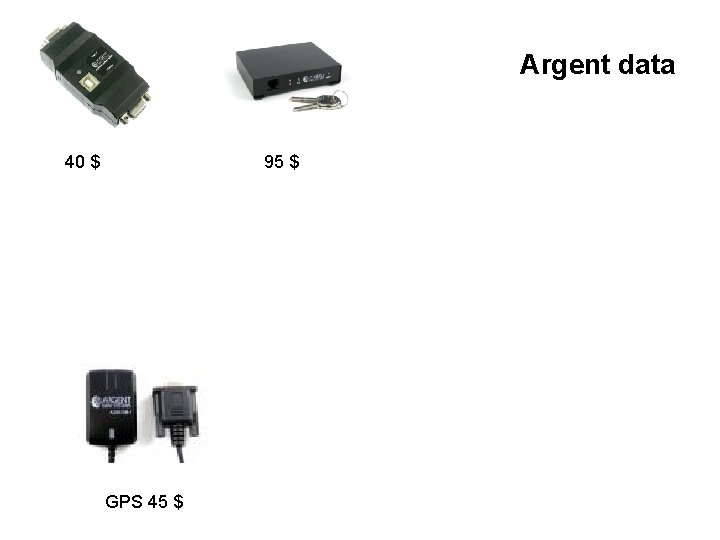

Argent data 40 $ 95 $ GPS 45 $
Kenwood THD 72 THD 7 TMD 700 TMD 710
Fixe / Digipeater / Gateway Événement VHF 144. 800 MHz Internet (ADSL) GSM / Edge / 3 G Station météo Digipeater Gateway Tracker smartphone Internet
-Utilisation d’une configuration mobile précédente -Utilisation du logiciel UI-view de G 4 IDE (sk en 2004) avec ligne Kenwood ou autre TRX avec Baycom+ AGWPE (digipeater et gateway possible) Démonstration dans la partie pratique de l’exposé -Pour digipeater seul : TNC 2 avec EPROM UI-digi de IW 3 FQG -Pour digipeater et/ou gateway: Kenwood ou autre TRX avec AGWPE + logiciel DIGINED sur PC

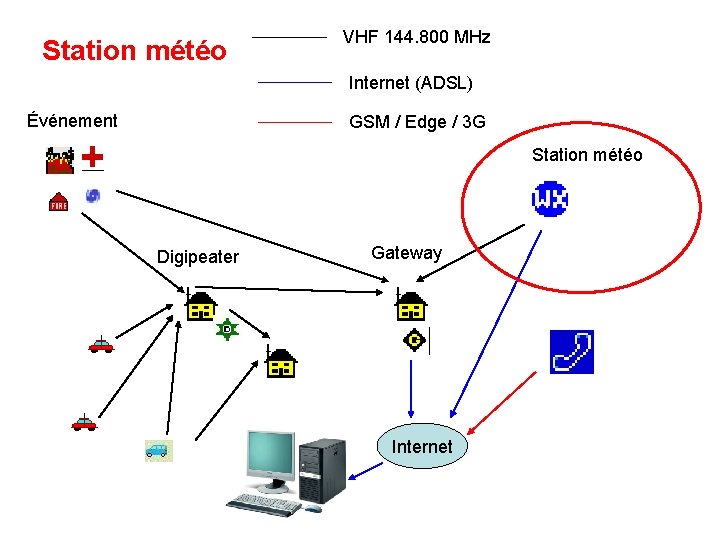

Station météo VHF 144. 800 MHz Internet (ADSL) Événement GSM / Edge / 3 G Station météo Digipeater Gateway Internet
- Utilisation du logiciel UI-view avec ligne Kenwood ou autre TRX avec Baycom+ AGWPE (digipeater et gateway possible) + station météo WS 2300 -Tracker ADS-WS 1 (Argent data) + TRX VHF - Tracker WX Track (Byonics) + certaines stations météo + TRX VHF
Tracker smartphone VHF 144. 800 MHz Internet (ADSL) Événement GSM / Edge / 3 G Station météo Digipeater Gateway Tracker smartphone Internet
Certains smart phones possèdent un GPS et une connexion Internet Associé au programme APRSdroid, il est possible de transmettre sa position.

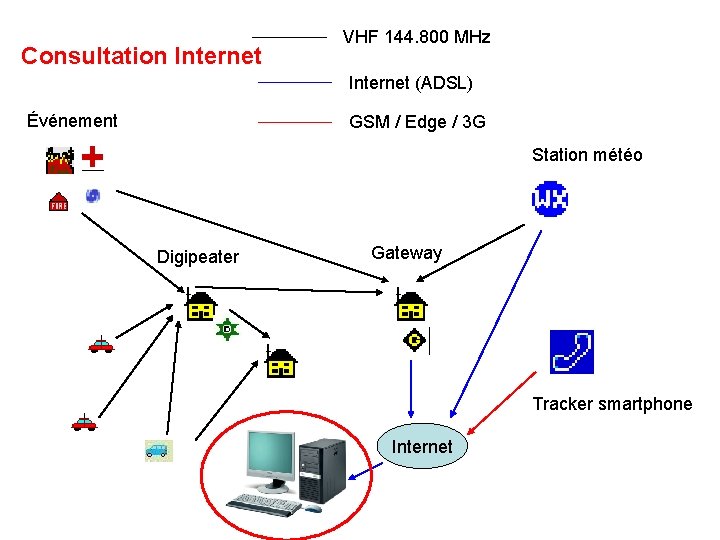

Consultation Internet VHF 144. 800 MHz Internet (ADSL) Événement GSM / Edge / 3 G Station météo Digipeater Gateway Tracker smartphone Internet
http: //aprs. fi/ http: //www. db 0 anf. de/app/aprs
Avant de passer à la pratique: 1) Les SSID: 1. Station fixe: pas de SSID ou -0, -1 ou -2 2. Digipeater : -3, -4 ou -5 (-4 de préférence) 3. Station mobile: -9 ou -15 4. 2) Les « paradigmes » : 5. Ne plus utiliser TRADE et RELAY 6. Station fixe WIDE 1 -1 ou WIDE 2 -2 7. Station mobile WIDE 2 -2 8. 3) Intervalles entre 2 transmissions: 9. Station fixe, évènement, station météo : 30 ou 60 minutes 10. Mobile à l’arrêt: 30 ou 60 minutes 11. Mobile à grande vitesse: 30 secondes ou 1 minute
Partie pratique: -Programmation d’un Opentracker -Démonstration UIview -Visite http: //aprs. fi/ et http: //www. db 0 anf. de/app/aprs -Discussions…
