APPROACH TO VASCULAR INJURY BY DR SIKHOSANA Mechanisms

APPROACH TO VASCULAR INJURY BY DR SIKHOSANA

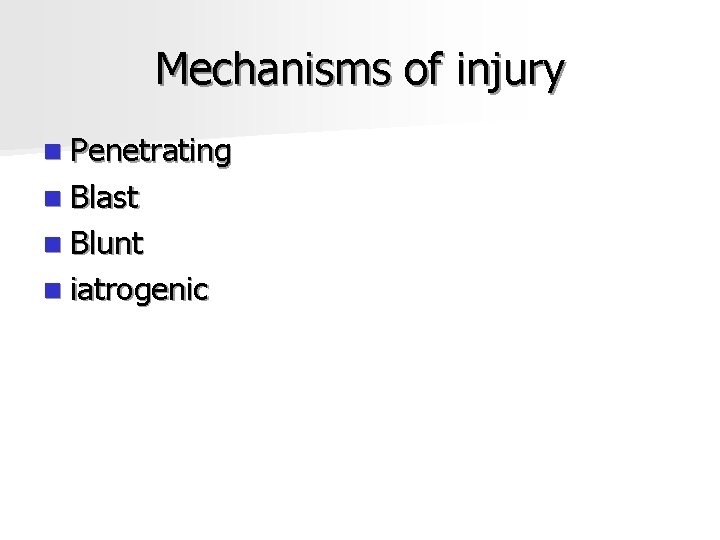

Mechanisms of injury n Penetrating n Blast n Blunt n iatrogenic

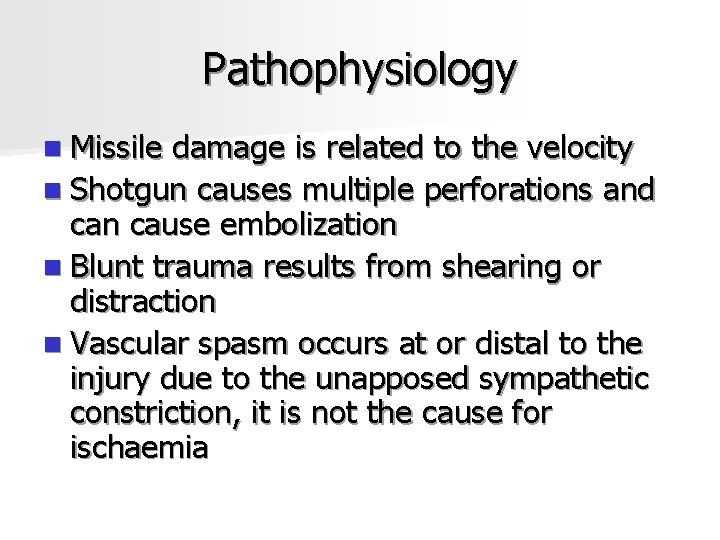

Pathophysiology n Missile damage is related to the velocity n Shotgun causes multiple perforations and can cause embolization n Blunt trauma results from shearing or distraction n Vascular spasm occurs at or distal to the injury due to the unapposed sympathetic constriction, it is not the cause for ischaemia

Hard signs n Pulsatile bleeding n Expanding haematoma n Thrill or bruit n Pulse deficit n ischaemia

Soft signs n History of a significant bleed n Small non expanding haematoma n Associated nerve injury n Proximity to a major vessel

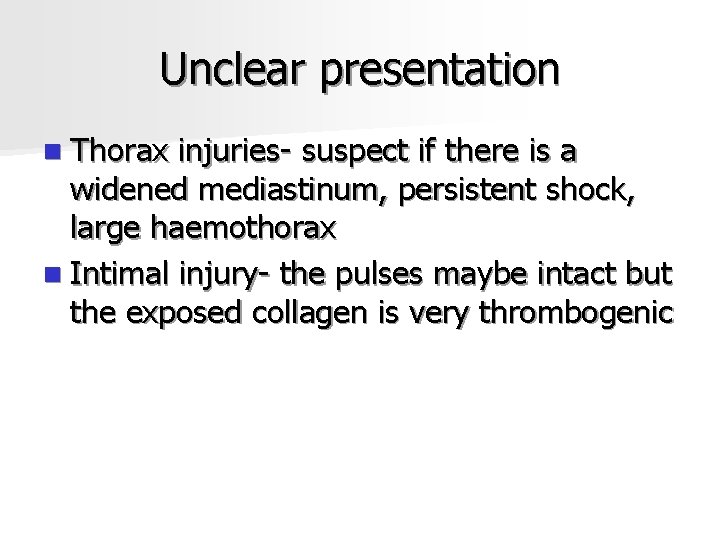

Unclear presentation n Thorax injuries- suspect if there is a widened mediastinum, persistent shock, large haemothorax n Intimal injury- the pulses maybe intact but the exposed collagen is very thrombogenic

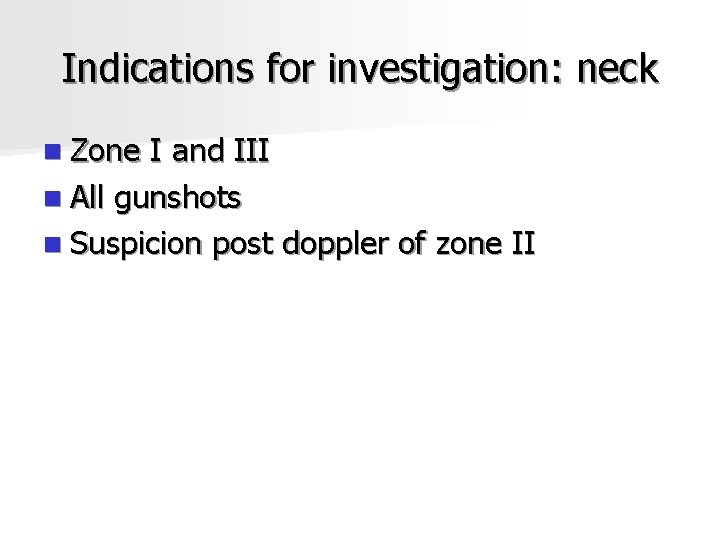

Indications for investigation: neck n Zone I and III n All gunshots n Suspicion post doppler of zone II

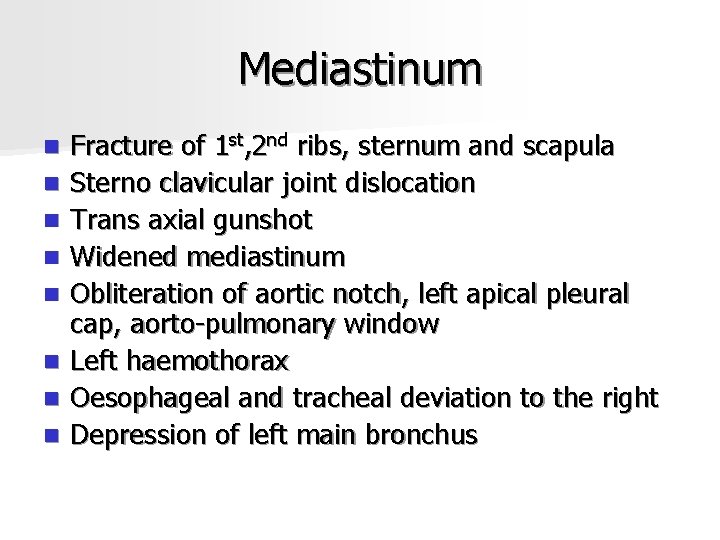

Mediastinum n n n n Fracture of 1 st, 2 nd ribs, sternum and scapula Sterno clavicular joint dislocation Trans axial gunshot Widened mediastinum Obliteration of aortic notch, left apical pleural cap, aorto-pulmonary window Left haemothorax Oesophageal and tracheal deviation to the right Depression of left main bronchus

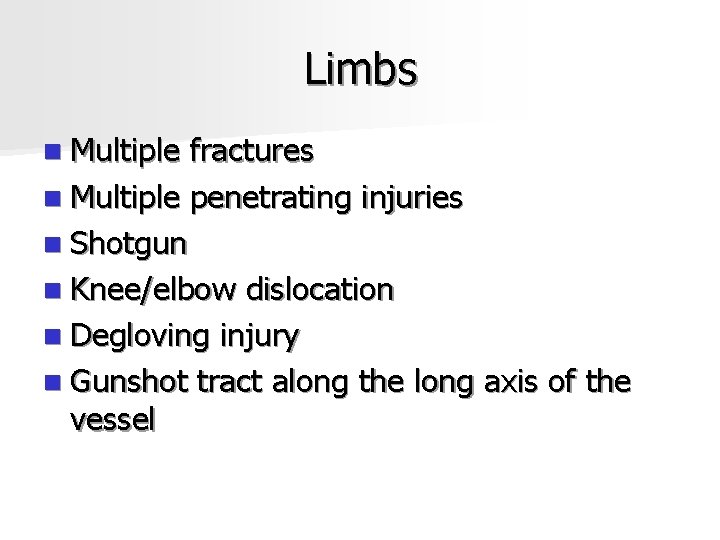

Limbs n Multiple fractures n Multiple penetrating injuries n Shotgun n Knee/elbow dislocation n Degloving injury n Gunshot tract along the long axis of the vessel

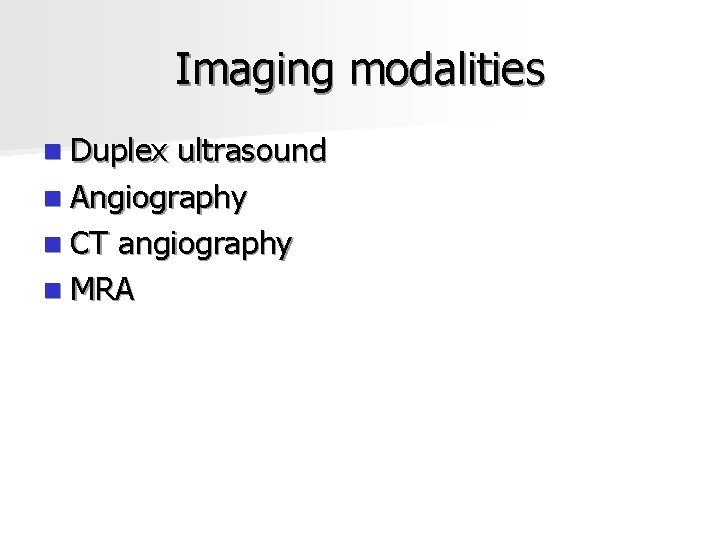

Imaging modalities n Duplex ultrasound n Angiography n CT angiography n MRA

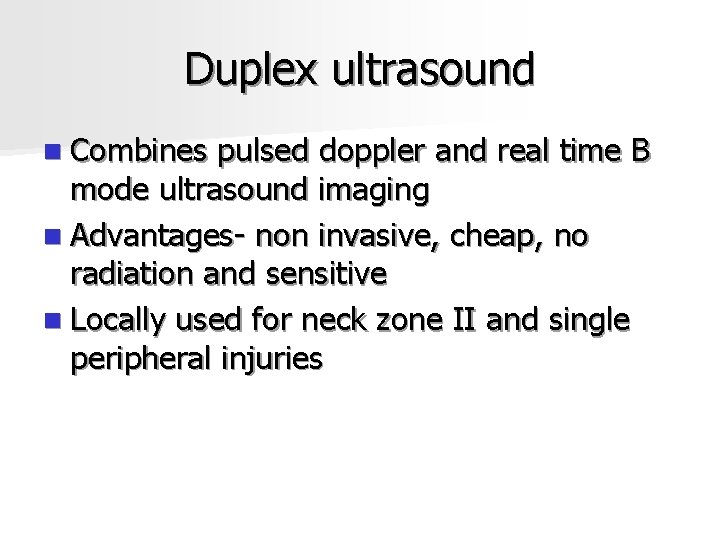

Duplex ultrasound n Combines pulsed doppler and real time B mode ultrasound imaging n Advantages- non invasive, cheap, no radiation and sensitive n Locally used for neck zone II and single peripheral injuries

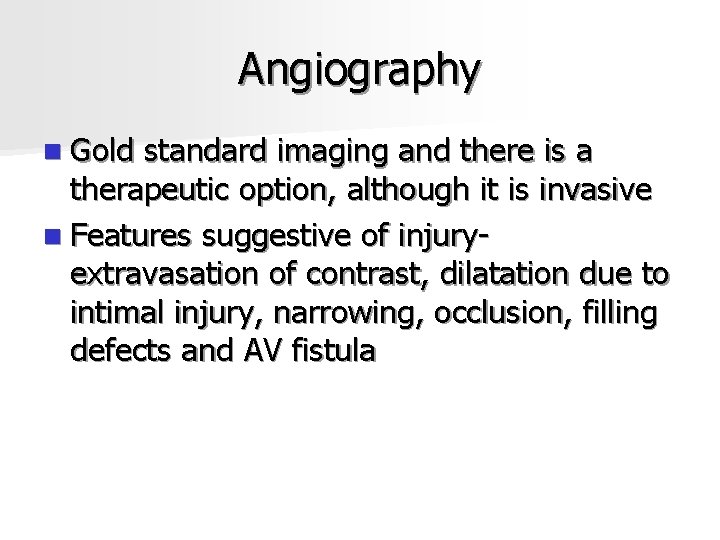

Angiography n Gold standard imaging and there is a therapeutic option, although it is invasive n Features suggestive of injuryextravasation of contrast, dilatation due to intimal injury, narrowing, occlusion, filling defects and AV fistula

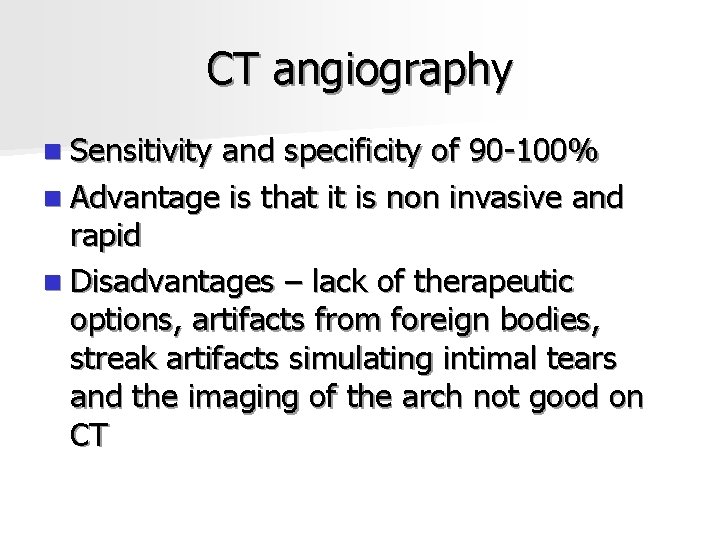

CT angiography n Sensitivity and specificity of 90 -100% n Advantage is that it is non invasive and rapid n Disadvantages – lack of therapeutic options, artifacts from foreign bodies, streak artifacts simulating intimal tears and the imaging of the arch not good on CT

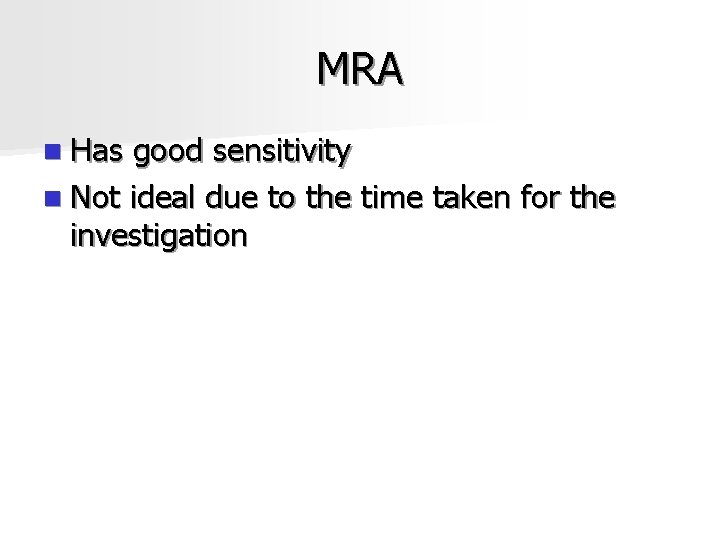

MRA n Has good sensitivity n Not ideal due to the time taken for the investigation

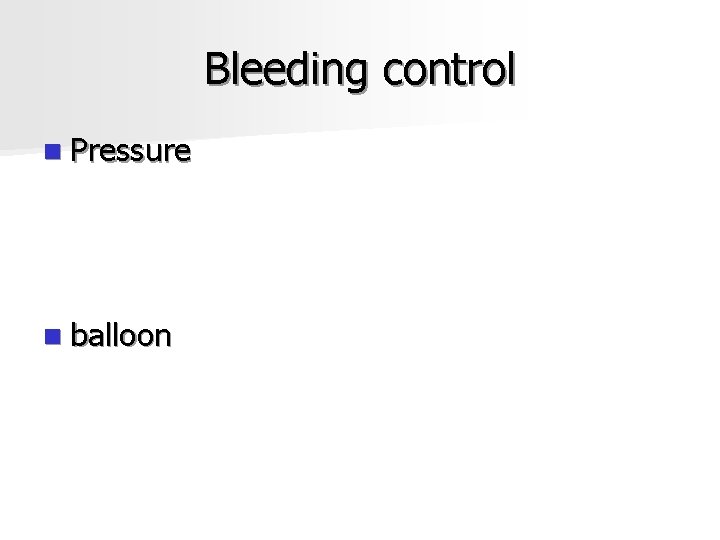

Bleeding control n Pressure n balloon

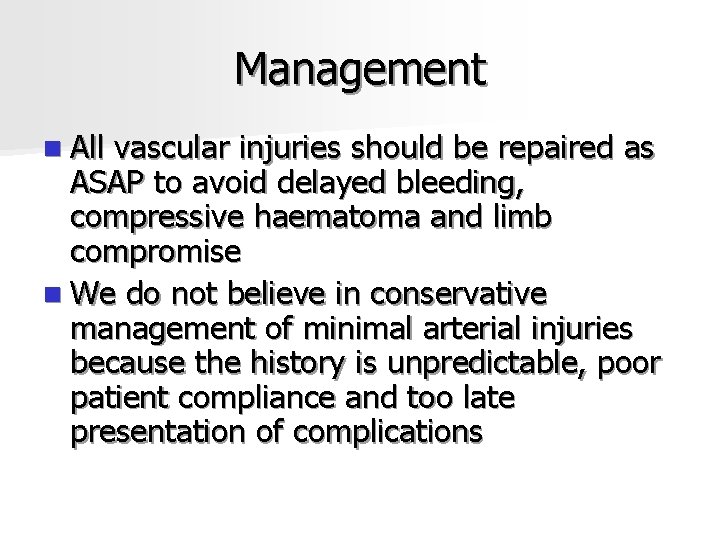

Management n All vascular injuries should be repaired as ASAP to avoid delayed bleeding, compressive haematoma and limb compromise n We do not believe in conservative management of minimal arterial injuries because the history is unpredictable, poor patient compliance and too late presentation of complications

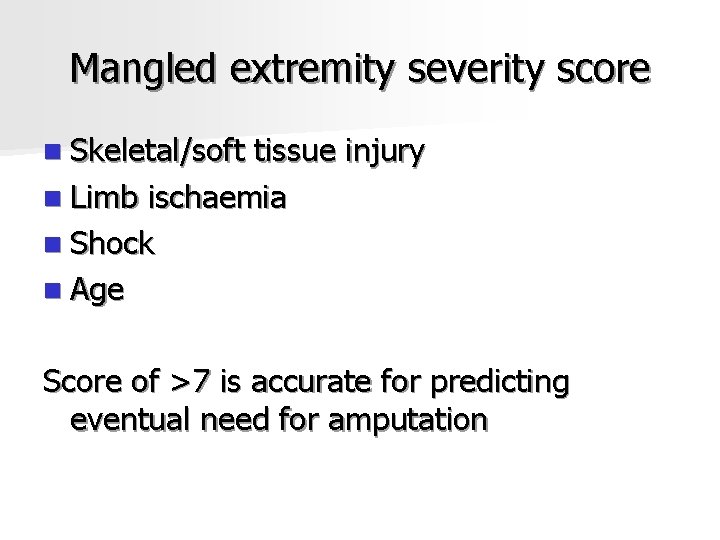

Mangled extremity severity score n Skeletal/soft tissue injury n Limb ischaemia n Shock n Age Score of >7 is accurate for predicting eventual need for amputation

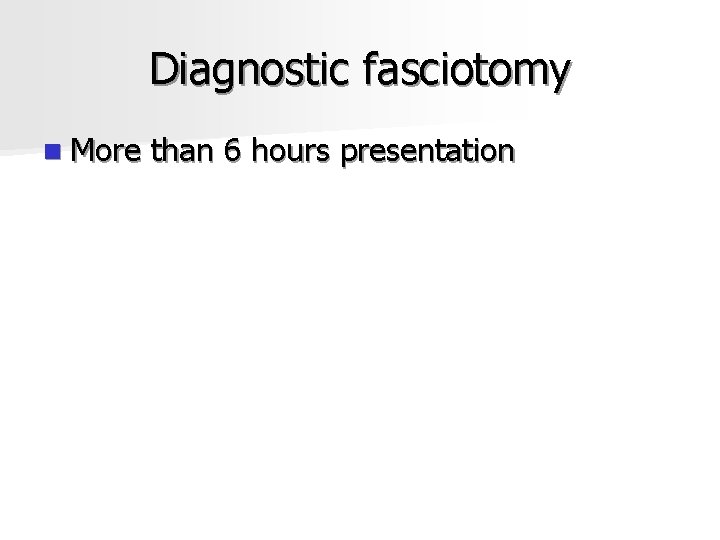

Diagnostic fasciotomy n More than 6 hours presentation

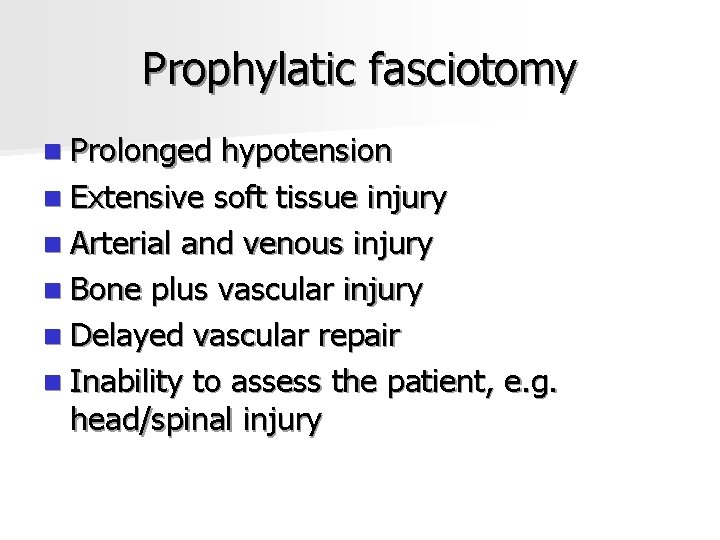

Prophylatic fasciotomy n Prolonged hypotension n Extensive soft tissue injury n Arterial and venous injury n Bone plus vascular injury n Delayed vascular repair n Inability to assess the patient, e. g. head/spinal injury

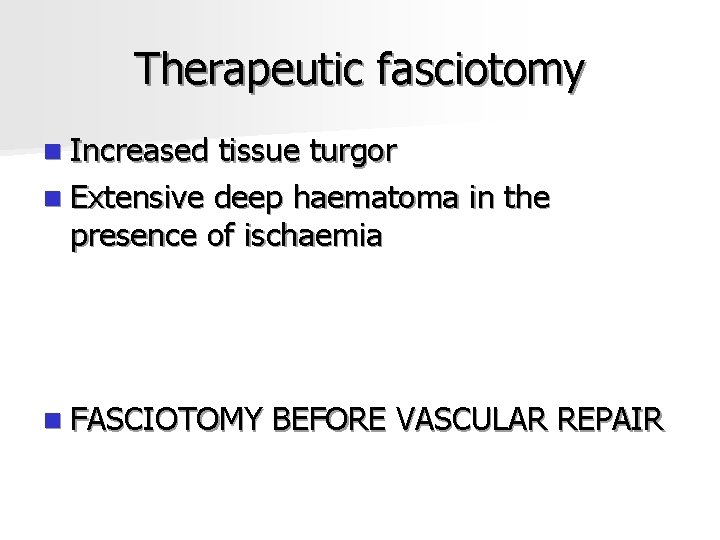

Therapeutic fasciotomy n Increased tissue turgor n Extensive deep haematoma in the presence of ischaemia n FASCIOTOMY BEFORE VASCULAR REPAIR

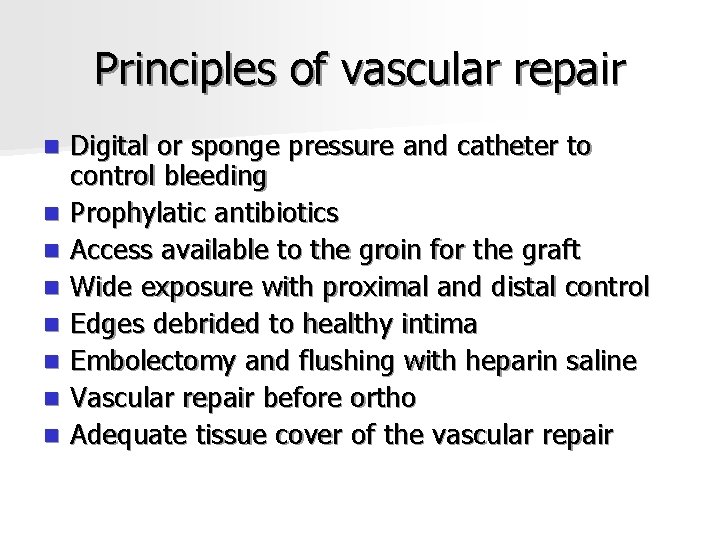

Principles of vascular repair n n n n Digital or sponge pressure and catheter to control bleeding Prophylatic antibiotics Access available to the groin for the graft Wide exposure with proximal and distal control Edges debrided to healthy intima Embolectomy and flushing with heparin saline Vascular repair before ortho Adequate tissue cover of the vascular repair

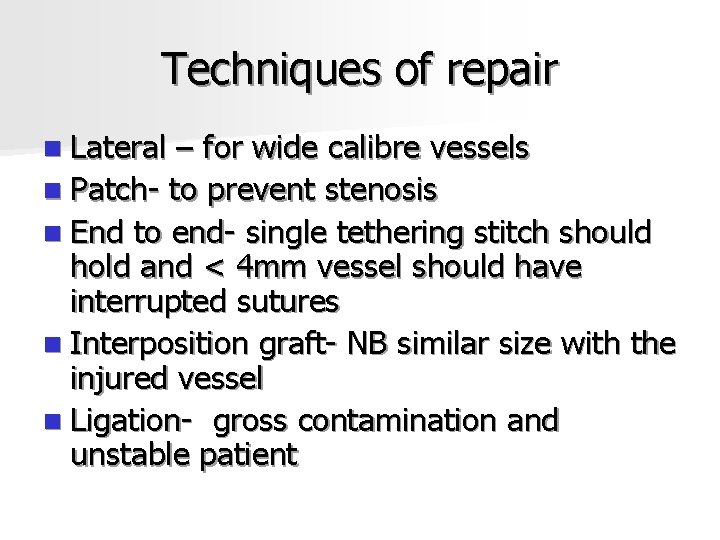

Techniques of repair n Lateral – for wide calibre vessels n Patch- to prevent stenosis n End to end- single tethering stitch should hold and < 4 mm vessel should have interrupted sutures n Interposition graft- NB similar size with the injured vessel n Ligation- gross contamination and unstable patient

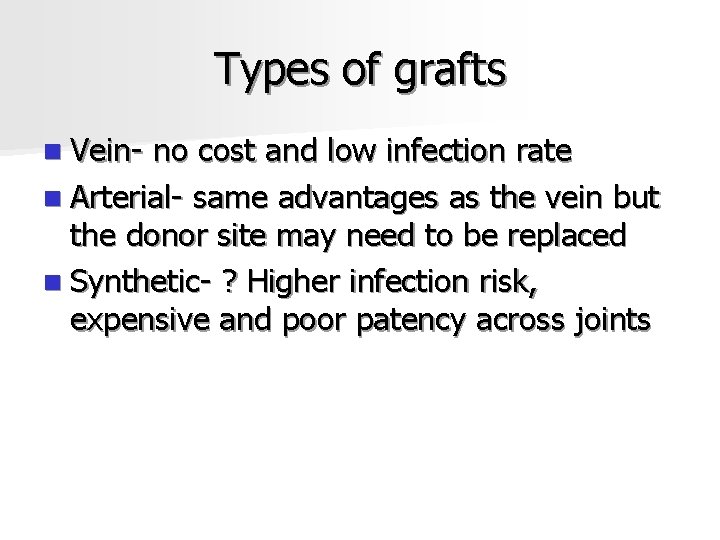

Types of grafts n Vein- no cost and low infection rate n Arterial- same advantages as the vein but the donor site may need to be replaced n Synthetic- ? Higher infection risk, expensive and poor patency across joints

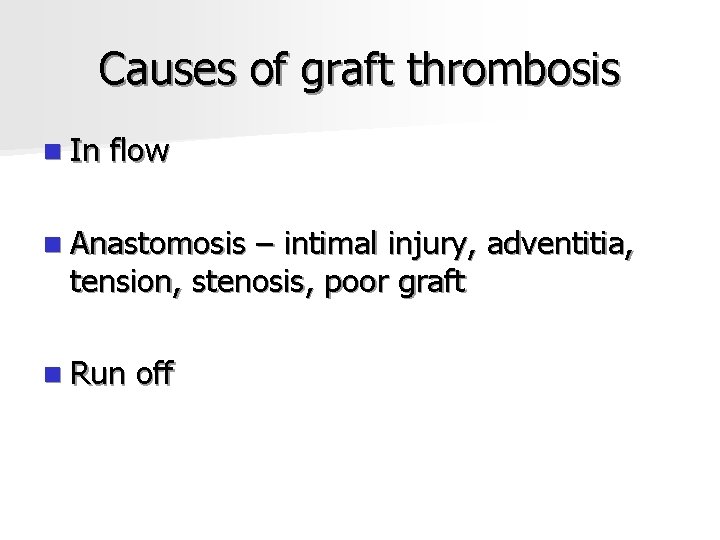

Causes of graft thrombosis n In flow n Anastomosis – intimal injury, adventitia, tension, stenosis, poor graft n Run off

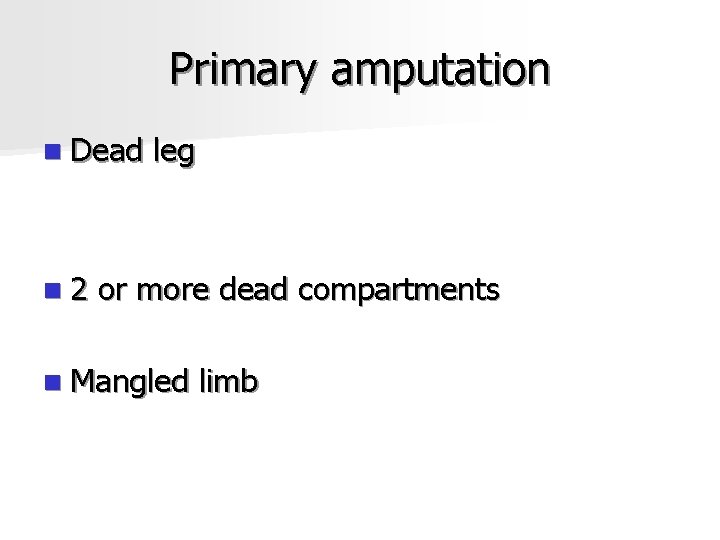

Primary amputation n Dead n 2 leg or more dead compartments n Mangled limb

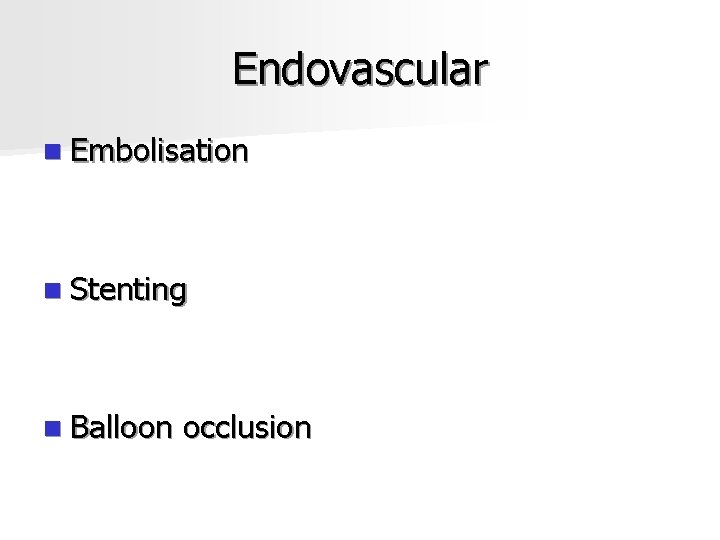

Endovascular n Embolisation n Stenting n Balloon occlusion

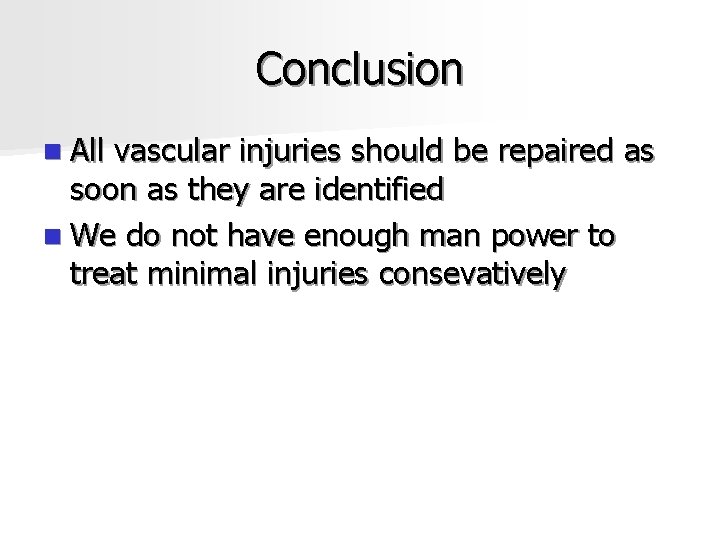

Conclusion n All vascular injuries should be repaired as soon as they are identified n We do not have enough man power to treat minimal injuries consevatively
