Approach to the knee radiograph for bony injuries
Approach to the knee radiograph for bony injuries Jasmin Fauteux August 25 th 2011
Objectives Review: • Indications • The views • The approach • Fractures • Cases
Knee rules
Pittsburgh Decision rule potentially more specific PDR’s applicability has yet to be proven
The views
Lateral

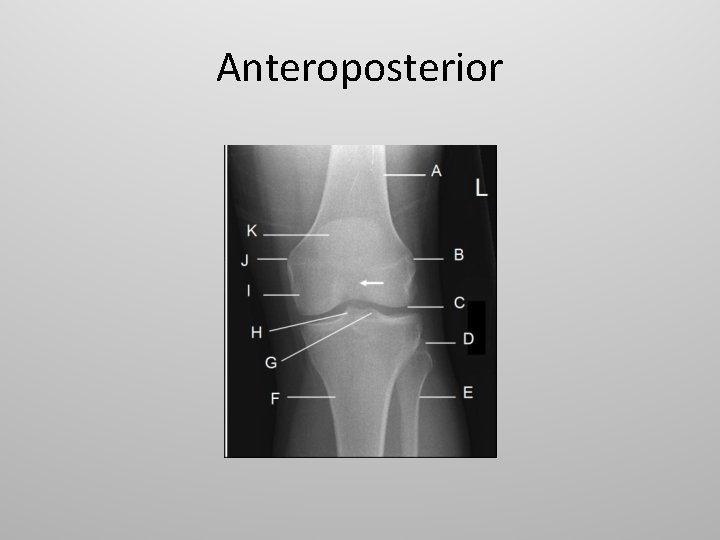

Anteroposterior

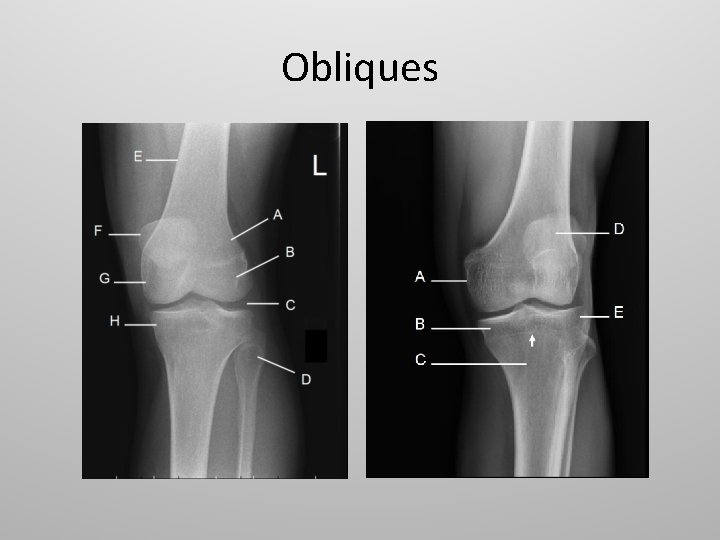

Obliques

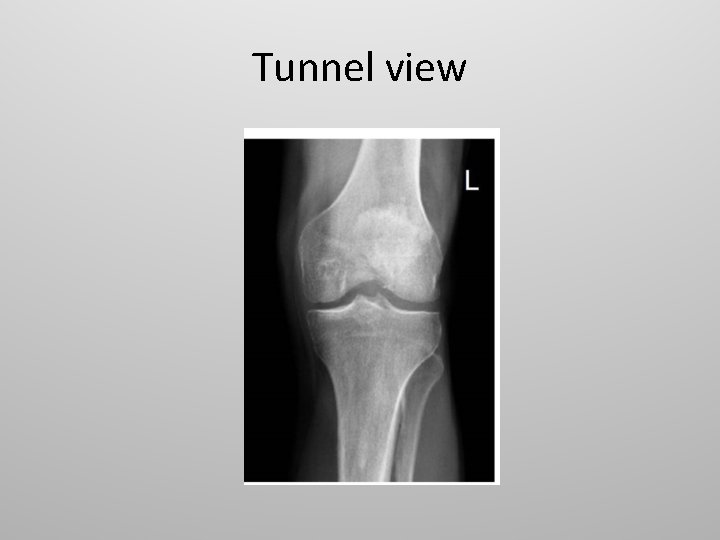

Tunnel view
Skyline
The approach
S-ABC • Targeting your approach to look for suspected fracture OR • • Soft tissue Alignment Bone Cartilage and joints
Soft tissue • Lipohemarthrosis • Effusion
Lipohemarthrosis
Effusion May be caused by a bone injury in 53% of cases
Alignment • Condyle with plateau • Patellar alignment
Bone • Cortices • Trabecular pattern • Intra-articular bodies
Cartilages and joints • Patellofemoral • Femorotibial
Tibial plateau • Lipohemarthrosis • Oblique views • Low force required in osteoporosis
16% are missed by EP
Tibial plateau • Trabecular density • Widening of joint space • Lateral displacement
Schatzker classification
Segond’s fracture
Reverse Segond’s
Arcuate complex avulsion - Prox. Fibula - Horizontal - Posterolateral
Tibial spine - Children > Adults - ACL avulsion

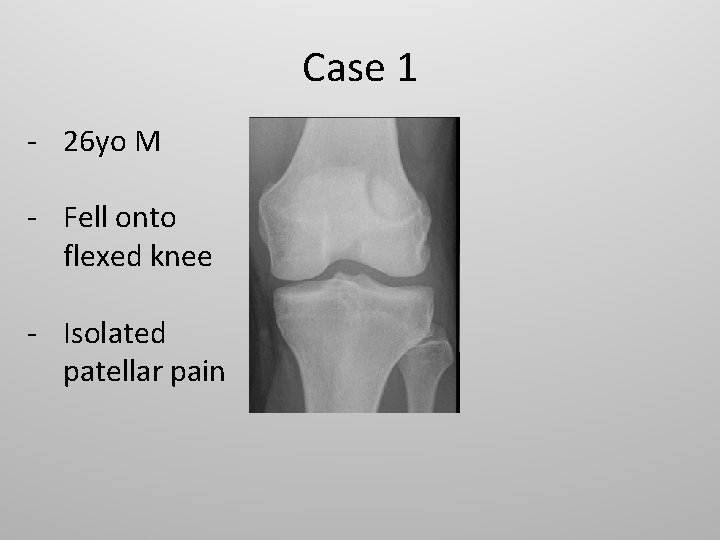

Case 1 - 26 yo M - Fell onto flexed knee - Isolated patellar pain
Case 2 • 62 yo F • Twisted knee while moving • Walking with cane • Flexion to 60 degrees
Case 3 • 34 yo M • Snowboarding • Painful lateral joint line

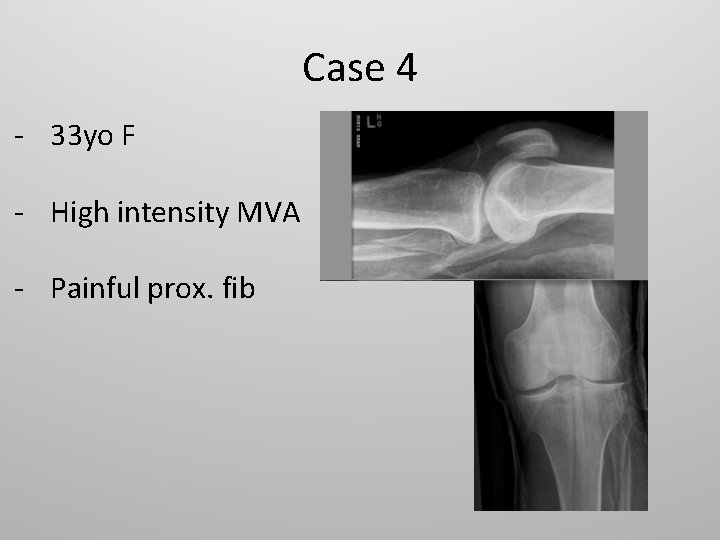

Case 4 - 33 yo F - High intensity MVA - Painful prox. fib
