Apprenticeship Learning Using Linear Programming Umar Syed Michael Bowling Robert E. Schapire Princeton University of Alberta Princeton University ICML 2008

• Apprenticeship Learning: An apprentice learns to behave by observing an expert. Learning algorithm Input: Demonstrations by expert policy. Output: Apprentice policy that is at least as good as expert policy (and possibly better).

Main Contribution • A new apprenticeship learning algorithm that: – Produces simpler apprentice policies, and – Is empirically faster than previous algorithms.

Outline ü Introduction • Apprenticeship Learning • Prior Work • Summary of Advantages Over Prior Work • Background: Occupancy Measure • Linear Program for Apprenticeship Learning (LPAL) • Experiments and Demos • Other Topics

Apprenticeship Learning • Given: Same as Markov Decision Process, except no reward function R. • Also given: – Basis reward functions R 1, …, Rk. – Demonstrations by an expert policy ¼E. • Assume: True reward function R is a weighted combination of the k basis reward functions: R(s, a) = i wi* ¢ Ri(s, a) where weight vector w* is unknown. • Goal: Find apprentice policy ¼A such that V(¼A) ¸ V(¼E) where value V(¼) of policy ¼ is with respect to unknown reward function.

Outline ü Introduction ü Apprenticeship Learning • Prior Work • Summary of Advantages Over Prior Work • Background: Occupancy Measure • Linear Program for Apprenticeship Learning (LPAL) • Experiments and Demos • Other Topics

Prior Work – Key Idea • Define Vi(¼) = ith “basis value” of ¼ = Value of ¼ with respect to ith basis reward function. • Then true value of a policy is a weighted combination of its basis values, i. e. V(¼) = i wi* ¢ Vi(¼) Proof: Linearity of expectation.

Prior Work – Abbeel & Ng (2004) • Introduced the apprenticeship learning framework. • Algorithm Idea: 1. Estimate Vi(¼E) for all i from expert’s demonstrations. 2. Find ¼A such that Vi(¼A) = Vi(¼E) for all i. 1. Theorem: V(¼A) = V(¼E) 2. Algorithm “type”: Geometric

Prior Work – Syed & Schapire (2007) • Assumed that all wi* are non-negative and sum to 1. • Algorithm Idea: 1. Estimate Vi(¼E) for all i from expert’s demonstrations. 2. Find ¼A and M such that: – Vi(¼A) ¸ Vi(¼E) + M for all i, and 1. M is as large as possible. 1. Theorem: V(¼A) ¸ V(¼E), and possibly V(¼A) À V(¼E). 2. Algorithm “type”: Boosting

Outline ü Introduction ü Apprenticeship Learning ü Prior Work • Summary of Our Approach • Background: Occupancy Measure • Linear Program for Apprenticeship Learning (LPAL) • Experiments and Demos • Other Topics

Summary of Our Approach • Same algorithm idea as Syed & Schapire (2007), but formulated as a single linear program, which we give to an off -the-shelf solver.

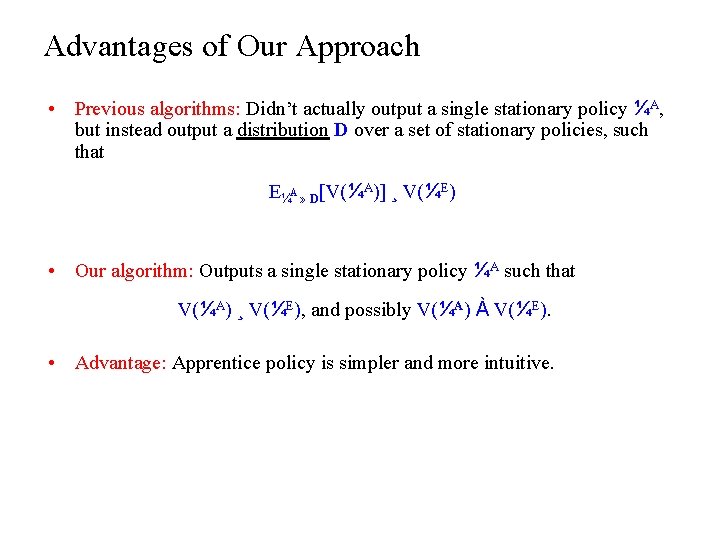

Advantages of Our Approach • Previous algorithms: Didn’t actually output a single stationary policy ¼A, but instead output a distribution D over a set of stationary policies, such that E¼A » D[V(¼A)] ¸ V(¼E) • Our algorithm: Outputs a single stationary policy ¼A such that V(¼A) ¸ V(¼E), and possibly V(¼A) À V(¼E). • Advantage: Apprentice policy is simpler and more intuitive.

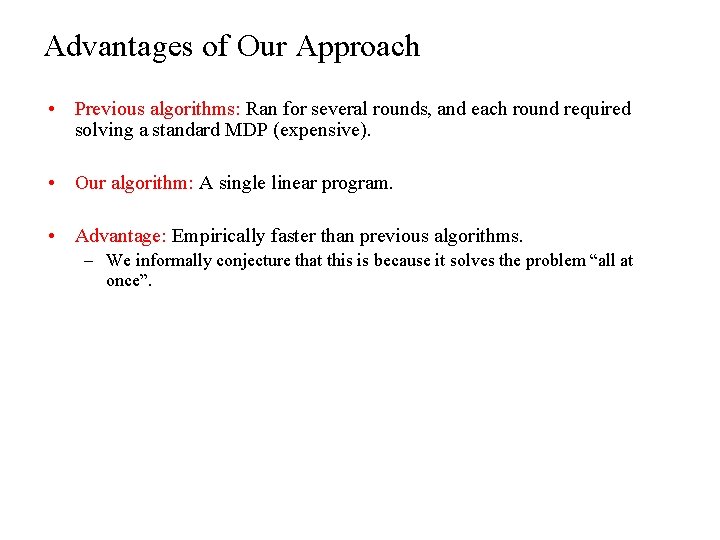

Advantages of Our Approach • Previous algorithms: Ran for several rounds, and each round required solving a standard MDP (expensive). • Our algorithm: A single linear program. • Advantage: Empirically faster than previous algorithms. – We informally conjecture that this is because it solves the problem “all at once”.

Outline ü Introduction ü Apprenticeship Learning ü Prior Work ü Summary of Our Approach • Background: Occupancy Measure • Linear Program for Apprenticeship Learning (LPAL) • Experiments and Demos • Other Topics

Occupancy Measure • The occupancy measure x¼ 2 R|S||A| of policy ¼ is an alternate way of describing how ¼ moves through the state-action space. • x¼sa = Expected (discounted) number of visits by policy ¼ to state-action pair (s, a). • Example: Suppose policy ¼ visits state-action pair (s, a): – – With probability 1 at time 1. With probability 1/2 at time 2. With probability 1/3 at time 3. With probability 0 a time ¸ 4. Then x¼sa = 1 + °(1/2) + ° 2(1/3)

Occupancy Measure – Equivalent Representation • The relationship between a stationary policy ¼ and its occupancy measure x¼ is given by: • Proof: – Left-hand side = – Right-hand side = Probability of taking action a in state s. No. of visits to state-action (s, a) No. of visits to state s. • Significance: It is easy to recover a stationary policy from its occupancy measure.

Occupancy Measure – Calculating Value • Define º(x) , s, a R(s, a) ¢ xsa Then V(¼) = º(x¼). In other words, º(x) is the value of a policy whose occupancy measure is x. • Proof: A policy earns reward R(s, a) (suitably discounted) every time it visits state-action pair (s, a). • Significance: The value of a policy is a linear function of its occupancy measure.

Occupancy Measure – Bellman Flow Constraints • The Bellman flow constraints are a set of constraints that any vector x 2 R|S||A| must satisfy to be a valid occupancy measure. • The Bellman flow constraints say: “Under any policy, the number of visits into a state s must equal the number of visits leaving state s. ” s Must be equal

Occupancy Measure – Bellman Flow Constraints • In fact, the Bellman flow constraints completely characterize the set of occupancy measures. All occupancy measures Bellman flow constraints x¢ All policies ¢ ¼ x satisfies the Bellman flow constraints m x is the occupancy measure of some policy ¼ • Significance: The Bellman flow constraints are linear in x.

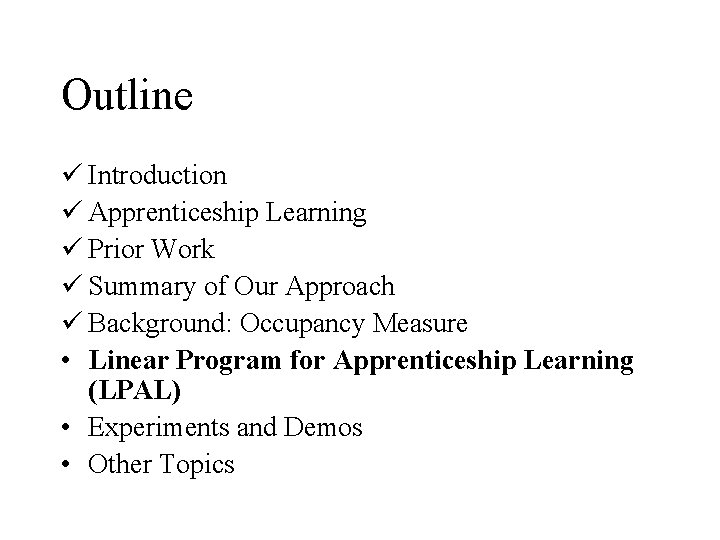

Outline ü Introduction ü Apprenticeship Learning ü Prior Work ü Summary of Our Approach ü Background: Occupancy Measure • Linear Program for Apprenticeship Learning (LPAL) • Experiments and Demos • Other Topics

Derivation of LPAL Algorithm 1. Estimate Vi(¼E) for all i from expert’s demonstrations. 2. Find ¼A and M that solve: max M subject to: Vi(¼A) - Vi(¼E) ¸ M for all i. ¼A is a policy. Start with algorithm idea from Syed & Schapire (2007)

Derivation of LPAL Algorithm 1. Estimate Vi(¼E) for all i from expert’s demonstrations. x. A 2. Find ¼A and M that solve: max M subject to: Vi(¼A) - Vi(¼E) ¸ M for all i. ¼A is a policy. x. A satisfies the Bellman flow constraints.

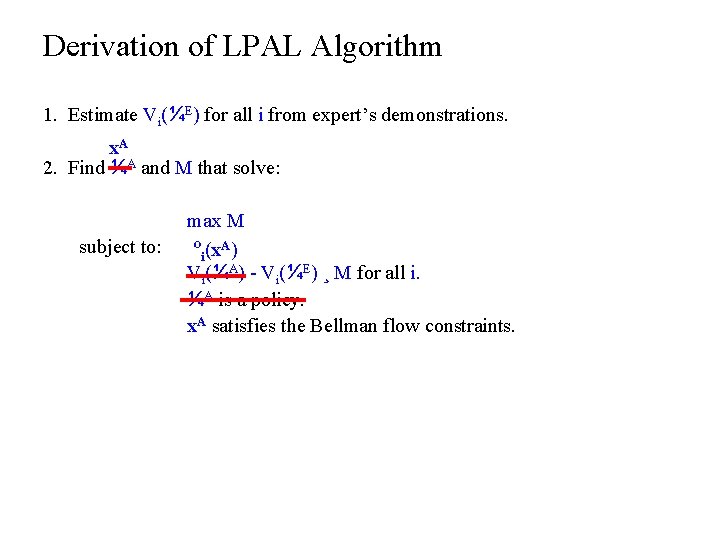

Derivation of LPAL Algorithm 1. Estimate Vi(¼E) for all i from expert’s demonstrations. x. A 2. Find ¼A and M that solve: subject to: max M ºi(x. A) Vi(¼A) - Vi(¼E) ¸ M for all i. ¼A is a policy. x. A satisfies the Bellman flow constraints.

Derivation of LPAL Algorithm 1. Estimate Vi(¼E) for all i from expert’s demonstrations. x. A 2. Find ¼ ¼AA and M that solve: subject to: max M ºi(x. A) V Vii(¼ (¼AA)) - Vi(¼E) ¸ M for all i. ¼AA isis aa policy ¼ x. A satisfies the Bellman flow constraints.

Derivation of LPAL Algorithm 1. Estimate Vi(¼E) for all i from expert’s demonstrations. 2. Find x. A and M that solve: max M subject to: ºi(x. A) - Vi(¼E) ¸ M for all i. x. A satisfies the Bellman flow constraints.

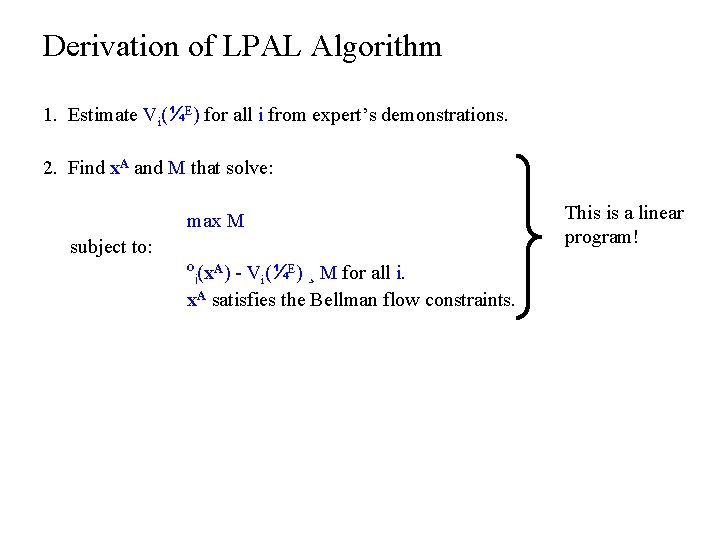

Derivation of LPAL Algorithm 1. Estimate Vi(¼E) for all i from expert’s demonstrations. 2. Find x. A and M that solve: max M subject to: ºi(x. A) - Vi(¼E) ¸ M for all i. x. A satisfies the Bellman flow constraints. This is a linear program!

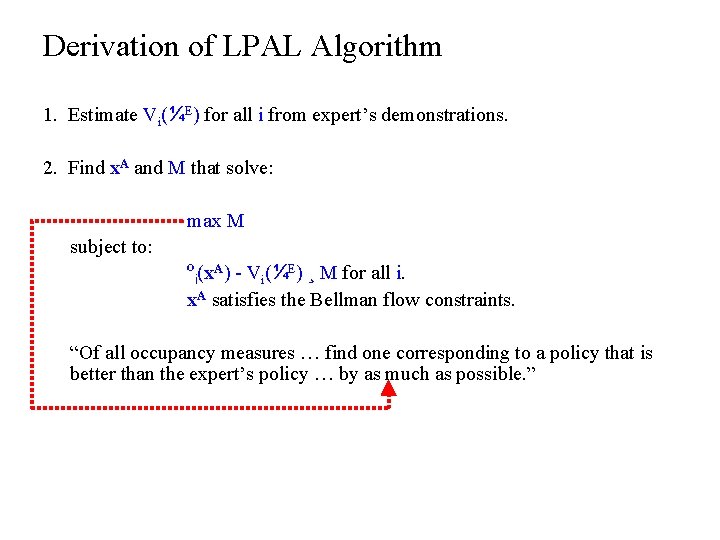

Derivation of LPAL Algorithm 1. Estimate Vi(¼E) for all i from expert’s demonstrations. 2. Find x. A and M that solve: max M subject to: ºi(x. A) - Vi(¼E) ¸ M for all i. x. A satisfies the Bellman flow constraints. “Of all occupancy measures …

Derivation of LPAL Algorithm 1. Estimate Vi(¼E) for all i from expert’s demonstrations. 2. Find x. A and M that solve: max M subject to: ºi(x. A) - Vi(¼E) ¸ M for all i. x. A satisfies the Bellman flow constraints. “Of all occupancy measures … find one corresponding to a policy that is better than the expert’s policy …

Derivation of LPAL Algorithm 1. Estimate Vi(¼E) for all i from expert’s demonstrations. 2. Find x. A and M that solve: max M subject to: ºi(x. A) - Vi(¼E) ¸ M for all i. x. A satisfies the Bellman flow constraints. “Of all occupancy measures … find one corresponding to a policy that is better than the expert’s policy … by as much as possible. ”

Derivation of LPAL Algorithm 1. Estimate Vi(¼E) for all i from expert’s demonstrations. 2. Find x. A and M that solve: max M subject to: ºi(x. A) - Vi(¼E) ¸ M for all i x. A satisfies the Bellman flow constraints. “Of all occupancy measures … find one corresponding to a policy that is better than the expert’s policy … by as much as possible. ” 3. Convert occupancy measure to a stationary policy:

LPAL Algorithm • Theorem: V(¼A) ¸ V(¼E), and possibly V(¼A) À V(¼E). (same as Syed & Schapire (2007)) • Proof: Almost immediate. • Remark: We could have applied the same occupancy measure “trick” to the algorithm idea from Abbeel & Ng (2004), and likewise derived a linear program.

Outline ü Introduction ü Apprenticeship Learning ü Prior Work ü Summary of Our Approach ü Background: Occupancy Measure ü Linear Program for Apprenticeship Learning (LPAL) • Experiments and Demos • Other Topics

Experiment – Setup “Gridworld” environment, divided into regions Region State • Actions & transitions: North, South, East and West, with 30% chance of moving to a random state. • Basis rewards: One indicator basis reward per region. • Expert: Optimal policy for randomly chosen weight vector w*.

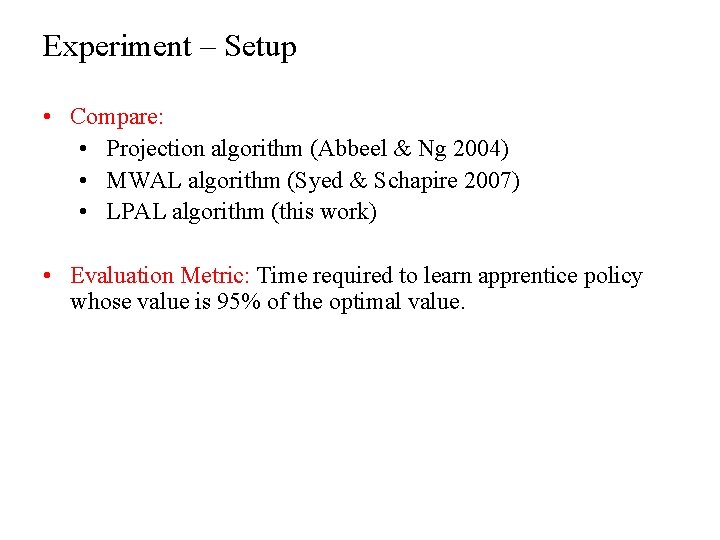

Experiment – Setup • Compare: • Projection algorithm (Abbeel & Ng 2004) • MWAL algorithm (Syed & Schapire 2007) • LPAL algorithm (this work) • Evaluation Metric: Time required to learn apprentice policy whose value is 95% of the optimal value.

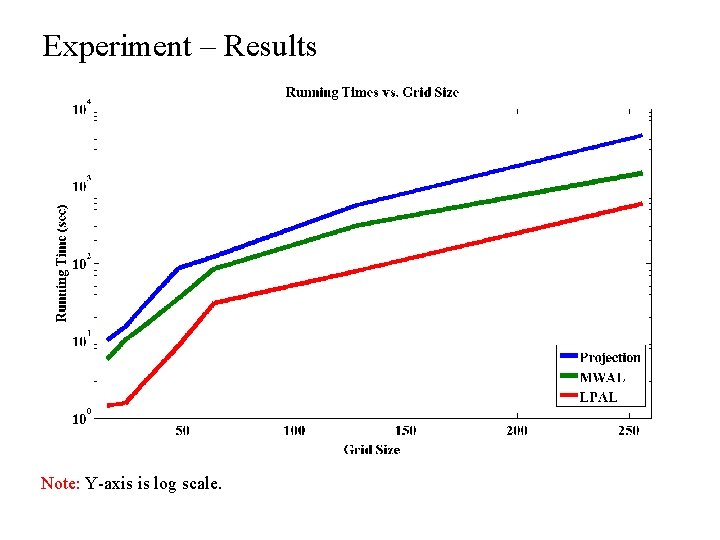

Experiment – Results Note: Y-axis is log scale.

Experiment – Results Note: Y-axis is log scale.

Demo – Mimicking the Expert Output of LPAL algorithm

Demo – Improving Upon the Expert Output of LPAL algorithm

Outline ü Introduction ü Apprenticeship Learning ü Prior Work ü Summary of Our Approach ü Background: Occupancy Measure ü Linear Program for Apprenticeship Learning (LPAL) ü Experiments and Demos • Other Topics

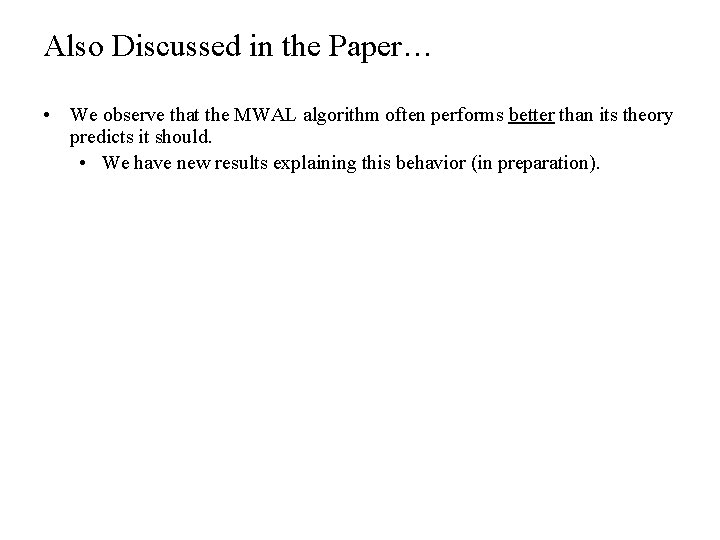

Also Discussed in the Paper… • We observe that the MWAL algorithm often performs better than its theory predicts it should. • We have new results explaining this behavior (in preparation).

Related to Our Approach • Constrained MDPs and RL with multiple rewards: – – – Feinberg and Schwartz (1996) Gabor, Kalmar and Szepesvari (1998) Altman (1999) Shelton (2000) Dolgov and Durfree (2005) … • Max margin planning: – Ratliff, Bagnell and Zinkevich (2006)

Recap • A new apprenticeship learning algorithm that: – Produces simpler apprentice policies, and – Is empirically faster than previous algorithms. • Thanks! Questions?

Prior Work – Details • Algorithms for finding ¼A: – Max-Margin: Based on quadratic programming. – Projection: Based on a geometric approach. – MWAL: Based on a multiplicative weights approach, similar to boosting. • Actually, existing algorithms don’t find a single stationary ¼A, but instead find a distribution D over a set of stationary policies, such that E¼ » D[V(¼A)] ¸ V(¼E). • Drawbacks: – Apprentice policy is nonintuitive and complicated to describe. – Algorithms have slow empirical running time.

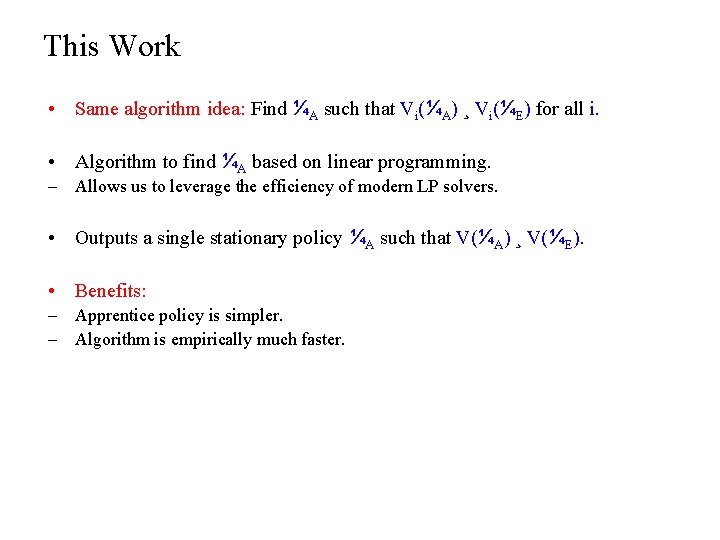

This Work • Same algorithm idea: Find ¼A such that Vi(¼A) ¸ Vi(¼E) for all i. • Algorithm to find ¼A based on linear programming. – Allows us to leverage the efficiency of modern LP solvers. • Outputs a single stationary policy ¼A such that V(¼A) ¸ V(¼E). • Benefits: – Apprentice policy is simpler. – Algorithm is empirically much faster.

This Work • Same algorithm idea: Find ¼A such that Vi(¼A) ¸ Vi(¼E) for all i. • Algorithm to find ¼A based on linear programming. – Allows us to leverage the efficiency of modern LP solvers. • Outputs a single stationary policy ¼A such that V(¼A) ¸ V(¼E). • Benefits: – Apprentice policy is simpler. – Algorithm is empirically much faster.

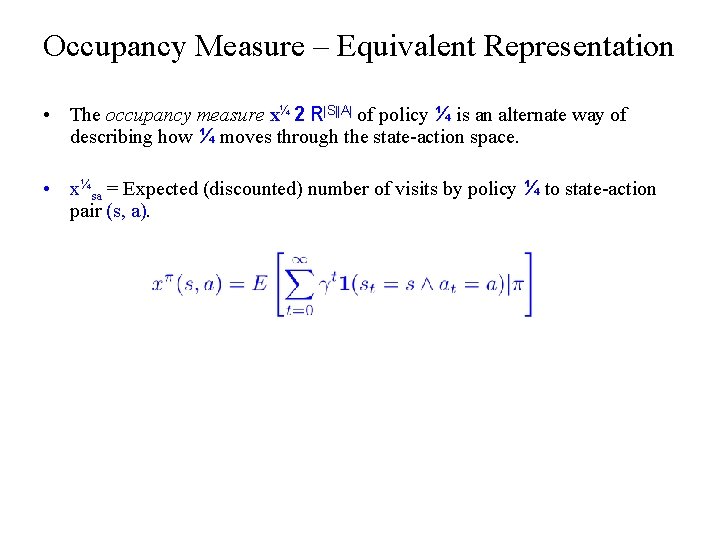

Occupancy Measure – Equivalent Representation • The occupancy measure x¼ 2 R|S||A| of policy ¼ is an alternate way of describing how ¼ moves through the state-action space. • x¼sa = Expected (discounted) number of visits by policy ¼ to state-action pair (s, a).

Occupancy Measure – Calculating Value • Given the occupancy measure x¼ of a policy ¼, computing the basis values of ¼ is easy. Define ºi(x) , s, a Ri(s, a) ¢ xsa Then V_i(pi) = nu_i(x^pi). In other words, nu_i(x) is the ith basis value of a policy whose occupancy measure is x. Proof: Policy ¼ earns (suitably discounted) reward Ri(s, a) for each visit to stateaction pair (s, a). And x¼sa is the expected (and suitably discounted) number of visits by policy ¼ to state-action pair (s, a).

Occupancy Measure – Calculating Value • Given the occupancy measure x¼ of a policy ¼, computing the basis values of ¼ is easy: Vi(¼) = s, a Ri(s, a) ¢ x¼(s, a) Proof: Linearity of expectation. For convenience, define: ºi(x) , s, a Ri(s, a) ¢ x(s, a)

Occupancy Measure – Calculating Value • Define º(x) , s, a R(s, a) ¢ xsa Then V(¼) = º(x¼). In other words, º(x) is the value of a policy whose occupancy measure is x. • Proof: • • • Policy ¼ earns (discounted) reward R(s, a) for each visit to state-action pair (s, a). And x¼sa is the expected (discounted) number of visits by policy ¼ to state-action pair (s, a). So V(pi) is

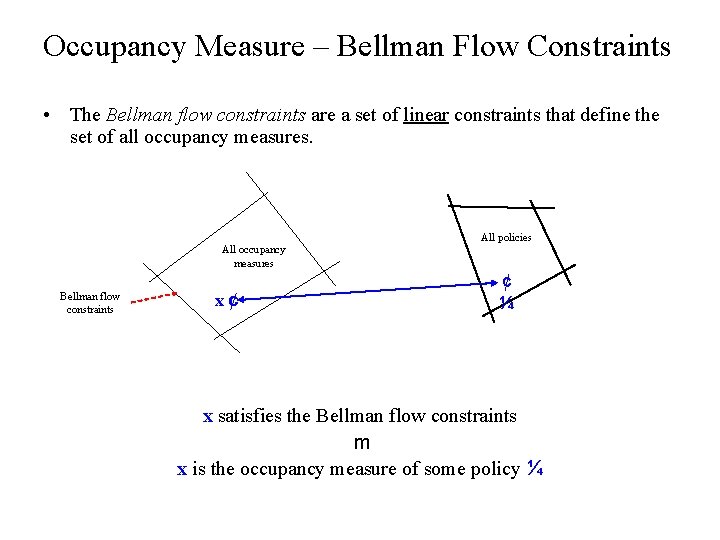

Occupancy Measure – Bellman Flow Constraints • The Bellman flow constraints are a set of linear constraints that define the set of all occupancy measures. All occupancy measures Bellman flow constraints x¢ All policies ¢ ¼ x satisfies the Bellman flow constraints m x is the occupancy measure of some policy ¼

Algorithm 1. Estimate Vi(¼E) for all i from expert’s demonstrations. 2. Find ¼A that solves: Vi(¼A) ¸ Vi(¼E) for all i. subject to: ¼A is a policy

Related Work • Quite a lot of work on constrained MDPs and MDPs with multiple rewards: • Feinberg and Schwartz (1996) • Gabor, Kalmar and Szepesvari (1998) • Altman (1999) • Shelton (2000) • Dolgov and Durfree (2005) • … • Closely related to Apprenticeship Learning. May be a source of ideas…

Apprenticeship Learning – Example • States: – Speeds and positions of all cars • Actions: – Left, right, speed up, and slow down Expert demonstrating policy ¼E. • Basis reward functions: – Speed – Collision indicator – Off-road indicator • True reward function: – Unknown weighted combination of basis rewards.

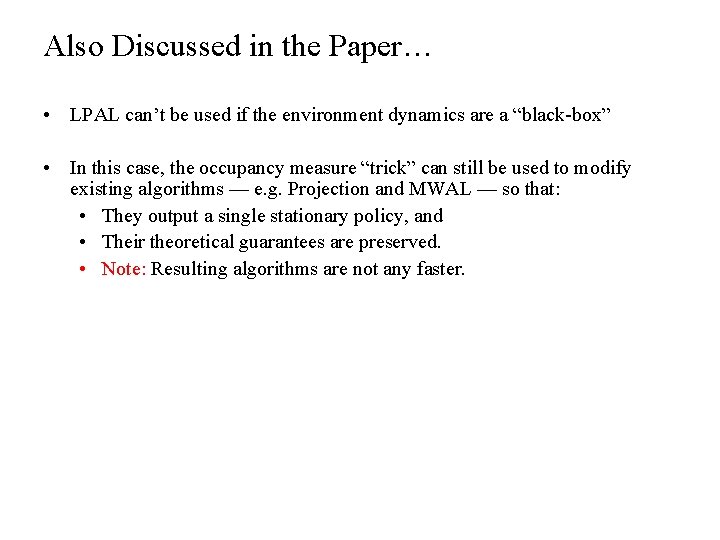

Also Discussed in the Paper… • LPAL can’t be used if the environment dynamics are a “black-box” • In this case, the occupancy measure “trick” can still be used to modify existing algorithms — e. g. Projection and MWAL — so that: • They output a single stationary policy, and • Their theoretical guarantees are preserved. • Note: Resulting algorithms are not any faster.
