Applying Hidden Markov Models to Bioinformatics Outline What

Applying Hidden Markov Models to Bioinformatics

Outline �What are Hidden Markov Models? �Why are they a good tool for Bioinformatics? �Applications in Bioinformatics

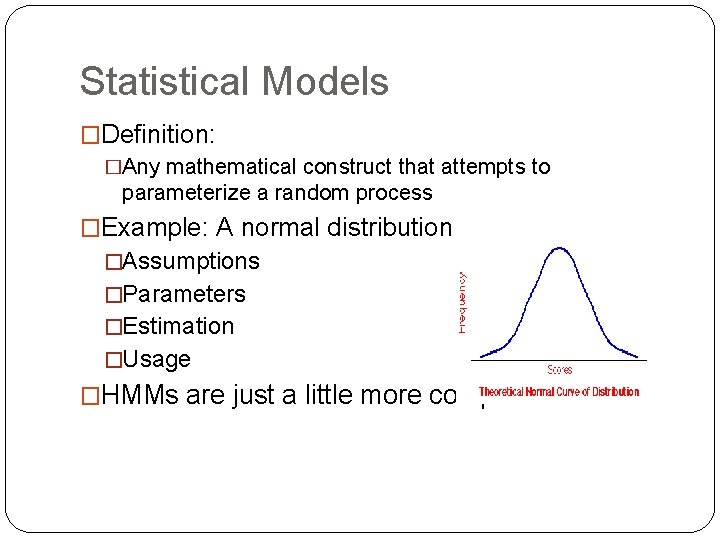

Statistical Models �Definition: �Any mathematical construct that attempts to parameterize a random process �Example: A normal distribution �Assumptions �Parameters �Estimation �Usage �HMMs are just a little more complicated…

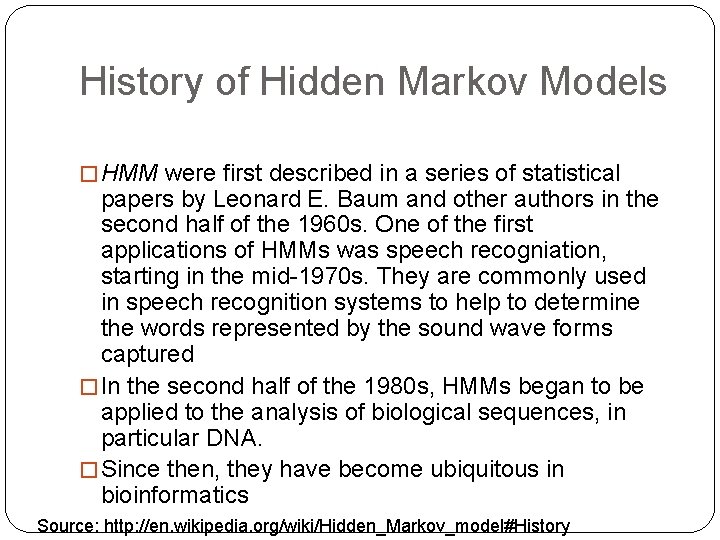

History of Hidden Markov Models � HMM were first described in a series of statistical papers by Leonard E. Baum and other authors in the second half of the 1960 s. One of the first applications of HMMs was speech recogniation, starting in the mid-1970 s. They are commonly used in speech recognition systems to help to determine the words represented by the sound wave forms captured � In the second half of the 1980 s, HMMs began to be applied to the analysis of biological sequences, in particular DNA. � Since then, they have become ubiquitous in bioinformatics Source: http: //en. wikipedia. org/wiki/Hidden_Markov_model#History

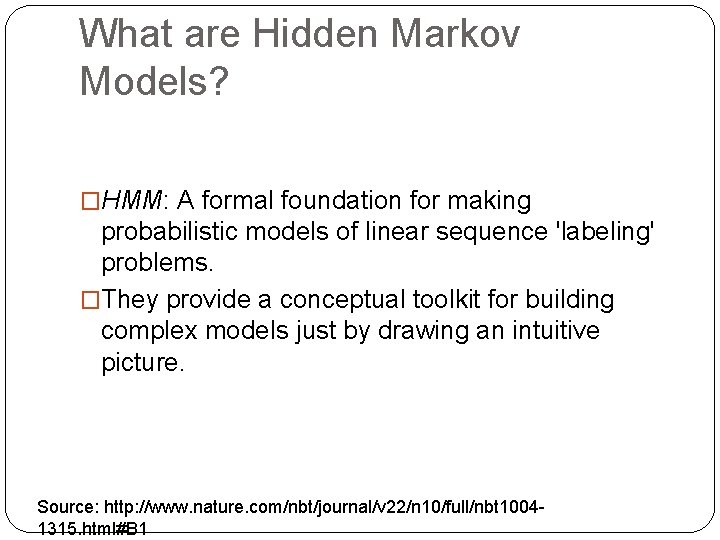

What are Hidden Markov Models? �HMM: A formal foundation for making probabilistic models of linear sequence 'labeling' problems. �They provide a conceptual toolkit for building complex models just by drawing an intuitive picture. Source: http: //www. nature. com/nbt/journal/v 22/n 10/full/nbt 10041315. html#B 1

What are Hidden Markov Models? �Machine learning approach in bioinformatics �Machine learning algorithms are presented with training data, which are used to derive important insights about the (often hidden) parameters. �Once an algorithm has been trained, it can apply these insights to the analysis of a test sample �As the amount of training data increases, the accuracy of the machine learning algorithm typically increasess as well. Source: http: //www. nature. com/nbt/journal/v 22/n 10/full/nbt 10041315. html#B 1

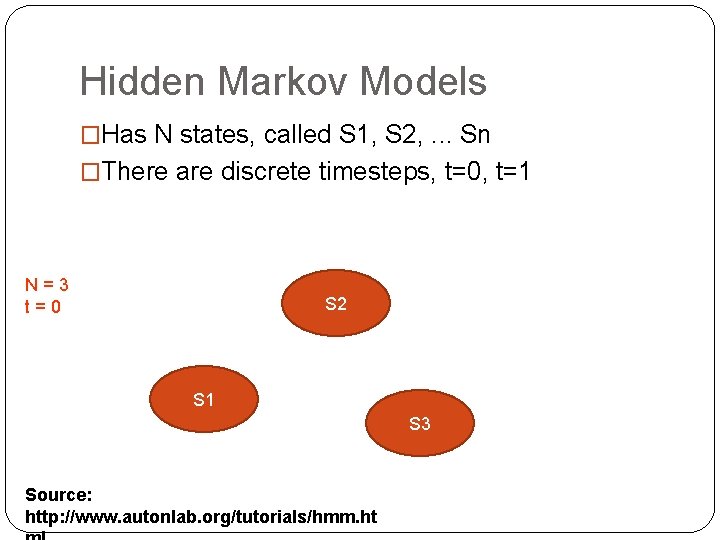

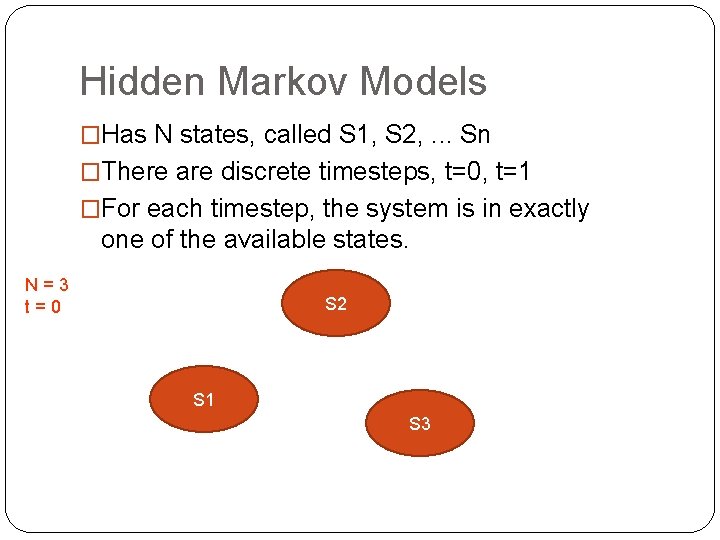

Hidden Markov Models �Has N states, called S 1, S 2, . . . Sn �There are discrete timesteps, t=0, t=1 N=3 t=0 S 2 S 1 S 3 Source: http: //www. autonlab. org/tutorials/hmm. ht

Hidden Markov Models �Has N states, called S 1, S 2, . . . Sn �There are discrete timesteps, t=0, t=1 �For each timestep, the system is in exactly one of the available states. N=3 t=0 S 2 S 1 S 3

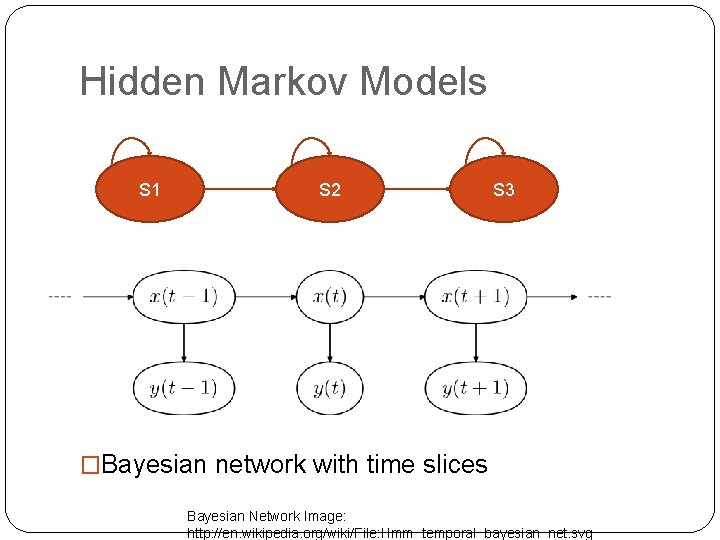

Hidden Markov Models S 1 S 2 S 3 �Bayesian network with time slices Bayesian Network Image: http: //en. wikipedia. org/wiki/File: Hmm_temporal_bayesian_net. svg

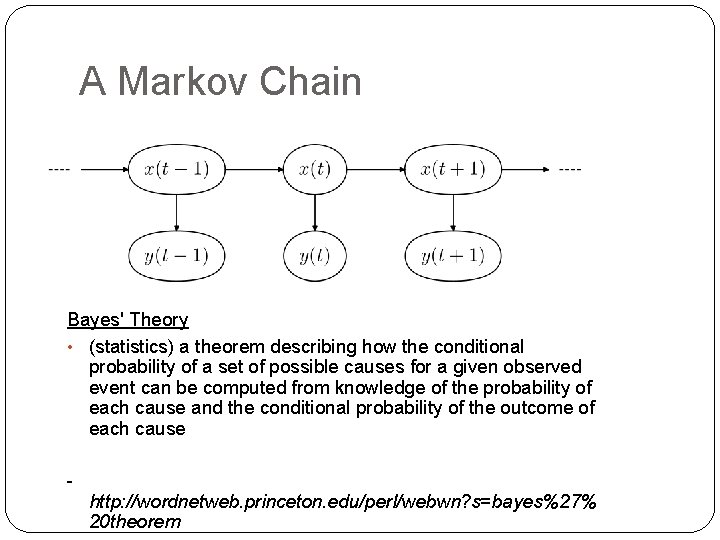

A Markov Chain Bayes' Theory • (statistics) a theorem describing how the conditional probability of a set of possible causes for a given observed event can be computed from knowledge of the probability of each cause and the conditional probability of the outcome of each cause - http: //wordnetweb. princeton. edu/perl/webwn? s=bayes%27% 20 theorem

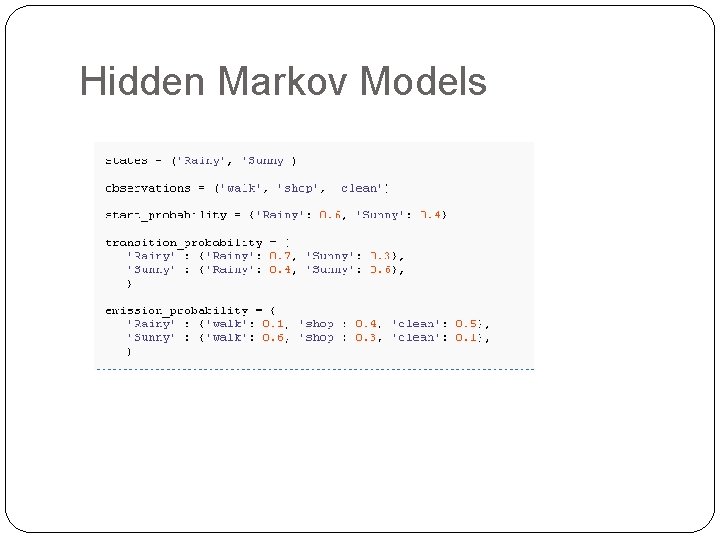

Building a Markov Chain Concrete Example � Two friends, Alice and Bob, who live far apart from each other and who talk together daily over the telephone about what they did that day. � Bob is only interested in three activities: walking in the park, shopping, and cleaning his apartment. � The choice of what to do is determined exclusively by the weather on a given day. � Alice has no definite information about the weather where Bob lives, but she knows general trends. � Based on what Bob tells her he did each day, Alice tries to guess what the weather must have been like. � Alice believes that the weather operates as a discrete Markov chain. There are two states, "Rainy" and "Sunny", but she cannot observe them directly, that is, they are hidden from her. � On each day, there is a certain chance that Bob will perform one of the following activities, depending on the weather: "walk", "shop", or "clean". Since Bob tells Alice about his activities, those are the observations. Source: Wikipedia. org

Hidden Markov Models

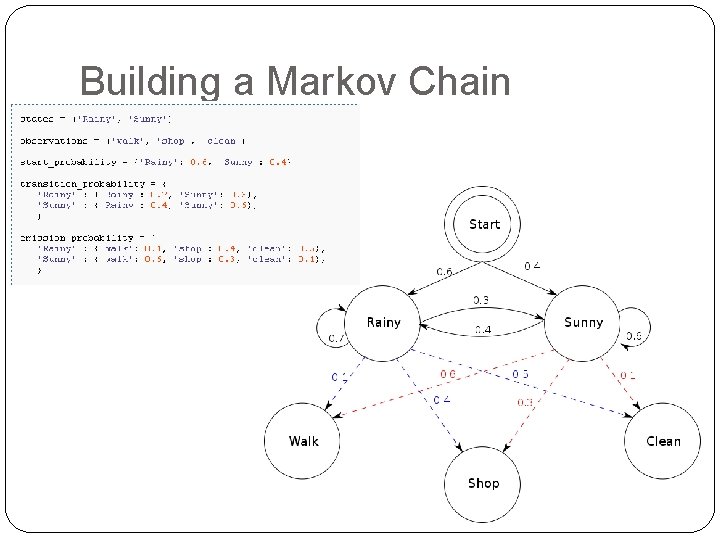

Building a Markov Chain

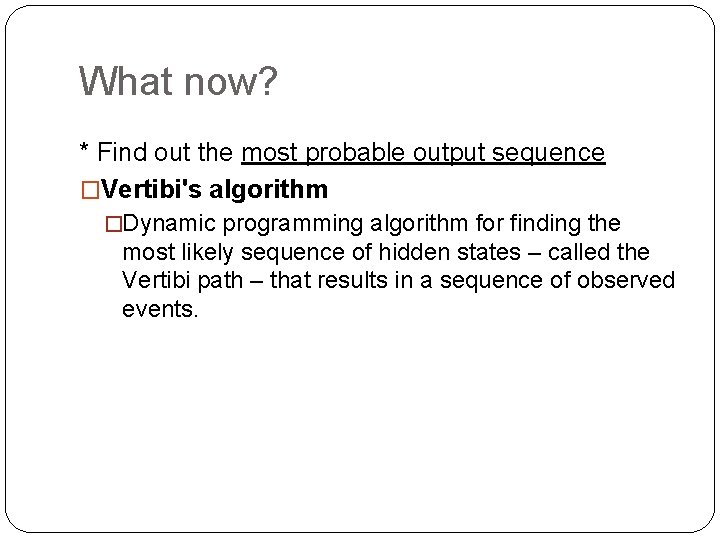

What now? * Find out the most probable output sequence �Vertibi's algorithm �Dynamic programming algorithm for finding the most likely sequence of hidden states – called the Vertibi path – that results in a sequence of observed events.

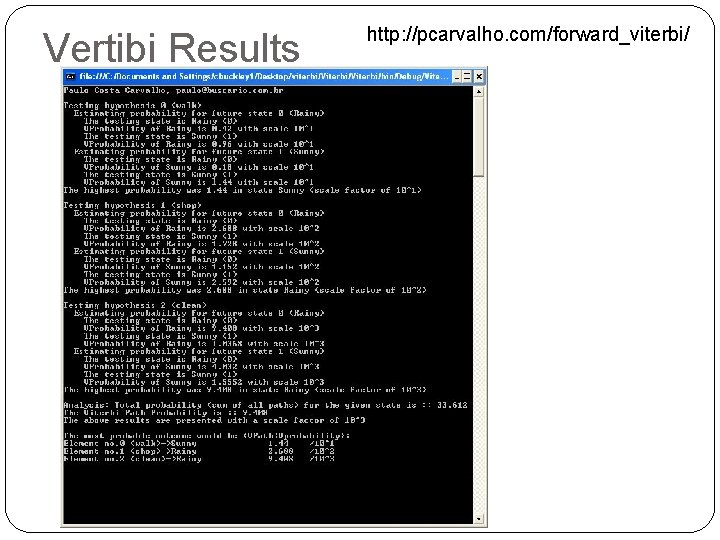

Vertibi Results http: //pcarvalho. com/forward_viterbi/

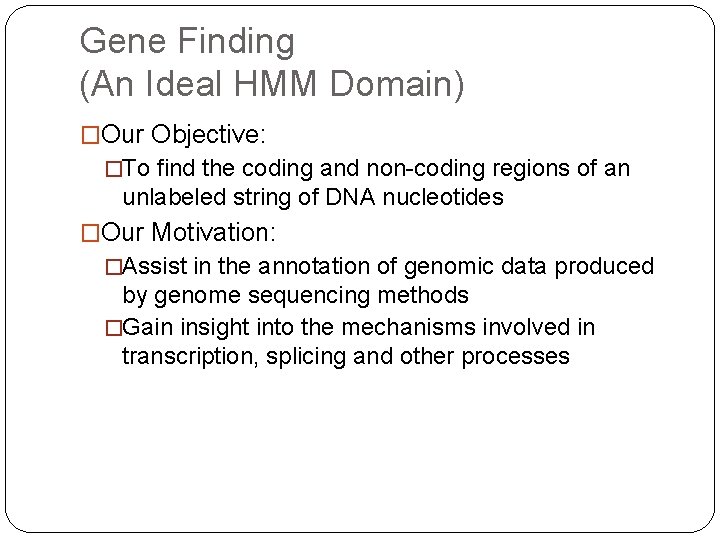

Gene Finding (An Ideal HMM Domain) �Our Objective: �To find the coding and non-coding regions of an unlabeled string of DNA nucleotides �Our Motivation: �Assist in the annotation of genomic data produced by genome sequencing methods �Gain insight into the mechanisms involved in transcription, splicing and other processes

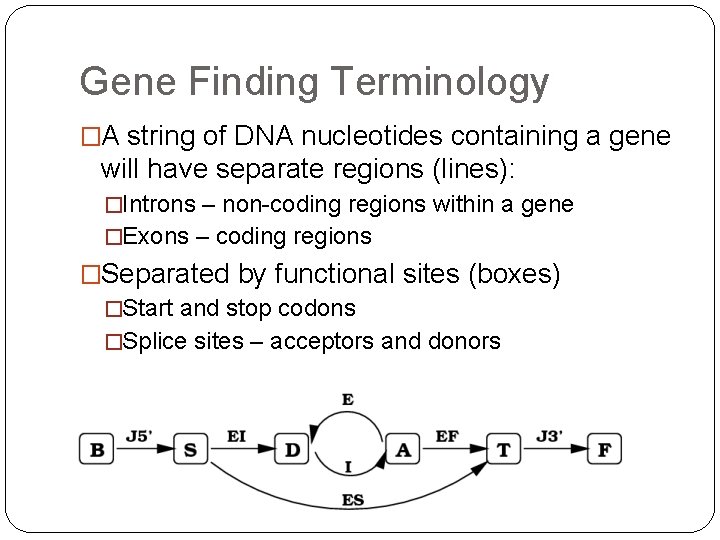

Gene Finding Terminology �A string of DNA nucleotides containing a gene will have separate regions (lines): �Introns – non-coding regions within a gene �Exons – coding regions �Separated by functional sites (boxes) �Start and stop codons �Splice sites – acceptors and donors

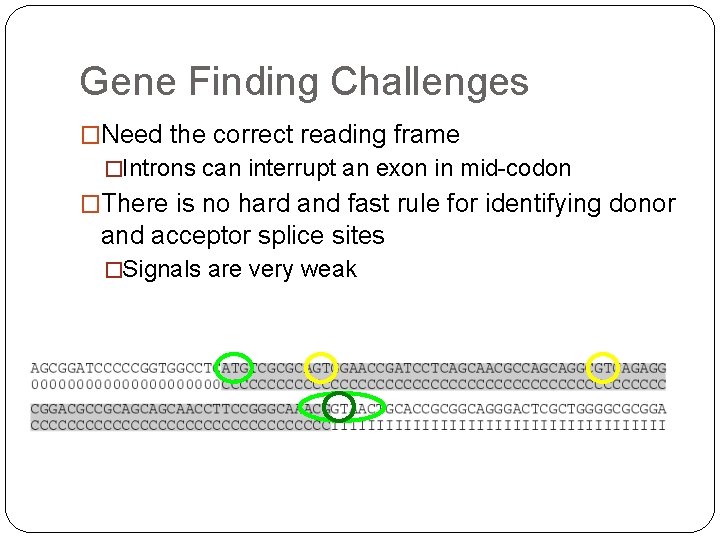

Gene Finding Challenges �Need the correct reading frame �Introns can interrupt an exon in mid-codon �There is no hard and fast rule for identifying donor and acceptor splice sites �Signals are very weak

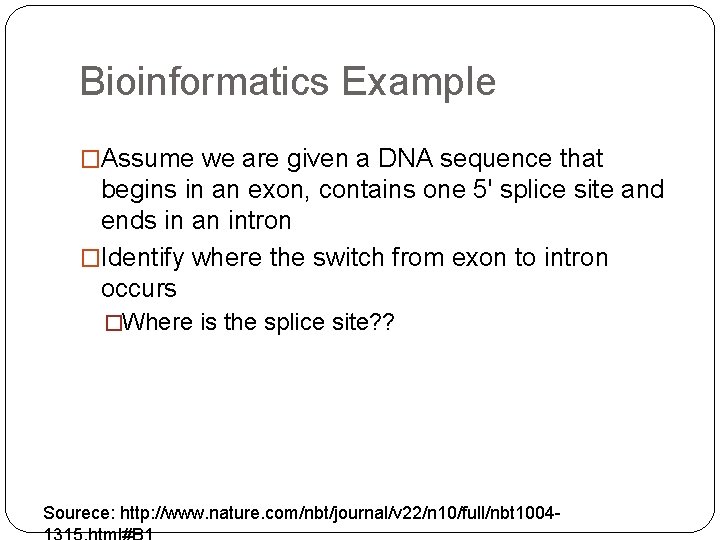

Bioinformatics Example �Assume we are given a DNA sequence that begins in an exon, contains one 5' splice site and ends in an intron �Identify where the switch from exon to intron occurs �Where is the splice site? ? Sourece: http: //www. nature. com/nbt/journal/v 22/n 10/full/nbt 1004 -

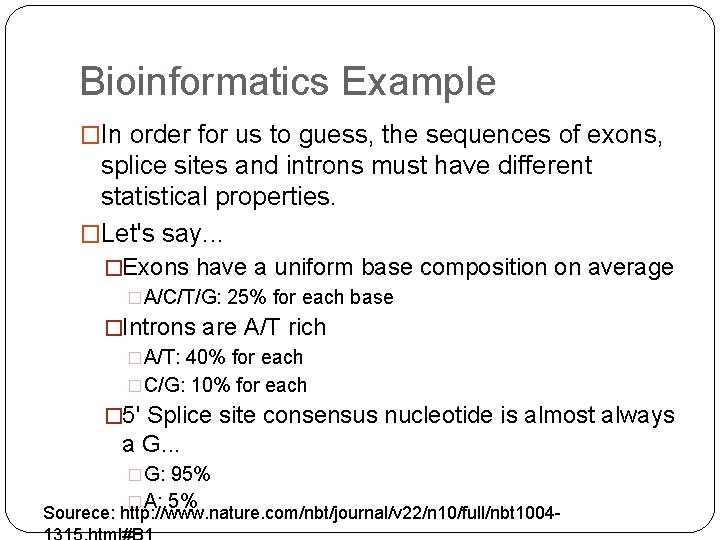

Bioinformatics Example �In order for us to guess, the sequences of exons, splice sites and introns must have different statistical properties. �Let's say. . . �Exons have a uniform base composition on average �A/C/T/G: 25% for each base �Introns are A/T rich �A/T: 40% for each �C/G: 10% for each � 5' Splice site consensus nucleotide is almost always a G. . . �G: 95% �A: 5% Sourece: http: //www. nature. com/nbt/journal/v 22/n 10/full/nbt 1004 -

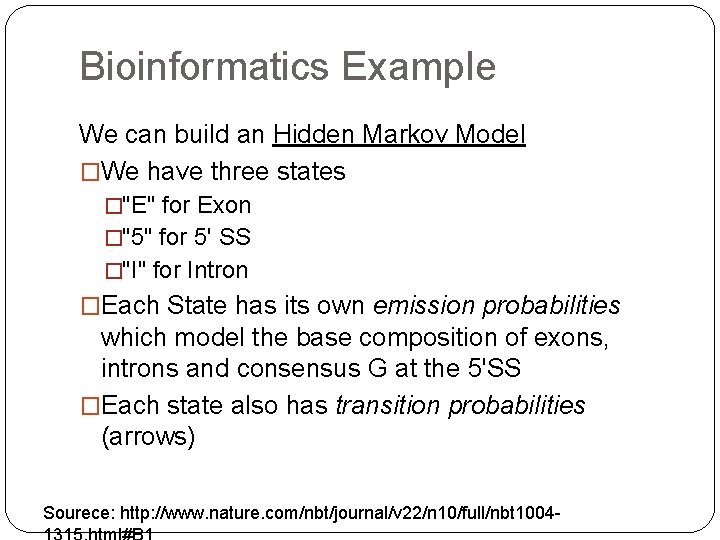

Bioinformatics Example We can build an Hidden Markov Model �We have three states �"E" for Exon �"5" for 5' SS �"I" for Intron �Each State has its own emission probabilities which model the base composition of exons, introns and consensus G at the 5'SS �Each state also has transition probabilities (arrows) Sourece: http: //www. nature. com/nbt/journal/v 22/n 10/full/nbt 1004 -

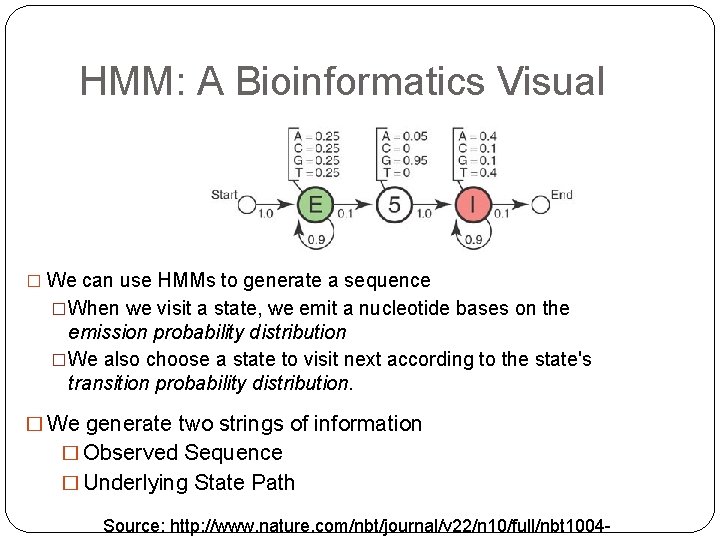

HMM: A Bioinformatics Visual � We can use HMMs to generate a sequence �When we visit a state, we emit a nucleotide bases on the emission probability distribution �We also choose a state to visit next according to the state's transition probability distribution. � We generate two strings of information � Observed Sequence � Underlying State Path Source: http: //www. nature. com/nbt/journal/v 22/n 10/full/nbt 1004 -

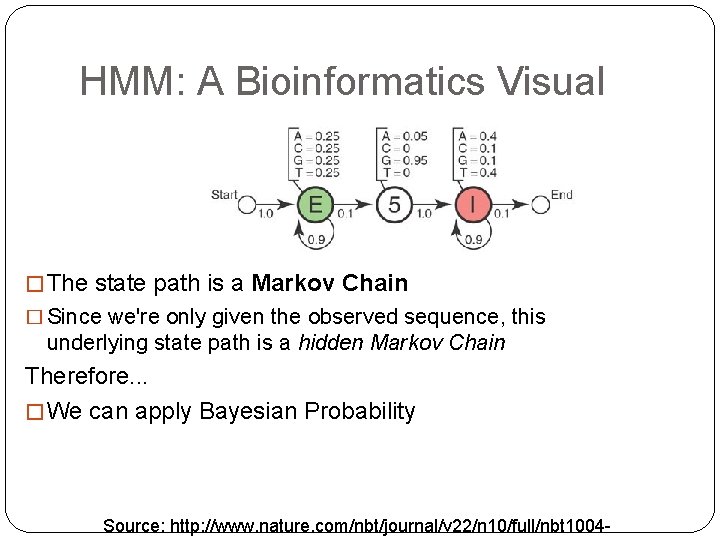

HMM: A Bioinformatics Visual � The state path is a Markov Chain � Since we're only given the observed sequence, this underlying state path is a hidden Markov Chain Therefore. . . � We can apply Bayesian Probability Source: http: //www. nature. com/nbt/journal/v 22/n 10/full/nbt 1004 -

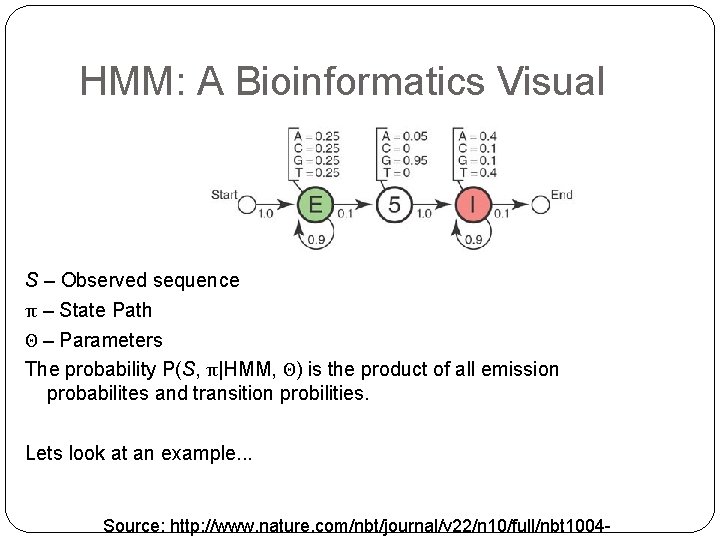

HMM: A Bioinformatics Visual S – Observed sequence π – State Path Θ – Parameters The probability P(S, π|HMM, Θ) is the product of all emission probabilites and transition probilities. Lets look at an example. . . Source: http: //www. nature. com/nbt/journal/v 22/n 10/full/nbt 1004 -

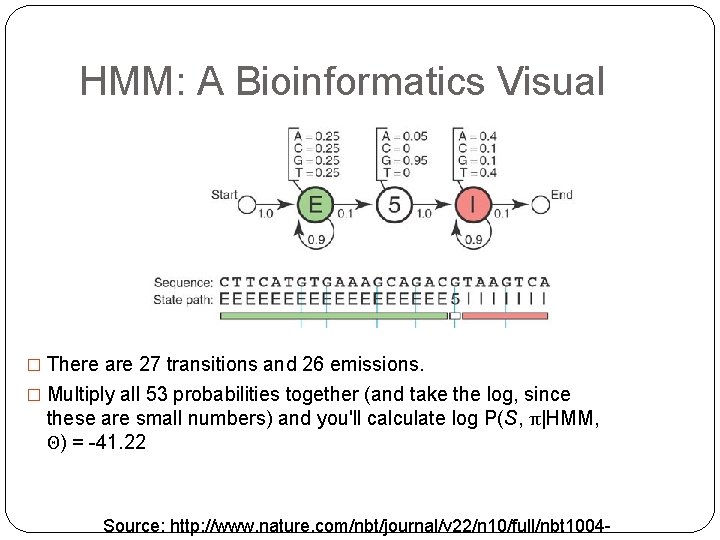

HMM: A Bioinformatics Visual � There are 27 transitions and 26 emissions. � Multiply all 53 probabilities together (and take the log, since these are small numbers) and you'll calculate log P(S, π|HMM, Θ) = -41. 22 Source: http: //www. nature. com/nbt/journal/v 22/n 10/full/nbt 1004 -

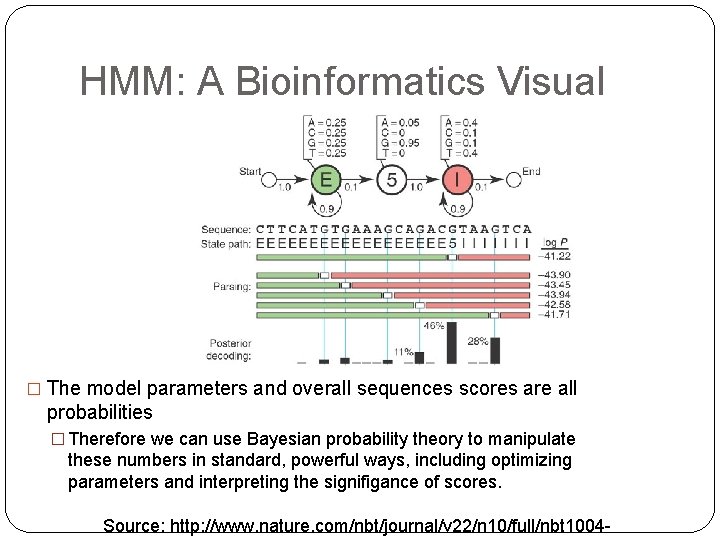

HMM: A Bioinformatics Visual � The model parameters and overall sequences scores are all probabilities � Therefore we can use Bayesian probability theory to manipulate these numbers in standard, powerful ways, including optimizing parameters and interpreting the signifigance of scores. Source: http: //www. nature. com/nbt/journal/v 22/n 10/full/nbt 1004 -

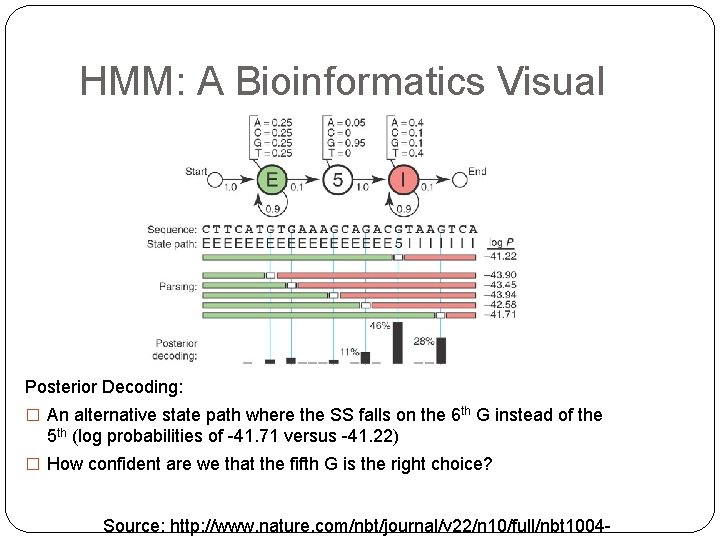

HMM: A Bioinformatics Visual Posterior Decoding: � An alternative state path where the SS falls on the 6 th G instead of the 5 th (log probabilities of -41. 71 versus -41. 22) � How confident are we that the fifth G is the right choice? Source: http: //www. nature. com/nbt/journal/v 22/n 10/full/nbt 1004 -

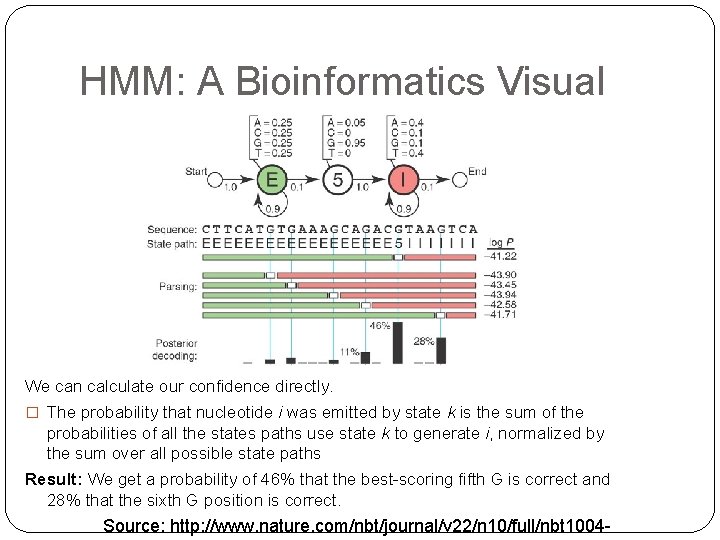

HMM: A Bioinformatics Visual We can calculate our confidence directly. � The probability that nucleotide i was emitted by state k is the sum of the probabilities of all the states paths use state k to generate i, normalized by the sum over all possible state paths Result: We get a probability of 46% that the best-scoring fifth G is correct and 28% that the sixth G position is correct. Source: http: //www. nature. com/nbt/journal/v 22/n 10/full/nbt 1004 -

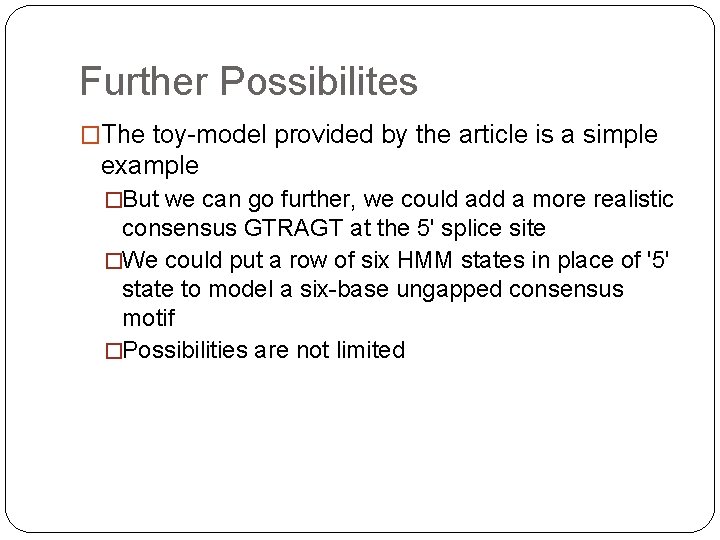

Further Possibilites �The toy-model provided by the article is a simple example �But we can go further, we could add a more realistic consensus GTRAGT at the 5' splice site �We could put a row of six HMM states in place of '5' state to model a six-base ungapped consensus motif �Possibilities are not limited

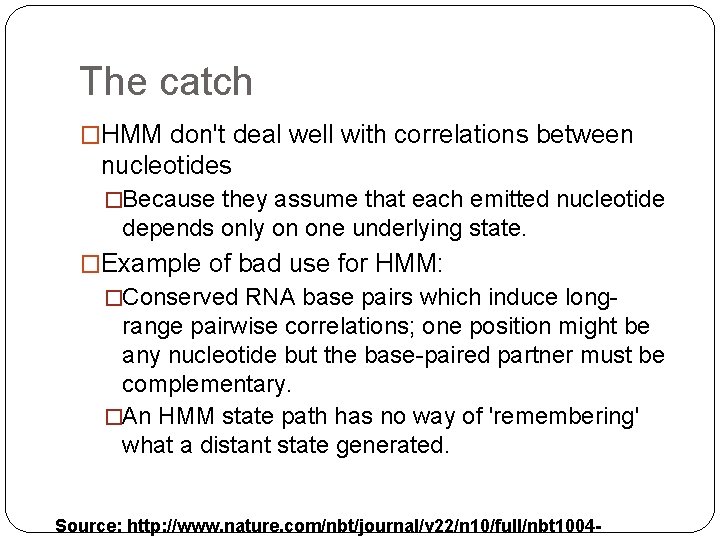

The catch �HMM don't deal well with correlations between nucleotides �Because they assume that each emitted nucleotide depends only on one underlying state. �Example of bad use for HMM: �Conserved RNA base pairs which induce long- range pairwise correlations; one position might be any nucleotide but the base-paired partner must be complementary. �An HMM state path has no way of 'remembering' what a distant state generated. Source: http: //www. nature. com/nbt/journal/v 22/n 10/full/nbt 1004 -

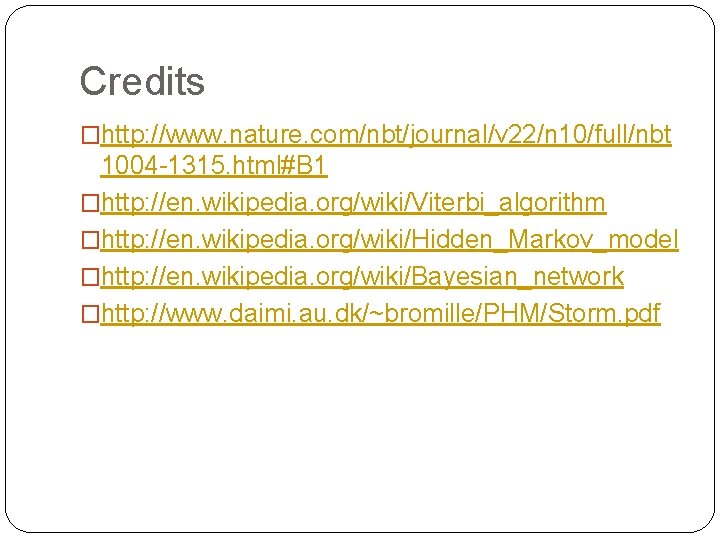

Credits �http: //www. nature. com/nbt/journal/v 22/n 10/full/nbt 1004 -1315. html#B 1 �http: //en. wikipedia. org/wiki/Viterbi_algorithm �http: //en. wikipedia. org/wiki/Hidden_Markov_model �http: //en. wikipedia. org/wiki/Bayesian_network �http: //www. daimi. au. dk/~bromille/PHM/Storm. pdf

What makes a good HMM problem space? Characteristics: �Classification problems There are two main types of output from an HMM: �Scoring of sequences �(Protein family modeling) �Labeling of observations within a sequence �(Gene Finding)

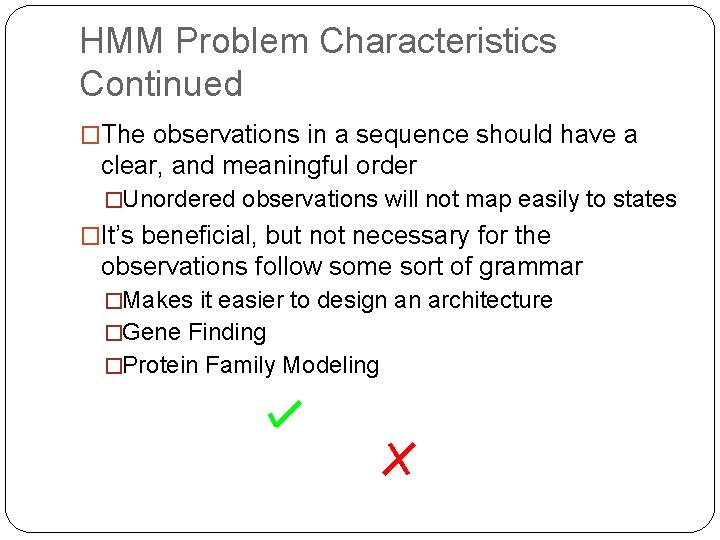

HMM Problem Characteristics Continued �The observations in a sequence should have a clear, and meaningful order �Unordered observations will not map easily to states �It’s beneficial, but not necessary for the observations follow some sort of grammar �Makes it easier to design an architecture �Gene Finding �Protein Family Modeling

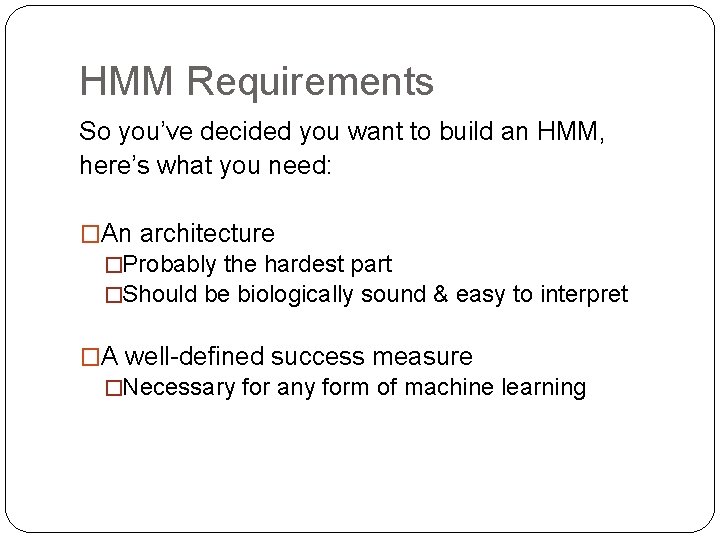

HMM Requirements So you’ve decided you want to build an HMM, here’s what you need: �An architecture �Probably the hardest part �Should be biologically sound & easy to interpret �A well-defined success measure �Necessary for any form of machine learning

HMM Requirements Continued �Training data �Labeled or unlabeled – it depends �You do not always need a labeled training set to do observation labeling, but it helps �Amount of training data needed is: �Directly proportional to the number of free parameters in the model �Inversely proportional to the size of the training sequences

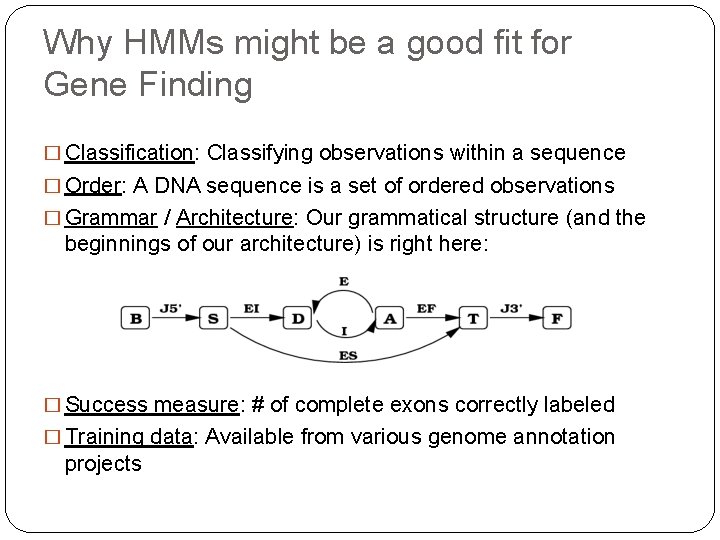

Why HMMs might be a good fit for Gene Finding � Classification: Classifying observations within a sequence � Order: A DNA sequence is a set of ordered observations � Grammar / Architecture: Our grammatical structure (and the beginnings of our architecture) is right here: � Success measure: # of complete exons correctly labeled � Training data: Available from various genome annotation projects

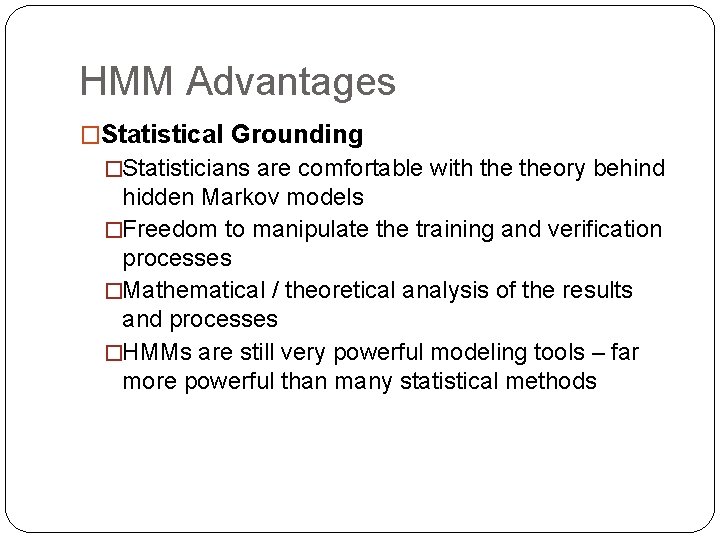

HMM Advantages �Statistical Grounding �Statisticians are comfortable with theory behind hidden Markov models �Freedom to manipulate the training and verification processes �Mathematical / theoretical analysis of the results and processes �HMMs are still very powerful modeling tools – far more powerful than many statistical methods

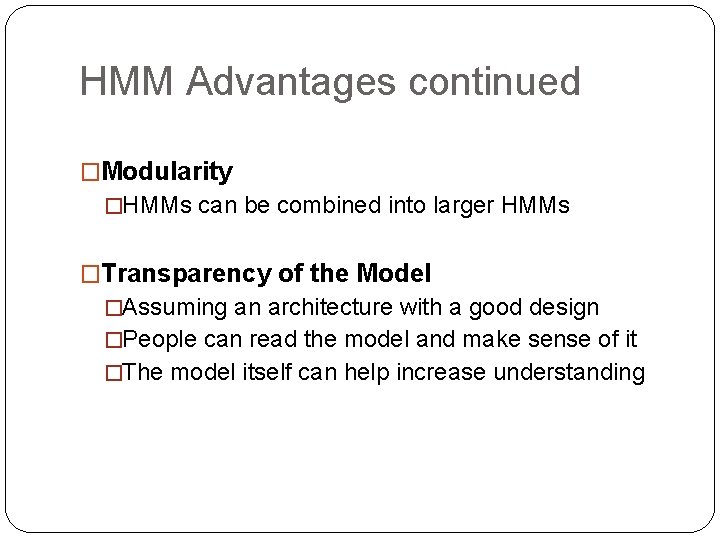

HMM Advantages continued �Modularity �HMMs can be combined into larger HMMs �Transparency of the Model �Assuming an architecture with a good design �People can read the model and make sense of it �The model itself can help increase understanding

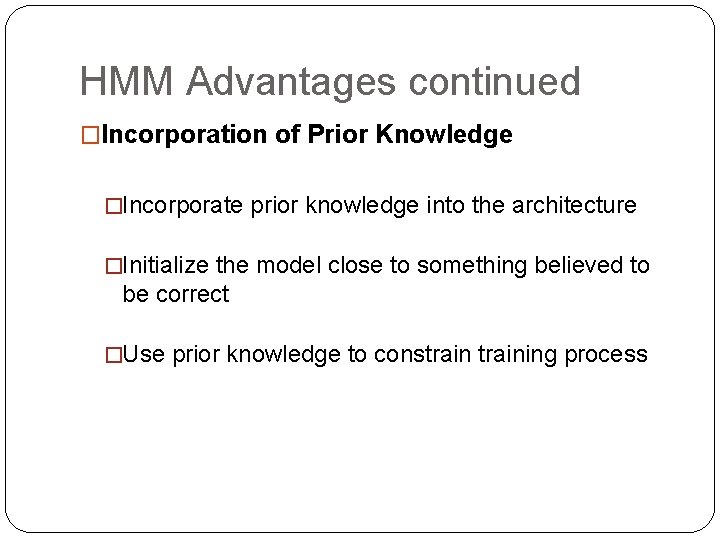

HMM Advantages continued �Incorporation of Prior Knowledge �Incorporate prior knowledge into the architecture �Initialize the model close to something believed to be correct �Use prior knowledge to constraining process

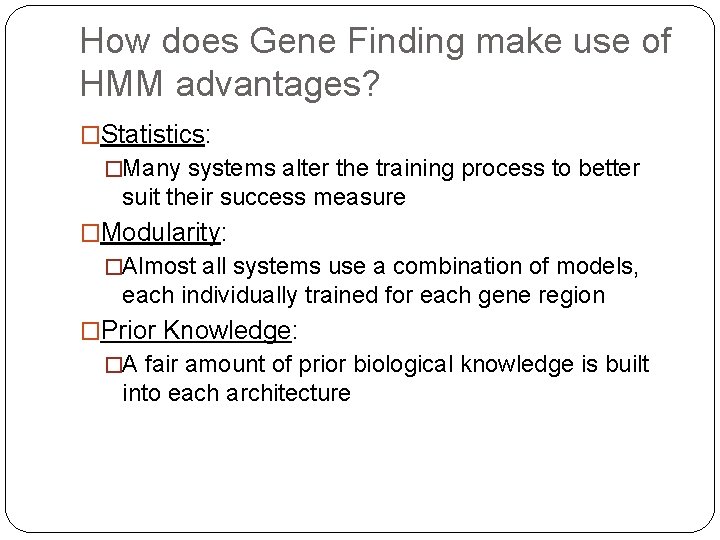

How does Gene Finding make use of HMM advantages? �Statistics: �Many systems alter the training process to better suit their success measure �Modularity: �Almost all systems use a combination of models, each individually trained for each gene region �Prior Knowledge: �A fair amount of prior biological knowledge is built into each architecture

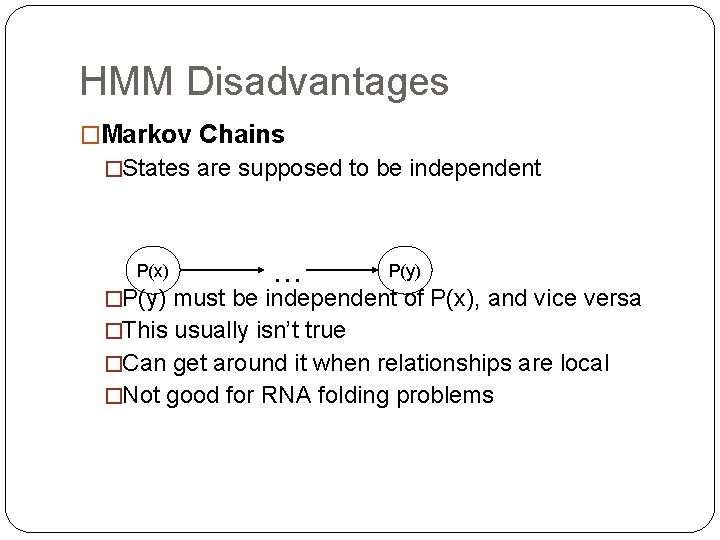

HMM Disadvantages �Markov Chains �States are supposed to be independent P(x) … P(y) �P(y) must be independent of P(x), and vice versa �This usually isn’t true �Can get around it when relationships are local �Not good for RNA folding problems

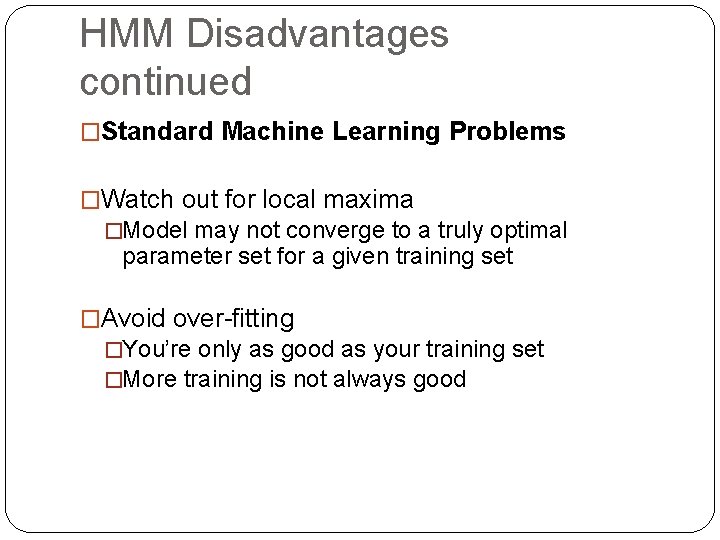

HMM Disadvantages continued �Standard Machine Learning Problems �Watch out for local maxima �Model may not converge to a truly optimal parameter set for a given training set �Avoid over-fitting �You’re only as good as your training set �More training is not always good

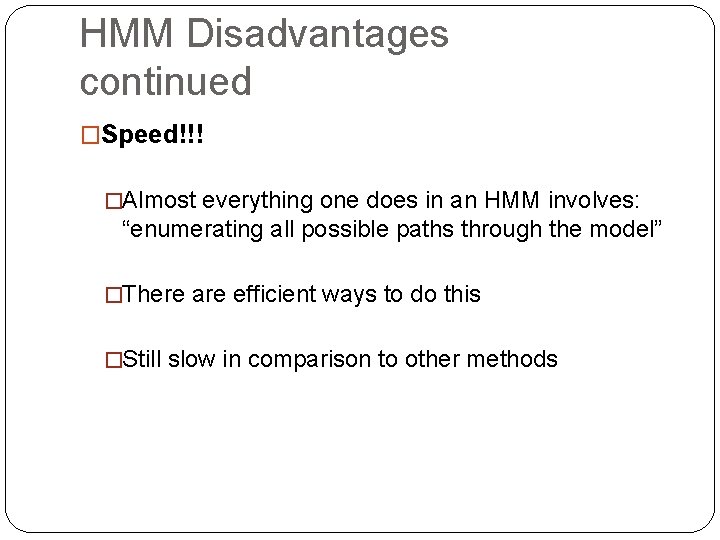

HMM Disadvantages continued �Speed!!! �Almost everything one does in an HMM involves: “enumerating all possible paths through the model” �There are efficient ways to do this �Still slow in comparison to other methods

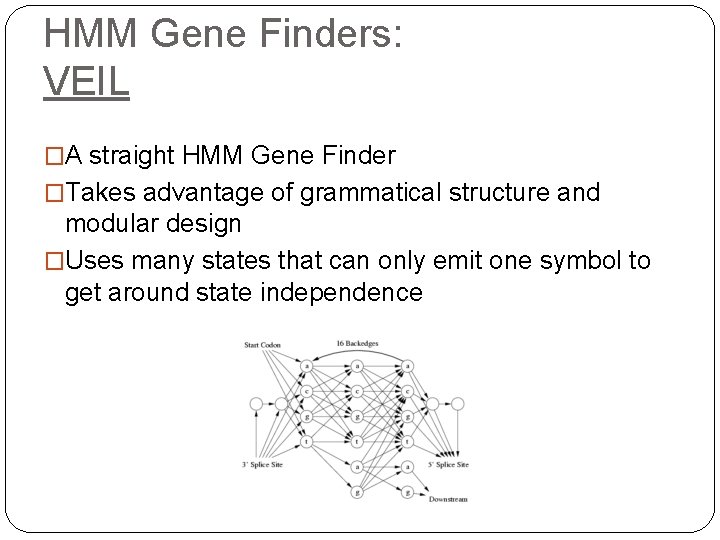

HMM Gene Finders: VEIL �A straight HMM Gene Finder �Takes advantage of grammatical structure and modular design �Uses many states that can only emit one symbol to get around state independence

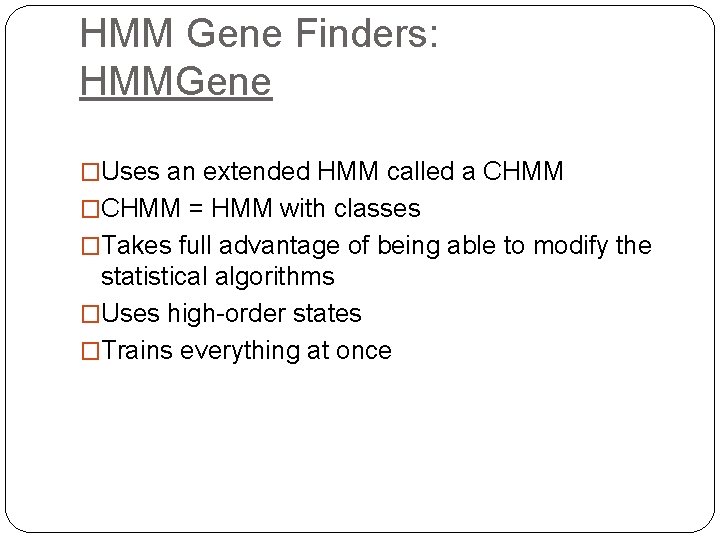

HMM Gene Finders: HMMGene �Uses an extended HMM called a CHMM �CHMM = HMM with classes �Takes full advantage of being able to modify the statistical algorithms �Uses high-order states �Trains everything at once

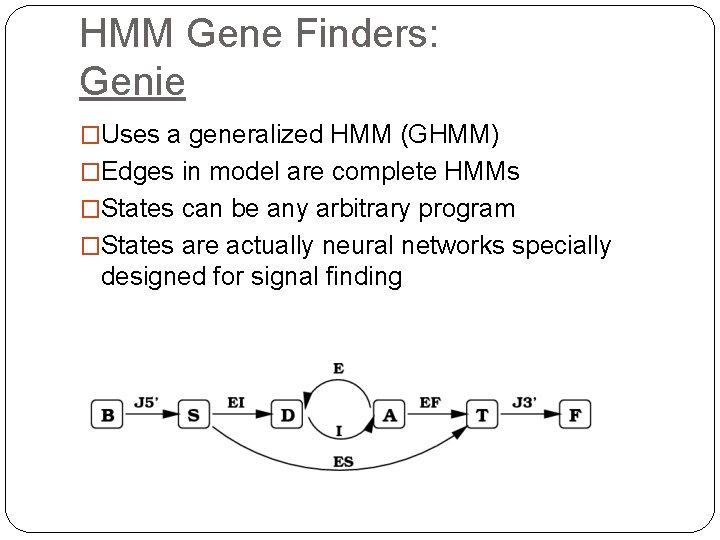

HMM Gene Finders: Genie �Uses a generalized HMM (GHMM) �Edges in model are complete HMMs �States can be any arbitrary program �States are actually neural networks specially designed for signal finding

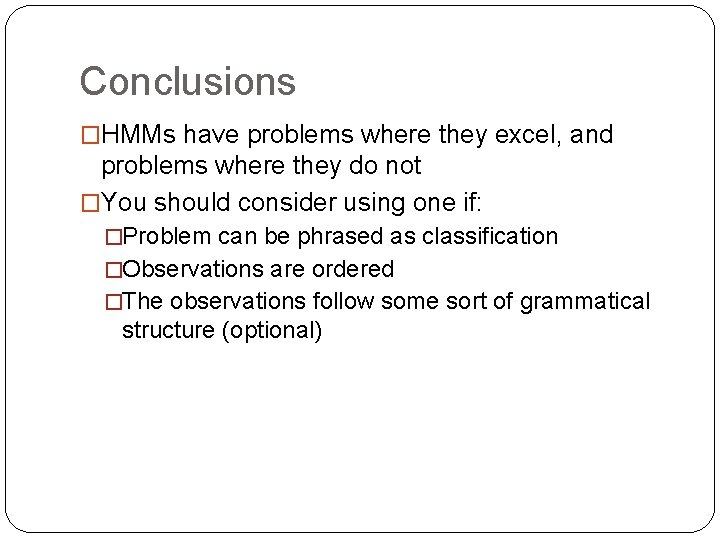

Conclusions �HMMs have problems where they excel, and problems where they do not �You should consider using one if: �Problem can be phrased as classification �Observations are ordered �The observations follow some sort of grammatical structure (optional)

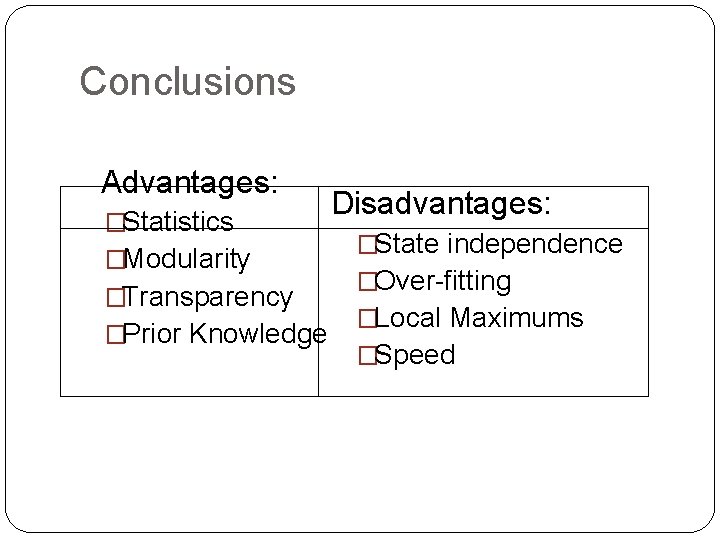

Conclusions Advantages: �Statistics �Modularity �Transparency �Prior Knowledge Disadvantages: �State independence �Over-fitting �Local Maximums �Speed

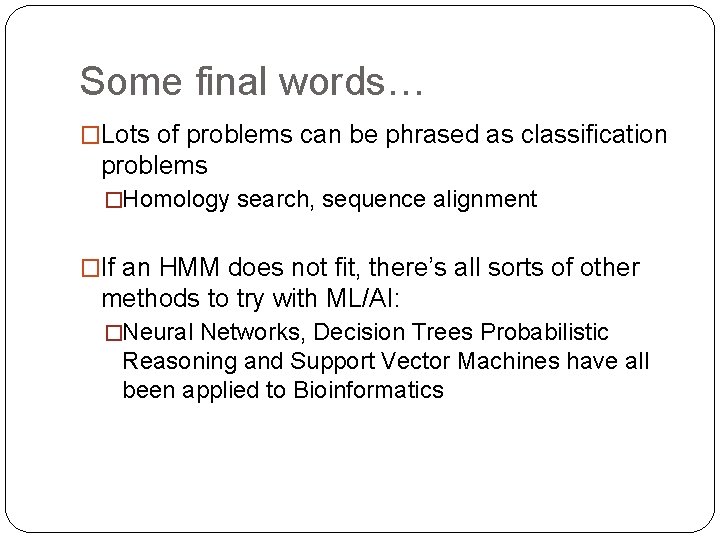

Some final words… �Lots of problems can be phrased as classification problems �Homology search, sequence alignment �If an HMM does not fit, there’s all sorts of other methods to try with ML/AI: �Neural Networks, Decision Trees Probabilistic Reasoning and Support Vector Machines have all been applied to Bioinformatics
