Applied Algorithms Lecture Backtracking CS 410 Applied Algorithms
Applied Algorithms Lecture # Backtracking CS 410 Applied Algorithms
Announcements • ACM Student Chapter Meeting – Where: FAB-150. Fourth Avenue Building, across the hallway from the Linux Lab – When: Wednesday, June 1. 11: 30 AM – Topic: Become an Undergrad Researcher at PSU! • Final Exam Date – Monday, June 6, 2005 – 12: 30 – 14: 20 PM CS 410 Applied Algorithms
Checking for primality Bool prime(int n) // test for primality of n { int i; int m; if (n==2) return TRUE; if (n<2) return FALSE; m = sqrt(n)+1; for (i=2; i<=m; i++) if (n%i == 0) return FALSE; return TRUE; } CS 410 Applied Algorithms
Sum of 4 primes • Why won’t this work? for (i=2, i<=n, i++) if (prime(i)) for (j=2, j<=n, j++) if (prime(j)) for (k=2, k<=n, k++) if (prime(k)) for (l=2, l<=n, l++) if (prime(l)) if (i+j+k+l=target) printf(“%ld %ld %ldn”, I, j, k, l) CS 410 Applied Algorithms
What if we looped over just primes • Precompute all the primes from 1 to target • Int primes[size] • Void init. Primes(int largest) • { …} How many primes are there between 1 and 10, 000 ? CS 410 Applied Algorithms
Lets explore? int count. Primes(int n) { int i; int count; count = 0; for (i=2; i<=n; i++) { if (prime(i)) count++; if (i%100000 == 0) printf("i= %ld, num primes= %ldn", i, count); } printf("num primes= %ld density= %ldn", count, n/count); } CS 410 Applied Algorithms
Analyze • Are there a lot of primes? • What’s the average distance between primes? • Is this number big? • Does this suggest a solution? CS 410 Applied Algorithms
Largest distance between primes int enumerate(int n) { int i; int count; int last; int maxdif; count = 0; last = 2; maxdif = 0; for (i=3; i<=n; i++) { if (prime(i)) { count++; maxdif = max(i-last, maxdif); last = i; }; if (i%100000 == 0) printf("i= %ld, num primes= %ld, maxdif= %ldn“ , i, count, maxdif); } } CS 410 Applied Algorithms

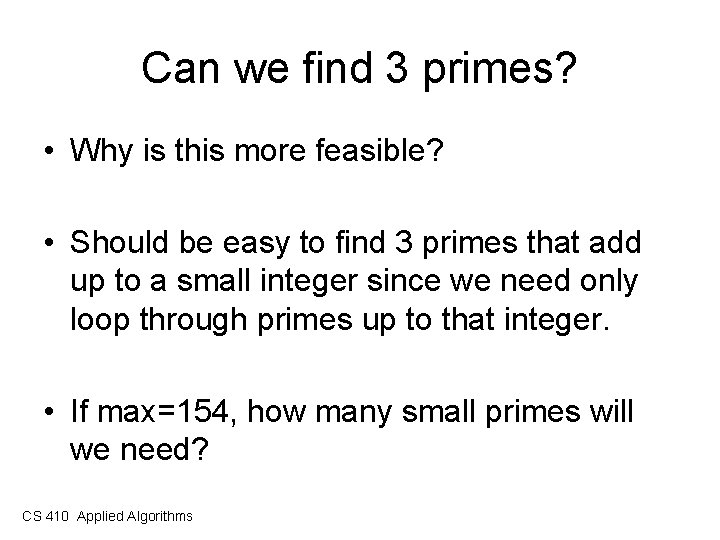

Can we find 3 primes? • Why is this more feasible? • Should be easy to find 3 primes that add up to a small integer since we need only loop through primes up to that integer. • If max=154, how many small primes will we need? CS 410 Applied Algorithms
int first. Thirty() { int i; int count; count = 0; for (i=2; count<30; i++) if (prime(i)) { count++; printf("%ld, ", i); }; } CS 410 Applied Algorithms
Strategy /* An array of the first 30 small primes */ int sp[30] = {2, 3, 5, 7, 11, 13, 17, 19, 23, 29, 31, 37, 41 , 43, 47, 53, 59, 61, 67, 71, 73, 79, 83, 89, 97 , 101, 103, 107, 109, 113}; int ps[200][3]; /* ps[6] = {2, 2, 2} ps[i] stores 3 primes that add up to i ps[7] = {2, 2, 3} ps[8] = {2, 3, 3}. . . ps[199]= {3, 83, 113} */ CS 410 Applied Algorithms

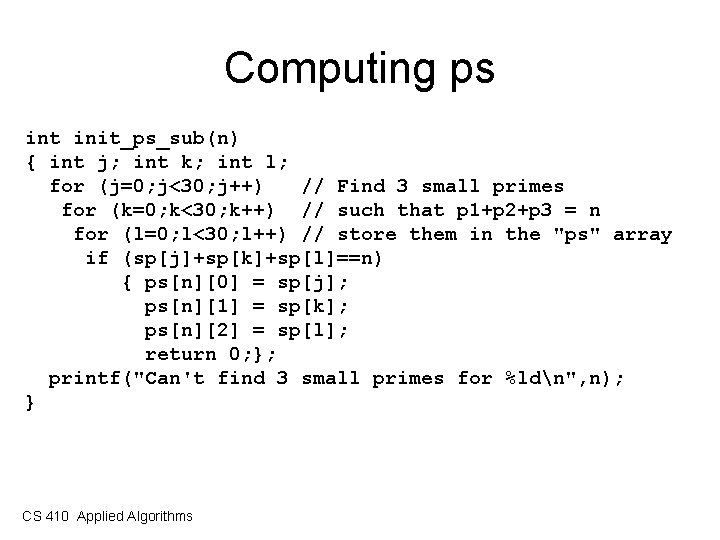

Computing ps int init_ps_sub(n) { int j; int k; int l; for (j=0; j<30; j++) // Find 3 small primes for (k=0; k<30; k++) // such that p 1+p 2+p 3 = n for (l=0; l<30; l++) // store them in the "ps" array if (sp[j]+sp[k]+sp[l]==n) { ps[n][0] = sp[j]; ps[n][1] = sp[k]; ps[n][2] = sp[l]; return 0; }; printf("Can't find 3 small primes for %ldn", n); } CS 410 Applied Algorithms

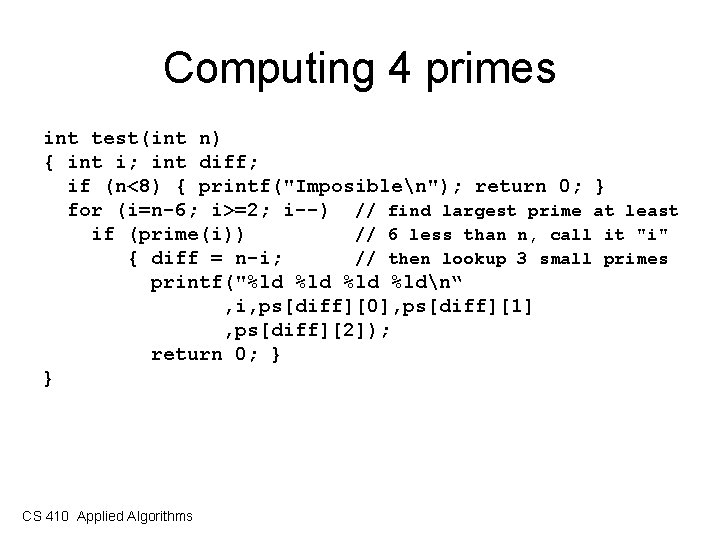

Computing 4 primes int test(int n) { int i; int diff; if (n<8) { printf("Imposiblen"); return 0; } for (i=n-6; i>=2; i--) // find largest prime at least if (prime(i)) // 6 less than n, call it "i" { diff = n-i; // then lookup 3 small primes printf("%ld %ld %ldn“ , i, ps[diff][0], ps[diff][1] , ps[diff][2]); return 0; } } CS 410 Applied Algorithms
In Class Problems • Queue 8. 6. 3 – Page 179 of the text – We will discuss this in class CS 410 Applied Algorithms
Queues of N people of different height How can we count how many can see to the left? To the right? CS 410 Applied Algorithms
Problem • Given a queue of fixed size N. • A fixed number of people who can see to the left. • A fixed number of people who can see to the right. • How many way can we arrange the N people to get the matching left and right counts? CS 410 Applied Algorithms
Solution? • Compute all possible ways to arrange N people. • Throw away those that don’t have the correct left and right count. • Arranging things in different order is called a permutation. CS 410 Applied Algorithms
Computing permutations • What are the permutations of [1, 2, 3] ? • Chose an element. – Choices are 1, 2, or 3 – For each choice prepend it to the permutations of what’s left after removing the choice. • Candidates [1, 2, 3] – (1, [2, 3]) (2, [1, 3]) (3, [1, 2]) – What are the permutations of [2, 3]? • [2, 3] and [3, 2] CS 410 Applied Algorithms
Permutations [1, 2, 3] = candidates = (1, [2, 3]) (2, [1, 3])(3, [1, 2]) permutations [2, 3] = [2, 3], [3, 2] [1, 3] = [1, 3], [3, 1] [1, 2] = [1, 2], [2, 1] [1, 2, 3] [1, 3, 2] [2, 1, 3], [2, 3, 1] [3, 1, 2], [3, 2, 1] CS 410 Applied Algorithms
candidates xs = f [] xs where f before (choice: after) = (choice, reverse before++after) : (f (choice: before) after) f before [] = [] gen 2 : : [Int] -> [[Int]] gen 2 chosen [] all = (reverse chosen): all gen 2 chosen to. Add all = add pairs all where pairs = candidates to. Add add [] all = all add ((choice, remains): pairs) all = add pairs (gen 2 (choice: chosen) remains all) CS 410 Applied Algorithms

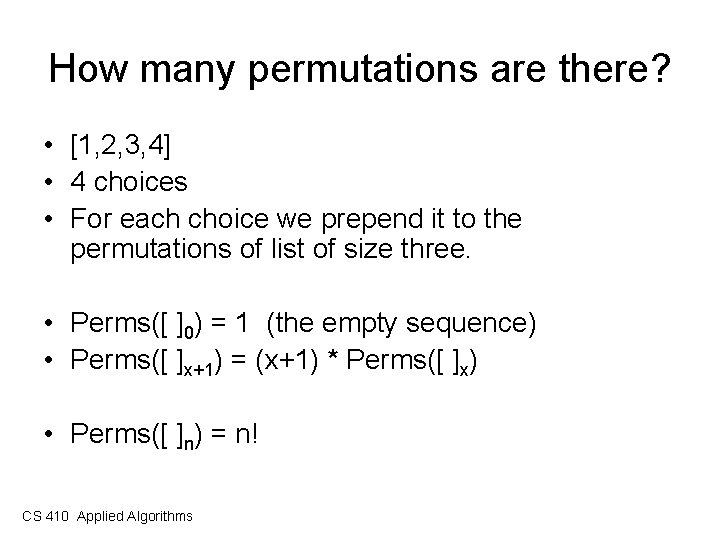

How many permutations are there? • [1, 2, 3, 4] • 4 choices • For each choice we prepend it to the permutations of list of size three. • Perms([ ]0) = 1 (the empty sequence) • Perms([ ]x+1) = (x+1) * Perms([ ]x) • Perms([ ]n) = n! CS 410 Applied Algorithms
We need some trick • Find the tallest person, and then break it into 2 sub problems. Where can the tallest person be given left and right numbers? CS 410 Applied Algorithms
Bounding the tallest • If left = n, then tallest must be at position at least n, • If right = m, then tallest must be at position at most Maxm+1 • So tallest must be between Left tallest N-Right+1 Left=3 Right=3 CS 410 Applied Algorithms
Solving the sub problem • • k = exact number of views to the left required n = size of the permutation required chosen is the prefix of the permutation so far remains = the set left to choose the next element from p 2 k n chosen remains all | length chosen == n = (reverse chosen, remains): all | True = add pairs all where pairs = candidates remains add [] all = all add ((x, rs): pairs) all = let next = (x: chosen) in if (possible k n next) then (p 2 k n next rs (add pairs all)) else (add pairs all) CS 410 Applied Algorithms
What’s possible? • Sometimes we know a chosen sequence can’t lead to a good solution. possible k n xs = viewl <= k && viewl + n - len >= k where len = length xs viewl = count. Right xs CS 410 Applied Algorithms
All possible winners try 2 n left right | n+1 < left+right = [] | True = concat (map each positions. N) where positions. N = [left. . n - right + 1] each i = concat(map f left. Choices) where left. Choices = p 2 (left-1) (i-1) [] [1. . n-1] [] f (lefts, remains) = concat(map add (p 2 (right-1) (n-i) [] remains [])) where add (rights, _) = [lefts ++ [n] ++ reverse rights] CS 410 Applied Algorithms
Today’s Assignments Read for next time Chapter 9 of the text. pp 188 -218 Be prepared to answer questions in class next Friday from the reading. Programming assignment • 8. 6. 8 Bigger Square Please • Page 186 • Write a solution Submit your solution (until you get it right) Hand in both your program, and the judge output. Those who volunteer to discuss their program get class participation points. Email me solutions before noon on Friday, May 6. CS 410 Applied Algorithms
