Applications of Markov chains in demography and population
- Slides: 67

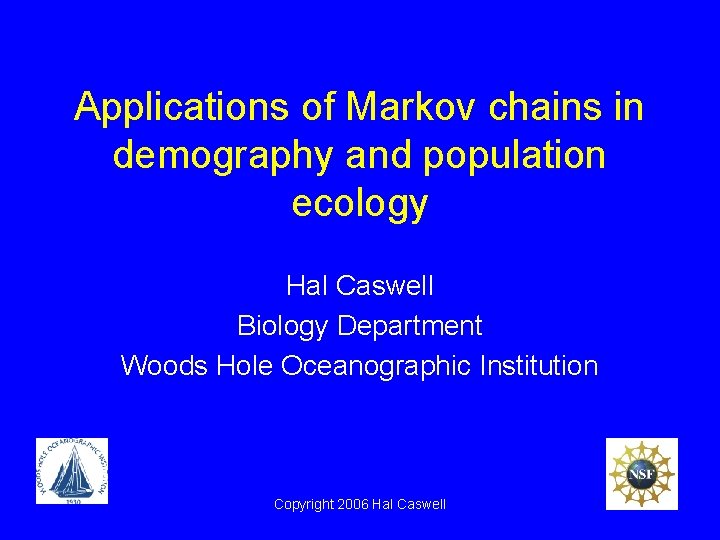

Applications of Markov chains in demography and population ecology Hal Caswell Biology Department Woods Hole Oceanographic Institution Copyright 2006 Hal Caswell
Markov chains in demography • • particle = individual organism states = stages in the life cycle chains absorbing questions relate to absorbtion – where – timing – perturbation analysis June 2006 Hal Caswell -- Markov Anniversary Meeting 2
• Patterns and rates of transition reflect hypotheses about biological processes – growth – development – maturation – reproduction – mortality June 2006 Hal Caswell -- Markov Anniversary Meeting 3
Discrete demography • • • life cycle stages projection interval transitions reproduction June 2006 Hal Caswell -- Markov Anniversary Meeting 4

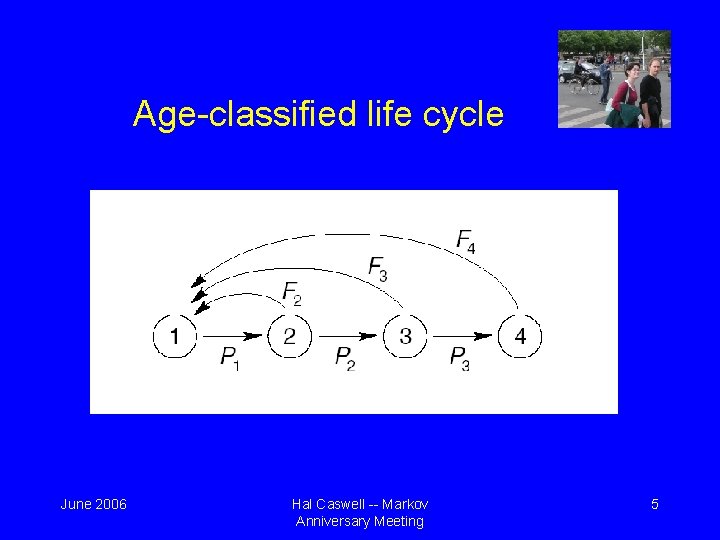

Age-classified life cycle June 2006 Hal Caswell -- Markov Anniversary Meeting 5
Size-classified life cycles Teasel (Dipsacus sylvestris) 1. 2. 3. 4. 5. 6. June 2006 Hal Caswell -- Markov Anniversary Meeting Dormant seeds 1 Dormant seeds 2 Small rosettes Medium rosettes Large rosettes Flowering plants 6
Stage-classified life cycles Wandering albatross (Diomedea exulans) June 2006 Hal Caswell -- Markov Anniversary Meeting extracted from Croxall et al. 71990

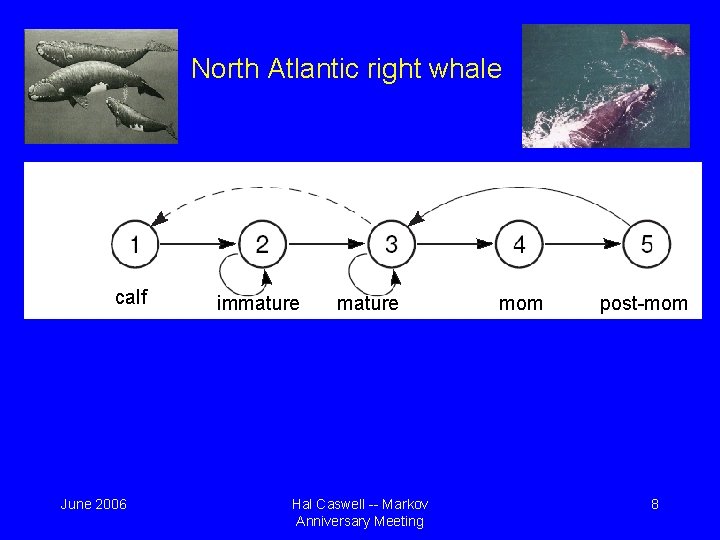

North Atlantic right whale calf June 2006 immature Hal Caswell -- Markov Anniversary Meeting mom post-mom 8

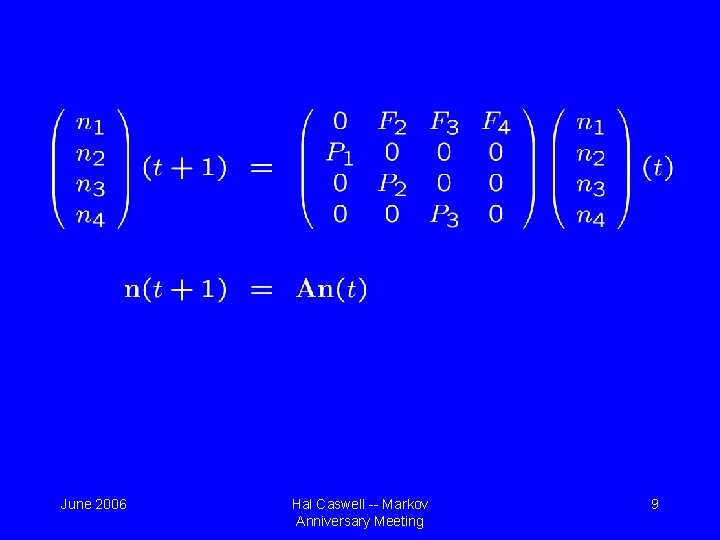

June 2006 Hal Caswell -- Markov Anniversary Meeting 9

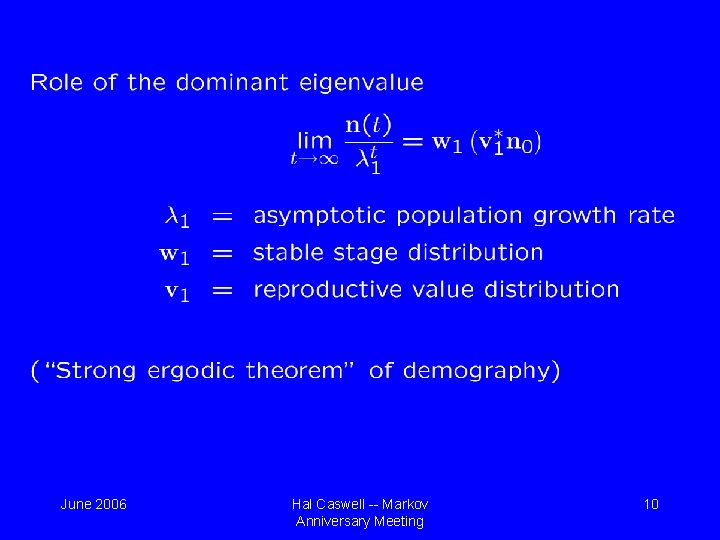

June 2006 Hal Caswell -- Markov Anniversary Meeting 10

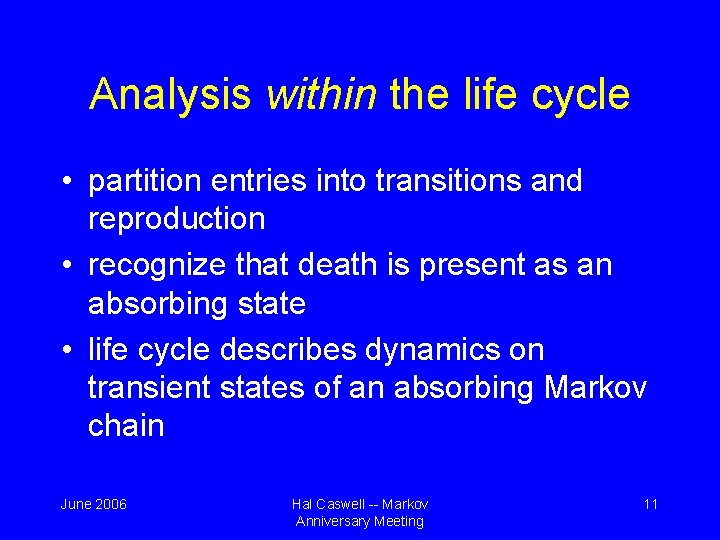

Analysis within the life cycle • partition entries into transitions and reproduction • recognize that death is present as an absorbing state • life cycle describes dynamics on transient states of an absorbing Markov chain June 2006 Hal Caswell -- Markov Anniversary Meeting 11

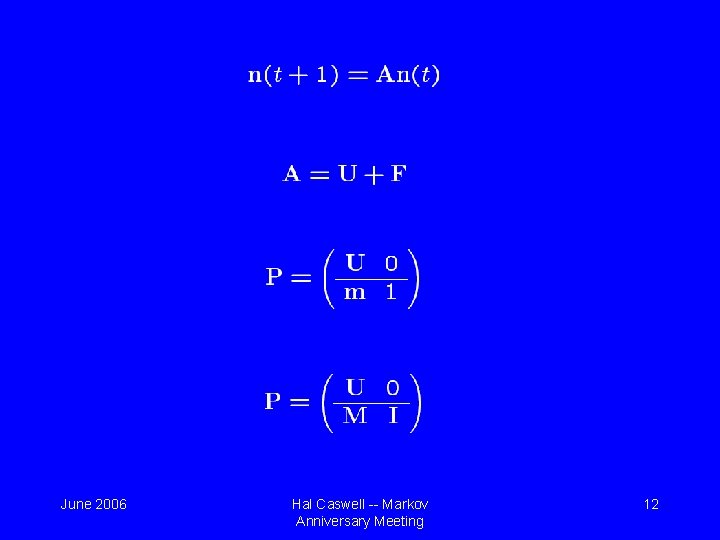

June 2006 Hal Caswell -- Markov Anniversary Meeting 12

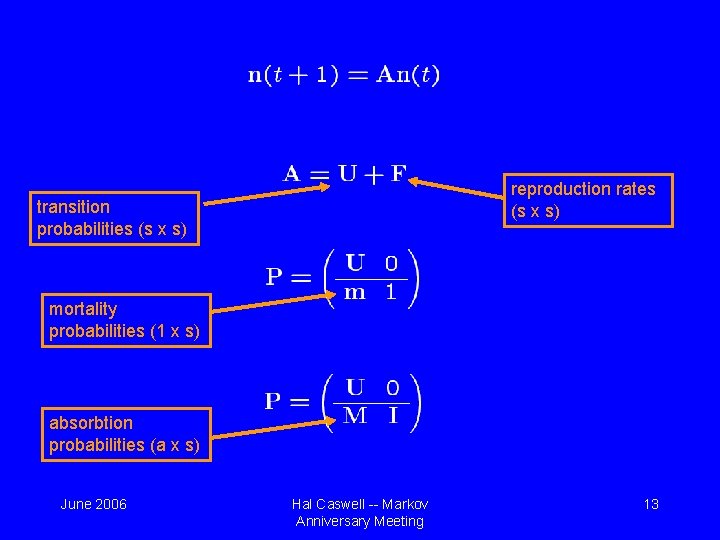

reproduction rates (s x s) transition probabilities (s x s) mortality probabilities (1 x s) absorbtion probabilities (a x s) June 2006 Hal Caswell -- Markov Anniversary Meeting 13

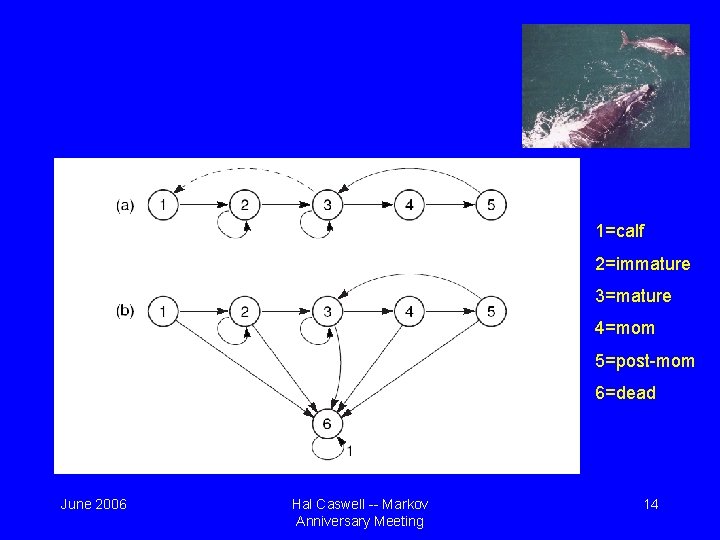

1=calf 2=immature 3=mature 4=mom 5=post-mom 6=dead June 2006 Hal Caswell -- Markov Anniversary Meeting 14
Importance? • population dynamics • conservation (growth and persistence, invasion and recolonization) • evolution (success of life cycles, aging, environmental response) June 2006 Hal Caswell -- Markov Anniversary Meeting 15

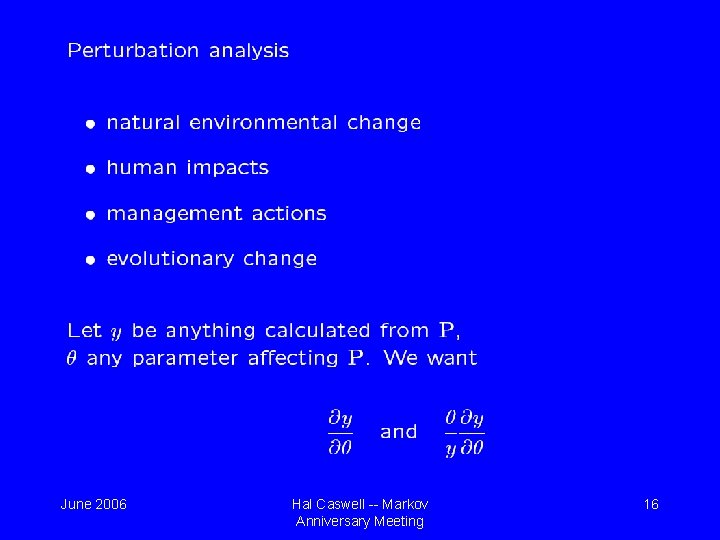

June 2006 Hal Caswell -- Markov Anniversary Meeting 16
June 2006 Hal Caswell -- Markov Magnus and Neudecker 1988, Nel 1980 Anniversary Meeting 17
hours of fun for everybody! June 2006 Hal Caswell -- Markov Anniversary Meeting 18
The North Atlantic right whale (Eubalaena glacialis) June 2006 Hal Caswell -- Markov Anniversary Meeting 19
Endangered, by any standard N < 300 individuals feeding Minimal recovery since 1935 Ship strikes calving June 2006 Hal Caswell -- Markov Anniversary Meeting Entanglement with fishing gear 20
Mortality and serious injury due to entanglement and ship strikes 2030: died October 1999 entanglement June 2006 1014 “Staccato” died April 1999 ship strike Hal Caswell -- Markov Anniversary Meeting 21
1=calf 2=immature 3=mature 4=mom 5=post-mom 6=dead June 2006 Hal Caswell -- Markov Anniversary Meeting 22
Parameter estimation • photographic ID catalog • multistage markrecapture analysis • maximum likelihood estimates June 2006 Hal Caswell -- Markov Anniversary Meeting 23
Results • data 1980 -1998 • series of statistical models • evidence for declining trend in survival of moms, and of birth rate • population growth rate declined to negative levels Fujiwara and Caswell 2001 Caswell and Fujiwara 2004 June 2006 Hal Caswell -- Markov Anniversary Meeting 24
Time-invariant model June 2006 Hal Caswell -- Markov Anniversary Meeting 25
June 2006 Hal Caswell -- Markov Anniversary Meeting 26
E(number of reproductive events) June 2006 Hal Caswell -- Markov Anniversary Meeting 27

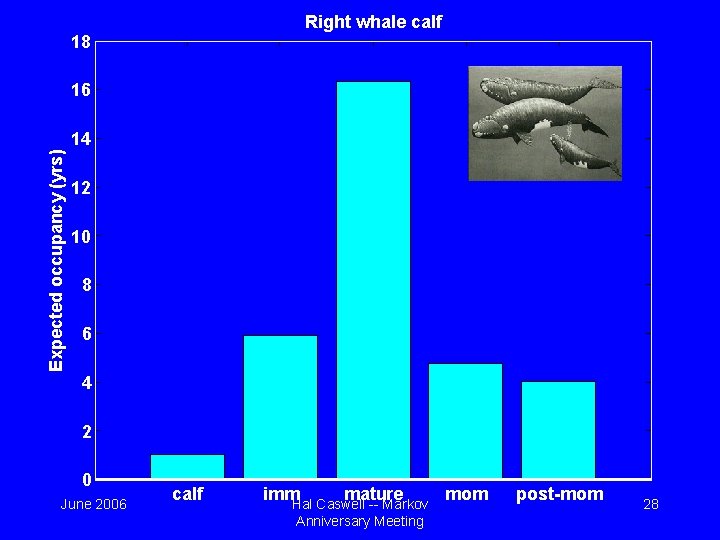

Right whale calf 18 16 Expected occupancy (yrs) 14 12 10 8 6 4 2 0 June 2006 calf imm mature Hal Caswell -- Markov Anniversary Meeting mom post-mom 28

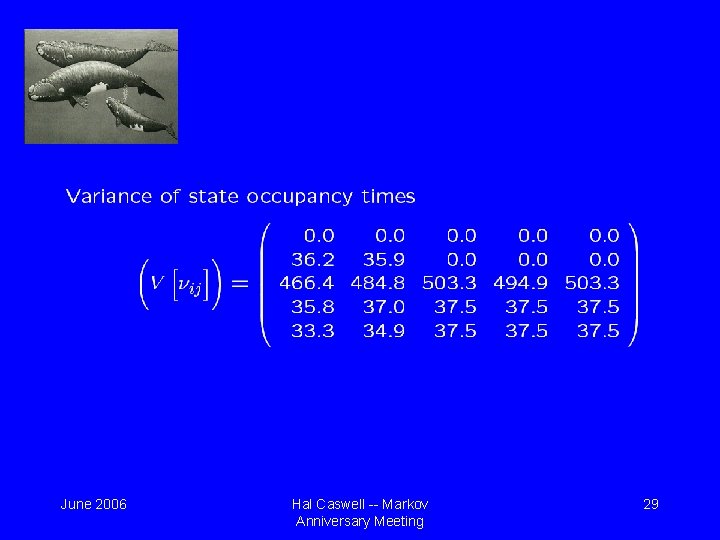

June 2006 Hal Caswell -- Markov Anniversary Meeting 29
June 2006 Hal Caswell -- Markov Anniversary Meeting 30
June 2006 Hal Caswell -- Markov Anniversary Meeting 31
Right whale calf CV of stage occupancy time 1. 5 1 0. 5 0 June 2006 calf imm mature Hal Caswell -- Markov Anniversary Meeting mom post-mom 32
June 2006 Hal Caswell -- Markov Anniversary Meeting 33
June 2006 Hal Caswell -- Markov Anniversary Meeting 34
June 2006 Hal Caswell -- Markov Anniversary Meeting 35

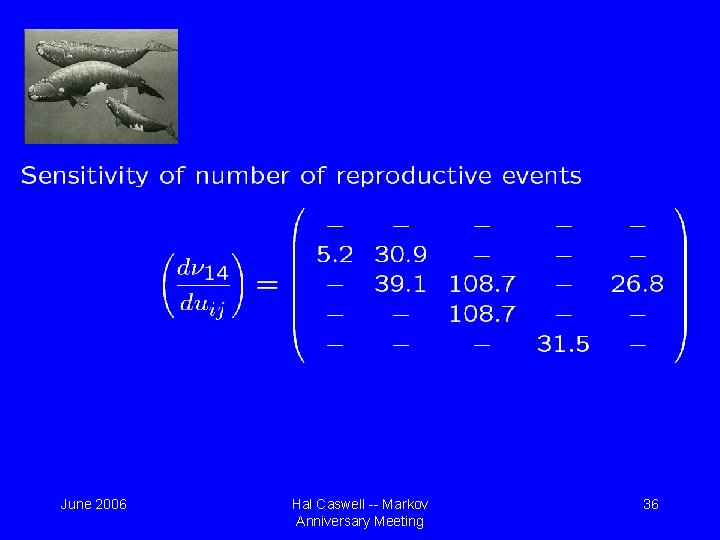

June 2006 Hal Caswell -- Markov Anniversary Meeting 36

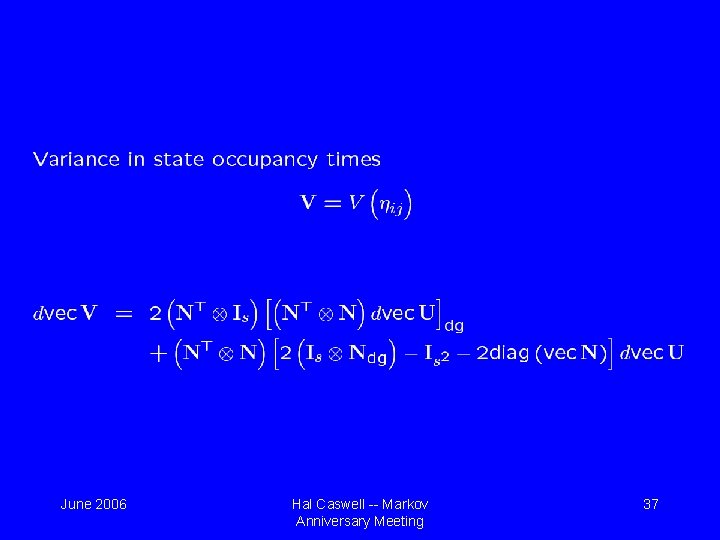

June 2006 Hal Caswell -- Markov Anniversary Meeting 37
June 2006 Hal Caswell -- Markov Anniversary Meeting 38
June 2006 Hal Caswell -- Markov Anniversary Meeting 39
Right whale 40 35 Life expectancy (yrs) 30 25 20 15 10 5 0 June 2006 calf imm mature Hal Caswell -- Markov Anniversary Meeting mom post-mom 40
Right whale 1. 4 CV of life expectancy 1. 2 1 0. 8 0. 6 0. 4 0. 2 0 June 2006 calf imm mature Hal Caswell -- Markov Stage Anniversary Meeting mom post-mom 41
June 2006 Hal Caswell -- Markov Anniversary Meeting 42
June 2006 Hal Caswell -- Markov Anniversary Meeting 43
June 2006 Hal Caswell -- Markov Anniversary Meeting 44
June 2006 Hal Caswell -- Markov Anniversary Meeting 45

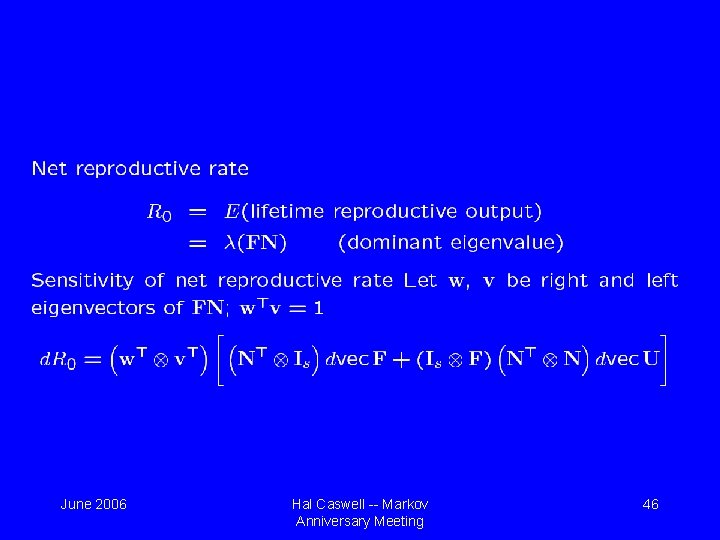

June 2006 Hal Caswell -- Markov Anniversary Meeting 46
June 2006 Hal Caswell -- Markov Anniversary Meeting 47

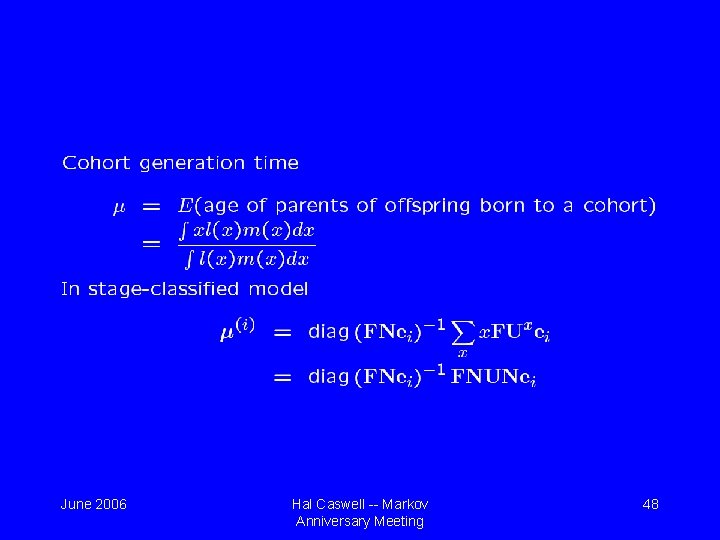

June 2006 Hal Caswell -- Markov Anniversary Meeting 48
June 2006 Hal Caswell -- Markov Anniversary Meeting 49
June 2006 Hal Caswell -- Markov Anniversary Meeting 50

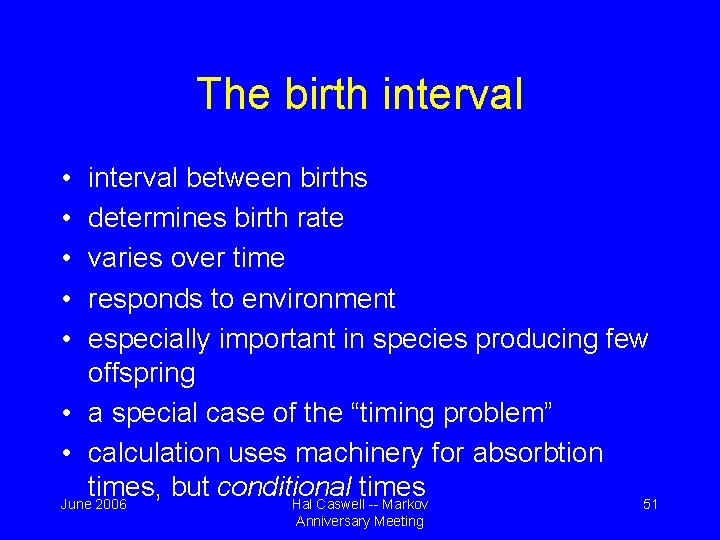

The birth interval • • • interval between births determines birth rate varies over time responds to environment especially important in species producing few offspring • a special case of the “timing problem” • calculation uses machinery for absorbtion times, but conditional times June 2006 Hal Caswell -- Markov 51 Anniversary Meeting
Modified life cycle graph reproduce before dying died before breeding June 2006 Hal Caswell -- Markov Anniversary Meeting 52

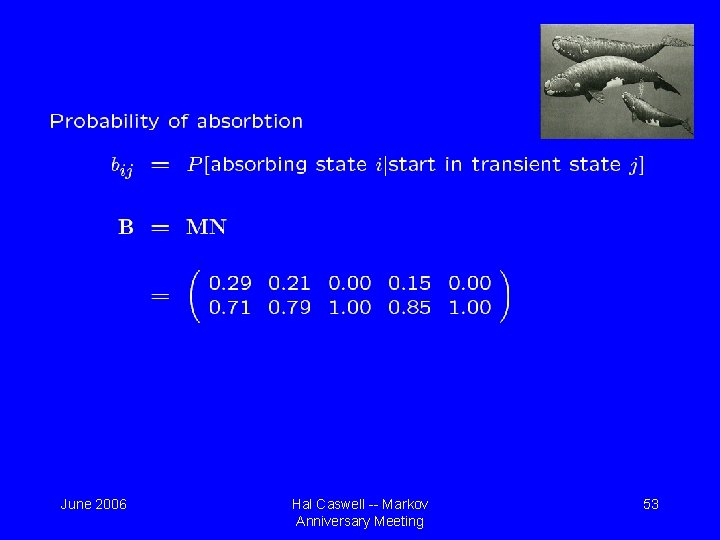

June 2006 Hal Caswell -- Markov Anniversary Meeting 53
June 2006 Hal Caswell -- Markov Anniversary Meeting 54
Right whale 12 Mean time to reproduction (yrs) 10 8 6 4 2 0 June 2006 calf imm mature Hal Caswell -- Markov Starting. Meeting stage Anniversary mom post-mom 55
Time variation • the vital rates of the right whale changed between 1980 and 1998 June 2006 Hal Caswell -- Markov Anniversary Meeting 56
0. 96 time trend best model 0. 94 Calf survival 0. 92 0. 9 0. 88 0. 86 0. 84 0. 82 1980 June 2006 1984 1988 Hal Caswell -- Markov Year Anniversary Meeting 1992 1996 57

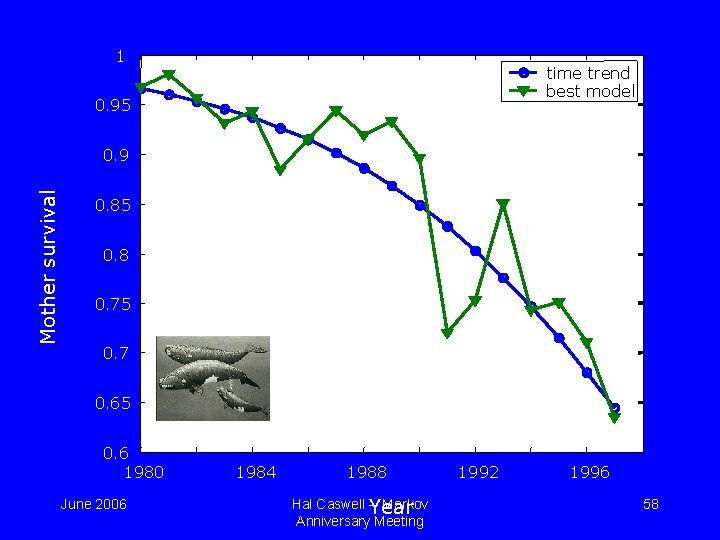

1 time trend best model 0. 95 Mother survival 0. 9 0. 85 0. 8 0. 75 0. 7 0. 65 0. 6 1980 June 2006 1984 1988 Hal Caswell Year -- Markov Anniversary Meeting 1992 1996 58
0. 5 time trend best model 0. 45 Birth probability 0. 4 0. 35 0. 3 0. 25 0. 2 0. 15 0. 1 1980 June 2006 1984 1988 Hal Caswell Year -- Markov Anniversary Meeting 1992 1996 59
June 2006 Hal Caswell -- Markov Anniversary Meeting 60
70 period Life expectancy 60 50 40 30 20 10 1980 June 2006 1982 1984 1986 1988 1990 Hal Caswell -- Markov Year Anniversary Meeting 1992 1994 1996 1998 61
June 2006 Hal Caswell -- Markov Anniversary Meeting 62
June 2006 Hal Caswell -- Markov Anniversary Meeting 63

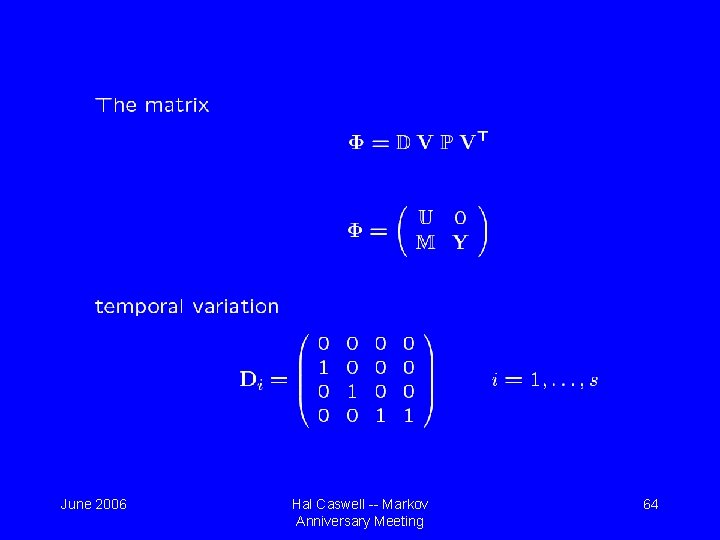

June 2006 Hal Caswell -- Markov Anniversary Meeting 64

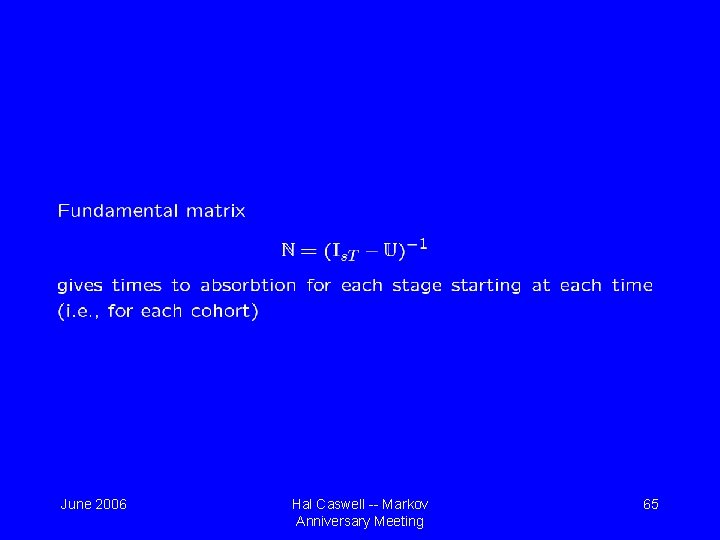

June 2006 Hal Caswell -- Markov Anniversary Meeting 65
70 period cohort Life expectancy 60 50 40 30 20 10 1980 June 2006 1982 1984 1986 1988 1990 Hal Caswell -- Markov Year Anniversary Meeting 1992 1994 1996 1998 66

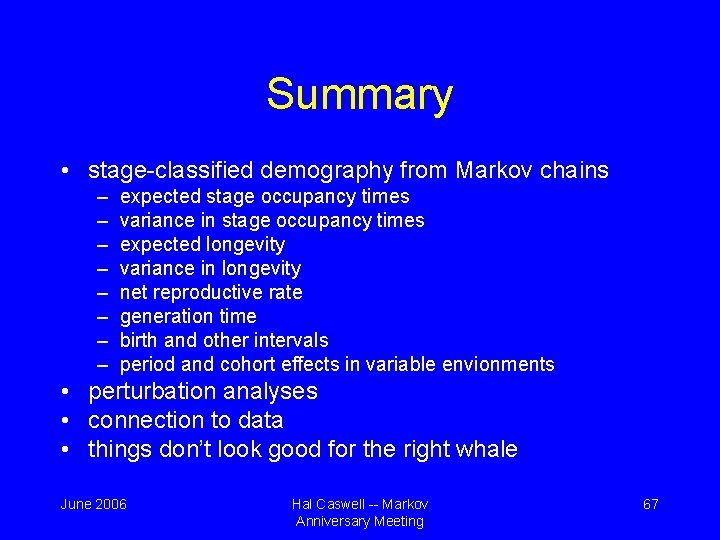

Summary • stage-classified demography from Markov chains – – – – expected stage occupancy times variance in stage occupancy times expected longevity variance in longevity net reproductive rate generation time birth and other intervals period and cohort effects in variable envionments • perturbation analyses • connection to data • things don’t look good for the right whale June 2006 Hal Caswell -- Markov Anniversary Meeting 67
