Applications of Genetic Algorithms to Resource Constrained Scheduling
- Slides: 67
Applications of Genetic Algorithms to Resource. Constrained Scheduling Tasks Keith Downing Dept. of Computer and Information Sciences The Norwegian University of Science & Technology Trondheim, Norway keithd@idi. ntnu. no
Outline • Introduction to Evolutionary Algorithms – Basic Concepts – Simple Scheduling Example • Applying EA’s to Scheduling Problems – Travelling Salesman – Job Sequencing – Classic Job-Shop Scheduling * Main Focus: Representational Issues
Darwinian Evolution Physiological, Behavioral Phenotypes Natural Selection Ptypes Reproduction Sex Morphogenesis Genotypes Recombination & Mutation Genetic Gtypes
Evolutionary Algorithms Parameters, Code, Neural Nets, Rules Semantic Performance Test P, C, N, R R &M Translate Generate Bit Strings Syntactic Recombination & Mutation Bits

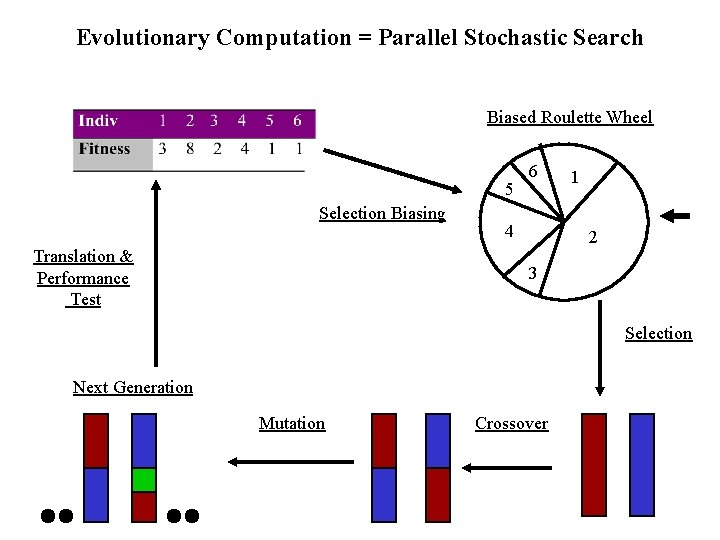

Evolutionary Computation = Parallel Stochastic Search Biased Roulette Wheel 5 Selection Biasing Translation & Performance Test 6 4 1 2 3 Selection Next Generation Mutation Crossover
Types of Evolutionary Algorithms Genetic Algorithms (Holland, 1975) Representation: Bit Strings => Integer or real feature vectors Syntactic crossover (main) & mutation (secondary) Evolutionary Strategies (Recehenberg, 1972; Schwefel, 1995) Representation: Real-valued feature vectors Semantic mutation (main) & crossover (secondary) Evolutionary Programs (Fogel, Owens & Walsh, 1966; Fogel, 1995) Representation: Real-valued feature vectors or Finite State Machines Semantic mutation (only) View each individual as a whole species, hence no crossover Genetic Programs (Koza, 1992) Representation: Computer programs (typically in LISP) Syntactic crossover (main) & mutation (secondary)
Evolutionary Computation Requirements • • Domain that supports quantitative fitness assignment Fitness function that accurately evaluates performance • Representation for solutions that tolerates mutation & crossover Classic Genetic Algorithm P 1 P 2 P 3 0 1 1 1 0 0 1 1 7 4 X 11 0 0 0 1 1 1 0 0 1 15 2 0 1 1 1 0 1 0 7 5 2 0 0 0 1 1 1 14 11
Using Evolutionary Algorithms When • • • Large, rough search spaces Satisficing or Optimization problems Entire solutions are easily generated and tested Exhaustive search methods are too slow Heuristic search methods cannot find good solutions (e. g. Stuck at local max) How • • Determine EA-amenable representation of solutions Define fitness function Define selection function = roulette-wheel biasing function (f: fitness -> area) Set key EA parameters: population size, mutation rate, crossover rate, # generations, etc. * EA’s are easy to write, and there’s lots of freeware! * Specific problems often require specific representations & genetic operators
Application Areas for Evolutionary Algorithms • • • Optimization: Controllers, Job Schedules, Networks(TSP) Electronics: Circuit Design (GP) Finance: Stock time-series analysis & prediction Economics: Emergence of Markets, Pricing & Purchasing Strategies Sociology: cooperation, communication, ANTS! Computer Science – Machine Learning: Classification, Prediction… – Algorithm design: Sorting networks • Biology – Immunology: natural & virtual (computer immune system) – Ecology: arms races, coevolution – Population genetics: roles of mutation, crossover & inversion – Evolution & Learning: Baldwin Effect, Lamarckism…
Process Scheduling (Kidwell, 1993) P 5 P 7 P 1 P 3 P 0 P 6 • • P 4 P 2 Task pairs (run + communicate result) to be run on a set of processors – ((7, 16) (11, 22) (12, 40), (15, 22)…. ) A task’s run must finish before result sending begins All processors share a central communication line (bus) Each processor can handle only one task at a time. Each processor is capable of running any of the tasks Only one processor at a time can send its message A task cannot be removed from a processor until both run & send are finished Tasks run on the main processor, P 0, require no communication time, whereas tasks run on all other processors must send their message to P 0 Goal: Schedule the tasks on processors so as to minimize the total timespan
Process Schedule Optimization using the Genetic Algorithm Use GA to search the space of possible schedules (solutions) 1. Represent schedule in a GA-amenable form (i. e. linearize it) Processor for Task #1 (2 3 4 . . . Processor for Task #4 1 3 1 ……. ) 001000110100000100110001…. 2. Define a fitness function Fitness = Max. Timespan - Timespan * Lower timespan => Higher fitness Other possibilities: 1/(1 + (Timespan - Min. Timespan)) . . .
GA-based Schedule Optimization *Compute schedule’s timespan by running on a process-network simulator. 1. Remove next task (whose assigned processor is open) from task-list and start simulating it on that processor. 2. Remove tasks from processors as soon as they finish running & sending 3. Define a biasing function to convert fitness to a proportion of the roulette wheel Sigma Scaling: (One of many standard biasing functions): Exp. Val(x) = Max ( 0, 1 + (Fitness (x) - Avg. Fitness) / (2 * St. Dev. Fitness)) Normalizing: Roulette-Wheel%(x) = Exp. Val(x) / Sumof. All. Exp. Vals 4. Select Mutation and Crossover Rates: pmut = 0. 01; pcross = 0. 75 5. Select a population size popsize = 10 6. Select # of generations: numgen = 10 7. Run the Genetic Algorithm Generates a random initial population (of schedules) and evolves them via sigma-scaling selection, crossover and mutation for numgen generations
Kidwell’s (1993) Task List ((7 16) (11 22) (12 40) (15 22) (17 23) (19 23) (20 28) (20 27) (26 27) (28 31) (36 37) (31 29) (28 22) (23 19) (22 18) (22 17) (29 16) (27 16) (35 15)) Max. Time = Sum of all run & send times = 916 time units Use 8 processors: P 0 - P 7, with P 0 being the master processor
Population of Schedules (Generation # 0) These are randomly-generated: Processor List 1: Span: 401 Fitn: 515 (11. 0%)| (1 2 1 3 6 7 2 0 0 4 5 1 6 0 5 5 4 7 4 6) 2: Span: 383 Fitn: 533 (13. 7%)| (1 0 0 4 0 1 0 5 3 6 2 5 5 5 1 3 5 7) 3: Span: 426 Fitn: 490 ( 7. 1%)| (6 2 2 7 6 5 2 6 7 6 6 5 3 4 0 1 0 2 0 7) 4: Span: 415 Fitn: 501 ( 8. 8%)| (5 0 5 7 1 2 5 4 2 6 3 6 2 0 0 4 1 7 3 1) 5: Span: 377 Fitn: 539 (14. 7%)| (4 2 0 6 2 1 2 0 1 6 3 2 2 3 3 4 0 3 0 1) 6: Span: 435 Fitn: 481 ( 5. 7%)| (3 2 7 7 6 0 3 1 4 7 7 5 1 0 4 6 5 5 5 6) 7: Span: 439 Fitn: 477 ( 5. 1%)| (0 3 2 2 7 0 4 5 2 1 6 3 1 7 1 0 3 2) 8: Span: 410 Fitn: 506 ( 9. 6%)| (2 5 2 1 0 0 2 2 5 0 1 3 6 1 3 3 4 6 2 0) 9: Span: 337 Fitn: 579 (20. 9%)| (1 0 0 7 0 4 3 1 1 0 0 2 4 1 2 4 6 4 7 6) 10: Span: 449 Fitn: 467 ( 3. 5%)| (2 2 2 4 1 4 4 6 6 4 7 4 0 6 2 5 2 7 7 7) Avg Fitness: 508. 80 St. Dev Fitness: 32. 28
Roulette Wheel (Generation # 0)
Population of Schedules (Generation # 1) 1: Span: 366 Fitn: 550 (12. 1%)| (1 0 0 3 0 4 2 1 0 1 3 6 4 5 7 5 6) 2: Span: 406 Fitn: 510 ( 7. 9%)| (1 0 1 4 0 4 1 1 1 4 0 2 2 1 0 5 2 0 7 7) 3: Span: 377 Fitn: 539 (11. 0%)| (4 2 0 6 2 1 2 0 1 6 3 2 2 3 3 4 0 3 0 1) 4: Span: 464 Fitn: 452 ( 1. 8%)| (1 0 1 3 0 4 2 0 1 4 4 2 4 1 5 5 4 6) 5: Span: 366 Fitn: 550 (12. 1%)| (1 2 0 7 6 7 3 1 0 0 1 1 6 0 2 4 6 5 7 6) 6: Span: 337 Fitn: 579 (15. 2%)| (1 0 0 7 0 4 3 1 1 0 0 2 4 1 2 4 6 4 7 6) 7: Span: 337 Fitn: 579 (15. 2%)| (1 0 0 7 0 4 3 1 1 0 0 2 4 1 2 4 6 4 7 6) 8: Span: 415 Fitn: 501 ( 7. 0%)| (5 0 5 7 1 2 5 4 2 6 3 6 2 0 0 4 1 7 3 1) 9: Span: 465 Fitn: 451 ( 1. 7%)| (5 5 7 7 1 2 5 2 3 6 1 6 2 1 0 5 1 7 2 1) 10: Span: 329 Fitn: 587 (16. 0%)| (2 0 0 1 0 0 2 4 4 0 3 3 6 0 3 2 4 6 3 0) Avg Fitness: 529. 80 St. Dev Fitness: 47. 43
Roulette Wheel (Generation # 1)
Population of Schedules (Generation # 2) 1: Span: 337 Fitn: 579 (11. 7%)| (1 0 0 7 0 0 6 0 2 6 3 6 0 4 1 7 1 1) 2: Span: 465 Fitn: 451 ( 0. 0%)| (5 0 5 3 1 6 1 5 0 1 3 6 6 1 6 4 5 7 7 6) 3: Span: 366 Fitn: 550 ( 8. 8%)| (1 2 0 7 6 7 3 1 0 0 1 1 6 0 2 4 6 5 7 6) 4: Span: 329 Fitn: 587 (12. 5%)| (2 0 0 1 0 0 2 4 4 0 3 3 6 0 3 2 4 6 3 0) 5: Span: 329 Fitn: 587 (12. 5%)| (2 0 0 1 0 0 2 4 4 0 3 3 6 0 3 2 4 6 3 0) 6: Span: 270 Fitn: 646 (18. 4%)| (1 0 0 5 0 0 2 0 0 0 3 3 4 0 2 2 4 6 3 2) 7: Span: 364 Fitn: 552 ( 9. 0%)| (2 0 0 3 0 4 3 5 5 0 0 2 6 1 3 4 6 4 7 4) 8: Span: 337 Fitn: 579 (11. 7%)| (1 0 0 7 0 4 3 1 1 0 0 2 4 1 2 4 6 4 7 6) 9: Span: 347 Fitn: 569 (10. 7%)| (5 0 1 7 1 6 1 4 0 0 1 2 2 0 0 4 5 7 7 0) 10: Span: 410 Fitn: 506 ( 4. 5%)| (1 0 4 7 0 0 7 1 3 6 2 6 4 1 2 4 3 7) Avg Fitness: 560. 60 St. Dev Fitness: 49. 61
Roulette Wheel (Generation # 2)
Population of Schedules (Generation # 6) 1: Span: 263 Fitn: 653 (10. 6%)| (1 0 0 7 0 4 6 0 0 4 3 7 0 0 5 6 3 6) 2: Span: 232 Fitn: 684 (16. 7%)| (1 0 0 5 0 0 2 0 0 6 3 3 0 0 2 2 0 7 1 0) 3: Span: 325 Fitn: 591 ( 0. 0%)| (1 0 0 5 0 0 6 0 0 2 3 3 4 0 3 4 5 7 3 2) 4: Span: 261 Fitn: 655 (11. 0%)| (1 0 0 7 0 0 2 0 0 0 3 2 0 0 2 0 1 6 3 2) 5: Span: 249 Fitn: 667 (13. 3%)| (1 0 0 5 0 0 2 3 6 0 0 3 0 5 6 3 2) 6: Span: 255 Fitn: 661 (12. 1%)| (1 0 0 5 0 0 6 0 0 0 3 3 0 0 1 0 5 7 3 2) 7: Span: 292 Fitn: 624 ( 4. 8%)| (1 0 0 7 0 0 3 0 0 0 3 3 4 0 0 4 1 6 3 2) 8: Span: 269 Fitn: 647 ( 9. 4%)| (1 0 0 7 0 4 6 0 0 4 3 7 0 0 2 0 4 6 3 6) 9: Span: 247 Fitn: 669 (13. 7%)| (1 0 0 5 0 0 2 0 0 0 3 7 4 0 0 4 1 6 3 2) 10: Span: 274 Fitn: 642 ( 8. 4%)| (1 0 0 7 0 0 2 0 0 0 3 3 0 0 3 0 5 6 3 2) Avg Fitness: 649. 30 St. Dev Fitness: 24. 87
Roulette Wheel (Generation # 6)
Population of Schedules (Generation # 9) 1: Span: 265 Fitn: 651 ( 0. 4%)| (1 0 0 5 0 0 2 3 6 0 0 1 0 5 7 3 2) 2: Span: 241 Fitn: 675 (12. 3%)| (1 0 0 7 0 0 2 0 0 4 3 3 0 0 6 1 0) 3: Span: 238 Fitn: 678 (13. 8%)| (1 0 0 5 0 0 6 3 3 0 0 1 6 1 0) 4: Span: 258 Fitn: 658 ( 3. 8%)| (1 0 0 5 0 0 6 3 2 0 0 0 7 1 0) 5: Span: 248 Fitn: 668 ( 8. 8%)| (1 0 0 5 0 0 2 3 3 0 0 1 6 3 0) 6: Span: 246 Fitn: 670 ( 9. 8%)| (1 0 0 5 0 0 6 3 7 0 0 1 0 5 7 1 2) 7: Span: 246 Fitn: 670 ( 9. 8%)| (1 0 0 5 0 0 2 0 0 4 3 3 0 0 1 0 5 7 1 2) 8: Span: 242 Fitn: 674 (11. 8%)| (1 0 0 5 0 0 6 0 0 2 3 6 0 0 3 0 1 6 3 0) 9: Span: 226 Fitn: 690 (19. 7%)| (1 0 0 5 0 0 2 0 0 0 3 6 0 0 3 0 5 6 3 2) 10: Span: 246 Fitn: 670 ( 9. 8%)| (5 0 0 2 3 6 0 0 3 0 5 7 3 2) Avg Fitness: 670. 40 St. Dev Fitness: 10. 06 (Convergence)
Roulette Wheel (Generation # 9)
Process-Schedule Evolution GA falls off a peak Convergence
Travelling Salesman Problem (TSP) Given: N cities & matrix of distances between them. Find: Shortest cyclic tour that visits all cities. • NP-Hard: Exponential to both find solutions & to verify solutions • Heuristic Methods: Find optimal solutions when N< 1000. • Genetic Algorithm: Find good solutions for any N Applications: Network building, Delivery routing, Sequence scheduling. . .
Applying GAs to TSP Fitness Function: 1/tour-length or optimal-tour-length/tour-length Chromosome: Direct Representation: List of cities (standard approach) 7 3 25 31 12 1 5 14…. Indirect Representation: List of next city to pull from ordered list and insert into the solution sequence 1 1 2 3 5…. => 1 2 4 6 9… Crossover Standard Bit or Integer Cross: Only works for indirect representations Location Preserving: Children inherit, as much as possible, cities in same gene location as parents Edge Preserving: Children inherit, as much as possible, city-city edges from parents (actual edge locations in the chromosome may vary from parent to kid) *Crossover is the key element to TSP GA’s - and where most research is done.
Representational Issues for GA-based TSP 632541 632156 2 x 6; 0 x 4 423541 2 x 4; 0 x 6 X 423156 • • Standard Crossover & Mutation are purely syntactic => pay no attention to semantics (i. e. The meanings of the bits or integers that they manipulate). Direct representations often embody constraints that simple crossover & mutation cannot enforce. Indirect representations usually involve fewer constraints, so simple crossover & mutation are often sufficient. Compare to Process Scheduling (Kidwell), where constraints (i. e. All alleles between 0 and N) were easy to enforce.
Partially-Mapped Crossover (PMX) Goldberg (1985) 1. Choose equal-length segments to swap 2. Create a mapping between corresponding elems of the segments 3. Swap the segments 4. Apply the map to each child to restore completeness Select Segments P 1: 1 6 3 4 5 7 2 8 P 2: 3 7 6 5 8 1 2 4 Create Map (4 <=> 5; 5 <=> 8; 7<=> 1) Swap K 1’: 1 6 3 5 8 1 2 8 Blue positions must be changed via mapping K 2’: 3 7 6 4 5 7 2 4 Apply Map (twice for last position in this eg. ) K 1: 7 6 3 5 8 1 2 4 K 2: 3 1 6 4 5 7 2 8
Subtour Operations (Cleveland & Smith, ‘ 89) Subtour Chunking • Select random chunks from the parents • Prune chunk of cities that already exist in the child • Insert chunk into child position as close as possible to its position in parent P 1: (9 4 3)3 2 (6 8 7 1)1 (5 10)5 P 2: 3 5 8 (7 10 4 6)2 9 (2 1)4 K 1: 9 3 10 4 6 8 7 1 2 5 Subtour Replacement Find chunks with same elems in both parents and swap them P 1: 1 5 6 3 2 4 8 7 P 2: 2 7 4 8 1 6 5 3 K 1: 1 5 6 3 2 7 4 8 K 2: 2 4 8 7 1 6 5 3
Inheritance • • • For GA’s to make progress, they must pass on many of the good features from generation G to generation G+1. Hence, when parents crossover, the good features of each should be preserved in at least one of the children. Biology: Heritability = degree to which children resemble their parents (Xkid-avg - Xpop-avg) = heritability*(Xparent-avg -Xpop-avg) Location Preservation (1985 - 1988) • With PMX & Subtour exchanges, kids inherit many cities in the same position as in one of the parents. • Results not that promising => GA viewed as inappropriate for TSP. Edge Preservation (1989 - present) • Edges are the key contributors to TSP costs (fitness), so what we really need to preserve are city pairs (i. e. Edges) of TSP tours. • GA’s with edge focus perform much better, near optimal => GA useful for TSP!
Edge Recombination Operator (ERO) • • Whitley, Starkweather & Fuquay (1989) Maximizes edge inheritance 1. Create Edge Map 2. Init Kid with one of the parent’s first city: 3. Remove new kid city, NKC, from edge map 4. NKC = neighbor of NKC with the smallest edge list. If no remaining neighbors, randomly pick an unvisited city (=> violate edge inheritance) 5. If tour not complete goto 3 Edge Map A {C B E} B {A C F } E. g. ACDEFB x EABCFD C {A B D F} D {C E F} E {A D F} F {B C D E} A =>{C(3), B(2), E(2) => AE => {D(2), F(3)} => AED => {C(2), F(2)} => AEDC => {B(1), F(1)} => AEDCB => {F(0)} => AEDCBF * All edges in kid except FA come from one or another parent
Binary Matrix Crossover • • a b c d e f Homaifar, Guan & Liepins (1993) During crossover convert TSP tours to unidirectional connection matrices (c a b e f d) x a b c d e f 0 1 0 0 0 X 0 0 1 0 0 0 (2 nd bit) 0 0 0 1 0 0 (e b f a d c) => illegal tour => a b c d e f 0 0 0 1 0 1 0 0 0 0 1 0 => 1 0 0 0 1 0 => 0 0 1 0 0 0 0 0 0 0 (a d c e b f) a b c d e f 0 0 0 1 0 0 0 0 1 0 0 0 0 0 Problem: Redundancies (rows 1 & 3) and omissions (rows 5 & 6) in child Solution: Move 1’s from redundant rows to all-zero rows in a manner that preserves as many parent edges as possible. 100% edge preservation in example above.

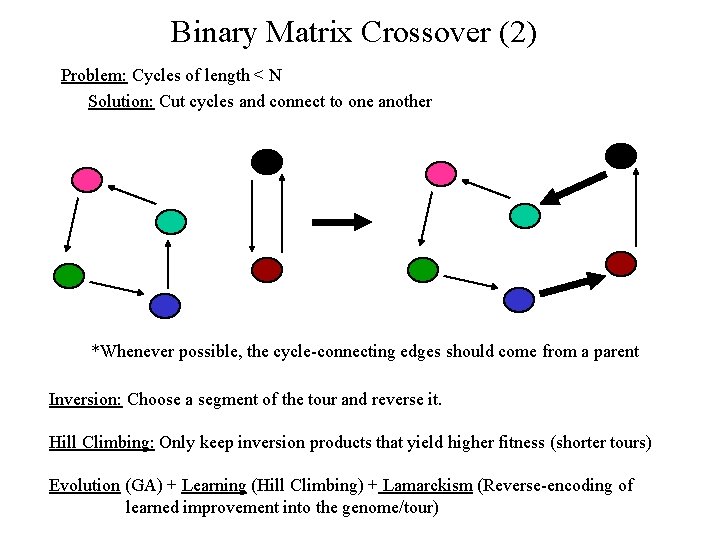

Binary Matrix Crossover (2) Problem: Cycles of length < N Solution: Cut cycles and connect to one another *Whenever possible, the cycle-connecting edges should come from a parent Inversion: Choose a segment of the tour and reverse it. Hill Climbing: Only keep inversion products that yield higher fitness (shorter tours) Evolution (GA) + Learning (Hill Climbing) + Lamarckism (Reverse-encoding of learned improvement into the genome/tour)
TSP Benchmark Comparison • Edge Inheritance beats position inheritance. • Evolution + Learning beats evolution
Indirect Representations (Grefenstette, 1985) 2 3 1 2 2 4. . . Pull 2 nd element from the sorted list of unused cities and insert it into the next spot in the solution path Advantages • Simple Representation • Crossover & Mutation create legal tours => no (time consuming) special ops required Disadvantages • Low Heritability (of positions and edges) Crossover can disrupt position sequences on right side of the crossover point
Inheritance Problems with Indirect Representations 6 -city TSP P 1: 1 1 1 P 2: 2 3 2 3 => => 123456 243651 Crossover after 2 nd gene K 1: 1 1 2 3 => 124653 Inheritance: 66. 6% position, 50% edge K 2: 2 3 1 1 => 241356 Inheritance: 66. 6% position, 33. 3% edge
Job Sequencing Problems • • • Flow-Shop Scheduling Problem J items to be processed by a system = machine or sequence of machines. Determine proper order to introduce items into the system. Once in the system, its out of the scheduler’s control, so the assembly line is equivalent to a single machine from scheduler’s point of view. Different items may require different operations, with each op type demanding a setup time on a machine => often useful to group similar-op items in the scheduled sequence to reduce number of setups (i. e. Retooling time). Time constraints may make it important that X items are completely processed per day. Hence, some retooling may be necessary. • Each work area on the assembly line may be a set of machines, each capable of similar operations. + buffer for waiting items. • Similar to TSP: – sequence of cities -vs- sequence of items – edges important: city distances -vs- retooling times
Computer Board Assembly Cleveland & Smith (1989) Insert Wire Wrap 15% fail Test 1 Example Problem: Contract 1: 2 x. A, 3 x. B, 4 x. C, 1 x. D (due date = 72 hours) Contract 2: 5 x. A, 1 x. C, 2 x. D (due date = 120 hours) Contract 3: 2 x. B, 1 x. C (due date = 24 hours) 15% fail Solder Test 2 Solution Sequence: B 3, B 1, C 3, A 1, A 2, B 1, C 1, C 2, D 1, A 2, A 2
Weighted Subtour Chunking • • Cleveland & Smith (1989) Special Subtour operation for job-sequencing problems Same procedure as standard subtour chunking, but: Decision of where to place chunks relative to one another is based on average due dates of jobs in the chunk Assume (10 4) has later average due date than (6 8 7 1) • P 1: (9 4 3)3 2 (6 8 7 1)1 (5 10)5 • P 2: 3 5 8 (7 10 4 6)2 9 (2 1)4 • K 1: 9 3 5 2 6 8 7 1 10 4 (10 4) placed after (6 8 7 1) Knowledge-Intensive genetic operators • Semantics (meaning) of the chromosomal bits/integers influence result of crossover. • PMX, simple subtour chunking, subtour replacement and most genetic ops on indirect representations are “blind”, purely syntactic. • In nature, genetic operations are blind, but GA’s can exploit semantics during crossover & mutation to speed convergence to optimal solutions.
GA -vs- Heuristic Methods: Job Sequencing Cleveland & Smith (1989) Heuristics EDD: Earliest Due Date jobs released first SPT: Shortest Processing Time jobs released first LST: Least Slack Time jobs released first Slack Time = Due Date - Total Processing Time • Table values = costs (earliness and lateness are penalized) • Weighted Chunking always among the best performing crossover ops • Subtour Replacement among the worst (since it’s often hard to find matching chunks in the two parents)
JSSP: Job-Shop Scheduling Problem • • • J Jobs to be performed on M machines. Each job consists of M operations, one for each of the machines. The operations must be done in the proper sequence => at time t, no more than one machine can be working on an operation for job j. Operations may require different amounts of time. NP-Hard Problem => Exponential time required both to find optimal solutions and to verify them. Search Space Size = (J!)M Choose appropriate job sequence for each machine. Common Solution Methods • Branch & Bound techniques = exhaustive optimizing search with deterministic node pruning. Too expensive for large J & M (> 20) • Heuristic search = priority rules resolve choices (of next ops to schedule). “Satisficing” that often finds optimal solutions, but no guarantee. More feasible approach to large JSSP problems.
JSSP Matrices Machine-Sequence & Processing-Time Matrix Machine (Processing Time) Job 1 3(1) 1(3) 2(6) 4(7) 6(3) 5(6) Job 2 2(8) 3(5) 5(10) 6(10) 1(10) 4(4) Job 3 3(5) 4(4) 6(8) 1(9) 2(1) 5(7) Job 4 2(5) 1(5) 3(5) 4(3) 5(8) 6(9) Job 5 3(9) 2(3) 5(5) 6(4) 1(3) 4(1) Job 6 2(3) 4(3) 6(9) 1(10) 5(4) 3(1) * 6 x 6 Benchmark from Muth & Thompson, “Industrial Scheduling” (1963) Job-Sequence Matrix M 1 M 2 M 3 M 4 M 5 M 6 1 2 3 3 2 3 4 4 1 6 5 6 Job 3 6 2 4 3 2 6 1 5 1 4 5 2 5 4 2 6 1 5 3 6 5 1 4
JSSP Matrices (2) • • Machine Sequence Matrix (Mseq) = sequences of operations (denoted by the # of the machine on which they must be performed) for each job Processing Time Matrix (Tseq) = durations for each operation of each job Job Sequence Matrix (Jseq) = sequences of job operations to be performed on each machine. Schedule = assignment of starting times (on the required machines) to all operations. Often drawn as a Gantt chart. M 1: 111 4444433333 6666622222555 M 2: 222244444666111111555 3 M 3: 3333331 222225555544444 M 4: 3333 666 4441111111 22225 M 5: 22222 55555333333344446666111111 M 6: 3333 66666222225555111444 *Total Time = 55 = minimum makespan
Schedule Classifications Complete: All job operations scheduled exactly once. Feasible: Complete + Satisfies Mseq and Tseq + Some ops may be started earlier without changing the machine’s order of operations Machine X: A B C Semi-Active: Feasible + Some ops may be started earlier, but they’ll necessarily alter the operation order. Machine X: A B C “Backward Filling” Active: Semi-Active + Some ops may be started earlier, but they’ll necessarily delay other operations. Machine X: A B C Moving C delays B
Generating Schedules: Simple Approaches MT: Directly from an Mseq & Tseq (“Left-to-Right packing”) 1. Randomly pick a job, j, and select its leftmost unschedule operation, op. 2. Schedule it on its machine, m, for the earliest time point, t, where: a. All previously-scheduled operations on m have finished by t b. All previously-scheduled operations for j have finished by t. 3. Repeat until all job operations have been scheduled. • Guaranteed semi-active schedule, but rarely optimal. • MTBF : MT with backward filling => active schedules. MJT: From Mseg, Jseq &Tseq 1. Randomly pick any leftmost unscheduled operation, op, on any machine, m, in Jseq which is also the leftmost unscheduled operation for its job in Mseq. 2. Schedule op on m at earliest time t, where: {same as step 2 above} 3. Repeat until all job operations have been scheduled. * No guarantees of feasibility, since deadlocks may occur.
Scheduling Deadlocks Conflicts between Jseq and Mseq Job Sequences Machine 1: Job 5 Job 4 Machine 2: Job 4 Job 5 … Machine Sequences Job 4: M 1 M 2 Job 5: M 2 M 1 Deadlock: M 1 wants Job 5, but can’t have it until M 2 has taken Job 5 (according to Mseq). But M 2 won’t do Job 5 until it does Job 4, and Job 4 can’t be performed on M 2 until it’s performed on M 1 (according to Mseq). But Job 4 can’t be performed on M 1 until Job 5 is performed on M 1!
Giffler & Thompson Algorithm (1960) GT: Mseq & Tseq => Active Schedules 1. C = set of next schedulable operations for each job early-start-time = 0 for all ops in C 2. o* = earliest completed task in C T(C) = completion time of o* 3. G = conflict set= all ops in C on machine(o*) that overlap o* (including o*) 4. Randomly choose o+ from G & schedule it. 5. Add successor(o+) to C 6. Update early-start-time for all ops in C 7. If not empty(C) then goto 2 *Choice points: step 2: Ties for earliest completed operation step 4: Multiple conflicts All combos of choices => all active schedules. *Also used to convert complete schedules to active schedules
Genetic Algorithm Fitness Functions for JSSP Lin, Goodman & Punch (1997) wj = Weight for job j dj = Due date for job j Cj = Completion time for job j rj = Release time for job j Lj = Lateness of job j = Cj - dj Tj = Tardiness of job j = max(Lj, 0) Uj = penalty for job j { 1 if late, 0 otherwise} Ej = Earliness of job j = max (-Lj, 0) Weighted Flow Time Maximum Tardiness Weighted Lateness Makespan Weighted Tardiness Weighted # Tardy Jobs Weighted Earliness + Weighted Tardiness *Fitness functions are usually simple inverses of the above metrics
Genetic Algorithm Encoding Problems Assume that we want to represent job sequences directly in the GA chromosome Task Machine 11 Machine 22 : : : Machine. M 4 4 3 6 6 1 2 5 5 3 3 6 2 1 3 4 We could easily convert Jseq into a chromosome: 143625 246153 … 362134 => 001100011110010101 …. But then both randomly-generated chromosomes and the results of crossover may represent illegal schedules: [143625 246153…. ] X [152634 162534 …] (cross point = after 3 rd entry) => [143634 162534…. ] And [152625 246153…] Both children are illegal, since they a) advise doing same jobs twice on the same machine, and b) leave out certain jobs.
Nakano & Yamada (1991) GA Chromosome: Pairwise job priorities for all machines Local Harmonization Mseq Tseq Jseq* Jseq MJT Feasible Schedule Global Harmonization Deadlock • Local Harmonization: Removes single-machine priority conflicts • Crossover & Mutation: Standard bitwise • Lamarckism: Changes to Jseq in Global Harmonization are back-coded into chromosome
Priority-Based Schedule Representation (1) A job-priority schedule establishes pairwise priorities of job. A over Job. B on each of the M machines Job 1 -vs- Job 2 : Job 1 -vs- Job 3: : N(N-1)/2 pairs 1 0 1 1 0 0 0 Job 2 has priority over Job 1 on Machine M(1, 5) = 6 Job 1 has priority over Job 3 on Machine M(1, 2) = 1 Combine all rows to create a GA chromosome of MN(N-1)/2 bits 110100 011000 110101 001100……. 0 0
Priority-Based Schedule Representation (2) Now, neither random schedule generation nor crossover creates illegal pairs of priority. I. e. you never get situations in which Job 1 is prioritized over Job 2 on machine 4 and Job 2 over Job 1 on machine 4. But, triples, quadruples, etc. may be inconsistent : On Machine 4: job 1 > job 2 & job 2 > job 3 & job 3 > job 1 This set of priorities makes it impossible to establish a unique priority order for machine 4. Hence, we cannot generate a machine schedule (I. e. job sequence) for machine 4.
Local Harmonization Process for converting illegal genotypes (schedules) into legal job sequences. 1. Convert sequence of pairwise priorities into priority tables for each machine. 2. Establish a strict priority order for each table based on the original priorities Job 1 Job 2 Job 3 Job 4 Job 5 Job 6 * 1 1 0 0 1 0 * 1 1 0 0 Jobs 0 0 * 0 0 1 1 0 1 * 1 1 1 0 * 0 0 1 * Sum 2 3 4 1 2 3 Job 3 is most dominant, so make it dominant EVERY job. This entails changing entry (6, 3) to 0 and (3, 6) to 1. This reduces job 6’s sum to 2. Hence, job 2 is now the only one with sum = 3, so it’s the 2 nd most dominant. Change the table so that job 2 dominates every job but #3…and so on. until a strict priority order is achieved. Do the same for each machine’s priority table.
Global Harmonization Local harmonization creates a job sequence for each machine. Global harmonization is used to remove deadlocks. Job Sequences Machine 1: Job 2 Job 6 Job 1 Job 4*. . . Blue => already scheduled Machine 2: Job 1 Job 3 Job 6 Job 5* … Machine Sequences Job 4: M 1 M 2 Job 5: M 2 M 1 Deadlock: Job 4 wants to run on M 1, but J 1 is next on M 1. Similarly, J 5 wants to run on M 2, but J 3 and J 6 are ahead of it. Assume all other jobs are either finished or deadlocked with even longer waits. Global Harmonization Swap Jseq jobs to accomodate J 4, since it’s closest to being run. Machine 1: Job 2 Job 6 Job 4* Job 1 Forcing (Lamarckism): Change gtype so that J 4 has priority over J 1 on M 1
Shi (1997) GA Chromosome: List of Mx. J Job choices for MTBF (Job 1 Job 3 Job 5 Job 1 Job 3 Job 2…) Mseq Tseq “Schedule next task of Job 3” MTBF Active Schedule • Lamarckism: When MTBF uses backward filling, it changes job order in the chromosome • Job Partition Crossover - Unique subsets of the J jobs taken from each parent. Necessary since kids must have M copies of all J jobs. • Mutation: Job swaps or moves within chromosome
Job-Partitioned Crossover (Shi, 1997) • • Select non-overlapping subsets S 1, S 2 of {1, 2…J} = S, such that S 1 U S 2 = S Choose all and only S 1 (S 2) genes from parent 1 (2) and place in child Parent 1 S 1 = {1, 3} S 2 = {2, 4} J 4 J 2 J 1 J 3 J 4. . . J 3 J 2 J 1 J 4. . . J 2 J 1 J 3 J 4. . . Parent 2 Kid * Kid chromosome is guaranteed to have M copies of all J jobs, when parents do
Kobayashi, Ono & Yamamura (1995) GA Chromosome: Job Sequence Matrix (Jseq) Mseq MJT Tseq No harmonization needed, since: a) init Jseq pop gen’d by GT b) All kids run through GT Active Schedule Subsequence Exchange Crossover (SXX): Only Jseq segments with same jobs exchanged between parents => kid schedules are complete Parent Jseq Kid Jseq GT Active Schedule SXX Parent Jseq
Subsequence Exchange Crossover (SXX) • • Parent Jseq 1 Swap similar (but permuted) subsets of parent job sequences GT applied to kid Jseqs may result in job swaps within rows J 2 J 3 J 5 J 1 J 4 J 6 J 4 J 1 J 2 J 3 J 6 J 5 J 3 J 2 J 1 J 6 J 5 J 4 : : J 1 J 4 J 5 J 6 J 3 J 2 J 5 J 6 J 3 J 4 J 2 J 1 J 3 J 5 J 2 J 4 J 6 : : Parent Jseq 2 SXX Kid Jseq 1 J 2 J 3 J 1 J 4 J 5 J 6 J 4 J 2 J 1 J 3 J 5 J 6 J 3 J 2 J 1 J 6 J 5 J 4 : : To GT J 5 J 1 J 4 J 6 J 3 J 2 J 6 J 5 J 3 J 4 J 1 J 2 J 1 J 3 J 5 J 2 J 4 J 6 : : To GT Kid Jseq 2
Lin, Goodman & Punch (1997) GA Chromosome: Active Schedule Time Horizon Exchange Crossover (THX): Prior to scheduling time T*, 1 st parent’s scheduled ops are used to resolve conflicts. After T*, use 2 nd parent. Parent Schedule 1 Yes O+ GT O+ Active Kid Schedule Step 4: Select o+ Parent Schedule 2 No T < T* ? * Yamada & Nakano (1992) use similar method (GA + GT) but choose parent schedule randomly for each conflict resolution (i. e. O+ selection)
Fang, Ross & Corne (1993) GA Chromosome: List of Mx. J Job choices for MTBF (2 1 3 3 3 4 5 5 1 6 …) Mseq Tseq MTBF “Schedule next task of 5 th unfinished job in the circular job list” Active Schedule Gene Variance Based Operator Targeting (GVOT) - choose crossover and mutation points based on population variances of genes. • GVOT biases: X-over pt (high variance genes); Mutation (low variance genes) • Standard Bitwise Crossover - Possible due to indirect representation
Indirect JSSP Representation (Fang, Ross & Corne, 1993) Genotype for an J (# jobs) x M (# machines) JSSP: JM chunks, where each chunk has log 2(J) bits. 12321432443212…. “Take the next operation for the 2 nd uncompleted job (so this isn’t necessarily job 2) and put it into the earliest place that it will fit in the currently developing schedule. ” Indirect representation since the genes don’t refer to absolute jobs 2232… -vs- 1142 Assuming each job has more than 3 tasks, then these are interpreted as “Schedule 3 rd task of job 2” -vs- “Schedule the 1 st task of job 2” The same position (4) has the same value (2), but it has a different meaning in the two genomes. Context sensitivity, epistasis: genes interact in determining phenotypes
JSSP Benchmark Comparison *All results are makespans from the best runs (red values are optimal) • GA with specialized crossover approaches Branch & Bound optimality (with much less searching) • Indirect representations (Fang et. Al. ) perform well, but slightly worse than most other direct representations
GA Search Efficiency Search Space Size = (J!)M = 3. 96 x 1065 for the 10 x 10 JSSP Can be larger depending upon the GA representation Typical GA’s above evaluate around 150, 000 individuals E. g. Population size = 1000; # Generations = 150 1. 5 x 105 / 3. 96 x 1065 = 3. 79 x 10 -61 = fraction of search space that we need to explore to find a good solution when using GA’s. Branch & Bound techniques explore a significantly larger portion of the search space.
Search Spaces Representation Space (Syntax) Solution Space (Semantics) Completeness: Every point in SS is covered by a point in RS Soundness: Every point in RS maps to a point in SS => Anything generated during RS search is a valid solution Uniqueness: No 2 points in RS map to the same point in SS. Translational Determinism: No point in RS maps to more than 1 point in SS => The translation of a representation gives the same solution every time Heritability: Children solutions resemble their parents
Direct Representations Reps wherein genes encode absolute values such that the same spot on the genome encodes the same information, regardless of the values of other genes. If Position P = A in both chromosomes C 1 and C 2, then, when converted into phenotypes, C 1 and C 2 will derive the same characteristic from position P. + Phenotypes can be independently read off the genome + Genes that converge to particular alleles can only be changed via mutation - When the genome encodes a sequence of unique values, then crossover can create genomes with illegal interpretations (as phenotypes). Hence, an extra, often time-consuming, step is required to convert the genotypes to legal varieties, e. g. harmonization.
Indirect Representations Reps wherein genes encode relative values such that the absolute values of genes are dependent upon the values of other (e. g. Earlier) genes. + All genotypes represent legal phenotypes. + Easier to manipulate. Can perform syntactic operations (mutation , crossover, etc. ) without paying attention to the semantics => crossover is cheap! - High epistatis (gene interactions) makes GA-based search more difficult. It works against the Building Block Hypothesis. - False Competition: Two different gtypes may rep the same (or similar) ptypes, which will compete with one another for repro success, thus reducing the gain of each. - Low Inheritance via Crossover Two different genotypes produce similar phenotypes, but crossover produces children with vastly different phenotypes from the parents. 11122212 x 22211112 (cross after 3 rd gene) “Do 4 th task of 1, then 4 th task of 2” 11111112 x 22222212 “Do 7 th task of 1, then 1 st task of 2” -vs- “Do 1 st task of 1, then 7 th task of 2”
Summary • When search spaces become too large for exhaustive (Branch & Bound) or too complex for heuristic techniques, GA’s can help. • GA cannot guarantee optimality, but good solutions normally found, and search is very efficient. • Choice of fitness function is straightforward for most GA scheduling applications • Choice of representation is more difficult. – One of reps presented above might be useful, but – For special problems, a new rep may be needed – If it’s a direct representation, then special mutation & crossover ops also needed
