Applications & Examples of Newton’s Laws

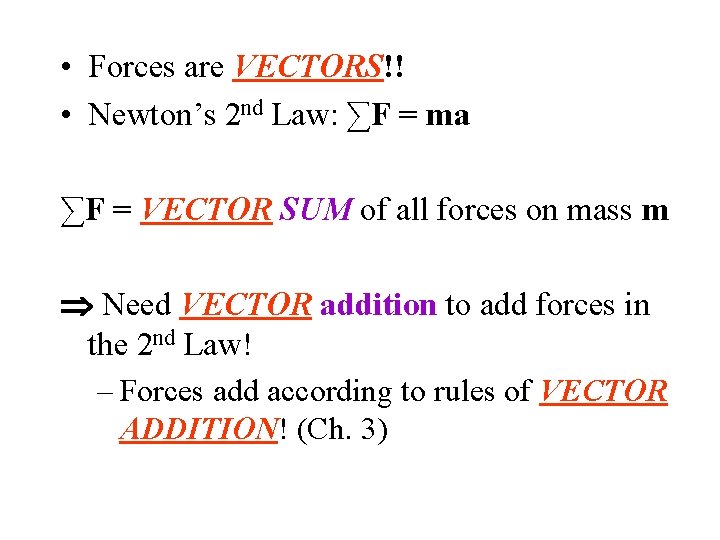

• Forces are VECTORS!! • Newton’s 2 nd Law: ∑F = ma ∑F = VECTOR SUM of all forces on mass m Need VECTOR addition to add forces in the 2 nd Law! – Forces add according to rules of VECTOR ADDITION! (Ch. 3)
• Newton’s 2 nd Law problems: • STEP 1: Sketch the situation!! – Draw a “Free Body” diagram for EACH body in problem & draw ALL forces acting on it. • Part of your grade on exam & quiz problems! • STEP 2: Resolve the forces on each body into components – Use a convenient choice of x, y axes • Use the rules for finding vector components from Ch. 3.
• STEP 3: Apply Newton’s 2 nd Law to EACH BODY SEPARATELY: ∑F = ma Notice that this is the LAST step, NOT the first! – A SEPARATE equation like this for each body! – Resolved into components: ∑Fx = max ∑Fy = may
Conceptual Example Moving at constant v, with NO friction, which free body diagram is correct?
Example Particle in Equilibrium “Equilibrium” ≡ The total force is zero. ∑F = 0 or ∑Fx = 0 & ∑Fy = 0 Example (a) Hanging lamp (massless chain). (b) Free body diagram for lamp. ∑Fy = 0 T – Fg = 0; T = Fg = mg (c) Free body diagram for chain. ∑Fy = 0 T – T´ = 0; T´ = T = mg

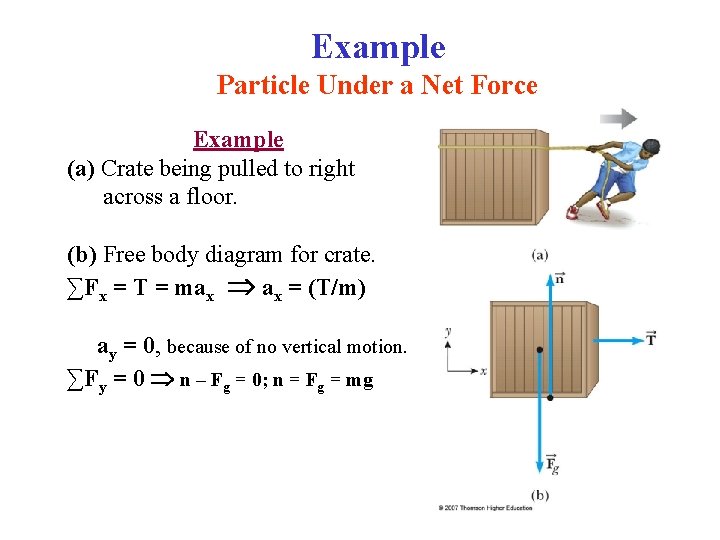

Example Particle Under a Net Force Example (a) Crate being pulled to right across a floor. (b) Free body diagram for crate. ∑Fx = T = max ax = (T/m) ay = 0, because of no vertical motion. ∑Fy = 0 n – Fg = 0; n = Fg = mg
Example Normal Force Again “Normal Force” ≡ When a mass is in contact with a surface, the Normal Force n = force perpendicular to (normal to) the surface acting on the mass. Example Book on a table. Hand pushing down. Book free body diagram. ay = 0, because of no vertical motion (equilibrium). ∑Fy = 0 n – Fg - F = 0 n = Fg + F = mg + F Showing again that the normal force is not always = & opposite to the weight!!
Example A box of mass m = 10 kg is pulled by an attached cord along a horizontal smooth (frictionless!) surface of a table. The force exerted is FP = 40. 0 N at a 30. 0° angle as shown. Calculate: a. The acceleration of the box. b. The magnitude of the upward normal force FN exerted by the table on the box. Free Body Diagram The normal force, FN is NOT always equal & opposite to the weight!!
Example Two boxes are connected by a lightweight (massless!) cord & are resting on a smooth (frictionless!) table. The masses are m. A = 10 kg & m. B = 12 kg. A horizontal force FP = 40 N is applied to m. A. Calculate: a. The acceleration of the boxes. b. The tension in the cord connecting the boxes. Free Body Diagrams
Example 5. 4: Traffic Light at Equilibrium (a) Traffic Light, Fg = mg = 122 N hangs from a cable, fastened to a support. Upper cables are weaker than vertical one. Will break if tension exceeds 100 N. Does light fall or stay hanging? (b) Free body diagram for light. ay = 0, no vertical motion. ∑Fy = 0 T 3 – Fg = 0 T 3 = Fg = mg = 122 N (c) Free body diagram for cable junction (zero mass). T 1 x = -T 1 cos(37°), T 1 y = T 1 sin(37°) T 2 x = T 2 cos(53°), T 2 y = T 2 sin(53°), ax = ay = 0. Unknowns are T 1 & T 2. ∑Fx = 0 T 1 x + T 2 x = 0 or -T 1 cos(37°) + T 2 cos(53°) = 0 (1) ∑Fy = 0 T 1 y + T 2 y – T 3 = 0 or T 1 sin(37°) + T 2 sin(53°) – 122 N = 0 (2) (1) & (2) are 2 equations, 2 unknowns. Algebra is required to solve for T 1 & T 2! Solution: T 1 = 73. 4 N, T 2 = 97. 4 N
Example 5. 6: Runaway Car
Example 5. 7: One Block Pushes Another
Example 5. 8: Weighing a Fish in an Elevator
Example 5. 9: Atwood Machine
Example 4 -13 (“Atwood’s Machine”) Two masses suspended over a (massless frictionless) pulley by a flexible (massless) cable is an “Atwood’s machine”. Example: elevator & counterweight. Figure: Counterweight m. C = 1000 kg. Elevator m. E = 1150 kg. Calculate a. The elevator’s acceleration. b. The tension in the cable. a a a. E = - a Free Body Diagrams a. C = a
Conceptual Example Advantage of a Pulley A mover is trying to lift a piano (slowly) up to a secondstory apartment. He uses a rope looped over 2 pulleys. What force must he exert on the rope to slowly lift the piano’s mg = 2000 N weight? mg = 2000 N Free Body Diagram
Example: Accelerometer A small mass m hangs from a thin string & can swing like a pendulum. You attach it above the window of your car as shown. What angle does the string make a. When the car accelerates at a constant a = 1. 20 m/s 2? b. When the car moves at constant velocity, v = 90 km/h? Free Body Diagram
Example = 300 N Free Body Diagram FT 1 x = -FTcosθ FT 1 y = -FTsinθ FT 2 x = FTcosθ FT 2 y = -FTsinθ
Inclined Plane Problems The tilted coordinate System is convenient, but not necessary. Engineers & scientists MUST understand these! a Understand ∑F = ma & how to resolve it into x, y components in the tilted coordinate system!!
Example: Sliding Down An Incline A box of mass m is placed on a smooth (frictionless!) incline that makes an angle θ with the horizontal. Calculate: a. The normal force on the box. b. The box’s acceleration. c. Evaluate both for m = 10 kg & θ = 30º Free Body Diagram
Example 5. 10 Inclined Plane, 2 Connected Objects
