Application Solution Successful Cases CAN Application NUC 140
- Slides: 32
Application Solution & Successful Cases
CAN Application
NUC 140 - OBDII/EOBD Diagnostic Product Functions: • Works on all 2004 and later OBDII compliant DIESEL European vehicles • Easily determines the cause of the "Check Engine Light ( MIL)“ • Graph displays live PCM data stream • Retrieves vehicle information (VIN, CIN and CVN) • Supports CAN (Controller Area Network) and all other current OBD-II protocols • Color LCD, large 240 * 320 resolution • Software upgradeable via USB 2. 0, free Upgrade
NUC 130/140 - CAN Elevator System Features: • Due CAN BUS • CAN BUS control 2 buildings elevators • Call, Detect location • PC control CAN BUS through USB Application: • Center control system • Floor display • Motor control system NUC 140 Console Center USB CAN BUS (B) NUC 240 Motor Control PC NUC 240 Motor Control CAN BUS (A 1) CAN BUS (A 2) NUC 130 Floor Panel NUC 130 Floor Panel NUC 130 Floor Panel … … … NUC 130 Floor Panel
NUC 131 + N 329 + NT 0880 Elevator Solution (Hall Call board, Internal Call board, Ads Displayer) • Chip Application • Elevator System • Multimedia image processing • • • Touch buttons System Block Diagram Application Feature • NUC 131 : Mainboard and motor control – Support 1 channel CAN bus – -40 ~ 105 ℃ Operating temperature • N 329 : LCD display screen – Clock up to 300 MHz – Multiple Video Format Decoder • NT 0880 : Floor selection board – Capacitive touch – Excellent anti-noise interference – Simple PCB board layout
USB Application
NUC 123 Thermal Printer Solution • • Chip Application • Application Feature • USB Devices • USB devices best choice (72 MHz / 68 k Flash) • Touch Screen • Built-in 20 k SRAM can support 58 mm print head • Font can be extended outside (16 x 16, 24 x 24) • Support UART / VCOM interface System Block Diagram
NUC 123 USB Game Controller Application: • USB Driving Simulation NUC 123 Advantages: • 32 bit CPU/72 MHz/strong computing power • 68 K Flash/20 K RAM • USB 2. 0 (12 Mbps) , support 8 end points • 6 channel PDMA • Hardware CRC, abundant series ports.
Cortex-M 4 Application
M 452 Moving LED Sign Board • • Application • USB Host Equipment • Industrial Automation • Security & Protection System Block Diagram • Application Feature • Max. Driving 60 Units LED Board (64 x 32 LED) • Support USB pen-drive or wireless device to update Pattern. • Support power supply from RTC ( Current Consumption < 2 u. A) • Support HS USB OTG, HS USB device • Support Max. 28 MHz , 4 -bit SPI interface • Open source code and reference design.
Ethernet Remote Music Player Applications • • MP 3 player Ethernet Controller Features • • • NUC 472 Cortex M 4 Processor 80 Mhz USB 2. 0 FS Host (USB disk) SD Card Reader 10 M/100 Mb Ethernet MAC Web remote Control Dual I 2 S up to 4 Channel Audio Output RTOS Ethernet Phy MAC TCP/IP USB Host S/W MP 3 Decode r SD interface MP 3 File I 2 S Audio Codec
80 mm Thermal Printer NUC 505 Applications • • • Ticket Automat Credit Card Terminal B/T Printer Ordering machine Label Printer USB SPI MAC/ PHY SPI Motor Driver UART B. T module UART ADC Features • • • Support USB, B/T, Ethernet, UART printing Support USB PC printer mode Printing speed up to 150 mm/s Built-in 16 X 16, 24 X 24 Font file Support Multiple Font Size Support general ECOS command 11 11

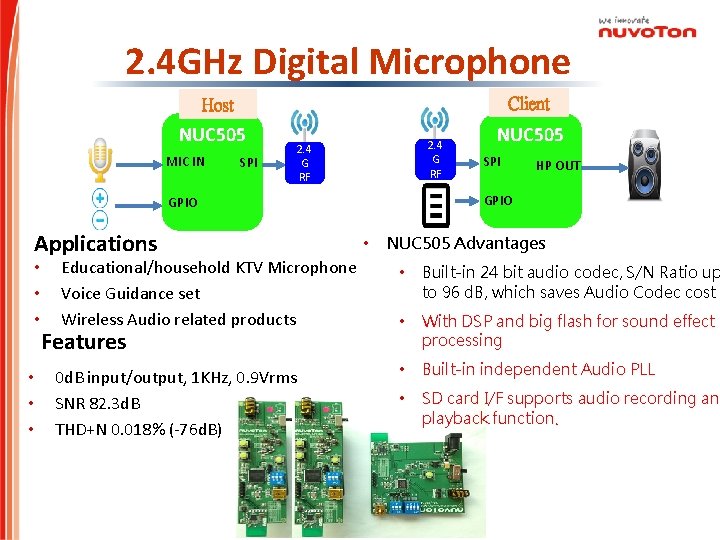

2. 4 GHz Digital Microphone Client Host NUC 505 MIC IN SPI 2. 4 G RF • • • SPI HP OUT GPIO Applications NUC 505 • Educational/household KTV Microphone Voice Guidance set Wireless Audio related products Features 0 d. B input/output, 1 KHz, 0. 9 Vrms SNR 82. 3 d. B THD+N 0. 018% (-76 d. B) 12 NUC 505 Advantages • Built-in 24 bit audio codec, S/N Ratio up to 96 d. B, which saves Audio Codec cost • With DSP and big flash for sound effect processing • Built-in independent Audio PLL • SD card I/F supports audio recording an playback function.
2. 4 GHz Digital Microphone Specification of NUC 505 2. 4 GHz Wireless Microphone Wireless Specification Parameters Support microphones Frequency range Adaptive Hopping Channels Data Rate Indoor Distance (0~10 d. Bm) MIN 1 2. 400 GHz 4 TYP 2 16 10 m MAX 2 2. 483 GHz 24 4 Mbps TYP 16 bits PCM 32 KHz MAX 0. 10% Audio Specification Parameters Sample depth Sample format Sampling rate SNR (1 Vrms @ 1 KHz) THD+N MIN 16 KHz 80 d. B Other specifications and features l Support different IDs (random or sequential) for up to 16 sets. l Support force repairing. l 10 hours for two 1. 5 V AA Alkaline batteries. (113 m. A with 10 d. B, ~ 17 hr with 2000 m. A Battery) 13
Cortex-M 0 Application
8 x 8 x 8 LED Cube Feature • Applications : • 3 D LED Cube • Lighting Board Controller(DMX 512) • M 058 S feature: • Cortex-M 0/50 MHz/1 T multiplexer • Support up to 55 GPIO to drive LED directly • Support DMX 512 to control 8 sets of LED Cube • 8 -Channel 12 -bit ADC • 4 -Channel PWM with dead zone • Rich Serial Interface (SPI/UART/I 2 C /RS 485/LIN) • Support LQFP 64、LQFP 48 and QFN 33 package
M 058 S 8 x 8 x 8 LED Cube NUC 240 USB Console Center PC DMX 512/RS 485 M 058 SLAN LED Cube Control #0 M 058 SLAN … LED Cube Control #1 M 058 SLAN LED Cube Control #7 …
M 054 Qi Standard Wireless Charger Solution • Chip Application • • Wireless charging System Block Diagram • Application Feature • ARM Cortex-M 0 core, 50 MHz running frequency, 1 T hardware multiplier and divider • Efficiency up to 75% • Compatible with Qi 1. 1 Standard • Dynamic Power Adjustment
Mini 54 1 -to-2 ESC Solution • • Chip Application • Application Feature • Air-modeling Electronic Speed Control • Proprietary PHCHG for commutate, Comparator/Timer trigger PWM mechanism and PWM output can be set at the same time by configured PHCHG • Power Management & Control • Superb computing power with 32 -bit CPU/24 MHZ /1 T multiplier, Ultra high cost performance • Industrial Control • Assure synchronized control of two rotors System Block Diagram
M 0518 Six-foot Multi-axis Robot • • Chip Application • Application Feature • Robot Control • Up to 56 GPIO pins in package LQFP 64 • LED Light Control • Up to 24 channels of 16 -bit PWM • Industrial Control • Up to 6 UART • Power Management Control System Block Diagram
NANO Application
Health-care Successful Stories Blood Glucose Meter Taiwan Customer: epsbio Part No. : NANO 110 KC 2 BN LCD series NANO 130 KC 2 BN LCD+USB series

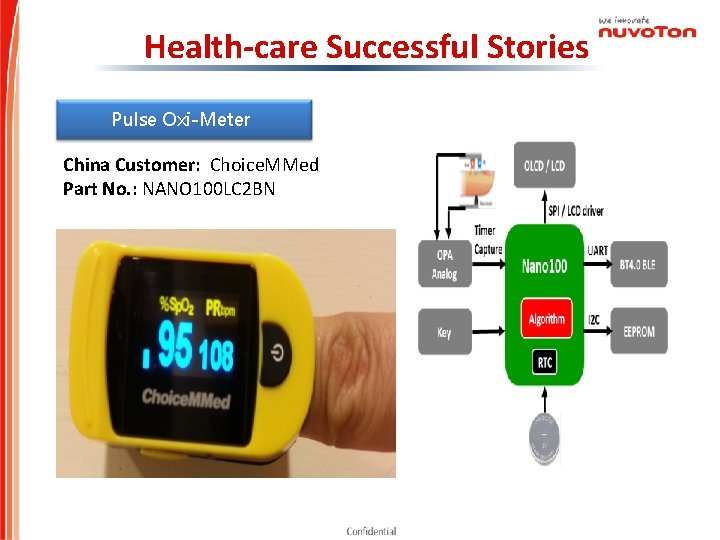

Health-care Successful Stories Pulse Oxi-Meter China Customer: Choice. MMed Part No. : NANO 100 LC 2 BN
Nano 112 Smart Home - Smart Socket • Chip Application • • IOT Equipment • Smart Home • Wearable device • • Application Feature Smart meter ( Heat meter, water meter, gas meter ) System Block Diagram • Ultra-low-power operation and power-down • mode (150 u. A / MHz, 0. 65 u. A) • Support LCD driver (4 x 36, 6 x 34) Support timing and scheduling management APP • • Support socket use UI Wi-Fi remote control, infrared remote control management Power flow display on each output • Voltage adjustment on each socket device •
USB Smart Card Reader • Features: • • • Dual ISO 7816 -3 interface Microsoft USB CCID class specification Color LCM USB Interface Support Unique CID Ultra Low Power • Applications : • • • Color LCM EBI Key Pad GPIO NANO 130 ISO 7816 -3 IC Memory Card, VISA Card, COMBO Card POS Machine for Smart Card Reader UART, USB
RF 4 CE Remote Control • Applications: • • • Home Automation TV / DVD / LCD / STB / Media Center Remote Controller Multi-function RC Home Lighting Control RF 4 CE (RF for CE) Remote Controller Zigbee NANO 100 GPIO PWM Target for LED SPI RF Remote Control Zigbee SPI NANO 100 GPIO Key. Pad
Air Mouse + Microphone • Applications: • • • Air mouse + Audio Internet TV Remote Controller + Skype Microphone Wireless Microphone Presentation Pen Wireless Game Pad + Audio 2. 4 G RF Module SPI NANO 100 SPI MEMS Motion Module I 2 S Audio Codec NAU 8810 + Microphone
Ultrasonic Water Meter
Wireless Thermal Meter
Nuvoton MCU Forums • www. nuvoton-m 0. com • Coo. Cox Forum • 菜農助學園地: http: //bbs. 21 ic. com/iclist-78 -1. html • 新浪菜農助學微群: http: //q. weibo. com/632890 • 騰訊菜農助學微群: http: //qun. t. qq. com/78184763 • 21 IC 芯唐萬利
For more information, Please visit • www. nuvoton. com/numicro
Bring 32 -bit Performance at 8 -bit Prices
