Appendix A MIPS Assembly Language Instruction Format l
Appendix A: MIPS Assembly Language
Instruction Format l l l R-type I-type J-type
SPIM and MIPS Architecture l l A MIPS processor consists of an integer processing unit (the CPU) and a collection of coprocessors. SPIM simulates two coprocessors: l l coprocessor 0 handles exceptions, interrupts and the virtual memory system coprocessor 1 is the floating-point unit
Addressing Modes l l l MIPS is a load-store architecture Only load and store instructions access memory Computation instructions operates only on values in registers. The bare machine provides only one addressing mode: c(rx), c+rx Virtual machine provides other modes.

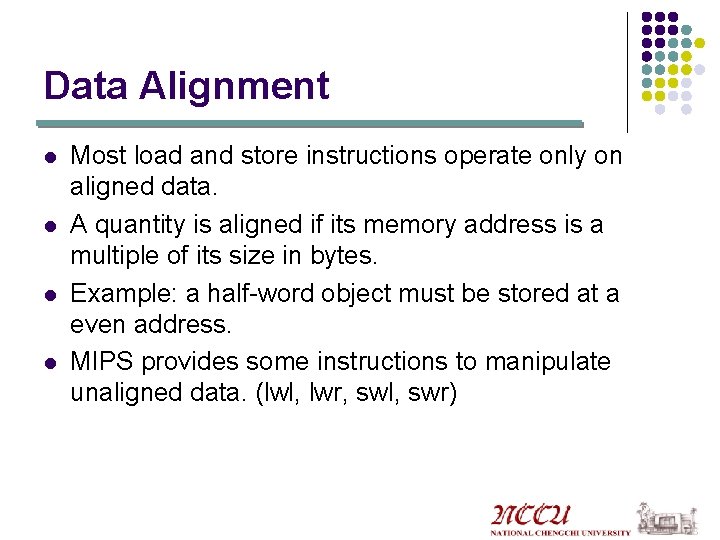

Data Alignment l l Most load and store instructions operate only on aligned data. A quantity is aligned if its memory address is a multiple of its size in bytes. Example: a half-word object must be stored at a even address. MIPS provides some instructions to manipulate unaligned data. (lwl, lwr, swl, swr)

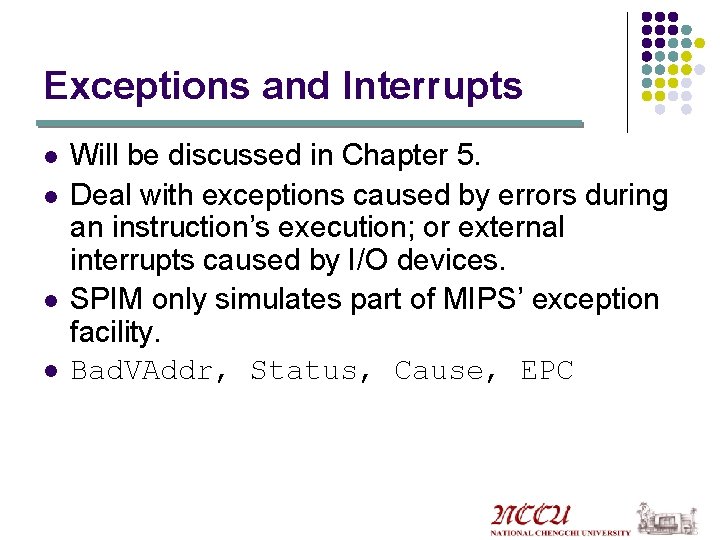

Exceptions and Interrupts l l Will be discussed in Chapter 5. Deal with exceptions caused by errors during an instruction’s execution; or external interrupts caused by I/O devices. SPIM only simulates part of MIPS’ exception facility. Bad. VAddr, Status, Cause, EPC
Instruction Categories l l l l l Arithmetic and Logical Instructions Constant-Manipulating Instructions Comparison Instructions Branch Instructions Jump Instructions Load Instructions Store Instructions Data Movement Instructions Floating-Point Instructions Exception and Interrupt Instructions
Assembler Syntax l . align n : align the next datum on a 2^n byte boundary. . ascii str , asciiz str. byte b 1, …, bn. data <addr>. double d 1, . . , dn l More on Pages A-47 and A-48 l l

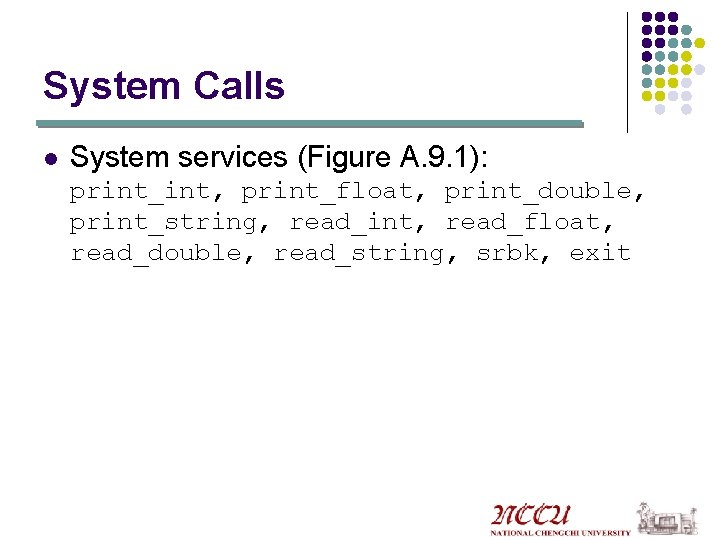

System Calls l System services (Figure A. 9. 1): print_int, print_float, print_double, print_string, read_int, read_float, read_double, read_string, srbk, exit
Figure A. 9. 1
Example. data str: . asciiz “the answer= “. text li $v 0, 4 # print_str la $a 0, str # addr of string syscall to print
Programming Assignment l l A. 6 (due on 10/5/2005) A. 7 (due on 10/5/2005) A. 8 (due on 10/12/2005) Submit a hardcopy including the source code and the results of executing the program. Also send an electronic copy of the source code to your TA (g 9304).
