Appendix A - Digital Logic A-1 Computer Architecture and Organization Miles Murdocca and Vincent Heuring Appendix A – Digital Logic Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-2 Chapter Contents A. 1 Introduction A. 2 Combinational Logic A. 3 Truth Tables A. 4 Logic Gates A. 5 Properties of Boolean Algebra A. 6 The Sum-of-Products Form and Logic Diagrams A. 7 The Product-of-Sums Form A. 8 Positive vs. Negative Logic A. 9 The Data Sheet A. 10 Digital Components Computer Architecture and Organization by M. Murdocca and V. Heuring A. 11 Sequential Logic A. 12 Design of Finite State Machines A. 13 Mealy vs. Moore Machines A. 14 Registers A. 15 Counters A. 16 Reduction of Combinational Logic and Sequential Logic A. 17 Reduction of Two-Level Expressions A. 18 State Reduction © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-3 Some Definitions • Combinational logic: a digital logic circuit in which logical decisions are made based only on combinations of the inputs. e. g. an adder. • Sequential logic: a circuit in which decisions are made based on combinations of the current inputs as well as the past history of inputs. e. g. a memory unit. • Finite state machine: a circuit which has an internal state, and whose outputs are functions of both current inputs and its internal state. e. g. a vending machine controller. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-4 The Combinational Logic Unit • Translates a set of inputs into a set of outputs according to one or more mapping functions. • Inputs and outputs for a CLU normally have two distinct (binary) values: high and low, 1 and 0, 0 and 1, or 5 V. and 0 V. for example. • The outputs of a CLU are strictly functions of the inputs, and the outputs are updated immediately after the inputs change. A set of inputs i 0 – in are presented to the CLU, which produces a set of outputs according to mapping functions f 0 – fm. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-5 Truth Tables • Developed in 1854 by George Boole • further developed by Claude Shannon (Bell Labs) • Outputs are computed for all possible input combinations (how many input combinations are there? Consider a room with two light switches. How must they work†? †Don't show this to your electrician, or wire your house this way. This circuit definitely violates the electric code. The practical circuit never leaves the lines to the light "hot" when the light is turned off. Can you figure how? Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-6 Alternate Assignments of Outputs to Switch Settings • Logically identical truth table to the original (see previous slide), if the switches are configured up-side down. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-7 Truth Tables Showing All Possible Functions of Two Binary Variables • The more frequently used functions have names: AND, XOR, NOR, XOR, and NAND. (Always use upper case spelling. ) Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-8 Logic Gates and Their Symbols Logic symbols for AND, OR, buffer, and NOT Boolean functions • Note the use of the “inversion bubble. ” • (Be careful about the “nose” of the gate when drawing AND vs. OR. ) Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-9 Appendix A - Digital Logic symbols for NAND, NOR, XOR, and XNOR Boolean functions Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-10 Variations of Basic Logic Gate Symbols Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-11 The Inverter at the Transistor Level Power Terminals Transistor Symbol A Transistor Used as an Inverter Computer Architecture and Organization by M. Murdocca and V. Heuring Inverter Transfer Function © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-12 Allowable Voltages in Transistor-Logic (TTL) • Assignments of logical 0 and 1 to voltage ranges (left) at the output of a logic gates, (right) at the input to a logic gate. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-13 Transistor-Level Circuits For 2 -Input NAND and NOR Gates Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-14 CMOS Configurations • Schematic symbols for (left) n-channel transistor and (right) p-channel transistor. • CMOS configurations for (a) NOT, (b) NOR, and (c) NAND gates. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-15 Tri-State Buffers • Outputs can be 0, 1, or “electrically disconnected. ” Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-16 The Basic Properties of Boolean Algebra Principle of duality: The dual of a Boolean function is made by replacing AND with OR and OR with AND, constant 1 s by 0 s, and 0 s by 1 s A, B, etc. are literals; 0 and 1 are constants. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-17 De. Morgan’s Theorem Discuss: Applying De. Morgan’s theorem by “pushing the bubbles, ” and “bubble tricks. ” Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-18 Appendix A - Digital Logic NAND Gates Can Implement AND and OR Gates Inverted inputs to a NAND gate are implemented with NAND gates. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-19 The Sum-of-Products (SOP) Form Truth Table for The Majority Function • Transform the function into a two-level AND-OR equation • Implement the function with an arrangement of logic gates from the set {AND, OR, NOT} • M is true when A=0, B=1, and C=1, or when A=1, B=0, and C=1, and so on for the remaining cases. • Represent logic equations by using the sum-of-products (SOP) form Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-20 The SOP Form of the Majority Gate • The SOP form for the 3 -input majority gate is: • M = ABC + ABC = m 3 + m 5 +m 6 +m 7 = (3, 5, 6, 7) • Each of the 2 n terms are called minterms, running from 0 to 2 n - 1 • Note the relationship between minterm number and boolean value. • Discuss: common-sense interpretation of equation. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-21 Appendix A - Digital Logic A 2 -Level AND-OR Circuit Implements the Majority Function The encircled “T” intersections are electrically common (see next slide). Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-22 Appendix A - Digital Logic Notation Used at Circuit Intersections Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-23 Appendix A - Digital Logic A 2 -Level OR-AND Circuit Implements the Majority Function Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-24 Positive vs. Negative Logic • Positive logic: truth, or assertion is represented by logic 1, higher voltage; falsity, de- or unassertion, logic 0, is represented by lower voltage. • Negative logic: truth, or assertion is represented by logic 0 , lower voltage; falsity, de- or unassertion, logic 1, is represented by lower voltage Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-25 Appendix A - Digital Logic Positive and Negative Logic (Cont’d. ) Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-26 Bubble Matching • Active low signals are signified by a prime or overbar or /. • Active high: enable • Active low: enable’, enable/ • Ex: microwave oven control: • Active high: Heat = Door. Closed • Start • Active low: ? (hint: begin with AND gate as before. ) Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-27 Bubble Matching (Cont’d. ) Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-28 Appendix A - Digital Logic The Data Sheet Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-29 Digital Components • High level digital circuit designs are normally made using collections of logic gates referred to as components, rather than using individual logic gates. The majority function can be viewed as a component. • Levels of integration (numbers of gates) in an integrated circuit (IC): • Small scale integration (SSI): 10 -100 gates. • Medium scale integration (MSI): 100 to 1000 gates. • Large scale integration (LSI): 1000 -10, 000 logic gates. • Very large scale integration (VLSI): 10, 000 -upward. • These levels are approximate, but the distinctions are useful in comparing the relative complexity of circuits. • Let us consider several useful MSI components: Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-30 The Multiplexer Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-31 Gate-Level Layout of Multiplexer Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-32 Appendix A - Digital Logic Implementing the Majority Function with an 8 -1 Mux Principle: Use the mux select to pick out the selected minterms of the function. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-33 Efficiency: Using a 4 -1 Mux to Implement the Majority Function Principle: Use the A and B inputs to select a pair of minterms. The value applied to the MUX input is selected from {0, 1, C, C} to pick the desired behavior of the minterm pair. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-34 The Demultiplexer (DEMUX) Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-35 Appendix A - Digital Logic The Demultiplexer is a Decoder with an Enable Input Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-36 A 2 -to-4 Decoder Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-37 Appendix A - Digital Logic Using a 3 -to-8 Decoder to Implement the Majority Function Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-38 The Priority Encoder • An encoder translates a set of inputs into a binary encoding, • Can be thought of as the converse of a decoder. • A priority encoder imposes an order on the inputs. • Ai has a higher priority than Ai+1 Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-39 Programmable Logic Arrays (PLAs) • A PLA is a customizable AND matrix followed by a customizable OR matrix: Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-40 Appendix A - Digital Logic Using a PLA to Implement the Majority Function Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-41 Appendix A - Digital Logic Using PLAs to Implement an Adder Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-42 A Multi-Bit Ripple. Carry Adder Computer Architecture and Organization by M. Murdocca and V. Heuring Appendix A - Digital Logic PLA Realization of a Full Adder © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-43 Sequential Logic • The combinational logic circuits we have been studying so far have no memory. The outputs always follow the inputs. • There is a need for circuits with memory, which behave differently depending upon their previous state. • An example is a vending machine, which must remember how many coins and what kinds of coins have been inserted. The machine should behave according to not only the current coin inserted, but also upon how many coins and what kinds of coins have been inserted previously. • These are referred to as finite state machines, because they can have at most a finite number of states. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-44 Classical Model of a Finite State Machine • An FSM is composed of a combinational logic unit and delay elements (called flipflops) in a feedback path, which maintains state information. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-45 NOR Gate with Lumped Delay • The delay between input and output (which is lumped at the output for the purpose of analysis) is at the basis of the functioning of an important memory element, the flip-flop. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-46 S-R Flip-Flop • The S-R flip-flop is an active high (positive logic) device. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-47 Appendix A - Digital Logic NAND Implementation of S-R Flip-Flop • A NOR implementation of an S-R flip-flop is converted into a NAND implementation. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-48 A Hazard • It is desirable to be able to “turn off” the flip-flop so it does not respond to such hazards. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-49 Appendix A - Digital Logic A Clock Waveform: The Clock Paces the System • In a positive logic system, the “action” happens when the clock is high, or positive. The low part of the clock cycle allows propagation between subcircuits, so that the signals settle at their correct values when the clock next goes high. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-50 Scientific Prefixes • For computer memory, 1 K = 210 = 1024. For everything else, like clock speeds, 1 K = 1000, and likewise for 1 M, 1 G, etc. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-51 Clocked S-R Flip-Flop • The clock signal, CLK, enables the S and R inputs to the flip-flop. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-52 Clocked D Flip-Flop • The clocked D flip-flop, sometimes called a latch, has a potential problem: If D changes while the clock is high, the output will also change. The Master-Slave flip-flop (next slide) addresses this problem. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-53 Master-Slave Flip-Flop • The rising edge of the clock loads new data into the master, while the slave continues to hold previous data. The falling edge of the clock loads the new master data into the slave. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-54 Clocked J-K Flip-Flop • The J-K flip-flop eliminates the disallowed S=R=1 problem of the S-R flipflop, because Q enables J while Q’ disables K, and vice-versa. • However, there is still a problem. If J goes momentarily to 1 and then back to 0 while the flip-flop is active and in the reset state, the flip-flop will “catch” the 1. This is referred to as “ 1’s catching. ” • The J-K Master-Slave flip-flop (next slide) addresses this problem. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-55 Master-Slave J-K Flip-Flop Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-56 Clocked T Flip-Flop • The presence of a constant 1 at J and K means that the flip-flop will change its state from 0 to 1 or 1 to 0 each time it is clocked by the T (Toggle) input. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-57 Appendix A - Digital Logic Negative Edge-Triggered D Flip-Flop • When the clock is high, the two input latches output 0, so the Main latch remains in its previous state, regardless of changes in D. • When the clock goes high-to-low, values in the two input latches will affect the state of the Main latch. • While the clock is low, D cannot affect the Main latch. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-58 Example: Modulo-4 Counter • Counter has a clock input (CLK) and a RESET input. • Counter has two output lines, which take on values of 00, 01, 10, and 11 on subsequent clock cycles. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-59 Appendix A - Digital Logic State Transition Diagram for Mod-4 Counter Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-60 State Table for Mod-4 Counter Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-61 Appendix A - Digital Logic State Assignment for Mod-4 Counter Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-62 Truth Table for Mod-4 Counter Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-63 Logic Design for Mod-4 Counter Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-64 Example: A Sequence Detector • Example: Design a machine that outputs a 1 when exactly two of the last three inputs are 1. • e. g. input sequence of 011011100 produces an output sequence of 001111010. • Assume input is a 1 -bit serial line. • Use D flip-flops and 8 -to-1 multiplexers. • Start by constructing a state transition diagram (next slide). Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-65 Appendix A - Digital Logic Sequence Detector State Transition Diagram • Design a machine that outputs a 1 when exactly two of the last three inputs are 1. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-66 Sequence Detector State Table Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-67 Appendix A - Digital Logic Sequence Detector State Assignment Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-68 Sequence Detector Logic Diagram Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-69 Example: A Vending Machine Controller • Example: Design a finite state machine for a vending machine controller that accepts nickels (5 cents each), dimes (10 cents each), and quarters (25 cents each). When the value of the money inserted equals or exceeds twenty cents, the machine vends the item and returns change if any, and waits for next transaction. • Implement with a PLA and D flip-flops. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-70 Vending Machine State Transition Diagram Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-71 Vending Machine State Table and State Assignment Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-72 PLA Vending Machine Controller Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-73 Moore Counter • Mealy Model: Outputs are functions of Inputs and Present State. • Previous FSM designs were Mealy Machines, in which next state was computed from present state and inputs. • Moore Model: Outputs are functions of Present State only. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-74 Appendix A - Digital Logic Four-Bit Register • Makes use of tri-state buffers so that multiple registers can gang their outputs to common output lines. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-75 Appendix A - Digital Logic Left-Right Shift Register with Parallel Read and Write Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-76 Modulo-8 Counter Appendix A - Digital Logic • Note the use of the T flip-flops, implemented as J-K’s. They are used to toggle the input of the next flip-flop when its output is 1. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-77 Reduction (Simplification) of Boolean Expressions • It is often possible to simplify the canonical SOP (or POS) forms. • A smaller Boolean equation generally translates to a lower gate count in the target circuit. • We cover three methods: algebraic reduction, Karnaugh map reduction, and tabular (Quine-Mc. Cluskey) reduction. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-78 Reduced Majority Function Circuit • Compared with the AND-OR circuit for the unreduced majority function, the inverter for C has been eliminated, one AND gate has been eliminated, and one AND gate has only two inputs instead of three inputs. Can the function by reduced further? How do we go about it? Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-79 The Algebraic Method • Consider the majority function, F. We apply the algebraic method to reduce F to its minimal two-level form: Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-80 The Algebraic Method • This majority circuit is functionally equivalent to the previous majority circuit, but this one is in its minimal two-level form: Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-81 Karnaugh Maps: Venn Diagram Representation of Majority Function • Each distinct region in the “Universe” represents a minterm. • This diagram can be transformed into a Karnaugh Map. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-82 K-Map for Majority Function • Place a “ 1” in each cell that corresponds to that minterm. • Cells on the outer edge of the map “wrap around” Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-83 Appendix A - Digital Logic Adjacency Groupings for Majority Function • F = BC + AB Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-84 Minimized AND-OR Majority Circuit • F = BC + AB • The K-map approach yields the same minimal two-level form as the algebraic approach. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-85 K-Map Groupings • Minimal grouping is on the left, non-minimal (but logically equivalent) grouping is on the right. • To obtain minimal grouping, create smallest groups first. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-86 K-Map Corners are Logically Adjacent Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-87 K-Maps and Don’t Cares • There can be more than one minimal grouping, as a result of don’t cares. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-88 3 -Level Majority Circuit • K-Kap Reduction results in a reduced two-level circuit (that is, AND followed by OR. Inverters are not included in the two-level count). Algebraic reduction can result in multi-level circuits with even fewer logic gates and fewer inputs to the logic gates. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-89 Truth Table with Don’t Cares • A truth table representation of a single function with don’t cares. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-90 Appendix A - Digital Logic Tabular (Quine-Mc. Cluskey) Reduction • Tabular reduction begins by grouping minterms for which F is nonzero according to the number of 1’s in each minterm. Don’t cares are considered to be nonzero. • The next step forms a consensus (the logical form of a cross product) between each pair of adjacent groups for all terms that differ in only one variable. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-91 Table of Choice • The prime implicants form a set that completely covers the function, although not necessarily minimally. • A table of choice is used to obtain a minimal cover set. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-92 Reduced Table of Choice • In a reduced table of choice, the essential prime implicants and the minterms they cover are removed, producing the eligible set. • F = ABC + BD + AD Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-93 Multiple Output Truth Table • The power of tabular reduction comes into play for multiple functions, in which minterms can be shared among the functions. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-94 Multiple Output Table of Choice F 0(A, B, C) = ABC + BC F 1(A, B, C) = AC + BC F 2(A, B, C) = B Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-95 Speed and Performance The speed of a digital system is governed by: the propagation delay through the logic gates, and the propagation delay across interconnections. We will look at characterizing the delay for a logic gate, and a method of reducing circuit depth using function decomposition. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-96 Propagation Delay for a NOT Gate • (Adapted from: Hamacher et. al. 2001) Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

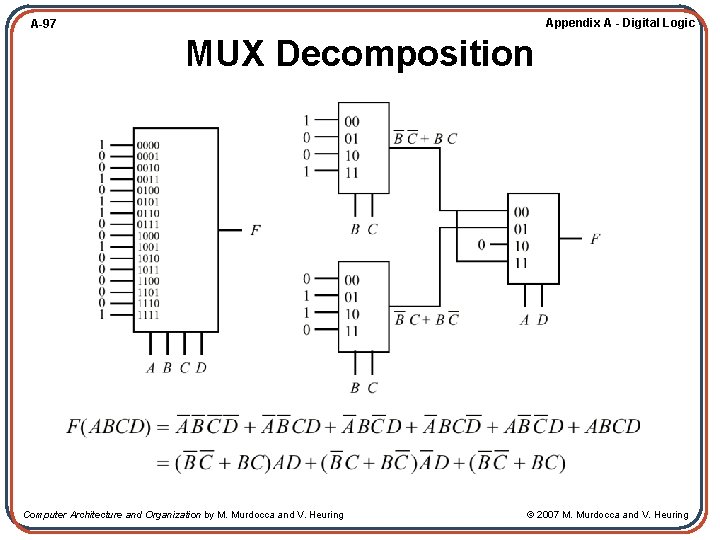

Appendix A - Digital Logic A-97 MUX Decomposition Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-98 OR-Gate Decomposition • Fanin affects circuit depth. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-99 State Reduction • Description of state machine M 0 to be reduced. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-100 Distinguishing Tree • A next state tree for M 0. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-101 Reduced State Table • A reduced state table for machine M 1. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-102 Appendix A - Digital Logic Sequence Detector State Transition Diagram Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-103 Sequence Detector State Table Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-104 Appendix A - Digital Logic Sequence Detector Reduced State Table Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-105 Sequence Detector State Assignment Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

Appendix A - Digital Logic A-106 Sequence Detector K-Maps • K-map reduction of next state and output functions for sequence detector. Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring

A-107 Appendix A - Digital Logic Sequence Detector Circuit Computer Architecture and Organization by M. Murdocca and V. Heuring © 2007 M. Murdocca and V. Heuring
