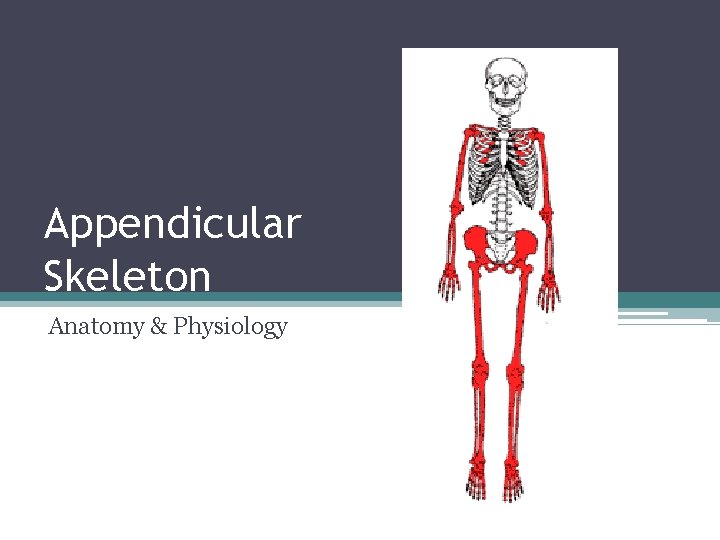

Appendicular Skeleton Anatomy & Physiology

Appendicular Skeleton Anatomy & Physiology

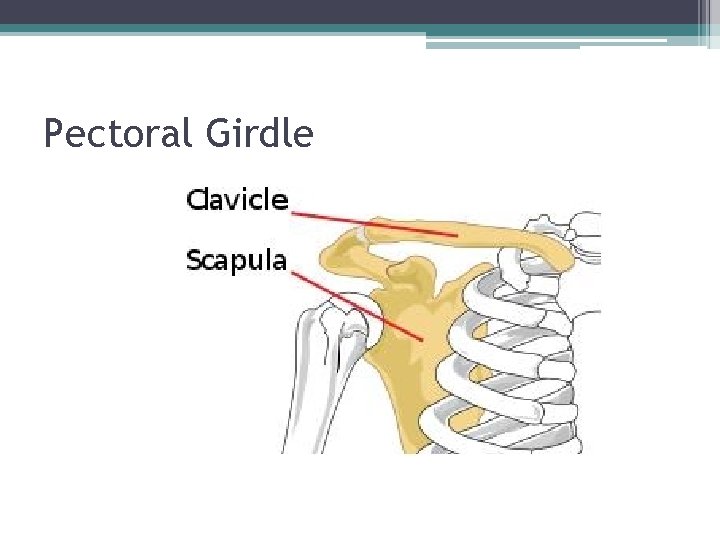

Pectoral Girdle

Pectoral Girdle

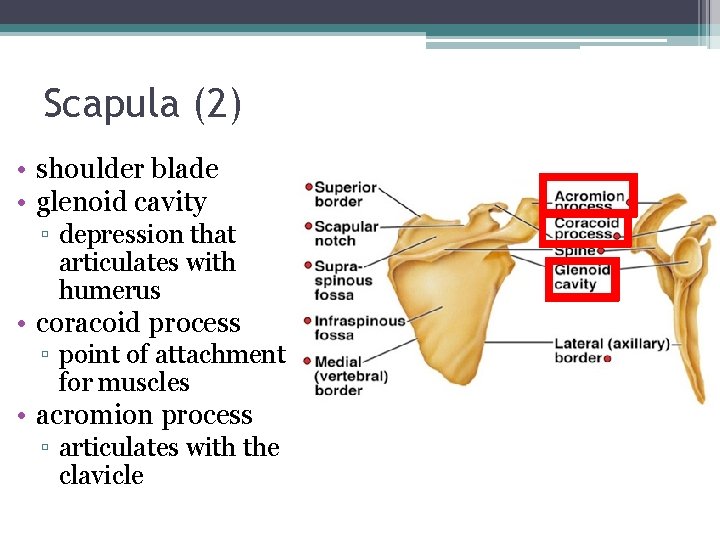

Scapula (2) • shoulder blade • glenoid cavity ▫ depression that articulates with humerus

Scapula (2) • shoulder blade • glenoid cavity ▫ depression that articulates with humerus • coracoid process ▫ point of attachment for muscles • acromion process ▫ articulates with the clavicle

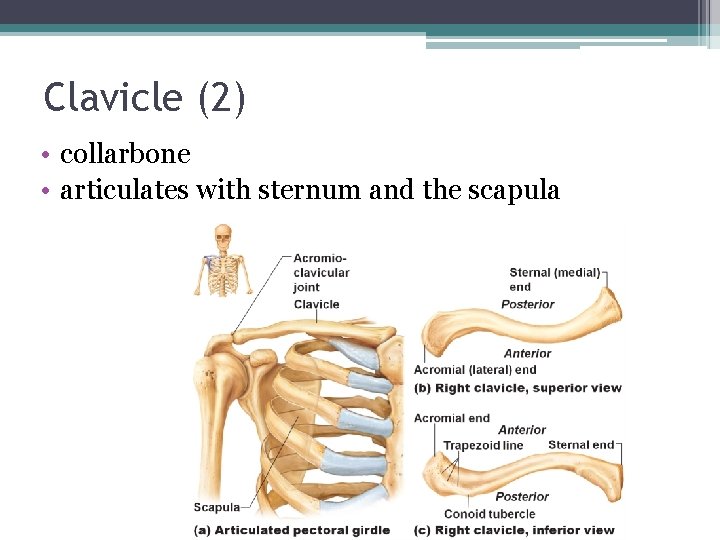

Clavicle (2) • collarbone • articulates with sternum and the scapula

Clavicle (2) • collarbone • articulates with sternum and the scapula

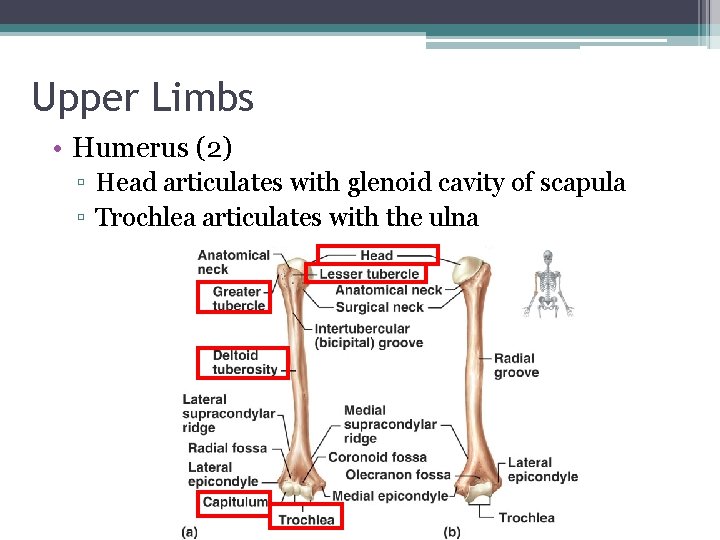

Upper Limbs • Humerus (2) ▫ Head articulates with glenoid cavity of scapula ▫

Upper Limbs • Humerus (2) ▫ Head articulates with glenoid cavity of scapula ▫ Trochlea articulates with the ulna

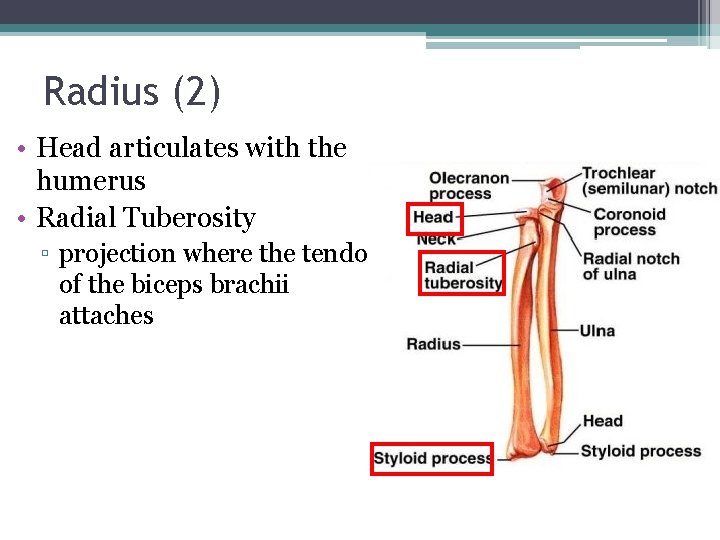

Radius (2) • Head articulates with the humerus • Radial Tuberosity ▫ projection where

Radius (2) • Head articulates with the humerus • Radial Tuberosity ▫ projection where the tendon of the biceps brachii attaches

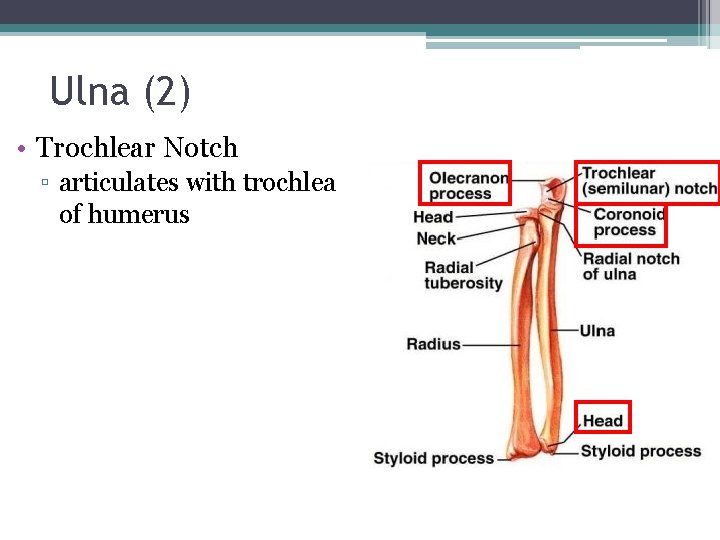

Ulna (2) • Trochlear Notch ▫ articulates with trochlea of humerus

Ulna (2) • Trochlear Notch ▫ articulates with trochlea of humerus

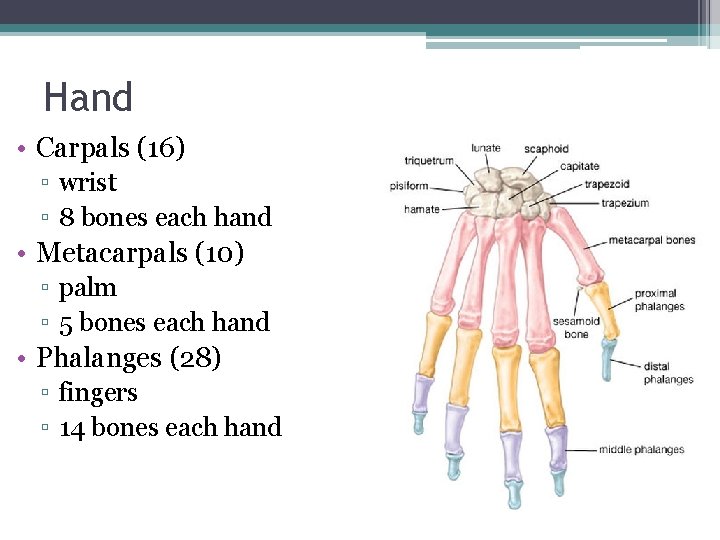

Hand • Carpals (16) ▫ wrist ▫ 8 bones each hand • Metacarpals (10)

Hand • Carpals (16) ▫ wrist ▫ 8 bones each hand • Metacarpals (10) ▫ palm ▫ 5 bones each hand • Phalanges (28) ▫ fingers ▫ 14 bones each hand

Hip/Pelvic/Coxal Bone (2) • Each coxal bone is formed by the fusion of 3

Hip/Pelvic/Coxal Bone (2) • Each coxal bone is formed by the fusion of 3 bones • Acetabulum ▫ Deep depression that articulates with the head of the femur

Male or Female Skeleton? Female pelvis • Pubic arch is more rounded • Angle

Male or Female Skeleton? Female pelvis • Pubic arch is more rounded • Angle of the pubic arch is greater • Female pelvis lighter

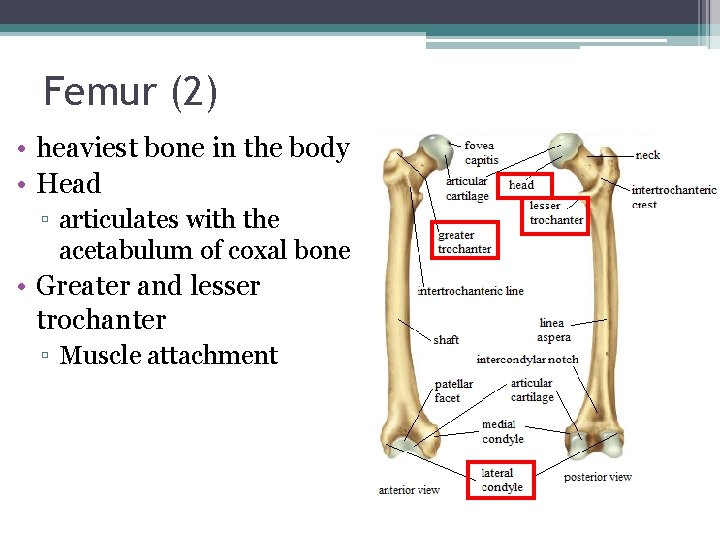

Femur (2) • heaviest bone in the body • Head ▫ articulates with the

Femur (2) • heaviest bone in the body • Head ▫ articulates with the acetabulum of coxal bone • Greater and lesser trochanter ▫ Muscle attachment

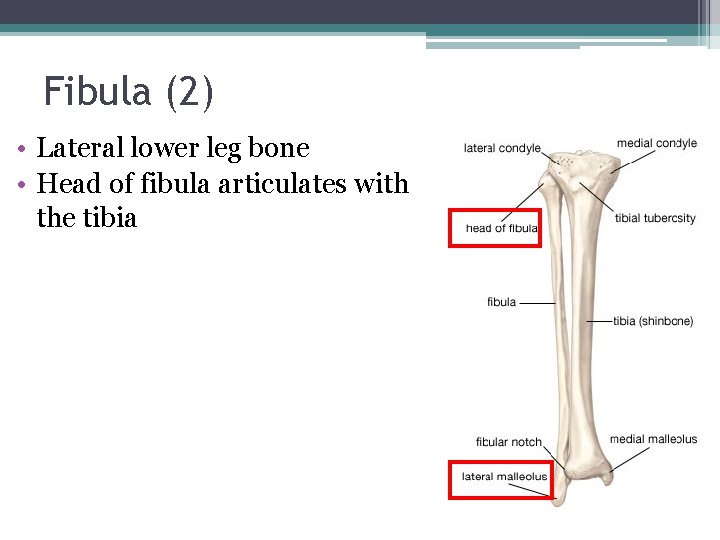

Fibula (2) • Lateral lower leg bone • Head of fibula articulates with the

Fibula (2) • Lateral lower leg bone • Head of fibula articulates with the tibia

Tibia (2) • Large medial lower leg bone • Tibial tuberosity ▫ roughened projection

Tibia (2) • Large medial lower leg bone • Tibial tuberosity ▫ roughened projection on the anterior surface where the patellar ligament attaches Anterior crest

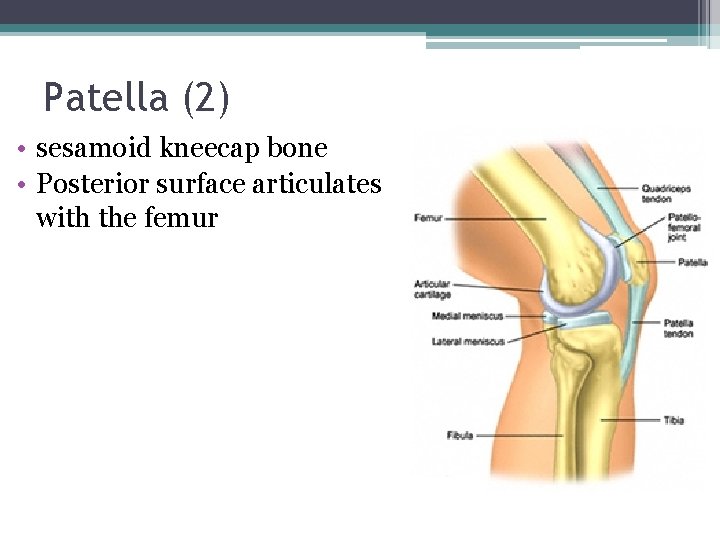

Patella (2) • sesamoid kneecap bone • Posterior surface articulates with the femur

Patella (2) • sesamoid kneecap bone • Posterior surface articulates with the femur

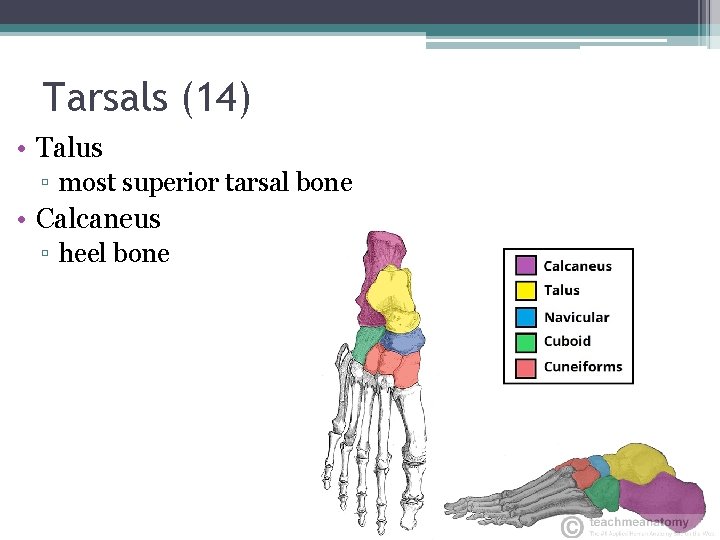

Tarsals (14) • Talus ▫ most superior tarsal bone • Calcaneus ▫ heel bone

Tarsals (14) • Talus ▫ most superior tarsal bone • Calcaneus ▫ heel bone

Metatarsals (10) • form the distal portion of the foot where the arch is

Metatarsals (10) • form the distal portion of the foot where the arch is located

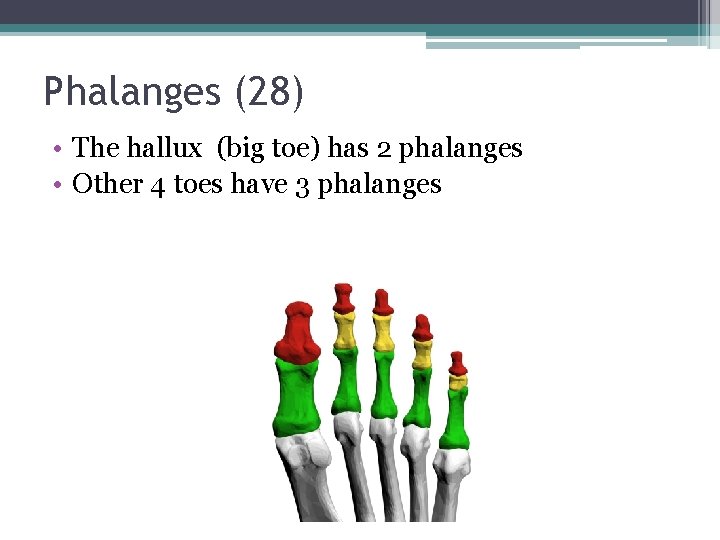

Phalanges (28) • The hallux (big toe) has 2 phalanges • Other 4 toes

Phalanges (28) • The hallux (big toe) has 2 phalanges • Other 4 toes have 3 phalanges
