API Specification 6 A Furnace Calibration Requirements Tim Haeberle API SC 6 2012 Summer Meeting
The Problem Current Wording: • API Spec 6 A 20 th Edition, Annex M, “Qualification of heattreating equipment”, Section M. 3. 3, “Temperature survey method for calibration of batch-type furnaces”, states the following in the 7 th Paragraph: “When a furnace is repaired or rebuilt, a new temperature survey shall be carried out before the furnace is used for heat treatment. ” The Problem: • This implies a time-consuming and costly full survey is required, even for minor repairs to a furnace that will in no way affect the calibration or temperature uniformity in the furnace. 2

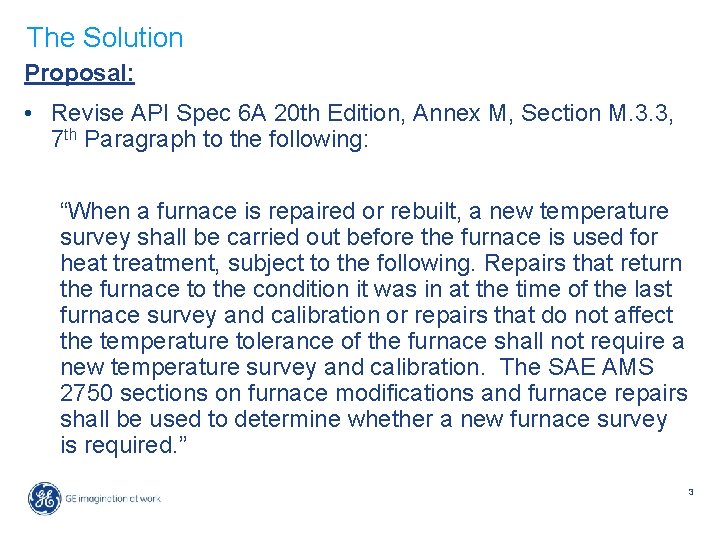

The Solution Proposal: • Revise API Spec 6 A 20 th Edition, Annex M, Section M. 3. 3, 7 th Paragraph to the following: “When a furnace is repaired or rebuilt, a new temperature survey shall be carried out before the furnace is used for heat treatment, subject to the following. Repairs that return the furnace to the condition it was in at the time of the last furnace survey and calibration or repairs that do not affect the temperature tolerance of the furnace shall not require a new temperature survey and calibration. The SAE AMS 2750 sections on furnace modifications and furnace repairs shall be used to determine whether a new furnace survey is required. ” 3

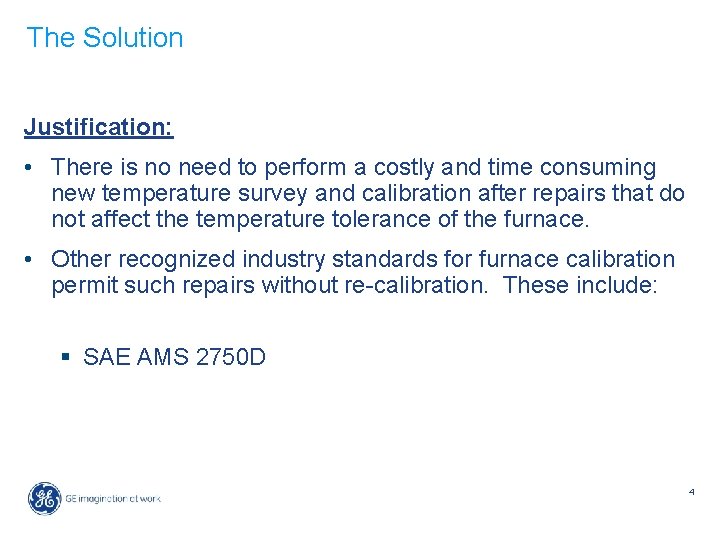

The Solution Justification: • There is no need to perform a costly and time consuming new temperature survey and calibration after repairs that do not affect the temperature tolerance of the furnace. • Other recognized industry standards for furnace calibration permit such repairs without re-calibration. These include: § SAE AMS 2750 D 4

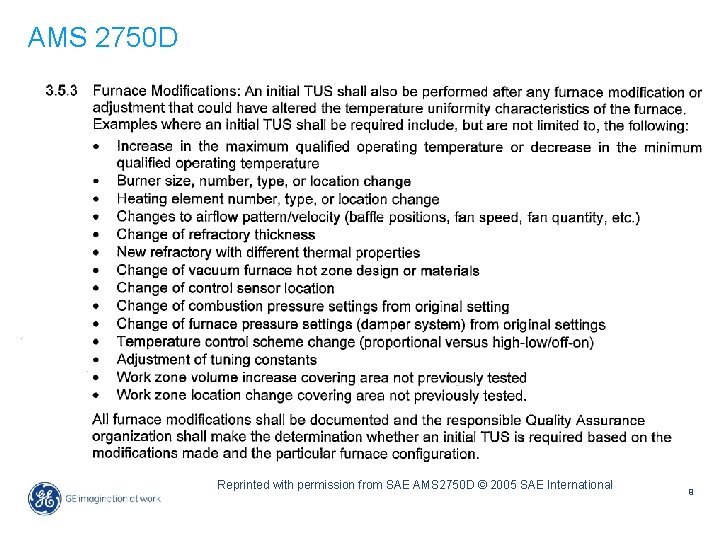

AMS 2750 D Reprinted with permission from SAE AMS 2750 D © 2005 SAE International 5

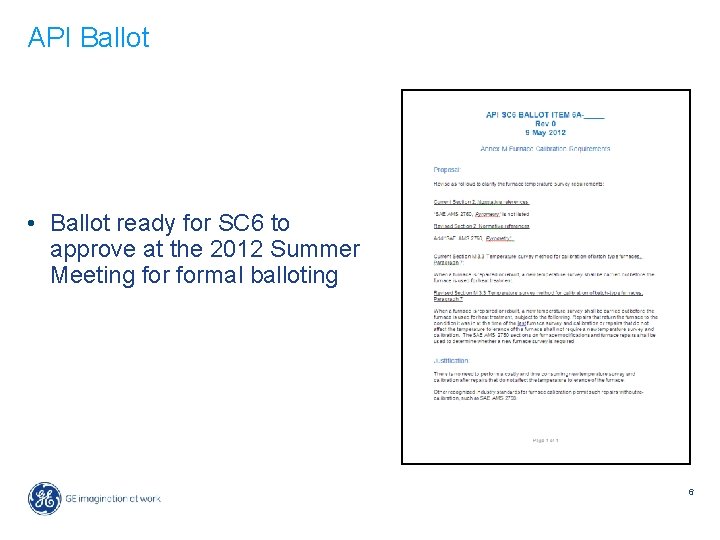

API Ballot • Ballot ready for SC 6 to approve at the 2012 Summer Meeting formal balloting 6
End Of Presentation 7
Backup Slides 8
AMS 2750 D Reprinted with permission from SAE AMS 2750 D © 2005 SAE International 9
