APEX DYNAMICS INC The Most Productive Helical Planetary
- Slides: 80
台湾精锐广用动力科技有限公司 APEX DYNAMICS, INC. 台湾精锐广用动力科技有限公司 诚信-负责-创新 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
４．泛用型螺旋行星齿轮减速机 ® AE系列 ® AER系列 ５．经济型行星齿轮减速机 ® PE/PG/PN/PB系列 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !

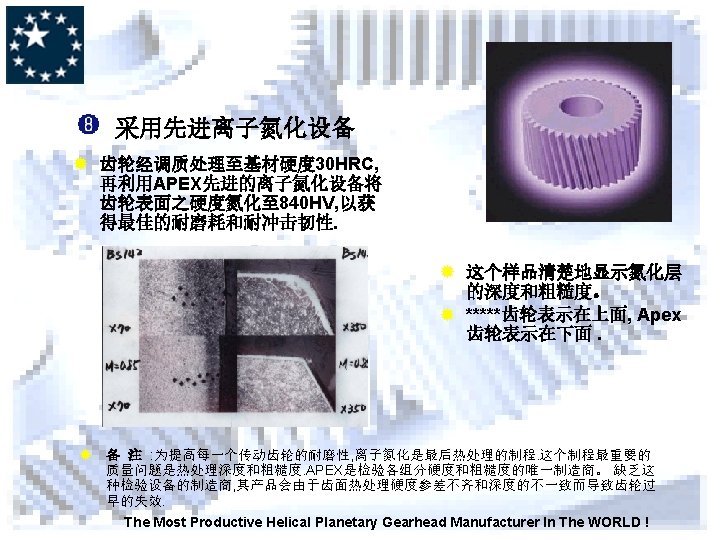

3. 行星齿轮表面处理 齿轮表面作离子氮化处理 齿轮基材经调质处理至硬度 30 HRC, 再将齿轮表面作离子氮化处理, 表 面硬度至 840 HV; 以获得最佳的耐磨耗和耐冲击韧性. 其它品牌为渗碳处理 Right flank Left flank 氮化硬层图示 1140. 7 硬度值 (HV) 1200 1140. 7 900 678. 9 600 626. 8 468. 3 429. 2 300 423. 8 419. 9 393. 0 386. 0 389. 6 381. 4 366. 0 350. 4 367. 1 357. 9 0. 18 0. 21 326. 3 326. 8 318. 4 314. 1 0. 25 0. 30 314. 9 易碎裂和冲击韧性差 0 表面 0. 03 0. 06 0. 09 0. 12 0. 15 基材 Nitriding depth (mm) The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
4. 太阳轮和行星轮宽度 较宽的太阳轮和行星轮 APEX减速机可提供更大的传动扭矩和扭转刚性 APEX ALPHA Model PE 120 LP 120 Planetary Gear Width 20 mm 14 mm Sun Gear Width 22 mm 15 mm The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
7. 使用的输出端轴承密封圈 APEX 减速机为金属密封圈 耐撞击 PLE使用塑胶密封圈 不耐撞击, 裂后会产生油漏 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
8. 输入端连接板的处理 APEX 减速机为作黑色阳极处理 美观和耐候性强 PLE减速机未作处理 不美观而且耐候性差 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
9. 齿轮箱内齿环加 PLE减速机内齿加 艺为拉齿 APEX减速机内齿加 艺为插齿 精度高 精度低 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
10. 输出轴表面加 APEX减速机表面作衍磨处理 PLE减速机表面未作衍磨处理 精度高 精度差 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
2. APEX AB系列直线型减速机 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
3. APEX AF系列直线型减速机 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
4. APEX 直角型ABR减速机 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
5. APEX 直角型AFR减速机 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
6. APEX AE系列直线型减速机 APEX Vogel Stober Bayside AE 050 PE 2 AE 070 MPV 00 PE 3 AE 090 MPV 01 PE 4 AE 120 MPV 02 PE 5 AE 155 MPV 03 PV 40 -TA Mijno MRP 050 MRP 070 PV 90 -TA MRP 090 MRP 120 MRP 155 AE 205 AE 235 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
7. APEX AER系列直角型减速机 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
8. APEX AD系列直线型减速机 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
9. APEX ADS系列直线型减速机 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
10. APEX ADR系列直角型减速机 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
11. APEX AL系列直角型减速机 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
12. APEX ALR系列直角型减速机 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !

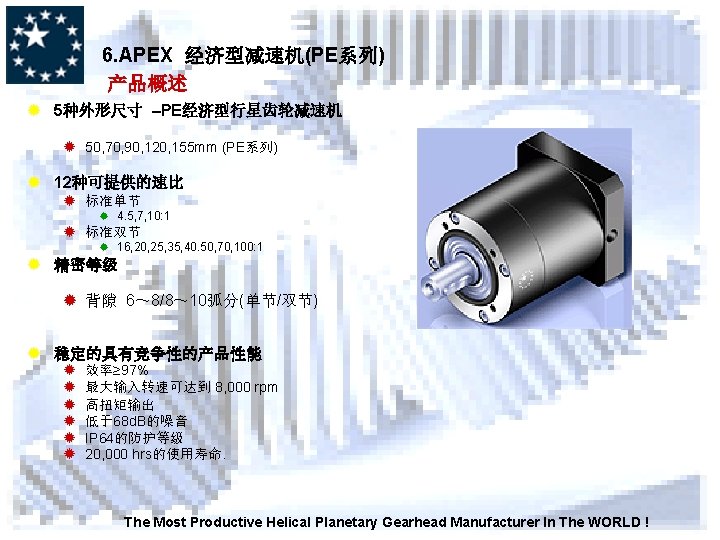

13. APEX PE系列经济型减速机 ALPHA LP APEX PE BAYSIDE PV The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
14. APEX PG/PGA系列经济型减速机 Neugart PLE APEX PG ALPHA CP The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
15. APEX PN系列经济型减速机 APEX PN APEX CGI PN 023 PN PN 034 PN PN 042 PN PN 056 PN PN 075 PN CGI PN The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !

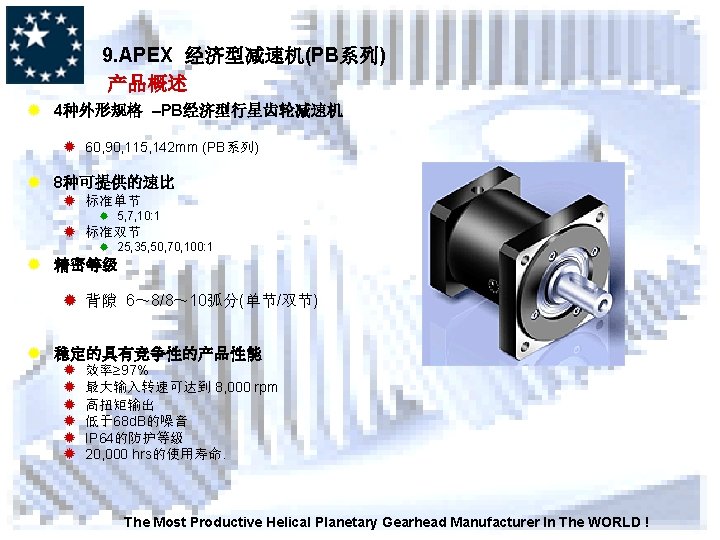

15. APEX PB系列经济型减速机 APEX PB Bayside PB 60 PX 60 PV 60 -FB PB 90 PX 90 PV 90 -FB PB 115 PX 115 PB 142 PX 142 BAYSIDE PX BAYSIDE PV The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
六. APEX减速机在主要行业应用. 主要减速机型号: 1. APEX减速机在数控机床上应用. 1)AB 142 -010 -S 2 -P 2/西门子 1 FT 6084 -1 AF 71 2)AB 115 -004 -S 1 -P 1/西门子 1 FT 6064 -1 AF 71 3)AB 142 -010 -S 1 -P 2/FANUC a 40/3000 i 4)AE 205 -004/INDRAMAT MAD 130 D-0150 5)AB 220 -008 -S 2 -P 2/西门子 1 PH 7163 -2 NFX 3 6)AB 142 -003 -S 1 -P 2/FANUC β 22/2000 is 7)ABR 220 -030 -S 2 -P 1/西门子 IFT 6105 -8 AC 71 8)AB 180 -035 -S 2 -P 2/西门子 IFT 6086 -8 AC 71 9)AB 090 -003 -S 1 -P 1/西门子 IFT 6044 -1 AF 71 10)AB 180 -006 -S 1 -P 2/FANUC a 8/8000 i-STR 11)ABR 115 -005 -S 2 -P 1/西门子 1 FK 7063 -5 AF 71 12)ABR 090 -010 -S 1 -P 2/FANUC A 8/3000 I The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
2. APEX减速机在数控商标印刷机上应用. 主要减速机型号: 1)AB 090 -010 -S 2 -P 2/安川SGMGH 09 A 2)AB 090 -010&006 -S 2 -P 1/安川SGMGH 13 A 3)AB 142 -010&006 -S 2 -P 1/安川SGMGH 30 A 4)AB 090 -010 -S 2 -P 1/三菱HC-SFS 102 A 1 5)AB 115 -004 -S 2 -P 1/INDRAMAT BOSCH/MSK 070 6)AB 142 -008 -S 2 -P 1/安川SGMGH 44 A 7)AB 142 -003 -S 1 -P 2/B&R 8 MSA 8 M. dd. eeff 8)AB 180 -003 -S 1 -P 2/B&R 8 MSA 8 S. dd. eeff 9)AB 090 -010 -S 2 -P 2/松下MSMD 102 A 1 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
3. APEX减速机在数控激光雕刻机上应用. 主要减速机型号: a. AB 090 M 1 -004 -S 1 -P 1/SIEMENS 1 FT 6064 -6 AC 71 b. ABR 115 -007 -S 2 -P 1/SIEMENS 1 FT 6064 c. AB 090 -003 -S 2 -P 2/FAGOR FXM 53 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
4. APEX减速机在数控弯管机上应用. 主要减速机型号: a. AB 180 -060 -S 2 -P 2/松下 MHMA 402 A 1 b. AB 115 -035 -S 2 -P 2/松下 MDMA 152 A 1 c. AB 142 -010 -S 2 -P 2/西门子 1 FK 7080 -5 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
5. APEX减速机在数控医疗手术设备上应用. 主要减速机型号: a. AB 180 -100 -S 2 -P 2 /松下 MHMA 202 A 1 b. AB 090 -008 -S 2 -P 2 /松下 MHMA 202 A 1 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
6. APEX减速机在数控喷绘设备上应用. 主要减速机型号: a. AB 090 -003 -S 2 -P 2 /松下松 下MDMA 102 A 1 b. AB 090 -003 -S 2 -P 1 /松下松 下MHMA 102 A 1 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
7. APEX减速机在军 行业上应用. 主要减速机型号: 1)AB 060 -010 -S 2 -P 1/KINCO 3 S 85 Q-04097 2)AB 060 -007 -S 2 -P 1/KINCO 3 S 85 Q-04067 3)AB 090 -005 -S 2 -P 2低温/KOLLMORGEN M 205 4)AB 142 -070 -S 2 -P 1低温/KOLLMORGEN M 405 5)AB 115 -100 -S 2 -P 1低温/KOLLMORGEN M 205 6)ABR 060 -100 -S 2 -P 1低温/INFRANOR MAVILOR BLT 55 7)AB 142 -060 -S 2 -P 1低温/SIEMENS 1 FT 5064 8)AB 090 -100 -S 2 -P 2低温/INFRANOR MAVILOR BLT-72 9)ABR 090 -100 -S 2 -P 2低温/INFRANOR MAVILOR BLT-72 10)AB 115 -060 -S 2 -P 1低温/SIEMENS 1 FT 5044 11)低温ABR 060 -S 2 -P 2/INDRAMAT MAVILOR BLS-72 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
8. APEX减速机在数控橡胶设备上应用. 主要减速机型号: a. AB 115 -040 -S 2 -P 2/三菱 HC -RFS 203 B b. AB 115 -030 -S 2 - P 1/ALLEN BRADLEY 1326 AB-B 430 E-S 2 L c. ABR 060 -003 -S 2 -P 2/三菱HC -KFS 43 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
9. APEX减速机在数控鞋楦机上应用. 主要减速机型号: a. AB 090 -005 -S 2 -P 2/安川 SGMGH 13 A b. AB 115 -020 -S 2 -P 2/安川 SGMGH 13 A c. AE 090 M 1 -010/安川SGMGH 13 A The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
10. APEX减速机在数控印染印花设备上应用. 主要减速机型号: a. AD 090 -010 -P 2/MOOG G 404 -010 b. PG 080 -010/松下MDMA 082 P 1 G The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
11. APEX减速机在数控轴承加 设备上应用. 主要减速机型号: a. AB 180 -003 -S 2 -P 2/ SIEMENS 1 PH 7133 -2 ND b. AB 090 -010 -S 2 -P 1/三菱HCKFS 73 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
12. APEX减速机在数控等离子或火焰切割机加 设备上应用. 主要减速机型号: a. AB 090 -010 -S 2 -P 2/松下 MSMA 082 A 1 b. PG 080 -035/松下MHMD 082 P 1 C. AE 090 -010/松下MHMD 082 P 1 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
13. APEX减速机在数控压力设备上应用. 主要减速机型号: a. AB 142 -003 -S 2 -P 2/三菱HC-SFS 702 b. AB 142 -004 -S 2 -P 2/三菱HC-SFS 702 C. AE 235 -004/三菱HA-LFS 15 K 2 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
14. APEX减速机在数控绣花设备上应用. 主要减速机型号: a. AB 142 -005 -S 2 -P 2/三菱HC-SFS 352 b. AB 090 -008 -S 2 -P 2/安川SGMGH 13 A c. AE 120 -010/安川SGMGH 13 A d. AE 155 -015/三菱HC-KFC 352 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
15. APEX减速机在数控食品机械上应用. 主要减速机型号: a. AER 155 -014/三菱 HC-SFS 352 b. AER 155 -020/三菱 HC-SFS 352 c. AB 090 -006 -S 2 -P 2/安川SGMGH 09 A d. AB 115 -010 -S 2 -P 2/安川SGMGH 13 A The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
16. APEX减速机在数控螺丝拧紧机上应用. 主要减速机型号: a. AB 115 -005 -S 2 -P 2/标准连接板 b. AB 115 -004 -S 2 -P 2/标准连接板 c. ABR 090 -003 -S 2 -P 2/标准连接板 (连博世力士乐传动机构) The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
17. APEX减速机在数控机械手上应用. 主要减速机型号: a. AB 060 -010 -S 1 -P 1/松下MHMD 042 P 1 b. AF 075 -007 -S 1 -P 2/松下MHMD 082 P 1 c. AB 090 -008 -S 1 -P 2/松下MSMA 102 P 1 d. AD 110 -100 -P 2/安川SGMGH 09 A e. AE 090 -100/三菱 HC-KFS 23 f. AD 140 -100 -P 2/三菱 HC-SFS 102 B The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
18. APEX减速机在数控声像设备上应用. 主要减速机型号: a. AB 042 -007 -S 2 -P 2/MITSUBISHI HCMFS 13 b. ABR 042 -010 -S 2 -P 2/MITSUBISHI HC-MFS 13 c. AE 050 – 010/ALLEN BRADLEY MPL -A 1520 U The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
19. APEX减速机在数控弹簧设备上应用. 主要减速机型号: a. AB 115 -010 -S 2 -P 2/三洋P 60 B 13200 b. AB 220 -010 -S 2 -P 2/三洋P 60 B 22700 c. AB 180 -010 -S 2 -P 2/三洋P 60 B 18750 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
20. APEX减速机在数控试验设备上应用. 主要减速机型号: a. ABR 060 -007 -S 2 -P 2/松下MSMD 022 P 1 b. AB 090 -015 -S 2 -P 2/标准连接板 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
七. APEX 减速机在全球的主要客户. 1. 日本客户. The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
2. 美国客户. The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
3. 新加坡客户. The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
4. 瑞典客户. The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
5. 中国客户. The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
6. 比利时, 荷兰, 卢森堡客户. The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
7. 韩国客户. The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
8. 德国客户. The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
9. 法国客户. The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
大陆代理销售服务机构： 广州市广润机电科技有限公司 电话： 86 -020 -82325265/手机： 15918850523 传真： 86 -020 -82303460 网站：http: //guangyongapex. cn. alibaba. com 联系人：邱文习（先生）/mr qiu Email： 15918850523@163. com The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
销售网址： http: //guangyongapex. cn. alibaba. co m 公司地址：广州市天河区车陂路西华花园 1~2号 The Most Productive Helical Planetary Gearhead Manufacturer In The WORLD !
