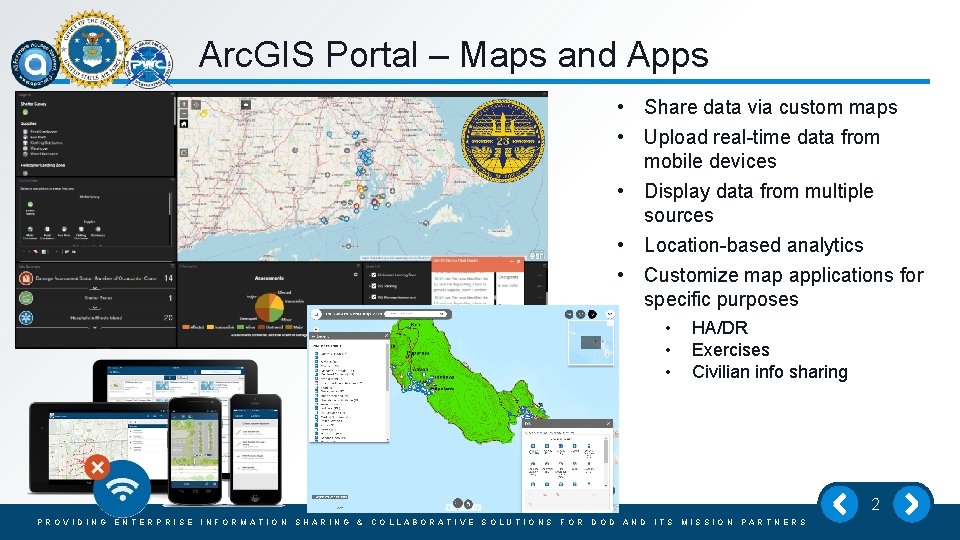

Arc. GIS Portal – Maps and Apps • Share data via custom maps • Upload real-time data from mobile devices • Display data from multiple sources • Location-based analytics • Customize map applications for specific purposes • • • HA/DR Exercises Civilian info sharing 2 PROVIDING ENTERPRISE INFORMATION SHARING & COLLABORATIVE SOLUTIONS FOR DOD AND ITS MISSION PARTNERS

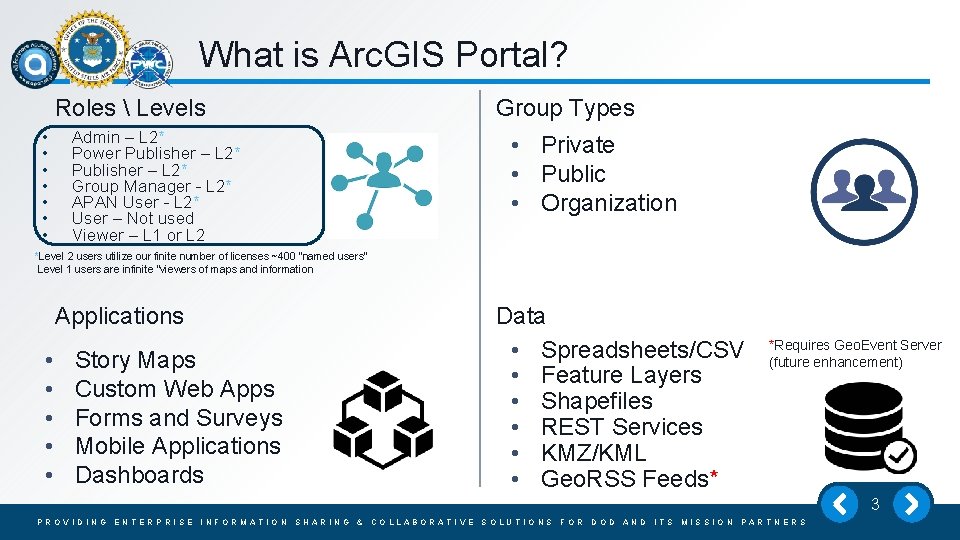

What is Arc. GIS Portal? Roles Levels • • Group Types Admin – L 2* Power Publisher – L 2* Group Manager - L 2* APAN User - L 2* User – Not used Viewer – L 1 or L 2 • Private • Public • Organization *Level 2 users utilize our finite number of licenses ~400 “named users” Level 1 users are infinite “viewers of maps and information Applications • • • Data • Spreadsheets/CSV • Feature Layers • Shapefiles • REST Services • KMZ/KML • Geo. RSS Feeds* Story Maps Custom Web Apps Forms and Surveys Mobile Applications Dashboards *Requires Geo. Event Server (future enhancement) 3 PROVIDING ENTERPRISE INFORMATION SHARING & COLLABORATIVE SOLUTIONS FOR DOD AND ITS MISSION PARTNERS
APAN Arc. GIS Dashboards – Currently Available 4 PROVIDING ENTERPRISE INFORMATION SHARING & COLLABORATIVE SOLUTIONS FOR DOD AND ITS MISSION PARTNERS
USINDOPACOM Hazards / Storm Center https: //map. apan. org/portal/apps/webappviewer/index. html? id=4 eb 45 e 5153 d 14 c 97 b 54320 d 1066 f 9820 PROVIDING ENTERPRISE INFORMATION SHARING & COLLABORATIVE SOLUTIONS FOR DOD AND ITS MISSION PARTNERS 5
5 th GPC's HADR Common Operational Picture https: //map. apan. org/portal/apps/opsdashboard/index. html#/94068 c 4 c 7 c 894 d 8 e 87496 b 9 fbd 1 a 5215 PROVIDING ENTERPRISE INFORMATION SHARING & COLLABORATIVE SOLUTIONS FOR DOD AND ITS MISSION 6 PARTNERS
5 th GPC’s APAN Coronavirus Global Tracker Zoom-in on next slide https: //map. apan. org/portal/apps/opsdashboard/index. html#/48 ade 9 d 4 e 2 f 1405 f 9 d 662 b 97 b 84 d 5729 PROVIDING ENTERPRISE INFORMATION SHARING & COLLABORATIVE SOLUTIONS FOR DOD AND ITS MISSION 7 PARTNERS

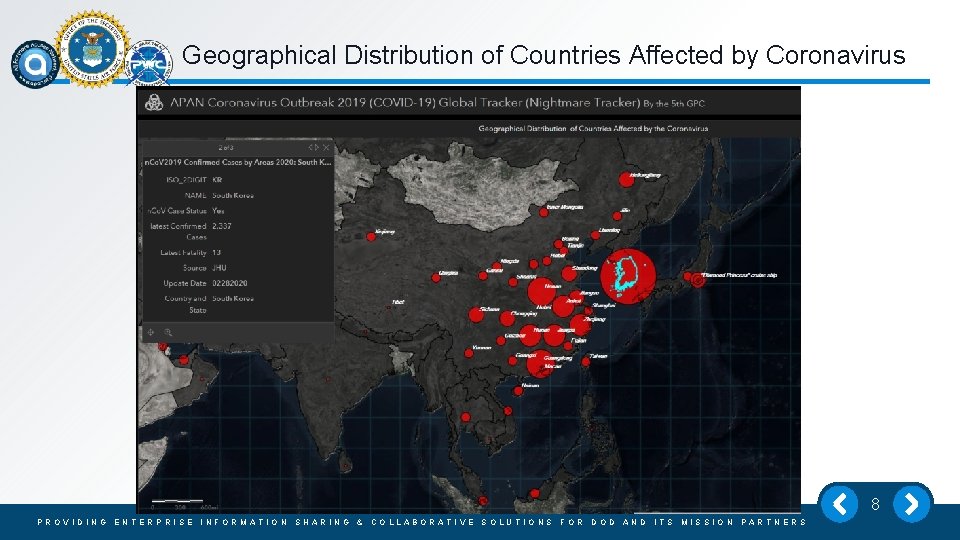

Geographical Distribution of Countries Affected by Coronavirus 8 PROVIDING ENTERPRISE INFORMATION SHARING & COLLABORATIVE SOLUTIONS FOR DOD AND ITS MISSION PARTNERS
Additional Examples The following 7 slides contain additional examples of maps already hosted and/or available within APAN’s Arc. GIS Portal APAN Arc. GIS Group Owners may fully customize their own maps and dashboard views with data feeds and layers, as well as links to other Internet resources 9 PROVIDING ENTERPRISE INFORMATION SHARING & COLLABORATIVE SOLUTIONS FOR DOD AND ITS MISSION PARTNERS

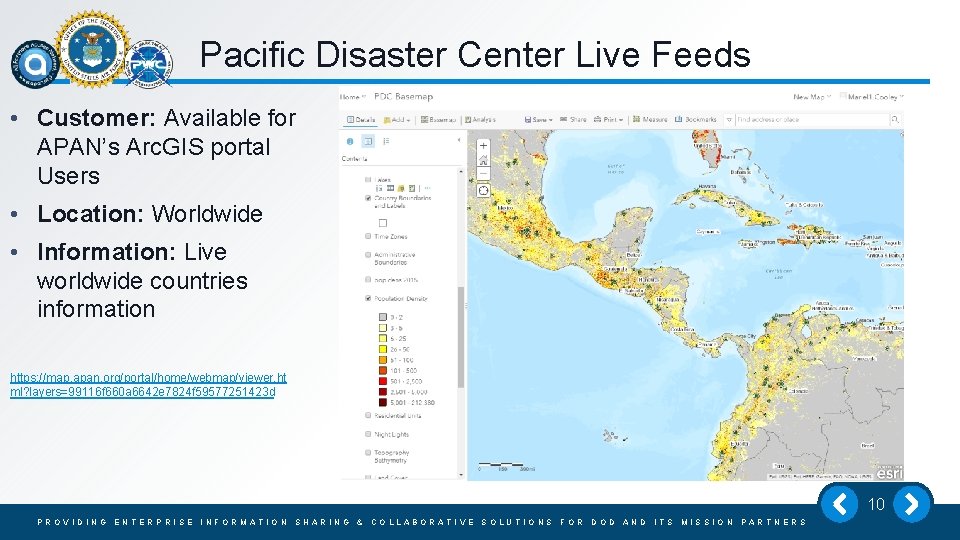

Pacific Disaster Center Live Feeds • Customer: Available for APAN’s Arc. GIS portal Users • Location: Worldwide • Information: Live worldwide countries information https: //map. apan. org/portal/home/webmap/viewer. ht ml? layers=99116 f 660 a 6642 e 7824 f 59577251423 d 10 PROVIDING ENTERPRISE INFORMATION SHARING & COLLABORATIVE SOLUTIONS FOR DOD AND ITS MISSION PARTNERS

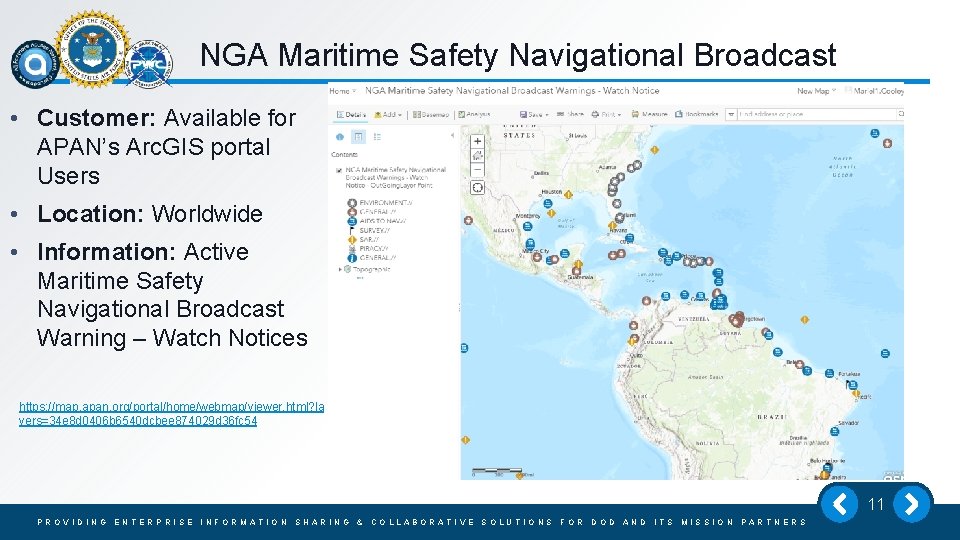

NGA Maritime Safety Navigational Broadcast • Customer: Available for APAN’s Arc. GIS portal Users • Location: Worldwide • Information: Active Maritime Safety Navigational Broadcast Warning – Watch Notices https: //map. apan. org/portal/home/webmap/viewer. html? la yers=34 e 8 d 0406 b 6540 dcbee 874029 d 36 fc 54 11 PROVIDING ENTERPRISE INFORMATION SHARING & COLLABORATIVE SOLUTIONS FOR DOD AND ITS MISSION PARTNERS

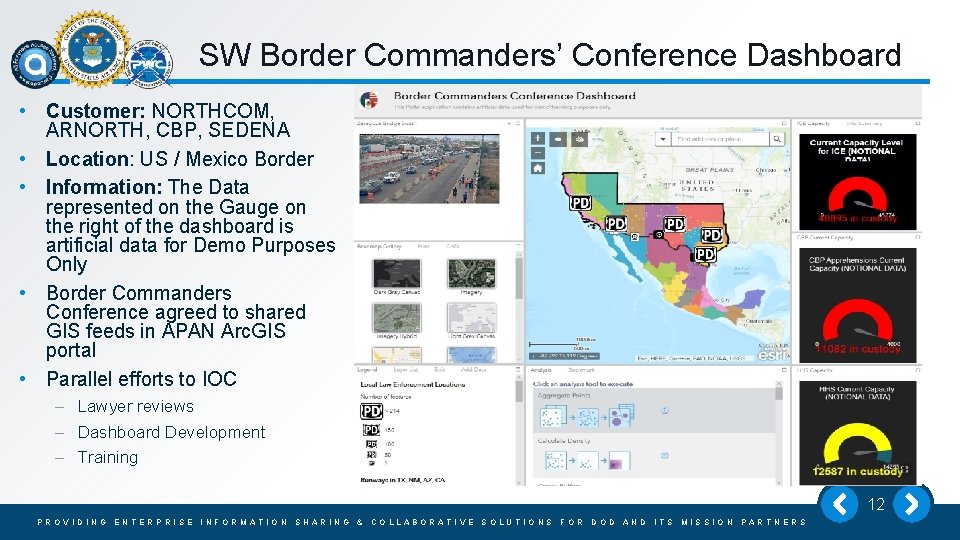

SW Border Commanders’ Conference Dashboard • Customer: NORTHCOM, ARNORTH, CBP, SEDENA • Location: US / Mexico Border • Information: The Data represented on the Gauge on the right of the dashboard is artificial data for Demo Purposes Only • Border Commanders Conference agreed to shared GIS feeds in APAN Arc. GIS portal • Parallel efforts to IOC – Lawyer reviews – Dashboard Development – Training 12 PROVIDING ENTERPRISE INFORMATION SHARING & COLLABORATIVE SOLUTIONS FOR DOD AND ITS MISSION PARTNERS
Hurricane Dorian Application (2019) • Customer: Shared with PRNG, VANG, NGB • Location: US SE Coast & Caribbean • Information: Provided Live feeds from NOAA and FEMA – NOAA live tracks of Hurricane Dorian – FEMA National Shelter 13 PROVIDING ENTERPRISE INFORMATION SHARING & COLLABORATIVE SOLUTIONS FOR DOD AND ITS MISSION PARTNERS
USINDOPACOM Storm Center (2018) • Customer: Available for APAN’s Arc. GIS portal Users • Location: Worldwide • Information: Live worldwide active weather hazards tors c i a l n b i u d • P DR Coor ners n A • H rcise Pla ns io xe • E ld Operat e • Fi 14 PROVIDING ENTERPRISE INFORMATION SHARING & COLLABORATIVE SOLUTIONS FOR DOD AND ITS MISSION PARTNERS
RIMPAC Operation Restore Griffon (2018) • Customer: PACFLT/C 3 F • Location: Pearl Harbor, Hawaii • Information: Over 60 countries participated in the exercise, which featured geographical data from a fictitious landmass tors c i a l n b i u d • P DR Coor ners n A • H rcise Pla xe • E 15 PROVIDING ENTERPRISE INFORMATION SHARING & COLLABORATIVE SOLUTIONS FOR DOD AND ITS MISSION PARTNERS

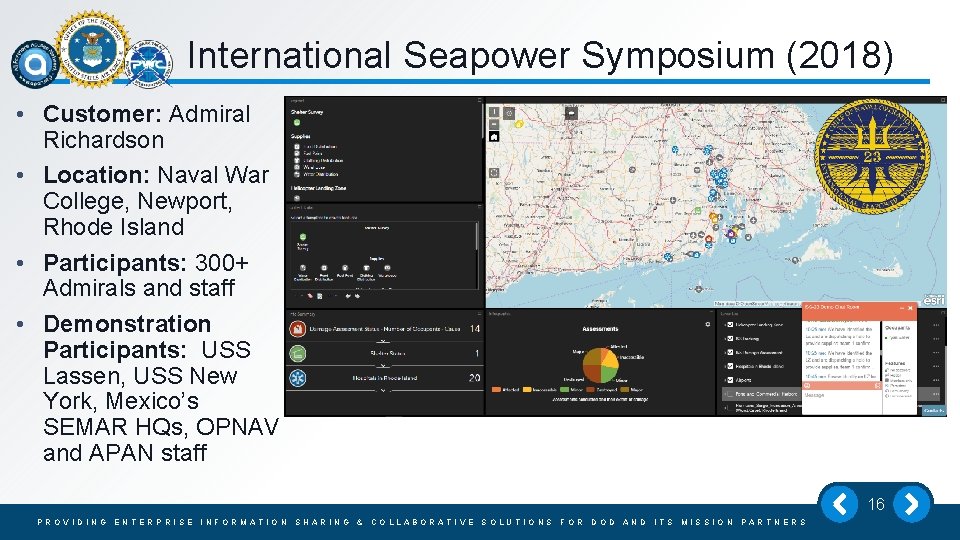

International Seapower Symposium (2018) • Customer: Admiral Richardson • Location: Naval War College, Newport, Rhode Island • Participants: 300+ Admirals and staff • Demonstration Participants: USS Lassen, USS New York, Mexico’s SEMAR HQs, OPNAV and APAN staff 16 PROVIDING ENTERPRISE INFORMATION SHARING & COLLABORATIVE SOLUTIONS FOR DOD AND ITS MISSION PARTNERS

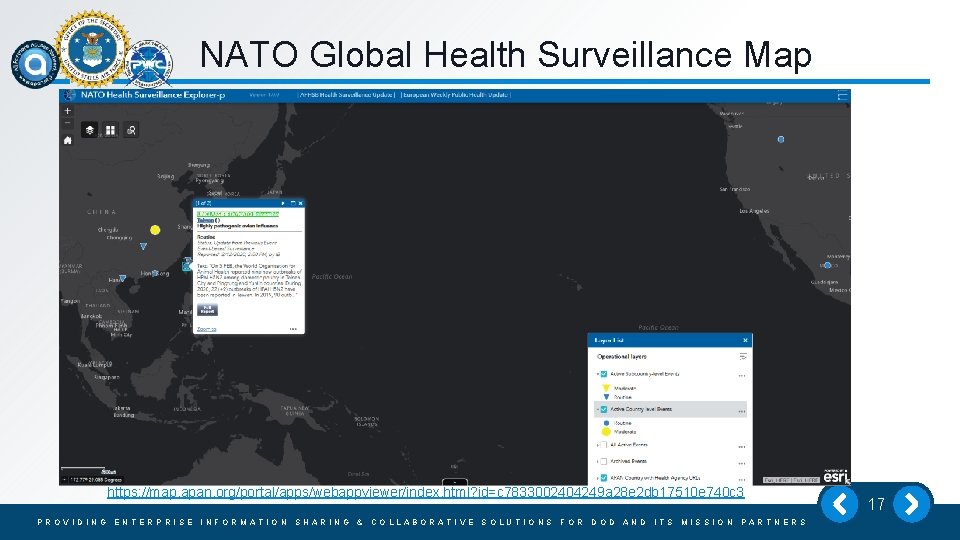

NATO Global Health Surveillance Map https: //map. apan. org/portal/apps/webappviewer/index. html? id=c 7833002404249 a 28 e 2 db 17510 e 740 c 3 PROVIDING ENTERPRISE INFORMATION SHARING & COLLABORATIVE SOLUTIONS FOR DOD AND ITS MISSION PARTNERS 17

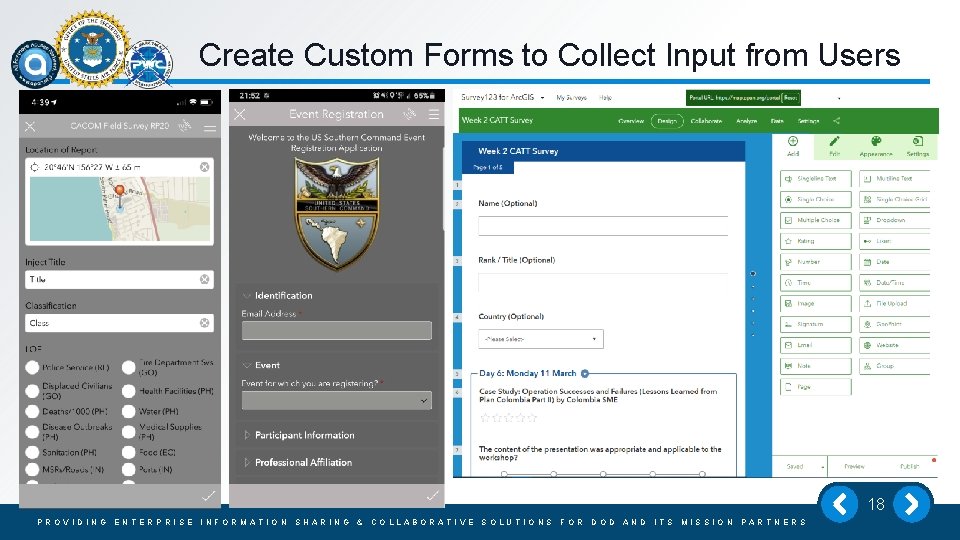

Create Custom Forms to Collect Input from Users 18 PROVIDING ENTERPRISE INFORMATION SHARING & COLLABORATIVE SOLUTIONS FOR DOD AND ITS MISSION PARTNERS
Support Center • Complete Knowledge Base for self-help • Knowledge Management consulting available • Live training via web conferencing and prerecorded training sessions • Support team available for all users • • • Hotline - (808) 472 -7855 support@mpe. apan. org Web form for requesting new communities / portals or support: https: //community. apan. org/support 19 PROVIDING ENTERPRISE INFORMATION SHARING & COLLABORATIVE SOLUTIONS FOR DOD AND ITS MISSION PARTNERS
