AP 1 – Introduction to Service-Oriented Interoperability (SOI) Learn about service-oriented architecture (SOA) and its application in developing interoperable enterprise software systems. © 2005 -2006 The ATHENA Consortium.

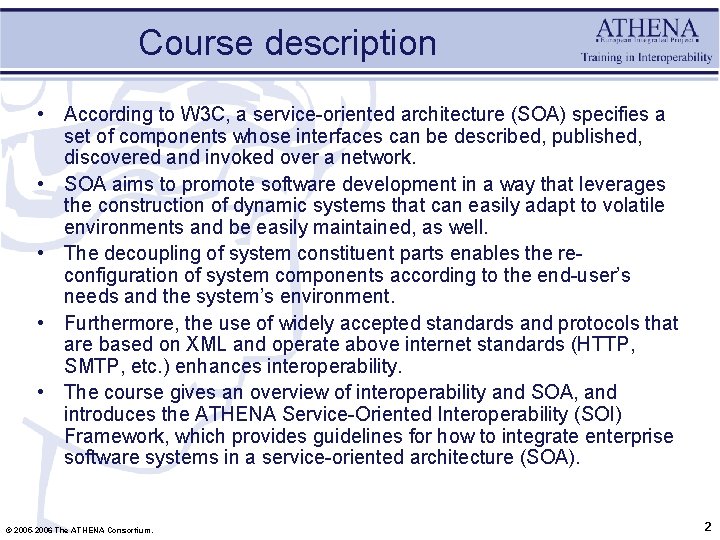

Course description • According to W 3 C, a service-oriented architecture (SOA) specifies a set of components whose interfaces can be described, published, discovered and invoked over a network. • SOA aims to promote software development in a way that leverages the construction of dynamic systems that can easily adapt to volatile environments and be easily maintained, as well. • The decoupling of system constituent parts enables the reconfiguration of system components according to the end-user’s needs and the system’s environment. • Furthermore, the use of widely accepted standards and protocols that are based on XML and operate above internet standards (HTTP, SMTP, etc. ) enhances interoperability. • The course gives an overview of interoperability and SOA, and introduces the ATHENA Service-Oriented Interoperability (SOI) Framework, which provides guidelines for how to integrate enterprise software systems in a service-oriented architecture (SOA). © 2005 -2006 The ATHENA Consortium. 2
Course objective • The participants will learn about interoperability and SOA and get an overview of the ATHENA SOI Framework. • The course aims to increase awareness of how SOA can be applied to solve interoperability issues. • The courses AP 2 and AP 3 explores the SOI framework in more detail. © 2005 -2006 The ATHENA Consortium. 3
SOI training track No Topic Presenter A P 1 1 -1 Interoperability & Service-Oriented Architecture (SOA) • Motivation <Person>, <Company>, <Country> A P 2 2 -1 ATHENA Service-Oriented Interoperability (SOI) Framework • PIM 4 SOA MDD Tools • Johnson Service Enactment <Person>, <Company>, <Country> 2 -2 Model-driven development with PIM 4 SOA <Person>, <Company>, <Country> 2 -3 Web services architectures <Person>, <Company>, <Country> 2 -4 Legacy Integration <Person>, <Company>, <Country> 2 -5 Enterprise Integration <Person>, <Company>, <Country> 3 -1 SOA and Agents • WSDL Analyzer <Person>, <Company>, <Country> 3 -2 Agent Technologies • What is an Agent? • BDI Agents • Modelling Multiagent Systems <Person>, <Company>, <Country> 3 -3 An MDA Approach to Agent Design <Person>, <Company>, <Country> A P 3 © 2005 -2006 The ATHENA Consortium. 4
SOI website http: //www. modelbased. net/soi © 2005 -2006 The ATHENA Consortium. 5
1 -1. Interoperability & Service-Oriented Architecture (SOA) <Presenter> <Company>, <Country> <E-mail> © 2005 -2006 The ATHENA Consortium.
Outline • • • Interoperability Service-oriented architecture (SOA) SOA platforms SOA challenges Introduction to the ATHENA Service-Oriented Interoperability (SOI) Framework • References © 2005 -2006 The ATHENA Consortium. 7
Interoperability © 2005 -2006 The ATHENA Consortium. 8
Definition Interoperability (def. ) is “the ability of two or more systems or components to exchange information and to use the information that has been exchanged” – IEEE Standard Computer Dictionary © 2005 -2006 The ATHENA Consortium. 9
Rationale for interoperability • Interoperability is the key to increase competitiveness of enterprises. • “Enterprise systems and applications need to be interoperable to achieve seamless operational and business interaction, and create networked organizations” – European Group for Research on Interoperability, 2002 Application integration license revenue System implementation budget Misc. 20% B$ Integration 40% Hardware 10% Imp. Services 20% Software 10% The cost of non-interoperability are estimated to (Source: the Yankee Group 2001) © 2005 -2006 The ATHENA Consortium. 40% of enterprises IT budget. 10
Knowledge integration The originality of the ATHENA project is to take a multidisciplinary approach by merging three research areas supporting the development of Interoperability of Enterprise Applications and Software. – Architecture & Platforms: to provide implementation frameworks, – Enterprise Modelling: to define interoperability requirements and to support solution implementation, – Ontology: to identify interoperability semantics in the enterprise. © 2005 -2006 The ATHENA Consortium. Architecture & Platforms ATHENA Enterprise Modelling Ontology 11
4 -layered view of an enterprise Business Operational Architecture Operations Strategy Governance Laws, rules, principles Agreed norms and practices Procedures and routines Business terms Enterprise Knowledge Architecture (EKA) Enterprise models Enterprise templates Dictionaries Ontologies Metamodels and languages Product models Reference architectures Nomenclatures Classifications Semantics Enterprise methodology Information and Communication Technology (ICT) Architecture Business and user services Infrastructure services EKA services Ontology tools Software platforms Modeling tools Management tools Ontology services © 2005 -2006 The ATHENA Consortium. 12

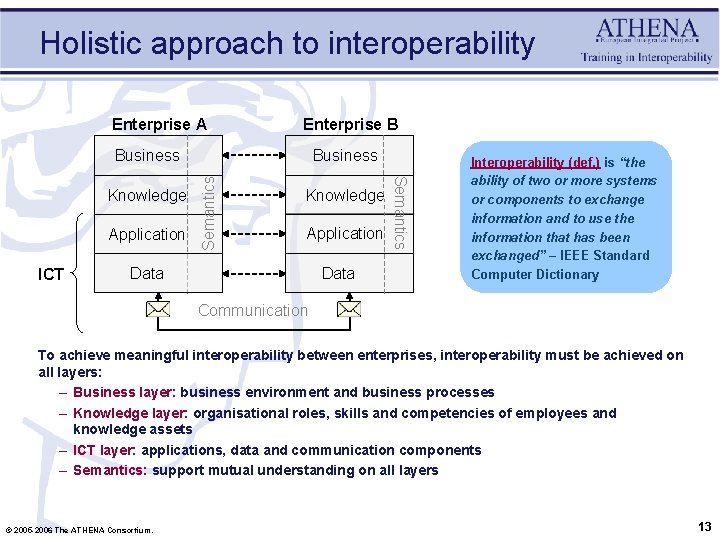

Holistic approach to interoperability Enterprise A Enterprise B Application ICT Knowledge Application Data Semantics Knowledge Business Semantics Business Interoperability (def. ) is “the ability of two or more systems or components to exchange information and to use the information that has been exchanged” – IEEE Standard Computer Dictionary Communication To achieve meaningful interoperability between enterprises, interoperability must be achieved on all layers: – Business layer: business environment and business processes – Knowledge layer: organisational roles, skills and competencies of employees and knowledge assets – ICT layer: applications, data and communication components – Semantics: support mutual understanding on all layers © 2005 -2006 The ATHENA Consortium. 13
Interoperability challenges Enterprise model Platform independent Model (PIM) Platform Specific Model Enterprise model AKM ii - EM execution platform PIM execution platform PSM execution platform Enterprise model interoperability (UEML) Ontology-. based semantic interoperability? Web services (Uddi, Soap) Bpml, Bpel, Xpdl? AKM ii - EM execution platform Interoperability objective Platform independent Model (PIM) PIM execution platform Platform Specific Model PSM execution platform Integrate enterprise models across companies and EM tools Exchange information despite semantic and syntactical incompatibility Enable enterprises to invoke services (and processes packaged as services) from each other, and include remote services in local processes Network protocols © 2005 -2006 The ATHENA Consortium. 14
Service-oriented architecture (SOA) © 2005 -2006 The ATHENA Consortium. 15
SOA definition • Service-oriented architecture (SOA) – “A set of components which can be invoked, and whose interface descriptions can be published, discovered and invoked over a network. ” (W 3 C) • http: //www. w 3. org/ • Evolution of architectural styles to designing software systems – – – Data-orientation Procedure-orientation Object-orientation Component- and message-orientation Service-orientation © 2005 -2006 The ATHENA Consortium. 16

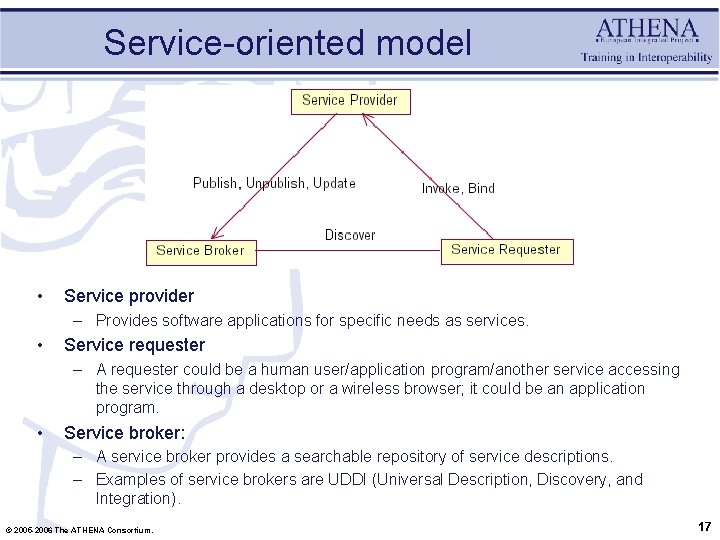

Service-oriented model • Service provider – Provides software applications for specific needs as services. • Service requester – A requester could be a human user/application program/another service accessing the service through a desktop or a wireless browser; it could be an application program. • Service broker: – A service broker provides a searchable repository of service descriptions. – Examples of service brokers are UDDI (Universal Description, Discovery, and Integration). © 2005 -2006 The ATHENA Consortium. 17
Motivation Enterprise ICT • • Challenges – Business agility – Flexibility and adaptability • Enterprise architecture frameworks + Holistic approach + Different views of an enterprise as related (visual) knowledge models - Current enterprise architectures are only blueprints Requirements n Enterprises require operational enterprise architectures n ICT solutions must be designed to be inherently interoperable © 2005 -2006 The ATHENA Consortium. • Challenges – Inflexible and difficult to adapt – Enterprise application integration (EAI) Service-oriented architecture (SOA) + Loosely coupled systems + Horizontal integration between different business domains + Use case oriented service composition +/- Web services (enabling technology) - Discussion about architectural style 18
Business and technology alignment • Business – Services can be seen as business capabilities that support the enterprise. – Services usually represent a business function or domain. – Services provide the ‘units of business’ that represent value propositions within a value chain or within business processes. – Traceability between the service as a business capability and its technical implementation. – Services will improve delivery methods that are an integral part of the business product. © 2005 -2006 The ATHENA Consortium. • Technology – – Modular design Compositions and granularity Services are loosely coupled From compile-time and deployment-time dependencies to run-time dependencies – Dynamic discovery and binding – Services are standardized (“platform independent”) – Standard Internet and Web protocols as the common “glue” to provide “syntactical interoperability” 19
From isolated application systems to service-oriented systems SOA (architectural style) Web service (enabling technology) • “A set of components which can be invoked, and whose interface descriptions can be published and discovered. ” • “A Web service is a software system designed to support interoperable machine-to-machine interaction over a network. It has an interface described in a machine-processable format (specifically WSDL). Other systems interact with the Web service in a manner prescribed by its description using SOAP-messages, typically conveyed using HTTP with an XML serialization in conjunction with other Web-related standards. ” - W 3 C Web Services Glossary, http: //www. w 3. org/TR/ws-gloss/ System A © 2005 -2006 The ATHENA Consortium. System B System C System D 20

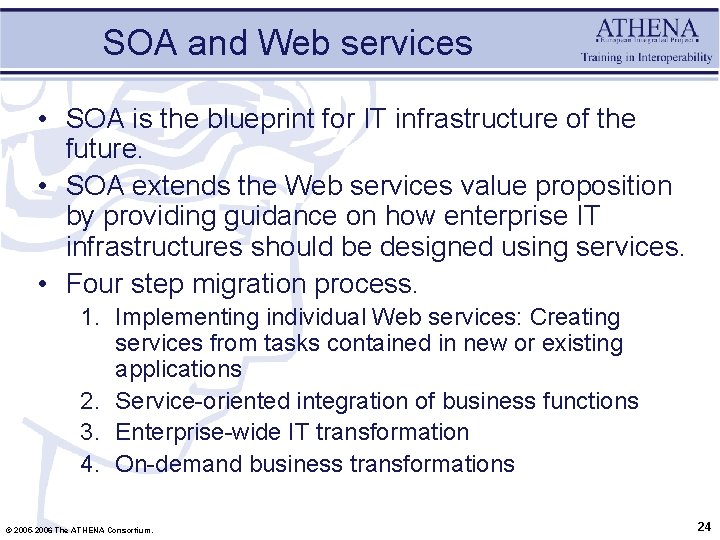

SOA and Web services • SOA is the blueprint for IT infrastructure of the future. • SOA extends the Web services value proposition by providing guidance on how enterprise IT infrastructures should be designed using services. • Four step migration process. 1. Implementing individual Web services: Creating services from tasks contained in new or existing applications 2. Service-oriented integration of business functions 3. Enterprise-wide IT transformation 4. On-demand business transformations © 2005 -2006 The ATHENA Consortium. 24
SOA platforms © 2005 -2006 The ATHENA Consortium. 25

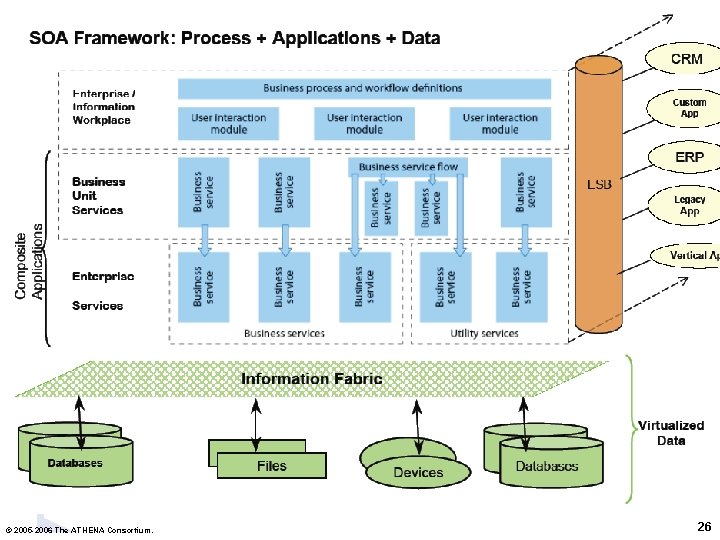

© 2005 -2006 The ATHENA Consortium. 26
SOA platform consolidation • Applications (EAI + BPM + B 2 B) ➪ Integration Suite (Application Server Platform) • Processes (BPM) ➪ Business Process Management Suite • Information (EII + ETL+ ) ➪ Information Fabric • Infrastructure (MOM, EAI, . . ) ➪ Enterprise Service Bus (ESB) © 2005 -2006 The ATHENA Consortium. 27
© 2005 -2006 The ATHENA Consortium. 28
Enterprise service bus (ESB) GARTNER © 2005 -2006 The ATHENA Consortium. 29
Integration services © 2005 -2006 The ATHENA Consortium. 30

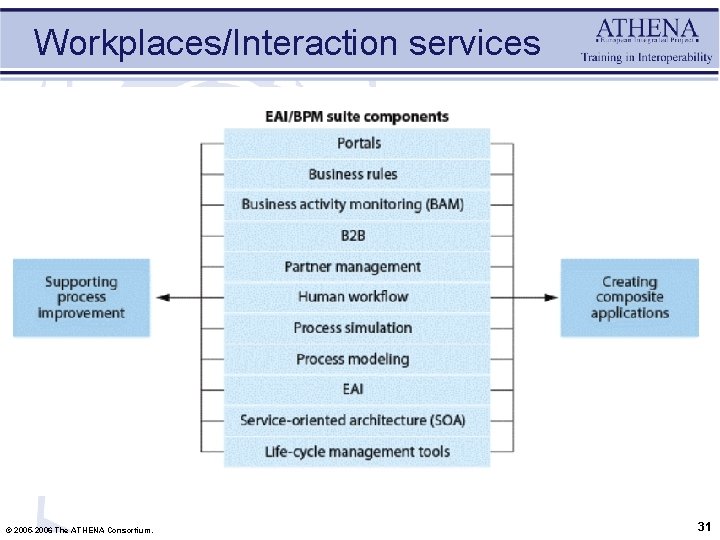

Workplaces/Interaction services © 2005 -2006 The ATHENA Consortium. 31
Business process management (BPM) services © 2005 -2006 The ATHENA Consortium. 32
Information services (overview) © 2005 -2006 The ATHENA Consortium. 33

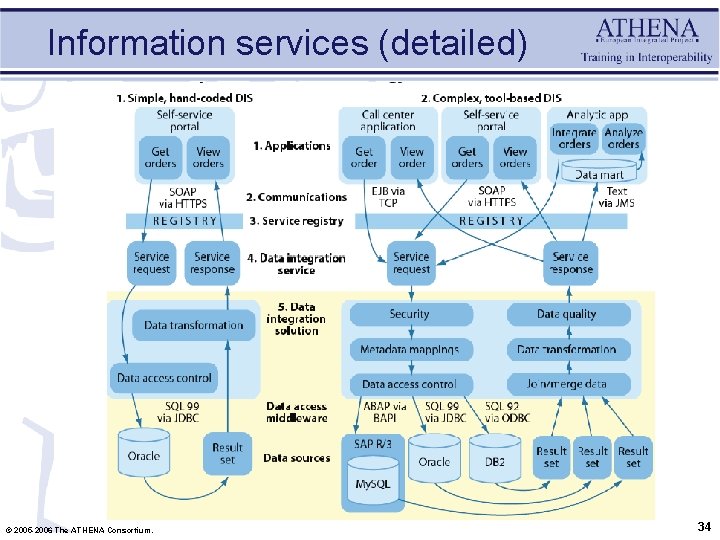

Information services (detailed) © 2005 -2006 The ATHENA Consortium. 34
Support services - checklist • User interfaces, user experiences, Interaction services • Communication abstractions (synch, asynch, event, …), Qo. S • Business rules (ILog, Pegasus, Fair-Isac, BR community. . ) ** • Process (Workflow, Service orchestration) • Services – functional interfaces (SOA), m/Qo. S • Multi-user services (Transactions) • Information Management (Data, Transformations) • Legacy integration, Adapter services • Trust Management (Security, Identity, Authorisation, …) • System Management (Users, Monitoring, … • Other: “Modelling” (MDA/DSL), Agents, © 2005 -2006 The ATHENA Consortium. 35
SOA challenges © 2005 -2006 The ATHENA Consortium. 36
8 SOA challenges 1. 2. 3. 4. 5. 6. 7. 8. Service identification. What is a service? What is the business functionality to be provided by a given service? What is the optimal granularity of the service? Service location. Where should a service be located within the enterprise? Service domain definition. How should services be grouped together into logical domains? Service packaging. How is existing functionality within legacy mainframe systems to be re-engineered or wrapped into reusable services? Service orchestration. How are composite services to be orchestrated? Service routing. How are requests from service consumers to be routed to the appropriate service and/or service domain? Service governance. How will the enterprise exercise governance processes to administer and maintain services? Service messaging standards adoption. How will the enterprise adopt a given standard consistently? © 2005 -2006 The ATHENA Consortium. 37
Trends • Merging of Human Workflow and System Orchestration/Process services • Integration of Business Rules Engines • Support for Event Notification services (publish and subscribe) • Integration of Model-generated workplaces and role/task-oriented user interfaces, user interaction services, portals, and multi-device interfaces • Explicit use of models (Enterprise and System) © 2005 -2006 The ATHENA Consortium. 38
New mode of collaboration Enterprise X ? Enterprise Y Collaboration space ? Composed business services Shared business model Business services Public view Enterprise Service Bus Internal services Private view Knowledge model Service Enterprise A © 2005 -2006 The ATHENA Consortium. 40
Introduction to the ATHENA Service -Oriented Interoperability (SOI) Framework © 2005 -2006 The ATHENA Consortium. 41

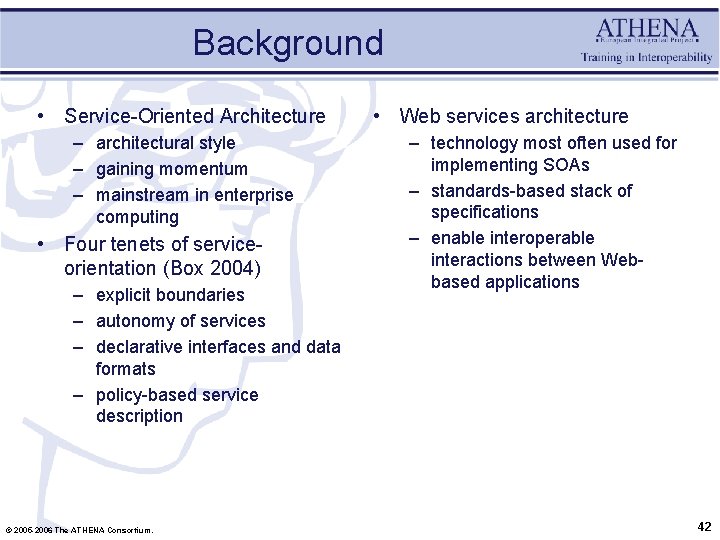

Background • Service-Oriented Architecture – architectural style – gaining momentum – mainstream in enterprise computing • Four tenets of serviceorientation (Box 2004) – explicit boundaries – autonomy of services – declarative interfaces and data formats – policy-based service description © 2005 -2006 The ATHENA Consortium. • Web services architecture – technology most often used for implementing SOAs – standards-based stack of specifications – enable interoperable interactions between Webbased applications 42
Motivation • Prototyping SOAs – working implementation of an SOA that can be used for validating the initial design choices • Different compared to traditional application development – need to take into account existing services – developed by organisations over which we have no control – introduces constraints into the prototyping exercise • Current state of the art tools – assumes that we are starting with a blank page – merely extends the approach of regular software prototyping to the scale of SOAs – they make the implicit assumption that services will behave as expected • This is why we designed an approach that – from the start, takes into account the fact that parts of the SOA needs to be considered as a given; and – should be treated with a healthy dose of caution. © 2005 -2006 The ATHENA Consortium. 43
Framework overview • The ATHENA baseline methodology for SOA provides guidelines for developing platform independent models for SOA (PIM 4 SOA). • Provides a set of modelling tools and services for mapping between PIM 4 SOA and platform specific models (Web services and BDI agents) Modelling • Johnson and Lyndonbaseline providemethodology enactment of all the • The ATHENA • The Web service extensions PIM 4 SOA to the JACK roles External found in an SOA (consumer, provider, for. WSDL SOA provides guidelines for Documents autonomous agents platform allow SOAs to intermediary) and. WSDL flexible between developing platform independent Documents communication BDI Teams MDD Framework use agents for brokering, mediation and Web services intuitive user interface models through for SOA an (PIM 4 SOA). negotiation between Web services WSDL Analyzer Lyndon • The WSDL Analyzer detected syntactical • Provides a settool of modelling tools and • BDI teams provide a flexible and composable mismatches between servicebetween descriptions and services for mapping Jack alternative to «invoke» traditional Johnson approaches «invoke» to Web provides a basis and for runtime of Web PIM 4 SOA platformmediation specific models service composition service(Web messages services and BDI agents) Agents Services • Johnson and Lyndon provide enactment of all the roles found in an SOA (consumer, provider, intermediary) and flexible communication between Web services through an intuitive user interface • The WSDL Analyzer tool detected syntactical mismatches between service descriptions and provides a basis for runtime mediation of Web service messages © 2005 -2006 The ATHENA Consortium. • The Web service extensions to the JACK autonomous agents platform allow SOAs to use agents for brokering, mediation and negotiation between Web services • BDI teams provide a flexible and composable alternative to traditional approaches to Web service composition 44
References © 2005 -2006 The ATHENA Consortium. 46
References [ATHENA] ATHENA, "ATHENA Public Web Site", ATHENA Integrated Project (IST 507849). http: //www. athena-ip. org/ [ATHENA A 5 2005] ATHENA A 5, "D. A 5. 1: Perspectives on Service-Oriented Architectures and there application in environments that require solutions to be planned and customisable", ATHENA IP, Deliverable D. A 5. 1, 2005. [ATHENA A 5 2005] ATHENA A 5, "D. A 5. 2: Model and Specification of Service Descriptions and Usage as well as Advanced Concepts", ATHENA IP, Deliverable D. A 5. 2, 2005. [ATHENA A 5 2006] ATHENA A 5, "D. A 5. 3: Architecture of SOA Platforms", ATHENA IP, Deliverable D. A 5. 3, 2006. [ATHENA A 5 2006] ATHENA A 5, "D. A 5. 4: Execution Framework(s) for Planned and Customisable Service-Oriented Architectures", ATHENA IP, Deliverable D. A 5. 4, 2006. [ATHENA A 5 2006] ATHENA A 5, "D. A 5. 5: Validation of Research Results", ATHENA IP, Deliverable D. A 5. 5, 2006. [Vayssière, et al. 2006] J. Vayssière, G. Benguria, B. Elvesæter, K. Fischer, and I. Zinnikus, "Rapid Prototyping for Service-Oriented Architectures", presented at the 2 nd Workshop on Web Services Interoperability (WSI 2006), Bordeaux, France, 2006. © 2005 -2006 The ATHENA Consortium. 47
This course has been developed under the funding of the EC with the support of the EC ATHENA-IP Project. Disclaimer and Copyright Notice: Permission is granted without fee for personal or educational (non-profit) use, previous notification is needed. For notification purposes, please, address to the ATHENA Training Programme Chair at rg@uninova. pt. In other cases please, contact at the same e-mail address for use conditions. Some of the figures presented in this course are freely inspired by others reported in referenced works/sources. For such figures copyright and all rights therein are maintained by the original authors or by other copyright holders. It is understood that all persons copying these figures will adhere to the terms and constraints invoked by each copyright holder. © 2005 -2006 The ATHENA Consortium. 48
