Antibiotics Step 1 How to Kill a Bacterium

Antibiotics

Step 1: How to Kill a Bacterium. • What are the bacterial weak points? • Specifically, which commercial antibiotics target each of these points?

Target 1: The Bacterial Cell Envelope

• The bacterial cell wall allows the microorganism to maintain its shape • The cell wall also provides structural support to withstand changes in osmotic pressure.

Classification of Bacteria • Gram-positive: Stained dark blue by Gramstaining procedure • Gram-negative: Don’t take up the crystal violet stain, and take up counterstain (safranin) instead, staining pink in the Gram procedure.

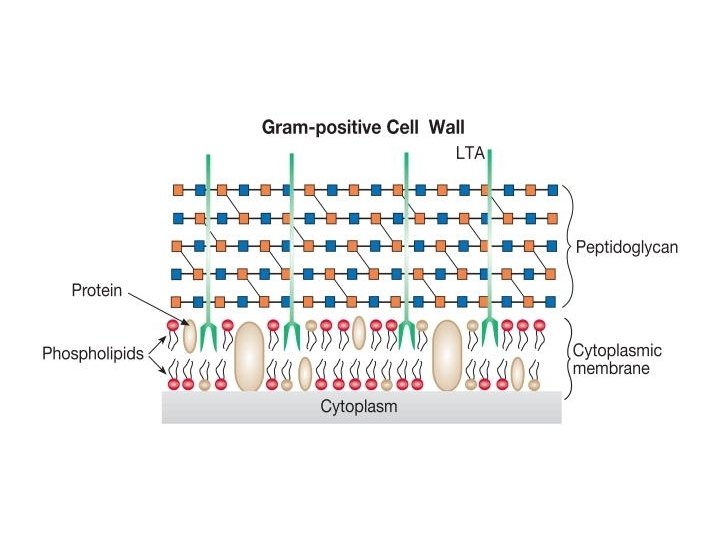

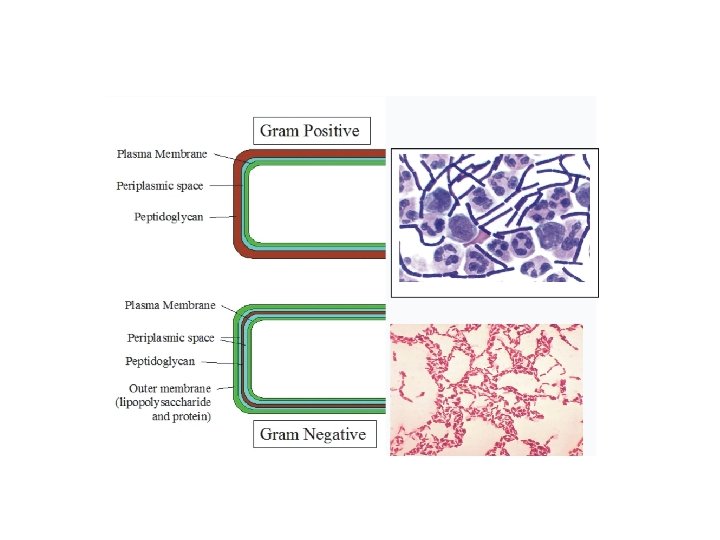

Structure of the bacterial cell envelope. Gram-positive. Gram-negative.

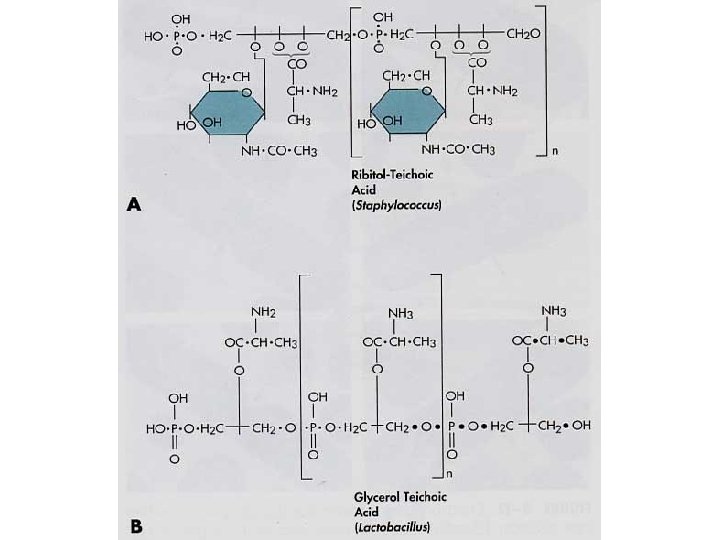

Diagrams of the cell envelope structure of Gram-negative (left) and Gram-positive bacteria. Key: peptidoglycan layer (yellow); protein (purple); teichoic acid (green); phospholipid ( brown); lipopolysaccharide (orange).

Figure 1. General overview of lipopolysaccharide (LPS) on the outer membrane of a Gram-negative bacterium. LPS consists of 3 major components: the highly variable outer O-antigen segment; a more conserved core, which is divided into outer and inner segments; and the bioactive lipid A portion. Variation within the length of the LPS, due to mutational absence of specific structures, not only changes the phenotypic appearance of the bacterium (i. e. , smooth [S], semi-rough [SR], or rough [R]), but may also change some bioactive responses by the host to the bacterium itself. (A) Some bacterial species contain an outer capsule that protects the bacterium from host defenses such as complement, lysis, and phagocytosis. (B) Outer lipid bilayer with LPS which is approximately 8 nm in width. (C) Peptidoglycan layer. (D) Inner bilipid membrane. Note: Additional lipoproteins, porin complexes, and additional membrane proteins established within and surrounding the inner and outer membranes have been removed to simplify the diagram (Raetz, 1992; Caroff et al. , 2002).

Gram-Staining Animation Link http: //student. ccbcmd. edu/courses/bio 141/labmanua/lab 6/images/gram_stain_11. swf

The Dyes Used in Gram Staining Methyl Violet 10 B Safranin

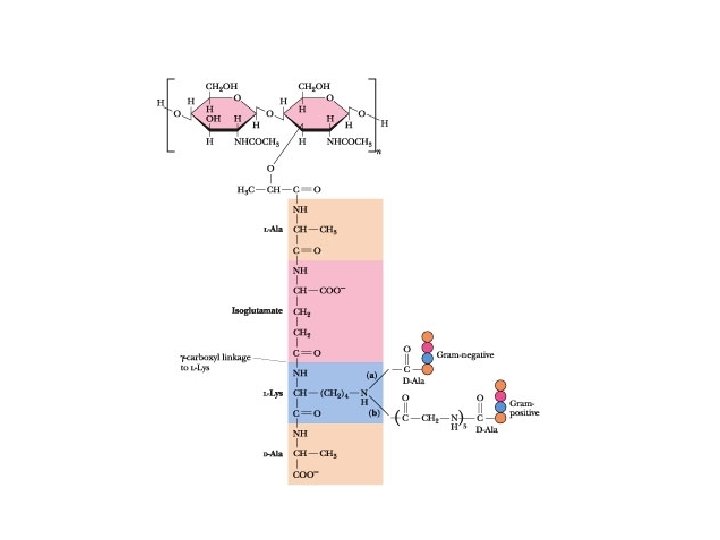

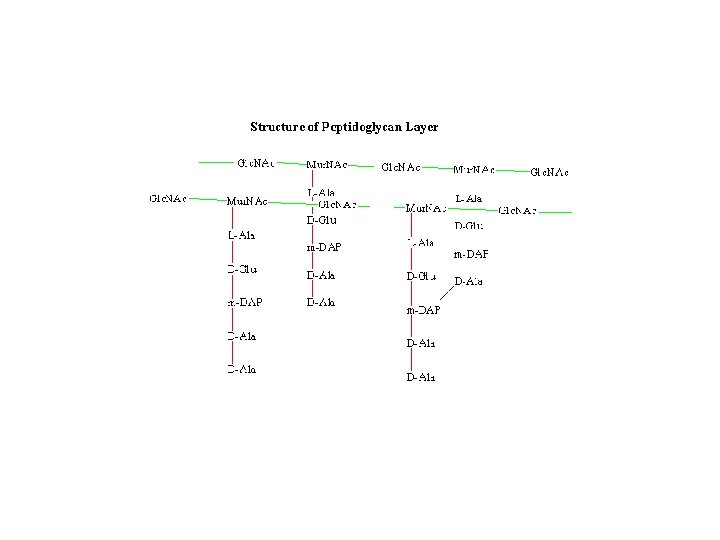

Structure of peptidoglycan. Peptidoglycan synthesis requires cross-linking of disaccharide polymers by penicillin-binding proteins (PBPs). NAMA, N-acetylmuramic acid; NAGA, N-acetyl-glucosamine.

The Carbohydrate Building Blocks N-Acetylglucosamine (NAG) N-Acetylmuraminic Acid (NAM)

Antibiotics that Target the Bacterial Cell Envelope Include: • The b-Lactam Antibiotics • Vancomycin • Daptomycin

Target 2: The Bacterial Process of Protein Production

An overview of the process by which proteins are produced within bacteria.

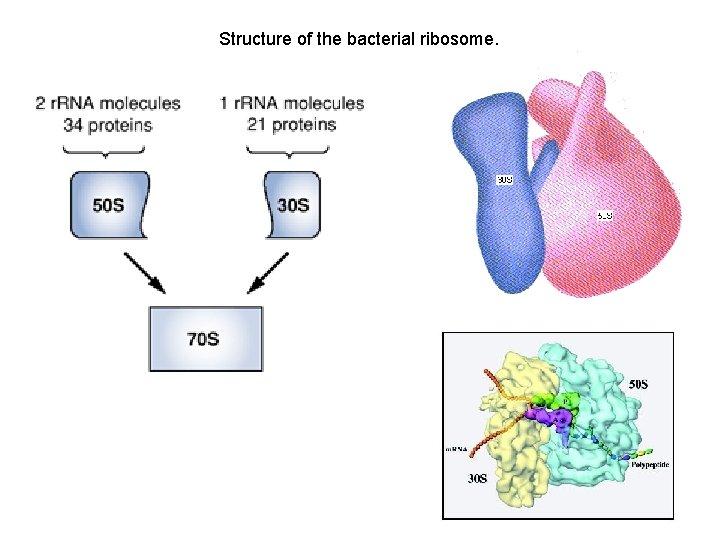

Structure of the bacterial ribosome.

Antibiotics that Block Bacterial Protein Production Include: • • Rifamycins Aminoglycosides Macrolides and Ketolides Tetracyclines and Glycylcyclines Chloramphenicol Clindamycin Streptogramins Linezolid (member of Oxazolidinone Class)

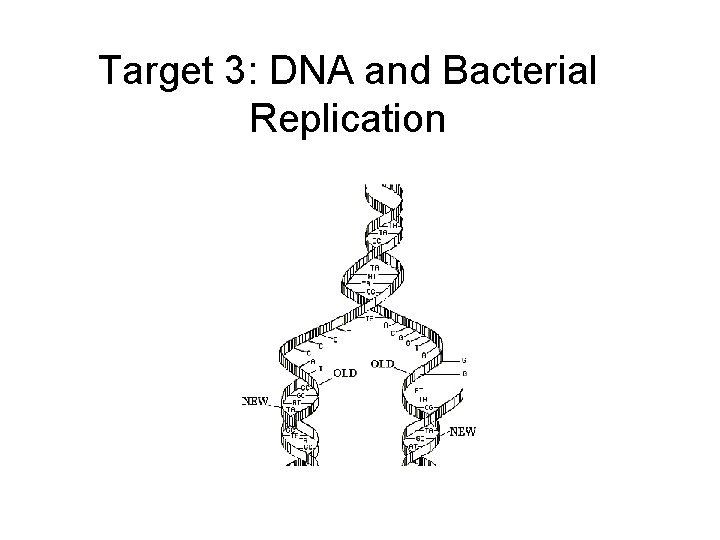

Target 3: DNA and Bacterial Replication

Bacterial synthesis of tetrahydrofolate.

Supercoiling of the double helical structure of DNA. Twisting of DNA results in formation of supercoils. During transcription, the movement of RNA polymerase along the chromosome results in the accumulation of positive supercoils ahead of the enzyme and negative supercoils behind it. LINK

Replication of the bacterial chromosome. A consequence of the circular nature of the bacterial chromosome is that replicated chromosomes are interlinked, requiring topoisomerase for appropriate segregation.

Antibiotics that Target DNA and Replication Include: • Sulfa Drugs • Quinolones • Metronidazole

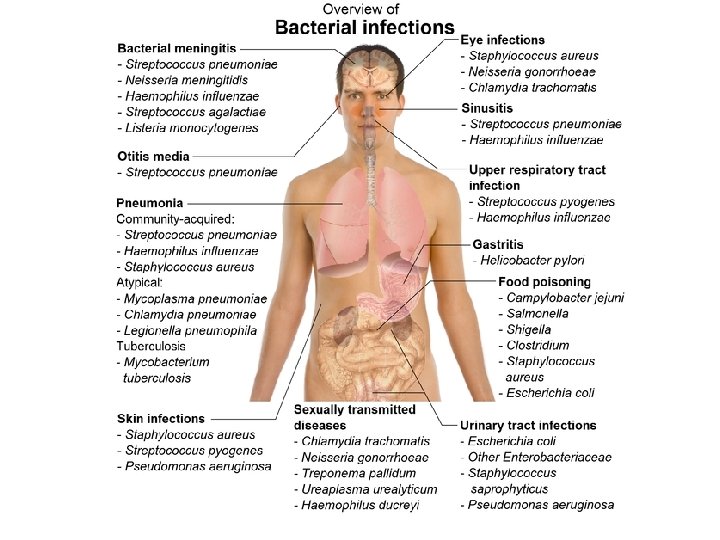

Which Bacteria are Clinically Important?

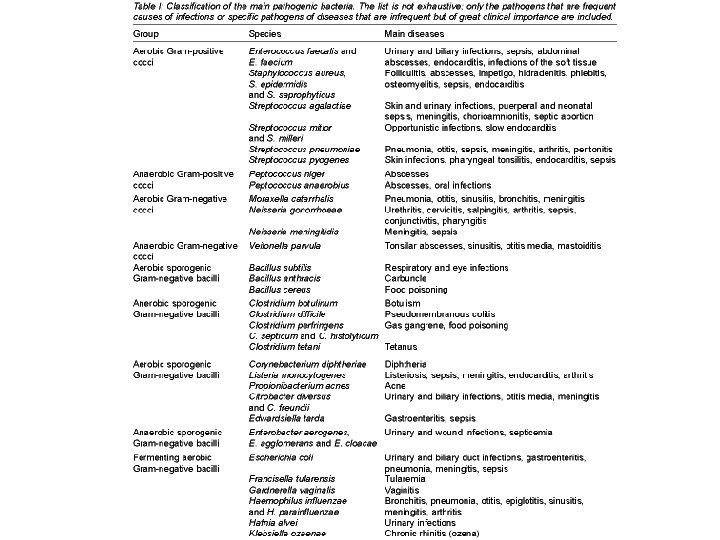

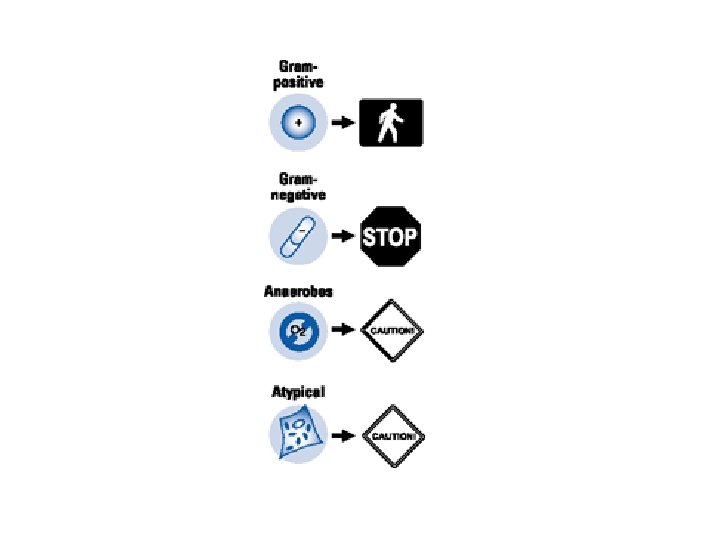

General Classes of Clinically Important Bacteria Include: • • • Gram-positive aerobic bacteria Gram-negative aerobic bacteria Anaerobic bacteria (both Gram + and -) Atypical bacteria Spirochetes Mycobacteria

Gram-positive Bacteria of Clinical Importance • Staphylococci – Staphylococcus aureus – Staphylococcus epidermidis Staphylococcus aureus • Streptococci – – Streptococcus pneumoniae Streptococcus pyogenes Streptococcus agalactiae Streptococcus viridans • Enterococci – Enterococcus faecalis – Enterococcus faecium • Listeria monocytogenes • Bacillus anthracis Streptococcus viridans

Gram-negative Bacteria of Clinical Importance • Enterobacteriaceae – Escherichia coli, Enterobacter, Klebsiella, Proteus, Salmonella, Shigella, Yersinia, etc. • Pseudomonas aeruginosa • Neisseria – Neisseria meningitidis and Neisseria gonorrhoeae • Curved Gram-negative Bacilli – Campylobacter jejuni, Helicobacter pylori, and Vibrio cholerae • • Haemophilus Influenzae Bordetella Pertussis Moraxella Catarrhalis Acinetobacter baumannii

Anaerobic Bacteria of Clinical Importance • Gram-positive anaerobic bacilli – Clostridium difficile – Clostridium tetani – Clostridium botulinum • Gram-negative anaerobic bacilli – Bacteroides fragilis

Atypical Bacteria of Clinical Importance Include: • • • Chlamydia Mycoplasma Legionella Brucella Francisella tularensis Rickettsia

Spirochetes of Clinical Importance Include: • Treponema pallidum • Borrelia burgdorferi • Leptospira interrogans

Mycobacteria of Clinical Importance Include: • Mycobacterium tuberculosis • Mycobacterium avium • Mycobacterium leprae

Antibiotics that Target the Bacterial Cell Envelope • The b-Lactam Antibiotics

Mechanism of Action of b-Lactam Antibiotics Normally, a new subunit of N-acetylmuramic acid (NAMA) and Nacetylglucosamine (NAGA) disaccharide with an attached peptide side chain is linked to an existing peptidoglycan polymer. This may occur by covalent attachment of a glycine bridge from one peptide side chain to another through the enzymatic action of a penicillin-binding protein (PBP). In the presence of a β-lactam antibiotic, this process is disrupted.

• The β-lactam antibiotic binds the PBP and prevents it from cross-linking the glycine bridge to the peptide side chain, thus blocking incorporation of the disaccharide subunit into the existing peptidoglycan polymer.

Mechanism of penicillin-binding protein (PBP) inhibition by β-lactam antibiotics. PBPs recognize and catalyze the peptide bond between two alanine subunits of the peptidoglycan peptide side chain. The β-lactam ring mimics this peptide bond. Thus, the PBPs attempt to catalyze the β-lactam ring, resulting in inactivation of the PBPs.

Six P's by which the action of βlactams may be blocked: (1) penetration, (2) porins, (3) pumps, (4) penicillinases (βlactamases), (5) penicillin-binding proteins (PBPs), and (6) peptidoglycan.

The Penicillins Category Parenteral Agents Oral Agents Natural Penicillins Penicillin G Penicillin V Antistaphylococcal penicillins Nafcillin, oxacillin Dicloxacillin Aminopenicillins Ampicillin Amoxicillin and Ampicillin Aminopenicillin + blactamase inhibitor Ampicillin-sulbactam Amoxicillin-clavulanate Extended-spectrum penicillin Piperacillin, ticaricillin Carbenicillin Extended-spectrum penicillin + b-lactamase inhibitor Piperacillin-tazobactam, ticaricillin-clavulanate

INTRODUCTION TO PENICILLIN • • • Antibacterial agents which inhibit bacterial cell wall synthesis Discovered by Fleming from a fungal colony (1928) Shown to be non toxic and antibacterial

• • Isolated and purified by Florey and Chain (1938) First successful clinical trial (1941) Produced by large scale fermentation (1944) Structure established by X-Ray crystallography (1945) Full synthesis developed by Sheehan (1957) Isolation of 6 -APA (1958 -60) development of semi-synthetic penicillins Discovery of clavulanic acid and b-lactamase inhibitors -

http: //archive. microbelibrary. org/microbelibrary/files/cc. Images/Ar ticleimages/Spencer/spencer_cellwall. html

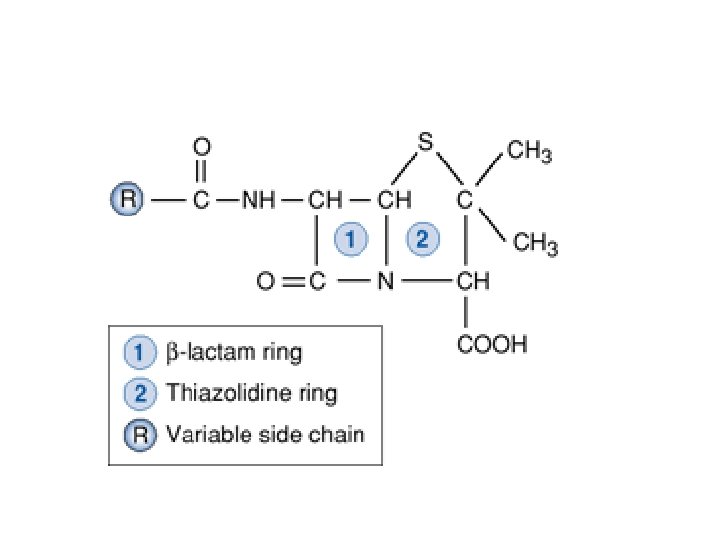

STRUCTURE R= Benzyl penicillin (Pen G) R= 6 -Aminopenicillanic acid (6 -APA) Acyl side chain Phenoxymethyl penicillin (Pen V) b-Lactam ring Thiazolidine ring Side chain varies depending on carboxylic acid present in fermentation medium Penicillin G present in corn steep liquor Penicillin V (first orally active penicillin)

Shape of Penicillin G Folded ‘envelope’ shape

Properties of Penicillin G • • Active vs. Gram +ve bacilli and some Gram -ve cocci Non toxic Limited range of activity Not orally active - must be injected Sensitive to b-lactamases (enzymes which hydrolyse the b-lactam ring) Some patients are allergic Inactive vs. Staphylococci Drug Development Aims • To increase chemical stability for oral administration • To increase resistance to b-lactamases • To increase the range of activity

SAR Conclusions • • Amide and carboxylic acid are involved in binding Carboxylic acid binds as the carboxylate ion Mechanism of action involves the b-lactam ring Activity related to b-lactam ring strain (subject to stability factors) Bicyclic system increases b-lactam ring strain Not much variation in structure is possible Variations are limited to the side chain (R)

Mechanism of action • • • Penicillins inhibit a bacterial enzyme called the transpeptidase enzyme which is involved in the synthesis of the bacterial cell wall The b-lactam ring is involved in the mechanism of inhibition Penicillin becomes covalently linked to the enzyme’s active site leading to irreversible inhibition Covalent bond formed to transpeptidase enzyme Irreversible inhibition

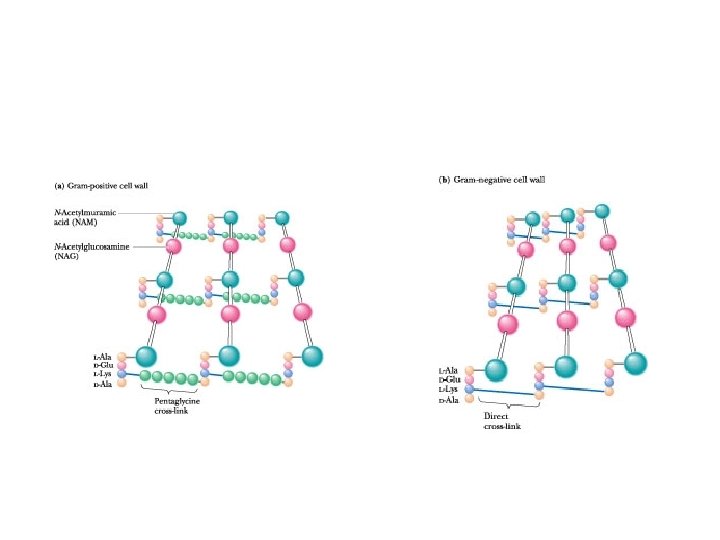

Mechanism of action - bacterial cell wall synthesis NAM L-Ala D-Glu L-Lys NAG NAM L-Ala D-Glu L-Lys Bond formation inhibited by penicillin NAM L-Ala NAG D-Glu NAM L-Lys L-Ala NAG NAM L-Ala NAG D-Glu L-Lys NAM L-Ala NAG NAM D-Glu L-Ala NAM NAG L-Lys NAM D-Glu L-Ala L-Lys L-Ala D-Glu L-Lys

Mechanism of action - bacterial cell wall synthesis Cross linking

Mechanism of action - bacterial cell wall synthesis • • Penicillin inhibits final crosslinking stage of cell wall synthesis • • Inhibition of transpeptidase leads to a weakened cell wall • Penicillin acts as an analogue of the D-Ala-D-Ala portion of the pentapeptide chain. It reacts with the transpeptidase enzyme to form an irreversible covalent bond Cells swell due to water entering the cell, then burst (lysis)

Mechanism of action - bacterial cell wall synthesis Alternative theory- Pencillin mimics D-Ala-D-Ala. Normal Mechanism

Mechanism of action - bacterial cell wall synthesis Alternative theory- Penicillin mimics D-Ala-D-Ala. Mechanism inhibited by penicillin

Mechanism of action - bacterial cell wall synthesis Penicillin can be seen to mimic acyl-D-Ala Penicillin Acyl-D-Ala

Penicillin Analogues - Preparation 1) By fermentation • vary the carboxylic acid in the fermentation medium • limited to unbranched acids at the a-position i. e. RCH 2 CO 2 H • tedious and slow 2) By total synthesis • only 1% overall yield (impractical) 3) By semi-synthetic procedures • Use a naturally occurring structure as the starting material for analogue synthesis

Penicillin Analogues - Preparation Penicillin acylase or chemical hydrolysis Fermentation Semi-synthetic penicillins

Penicillin Analogues - Preparation Problem - How does one hydrolyse the side chain by chemical means in presence of a labile b-lactam ring? Answer - Activate the side chain first to make it more reactive Note - Reaction with PCl 5 requires involvement of nitrogen’s lone pair of electrons. Not possible for the b-lactam nitrogen.

Problems with Penicillin G • It is sensitive to stomach acids • It is sensitive to b-lactamases enzymes which hydrolyse the blactam ring • it has a limited range of activity

Problem 1 - Acid Sensitivity Reasons for sensitivity 1) Ring Strain Acid or enzyme Relieves ring strain

Problem 1 - Acid Sensitivity Reasons for sensitivity 2) Reactive b-lactam carbonyl group Does not behave like a tertiary amide Tertiary amide Unreactive b-Lactam X Folded ring system • • Impossibly strained Interaction of nitrogen’s lone pair with the carbonyl group is not possible Results in a reactive carbonyl group

Problem 1 - Acid Sensitivity Reasons for sensitivity 3) Acyl Side Chain - neighbouring group participation in the hydrolysis mechanism Further reactions

Problem 1 - Acid Sensitivity Conclusions • • • The b-lactam ring is essential for activity and must be retained Therefore, cannot tackle factors 1 and 2 Can only tackle factor 3 Strategy Vary the acyl side group (R) to make it electron withdrawing to decrease the nucleophilicity of the carbonyl oxygen Decreases nucleophilicity

Problem 1 - Acid Sensitivity Examples electronegative oxygen Penicillin V (orally active) • • Better acid stability and orally active But sensitive to b-lactamases Slightly less active than Penicillin G Allergy problems with some patients • Very successful semisynthetic penicillins e. g. ampicillin, oxacillin

Deep Intramuscular (IM) Formulations of Penicillin G benzathine Penicillin G Procaine

Differences between Bicillin C-R and Bicillin L-A Bicillin C-R 900/300 (penicillin G benzathine and penicillin G procaine injectable suspension) contains the equivalent of 900, 000 units of penicillin G as the benzathine and 300, 000 units of penicillin G as the procaine salts. It is available for deep intramuscular injection. Bicillin L-A suspension in the disposable-syringe formulation is viscous and opaque. It is available in a 1 m. L, 2 m. L, and 4 m. L sizes containing the equivalent of 600, 000, 1, 200, 000 and 2, 400, 000 units respectively of penicillin G as the benzathine salt. Bicillin L-A (2, 400, 000 units) is approved for treatment of syphillis, whereas Bicillin C-R (not sold in 2, 400, 000 unit size) is not. A unit of penicillin is defined as that amount which has the same activity as 0. 6 mg of pure penicillin G sodium salt.

Natural penicillins include Penicillin G (parenteral) and Penicillin V (oral) Gram-positive bacteria Streptococcus pyogenes, Viridans group streptococci, Some Streptococcus pneumoniae, Some Enterococci, Listeria monocytogenes Gram-negative bacterai Neisseria meningitidis, Some Haemophilus influenzae (very limited spectrum against gramnegative bacteria) Anaerobic bacteria Clostridia spp. (except C. difficile), Antinomyces israelii Spirochetes Treponema pallidum (syphilis) Leptospira spp.

Problem 2 - Sensitivity to b-Lactamases Notes on b-Lactamases • Enzymes that inactivate penicillins by opening b-lactam rings • Allow bacteria to be resistant to penicillin • Transferable between bacterial strains (i. e. bacteria can acquire resistance) • Important w. r. t. Staphylococcus aureus infections in hospitals • 80% Staph. infections in hospitals were resistant to penicillin and other antibacterial agents by 1960 • Mechanism of action for lactamases is identical to the mechanism of inhibition for the target enzyme • But product is removed efficiently from the lactamase active site b-Lactamase

Problem 2 - Sensitivity to b-Lactamases Strategy • Block access of penicillin to active site of enzyme by introducing bulky groups to the side chain to act as steric shields • Size of shield is crucial to inhibit reaction of penicillins with blactamases but not with the target enzyme (transpeptidase) Bulky group Enzyme

Problem 2 - Sensitivity to b-Lactamases Examples - Methicillin (Beecham - 1960) ortho groups important • • Methoxy groups block access to b-lactamases but not to transpeptidases Active against some penicillin G resistant strains (e. g. Staphylococcus) Acid sensitive (no e-withdrawing group) and must be injected Lower activity w. r. t. Pen G vs. Pen G sensitive bacteria (reduced access to transpeptidase) Poorer range of activity Poor activity vs. some streptococci Inactive vs. Gram - bacteria

Problem 2 - Sensitivity to b-Lactamases Examples - Oxacillin R = R' = H Cloxacillin R = Cl, R' = H Flucloxacillin R = Cl, R' = F • • Orally active and acid resistant Resistant to b-lactamases Active vs. Staphylococcus aureus Less active than other penicillins Inactive vs. Gram - bacteria Nature of R & R’ influences absorption and plasma protein binding Cloxacillin better absorbed than oxacillin Flucloxacillin less bound to plasma protein, leading to higher levels of free drug

Nafcillin

Antistaphylococcal Penicillins include Nafcillin and Oxacillin (parenteral) as well as Dicloxacillin (oral) Gram-positive bacteria Some Staphylococcus aureus, Some Staphylococcus epidermidis

Problem 3 - Range of Activity Factors 1. Cell wall may have a coat preventing access to the cell 2. Excess transpeptidase enzyme may be present 3. Resistant transpeptidase enzyme (modified structure) 4. Presence of b-lactamases 5. Transfer of b-lactamases between strains 6. Efflux mechanisms Strategy • The number of factors involved make a single strategy impossible • Use trial and error by varying R groups on the side chain • Successful in producing broad spectrum antibiotics • Results demonstrate general rules for broad spectrum activity.

Problem 3 - Range of Activity Results of varying R in Pen G 1. R= hydrophobic results in high activity vs. Gram + bacteria and poor activity vs. Gram - bacteria 2. Increasing hydrophobicity has little effect on Gram + activity but lowers Gram - activity 3. Increasing hydrophilic character has little effect on Gram + activity but increases Gram - activity 4. Hydrophilic groups at the a-position (e. g. NH 2, OH, CO 2 H) increase activity vs Gram - bacteria

Problem 3 - Range of Activity Examples of Aminopenicillins include: Class 1 - NH 2 at the a-position Ampicillin and Amoxicillin (1964) Ampicillin (Omnipen, Polycillin, Principen) 2 nd most used penicillin Amoxicillin (Amoxil)

Problem 3 - Range of Activity Examples of Aminopenicillins Include: Properties • Active vs Gram + bacteria and Gram - bacteria which do not produce b-lactamases • Acid resistant and orally active • Non toxic • Sensitive to b-lactamases • Increased polarity due to extra amino group • Poor absorption through the gut wall • Disruption of gut flora leading to diarrhea • Inactive vs. Pseudomonas aeruginosa

Amoxicillin Clarithromycin (Biaxin) Lansoprazole (Prevacid) • Amoxicillin is sometimes used together with clarithromycin (Biaxin) to treat stomach ulcers caused by Helicobacter pylori, a Gram negative bacteria • Also, a stomach acid reducer (lansoprazole, or Prevacid) is sometimes added.

Helicobacter pylori is linked to stomach inflammation, which may also result in gastric ulcers and stomach cancer

• In the early 20 th century, ulcers were believed caused by stress • In 1982, Robin Warren and Barry Marshall, two Australian physicians, suggested link between H. pylori and ulcers • Medical community was slow to accept (first abstract describing such results was rejected for a poster)

In 2005, the two researchers, Barry Marshall and J. Robin Warren, received the Nobel Prize in medicine for their discovery of the bacterium Helicobacter pylori and its role in gastritis and peptic ulcer disease

LINK Link

• Note that urease converts the nitrogen of urea into the nitrogen of ammonia • Since the urea nitrogen is a resonance-stabilized amide, its nitrogen is nonbasic, • Conversely, ammonia is basic, with the conjugate acid ammonium ion having a p. Ka of 9. 4. • Thus the formation of ammonia neutralizes stomach acid in the general vicinity of the bacterium.

Problem 3 - Range of Activity Prodrugs of Ampicillin (Leo Pharmaceuticals - 1969) Properties • Increased cell membrane permeability • Polar carboxylic acid group is masked by the ester • Ester is metabolised in the body by esterases to give the free drug

Problem 3 - Range of Activity Mechanism O PEN PEN C C O CH 2 O O CMe 3 C O CH 2 O H C OH O O Formaldehyde • • • Ester is less shielded by penicillin nucleus Hydrolysed product is chemically unstable and degrades Methyl ester of ampicillin is not hydrolysed in the body - bulky penicillin nucleus acts as a steric shield

The aminopenicillins include Ampicillin (parenteral) as well as Amoxicillin and Ampicillin (both oral)

Ampicillin Amoxicillin Gram-positive bacteria Streptococcus pyogenes, Viridans streptococci, Some Streptococcus pneumoniae, Some enterococci Listeria monocytogenes Gram-negative bacteria Neisseria meningitidis, Some Haemophilus influenzae, Some Enterobacteriaceae (note improved spectrum against Gramnegative organisms, relative to Pen G and Pen V) Anaerobic bacteria Clostridia spp. (except C. difficile), Antinomyces israelii Spirochetes Borrelia burgdorferi

• Assigned Reading: • • • Antibiotics Basics for Clinicians by Alan R. Hauser, pp. 1 -31. Lange, Roland P. ; Locher, Hans H. ; Wyss, Pierre C. ; Then, Rudolf L. The targets of currently used antibacterial agents: lessons for drug discovery. Current Pharmaceutical Design (2007), 13(30), 3140 -3154. Link Levy, Stuart B. ; Marshall, Bonnie. Antibacterial resistance worldwide: Causes, challenges and responses. Nature Medicine (New York, NY, United States) (2004), 10(12, Suppl. ), S 122 -S 129. Link Projan S J; Shlaes D M Antibacterial drug discovery: is it all downhill from here? . Clinical microbiology and infection : the official publication of the European Society of Clinical Microbiology and Infectious Diseases (2004), 10 Suppl 4 18 -22. Link Lowy, Franklin D. Antimicrobial resistance: the example of Staphylococcus aureus. Journal of Clinical Investigation (2003), 111(9), 1265 -1273. Link Goodman and Gillman’s Pharmaceutical Basis of Therapeutics, 12 th edition, Chapter 53, pp. 1477 -1503.

• Homework questions 1. List the major antibiotic families and their respective mechanisms of action. 2. With respect to antimicrobial resistance, what is meant by the term ‘selection density’? 3. Why is the presence of antibacterial agents in wastewater a problem and what is a potential solution to this problem? 4. The actual number of antibacterial targets is probably much larger than that predicted by a genomic analysis. Explain. 5. What is meant by a ‘promiscuous drug’? In what respect might the b-lactam antibiotics satisify this definition? 6. Provide several reasons for the current decline in commercial pharmaceutical interest in developing new antimicrobial products. 7. What is ‘Levy’s Law of Antibiotics’? 8. Name the gene responsible for the production of b-lactamase in Staphylococcus aureus and its regulators. Name the gene responsible for methicillin resistance. What does this latter gene code for? 9. What is the difference between bacteriostatic agents and bacteriocidal agents? When might it be sufficient to use a bacteriostatic agent? 10. Name three different general mechanisms whereby bacteria acquire resistance. 11. Describe the mechanisms of both vertical and horizontal transfer of resistance determinants. 12. What is a synergystic combination? Describe such a combination used to treat enterococcal endocardiditis. 13. What is a superinfection? 14. Compare the structures of Penicillin G, Penicillin V, Ampicillin, and Methicillin, labeling the key differences and providing the reasons these differences resulted in an improved drug.
