Baluns • A balun is a device to match a balanced antenna to unbalanced transmission line such as coax • Used e. g. to connect a dipole antenna to a 50 ohm coaxial cable, where it would be installed between the coaxial cable and the antenna

SWR (Standing Wave Ratio) • If the characteristic impedance of the transmission line does not match the antenna input impedance then standing waves are produced in the transmission line • SWR = the ratio of maximum to minimum voltages on a transmission line

SWR • If your antenna transmission line gets hot when you are transmitting the SWR may be too high, or the transmission line loss may be high • The result of the presence of standing waves on a transmission line is: reduced transfer of RF energy to the antenna • An SWR meter measures the degree of match between transmission line and antenna by comparing forward and reflected voltage • When a resonant antenna with feed point impedance of 200 ohms is connected to a transmission line with impedance of 50 ohms the standing wave ratio of this system will be 200: 50 -> 4: 1

Antennas are used to convert radio frequency alternating electric current into an electromagnetic field and vice versa. • Resonant • Impedance matched

Resonance • Length be right for frequency – 1/4, 1/2, 5/8 and full wave length, depending on type • Below 30 MHz/10 m, shortening factor of 0. 95 • Resonance means inductive reactance and capacitive reactance are equal • There will be questions involving frequency and/or antenna length on the exam I will put a few of them up during the break

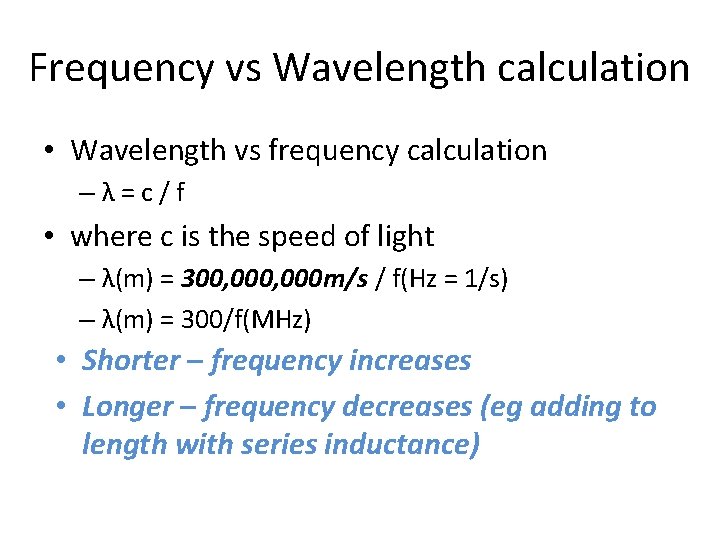

Frequency vs Wavelength calculation • Wavelength vs frequency calculation – λ = c / f • where c is the speed of light – λ(m) = 300, 000 m/s / f(Hz = 1/s) – λ(m) = 300/f(MHz) • Shorter – frequency increases • Longer – frequency decreases (eg adding to length with series inductance)

Antenna Impedance - Resonant • Antennas have an inherent impedance at resonance • A source delivers maximum power to the load when the impedance of an electrical load is equal to the internal impedance of the power source • Antenna impedance needs to be matched with the feed line; if they don’t use an impedance-matching device • A 75 ohm transmission line could be matched to the 300 ohm feed point of an antenna by using a 4 to 1 impedance transformer balun • But… resonance and impedance are frequency dependent

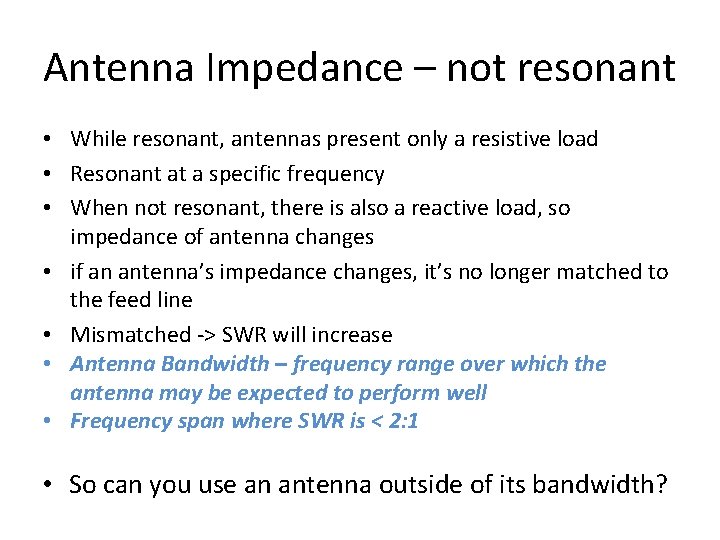

Antenna Impedance – not resonant • While resonant, antennas present only a resistive load • Resonant at a specific frequency • When not resonant, there is also a reactive load, so impedance of antenna changes • if an antenna’s impedance changes, it’s no longer matched to the feed line • Mismatched -> SWR will increase • Antenna Bandwidth – frequency range over which the antenna may be expected to perform well • Frequency span where SWR is < 2: 1 • So can you use an antenna outside of its bandwidth?

Antenna Tuner • might allow use of an antenna on a band it was not designed for • matches transceiver to a mismatched antenna system • Used with most antennas when operating below 14 MHz/20 m • Does it make sense how the last 5 slides fit together?

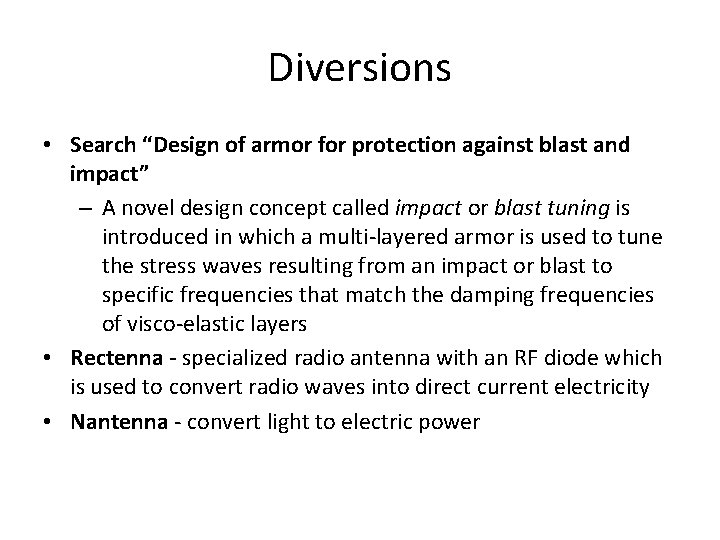

Diversions • Search “Design of armor for protection against blast and impact” – A novel design concept called impact or blast tuning is introduced in which a multi-layered armor is used to tune the stress waves resulting from an impact or blast to specific frequencies that match the damping frequencies of visco-elastic layers • Rectenna - specialized radio antenna with an RF diode which is used to convert radio waves into direct current electricity • Nantenna - convert light to electric power

Polarization • Polarization of the radio wave is determined by the orientation of the electric field • Horizontal – parallel to earth’s surface • Vertical – perpendicular to earth’s surface (at right angle to) • Antennas are polarized parallel to their length • For VHF and higher, polarization at sending and receiving end need to be same; HF doesn’t matter because the ionosphere can change the polarization of the signal from moment to moment There a bunch of questions about antenna polarization on the exam

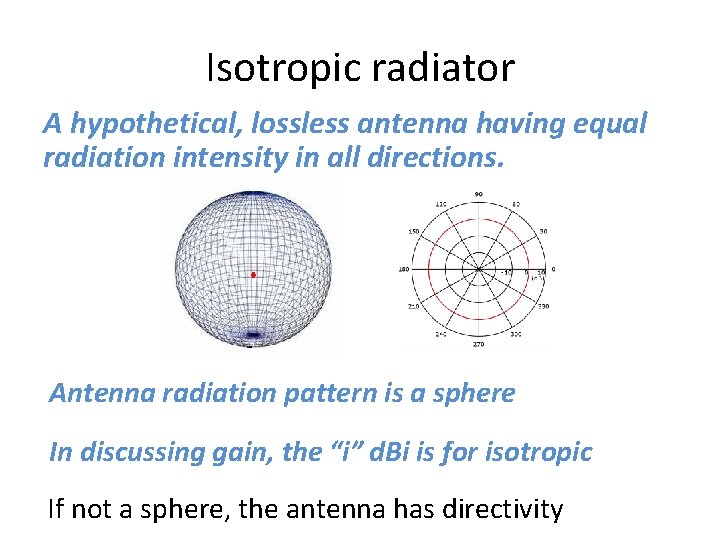

Isotropic radiator A hypothetical, lossless antenna having equal radiation intensity in all directions. Antenna radiation pattern is a sphere In discussing gain, the “i” d. Bi is for isotropic If not a sphere, the antenna has directivity

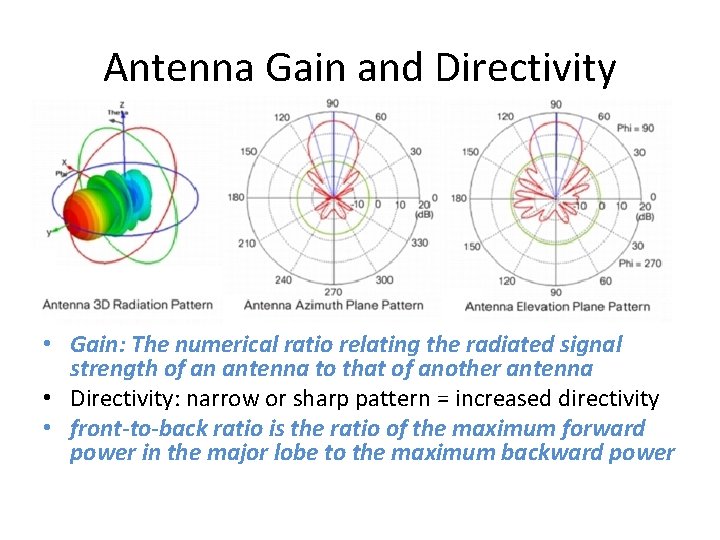

Antenna Gain and Directivity • Gain: The numerical ratio relating the radiated signal strength of an antenna to that of another antenna • Directivity: narrow or sharp pattern = increased directivity • front-to-back ratio is the ratio of the maximum forward power in the major lobe to the maximum backward power

Antenna Types Considerations… • Available space • Regulations • Directivity and gain Different antenna types provide advantages and disadvantages

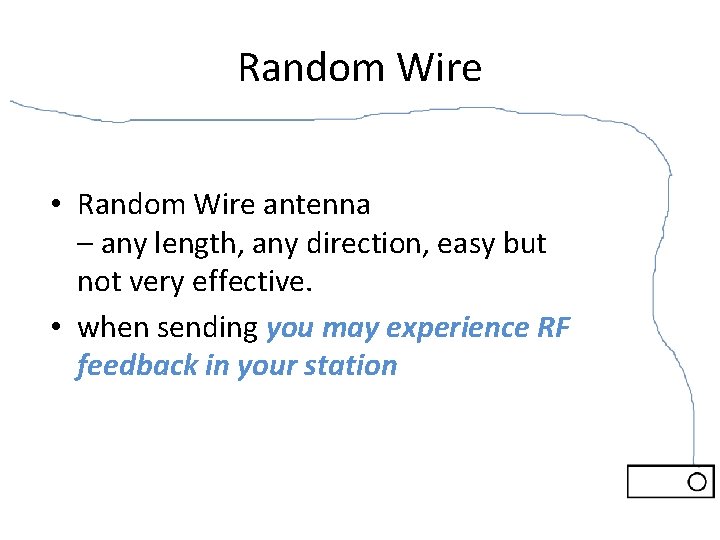

Random Wire • Random Wire antenna – any length, any direction, easy but not very effective. • when sending you may experience RF feedback in your station

Dipole – description has an impedance of ~73Ω – good for coax (50 -75Ω)

Dipole – antenna pattern dipole gain over isotropic radiator is 2. 1 d. B Low angle radiation pattern of an ideal half-wavelength dipole in free space is a figure-eight perpendicular to the antenna If antenna ends were northsouth then a dipole would radiate perpendicular to that, ie mostly to the east and west.

Folded Dipole • has impedance of ~300Ω – works well with twin lead feedline (150 -600Ω) • has greater bandwidth than simple dipole

Vertical Antenna Vertical dipole where the bottom half gets special consideration or might be just the ground (image or virtual antenna) Will receive signals equally well from all around it

Vertical Antenna - ground plane • Ground plane can be ground, or wires at least 1/4 wavelength long • antenna with horizontal ground plane has impedance of 36 ohm • 50 ohm coaxial cable is best match transmission line for ground plane antenna • Advantage of downward sloping radials on a ground plane antenna is that it brings the feed point impedance closer to 50 ohm • Changing the slope from horizontal to downwardsloping increases the feed point impedance

Vertical Antenna - 5/8 wave length Many VHF antennas are 5/8 wavelength because the angle of radiation is low

Loading Coils Loading coil adds inductive reactance to cancel out capacitive reactance of an electrically short antenna Bit too long – it’s inductive Bit too short – it’s capacitive HF mobile vertical antennas often use a loading coil to tune out capacitive reactance

Traps • A trap is a coil in parallel with a capacitor, connected in series with the antenna • Traps let through to the longer part of the antenna only the lower frequencies that require that longer antenna length • Traps allow the use of an antenna for multi-band operation • Disadvantage is that an antenna equipped with traps may radiate harmonics more readily

Parasitic Elements • Modifies radiation pattern by increasing gain • Absorbs radiation and re-radiates in different phase

Yagi • Three elements, only one element is driven, and it is usually a half wave dipole (so calculation for it applies)

Yagi • Gain 5 d. Bi for just driven and reflector, 7 d. B with one director, and +1 d. B gain for additional directors • Front-to-back ratio up to 25 d. B • “Best compromise” spacing between elements is 0. 2 wavelengths • Some advantages of a Yagi with wide element spacing are high gain, less critical tuning and wider bandwidth • A good way to get maximum performance out of a Yagi antenna is to optimize the lengths and spacing of the elements • Yagi antennas are good for busy bands like the 20 m band because they are very directive, which helps reduce interference from other stations off to the side or behind • Adding an identical Yagi antenna in same direction (stacking) increases gain by 3 d. B

Cubic Quad • Two or more parallel four-sided wire loops, each approximately one-electrical wavelength long • Compared to a dipole the cubical quad has more directivity in both horizontal and vertical plane. • Two-element delta loops and quad antennas compare favourably with a three-element yagi.

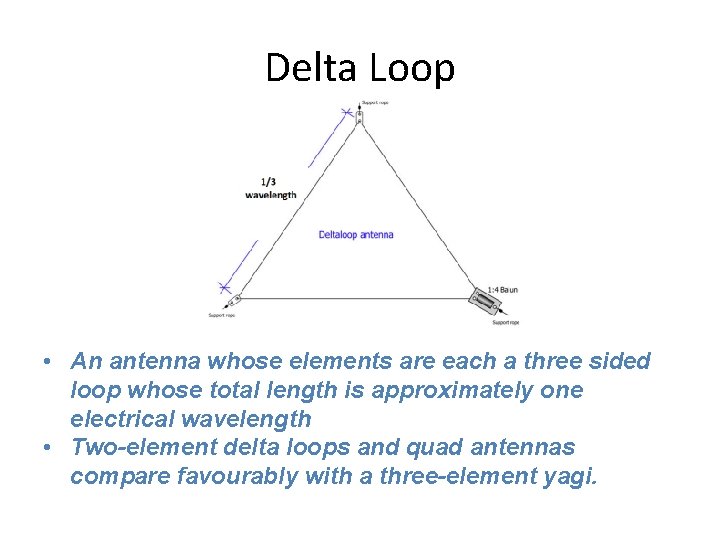

Delta Loop • An antenna whose elements are each a three sided loop whose total length is approximately one electrical wavelength • Two-element delta loops and quad antennas compare favourably with a three-element yagi.

Special Case: Dummy Load • Dummy load is essentially an antenna that radiates heat instead of RF • temporarily connected in the tuning process or for adjustments to the transmitter • Use a dummy load instead of the antenna during tuning to cut down on interference • Can be built out of resistors that can dissipate the power you will use with it (calculation on exam about this)

Antenna Safety • Bob Jacobs will tell you details next weekend • For now: – If you climb stuff think fall protection – Make sure no one can touch your antenna when sending

For the break • • How long? If you are bored, consider doing these: If you want something during the break, What is the wavelength corresponding to a frequency of 2 MHz? • If you made a quarter-wavelength vertical antenna for 21. 125 MHz, how long would it be? • If you made a half-wavelength vertical antenna for 223 MHz, how long would it be?

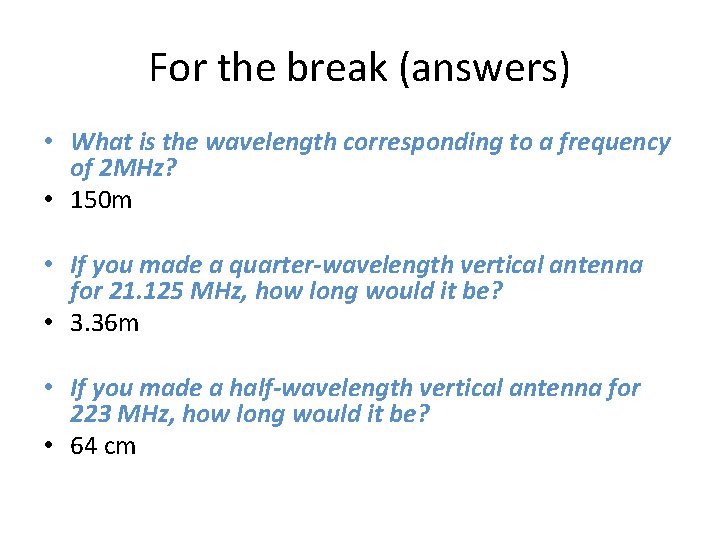

For the break (answers) • What is the wavelength corresponding to a frequency of 2 MHz? • 150 m • If you made a quarter-wavelength vertical antenna for 21. 125 MHz, how long would it be? • 3. 36 m • If you made a half-wavelength vertical antenna for 223 MHz, how long would it be? • 64 cm
