Antaira Technologies New Industrial Gigabit Media Converter with Po. E IMP-C 1000 -SFP Series Sales Product Training by Plada
AGENDA Market Demand New Product Items Introduction Key Features Sharing Target Markets Application Notes
AGENDA Market Demand New Product Items Introduction Key Features Sharing Target Markets Application Notes
Market Demand Future Scalability and Flexibility • • • Edge Level Equipment Connectivity Harsh Environment • Ambient Weather • Shock / Vibration Form Factors – Installation Flexibilities Ruggedized (Industrial Grade Design) Long Lasting (High MTBF) Open Standard / Ease of Use Easy Diagnostics / Maintenance Compatibility Safety Certifications Low cost of Ownership
Market Demand Outdoor Harsh Environment -IP 30 design -Temperature: -40 to 75°C -ESD protection Bandwidth & Distance -10/1000 TX -Dual rate 100/1000 SFP fiber (550 m-120 km) Po. E Capability -Power source up to 30 W/port Reliability -High MTBF -CE/FCC/UL 61010 -1/UL 61010 -2 -201 Long Term Commitment -Long term 5 -year warranty
AGENDA Market Demand New Product Items Introduction Key Features Sharing Target Markets Application Notes
Antaira’s Compact Industrial Media Converter - 10/1000 TX to 100/1000 FX - SFP socket and Po. E injector IMP-C 1000 -SFP series
Media Converters – Naming Rules IM(x) - aaaa A - c d - T T – Wide Temperature version (-40~80 C) Blank – Standard version ( -10 to 70 C) d: Fiber mode - M = Multi-mode - S = Single-mode - W(A/B) = WDM mode c: Fiber connector - Blank = SC type - ST = ST type - SFP = SFP slot (Gigabit Fiber) A: Advanced version aaaa: Ethernet (RJ 45) Bandwidth - 100 = 100 Tx IMP-C 1000 -SFP-T - 1000 = 1000 Tx (Gigabit) IM(x) is Industrial Ethernet-to-Fiber Media Converter - IMC = Non-Po. E version - IMP = Po. E version
AGENDA Market Demand New Product Items Introduction Key Features Sharing Target Markets Application Notes
Key Features – IMP-C 1000 -SFP Series ► Compact Industrial Grade Design ► UTP to Fiber Media Converter ► Embedded 1 Port Po. E Injector Function ► RJ-45 Port Support Auto MDI/MDI-X Function ► Auto Negotiation Speed, Half/Full Duplex ► Store-and-Forward Switching Architecture ► Built-in Link Fault Pass Through (LFP) & Far End Fault (FEF) ► Jumbo Frame Support: 10 k bytes ► Wide-Range Redundant Power Design ► Redundant Power Input: 48~55 VDC ► Power Polarity Reverse Protection ► Overload Current Protection ► DIN-Rail or Wall Mountable ► IP 30 Protection ► 5 -Year Warranty IMP-C 1000 -SFP-T
Fiber connection Copper connection Link Fault Pass Fiber Link Copper Link MC-A 1. While copper link down 2. Fiber link down automatically Fiber Link Copper Link MC-B 3. Copper link down automatically Copper Link
Link Fault Pass w/ Far End Fault Fiber Link Copper Link TX Copper Link MC-A RX Fiber connection Copper connection Fiber Link Copper Link RX TX MC-B 1. While one of fiber cables link down 2. MC-B RX will inform TX and copper to link down 3. While MC-B TX link down, MC -A RX will inform TX and copper will link down accordingly Copper Link
w/o Link Fault Pass & Far End Fault Fiber Link Copper Link MC-A ? Fiber connection Copper connection Fiber Link Copper Link TX RX RX TX Link fail can not be discovered MC-B ? Copper Link
w/o Link Fault Pass Fiber connection Copper connection Fiber Link Copper Link MC-A ? Fiber Link Copper Link TX RX RX TX Link fail can not be discovered MC-B Copper Link
Hardware Outlook– IMP-C 1000 -SFP Series Grounding Screw 4 -Pin Removal Terminal Block (Power Input) LED for PWR LED for Po. E LED for RJ 45 1000 TX network speed status 10/1000 TX RJ 45 port LED for RJ 45 10/100 TX network speed status DIP switches for LFP setting LED for network fiber connection Fiber Port – 100/1000 FX
Hardware Outlook– IMP-C 1000 -SFP Series DIP-Switching Setting 2‐set DIP‐switch in front panel that can setting for LFP (Link Fault Pass) function and SFP transmission rate. DIP 1 DIP 2 Description ON ON LFP Enable and Set SFP to 100 Mbps ON OFF LFP Enable and Set SFP to 1000 Mbps OFF ON LFP Disable and Set SFP to 100 Mbps OFF LFP Disable and Set SFP to 1000 Mbps

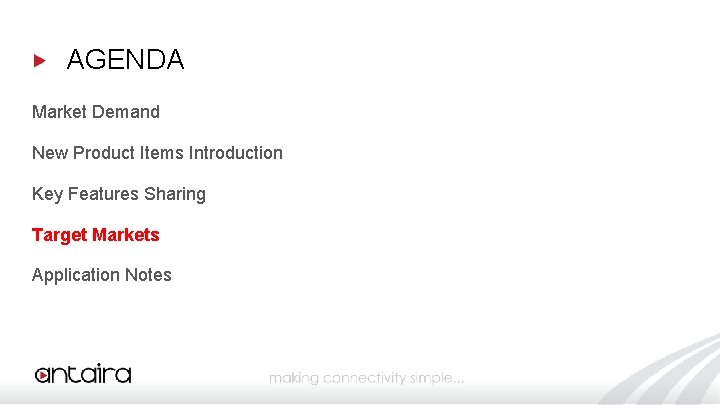

AGENDA Market Demand New Product Items Introduction Key Features Sharing Target Markets Application Notes
Target Markets Power/Utility WWTP Oil/Gas/Mining Factory Automation Security Transportation Medical Entertainment
AGENDA Market Demand New Product Items Introduction Key Features Sharing Target Markets Application Notes
Application Notes Power/Utility WWTP • Power Substation • Facility Management • • Port Width Bandwidth Gigabit Fiber and EMI prevention High EFT & ESD Protection Wide Operating Temperature support • Treatment Plant • Field site DCS network management • • Port with Width Bandwidth Gigabit Fiber and EMI prevention High EFT & ESD Protection Wide Operating Temperature support
Application Notes Oil/Gas/Mining Process Automation • Oil Refinery • Facility Network Management • • From Access Control Systems to Safety Video Surveillance Systems networking Port with Width Bandwidth Gigabit Fiber and EMI prevention Wide Operating Temperature support • Paper Mills • Quality Inspection Monitoring • Network High resolution Po. E cameras for production process monitoring Port with Width Bandwidth Gigabit Fiber and EMI prevention Wide Operating Temperature support • • •
Application Notes Transportation Security • Toll Road • Toll Booth License Plate Readers Networking • • High resolution Po. E Cameras networking Port Width Bandwidth Gigabit Fiber and EMI prevention Wide Operating Temperature support • Outdoor Surveillance • Multiple IP cameras networking connectivity • • • Port with Width Bandwidth Gigabit Fiber and EMI prevention Wide Operating Temperature support
