ANT 24 1600 N and ANT 50 2000
- Slides: 14
ANT 24 -1600 N and ANT 50 -2000 N Sales Guide 2011. 12. 01 WRPD
Agenda Business Analysis Product Competition Overview l Product Position l Technology Briefing Product Application Guide Competitive Comparison & Analysis
Business Analysis Based on the Gartner research, The shipment growth of WLAN AP will up to 20. 2% in 2012, the 11 n AP is also the main stream in market. The 3 G offload and wireless backhaul demand will also grow up in recent years, 11 n directional antenna is necessary component for AP to build outdoor long distance wireless connection. Source: Gartner report, Shipments of WLAN Access Points, Enterprise Market, 2011

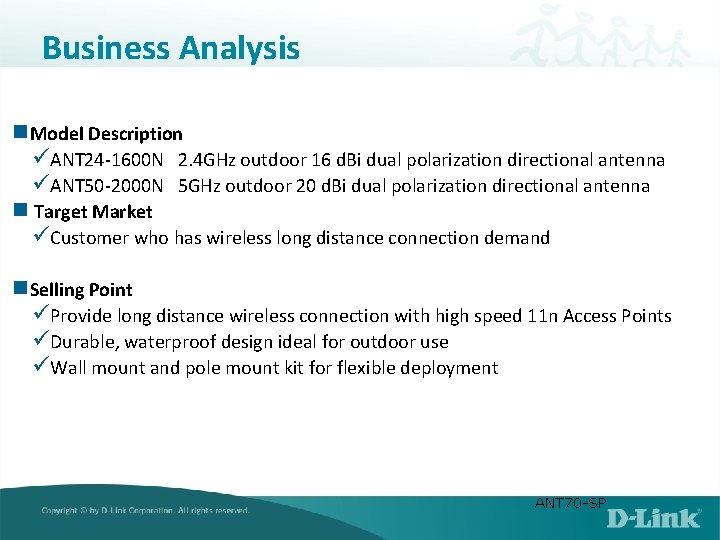

Business Analysis n. Model Description üANT 24 -1600 N 2. 4 GHz outdoor 16 d. Bi dual polarization directional antenna üANT 50 -2000 N 5 GHz outdoor 20 d. Bi dual polarization directional antenna n Target Market üCustomer who has wireless long distance connection demand n. Selling Point üProvide long distance wireless connection with high speed 11 n Access Points üDurable, waterproof design ideal for outdoor use üWall mount and pole mount kit for flexible deployment ANT 70 -SP
Agenda Business Analysis Product Competition Overview l Product Position l Technology Briefing Product Application Guide
Product Competition Overview Positioning Highlights The D-Link outdoor antenna , ANT 24 -1600 N and ANT 50 -2000 N , can be used on all of D-Link APs for WDS Peer to Peer connection. Model ANT 24 -1600 N Available AP for connection H/W config Connector: N jack Frequency range: 2. 4 GHz Two N Type Connectors Peak gain : 16 d. Bi Horizontal HPBW: 18°- 25° Vertical HPBW: 18°-25° IP 67 waterproof design All of D-Link 11 n indoor APs that have 2. 4 GHz frequency band RP-SMA connectors* All of D-Link 11 n outdoor APs that have 2. 4 GHz frequency band RP-N type(or N type) connectors** *In antenna package there has two extension cables for indoor APs. **ANT 70 -CB 1 RN or ANT 70 -CB 1 N is an necessary accessory for outdoor antenna to connect to outdoor APs.
Product Competition Overview Positioning Highlights Model ANT 50 -2000 N Available AP for connection H/W config Connector: N jack Frequency range: 5 GHz Two N Type Connectors Peak gain : 20 d. Bi Horizontal HPBW: 10° Vertical HPBW: 10° IP 67 waterproof design All of D-Link 11 n indoor APs that have 5 GHz frequency band RP-SMA connectors* All of D-Link 11 n outdoor APs that have 5 GHz frequency band RP-N type(or N type) connectors** *In antenna package there has two extension cables for indoor APs. **ANT 70 -CB 1 RN or ANT 70 -CB 1 N is an necessary accessory for outdoor antenna to connect to outdoor APs. 7
Product Competition Overview Product Technology Brief High Speed 11 n Directional Antenna - Two antenna connectors for transmitting 2 spatial streams Patch Antenna with 10 -25 degree directional beam - Enhances the wireless range with high directional gain Durable, waterproof design ideal for outdoor use - Comply with IP 67 standard Flexible Deployment - Wall/Pole mounting installation - N type to RP-SMA extension cable provided 8
Agenda Business Analysis Product Competition Overview l Product Position l Technology Briefing Product Application Guide
Product Application Guide Installation Diagram Each 11 n indoor AP needs two surge protectors, two antenna cables and ONE 11 n directional antenna N jack Outdoor Antenna ANT 24 -1600 N or N plug to N jack N plug to RP-SMA plug Surge Protector Extension cable in antenna package ANT 70 -SP RP-SMA jack 11 n Indoor AP ANT 50 -2000 N N plug to N jack ANT 24 -CB 03 N, ANT 24 -CB 06 N or ANT 24 -CB 09 N is available to extend the cable length if the 50 cm extension cable in package is not enough 10
Product Application Guide Installation Diagram Each DAP-3690 needs two antenna cables and ONE 11 n directional antenna on each radio N jack Outdoor Antenna ANT 24 -1600 N N plug to RP-N plug to N jack RP-N jack 11 n Outdoor AP Antenna Cable DAP-3690 ANT 70 -CB 1 RN or ANT 50 -2000 N ANT 24 -CB 03 N, ANT 24 -CB 06 N or ANT 24 -CB 09 N is available to extend the cable length if the 1 m cable(ANT 70 -CB 1 RN) is not enough 11
Product Application Guide Installation Diagram Each DAP-3520 needs two surge protectors, two antenna cables and ONE 11 n directional antenna N jack N plug to RP-N plug RP-N jack Outdoor Antenna Surge Protector Antenna Cable Exterior AP ANT 24 -1600 N ANT 70 -SP ANT 70 -CB 1 RN DAP-3520 or ANT 50 -2000 N N plug to N jack ANT 24 -CB 03 N, ANT 24 -CB 06 N or ANT 24 -CB 09 N is available to extend the cable length if the 1 m cable(ANT 70 -CB 1 RN) is not enough 12
Product Application Guide Application Diagram for DAP-3690 and ANT 50 -2000 N Build WDS link on 5 GHz ANT 70 -CB 1 RN DAP-3690 Operates as AP mode on 2. 4 GHz for wireless client access 13
Product Application Guide Application Diagram for DAP-3520 and ANT 24 -1600 N/ANT 50 -2000 N ANT 24 -1600 N or ANT 50 -2000 N Build WDS link on 2. 4 GHz or 5 GHz ANT 24 -1600 N or ANT 50 -2000 N ANT 70 -SP ANT 70 -CB 1 RN DAP-3520 14
