ANSI SIA CP01 CONTROL PANEL STANDARDS COMBATING ALARM

ANSI SIA CP-01 CONTROL PANEL STANDARDS COMBATING ALARM DISPATCHES

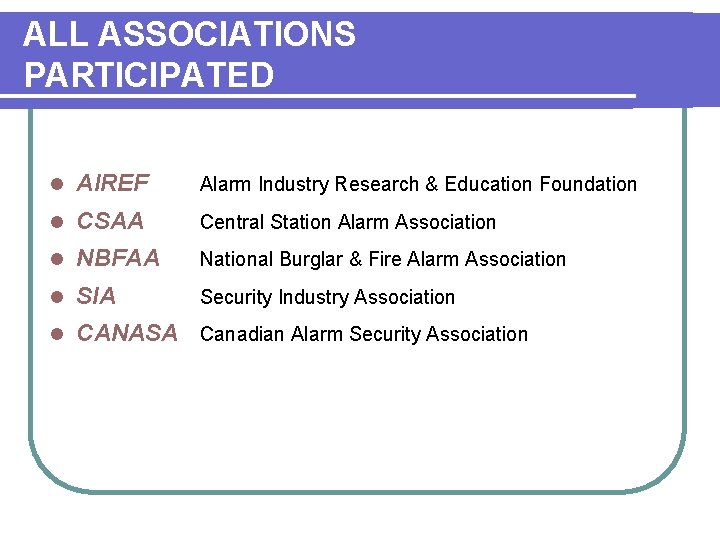

ALL ASSOCIATIONS PARTICIPATED l AIREF Alarm Industry Research & Education Foundation l CSAA Central Station Alarm Association l NBFAA National Burglar & Fire Alarm Association l SIA Security Industry Association l CANASA Canadian Alarm Security Association

UL COMPLIANT l l l l UL 609 - Local Burglar Alarm UL 611 & 1610 - Central Station BA UL 684 - Mercantile & Bank UL 864 - Fire Protective Signals UL 985 & 1023 - Household Fire, BA UL 1635 - Digital BA Communicators UL 1641 - Residential Systems

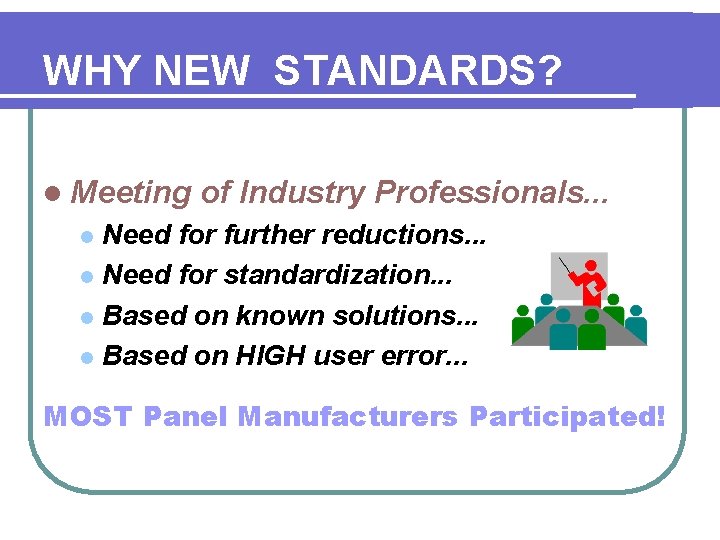

WHY NEW STANDARDS? l Meeting of Industry Professionals. . . Need for further reductions. . . l Need for standardization. . . l Based on known solutions. . . l Based on HIGH user error. . . l MOST Panel Manufacturers Participated!

False Dispatch Elimination l Most User Errors - During Entry/Exit: l l l User Arms - Exits - Re-enters… User Arms - Fails to Exit in time… User Arms - Building still Occupied… User Arms - Exits Through Wrong Door… User Arms - Fails to exit at all. . .

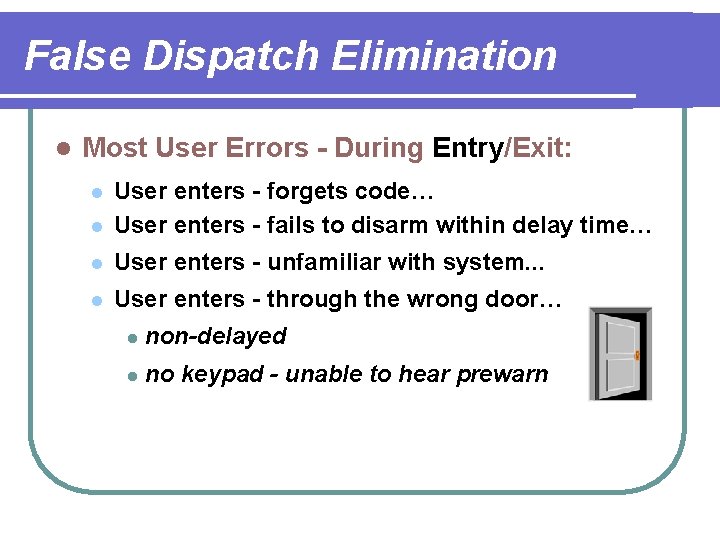

False Dispatch Elimination l Most User Errors - During Entry/Exit: l User enters - forgets code… User enters - fails to disarm within delay time… l User enters - unfamiliar with system. . . l User enters - through the wrong door… l l non-delayed l no keypad - unable to hear prewarn

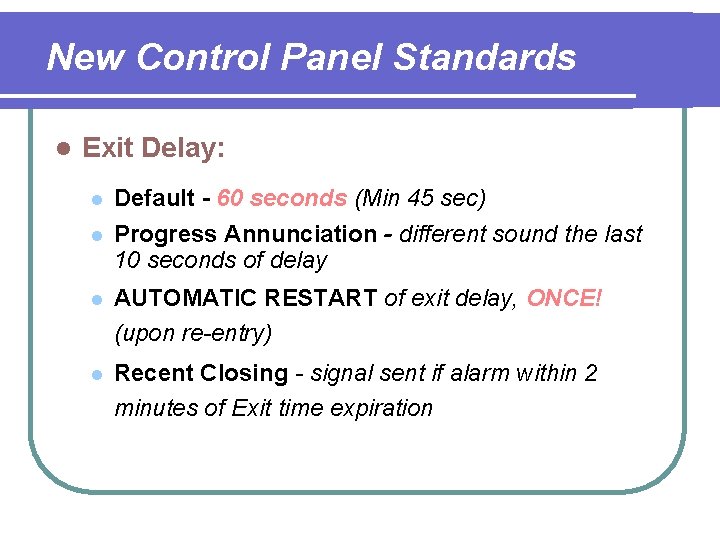

New Control Panel Standards l Exit Delay: l l Default - 60 seconds (Min 45 sec) Progress Annunciation - different sound the last 10 seconds of delay l AUTOMATIC RESTART of exit delay, ONCE! (upon re-entry) l Recent Closing - signal sent if alarm within 2 minutes of Exit time expiration

New Control Panel Standards l Exit Delay: l Fail to exit - arms all zones STAY MODE l Remote annunciation supported by panel l Exit Time DOUBLED if user disables pre-warning. (dealer cannot disable globally) l Exit Error - Immediate local alarm. . .

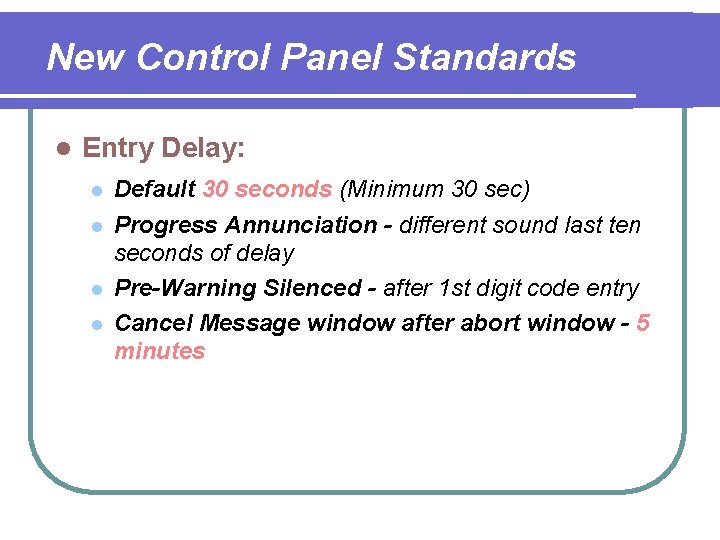

New Control Panel Standards l Entry Delay: l l Default 30 seconds (Minimum 30 sec) Progress Annunciation - different sound last ten seconds of delay Pre-Warning Silenced - after 1 st digit code entry Cancel Message window after abort window - 5 minutes

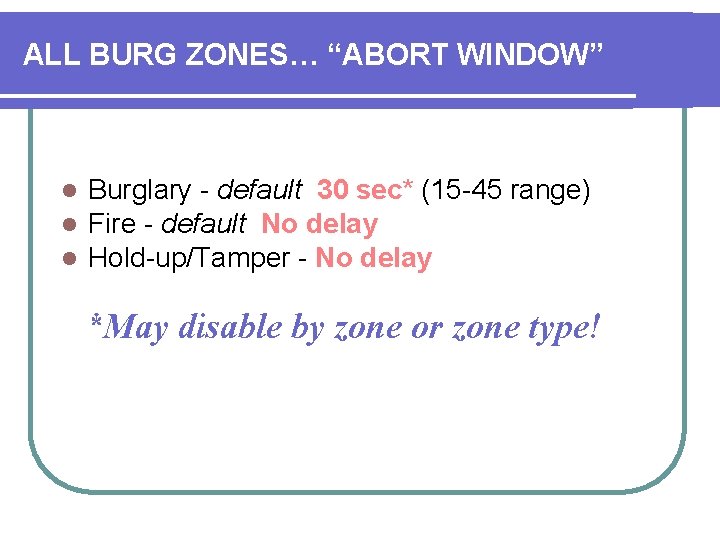

ALL BURG ZONES… “ABORT WINDOW” l l l Burglary - default 30 sec* (15 -45 range) Fire - default No delay Hold-up/Tamper - No delay *May disable by zone or zone type! LOCAL ALARM STILL SOUNDS - ONLY COMMUNICATION IS DELAYED

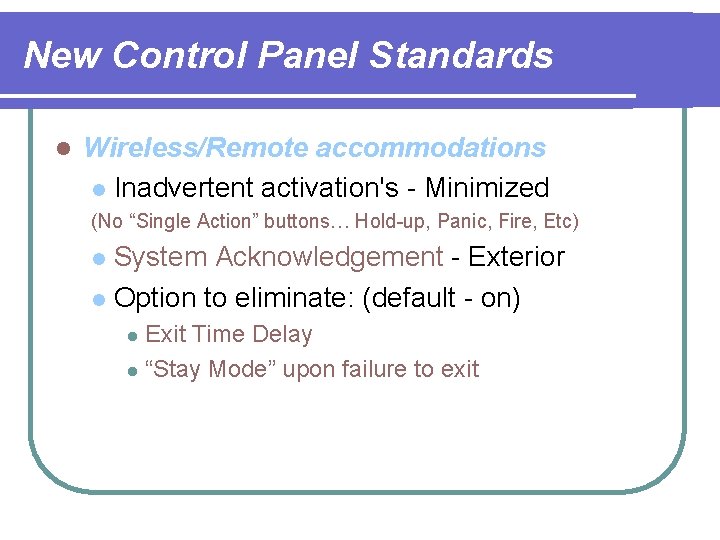

New Control Panel Standards l Wireless/Remote accommodations l Inadvertent activation's - Minimized (No “Single Action” buttons… Hold-up, Panic, Fire, Etc) System Acknowledgement - Exterior l Option to eliminate: (default - on) l Exit Time Delay l “Stay Mode” upon failure to exit l

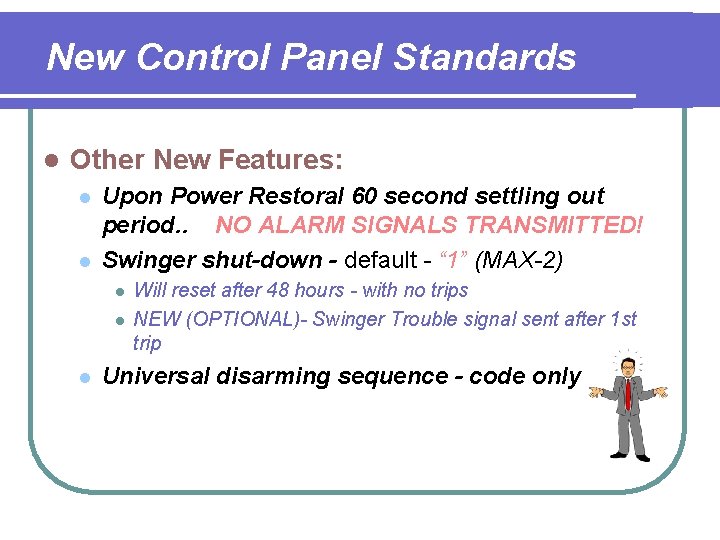

New Control Panel Standards l Other New Features: l l Upon Power Restoral 60 second settling out period. . NO ALARM SIGNALS TRANSMITTED! Swinger shut-down - default - “ 1” (MAX-2) l l l Will reset after 48 hours - with no trips NEW (OPTIONAL)- Swinger Trouble signal sent after 1 st trip Universal disarming sequence - code only

New Control Panel Standards l Other New Features: l l l Cross Zoning features available 1+ duress Eliminated! *70 Call Waiting - 2 nd Call Option… Test in Progress Features Preset Automatic Arming - Audible ! New “Simple” Instruction Card!

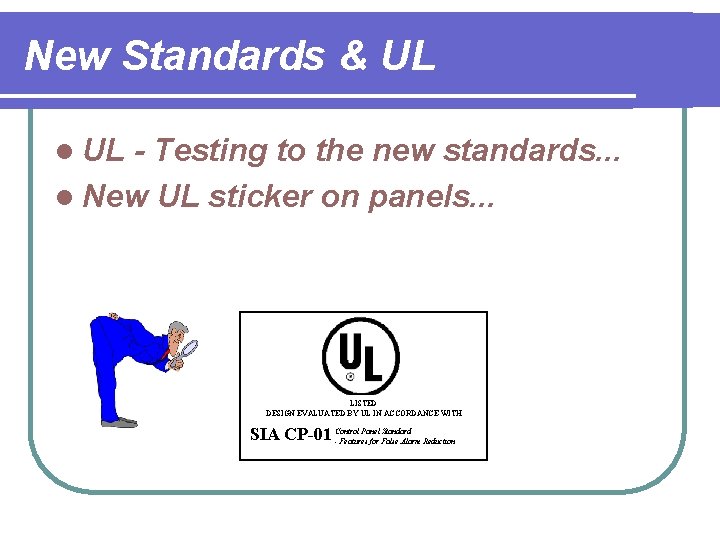

New Standards & UL l UL - Testing to the new standards. . . l New UL sticker on panels. . . LISTED DESIGN EVALUATED BY UL IN ACCORDANCE WITH Panel Standard SIA CP-01 Control - Features for False Alarm Reduction

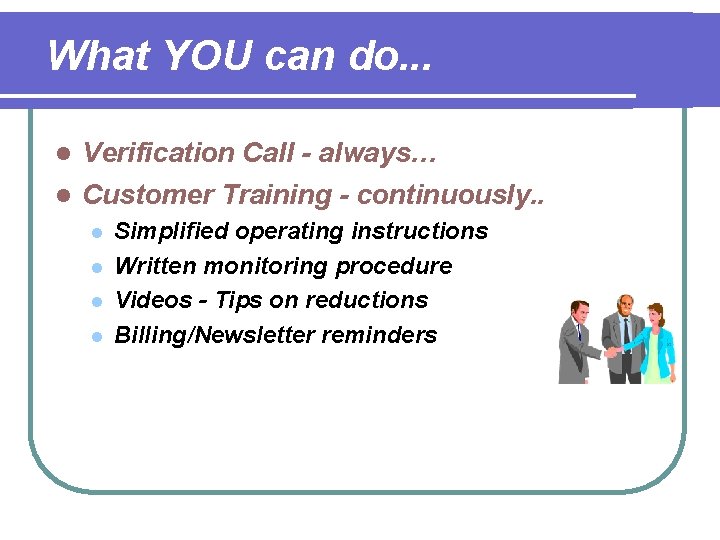

What YOU can do. . . Verification Call - always… l Customer Training - continuously. . l l l Simplified operating instructions Written monitoring procedure Videos - Tips on reductions Billing/Newsletter reminders

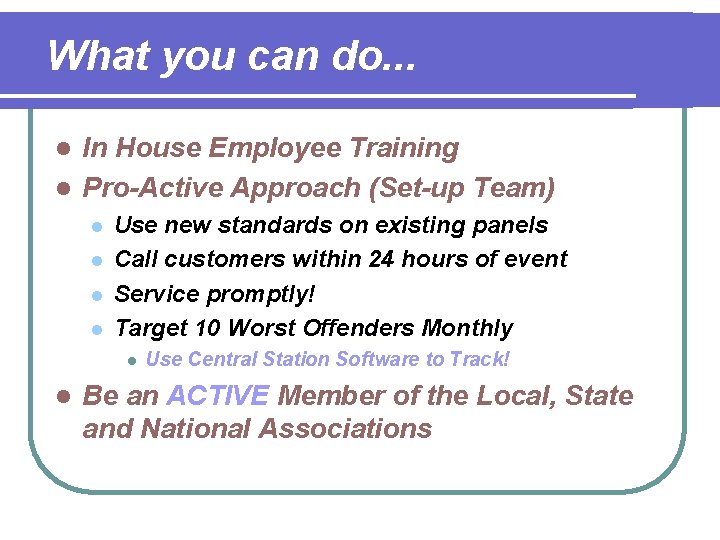

What you can do. . . In House Employee Training l Pro-Active Approach (Set-up Team) l l l Use new standards on existing panels Call customers within 24 hours of event Service promptly! Target 10 Worst Offenders Monthly l l Use Central Station Software to Track! Be an ACTIVE Member of the Local, State and National Associations

This Presentation was Made Courtesy of: WWW. SIACINC. ORG
