ANOVA Analysis of Variance A Short Introduction by

ANOVA Analysis of Variance A Short Introduction by Brad Morantz

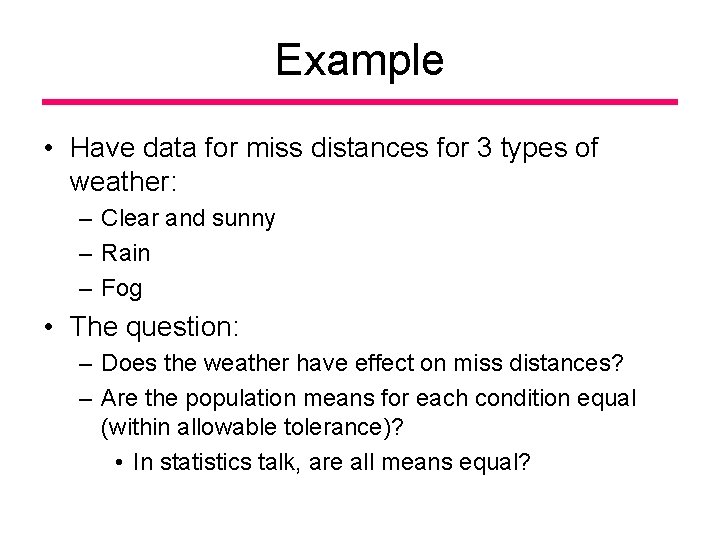

Example • Have data for miss distances for 3 types of weather: – Clear and sunny – Rain – Fog • The question: – Does the weather have effect on miss distances? – Are the population means for each condition equal (within allowable tolerance)? • In statistics talk, are all means equal?

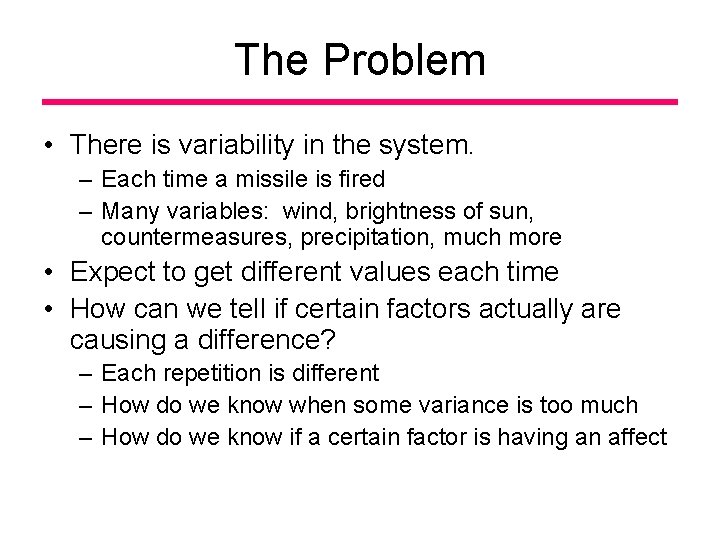

The Problem • There is variability in the system. – Each time a missile is fired – Many variables: wind, brightness of sun, countermeasures, precipitation, much more • Expect to get different values each time • How can we tell if certain factors actually are causing a difference? – Each repetition is different – How do we know when some variance is too much – How do we know if a certain factor is having an affect

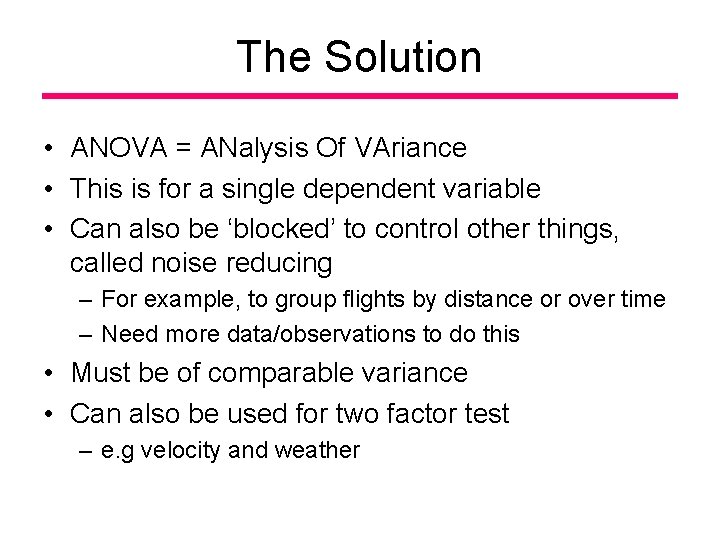

The Solution • ANOVA = ANalysis Of VAriance • This is for a single dependent variable • Can also be ‘blocked’ to control other things, called noise reducing – For example, to group flights by distance or over time – Need more data/observations to do this • Must be of comparable variance • Can also be used for two factor test – e. g velocity and weather

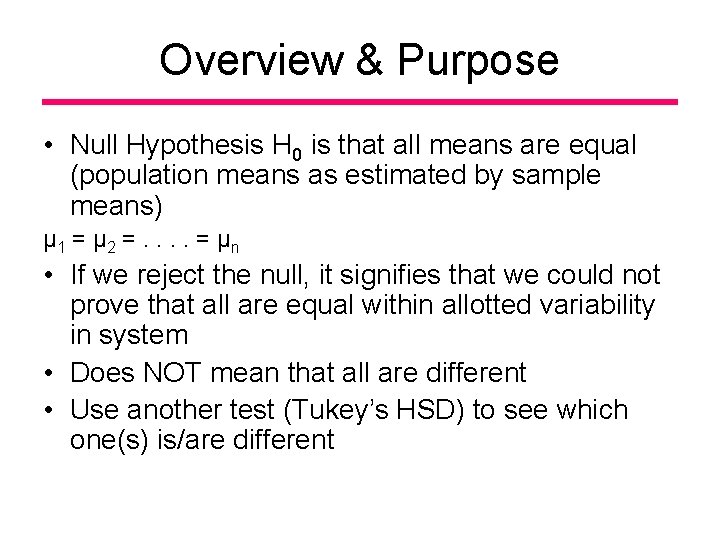

Overview & Purpose • Null Hypothesis H 0 is that all means are equal (population means as estimated by sample means) μ 1 = μ 2 =. . = μn • If we reject the null, it signifies that we could not prove that all are equal within allotted variability in system • Does NOT mean that all are different • Use another test (Tukey’s HSD) to see which one(s) is/are different

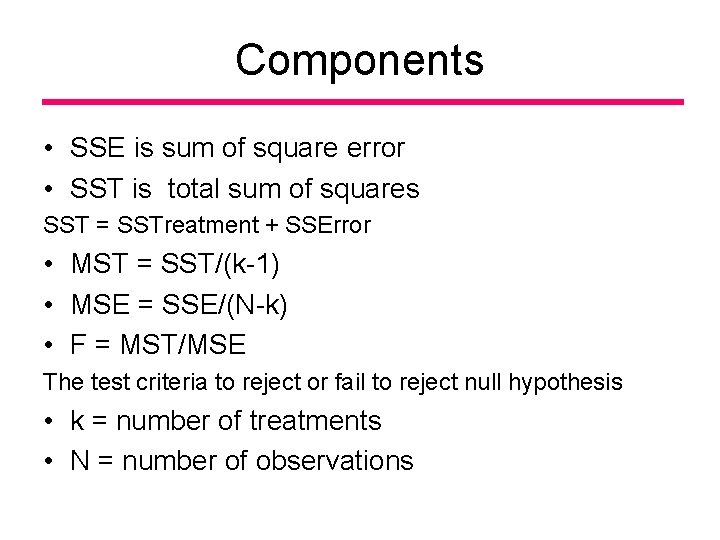

Components • SSE is sum of square error • SST is total sum of squares SST = SSTreatment + SSError • MST = SST/(k-1) • MSE = SSE/(N-k) • F = MST/MSE The test criteria to reject or fail to reject null hypothesis • k = number of treatments • N = number of observations

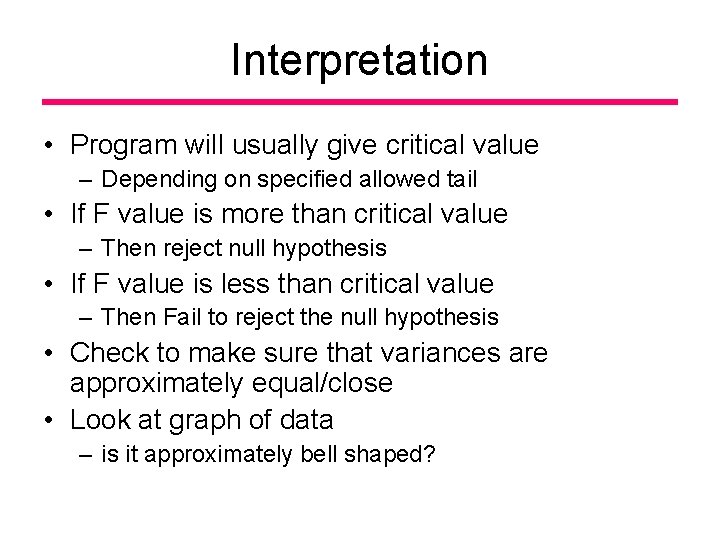

Interpretation • Program will usually give critical value – Depending on specified allowed tail • If F value is more than critical value – Then reject null hypothesis • If F value is less than critical value – Then Fail to reject the null hypothesis • Check to make sure that variances are approximately equal/close • Look at graph of data – is it approximately bell shaped?

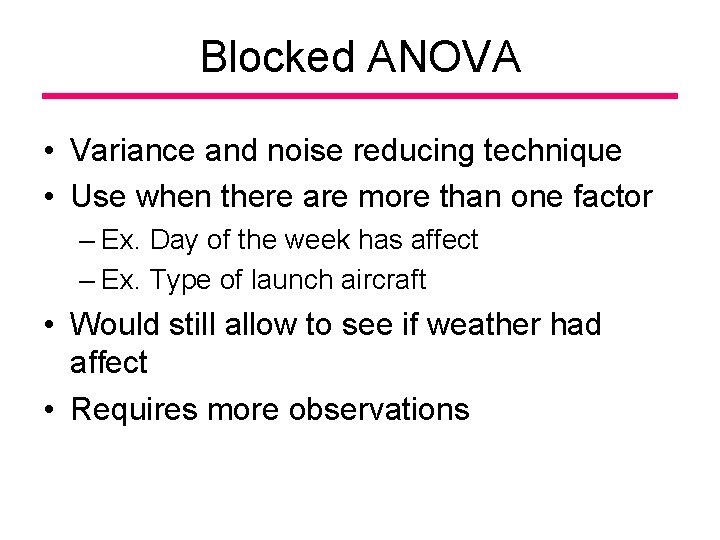

Blocked ANOVA • Variance and noise reducing technique • Use when there are more than one factor – Ex. Day of the week has affect – Ex. Type of launch aircraft • Would still allow to see if weather had affect • Requires more observations

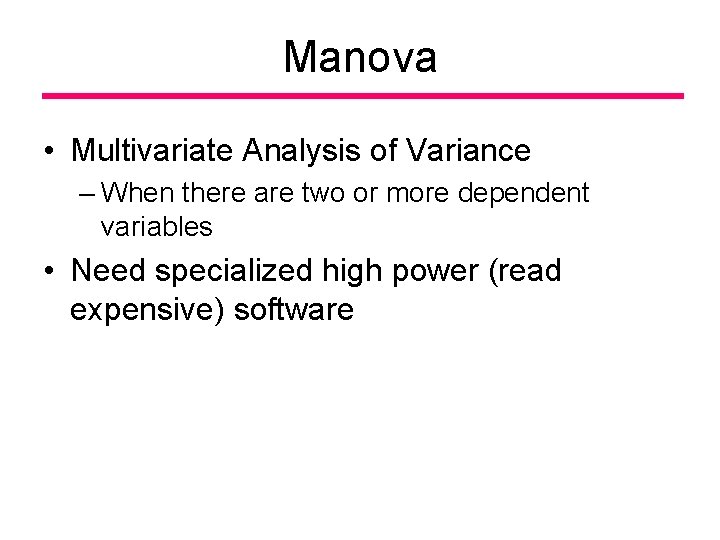

Manova • Multivariate Analysis of Variance – When there are two or more dependent variables • Need specialized high power (read expensive) software

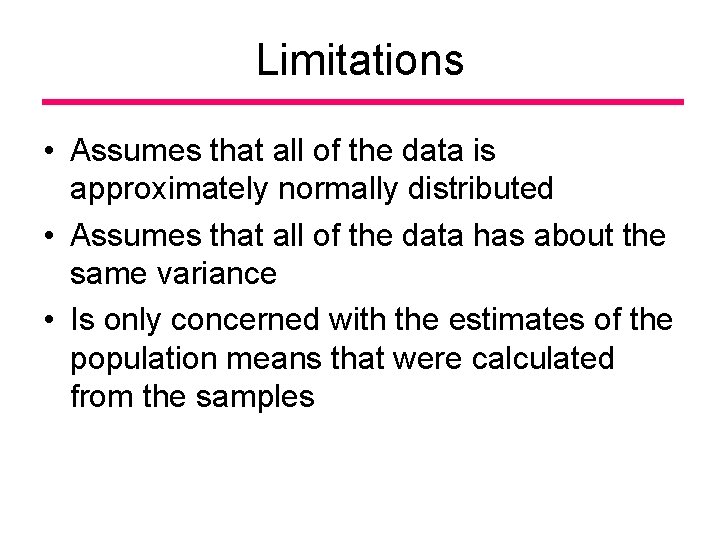

Limitations • Assumes that all of the data is approximately normally distributed • Assumes that all of the data has about the same variance • Is only concerned with the estimates of the population means that were calculated from the samples

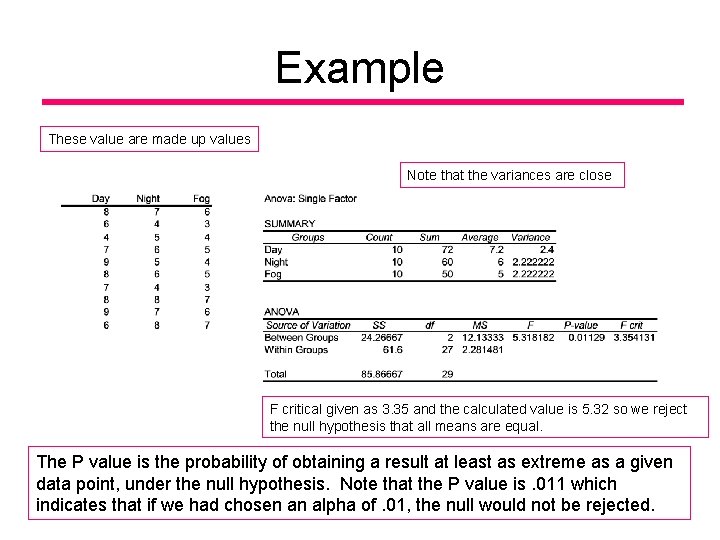

Example These value are made up values Note that the variances are close F critical given as 3. 35 and the calculated value is 5. 32 so we reject the null hypothesis that all means are equal. The P value is the probability of obtaining a result at least as extreme as a given data point, under the null hypothesis. Note that the P value is. 011 which indicates that if we had chosen an alpha of. 01, the null would not be rejected.

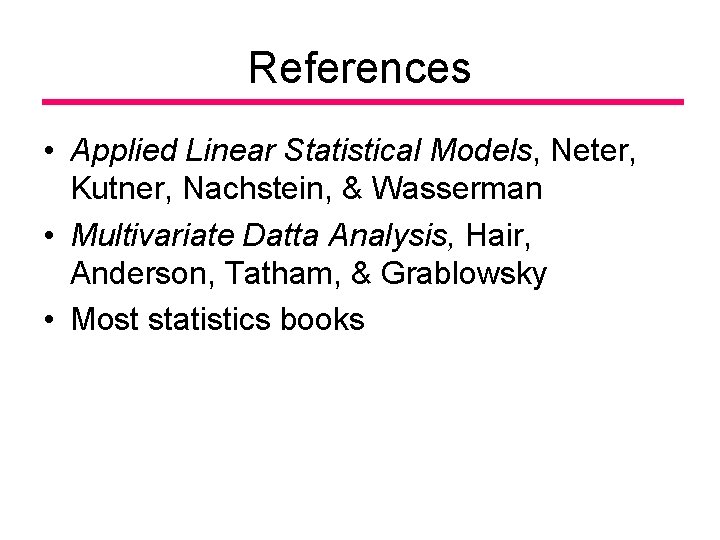

References • Applied Linear Statistical Models, Neter, Kutner, Nachstein, & Wasserman • Multivariate Datta Analysis, Hair, Anderson, Tatham, & Grablowsky • Most statistics books
