ANNajah National University Building Engineering Department Graduation Project
![AN-Najah National University Building Engineering Department Graduation Project 2 Re-Design of Nablus Municipality Building AN-Najah National University Building Engineering Department Graduation Project 2 Re-Design of Nablus Municipality Building](https://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-1.jpg)
AN-Najah National University Building Engineering Department Graduation Project 2 Re-Design of Nablus Municipality Building 1 Prepared by : Areen Janem Sereen Ghanem We’am Ammar Supervisor : Dr. Sameh Muna.
![Outline: Introduction. Site analysis Architectural design. Structural design. Environmental design. Mechanical design. Electrical design. Outline: Introduction. Site analysis Architectural design. Structural design. Environmental design. Mechanical design. Electrical design.](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-2.jpg)
Outline: Introduction. Site analysis Architectural design. Structural design. Environmental design. Mechanical design. Electrical design. Quantity and survey. 2
![INTRODUCTION: The Municipality is considered one of the important govermental sectors with financial independence INTRODUCTION: The Municipality is considered one of the important govermental sectors with financial independence](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-3.jpg)

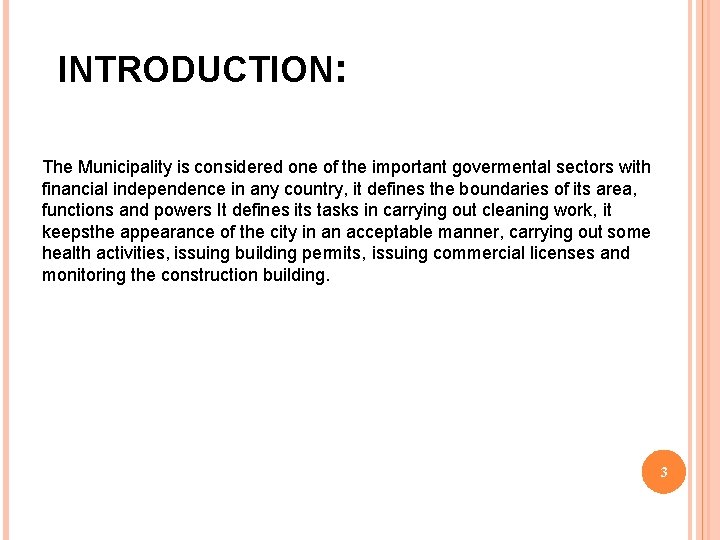

INTRODUCTION: The Municipality is considered one of the important govermental sectors with financial independence in any country, it defines the boundaries of its area, functions and powers It defines its tasks in carrying out cleaning work, it keepsthe appearance of the city in an acceptable manner, carrying out some health activities, issuing building permits, issuing commercial licenses and monitoring the construction building. 3
![Methodology Computer Simulation Data collection and analysis Environmental aspect Architectural aspect Environmental aspect Structural Methodology Computer Simulation Data collection and analysis Environmental aspect Architectural aspect Environmental aspect Structural](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-4.jpg)

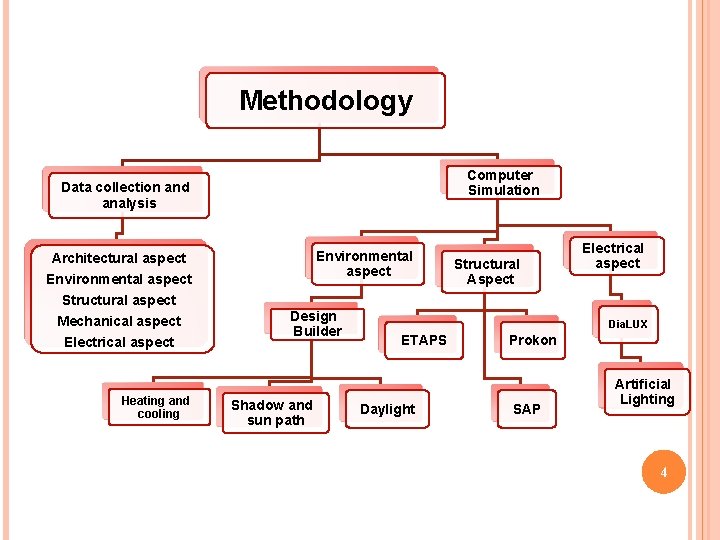

Methodology Computer Simulation Data collection and analysis Environmental aspect Architectural aspect Environmental aspect Structural aspect Mechanical aspect Electrical aspect Heating and cooling Design Builder Shadow and sun path Structural Aspect Electrical aspect Dia. LUX ETAPS Daylight Prokon SAP Artificial Lighting 4
![SITE ANALYSIS: Eastern area of Nablus city map 5 SITE ANALYSIS: Eastern area of Nablus city map 5](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-5.jpg)

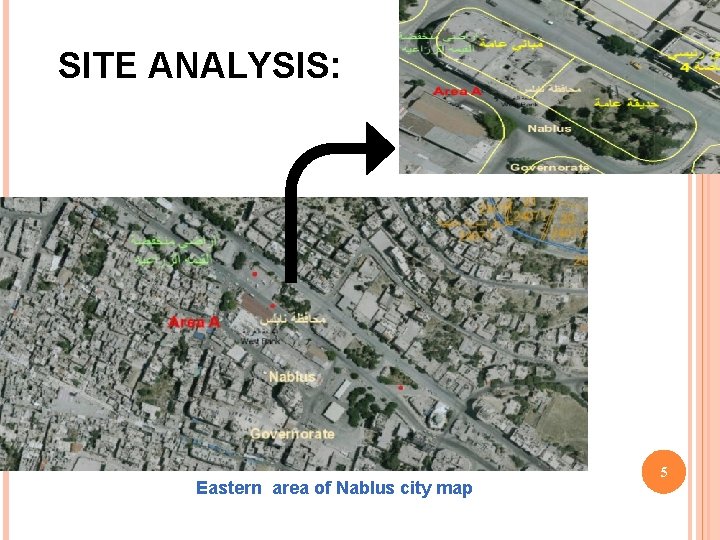

SITE ANALYSIS: Eastern area of Nablus city map 5
![SITE ANALYSIS: 6 Proposed site location SITE ANALYSIS: 6 Proposed site location](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-6.jpg)

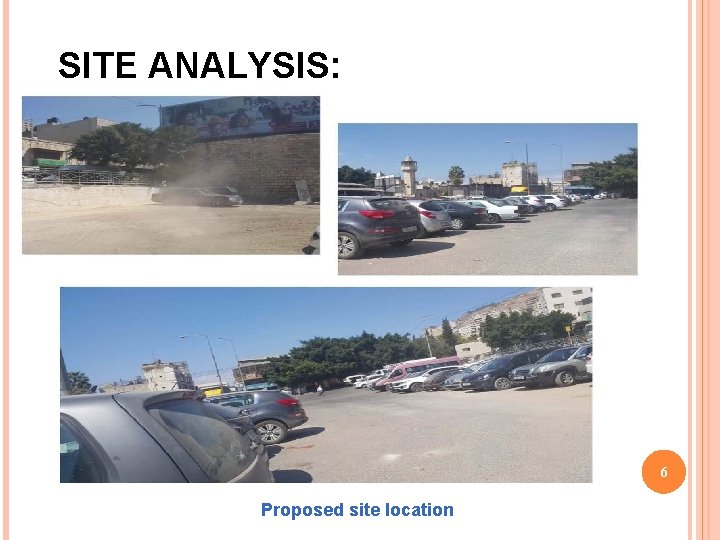

SITE ANALYSIS: 6 Proposed site location
![: ARCHITECTURAL DESIGN: 7 ØArea of building: 9885. 7 m 2 : ARCHITECTURAL DESIGN: 7 ØArea of building: 9885. 7 m 2](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-7.jpg)

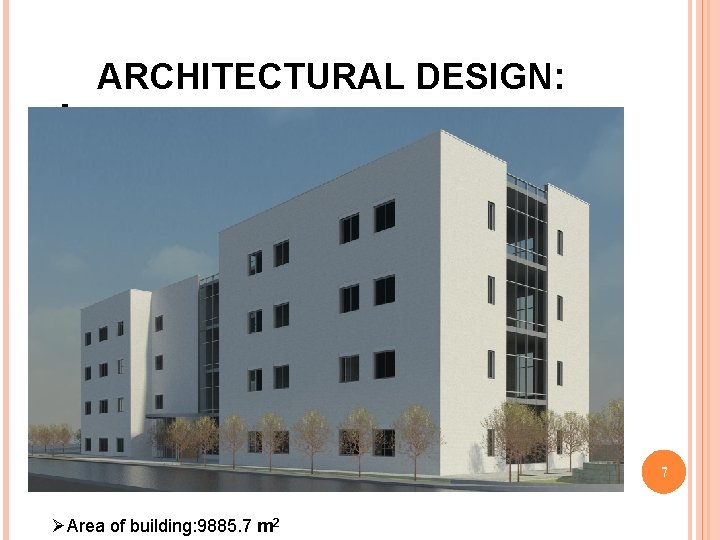

: ARCHITECTURAL DESIGN: 7 ØArea of building: 9885. 7 m 2
![ARCHITECTURAL DESIGN: Site Plan: ØArea of site: 3222. 87 m 2 8 ARCHITECTURAL DESIGN: Site Plan: ØArea of site: 3222. 87 m 2 8](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-8.jpg)

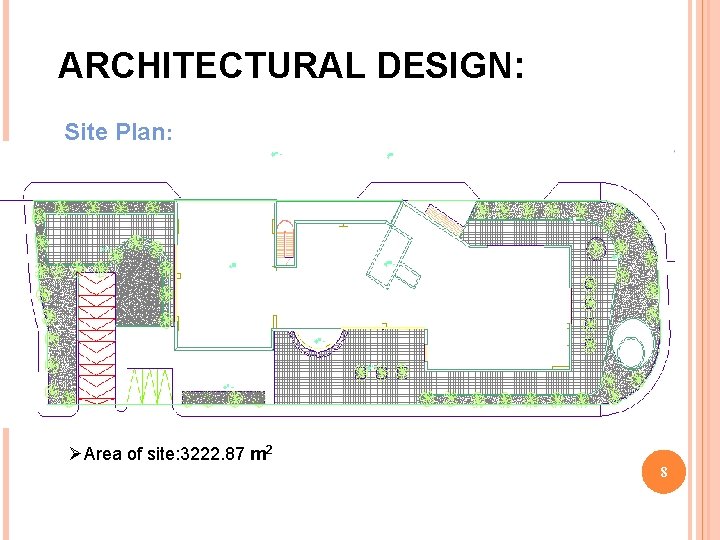

ARCHITECTURAL DESIGN: Site Plan: ØArea of site: 3222. 87 m 2 8
![ARCHITECTURAL DESIGN: 2 nd Basement Floor: ØArea of floor: 2598 m 2 1 st ARCHITECTURAL DESIGN: 2 nd Basement Floor: ØArea of floor: 2598 m 2 1 st](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-9.jpg)

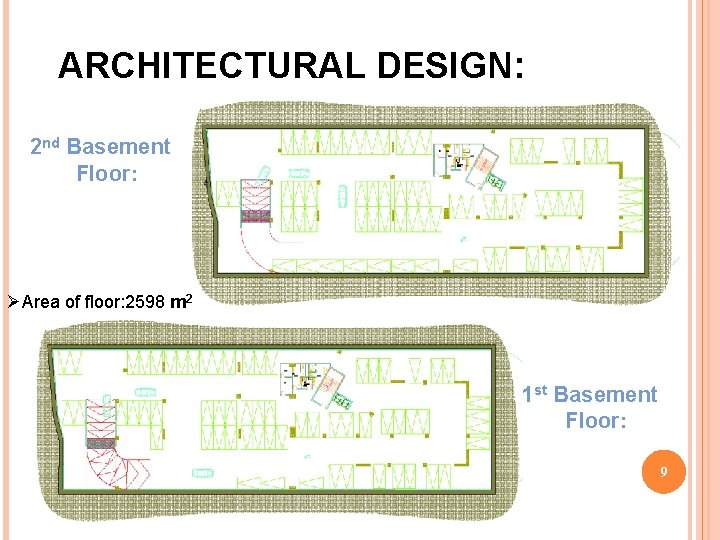

ARCHITECTURAL DESIGN: 2 nd Basement Floor: ØArea of floor: 2598 m 2 1 st Basement Floor: 9
![ARCHITECTURAL DESIGN: Ground Floor: Old Plan 10 ØArea of floor: 1109. 62 m 2 ARCHITECTURAL DESIGN: Ground Floor: Old Plan 10 ØArea of floor: 1109. 62 m 2](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-10.jpg)

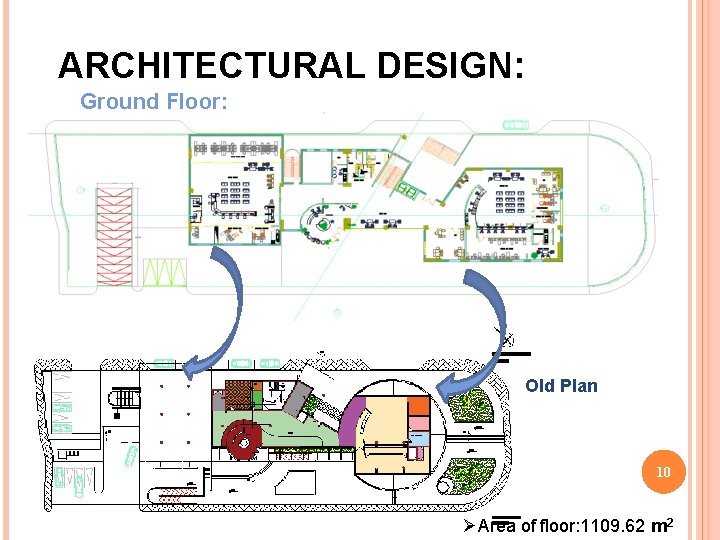

ARCHITECTURAL DESIGN: Ground Floor: Old Plan 10 ØArea of floor: 1109. 62 m 2
![ARCHITECTURAL DESIGN: First Floor: 11 ARCHITECTURAL DESIGN: First Floor: 11](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-11.jpg)

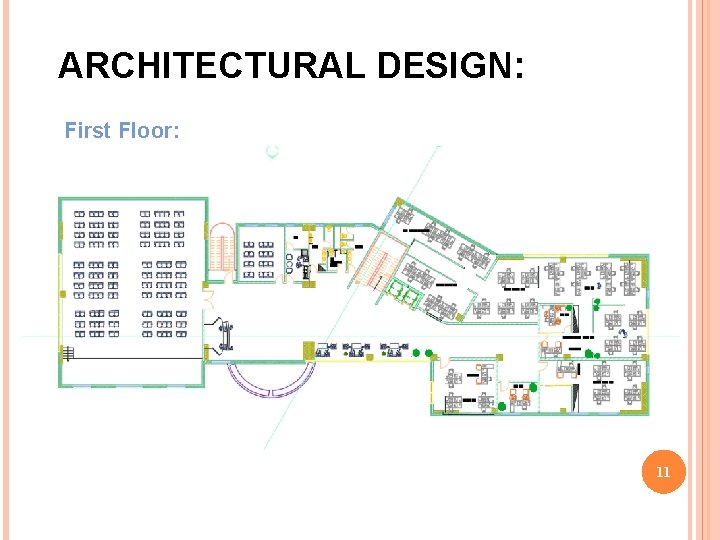

ARCHITECTURAL DESIGN: First Floor: 11
![ARCHITECTURAL DESIGN: Second Floor: 12 ARCHITECTURAL DESIGN: Second Floor: 12](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-12.jpg)

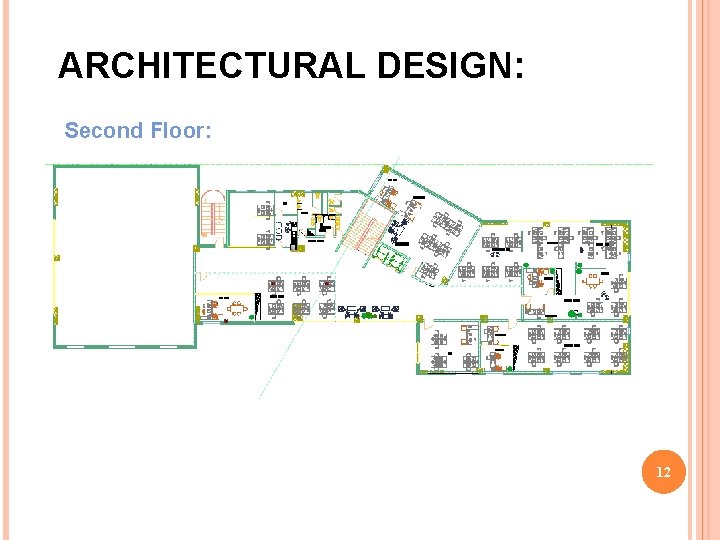

ARCHITECTURAL DESIGN: Second Floor: 12
![ARCHITECTURAL DESIGN: Third Floor: Movement department Fire department Mechanical department 13 ARCHITECTURAL DESIGN: Third Floor: Movement department Fire department Mechanical department 13](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-13.jpg)

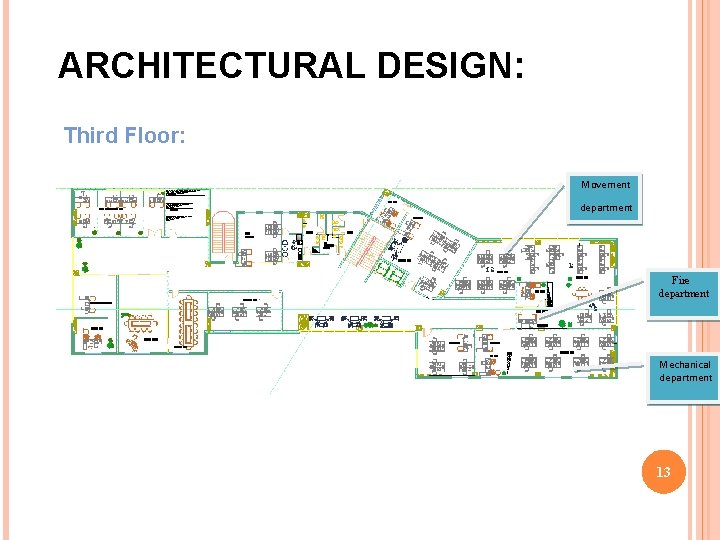

ARCHITECTURAL DESIGN: Third Floor: Movement department Fire department Mechanical department 13
![ARCHITECTURAL DESIGN: East elevation: 14 ARCHITECTURAL DESIGN: East elevation: 14](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-14.jpg)

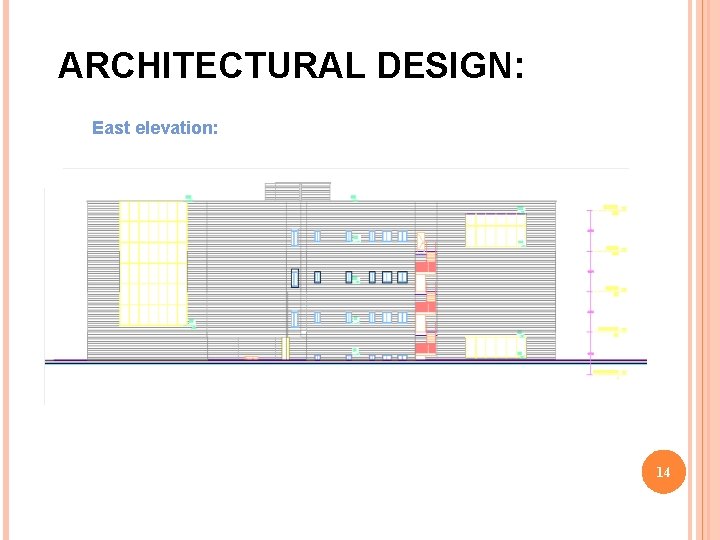

ARCHITECTURAL DESIGN: East elevation: 14
![ARCHITECTURAL DESIGN: West elevation: 15 ARCHITECTURAL DESIGN: West elevation: 15](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-15.jpg)

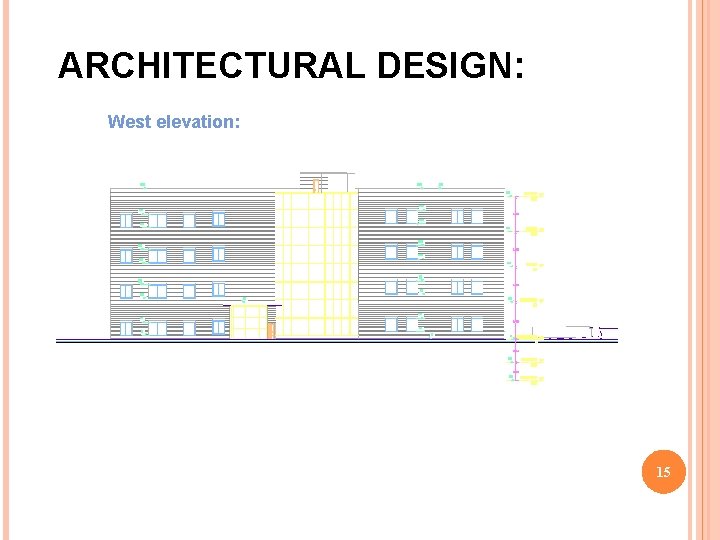

ARCHITECTURAL DESIGN: West elevation: 15
![ARCHITECTURAL DESIGN: North elevation: 16 ARCHITECTURAL DESIGN: North elevation: 16](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-16.jpg)

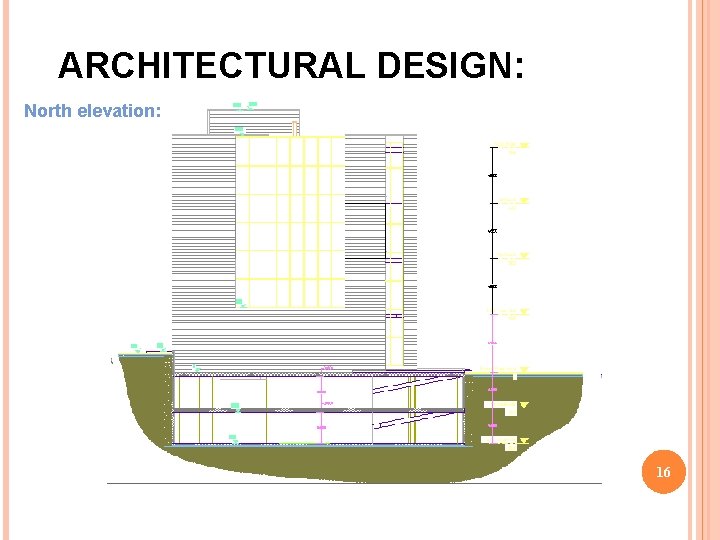

ARCHITECTURAL DESIGN: North elevation: 16
![ARCHITECTURAL DESIGN: South elevation: 17 ARCHITECTURAL DESIGN: South elevation: 17](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-17.jpg)

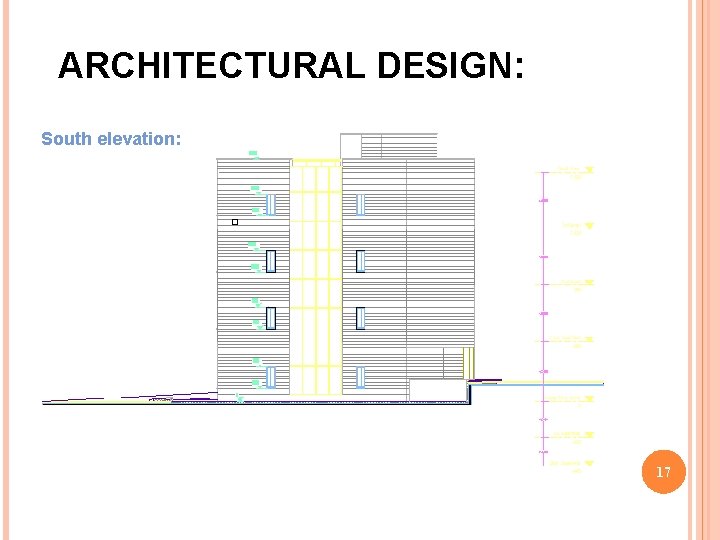

ARCHITECTURAL DESIGN: South elevation: 17
![STRUCTURAL DESIGN 1 8 STRUCTURAL DESIGN 1 8](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-18.jpg)
STRUCTURAL DESIGN 1 8
![MODELING 19 MODELING 19](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-19.jpg)

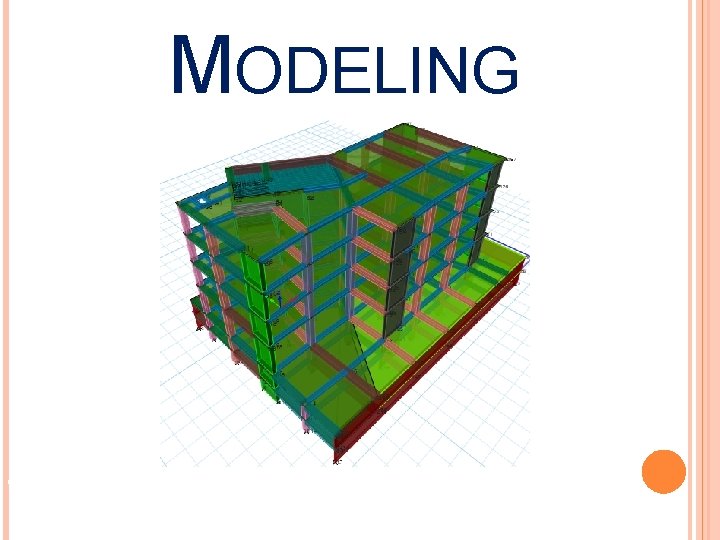

MODELING 19
![Codes and Standards: q ACI -318 -11 for reinforced concrete structural design. q UBC Codes and Standards: q ACI -318 -11 for reinforced concrete structural design. q UBC](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-20.jpg)

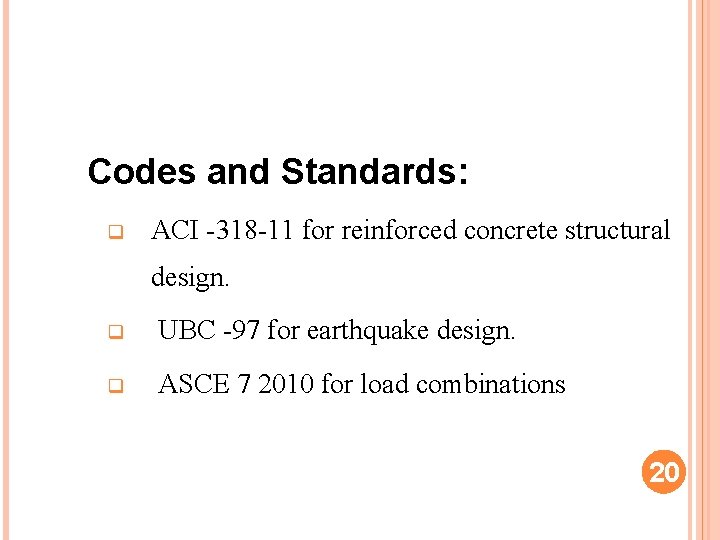

Codes and Standards: q ACI -318 -11 for reinforced concrete structural design. q UBC -97 for earthquake design. q ASCE 7 2010 for load combinations 20
![Design data: q Concrete strength for all structural member f’c=28 mpa. q Steel yield Design data: q Concrete strength for all structural member f’c=28 mpa. q Steel yield](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-21.jpg)

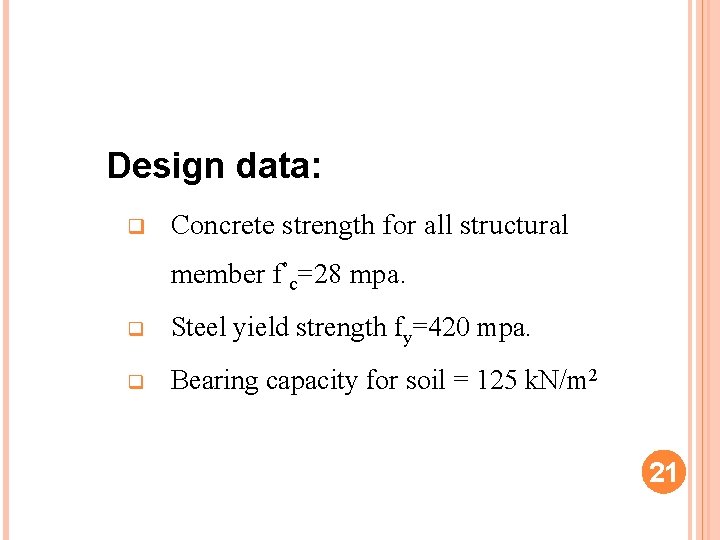

Design data: q Concrete strength for all structural member f’c=28 mpa. q Steel yield strength fy=420 mpa. q Bearing capacity for soil = 125 k. N/m 2 21
![Loads: Load Type Ribbed slab Live 5 (k. N/m 2) S. I. D 3. Loads: Load Type Ribbed slab Live 5 (k. N/m 2) S. I. D 3.](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-22.jpg)

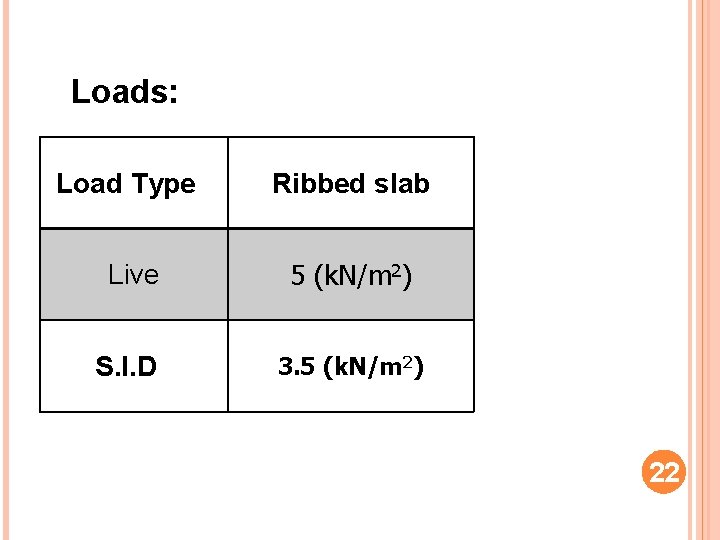

Loads: Load Type Ribbed slab Live 5 (k. N/m 2) S. I. D 3. 5 (k. N/m 2) 22
![Ø Lateral loads: q The city of structure is Nablus. q The seismic zone Ø Lateral loads: q The city of structure is Nablus. q The seismic zone](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-23.jpg)

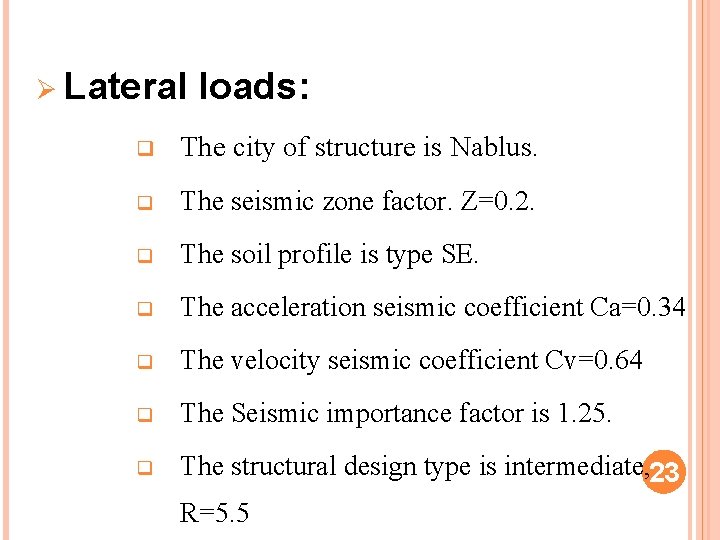

Ø Lateral loads: q The city of structure is Nablus. q The seismic zone factor. Z=0. 2. q The soil profile is type SE. q The acceleration seismic coefficient Ca=0. 34 q The velocity seismic coefficient Cv=0. 64 q The Seismic importance factor is 1. 25. q The structural design type is intermediate, 23 R=5. 5
![VERIFICATION OF MODEL Ø Compatibility check Ø Equilibrium check Ø Internal force check Ø VERIFICATION OF MODEL Ø Compatibility check Ø Equilibrium check Ø Internal force check Ø](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-24.jpg)

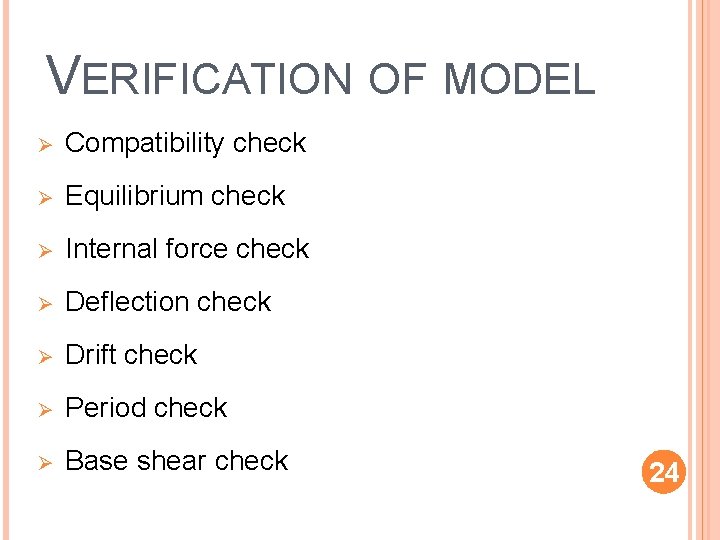

VERIFICATION OF MODEL Ø Compatibility check Ø Equilibrium check Ø Internal force check Ø Deflection check Ø Drift check Ø Period check Ø Base shear check 24
![Compatibility checkØ Equilibrium checkØ Hand ETABS Error% Live load 23787. 5 23854. 5 2. Compatibility checkØ Equilibrium checkØ Hand ETABS Error% Live load 23787. 5 23854. 5 2.](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-25.jpg)

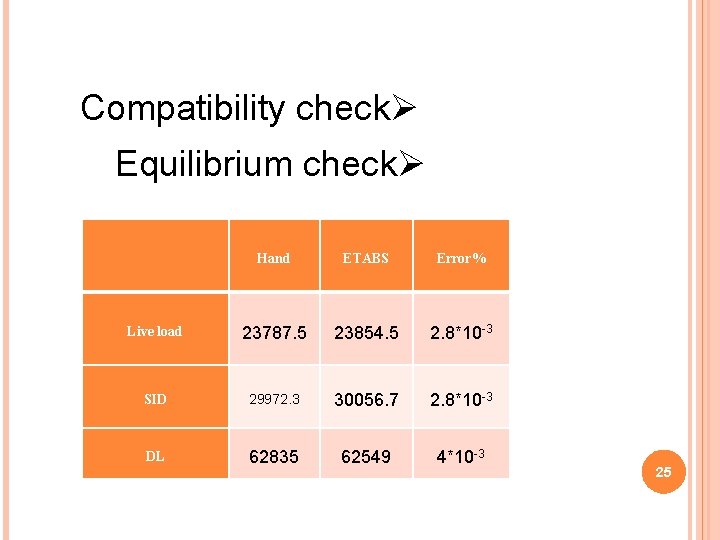

Compatibility checkØ Equilibrium checkØ Hand ETABS Error% Live load 23787. 5 23854. 5 2. 8*10 -3 SID 29972. 3 30056. 7 2. 8*10 -3 DL 62835 62549 4*10 -3 25
![Deflection checkØ Period checkØ period from ETABS = 0. 68 sec. , period from Deflection checkØ Period checkØ period from ETABS = 0. 68 sec. , period from](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-26.jpg)

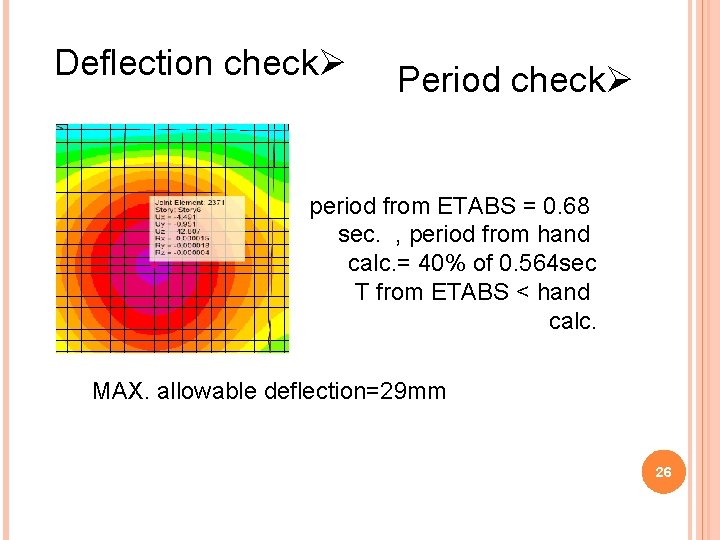

Deflection checkØ Period checkØ period from ETABS = 0. 68 sec. , period from hand calc. = 40% of 0. 564 sec T from ETABS < hand calc. MAX. allowable deflection=29 mm 26
![Internal force checkØ 27 Internal force checkØ 27](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-27.jpg)

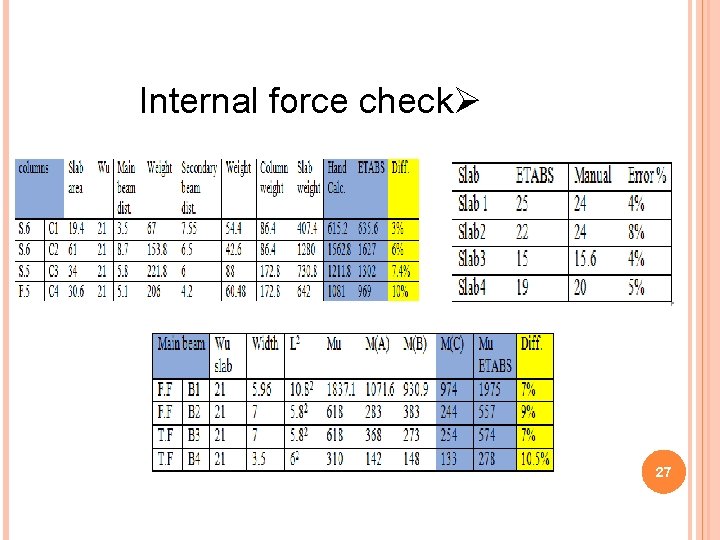

Internal force checkØ 27
![Drift checkØ Base shear check Ø V manual =19070 Vx = 26198 k. N Drift checkØ Base shear check Ø V manual =19070 Vx = 26198 k. N](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-28.jpg)

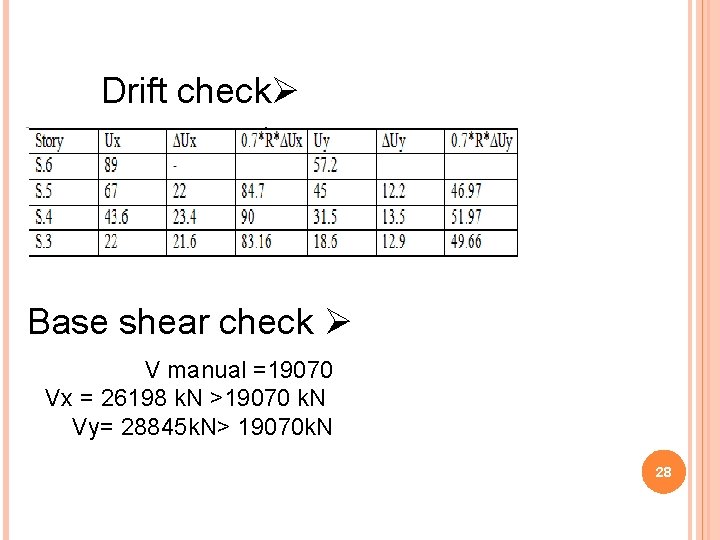

Drift checkØ Base shear check Ø V manual =19070 Vx = 26198 k. N >19070 k. N Vy= 28845 k. N> 19070 k. N 28
![SLAB REINFORCEMENT 29 SLAB REINFORCEMENT 29](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-29.jpg)

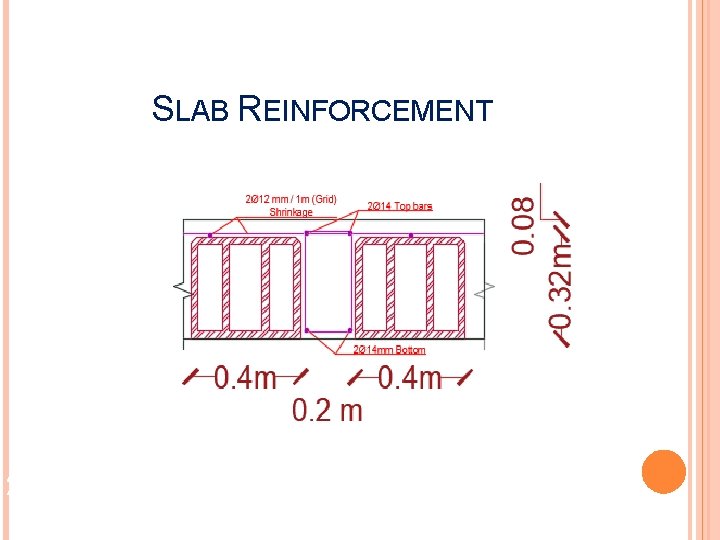

SLAB REINFORCEMENT 29
![BEAMS AND COLUMNS 30 BEAMS AND COLUMNS 30](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-30.jpg)

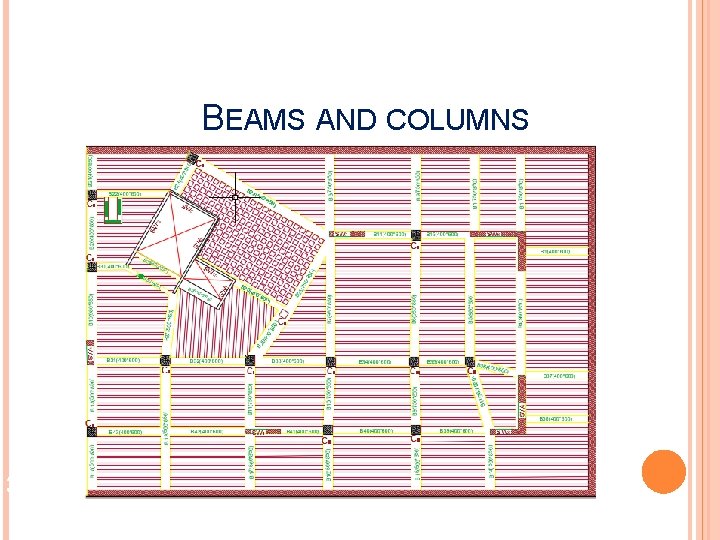

BEAMS AND COLUMNS 30
![BEAMS AND COLUMNS 31 BEAMS AND COLUMNS 31](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-31.jpg)

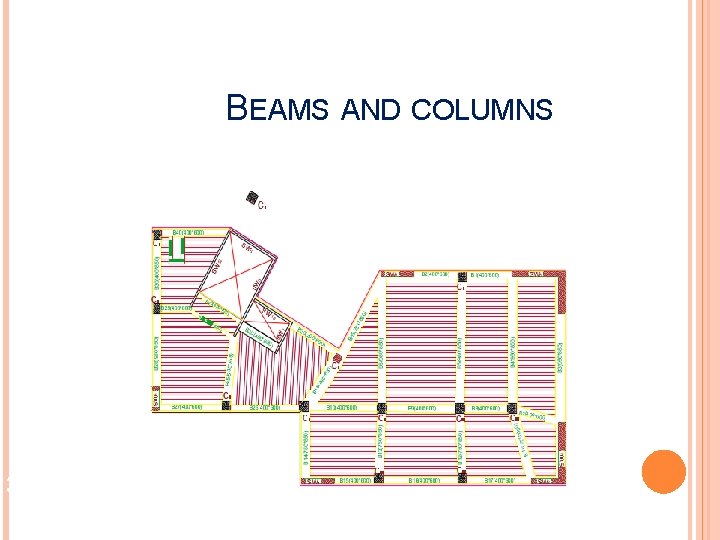

BEAMS AND COLUMNS 31
![BEAMS AND COLUMNS 32 BEAMS AND COLUMNS 32](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-32.jpg)

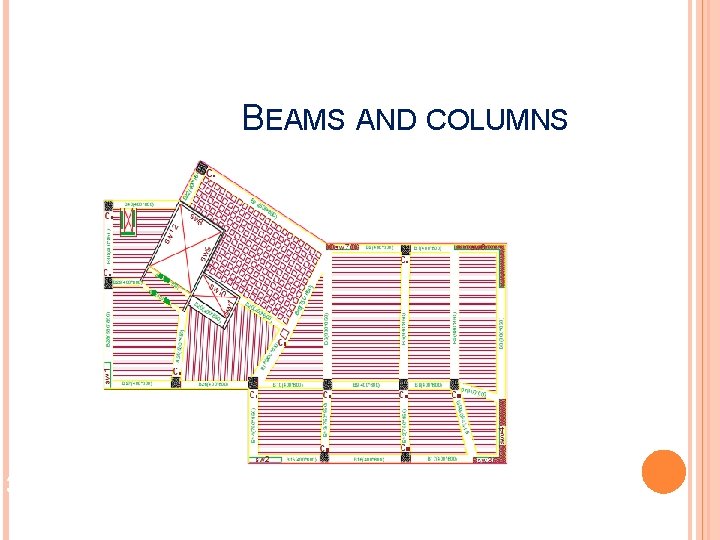

BEAMS AND COLUMNS 32
![BEAM REINFORCEMENT 33 BEAM REINFORCEMENT 33](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-33.jpg)

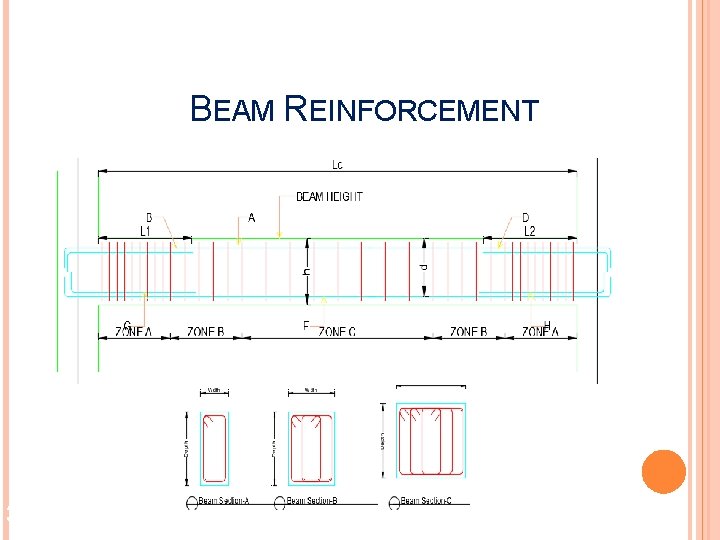

BEAM REINFORCEMENT 33
![COLUMNS REINFORCEMENT 34 COLUMNS REINFORCEMENT 34](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-34.jpg)

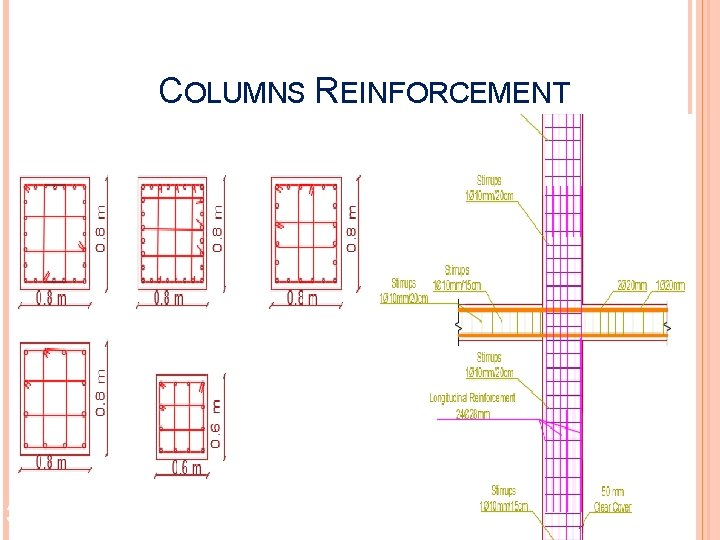

COLUMNS REINFORCEMENT 34
![COLUMNS REINFORCEMENT 35 COLUMNS REINFORCEMENT 35](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-35.jpg)

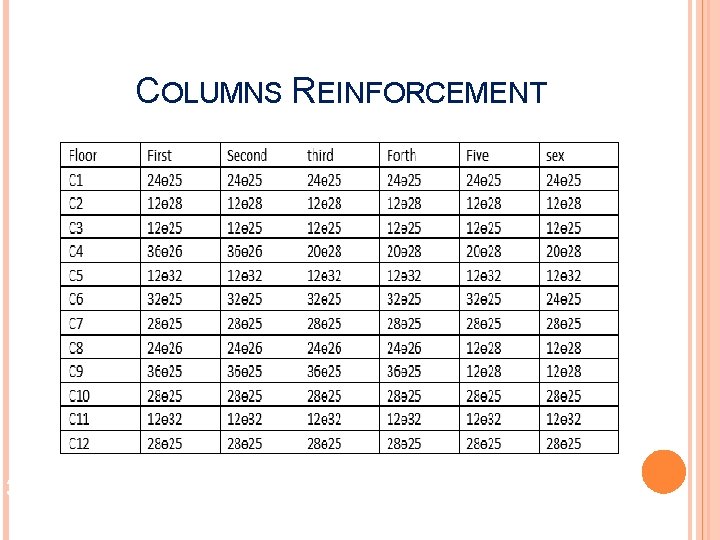

COLUMNS REINFORCEMENT 35
![FOOTING REINFORCEMENT 36 FOOTING REINFORCEMENT 36](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-36.jpg)

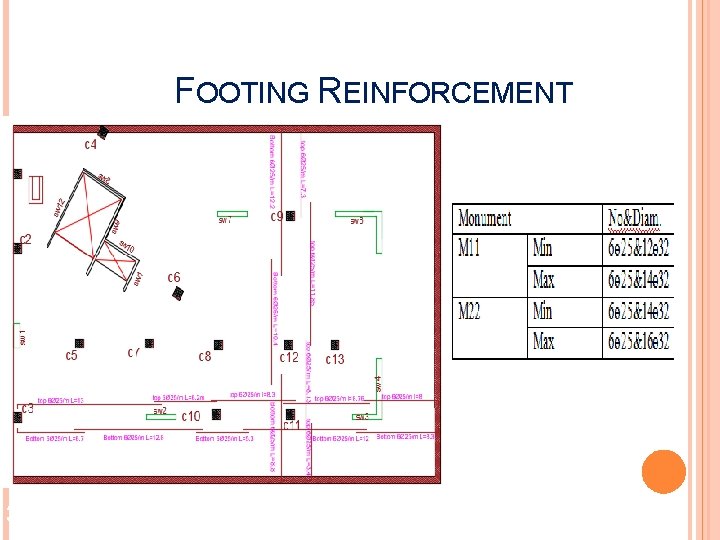

FOOTING REINFORCEMENT 36
![WATER TANKS REINFORCEMENT 37 WATER TANKS REINFORCEMENT 37](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-37.jpg)

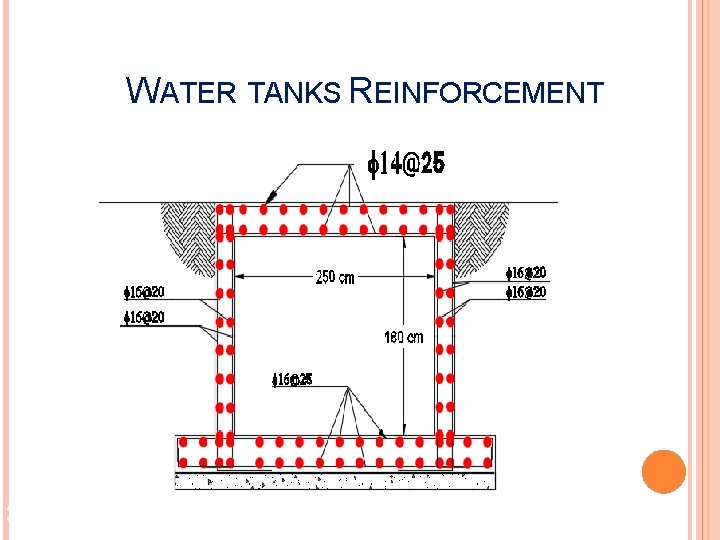

WATER TANKS REINFORCEMENT 37
![Shear wall reinforcement Shear wall reinforcement](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-38.jpg)

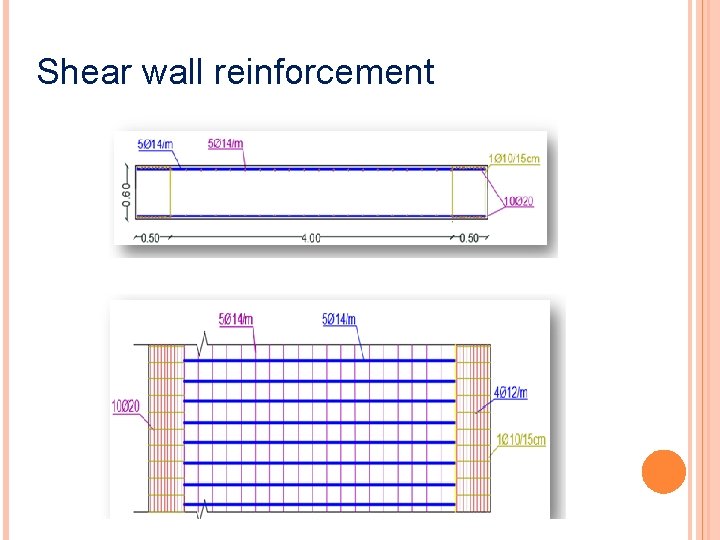

Shear wall reinforcement
![SHEET PILES. 39 Stairs Reinforcements. SHEET PILES. 39 Stairs Reinforcements.](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-39.jpg)

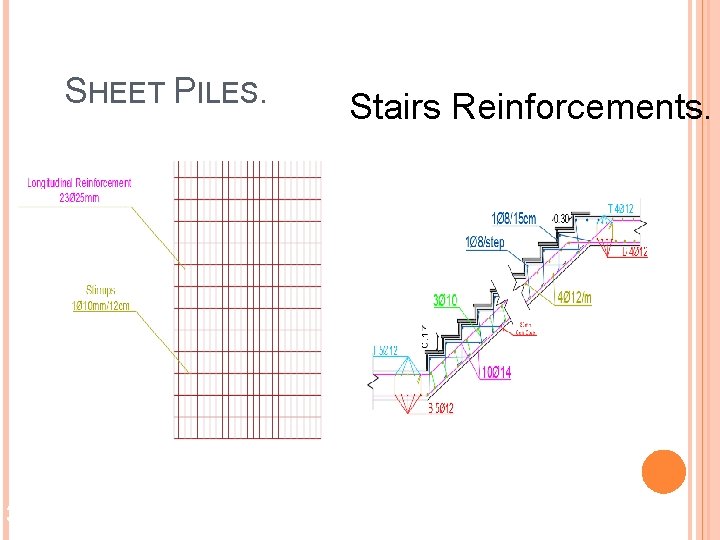

SHEET PILES. 39 Stairs Reinforcements.
![ENVIRONMENTAL DESIGN 40 1 -Thermal insulation 2 - Shading Design 3 - Day Light ENVIRONMENTAL DESIGN 40 1 -Thermal insulation 2 - Shading Design 3 - Day Light](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-40.jpg)

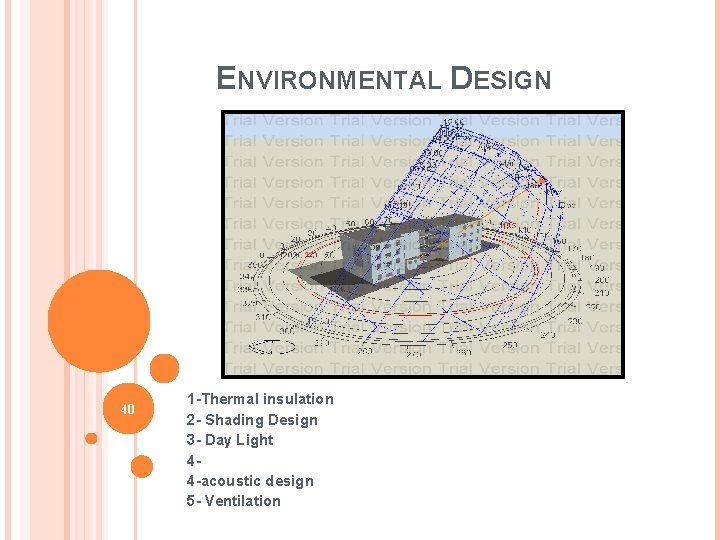

ENVIRONMENTAL DESIGN 40 1 -Thermal insulation 2 - Shading Design 3 - Day Light 44 -acoustic design 5 - Ventilation
![THERMAL INSULATION -External wall: U-value (for external masonry wall before insulation material) =2. 23 THERMAL INSULATION -External wall: U-value (for external masonry wall before insulation material) =2. 23](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-41.jpg)

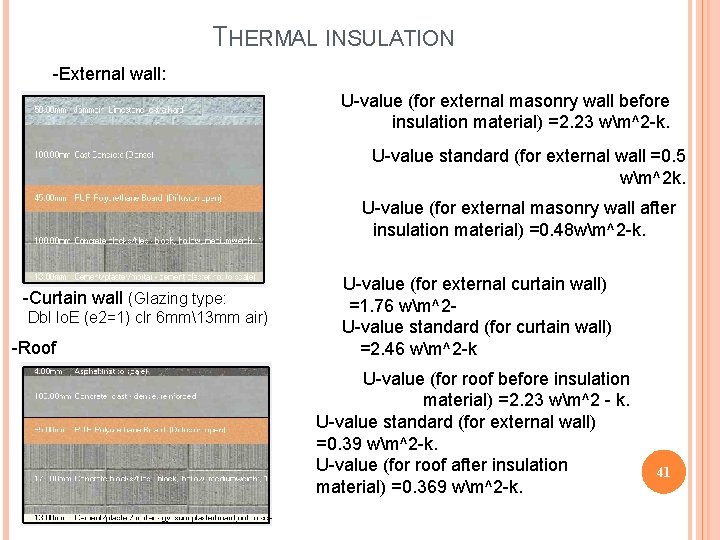

THERMAL INSULATION -External wall: U-value (for external masonry wall before insulation material) =2. 23 wm^2 -k. U-value standard (for external wall =0. 5 wm^2 k. U-value (for external masonry wall after insulation material) =0. 48 wm^2 -k. -Curtain wall (Glazing type: Dbl lo. E (e 2=1) clr 6 mm13 mm air) -Roof U-value (for external curtain wall) =1. 76 wm^2 U-value standard (for curtain wall) =2. 46 wm^2 -k U-value (for roof before insulation material) =2. 23 wm^2 - k. U-value standard (for external wall) =0. 39 wm^2 -k. U-value (for roof after insulation material) =0. 369 wm^2 -k. 41
![SHADING 1 -cantilever 2 - structural bulge 42 21 -July (12. 00 pm). 21 SHADING 1 -cantilever 2 - structural bulge 42 21 -July (12. 00 pm). 21](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-42.jpg)

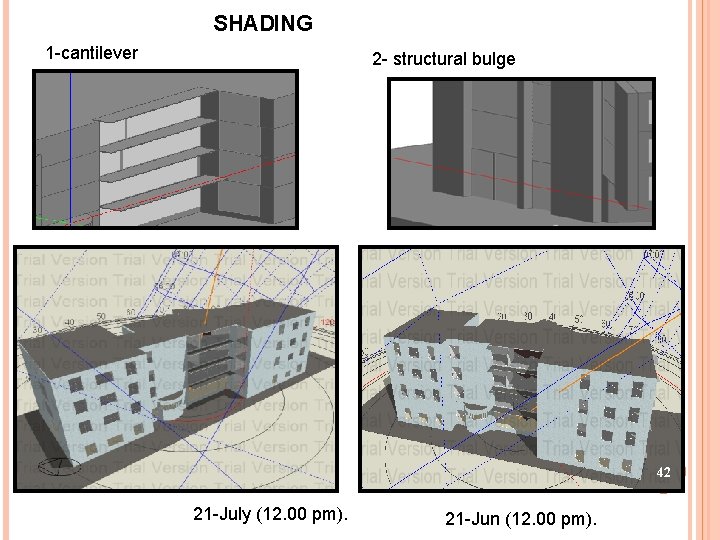

SHADING 1 -cantilever 2 - structural bulge 42 21 -July (12. 00 pm). 21 -Jun (12. 00 pm).
![DAYLIGHT -Map -Day light average for building Floor Ground floor First floor Second floor DAYLIGHT -Map -Day light average for building Floor Ground floor First floor Second floor](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-43.jpg)

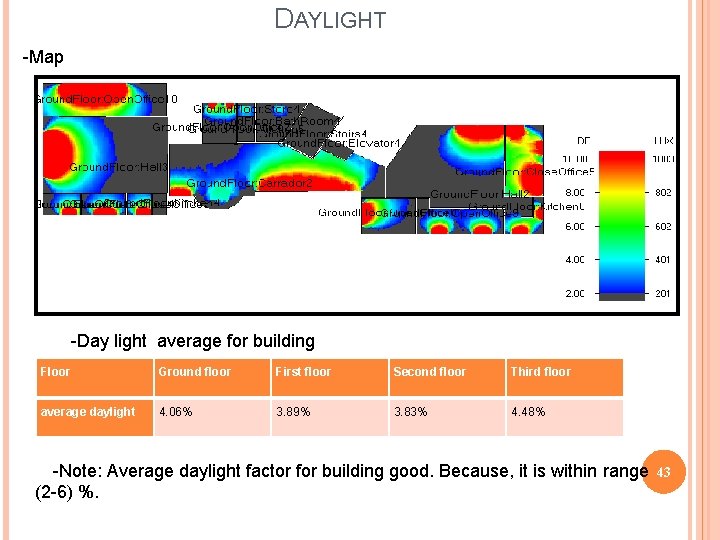

DAYLIGHT -Map -Day light average for building Floor Ground floor First floor Second floor Third floor average daylight 4. 06% 3. 89% 3. 83% 4. 48% -Note: Average daylight factor for building good. Because, it is within range (2 -6) %. 43
![THERMAL DESIGN -Site energy Not : 134. 81 kw/m^2 < 207 kw/m^2 it's good THERMAL DESIGN -Site energy Not : 134. 81 kw/m^2 < 207 kw/m^2 it's good](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-44.jpg)

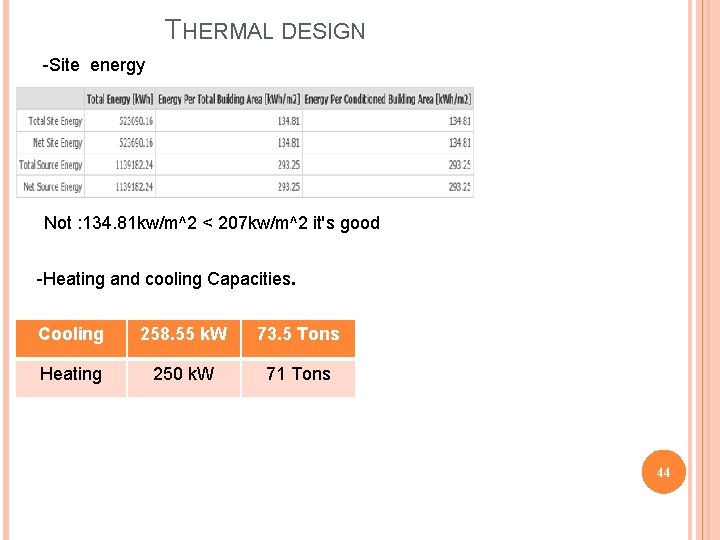

THERMAL DESIGN -Site energy Not : 134. 81 kw/m^2 < 207 kw/m^2 it's good -Heating and cooling Capacities. Cooling 258. 55 k. W 73. 5 Tons Heating 250 k. W 71 Tons 44
![ACOUSTIC n Room Rt 60(125 Hz) Rt 60(250 Hz) Rt 60(500 Hz) Rt 60(1000 ACOUSTIC n Room Rt 60(125 Hz) Rt 60(250 Hz) Rt 60(500 Hz) Rt 60(1000](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-45.jpg)

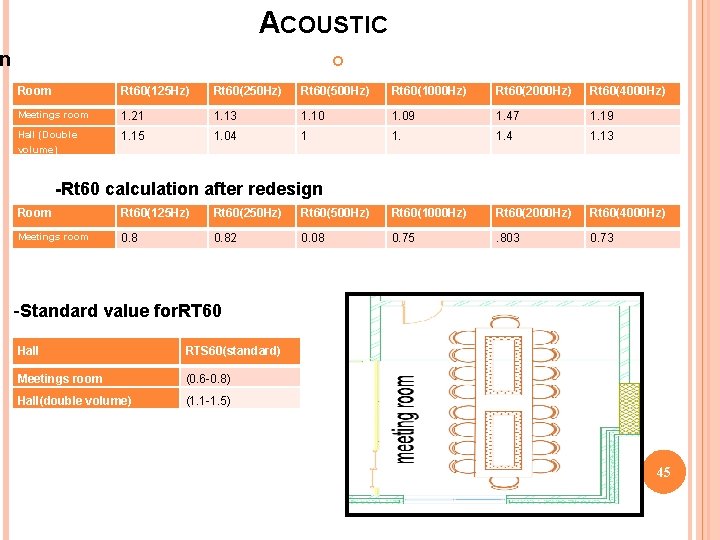

ACOUSTIC n Room Rt 60(125 Hz) Rt 60(250 Hz) Rt 60(500 Hz) Rt 60(1000 Hz) Rt 60(2000 Hz) Rt 60(4000 Hz) Meetings room 1. 21 1. 13 1. 10 1. 09 1. 47 1. 19 Hall (Double volume) 1. 15 1. 04 1 1. 4 1. 13 -Rt 60 calculation after redesign Room Rt 60(125 Hz) Rt 60(250 Hz) Rt 60(500 Hz) Rt 60(1000 Hz) Rt 60(2000 Hz) Rt 60(4000 Hz) Meetings room 0. 82 0. 08 0. 75 . 803 0. 73 -Standard value for. RT 60 Hall RTS 60(standard) Meetings room (0. 6 -0. 8) Hall(double volume) (1. 1 -1. 5) 45
![-Stc for Exterior walls • Meeting room Noise level(db) Noise level db)(slandered) Department of -Stc for Exterior walls • Meeting room Noise level(db) Noise level db)(slandered) Department of](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-46.jpg)

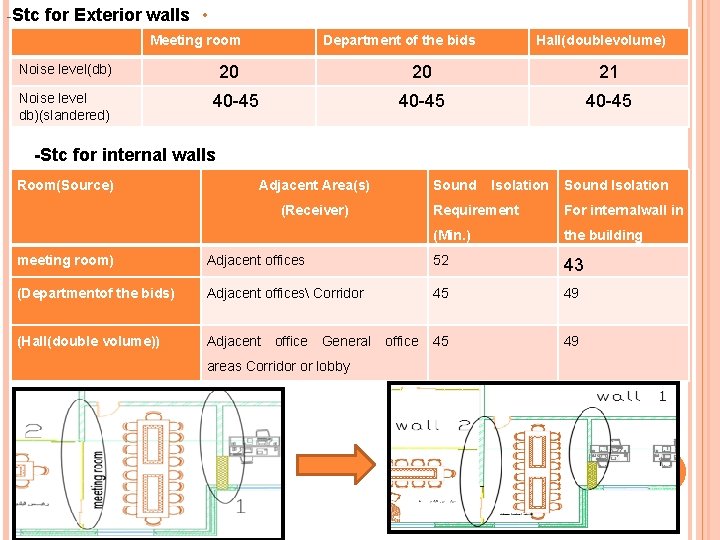

-Stc for Exterior walls • Meeting room Noise level(db) Noise level db)(slandered) Department of the bids 20 40 -45 Hall(doublevolume) 20 21 40 -45 -Stc for internal walls Room(Source) Adjacent Area(s) (Receiver) Sound Isolation Requirement For internalwall in (Min. ) the building meeting room) Adjacent offices 52 43 (Departmentof the bids) Adjacent offices Corridor 45 49 (Hall(double volume)) Adjacent office General office 45 49 areas Corridor or lobby
![MECHANICAL Manhole distribution 47 MECHANICAL Manhole distribution 47](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-47.jpg)

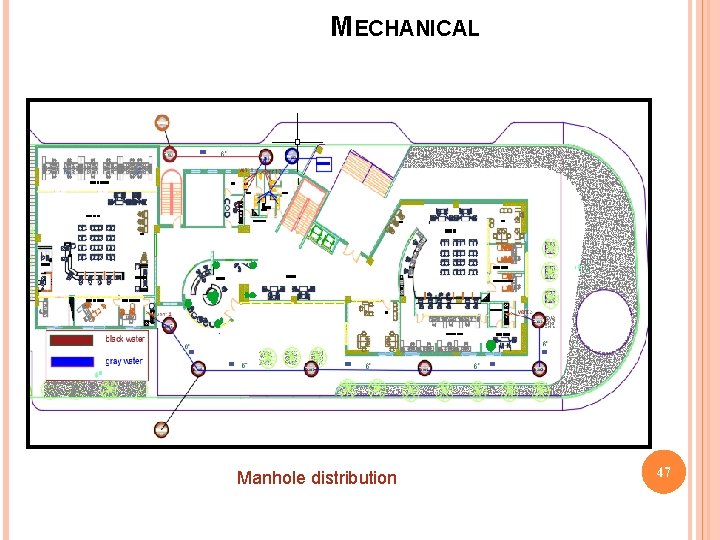

MECHANICAL Manhole distribution 47
![48 Black water Gray water 48 Black water Gray water](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-48.jpg)

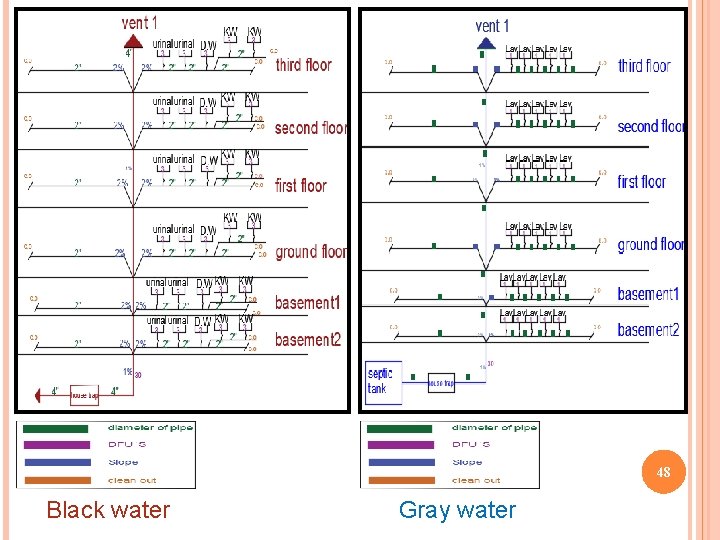

48 Black water Gray water
![-water supply system Horizontal Diameter Branch Diameter Meter Diameter Vertical diameter Tank 1 (storage -water supply system Horizontal Diameter Branch Diameter Meter Diameter Vertical diameter Tank 1 (storage](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-49.jpg)

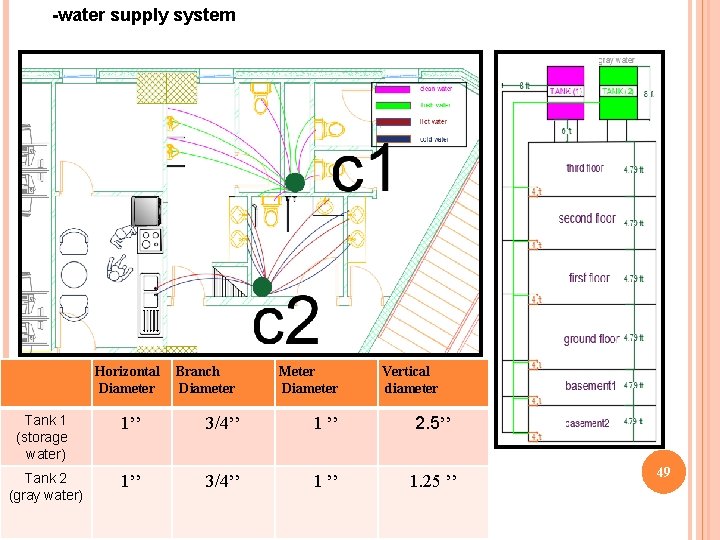

-water supply system Horizontal Diameter Branch Diameter Meter Diameter Vertical diameter Tank 1 (storage water) 1’’ 3/4’’ 1 ’’ 2. 5’’ Tank 2 (gray water) 1’’ 3/4’’ 1. 25 ’’ 49
![-Safety and security design -Fire system used in municipali ty building Emergen cy stair -Safety and security design -Fire system used in municipali ty building Emergen cy stair](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-50.jpg)

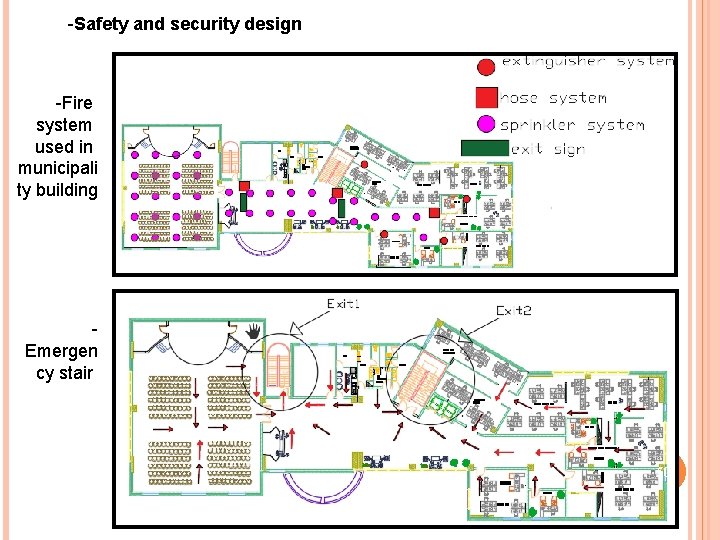

-Safety and security design -Fire system used in municipali ty building Emergen cy stair 50
![HVAC SYSTEM Duct V(ms) D(m) Ѷ(m^3) Δ��/���� Δ�� AB 5 0. 61 1. 46 HVAC SYSTEM Duct V(ms) D(m) Ѷ(m^3) Δ��/���� Δ�� AB 5 0. 61 1. 46](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-51.jpg)

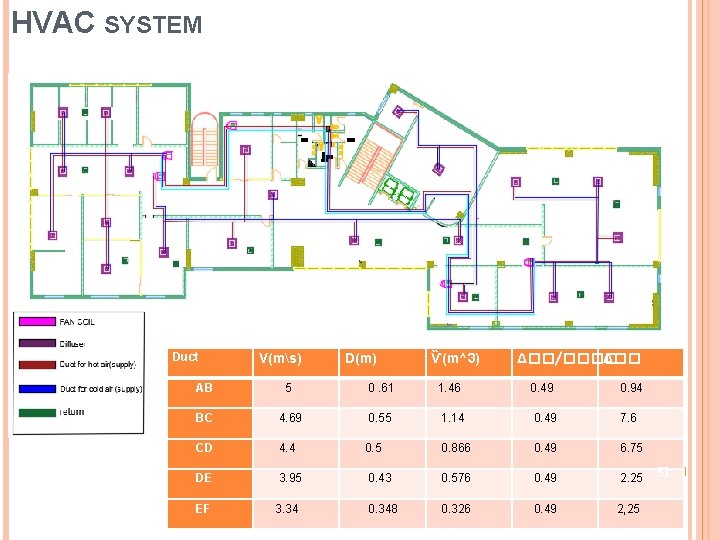

HVAC SYSTEM Duct V(ms) D(m) Ѷ(m^3) Δ��/���� Δ�� AB 5 0. 61 1. 46 0. 49 0. 94 BC 4. 69 0. 55 1. 14 0. 49 7. 6 CD 4. 4 0. 5 0. 866 0. 49 6. 75 DE 3. 95 0. 43 0. 576 0. 49 2. 25 EF 3. 34 0. 348 0. 326 0. 49 2, 25 51
![ELECTRICAL DESIGN: Standard for office Visual task (Em) 500 Lux Surrounding (Em) Back ground ELECTRICAL DESIGN: Standard for office Visual task (Em) 500 Lux Surrounding (Em) Back ground](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-52.jpg)

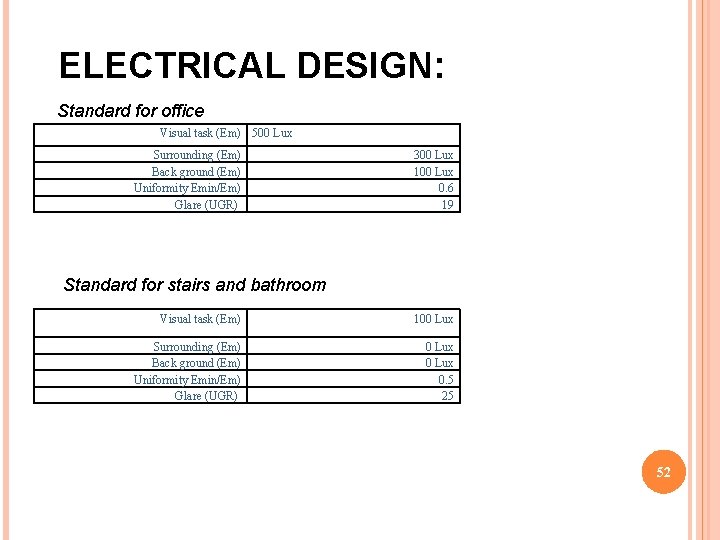

ELECTRICAL DESIGN: Standard for office Visual task (Em) 500 Lux Surrounding (Em) Back ground (Em) Uniformity Emin/Em) Glare (UGR) 300 Lux 100 Lux 0. 6 19 Standard for stairs and bathroom Visual task (Em) 100 Lux Surrounding (Em) Back ground (Em) Uniformity Emin/Em) Glare (UGR) 0 Lux 0. 5 25 52
![ELECTRICAL DESIGN: Standard for corridor Visual task (Em) Surrounding (Em) Back ground (Em) Uniformity ELECTRICAL DESIGN: Standard for corridor Visual task (Em) Surrounding (Em) Back ground (Em) Uniformity](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-53.jpg)

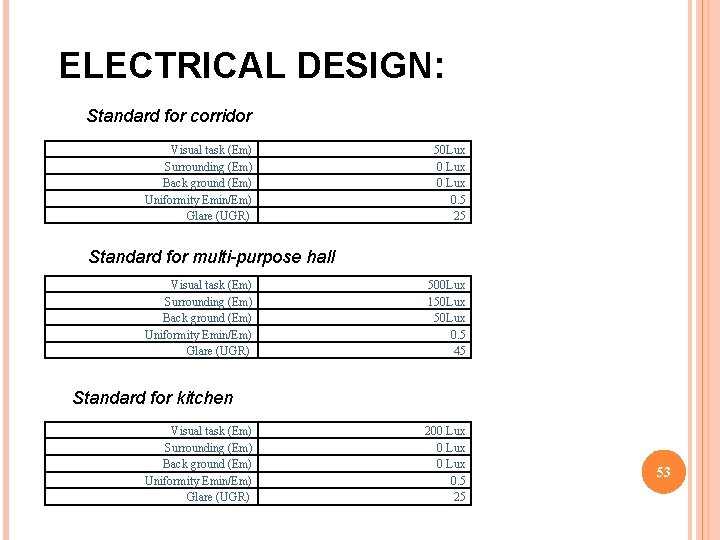

ELECTRICAL DESIGN: Standard for corridor Visual task (Em) Surrounding (Em) Back ground (Em) Uniformity Emin/Em) Glare (UGR) 50 Lux 0. 5 25 Standard for multi-purpose hall Visual task (Em) Surrounding (Em) Back ground (Em) Uniformity Emin/Em) Glare (UGR) 500 Lux 150 Lux 0. 5 45 Standard for kitchen Visual task (Em) Surrounding (Em) Back ground (Em) Uniformity Emin/Em) Glare (UGR) 200 Lux 0. 5 25 53
![ELECTRICAL DESIGN: Multi-Purpose hall: 54 ELECTRICAL DESIGN: Multi-Purpose hall: 54](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-54.jpg)

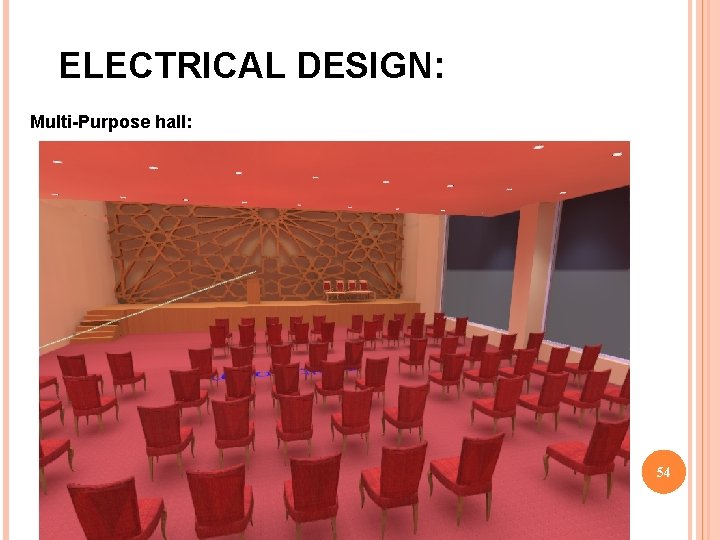

ELECTRICAL DESIGN: Multi-Purpose hall: 54
![layout of Multipurpose-hall • E avg 500= 500 lux ✔ • UGR= 16 < layout of Multipurpose-hall • E avg 500= 500 lux ✔ • UGR= 16 <](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-55.jpg)

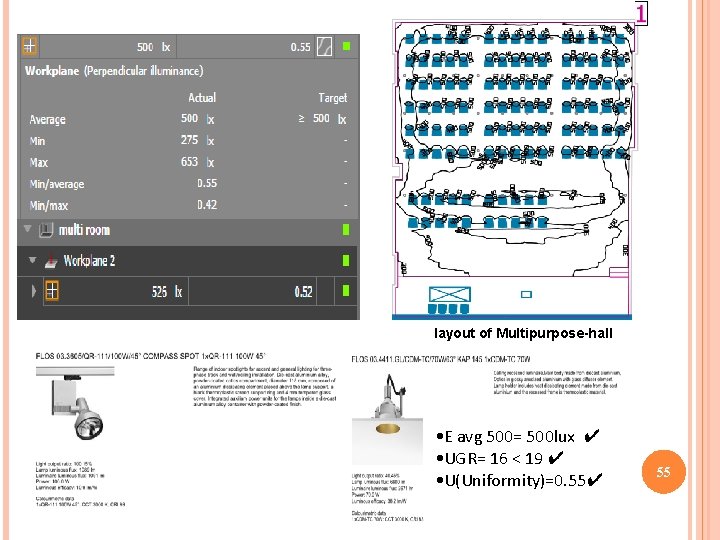

layout of Multipurpose-hall • E avg 500= 500 lux ✔ • UGR= 16 < 19 ✔ • U(Uniformity)=0. 55✔ 55
![ELECTRICAL DESIGN: Mechanical Department: 56 ELECTRICAL DESIGN: Mechanical Department: 56](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-56.jpg)

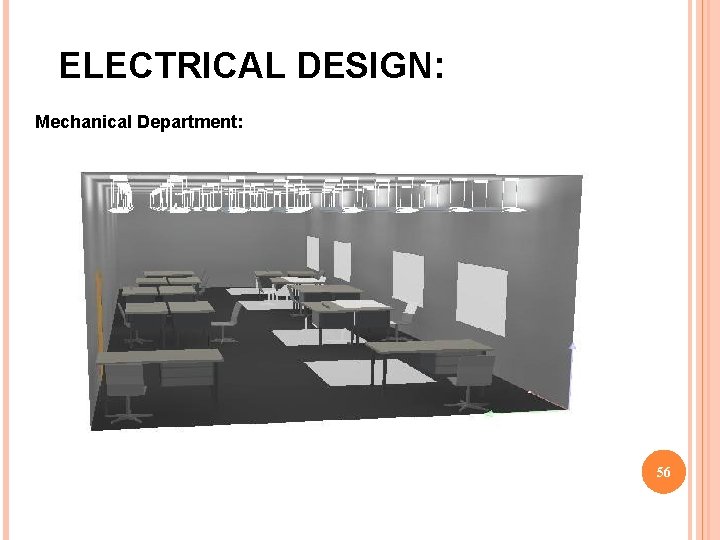

ELECTRICAL DESIGN: Mechanical Department: 56
![layout of mechanical department • E avg = 618 ux > 500 lux ✔ layout of mechanical department • E avg = 618 ux > 500 lux ✔](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-57.jpg)

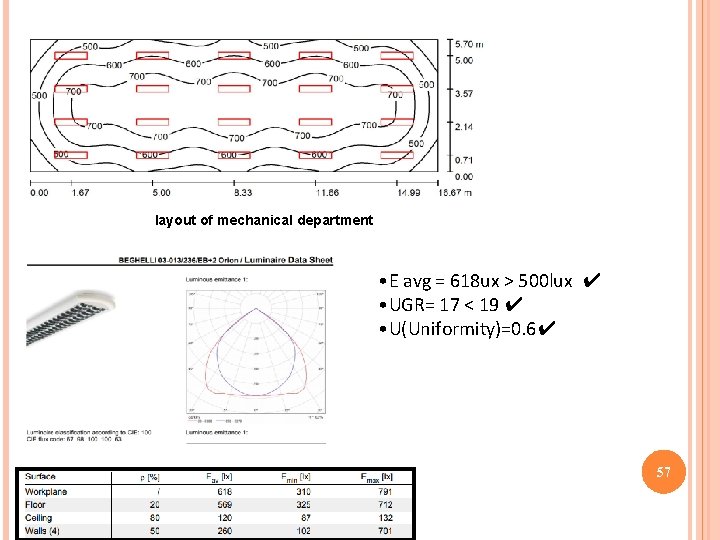

layout of mechanical department • E avg = 618 ux > 500 lux ✔ • UGR= 17 < 19 ✔ • U(Uniformity)=0. 6✔ 57
![ELECTRICAL DESIGN: Mayor office: 58 ELECTRICAL DESIGN: Mayor office: 58](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-58.jpg)

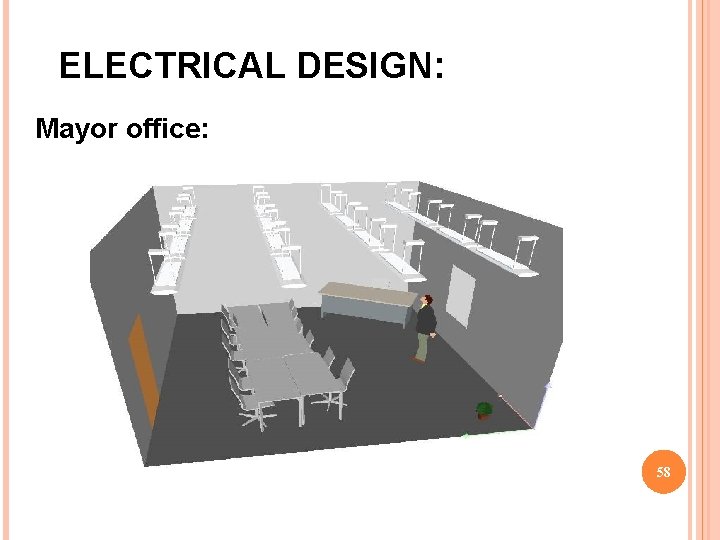

ELECTRICAL DESIGN: Mayor office: 58
![layout of mayor office • Eavg = 712 lux > 500 lux ✔ • layout of mayor office • Eavg = 712 lux > 500 lux ✔ •](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-59.jpg)

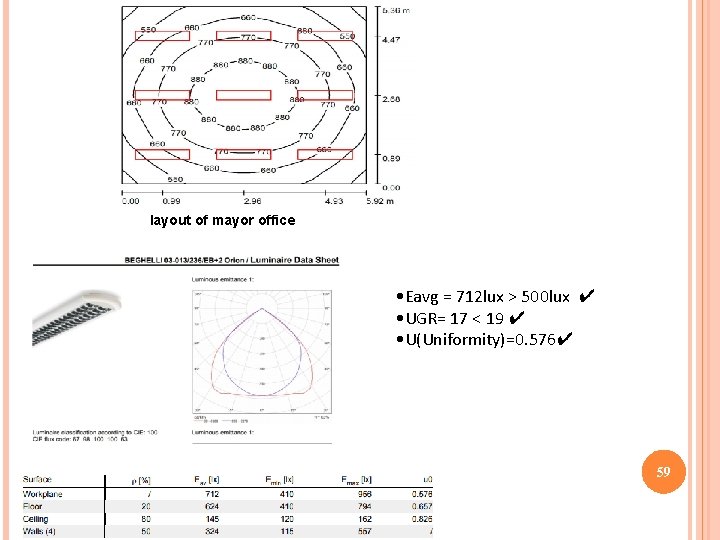

layout of mayor office • Eavg = 712 lux > 500 lux ✔ • UGR= 17 < 19 ✔ • U(Uniformity)=0. 576✔ 59
![ELECTRICAL DESIGN: Number of sockets=121 60 ELECTRICAL DESIGN: Number of sockets=121 60](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-60.jpg)

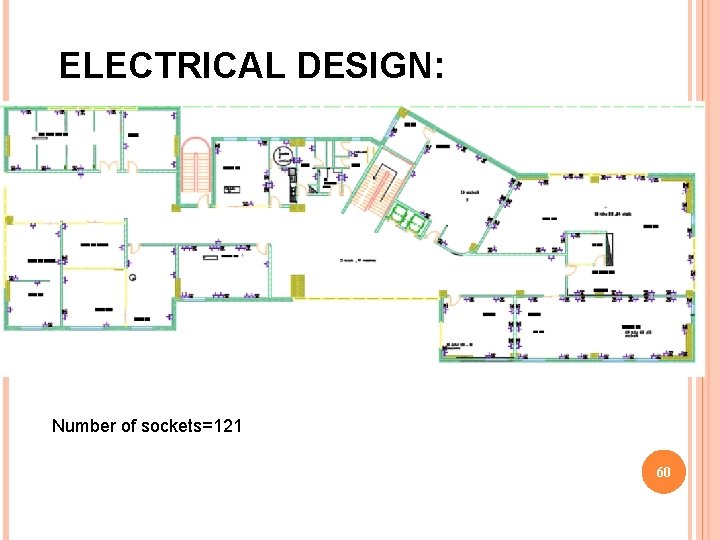

ELECTRICAL DESIGN: Number of sockets=121 60
![ELECTRICAL DESIGN: 61 ELECTRICAL DESIGN: 61](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-61.jpg)

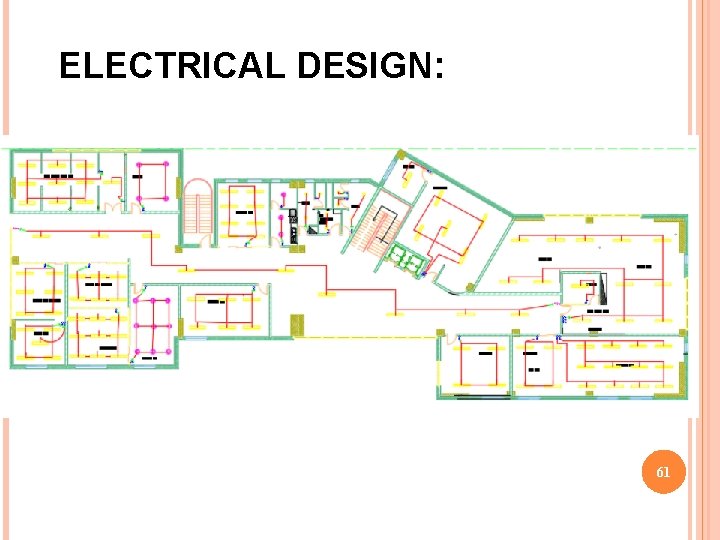

ELECTRICAL DESIGN: 61
![ELECTRICAL DESIGN: Spaces Luminaries power(W) Number Of Luminaries Total power (W) Number of sockets ELECTRICAL DESIGN: Spaces Luminaries power(W) Number Of Luminaries Total power (W) Number of sockets](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-62.jpg)

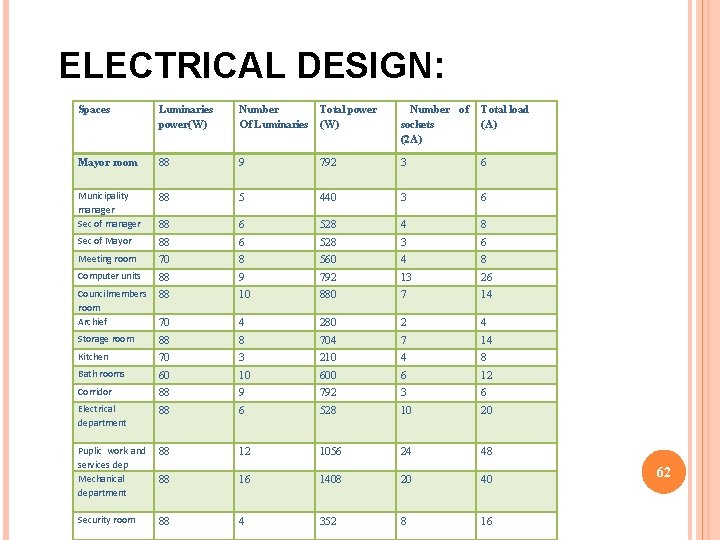

ELECTRICAL DESIGN: Spaces Luminaries power(W) Number Of Luminaries Total power (W) Number of sockets (2 A) Total load (A) Mayor room 88 9 792 3 6 Municipality manager Sec of manager 88 5 440 3 6 88 6 528 4 8 Sec of Mayor 88 6 528 3 6 Meeting room 70 8 560 4 8 Computer units 88 9 792 13 26 Councilmembers room Archief 88 10 880 7 14 70 4 280 2 4 Storage room 88 8 704 7 14 Kitchen 70 3 210 4 8 Bath rooms 60 10 600 6 12 Corridor 88 9 792 3 6 Electrical department 88 6 528 10 20 Puplic work and services dep Mechanical department 88 12 1056 24 48 88 16 1408 20 40 Security room 88 4 352 8 16 62
![QUANTITY SURVEY Stage cost Structural work 5556000 Architectural work 1967210 Mechanical work 358328 Electrical QUANTITY SURVEY Stage cost Structural work 5556000 Architectural work 1967210 Mechanical work 358328 Electrical](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-63.jpg)

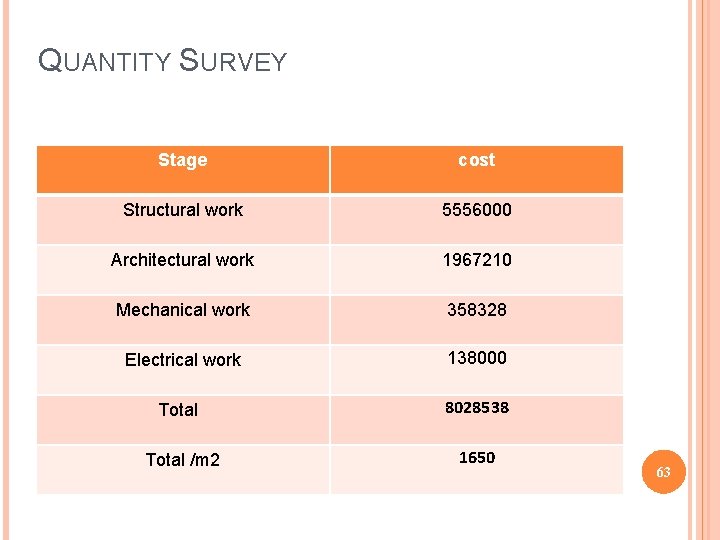

QUANTITY SURVEY Stage cost Structural work 5556000 Architectural work 1967210 Mechanical work 358328 Electrical work 138000 Total 8028538 Total /m 2 1650 63
![THANK YOU! 64 THANK YOU! 64](http://slidetodoc.com/presentation_image_h2/1f5a6596675972da38e7f723be19341a/image-64.jpg)
THANK YOU! 64
