ANIMATION LOD Skeletal Lo D in bonebased animation

ANIMATION LOD Skeletal Lo. D in bone-based animation

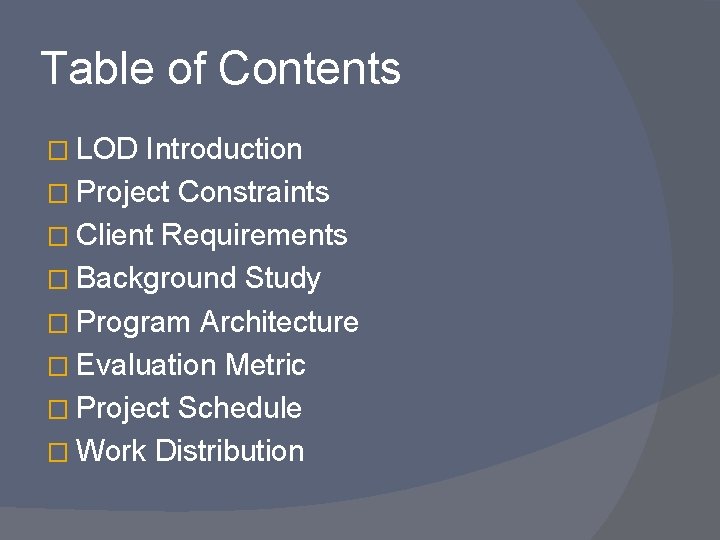

Table of Contents � LOD Introduction � Project Constraints � Client Requirements � Background Study � Program Architecture � Evaluation Metric � Project Schedule � Work Distribution

L. O. D

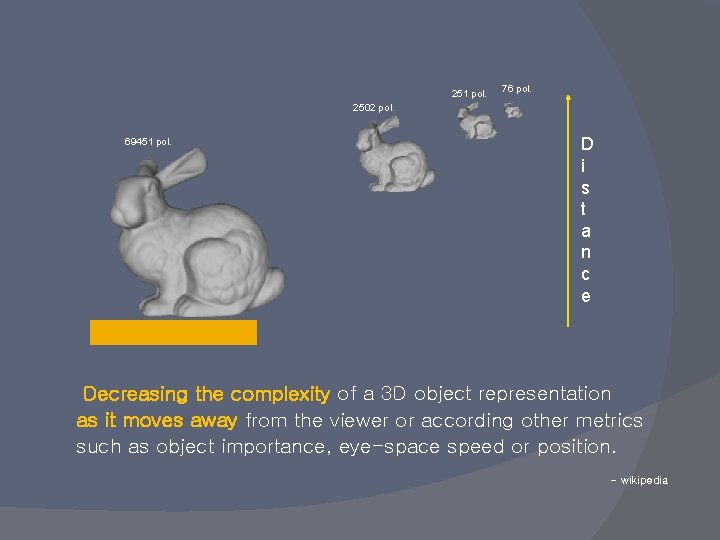

251 pol. 76 pol. 2502 pol. 69451 pol. D i s t a n c e Decreasing the complexity of a 3 D object representation as it moves away from the viewer or according other metrics such as object importance, eye-space speed or position. - wikipedia

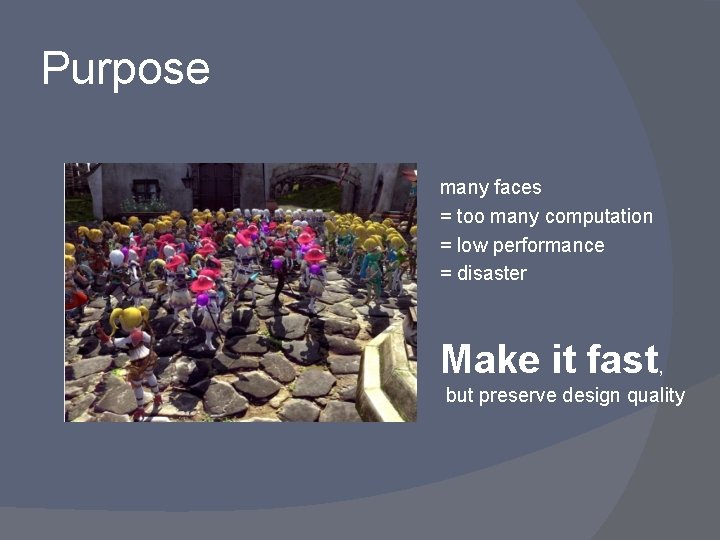

Purpose many faces = too many computation = low performance = disaster Make it fast, but preserve design quality

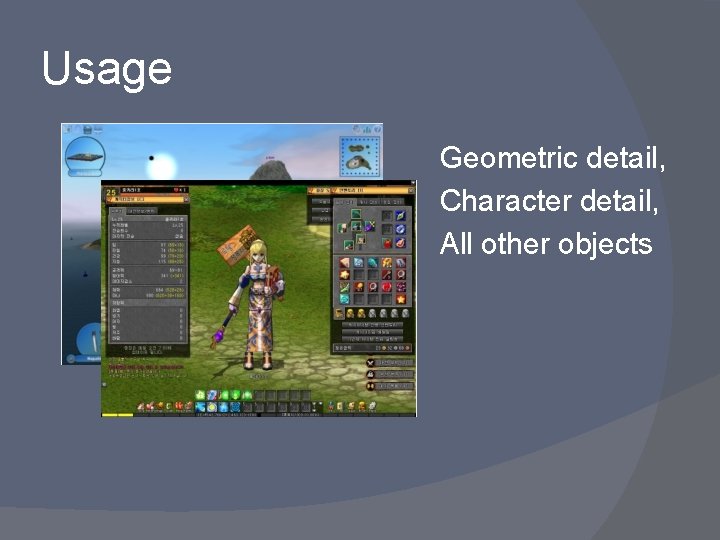

Usage Geometric detail, Character detail, All other objects

Project B

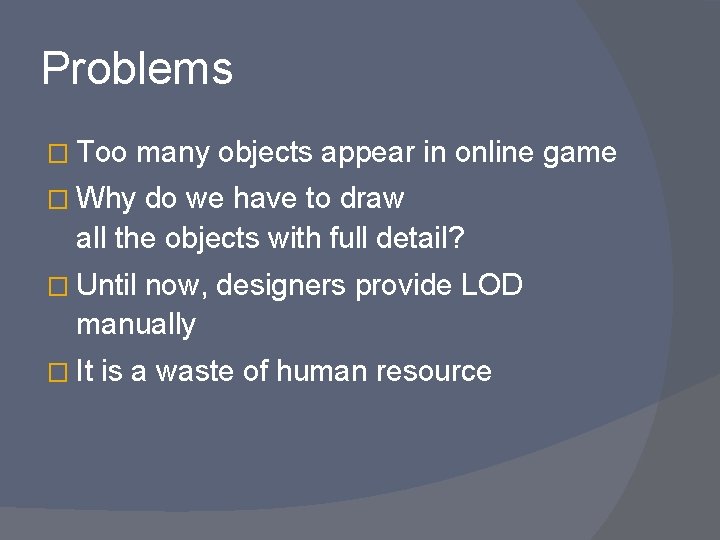

Problems � Too many objects appear in online game � Why do we have to draw all the objects with full detail? � Until now, designers provide LOD manually � It is a waste of human resource

Objectives 64000 : 13226 Level of Detail to a human character Best performance for the closest quality

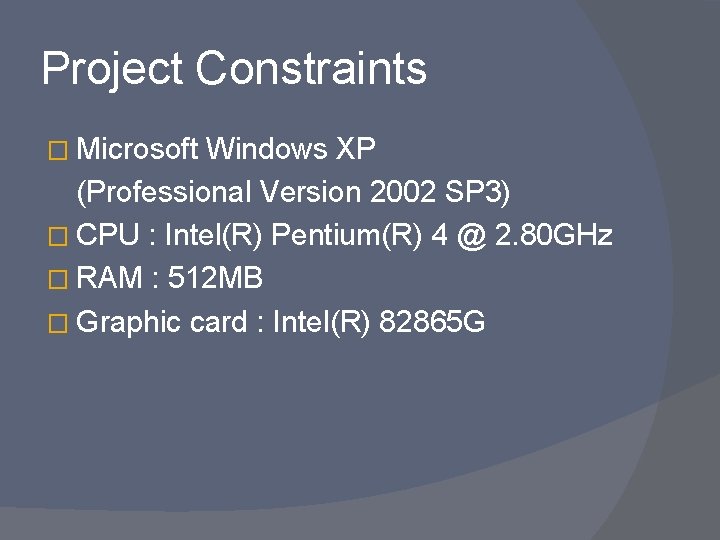

Project Constraints � Microsoft Windows XP (Professional Version 2002 SP 3) � CPU : Intel(R) Pentium(R) 4 @ 2. 80 GHz � RAM : 512 MB � Graphic card : Intel(R) 82865 G

Project Constraints � Target model: 177 bones 6 different animations

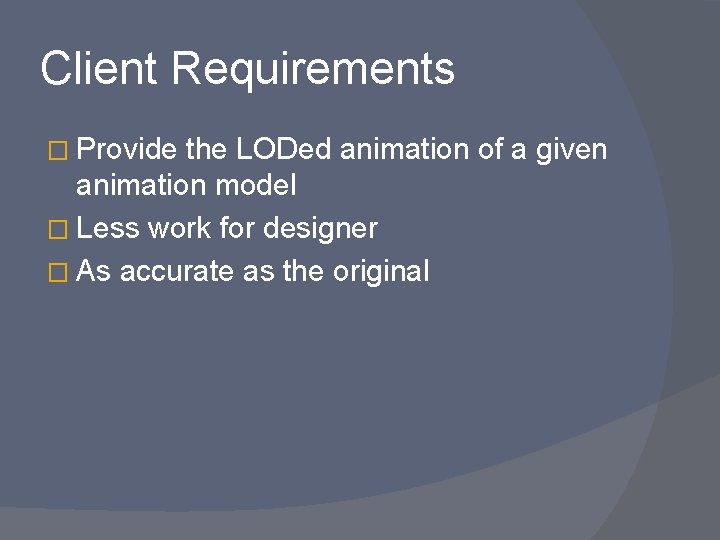

Client Requirements � Provide the LODed animation of a given animation model � Less work for designer � As accurate as the original

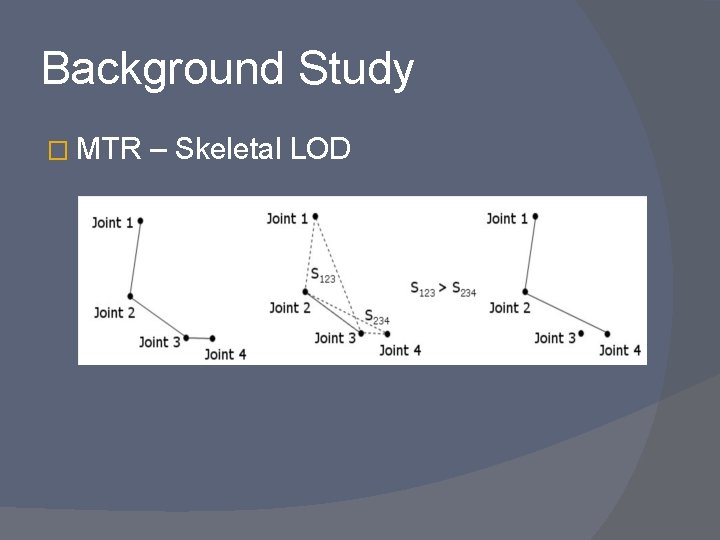

Background Study � MTR – Skeletal LOD

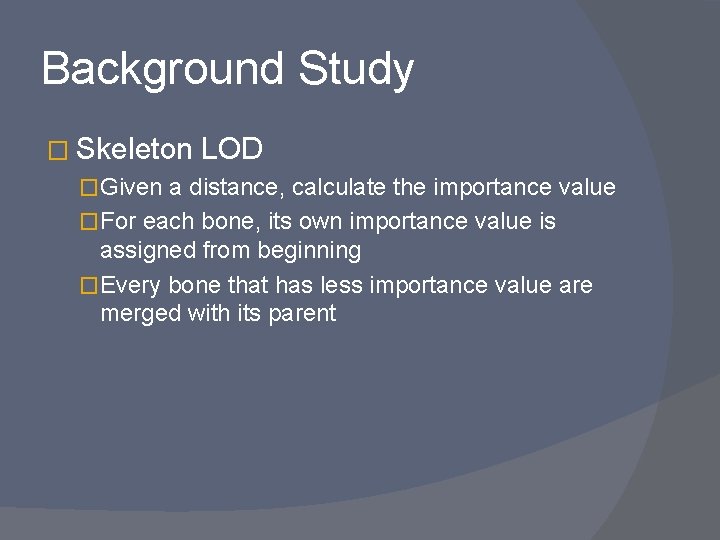

Background Study � Skeleton LOD �Given a distance, calculate the importance value �For each bone, its own importance value is assigned from beginning �Every bone that has less importance value are merged with its parent

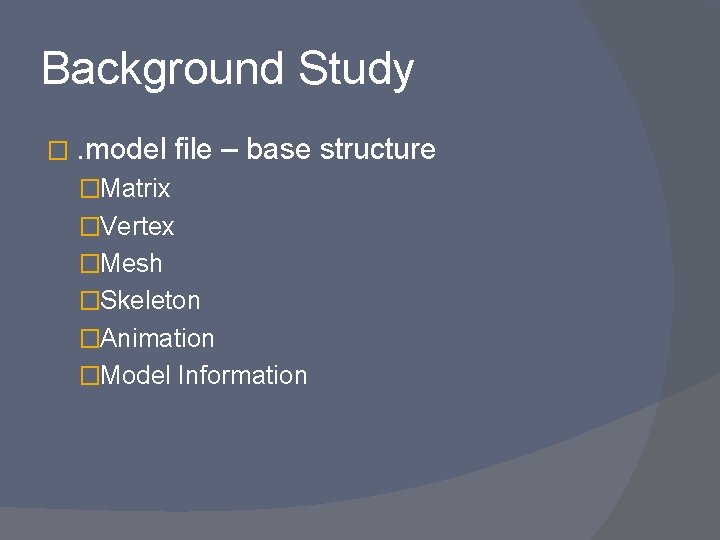

Background Study �. model file – base structure �Matrix �Vertex �Mesh �Skeleton �Animation �Model Information

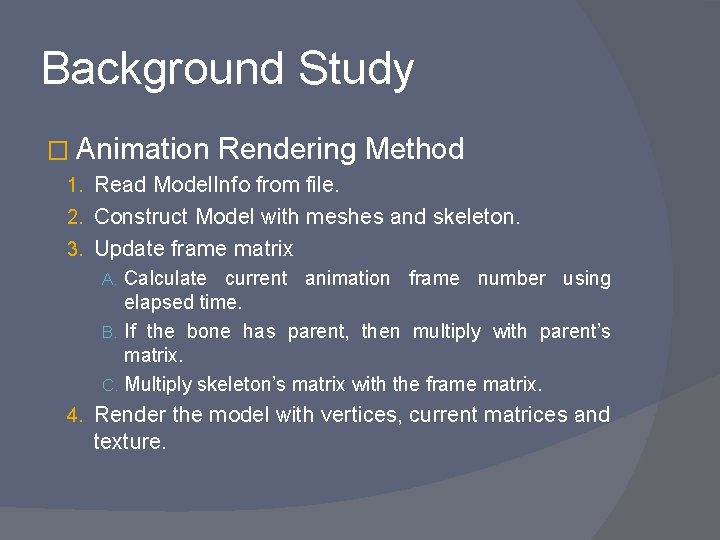

Background Study � Animation Rendering Method 1. Read Model. Info from file. 2. Construct Model with meshes and skeleton. 3. Update frame matrix A. Calculate current animation frame number using elapsed time. B. If the bone has parent, then multiply with parent’s matrix. C. Multiply skeleton’s matrix with the frame matrix. 4. Render the model with vertices, current matrices and texture.

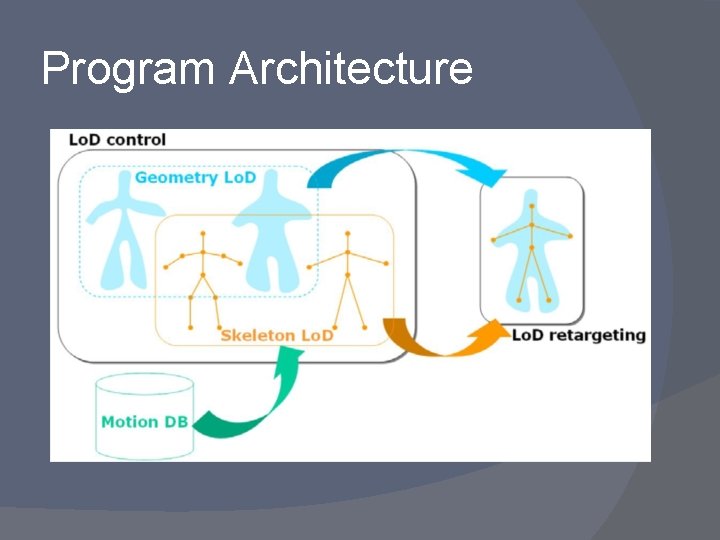

Program Architecture

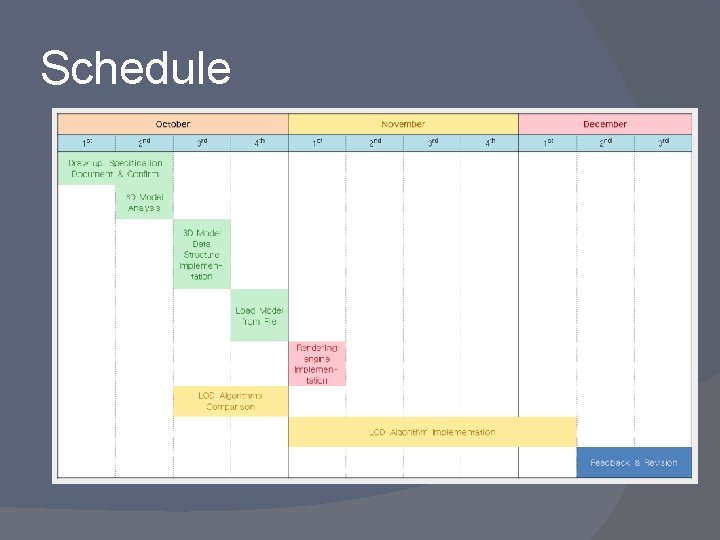

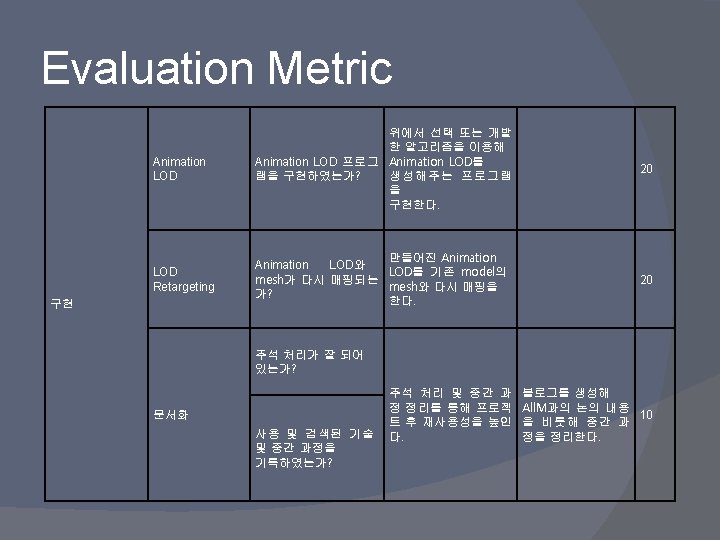

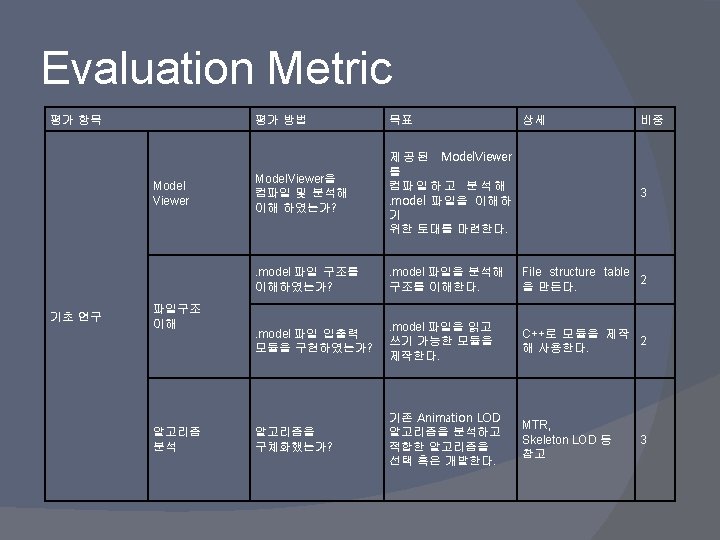

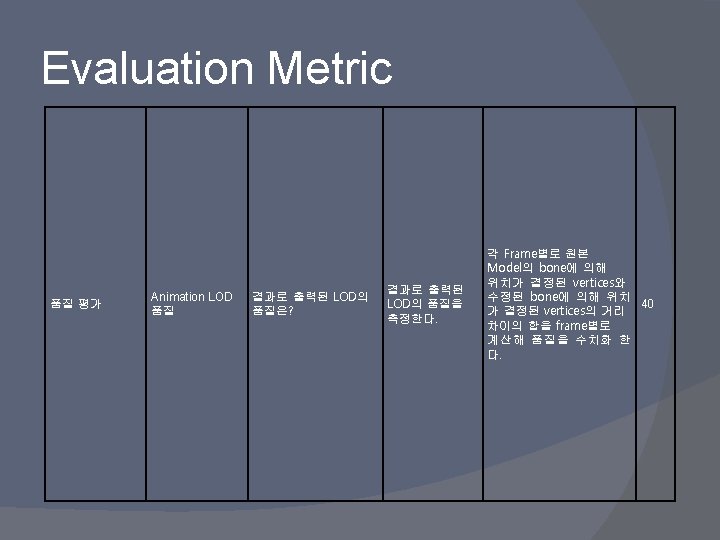

Schedule

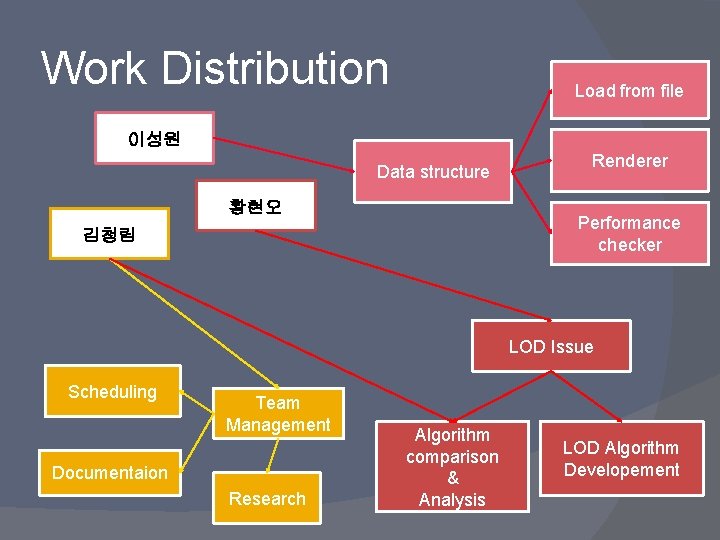

Work Distribution Load from file 이성원 Data structure 황현오 Renderer Performance checker 김청림 LOD Issue Scheduling Team Management Documentaion Research Algorithm comparison & Analysis LOD Algorithm Developement
