AnimalDairy Science 434 Male Reproductive Tract Anatomy Learning
- Slides: 33
Animal/Dairy Science 434 Male Reproductive Tract Anatomy

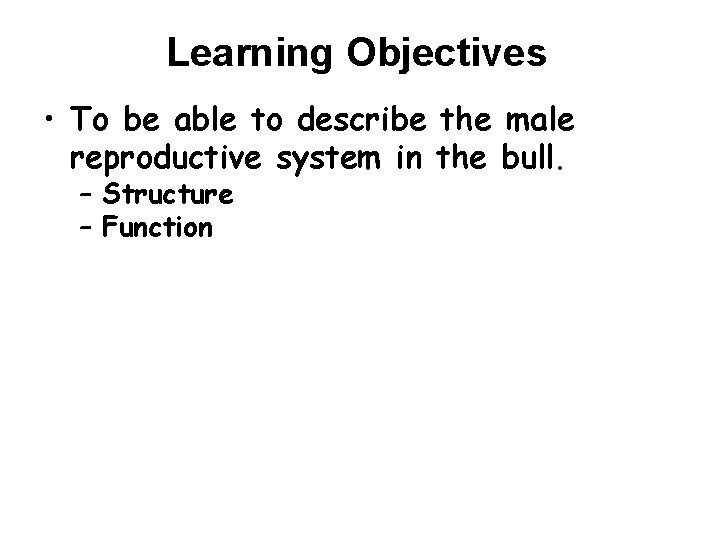

Learning Objectives • To be able to describe the male reproductive system in the bull. – Structure – Function

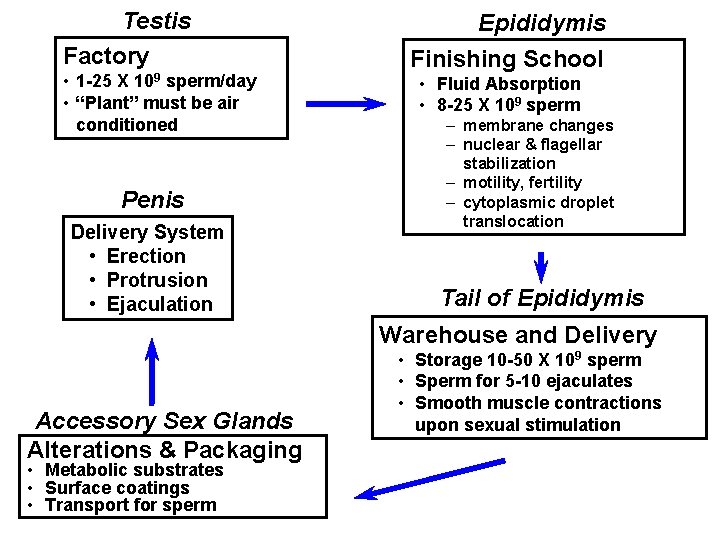

Testis Factory • 1 -25 X 109 sperm/day • “Plant” must be air conditioned Penis Delivery System • Erection • Protrusion • Ejaculation Epididymis Finishing School • Fluid Absorption • 8 -25 X 109 sperm – membrane changes – nuclear & flagellar stabilization – motility, fertility – cytoplasmic droplet translocation Tail of Epididymis Warehouse and Delivery Accessory Sex Glands Alterations & Packaging • Metabolic substrates • Surface coatings • Transport for sperm • Storage 10 -50 X 109 sperm • Sperm for 5 -10 ejaculates • Smooth muscle contractions upon sexual stimulation
Bull Reproductive Tract

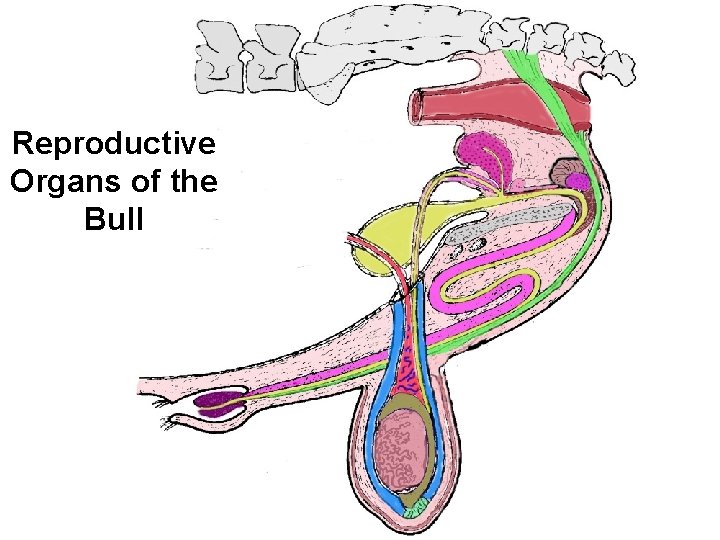

Reproductive Organs of the Bull

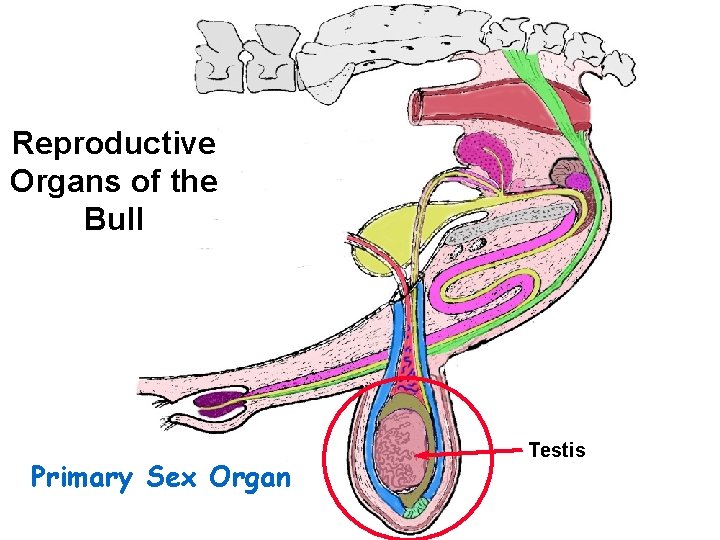

Reproductive Organs of the Bull Primary Sex Organ Testis
Bull Testis

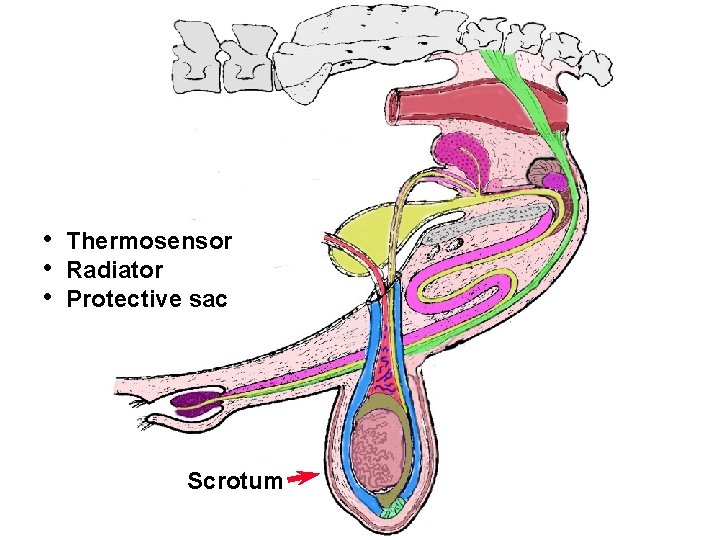

Bull Tract • • • Thermosensor Radiator Protective sac Scrotum

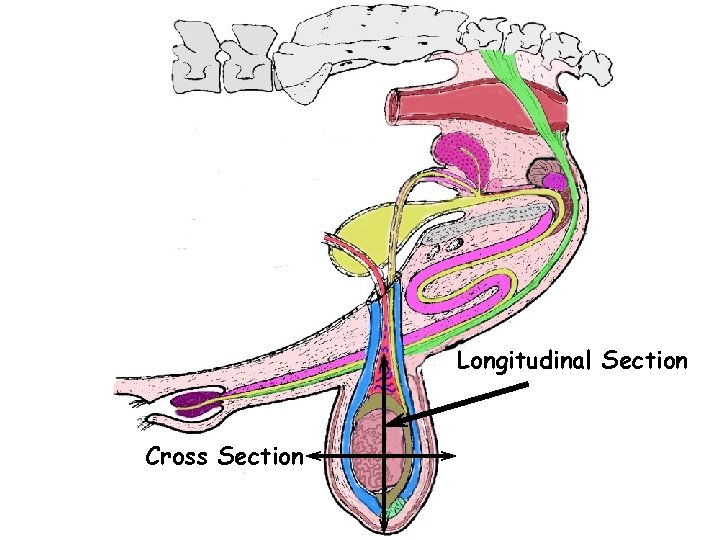

Bull Tract Longitudinal Section Cross Section

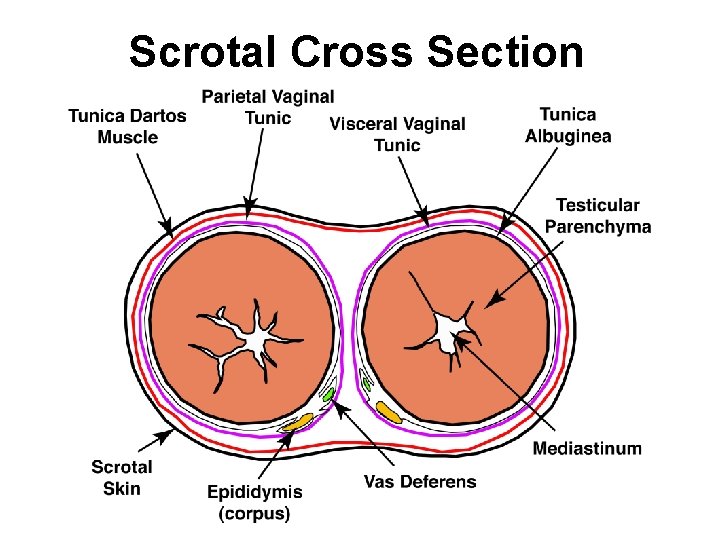

Scrotal Cross Section
Scrotal Longitudinal Section

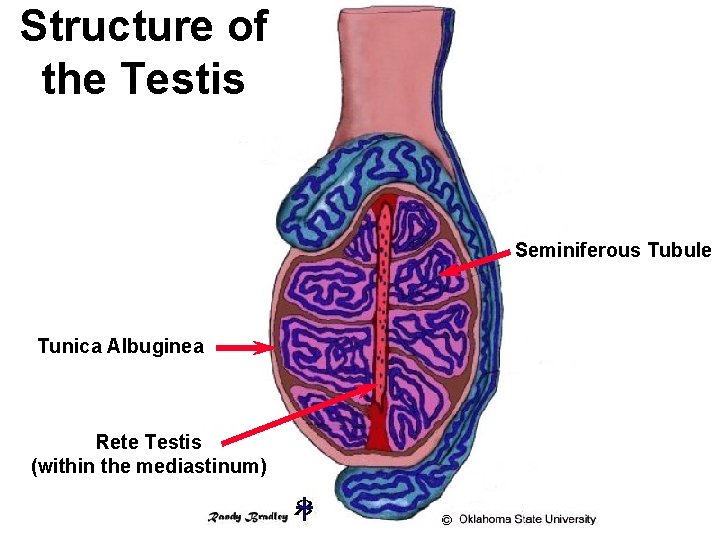

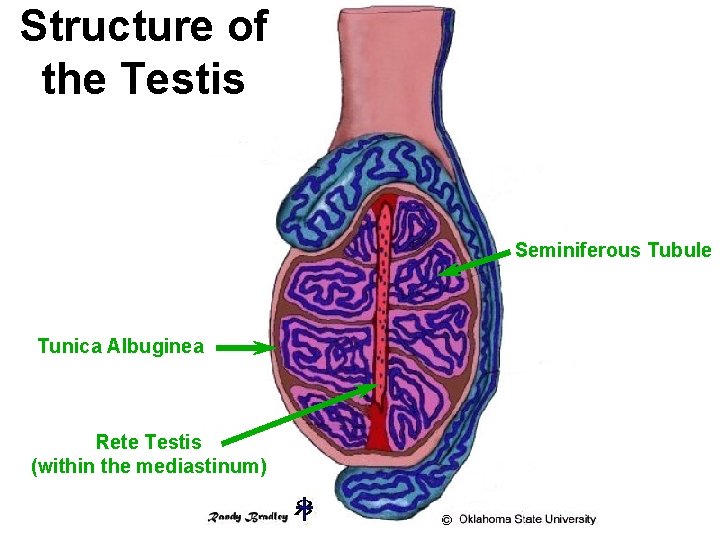

Structure of the Testis Seminiferous Tubule Tunica Albuginea Rete Testis (within the mediastinum)

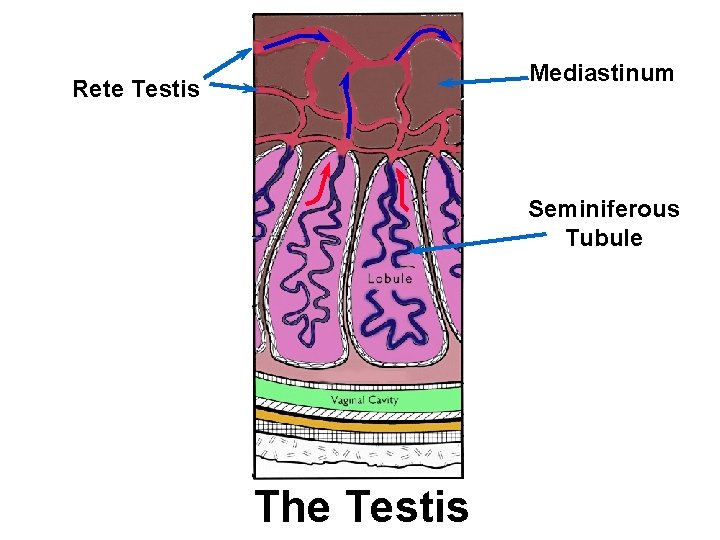

Mediastinum Rete Testis Seminiferous Tubule The Testis
Structure of the Testis Seminiferous Tubule Tunica Albuginea Rete Testis (within the mediastinum)

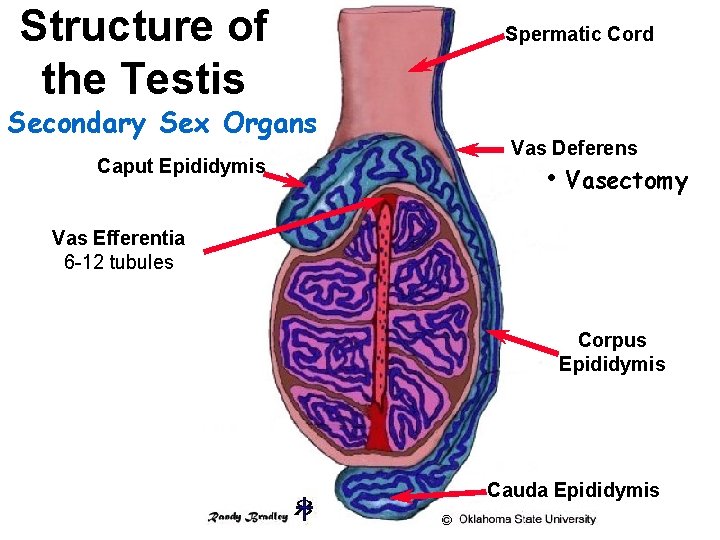

Structure of the Testis Secondary Sex Organs Caput Epididymis Spermatic Cord Vas Deferens • Vasectomy Vas Efferentia 6 -12 tubules Corpus Epididymis Cauda Epididymis

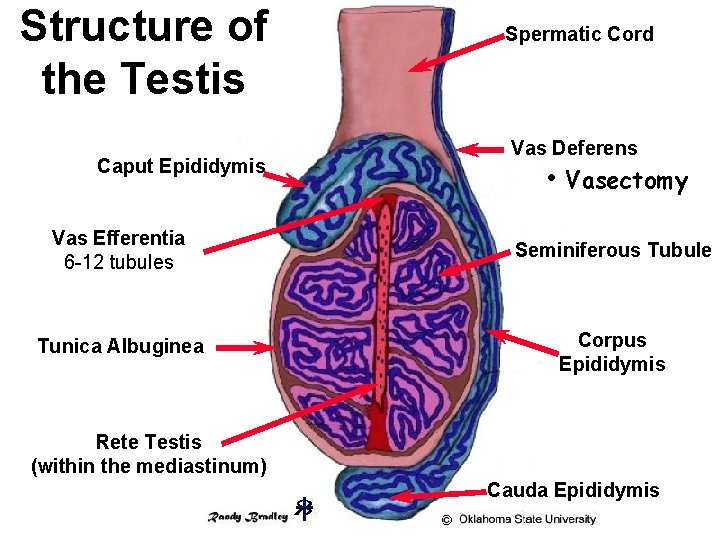

Structure of the Testis Caput Epididymis Spermatic Cord Vas Deferens • Vasectomy Vas Efferentia 6 -12 tubules Seminiferous Tubule Tunica Albuginea Corpus Epididymis Rete Testis (within the mediastinum) Cauda Epididymis

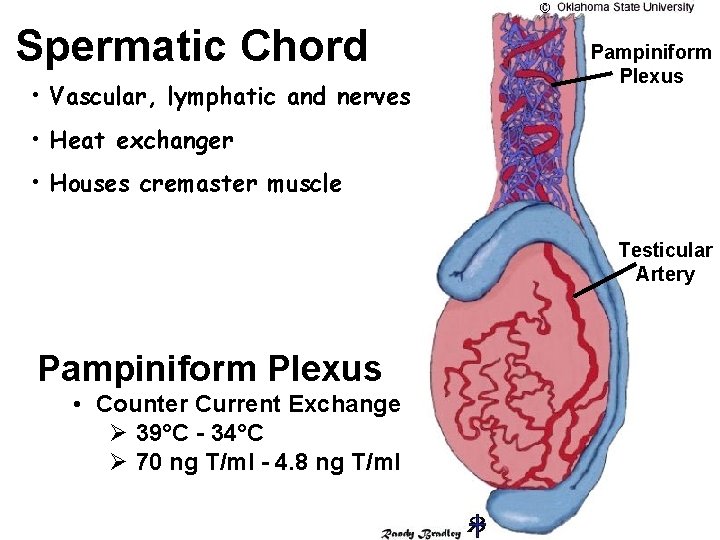

Spermatic Chord • Vascular, lymphatic and nerves Pampiniform Plexus • Heat exchanger • Houses cremaster muscle Testicular Artery Pampiniform Plexus • Counter Current Exchange Ø 39°C - 34°C Ø 70 ng T/ml - 4. 8 ng T/ml

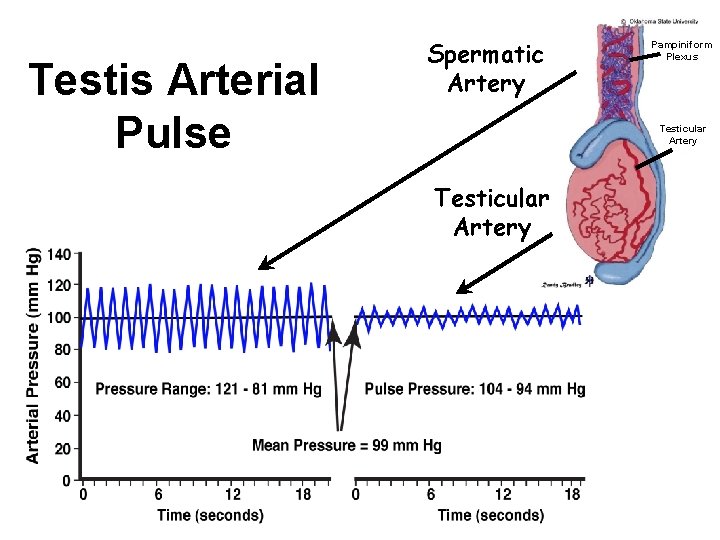

Testis Arterial Pulse Spermatic Artery Pampiniform Plexus Testicular Artery
Spermatic Chord Pampiniform Plexus
Bull Tract Tunica Dartos

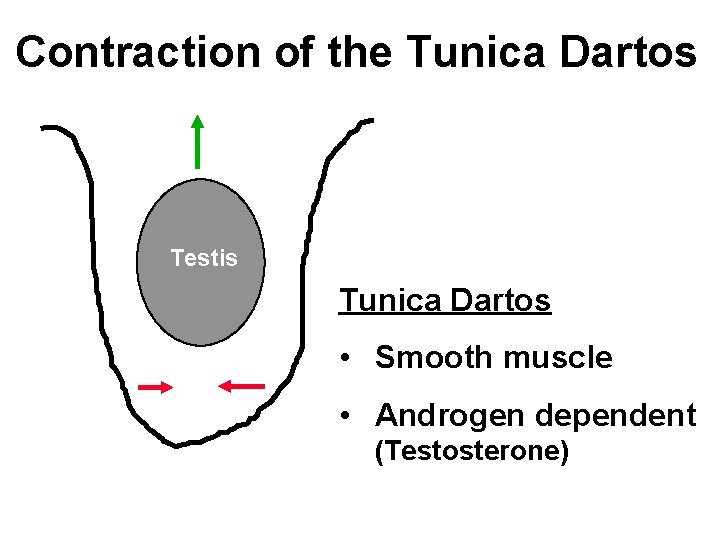

Contraction of the Tunica Dartos Testis Tunica Dartos • Smooth muscle • Androgen dependent (Testosterone)

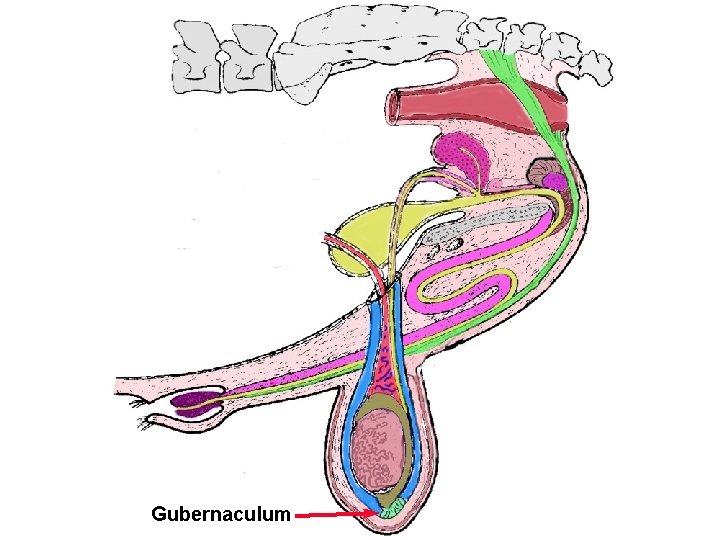

Bull Tract Gubernaculum

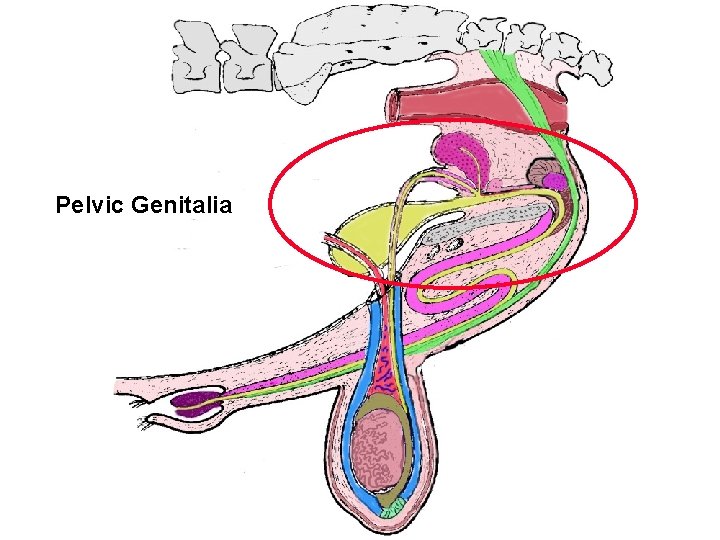

Bull Tract Pelvic Genitalia

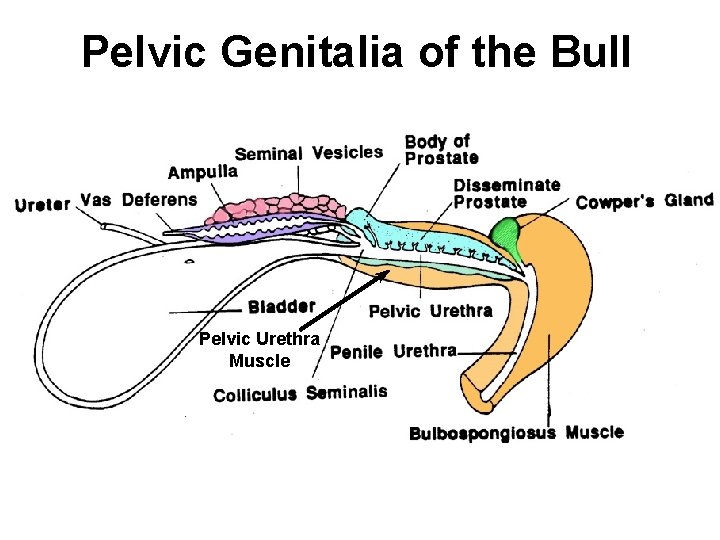

Pelvic Genitalia of the Bull Pelvic Urethra Muscle
Bull

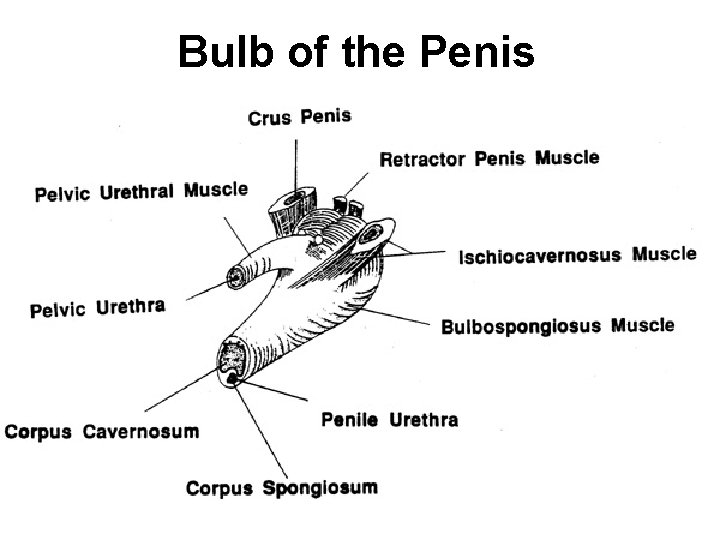

Bulb of the Penis

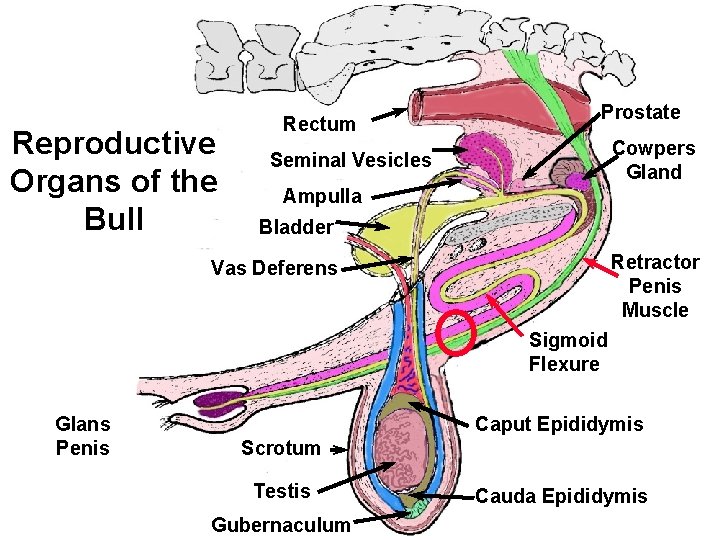

Reproductive Organs of the Bull Rectum Prostate Cowpers Gland Seminal Vesicles Ampulla Bladder Retractor Penis Muscle Vas Deferens Sigmoid Flexure Glans Penis Caput Epididymis Scrotum Testis Gubernaculum Cauda Epididymis

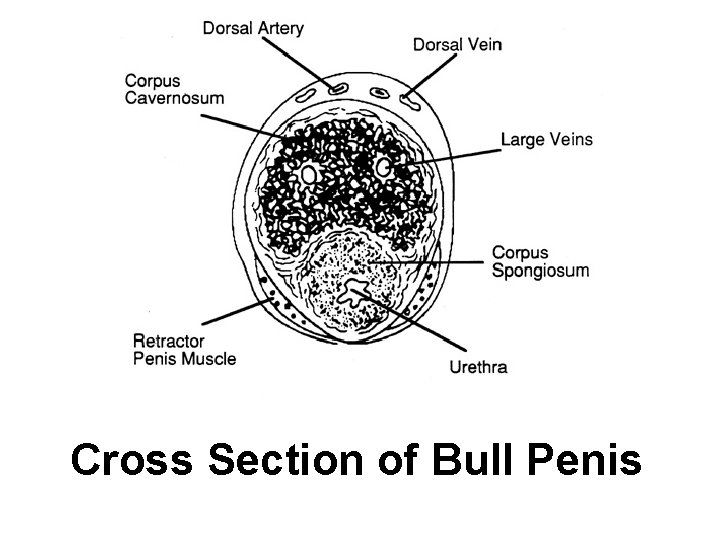

Cross Section of Bull Penis
Penis Cross Section

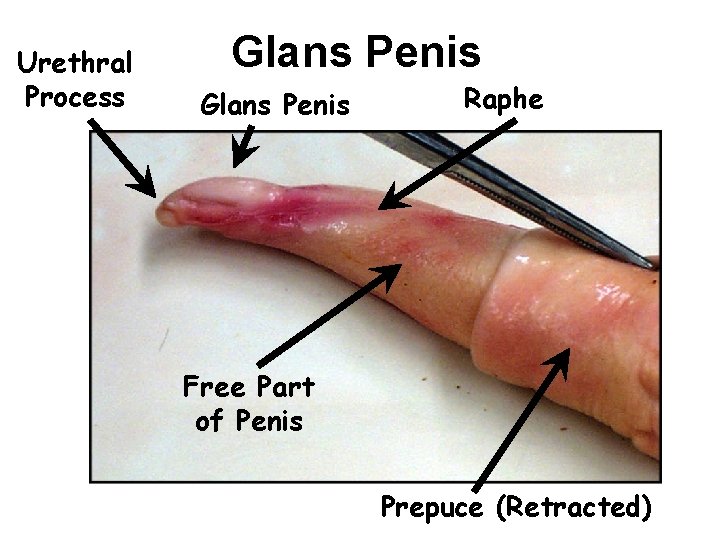

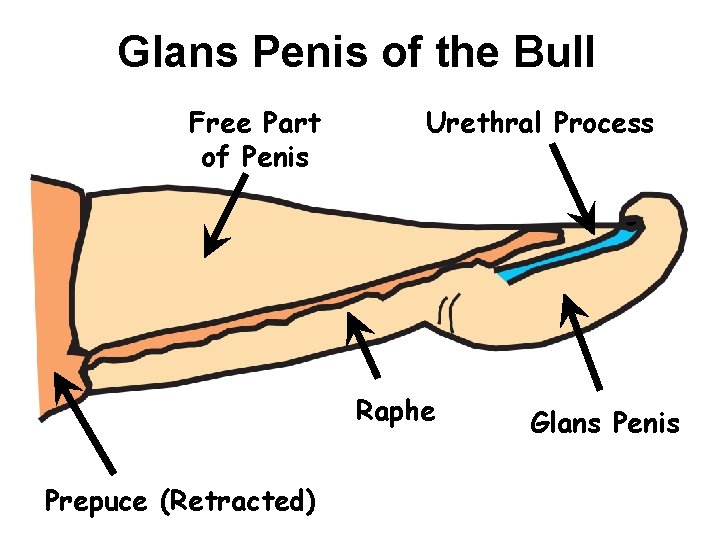

Glans Penis of the Bull Free Part of Penis Urethral Process Raphe Prepuce (Retracted) Glans Penis
Urethral Process Glans Penis Raphe Free Part of Penis Prepuce (Retracted)

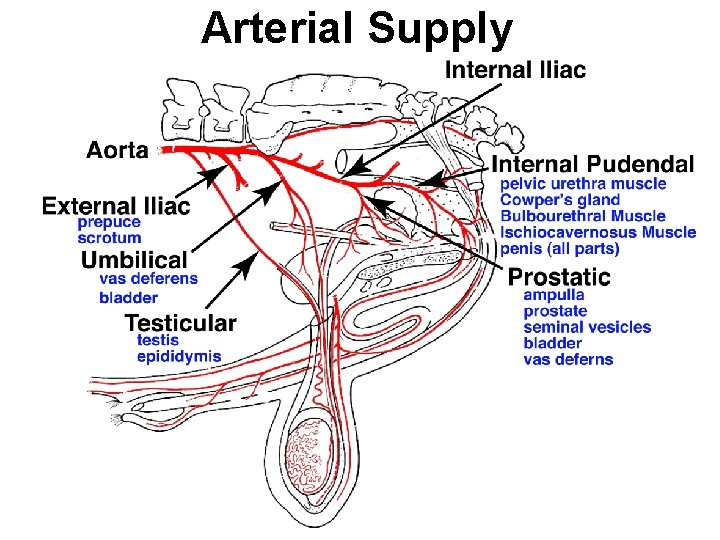

Arterial Supply

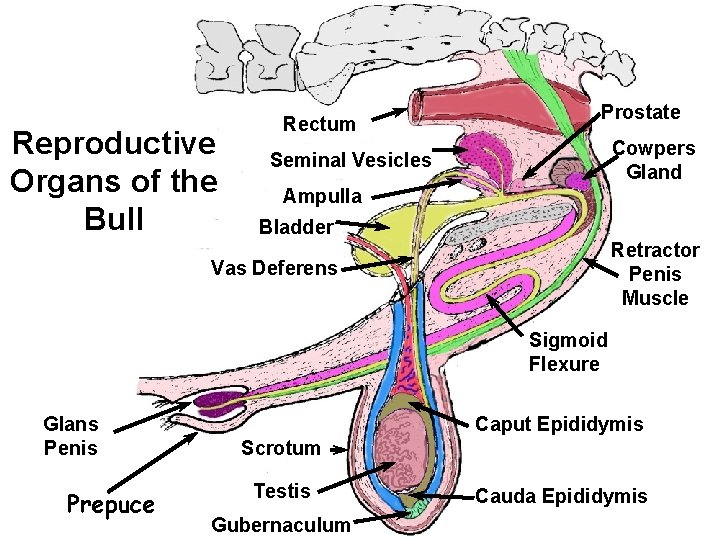

Reproductive Organs of the Bull Rectum Prostate Cowpers Gland Seminal Vesicles Ampulla Bladder Retractor Penis Muscle Vas Deferens Sigmoid Flexure Glans Penis Prepuce Caput Epididymis Scrotum Testis Gubernaculum Cauda Epididymis
