Animal Cell Chromatin DNA deoxyribonucleic acid BasesBase Pairs

Animal Cell Chromatin

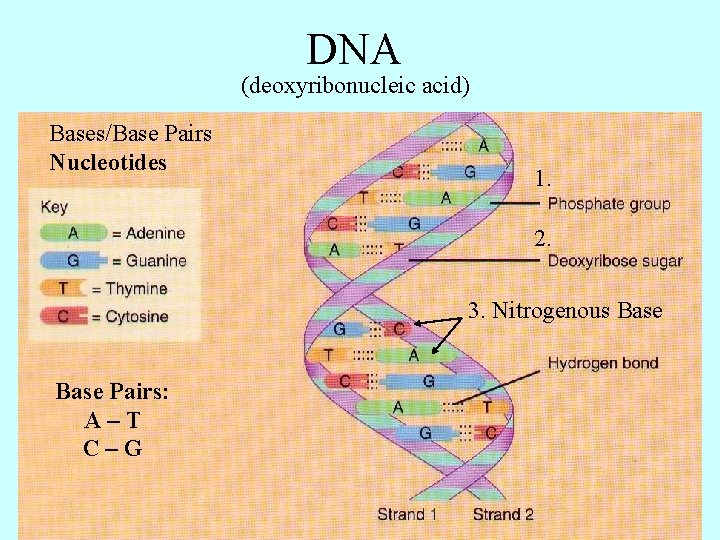

DNA (deoxyribonucleic acid) Bases/Base Pairs Nucleotides 1. 2. 3. Nitrogenous Base Pairs: A–T C–G

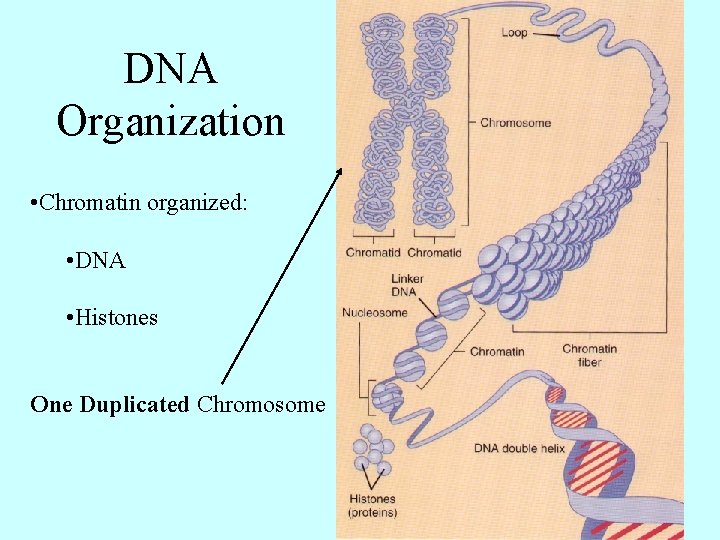

DNA Organization • Chromatin organized: • DNA • Histones One Duplicated Chromosome

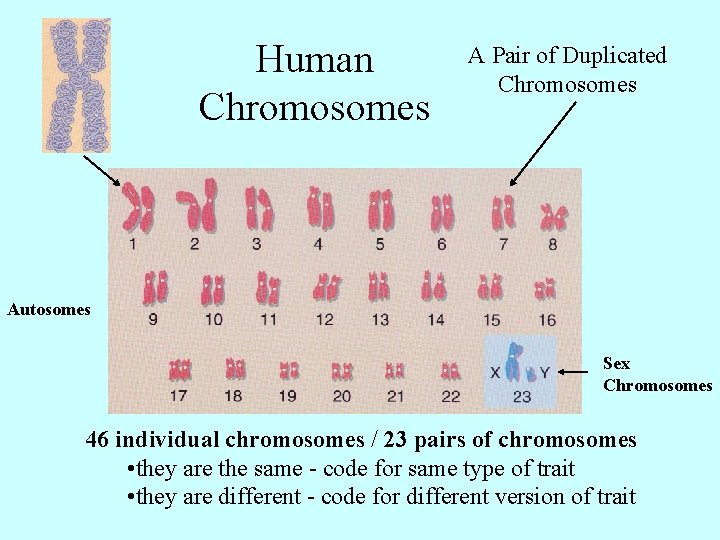

Human Chromosomes A Pair of Duplicated Chromosomes Autosomes Sex Chromosomes 46 individual chromosomes / 23 pairs of chromosomes • they are the same - code for same type of trait • they are different - code for different version of trait

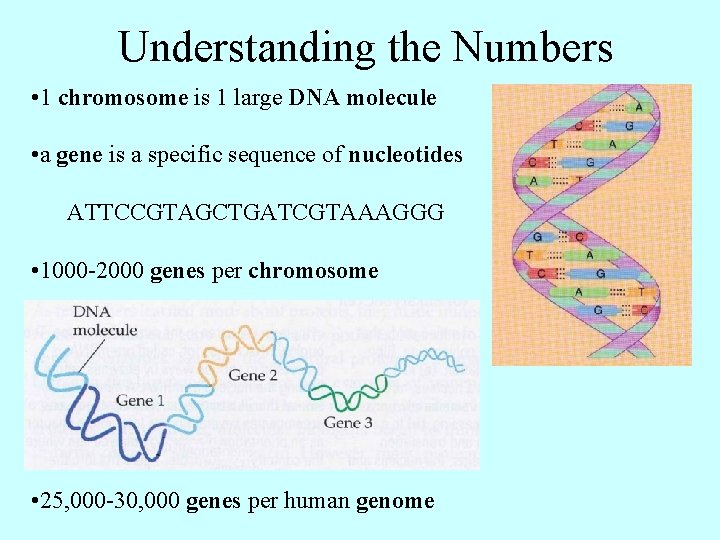

Understanding the Numbers • 1 chromosome is 1 large DNA molecule • a gene is a specific sequence of nucleotides ATTCCGTAGCTGATCGTAAAGGG • 1000 -2000 genes per chromosome • 25, 000 -30, 000 genes per human genome

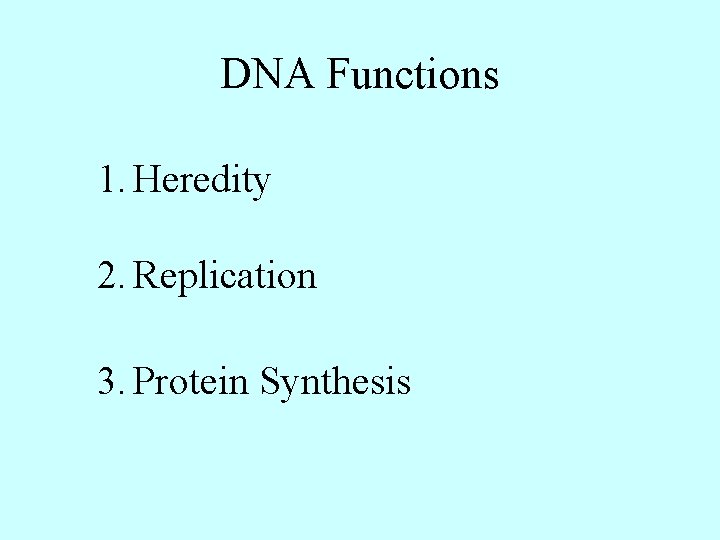

DNA Functions 1. Heredity 2. Replication 3. Protein Synthesis

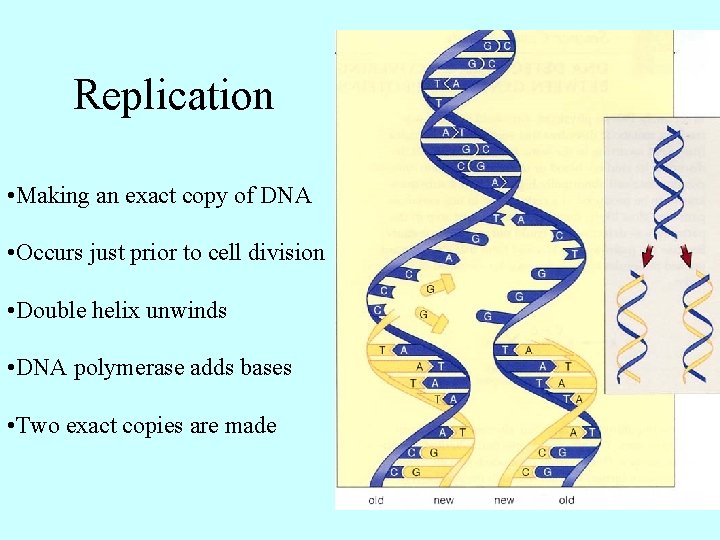

Replication • Making an exact copy of DNA • Occurs just prior to cell division • Double helix unwinds • DNA polymerase adds bases • Two exact copies are made

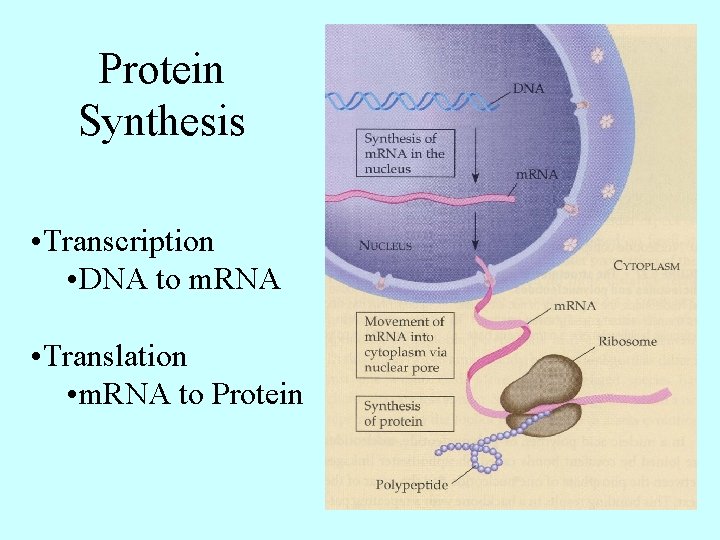

Protein Synthesis • Transcription • DNA to m. RNA • Translation • m. RNA to Protein

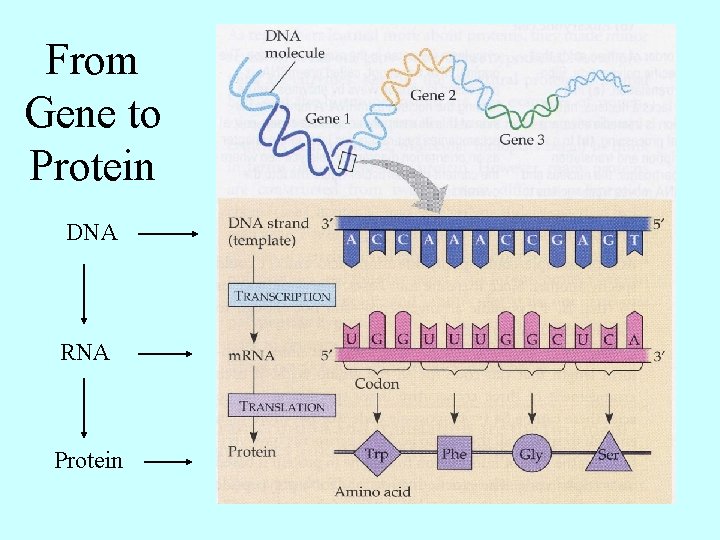

From Gene to Protein DNA RNA Protein

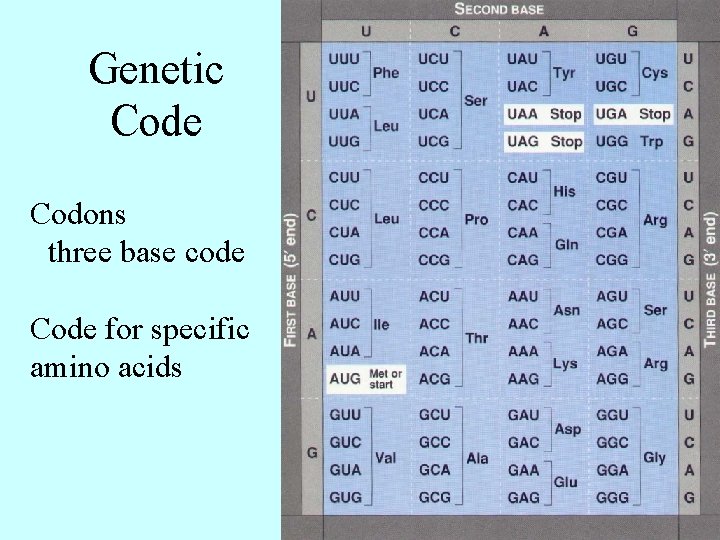

Genetic Code Codons three base code Code for specific amino acids

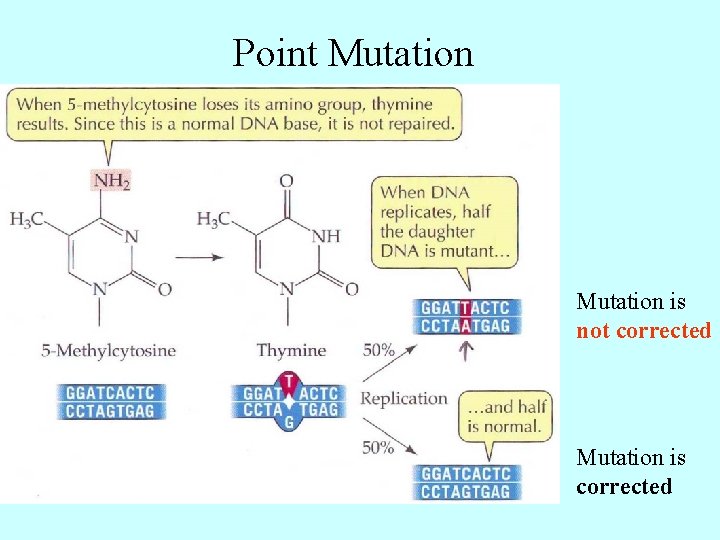

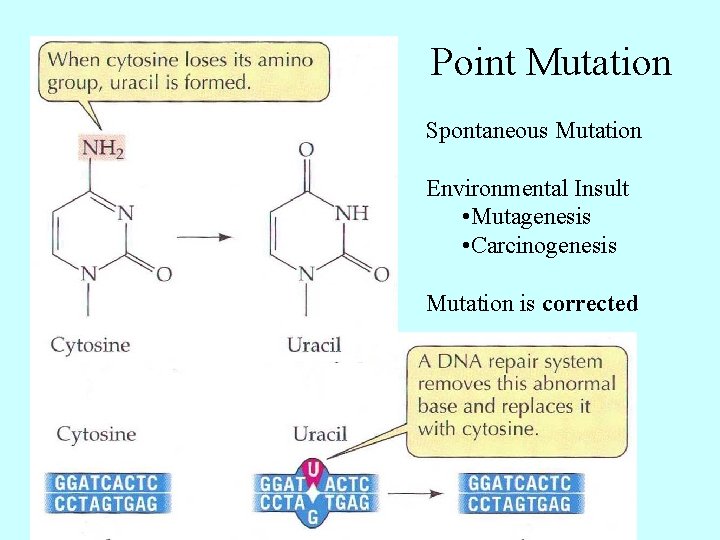

Point Mutation Spontaneous Mutation Environmental Insult • Mutagenesis • Carcinogenesis Mutation is corrected

Point Mutation is not corrected Mutation is corrected

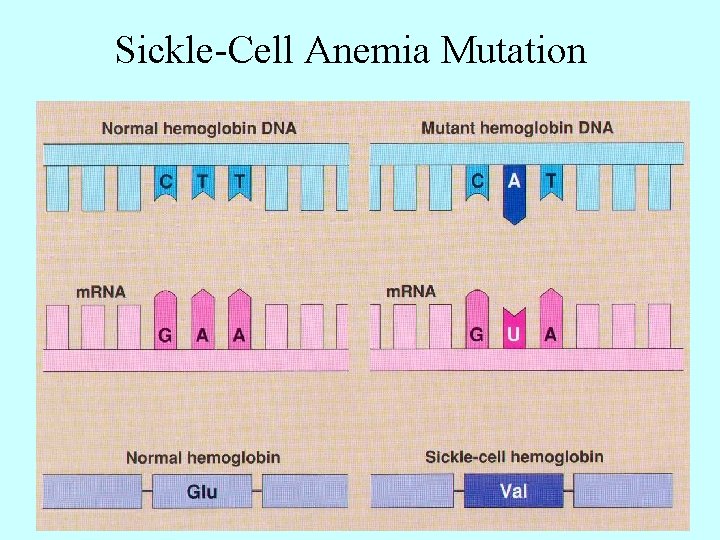

Sickle-Cell Anemia Mutation

Sickle-Cell Anemia Mutation

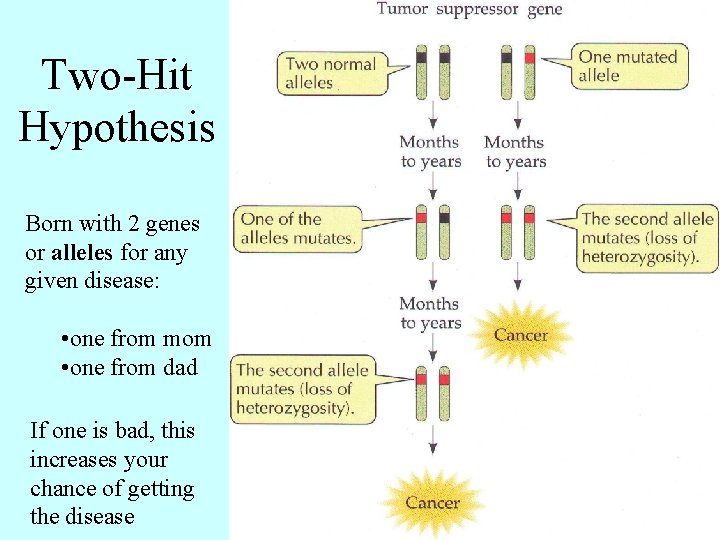

Two-Hit Hypothesis Born with 2 genes or alleles for any given disease: • one from mom • one from dad If one is bad, this increases your chance of getting the disease

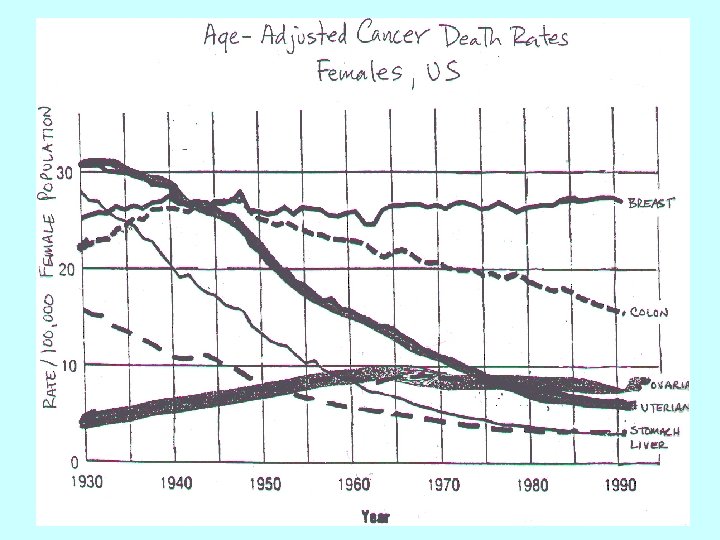

Cancer in Women

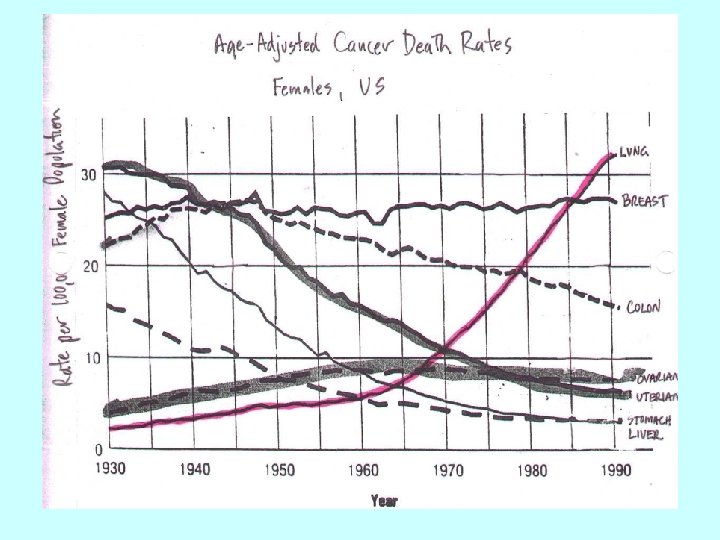

Lung Cancer

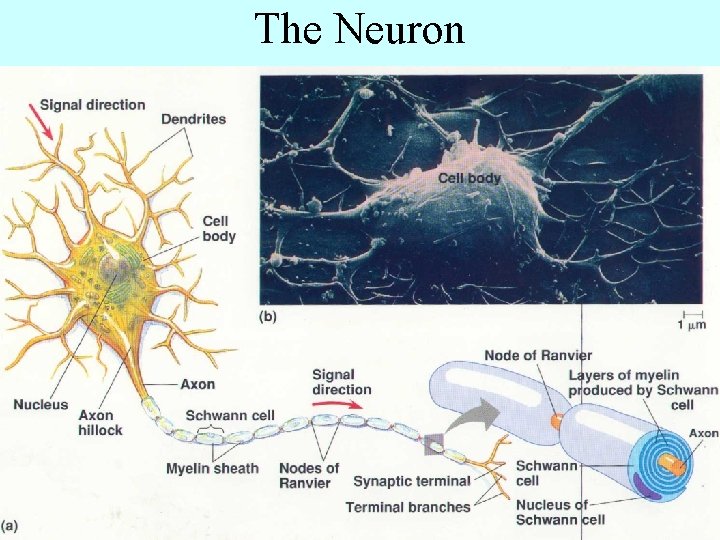

The Neuron

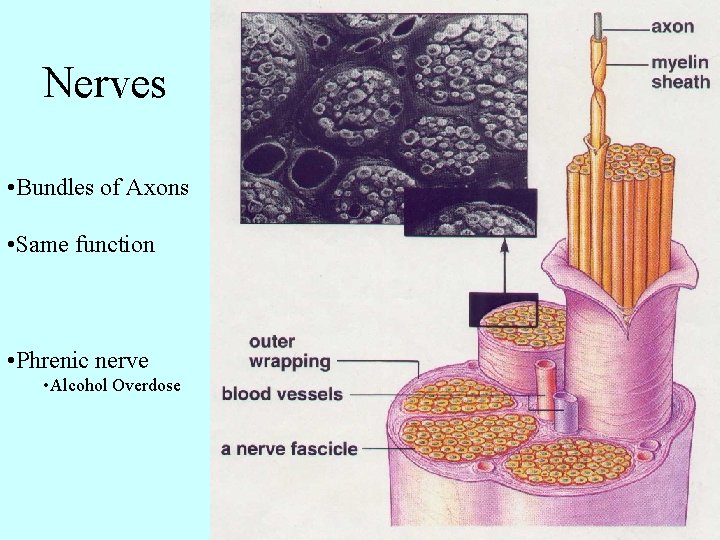

Nerves • Bundles of Axons • Same function • Phrenic nerve • Alcohol Overdose

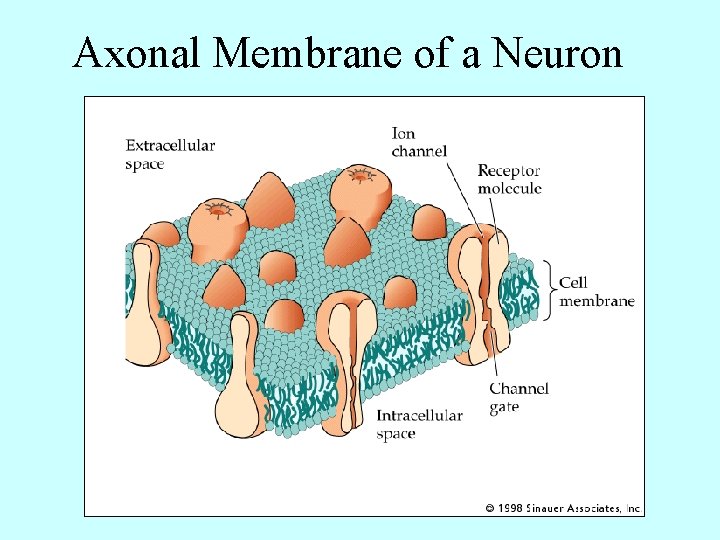

Axonal Membrane of a Neuron

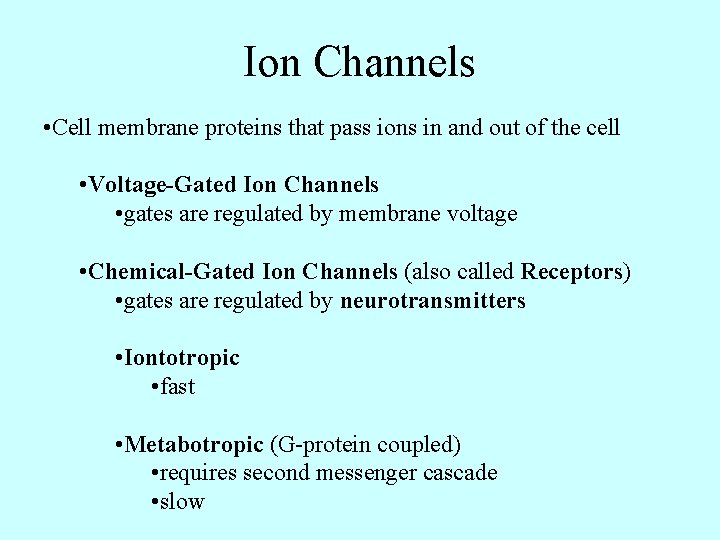

Ion Channels • Cell membrane proteins that pass ions in and out of the cell • Voltage-Gated Ion Channels • gates are regulated by membrane voltage • Chemical-Gated Ion Channels (also called Receptors) • gates are regulated by neurotransmitters • Iontotropic • fast • Metabotropic (G-protein coupled) • requires second messenger cascade • slow

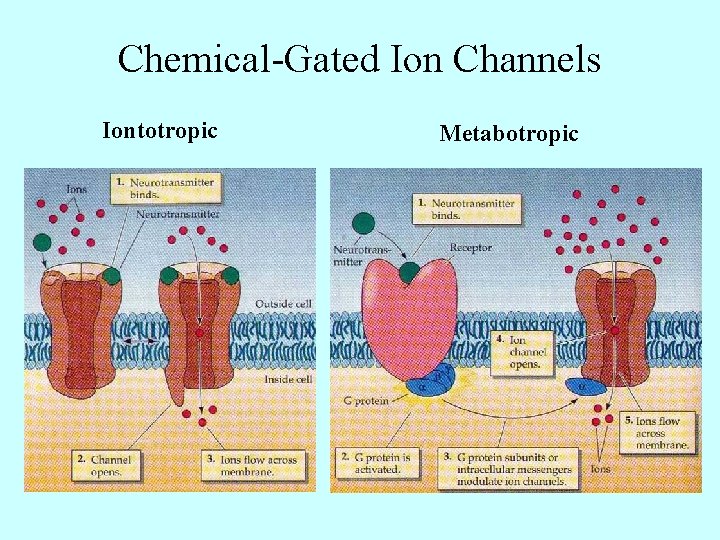

Chemical-Gated Ion Channels Iontotropic Metabotropic

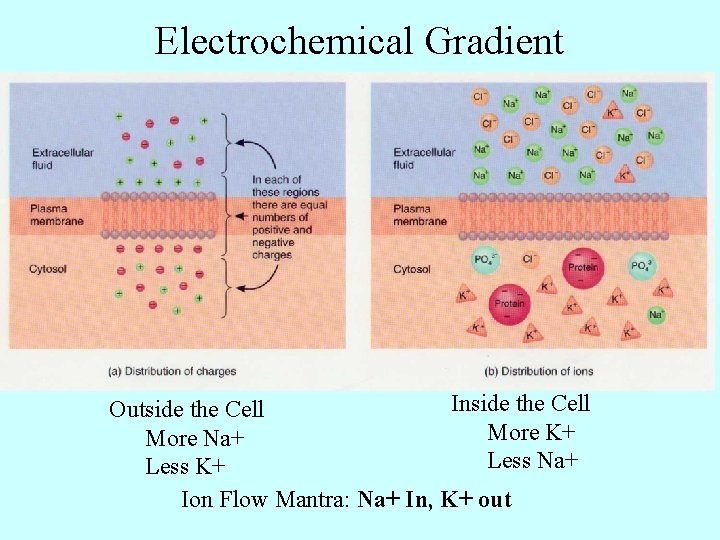

Electrochemical Gradient Inside the Cell Outside the Cell More K+ More Na+ Less K+ Ion Flow Mantra: Na+ In, K+ out

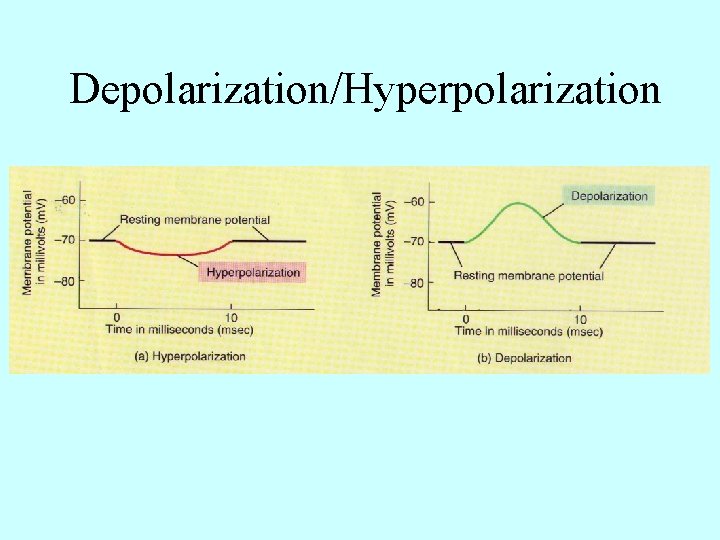

Depolarization/Hyperpolarization

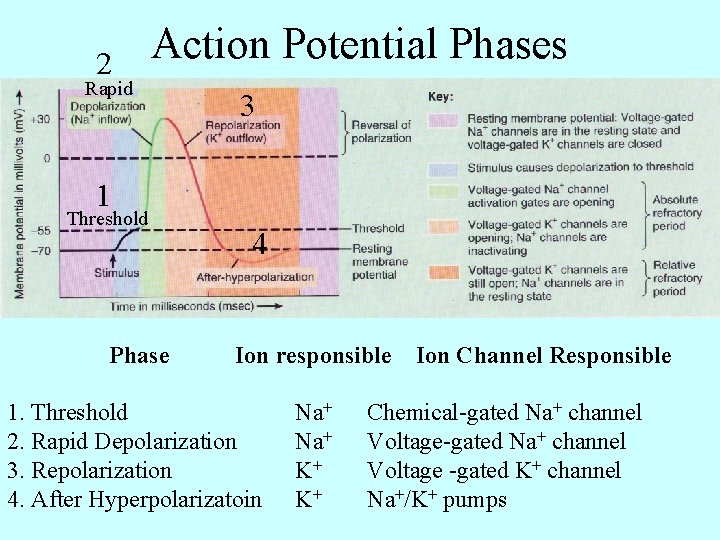

2 Action Potential Phases Rapid 3 1 Threshold Phase 4 Ion responsible 1. Threshold 2. Rapid Depolarization 3. Repolarization 4. After Hyperpolarizatoin Na+ K+ K+ Ion Channel Responsible Chemical-gated Na+ channel Voltage -gated K+ channel Na+/K+ pumps

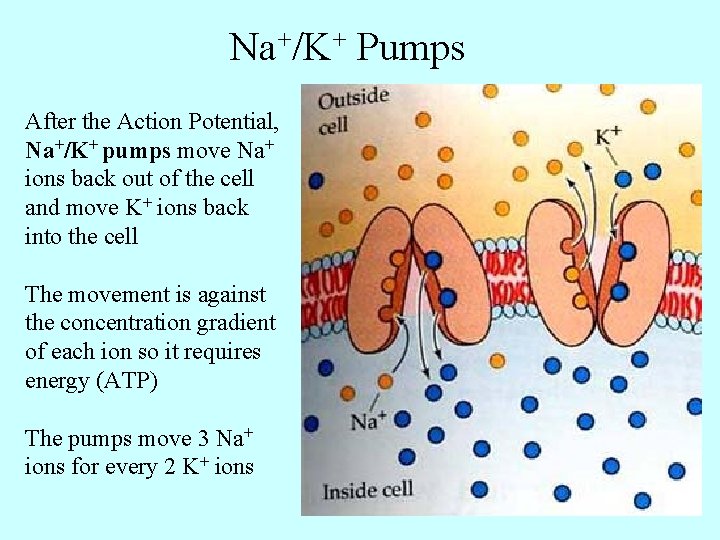

Na+/K+ Pumps After the Action Potential, Na+/K+ pumps move Na+ ions back out of the cell and move K+ ions back into the cell The movement is against the concentration gradient of each ion so it requires energy (ATP) The pumps move 3 Na+ ions for every 2 K+ ions

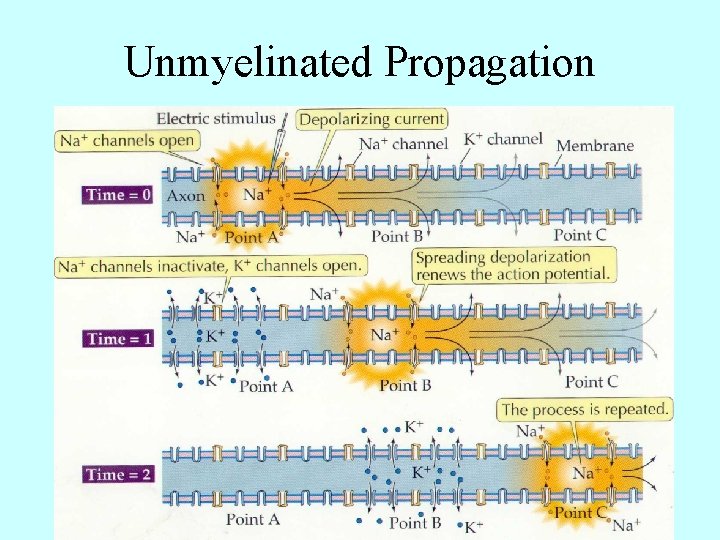

Unmyelinated Propagation

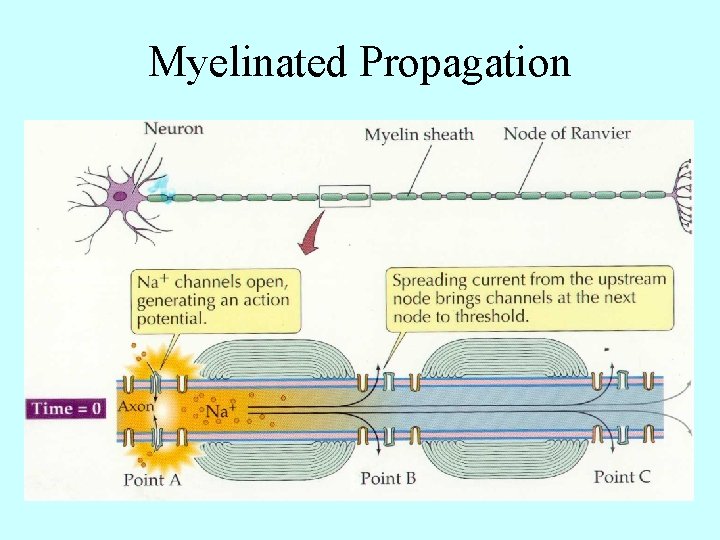

Myelinated Propagation

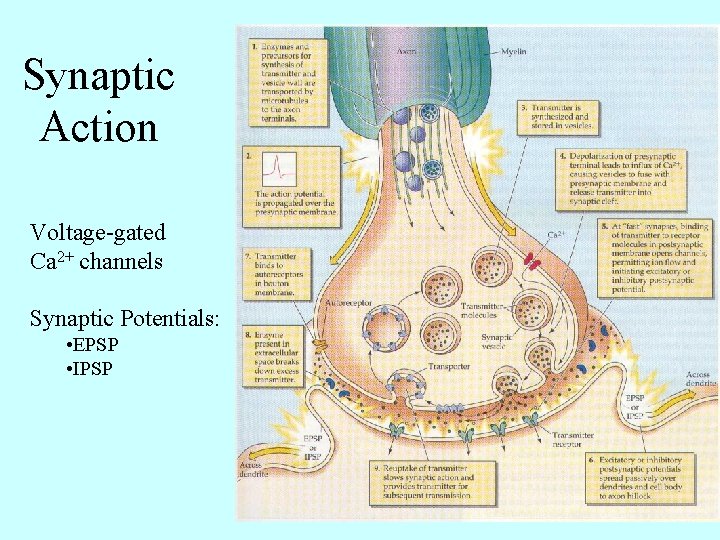

Synaptic Action Voltage-gated Ca 2+ channels Synaptic Potentials: • EPSP • IPSP

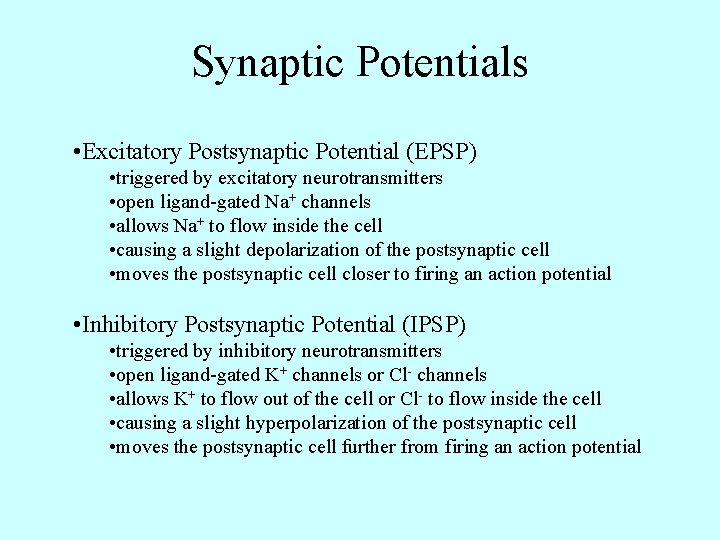

Synaptic Potentials • Excitatory Postsynaptic Potential (EPSP) • triggered by excitatory neurotransmitters • open ligand-gated Na+ channels • allows Na+ to flow inside the cell • causing a slight depolarization of the postsynaptic cell • moves the postsynaptic cell closer to firing an action potential • Inhibitory Postsynaptic Potential (IPSP) • triggered by inhibitory neurotransmitters • open ligand-gated K+ channels or Cl- channels • allows K+ to flow out of the cell or Cl- to flow inside the cell • causing a slight hyperpolarization of the postsynaptic cell • moves the postsynaptic cell further from firing an action potential

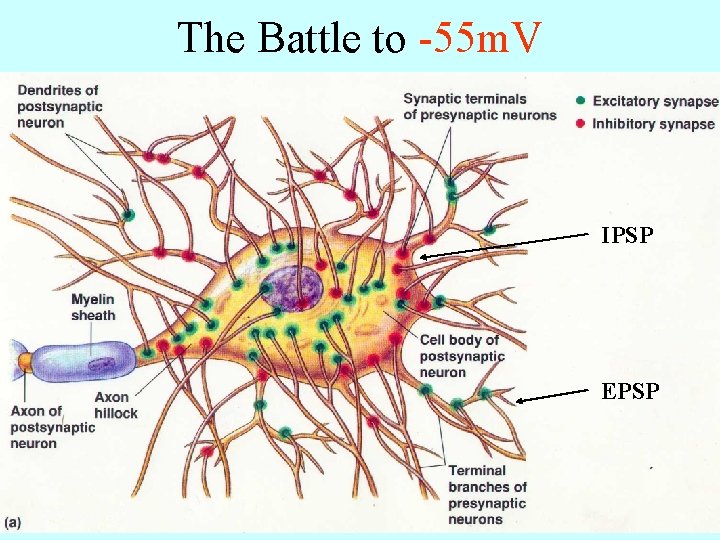

The Battle to -55 m. V IPSP EPSP

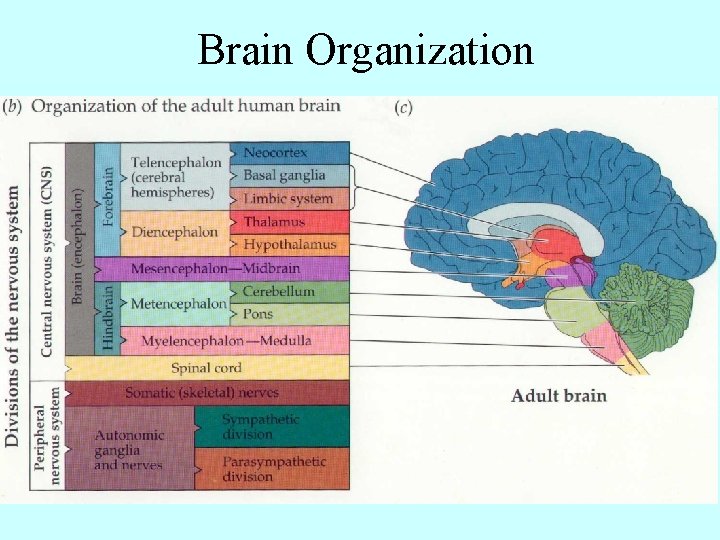

Brain Organization

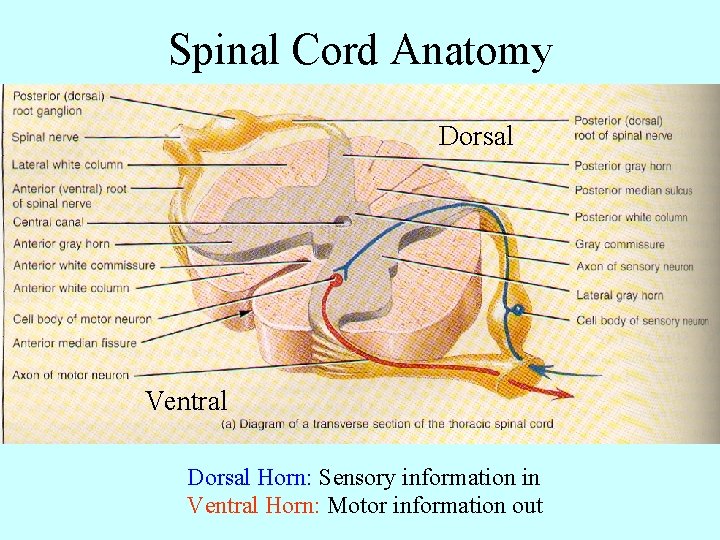

Spinal Cord Anatomy Dorsal Ventral Dorsal Horn: Sensory information in Ventral Horn: Motor information out

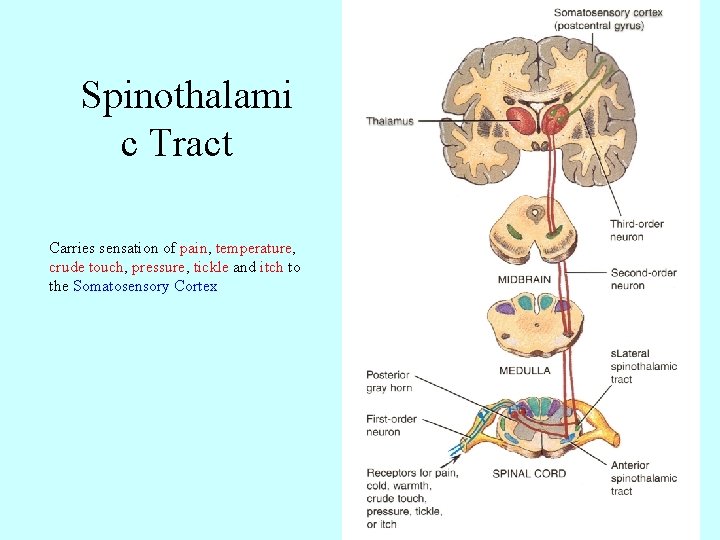

Spinothalami c Tract Carries sensation of pain, temperature, crude touch, pressure, tickle and itch to the Somatosensory Cortex

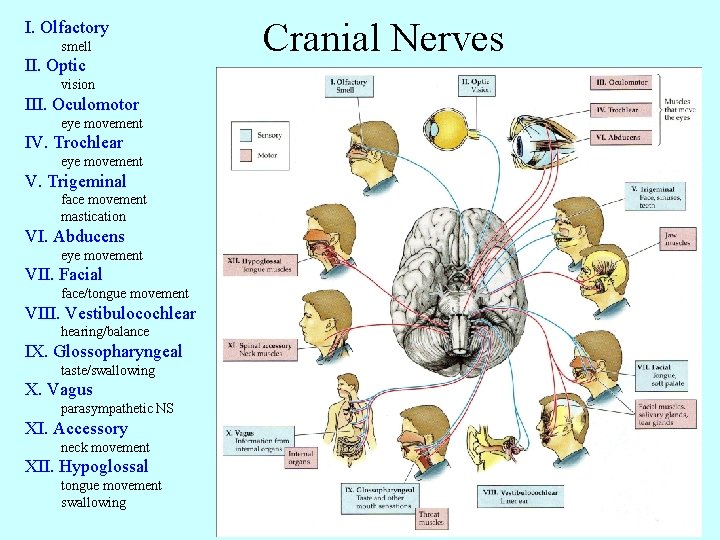

I. Olfactory smell II. Optic vision III. Oculomotor eye movement IV. Trochlear eye movement V. Trigeminal face movement mastication VI. Abducens eye movement VII. Facial face/tongue movement VIII. Vestibulocochlear hearing/balance IX. Glossopharyngeal taste/swallowing X. Vagus parasympathetic NS XI. Accessory neck movement XII. Hypoglossal tongue movement swallowing Cranial Nerves

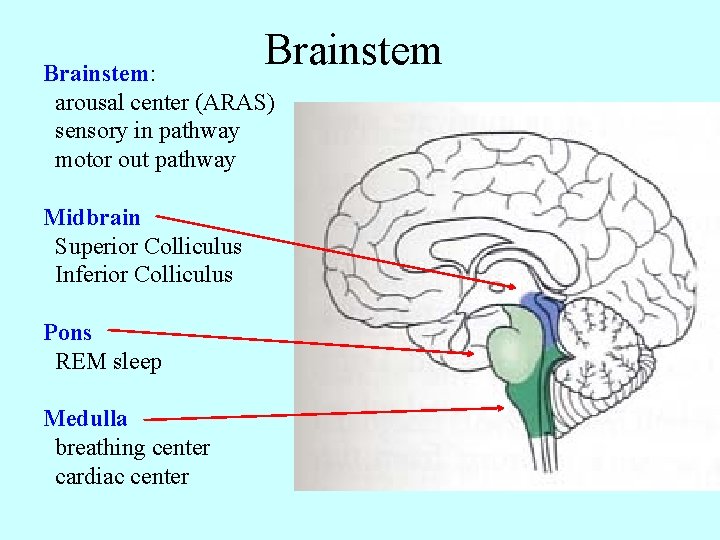

Brainstem: arousal center (ARAS) sensory in pathway motor out pathway Midbrain Superior Colliculus Inferior Colliculus Pons REM sleep Medulla breathing center cardiac center

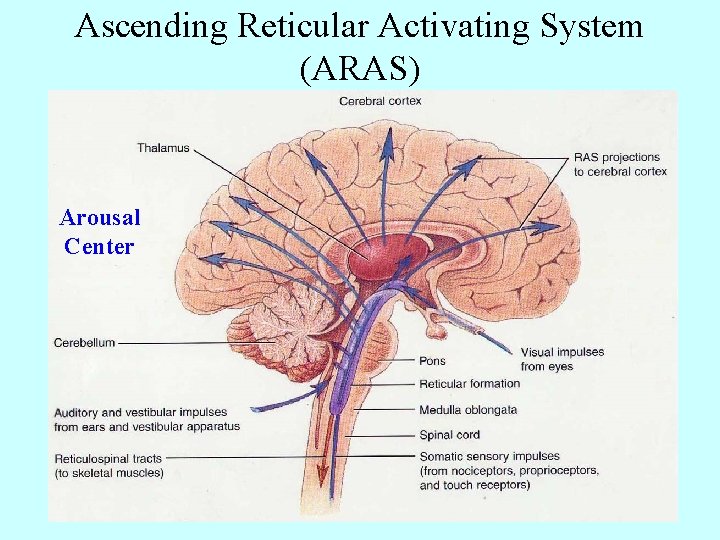

Ascending Reticular Activating System (ARAS) Arousal Center

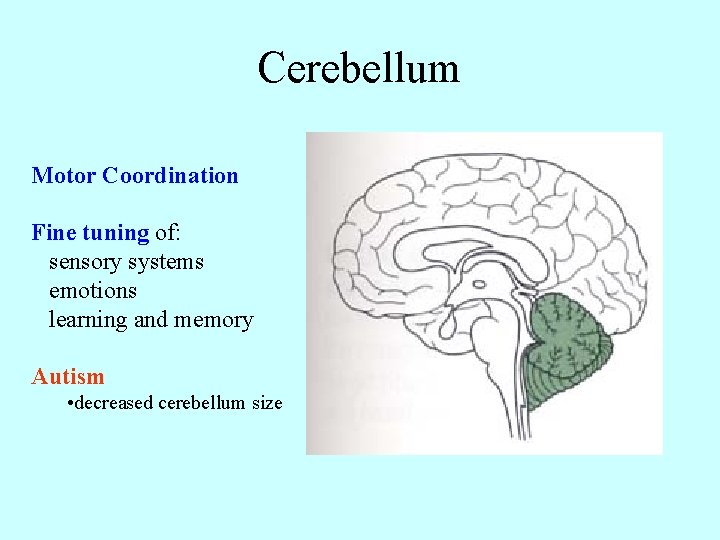

Cerebellum Motor Coordination Fine tuning of: sensory systems emotions learning and memory Autism • decreased cerebellum size

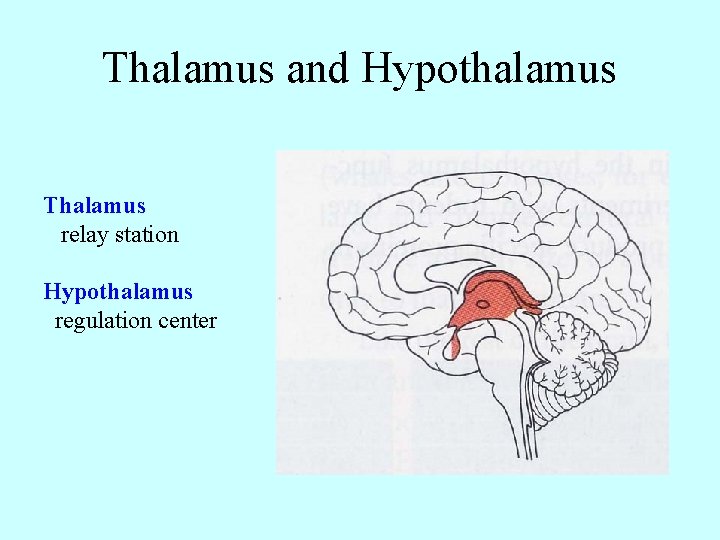

Thalamus and Hypothalamus Thalamus relay station Hypothalamus regulation center

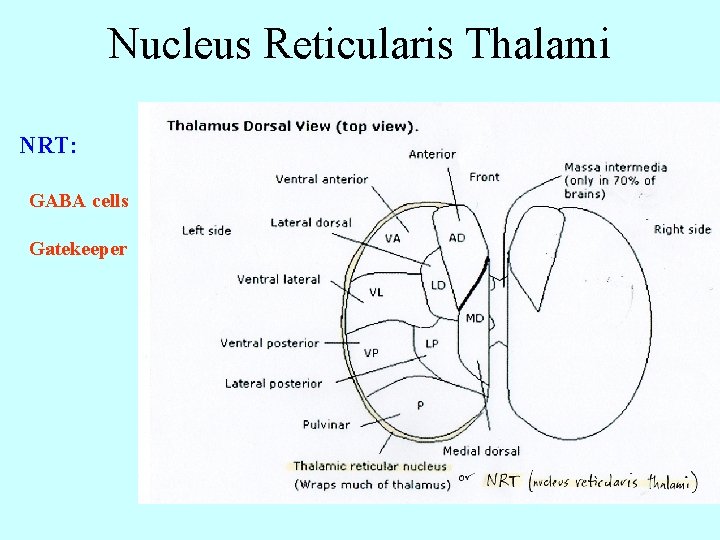

Nucleus Reticularis Thalami NRT: GABA cells Gatekeeper

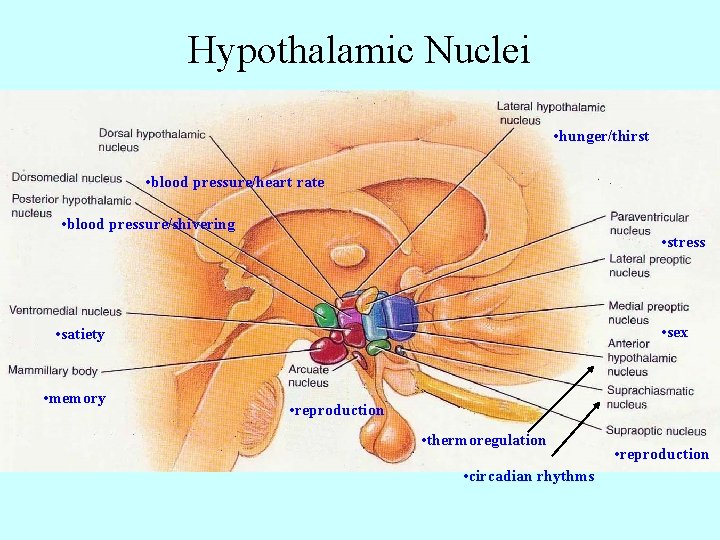

Hypothalamic Nuclei • hunger/thirst • blood pressure/heart rate • blood pressure/shivering • stress • sex • satiety • memory • reproduction • thermoregulation • circadian rhythms • reproduction

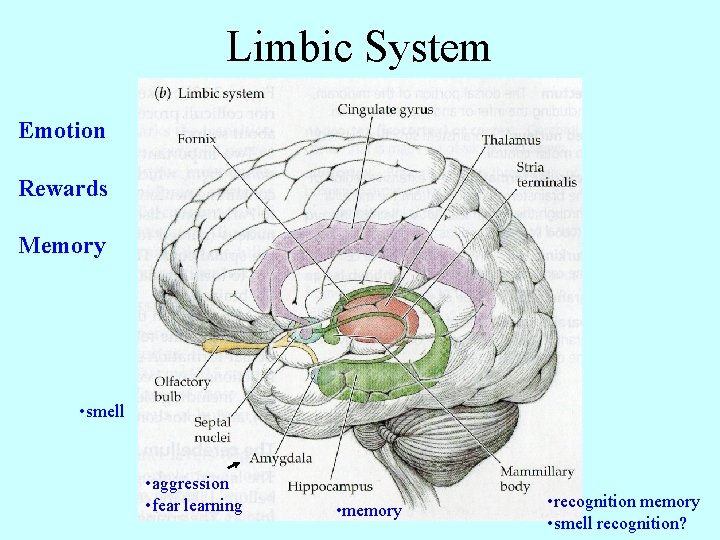

Limbic System Emotion Rewards Memory • smell • aggression • fear learning • memory • recognition memory • smell recognition?

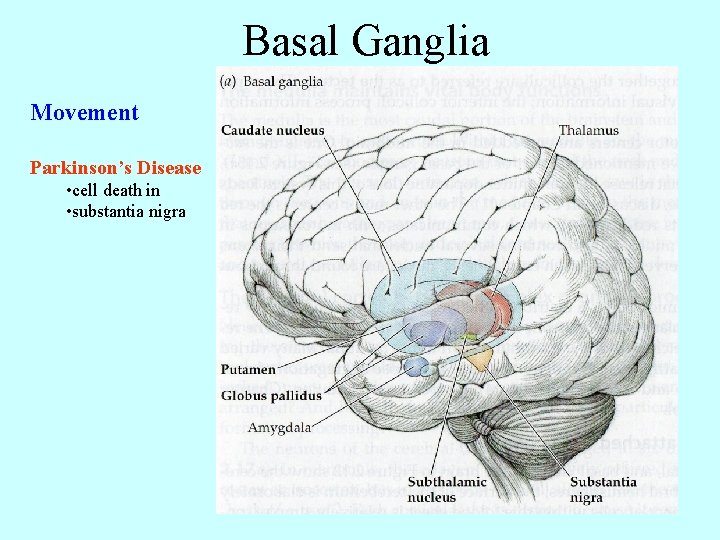

Basal Ganglia Movement Parkinson’s Disease • cell death in • substantia nigra

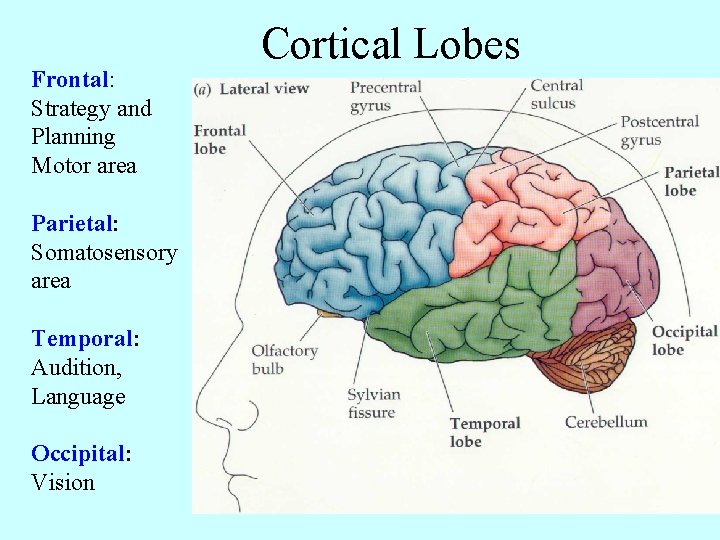

Frontal: Strategy and Planning Motor area Parietal: Somatosensory area Temporal: Audition, Language Occipital: Vision Cortical Lobes
