Angles of Circles

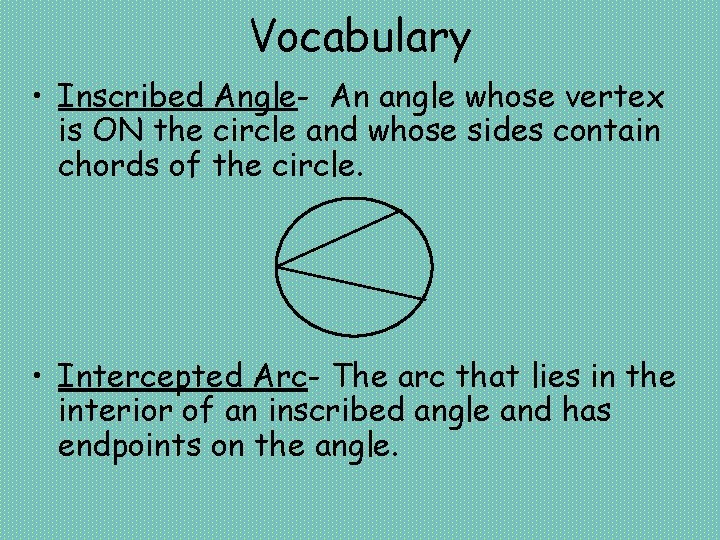

Vocabulary • Inscribed Angle- An angle whose vertex is ON the circle and whose sides contain chords of the circle. • Intercepted Arc- The arc that lies in the interior of an inscribed angle and has endpoints on the angle.

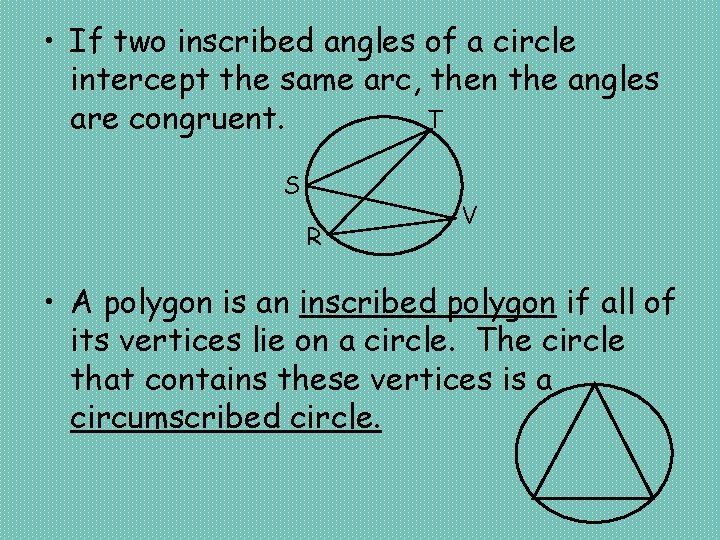

• If two inscribed angles of a circle intercept the same arc, then the angles T are congruent. S R V • A polygon is an inscribed polygon if all of its vertices lie on a circle. The circle that contains these vertices is a circumscribed circle.
3 Possibilities for Angles 1. Angle lies INSIDE the circle. M L J K P 2. Angle lies OUTSIDE the circle. M K L 3. Angle lies ON the circle. L K M
Angle measures 1. The measure of an angle that lies INSIDE the circle: Add Arcs 2 M J K L P 2. The measure of an angle that lies OUTSIDE the circle: Subtract Arcs 2 M L J K P 3. The measure of an angle that lies ON the L circle: K M
• If a right triangle is inscribed in a circle, then the hypotenuse is a diameter of the circle. If one side of an inscribed triangle is a diameter, then the triangle is a right triangle. • A quadrilateral can be inscribed in a circle only if it’s opposite angles are supplementary.

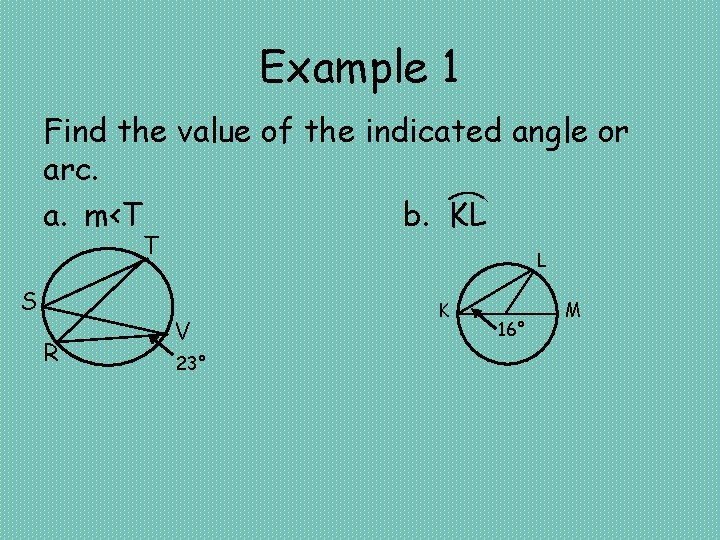

Example 1 Find the value of the indicated angle or arc. a. m<T b. KL T S R L V 23° K 16° M
Example 2 Find the indicated arc measures. a. m. ST R b. m. PR T • J 72° 15° c. m<PJQ P d. m. PQR S Q

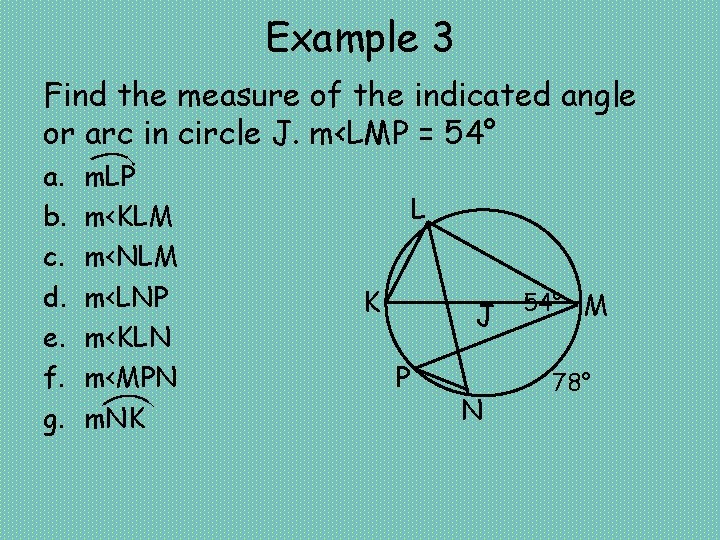

Example 3 Find the measure of the indicated angle or arc in circle J. m<LMP = 54° a. b. c. d. e. f. g. m. LP m<KLM m<NLM m<LNP m<KLN m<MPN m. NK L K J P N 54° M 78°
Example 4 Find the measure of angle 1. 98° a. 114° b. 1 1 220° c. 122° 103° 1 84° 204° d. 1 86°
Example 5 Find the value of the variables. a. b. 4 x° 70° 2 y° 64° 52° 4 y° 52° 2 x°

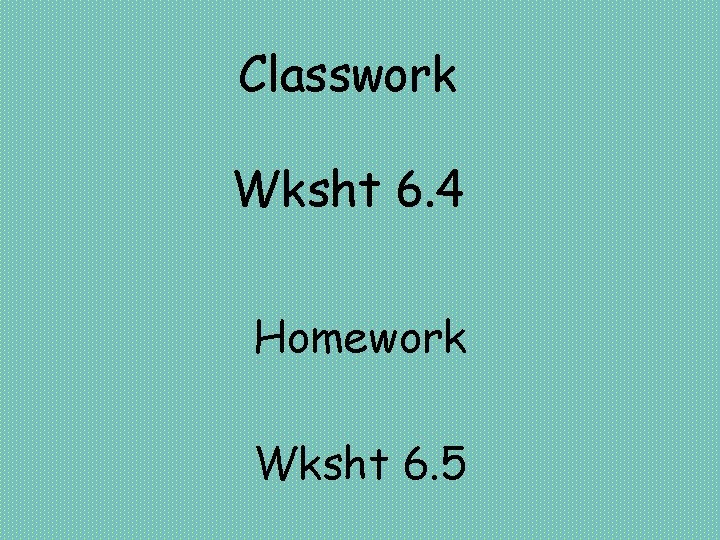

Classwork Wksht 6. 4 Homework Wksht 6. 5
