Angle Bisectors Worksheet A The worksheet is provided
Angle Bisectors – Worksheet A The worksheet is provided in a variety of sizes/formats.
Printing To print handouts from slides Select the slide from the left. Then click: File > Print > ‘Print Current Slide’ To print multiple slides Click on a section title to highlight all those slides, or press ‘Ctrl’ at the same time as selecting slides to highlight more than one. Then click: File > Print > ‘Print Selection’ To print double-sided handouts Highlight both slides before using ‘Print Selection’. Choose ‘Print on Both Sides’ and ‘Flip on Short Edge’.

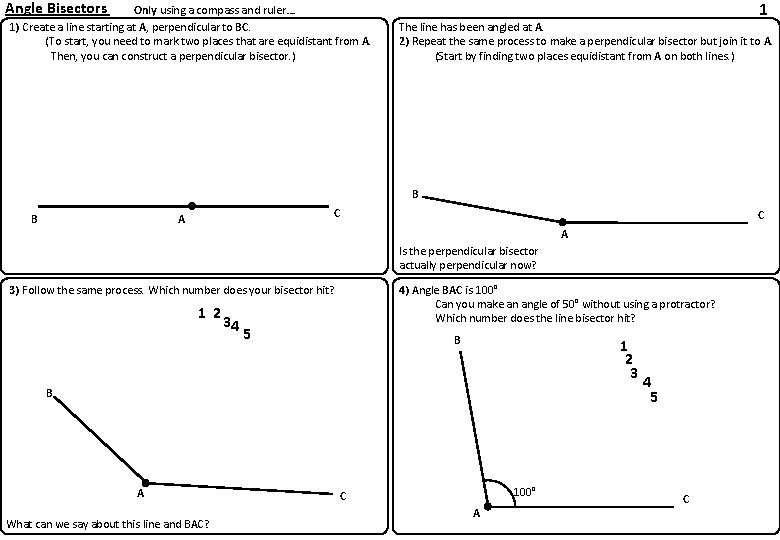

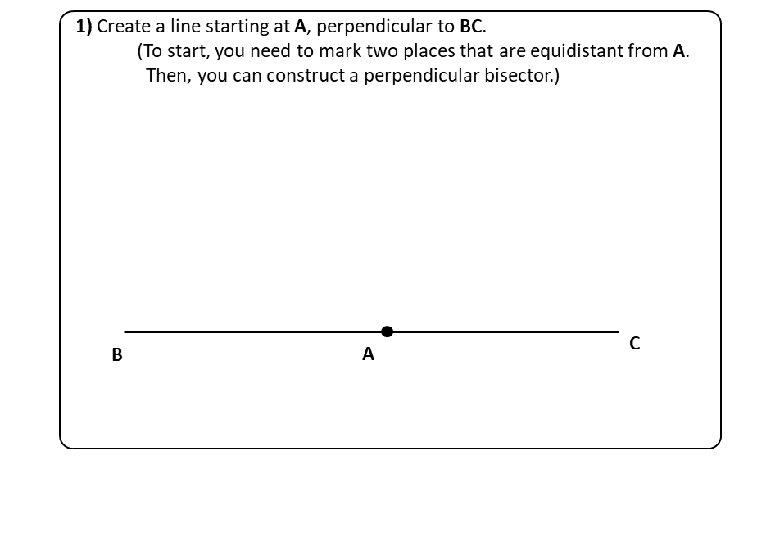

1 Angle Bisectors Only using a compass and ruler…. 1) Create a line starting at A, perpendicular to BC. (To start, you need to mark two places that are equidistant from A. Then, you can construct a perpendicular bisector. ) The line has been angled at A. 2) Repeat the same process to make a perpendicular bisector but join it to A. (Start by finding two places equidistant from A on both lines. ) B C A Is the perpendicular bisector actually perpendicular now? 3) Follow the same process. Which number does your bisector hit? 1 2 4) Angle BAC is 100° Can you make an angle of 50° without using a protractor? Which number does the line bisector hit? 34 5 B 1 2 3 B A What can we say about this line and BAC? 100° C A 4 5 C

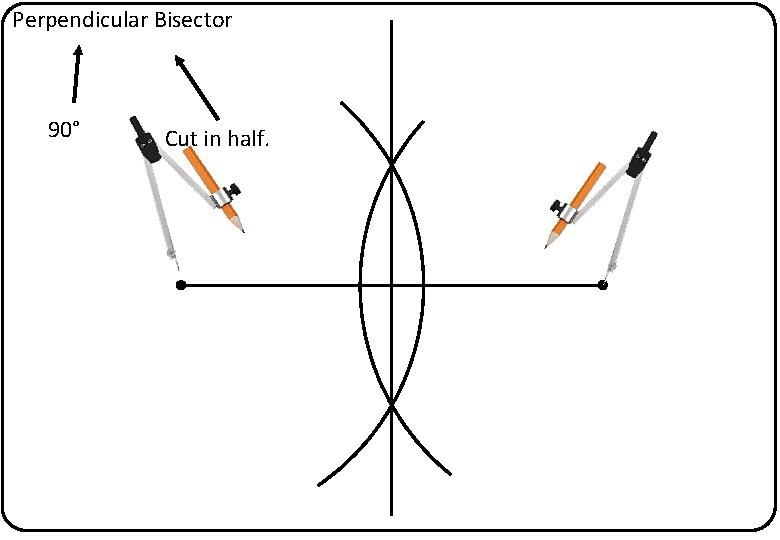

Perpendicular Bisector 90° Cut in half.

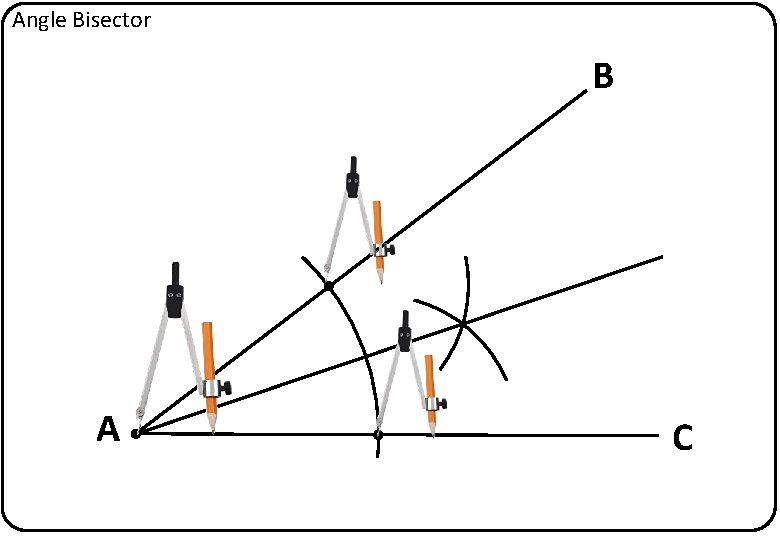

Angle Bisector B A C
1 Angle Bisectors Only using a compass and ruler…. 1) Create a line starting at A, perpendicular to BC. (To start, you need to mark two places that are equidistant from A. Then, you can construct a perpendicular bisector. ) The line has been angled at A. 2) Repeat the same process to make a perpendicular bisector but join it to A. (Start by finding two places equidistant from A on both lines. ) B B Answers C A Is the perpendicular bisector actually perpendicular now? 3) Follow the same process. Which number does your bisector hit? 1 2 34 5 2 4) Angle BAC is 100° Can you make an angle of 50° without using a protractor? Which number does the line bisector hit? B 1 2 3 B A What can we say about this line and BAC? 100° C A 4 5 C 1

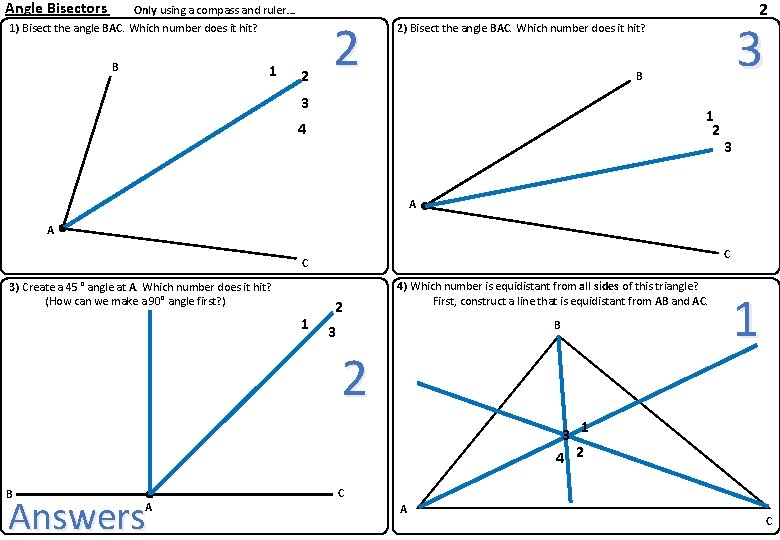

Angle Bisectors Only using a compass and ruler…. 1) Bisect the angle BAC. Which number does it hit? B 1 2 2 2 3 2) Bisect the angle BAC. Which number does it hit? B 3 1 2 4 3 A A C C 3) Create a 45 ° angle at A. Which number does it hit? (How can we make a 90° angle first? ) 1 2 4) Which number is equidistant from all sides of this triangle? First, construct a line that is equidistant from AB and AC. B 3 2 1 1 3 4 2 B Answers A C
1 Angle Bisectors Only using a compass and ruler…. 1) Create a line starting at A, perpendicular to BC. (To start, you need to mark two places that are equidistant from A. Then, you can construct a perpendicular bisector. ) The line has been angled at A. 2) Repeat the same process to make a perpendicular bisector but join it to A. (Start by finding two places equidistant from A on both lines. ) B C A Is the perpendicular bisector actually perpendicular now? 3) Follow the same process. Which number does your bisector hit? 1 2 4) Angle BAC is 100° Can you make an angle of 50° without using a protractor? Which number does the line bisector hit? 34 5 B 1 2 3 B A What can we say about this line and BAC? 100° C A 4 5 C
2 Angle Bisectors Only using a compass and ruler…. 1) Bisect the angle BAC. Which number does it hit? B 1 2) Bisect the angle BAC. Which number does it hit? 2 B 3 1 2 4 3 A A C C 3) Create a 45 ° angle at A. Which number does it hit? (How can we make a 90° angle first? ) 1 2 4) Which number is equidistant from all sides of this triangle? First, construct a line that is equidistant from AB and AC. B 3 1 3 4 2 B A C
Questions? Comments? Suggestions? …or have you found a mistake!? Any feedback would be appreciated . Please feel free to email: tom@goteachmaths. co. uk
