Introduction Thank you KAMI for letting us host your meeting! Mike Corum Dan Chapman Brendan Healy

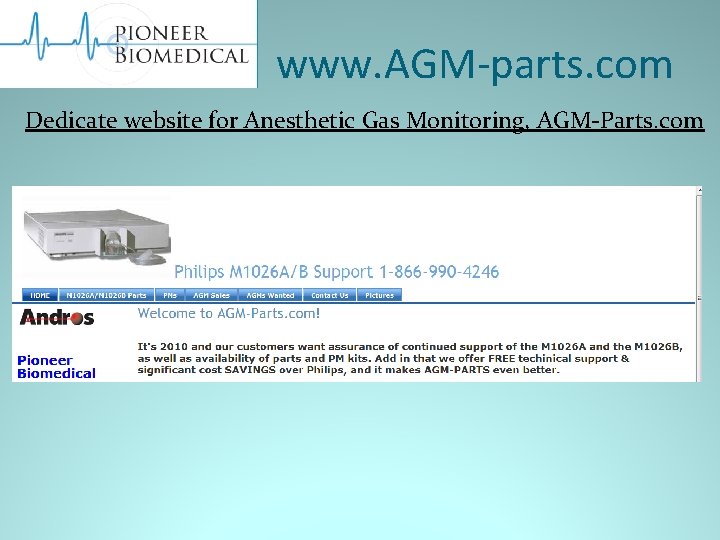

www. AGM-parts. com Dedicate website for Anesthetic Gas Monitoring, AGM-Parts. com

M 1026 A support

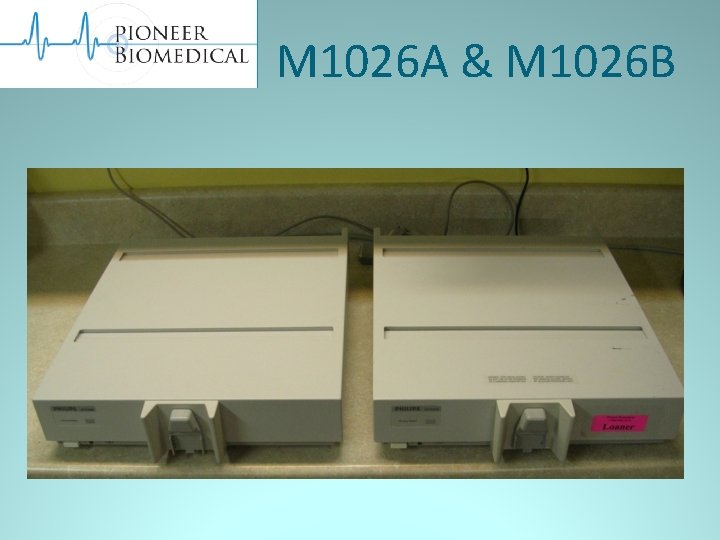

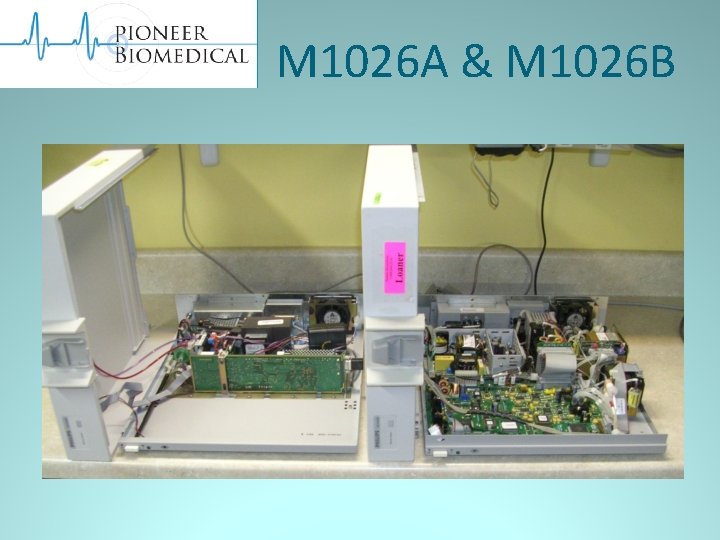

M 1026 A & M 1026 B

M 1026 A & M 1026 B

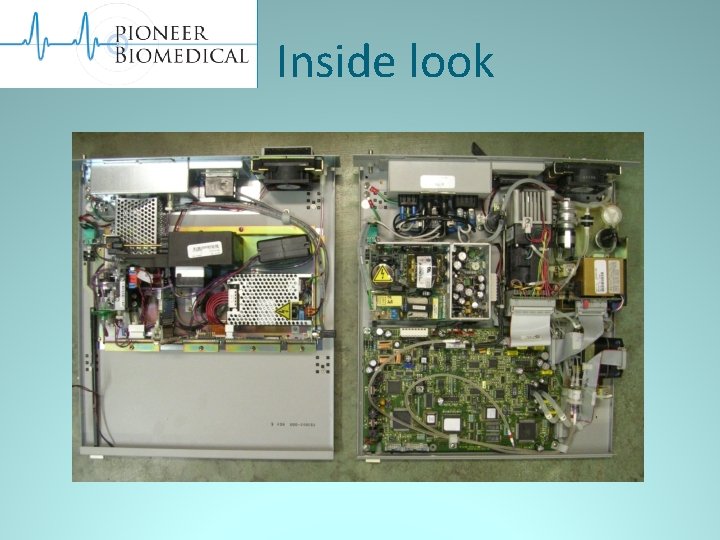

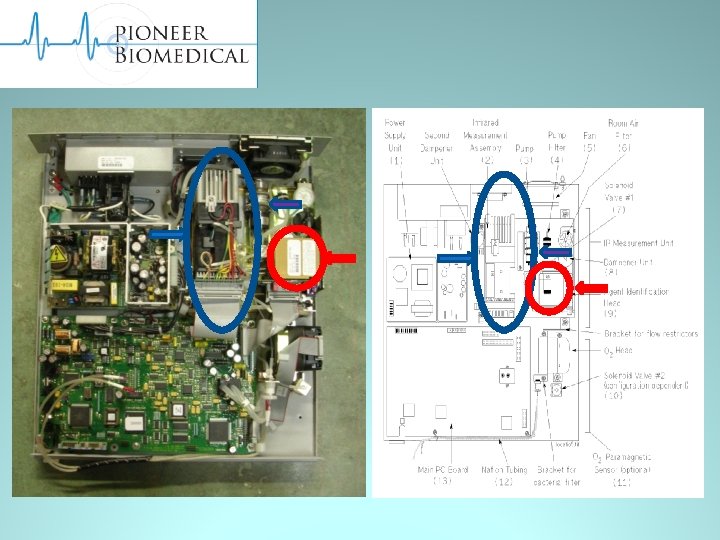

Inside look

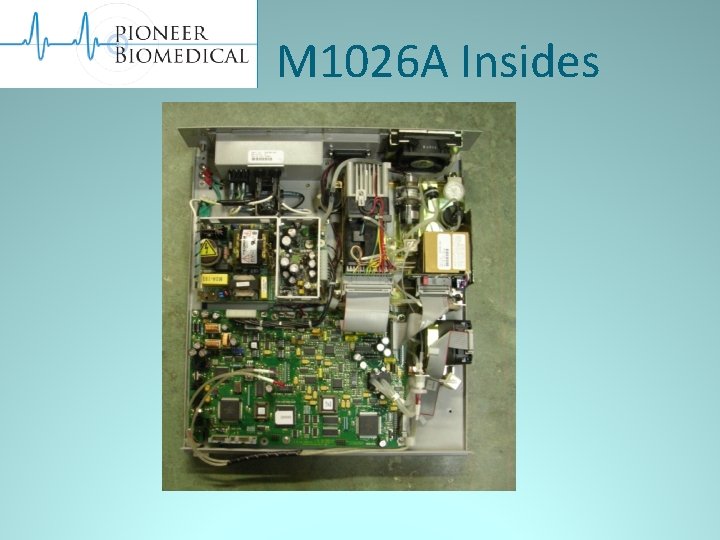

M 1026 A Insides

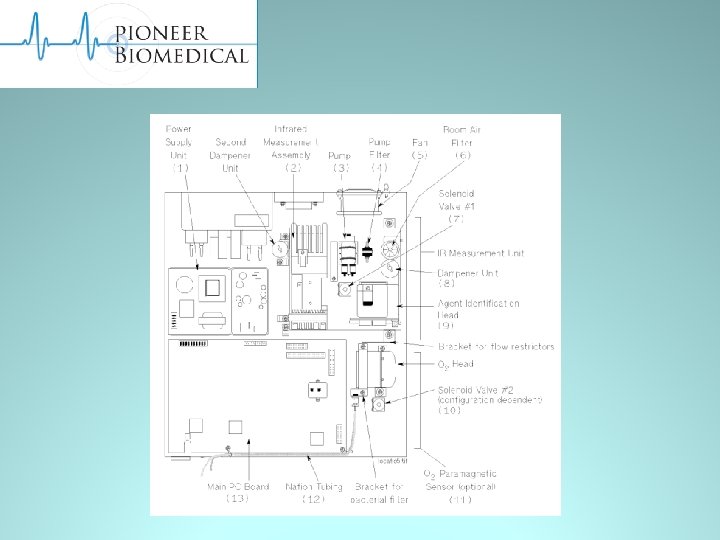

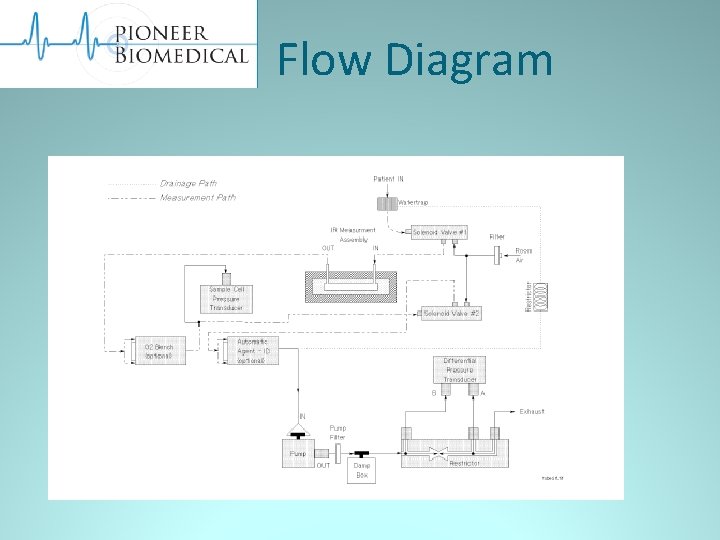

Flow Diagram

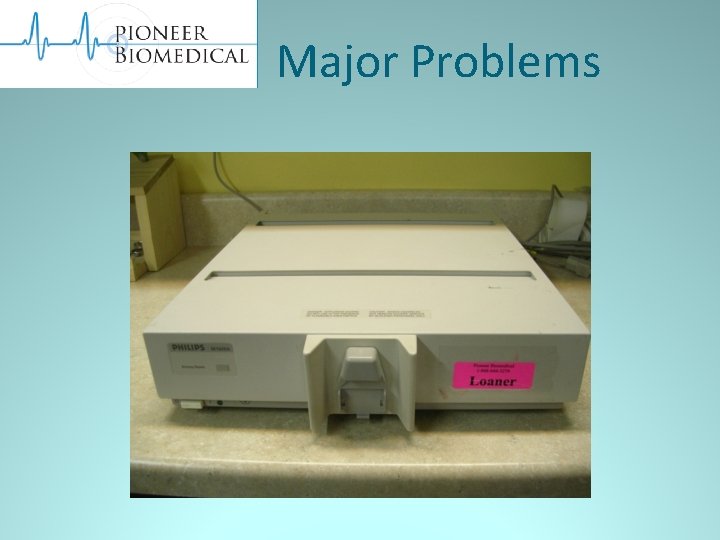

Major Problems

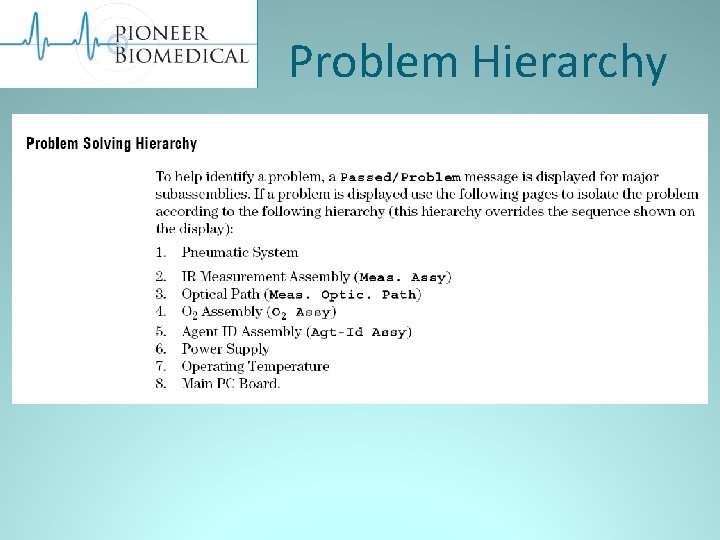

Problem Hierarchy

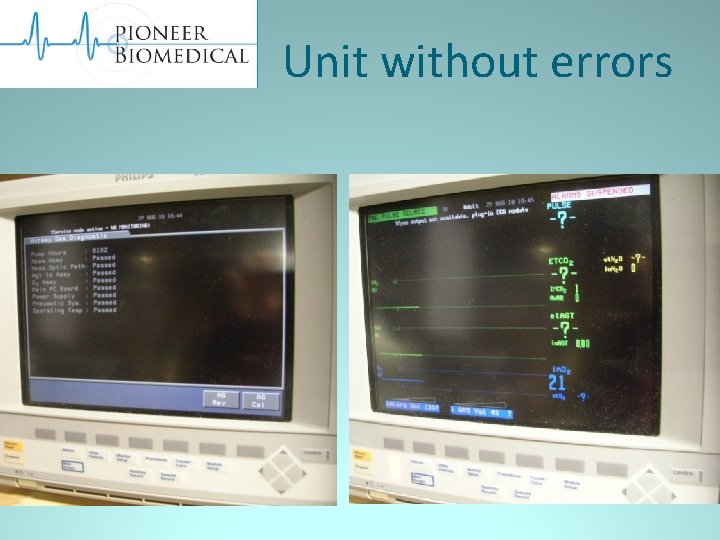

Unit without errors

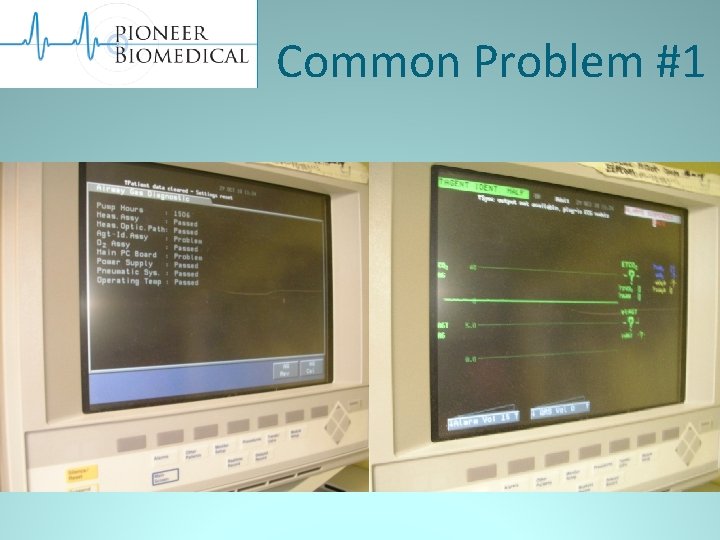

Common Problem #1

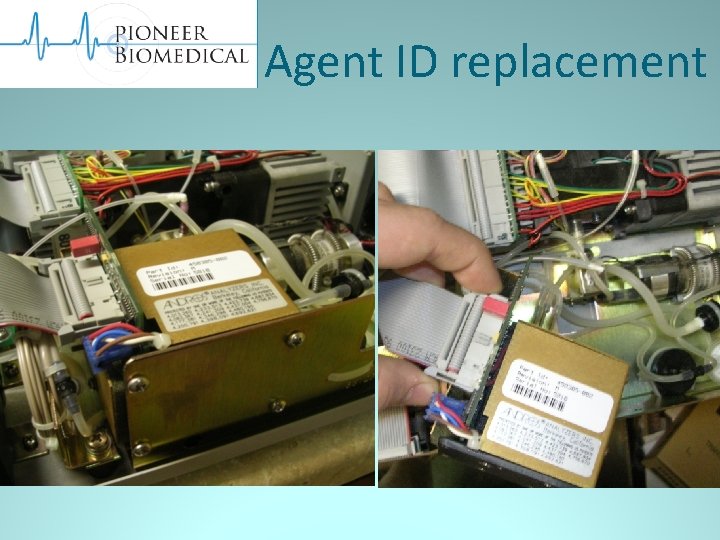

Agent ID replacement

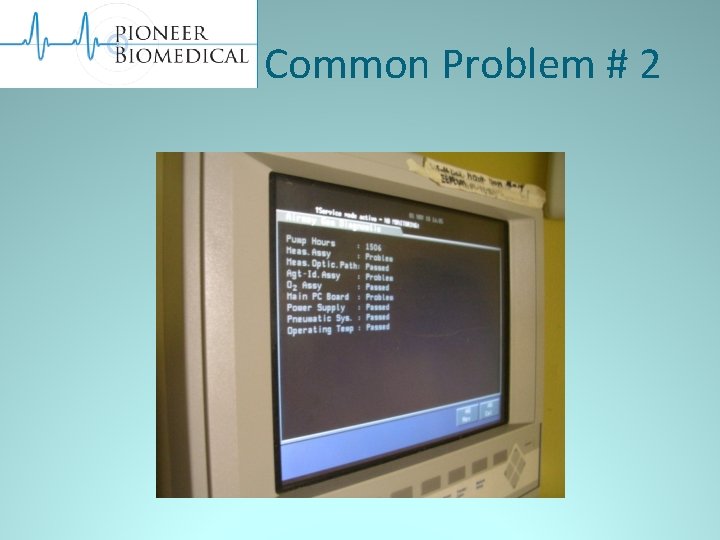

Common Problem # 2

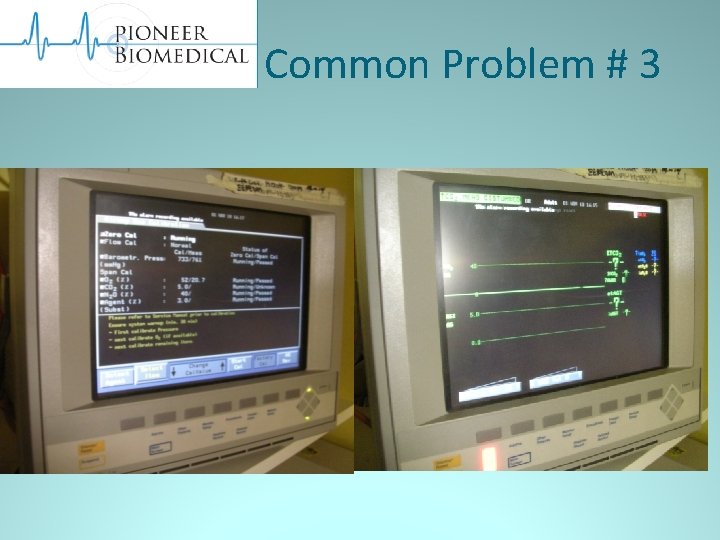

Common Problem # 3

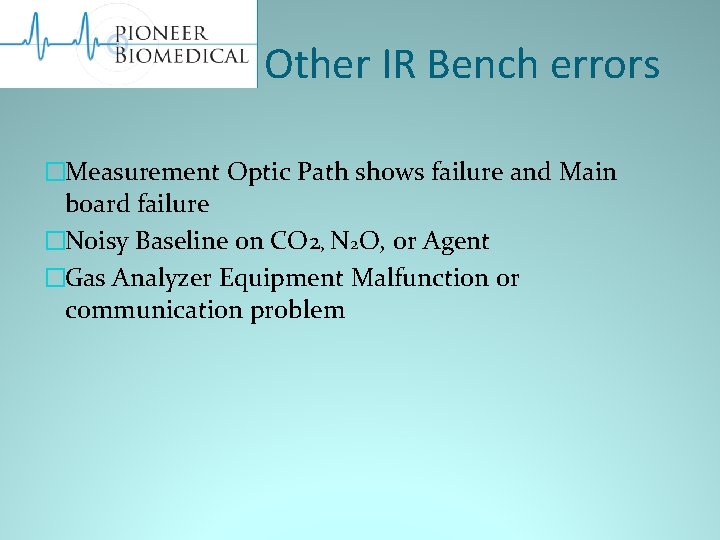

Other IR Bench errors �Measurement Optic Path shows failure and Main board failure �Noisy Baseline on CO 2, N 2 O, or Agent �Gas Analyzer Equipment Malfunction or communication problem

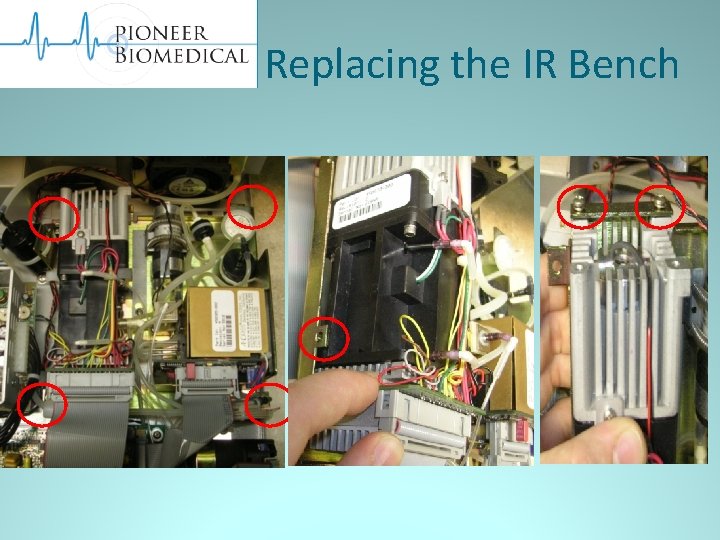

Replacing the IR Bench

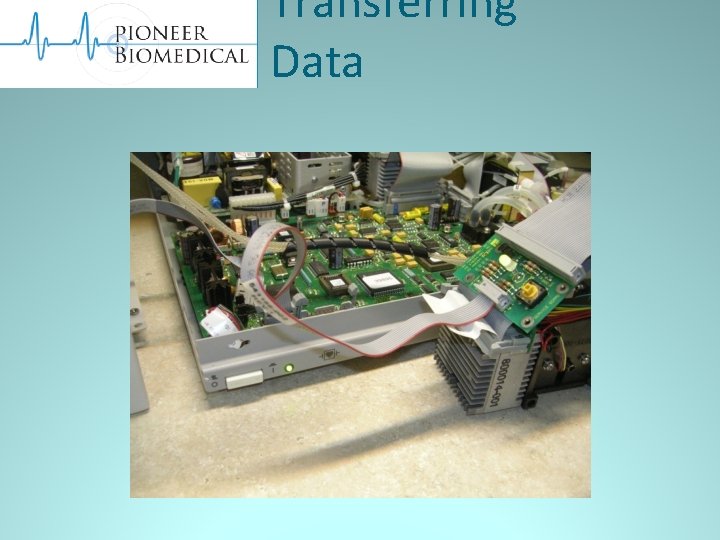

Transferring Data

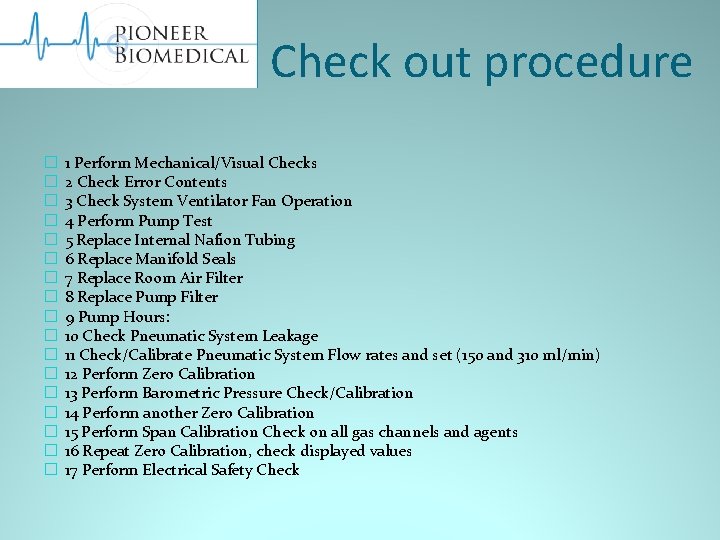

Check out procedure � � � � � 1 Perform Mechanical/Visual Checks 2 Check Error Contents 3 Check System Ventilator Fan Operation 4 Perform Pump Test 5 Replace Internal Nafion Tubing 6 Replace Manifold Seals 7 Replace Room Air Filter 8 Replace Pump Filter 9 Pump Hours: 10 Check Pneumatic System Leakage 11 Check/Calibrate Pneumatic System Flow rates and set (150 and 310 ml/min) 12 Perform Zero Calibration 13 Perform Barometric Pressure Check/Calibration 14 Perform another Zero Calibration 15 Perform Span Calibration Check on all gas channels and agents 16 Repeat Zero Calibration, check displayed values 17 Perform Electrical Safety Check

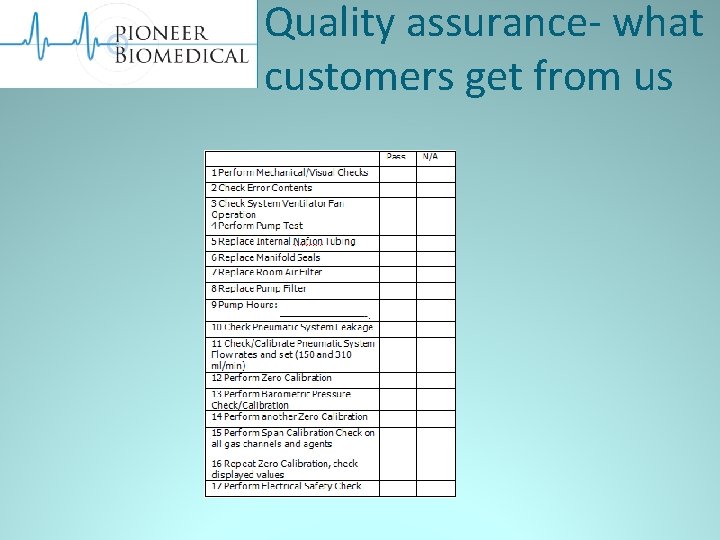

Quality assurance- what customers get from us

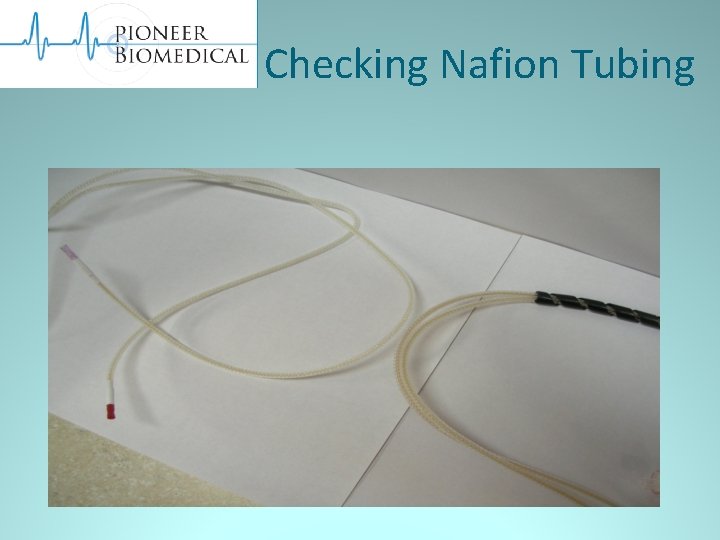

Checking Nafion Tubing

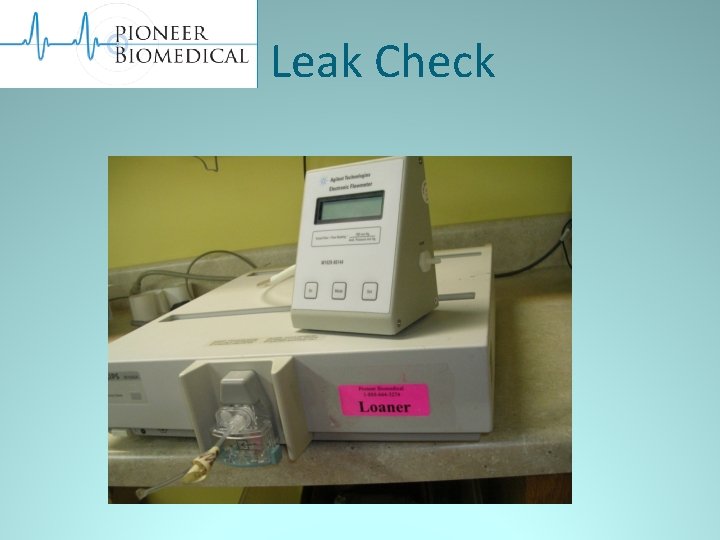

Leak Check

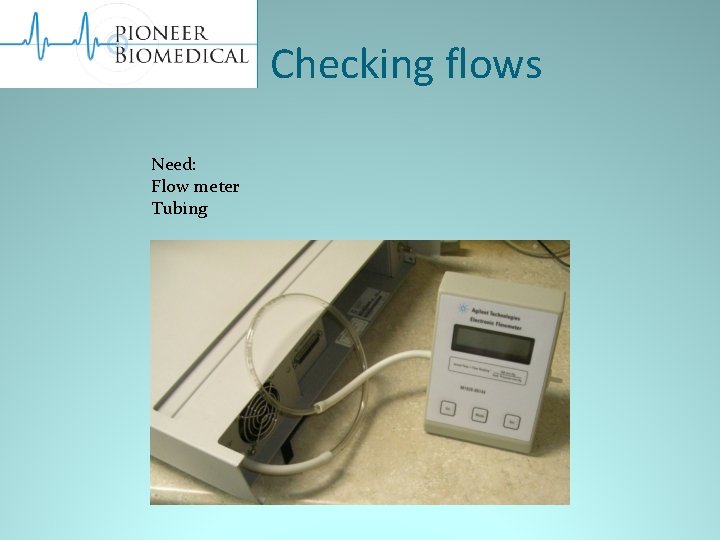

Checking flows Need: Flow meter Tubing

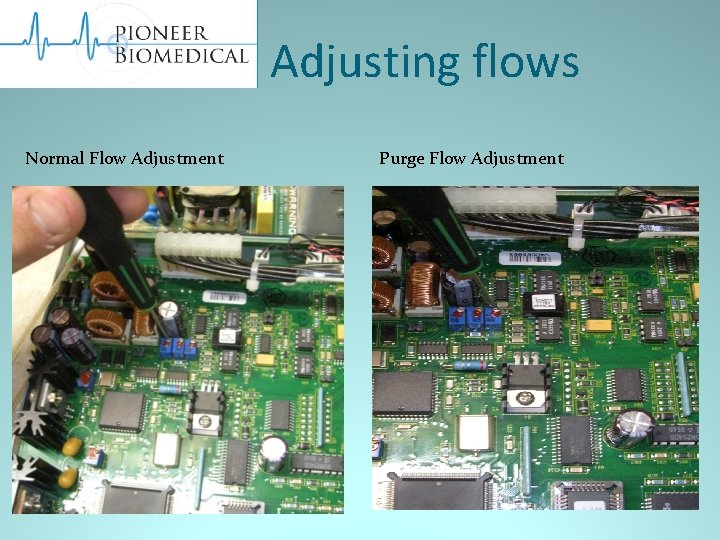

Adjusting flows Normal Flow Adjustment Purge Flow Adjustment

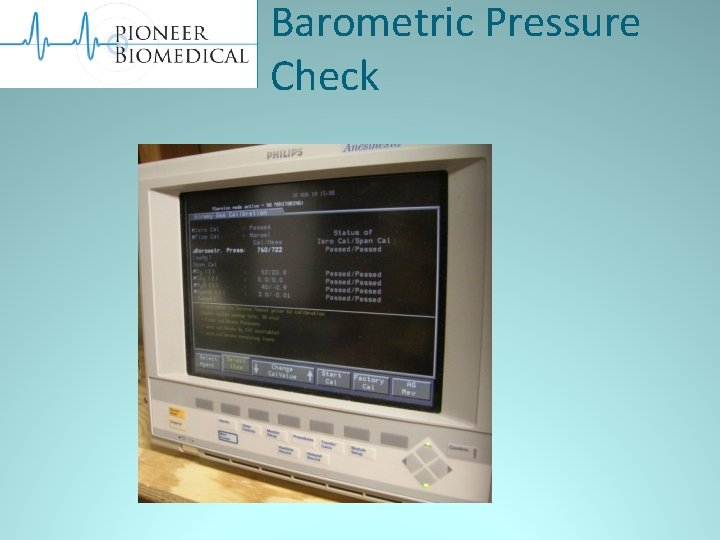

Barometric Pressure Check

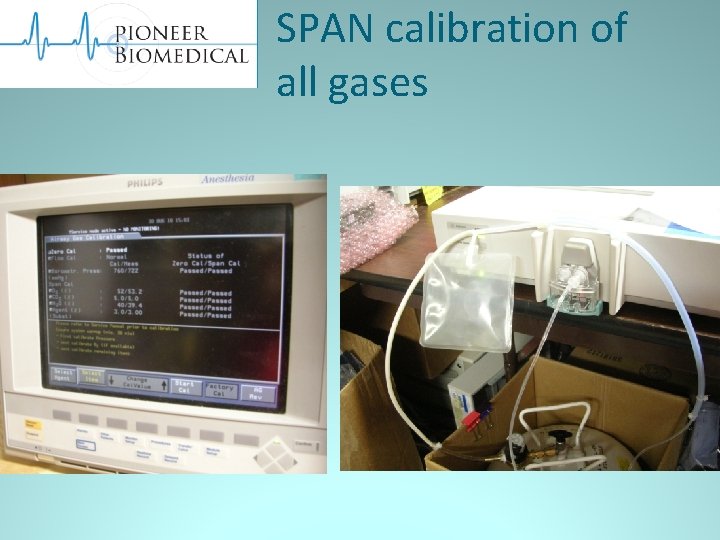

SPAN calibration of all gases

GE

Other monitor equipment

HP &Philips

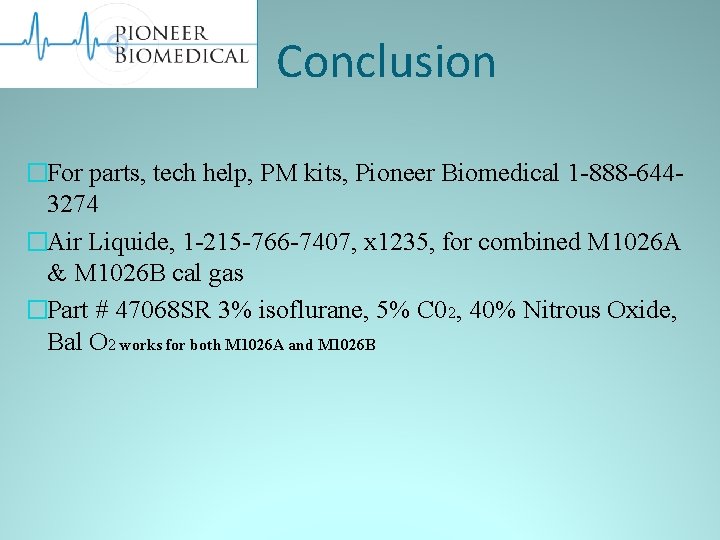

Conclusion �For parts, tech help, PM kits, Pioneer Biomedical 1 -888 -6443274 �Air Liquide, 1 -215 -766 -7407, x 1235, for combined M 1026 A & M 1026 B cal gas �Part # 47068 SR 3% isoflurane, 5% C 02, 40% Nitrous Oxide, Bal O 2 works for both M 1026 A and M 1026 B
