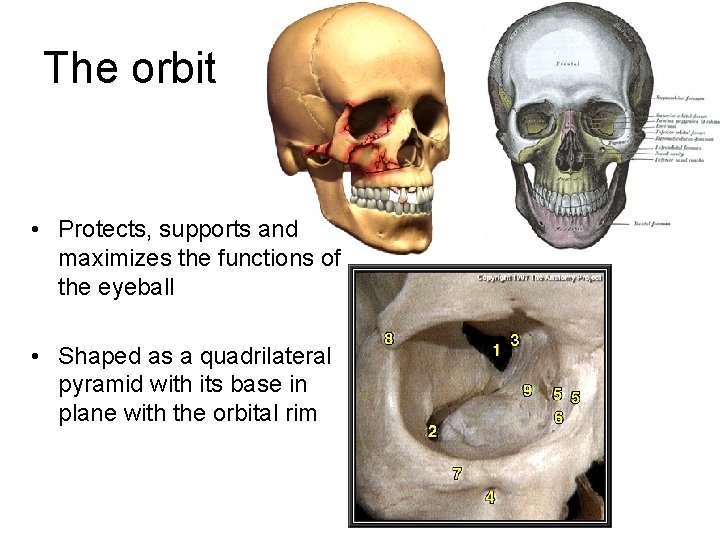

The orbit • Protects, supports and maximizes the functions of the eyeball • Shaped as a quadrilateral pyramid with its base in plane with the orbital rim

Alignment of the orbits • medial walls are parallel • lateral walls are perpendicular • axes of the orbits bisect at a 45°angle • The axes of the eyeballs make an angle of 22. 5 with the orbital axes

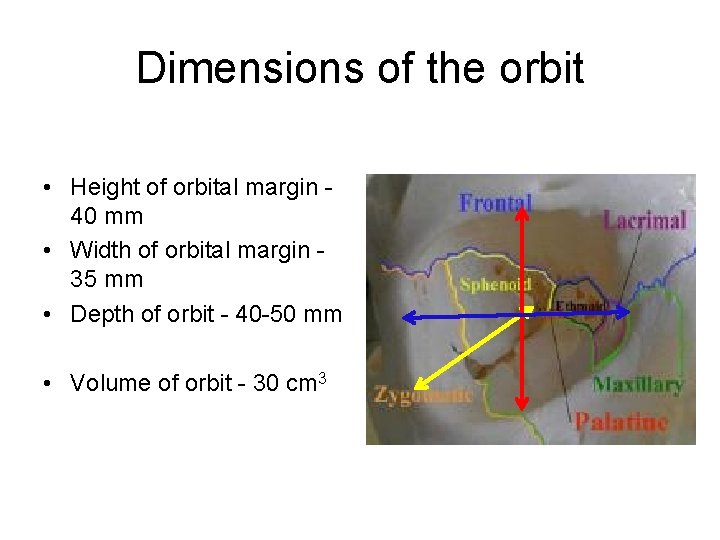

Dimensions of the orbit • Height of orbital margin 40 mm • Width of orbital margin 35 mm • Depth of orbit - 40 -50 mm • Volume of orbit - 30 cm 3

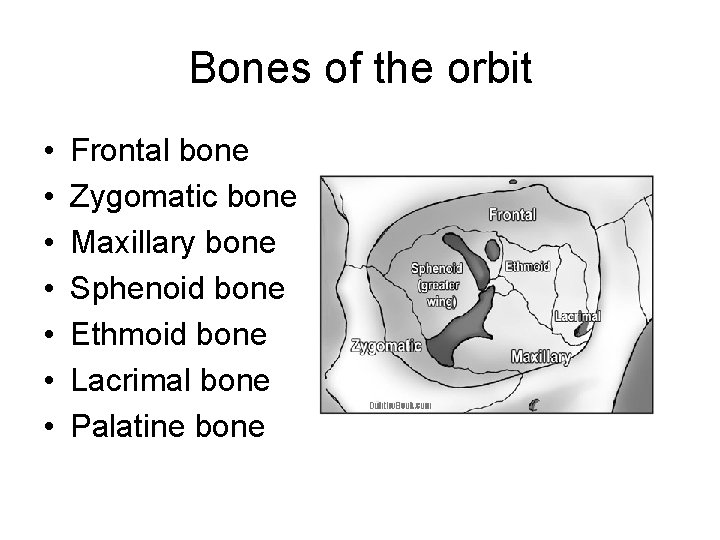

Bones of the orbit • • Frontal bone Zygomatic bone Maxillary bone Sphenoid bone Ethmoid bone Lacrimal bone Palatine bone

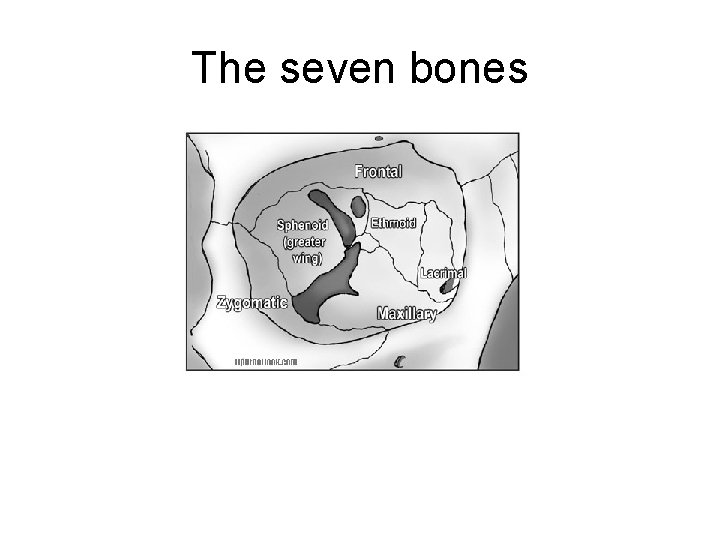

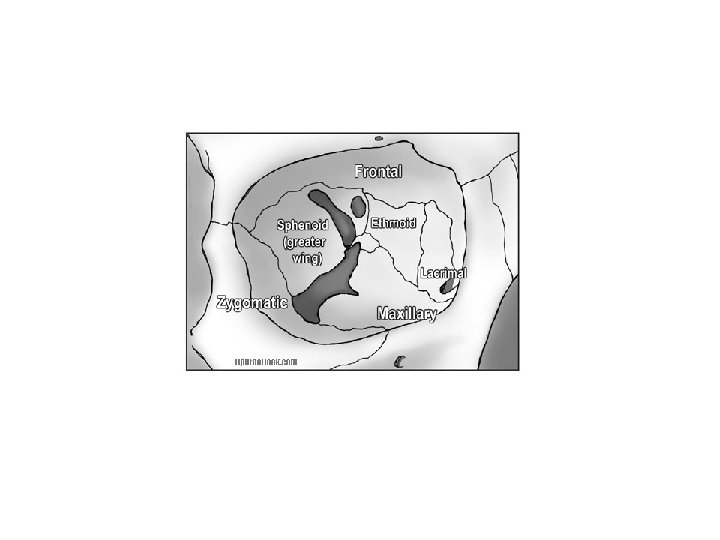

The seven bones

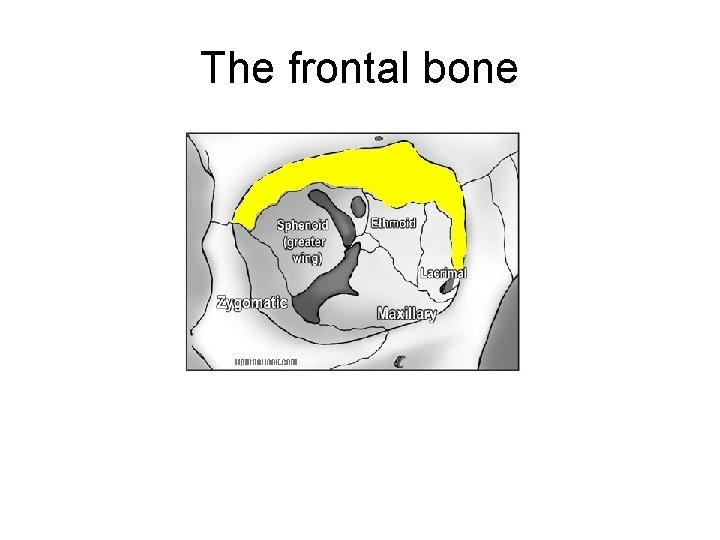

The frontal bone

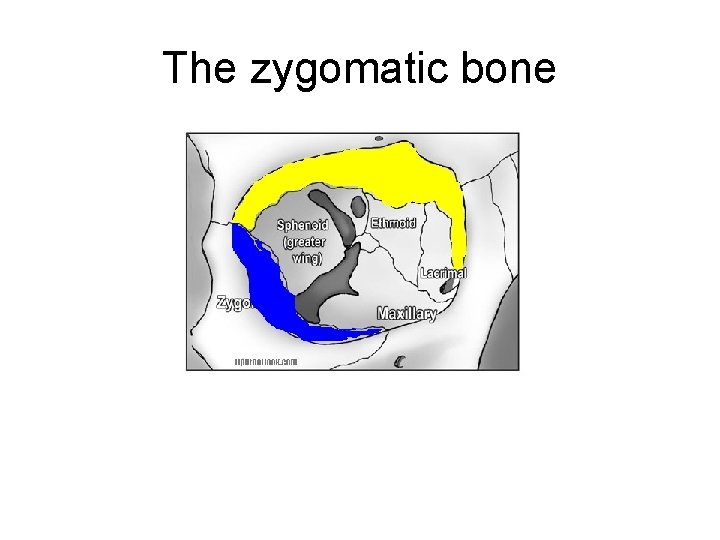

The zygomatic bone

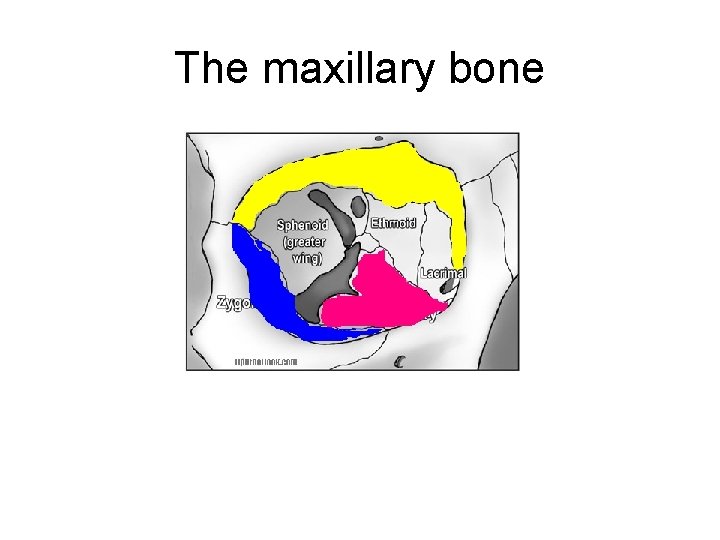

The maxillary bone

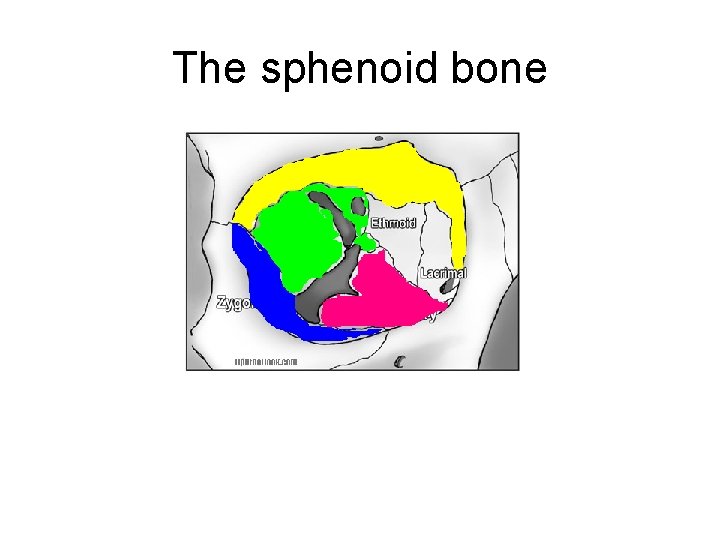

The sphenoid bone

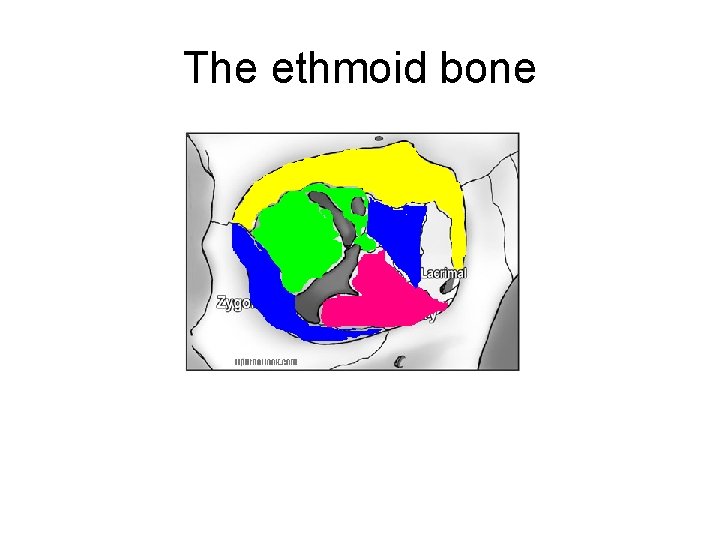

The ethmoid bone

The lacrimal bone

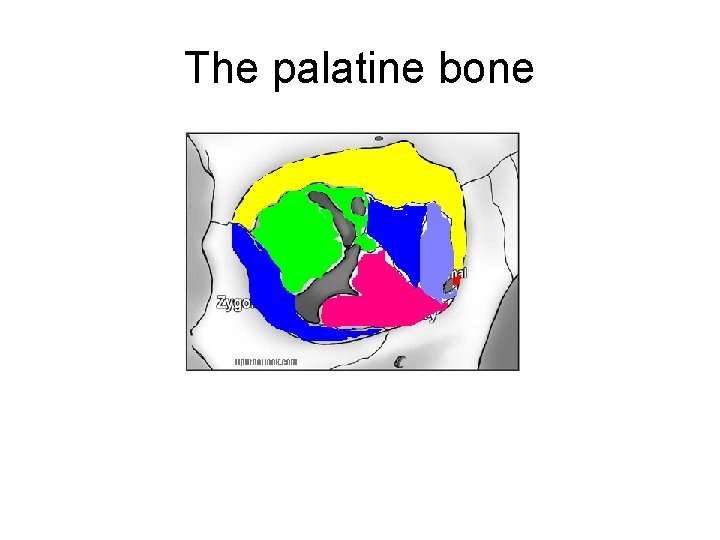

The palatine bone

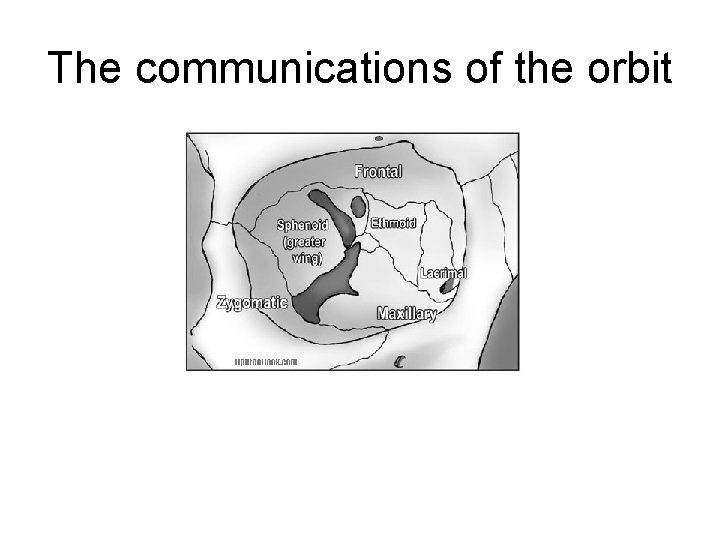

The communications of the orbit

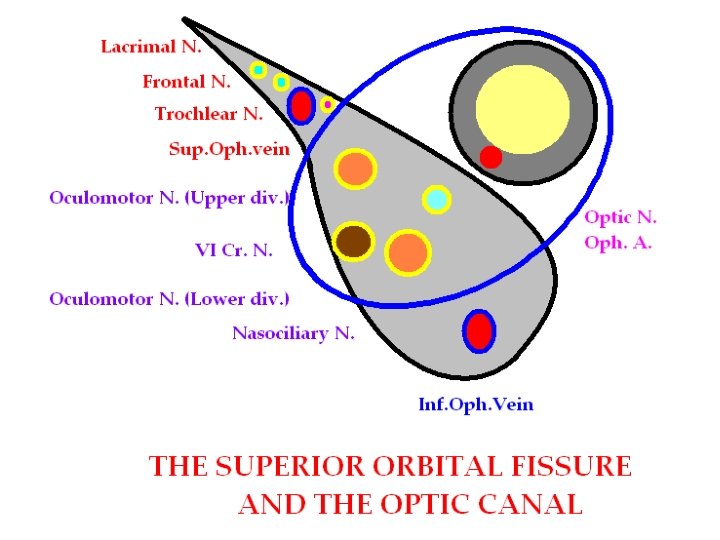

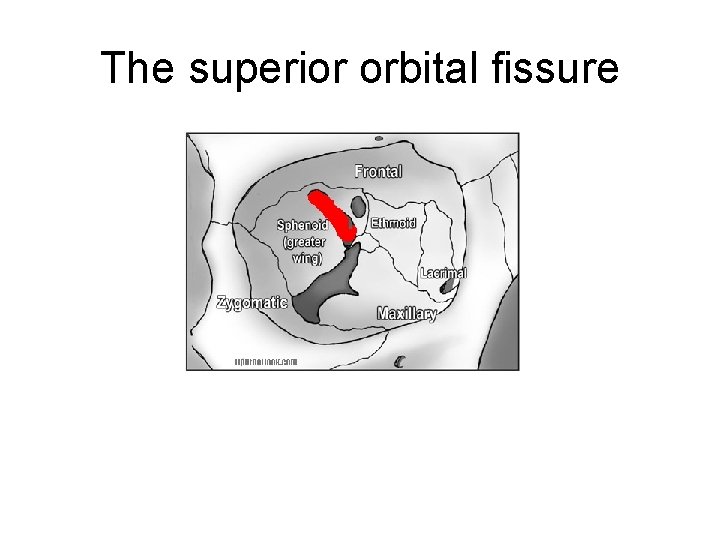

The superior orbital fissure

The optic foramen

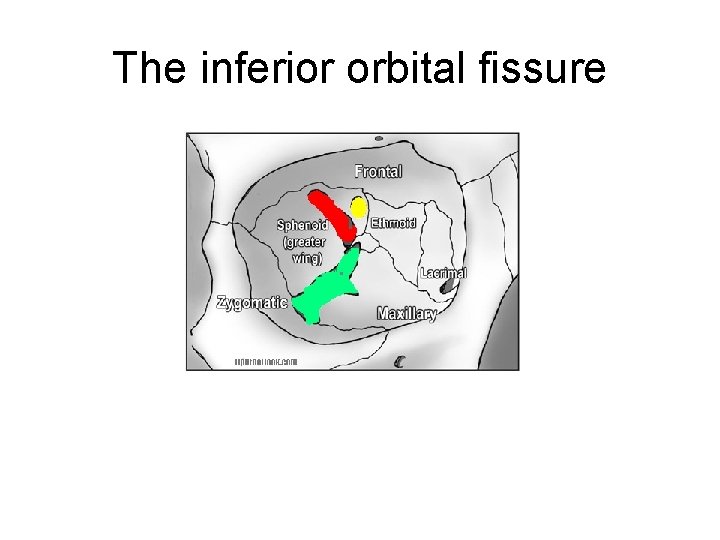

The inferior orbital fissure

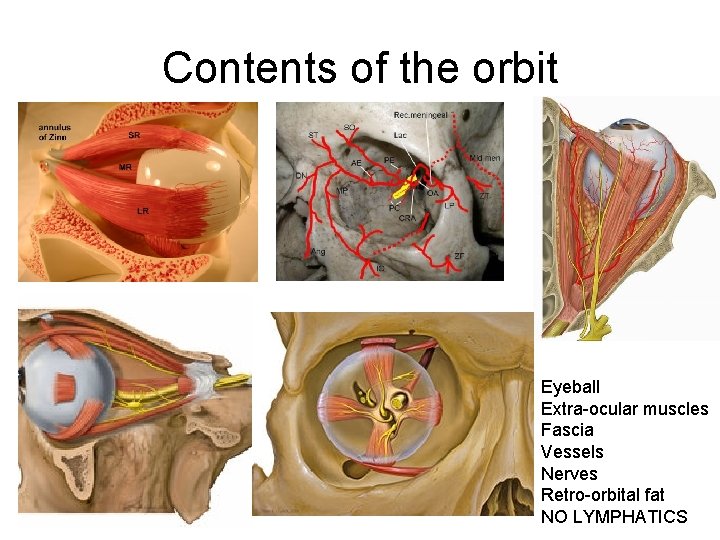

Contents of the orbit Eyeball Extra-ocular muscles Fascia Vessels Nerves Retro-orbital fat NO LYMPHATICS

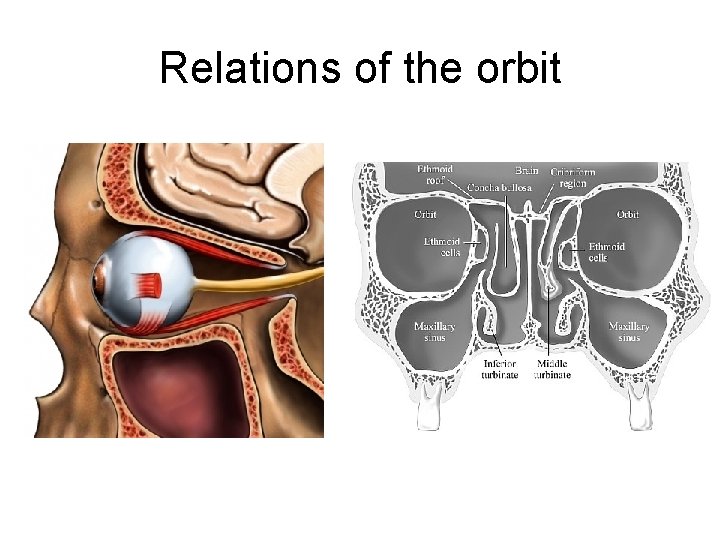

Relations of the orbit

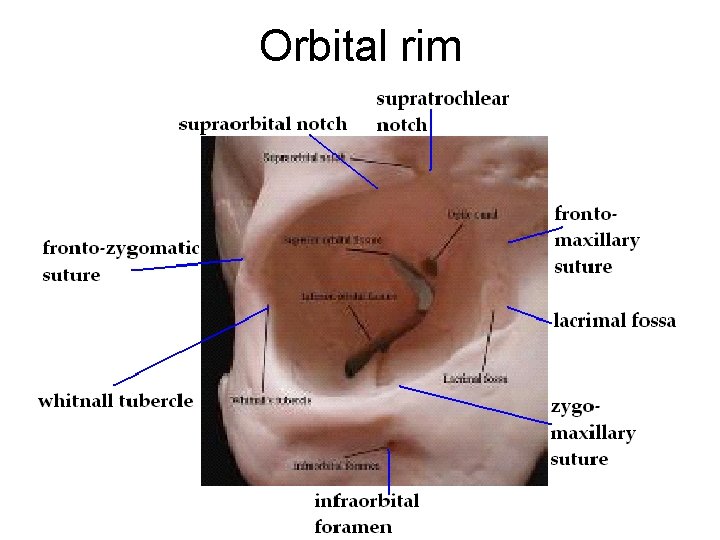

Orbital rim

Apex of the orbit • Superior orbital fissure • Optic foramen

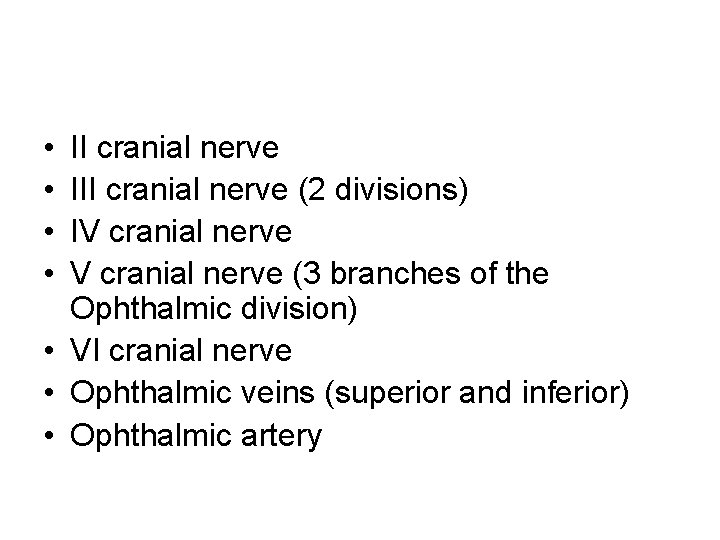

• • II cranial nerve III cranial nerve (2 divisions) IV cranial nerve (3 branches of the Ophthalmic division) • VI cranial nerve • Ophthalmic veins (superior and inferior) • Ophthalmic artery

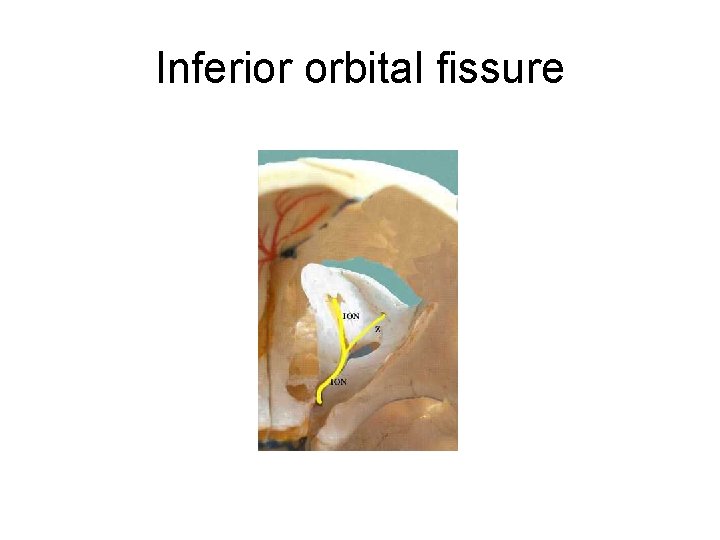

Inferior orbital fissure

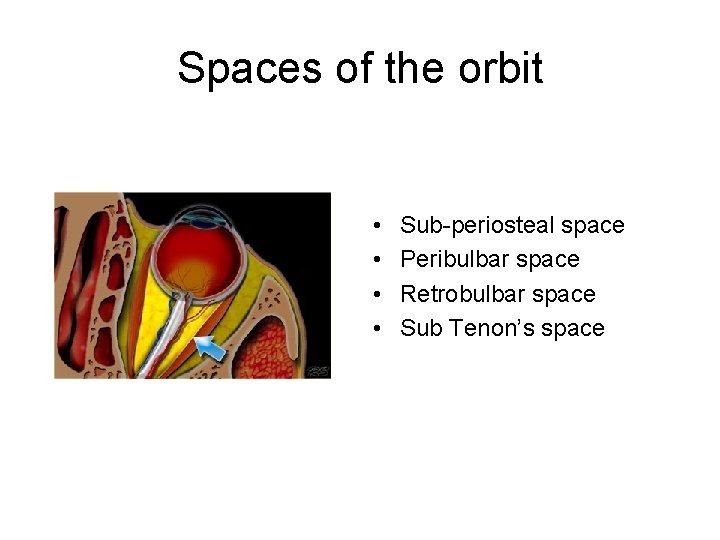

Spaces of the orbit • • Sub-periosteal space Peribulbar space Retrobulbar space Sub Tenon’s space
