Anatomy of Skeletal Muscle on Lower Extremity Seung Yeol Lee, M. D. Department of Orthopaedic Surgery, Seoul National University Bundang Hospital

Anterior Muscles of Pelvis

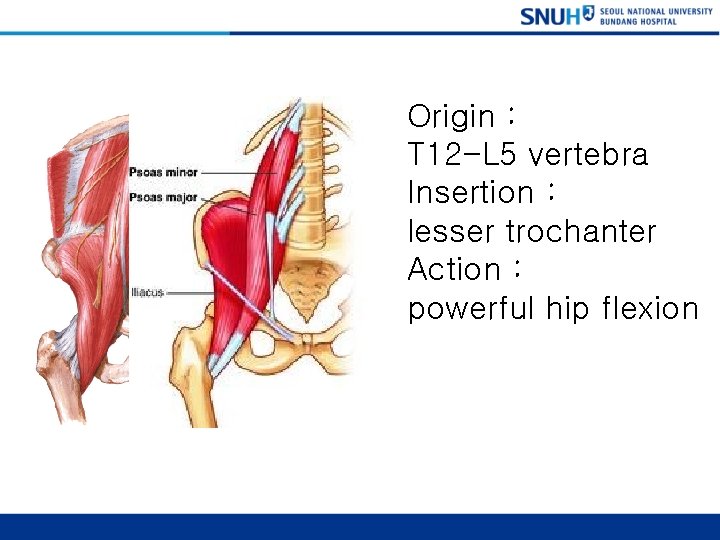

Psoas Major Origin : T 12 -L 5 vertebra Insertion : lesser trochanter Action : powerful hip flexion

Psoas Minor Origin : T 12 & L 1 vertebra Insertion : pectineal line Action : weak flexion of trunk

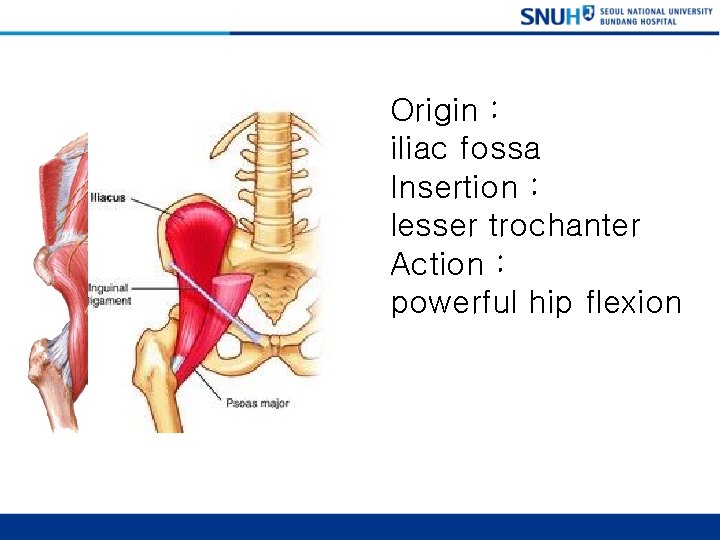

Iliacus Origin : iliac fossa Insertion : lesser trochanter Action : powerful hip flexion

Gluteal Muscles

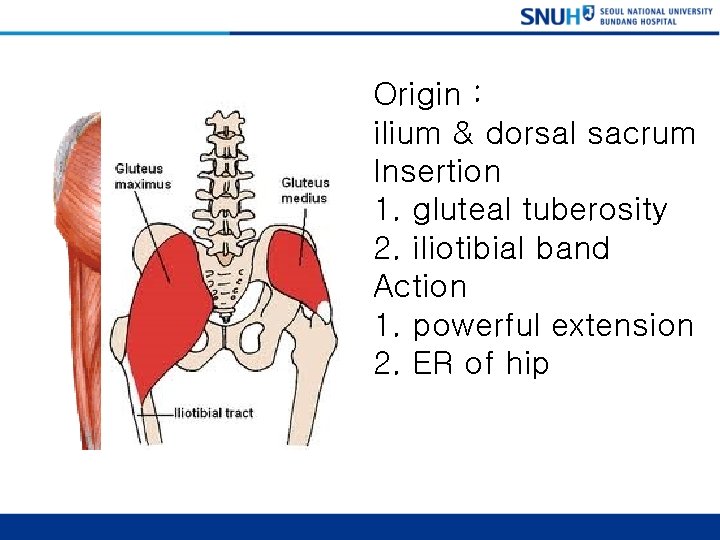

Gluteal Maximus Origin : ilium & dorsal sacrum Insertion 1. gluteal tuberosity 2. iliotibial band Action 1. powerful extension 2. ER of hip

Gluteal Medius Origin: ilium between anterior & posterior gluteal lines Insertion: greater trochanter Action: 1. powerful abduction 2. IR of hip 3. Balancing during walking

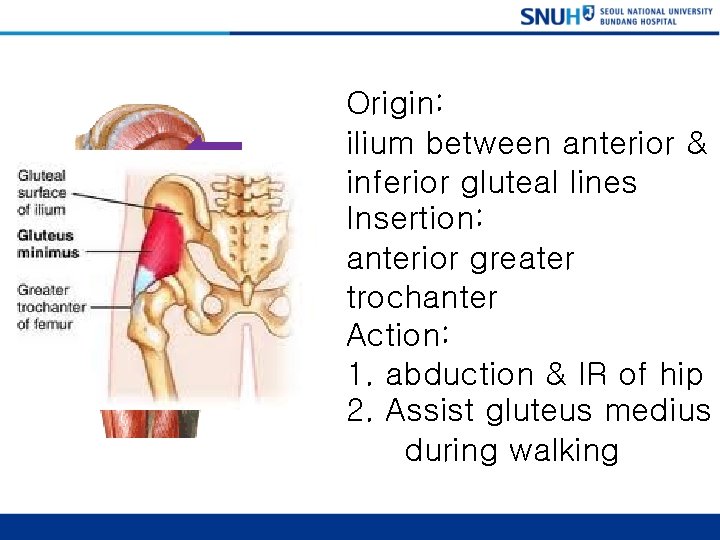

Gluteal Minimus Origin: ilium between anterior & inferior gluteal lines Insertion: anterior greater trochanter Action: 1. abduction & IR of hip 2. Assist gluteus medius during walking

Trendelenburg sign

Piriformis Origin: anterior sacrum Insertion: superior greater trochanter Action: 1. hip ER 2. hip abduction during flexion

Obturator internus Origin 1. ischiopubic rami 2. obturator membrane Insertion: medial greater trochanter Action: 1. hip ER 2. hip abduction during flexion

Sup. & Inf. gemellus Origin: ischial spine(sup. ) ischial tuberosity(inf. ) Insertion: medial greater trochanter Action: 1. hip ER 2. hip abduction during flexion

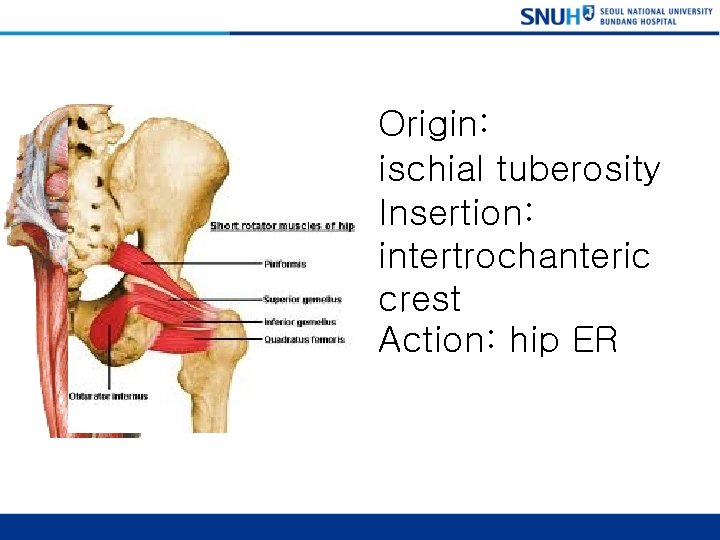

Quadratus femoris Origin: ischial tuberosity Insertion: intertrochanteric crest Action: hip ER

Posterior Femoral Muscle (Hamstrings)

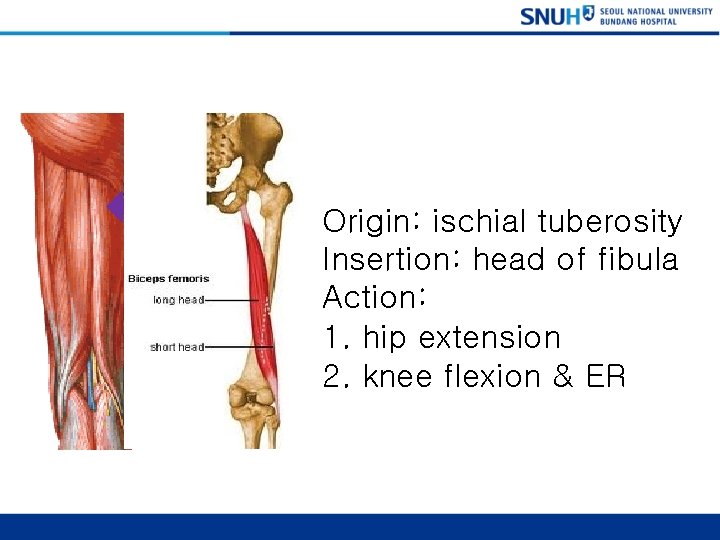

Biceps Femoris (long head) Origin: ischial tuberosity Insertion: head of fibula Action: 1. hip extension 2. knee flexion & ER

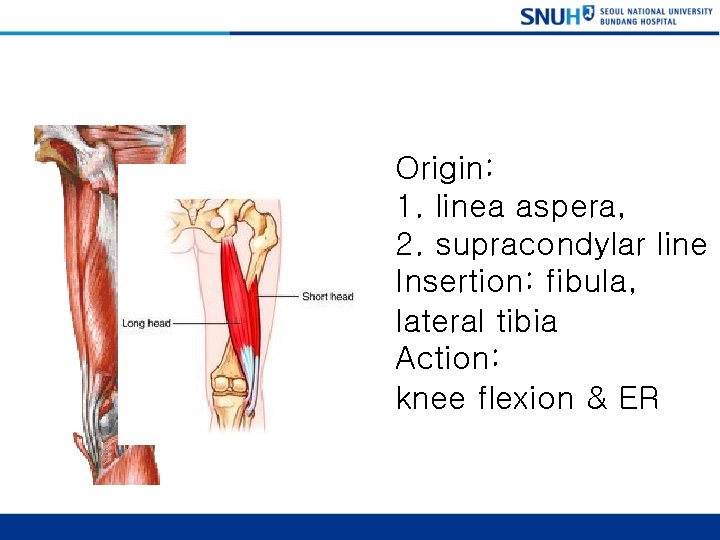

Biceps Femoris (short head) Origin: 1. linea aspera, 2. supracondylar line Insertion: fibula, lateral tibia Action: knee flexion & ER

Semitendinosus Origin: ischial tuberosity Insertion: proximal medial tibia Action: 1. hip extension 2. knee flexion & IR

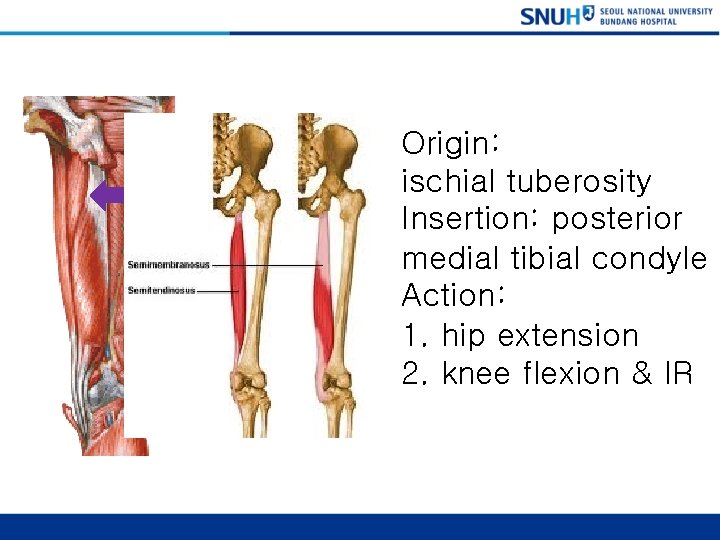

Semimembranosus Origin: ischial tuberosity Insertion: posterior medial tibial condyle Action: 1. hip extension 2. knee flexion & IR

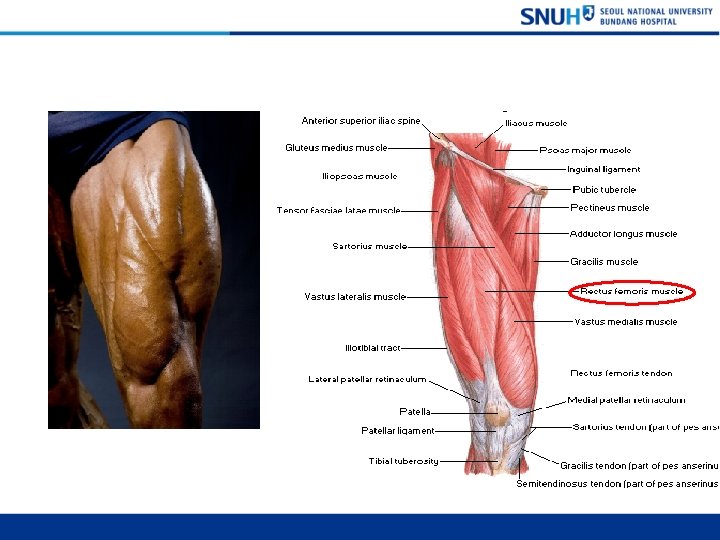

Rectus Femoris muscle

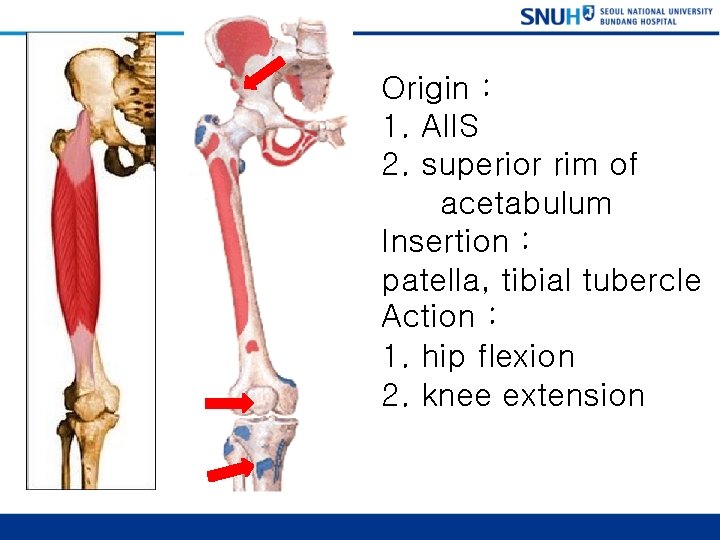

Origin : 1. AIIS 2. superior rim of acetabulum Insertion : patella, tibial tubercle Action : 1. hip flexion 2. knee extension

Triceps surae

Gastrocnemius Origin : Lateral and medial femoral condyle Insertion : Calcaneus ( via Achilles tendon) Action : Knee flexion, ankle plantar flexion

Soleus Origin : 1. Posterior fibula head 2. Soleal line of tibia Insertion : Calcaneus( via Achilles tendon) Action : ankle plantar flexion

Soleus Origin : 1. Posterior fibula head 2. Soleal line of tibia Insertion : Calcaneus( via Achilles tendon) Action : ankle plantar flexion

The Anterior and Lat Compartment (Extensor and Fibularis Groups)

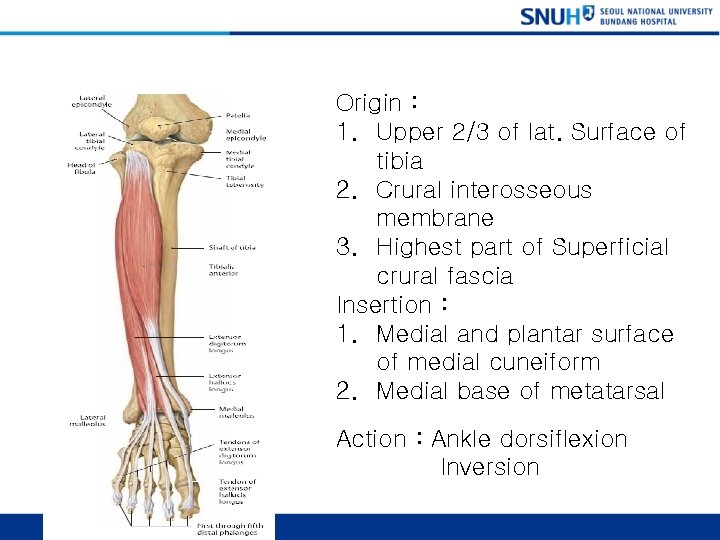

Anterior Tibialis Origin : 1. Upper 2/3 of lat. Surface of tibia 2. Crural interosseous membrane 3. Highest part of Superficial crural fascia Insertion : 1. Medial and plantar surface of medial cuneiform 2. Medial base of metatarsal Action : Ankle dorsiflexion Inversion

Fibularis longus Origin : 1. Head of fibula 2. Proximal 2/3 of lateral surface of fibula Insertion : 1. Plantar side of medial cuneiform 2. Base of first metatarsal Action : Ankle plantar flexion Eversion

The Posterior Compartment (Deep Flexor Groups)

Posterior Tibialis Origin : 1. Crural interosseous membrane and adjacent borders of tibia and fibula Insertion : 1. Tuberosity of navicular, cuneiforms, base of second fourth metatarsals Action : Ankle plantar flexion Inversion

Flexor Hallucis longus Origin : 1. Distal 2/3 of posterior surface of fibula Insertion : 1. Base of distal phalanx of big toe Action : Plantar flexion Inversion

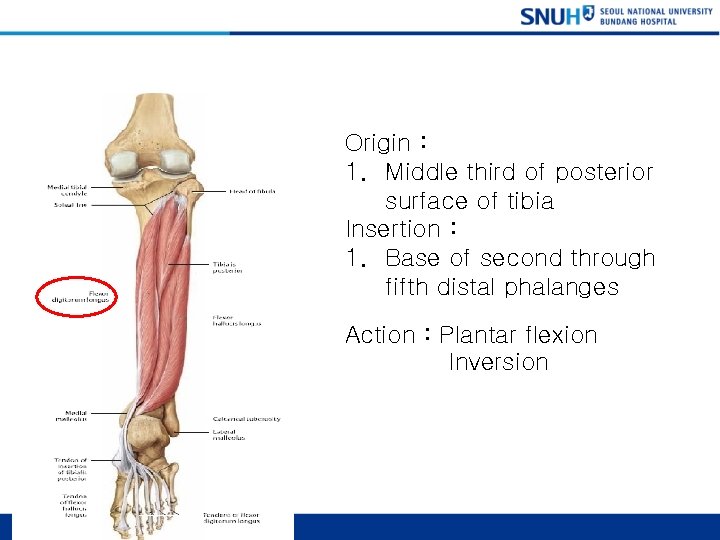

Flexor Digitorum longus Origin : 1. Middle third of posterior surface of tibia Insertion : 1. Base of second through fifth distal phalanges Action : Plantar flexion Inversion
