Anatomy II Body Systems and Energy for Physical

Anatomy II: Body Systems and Energy for Physical Activity Year 10 PASS Mater Dei Catholic College

The Skeletal System

Skeletal Bones

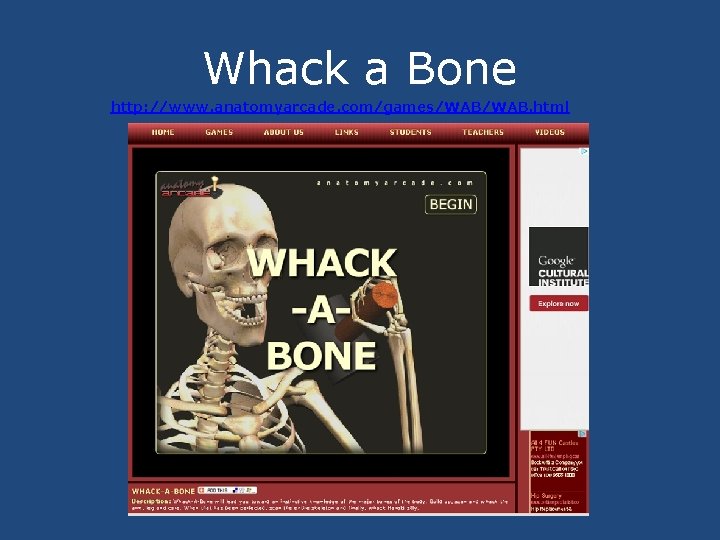

Whack a Bone http: //www. anatomyarcade. com/games/WAB. html

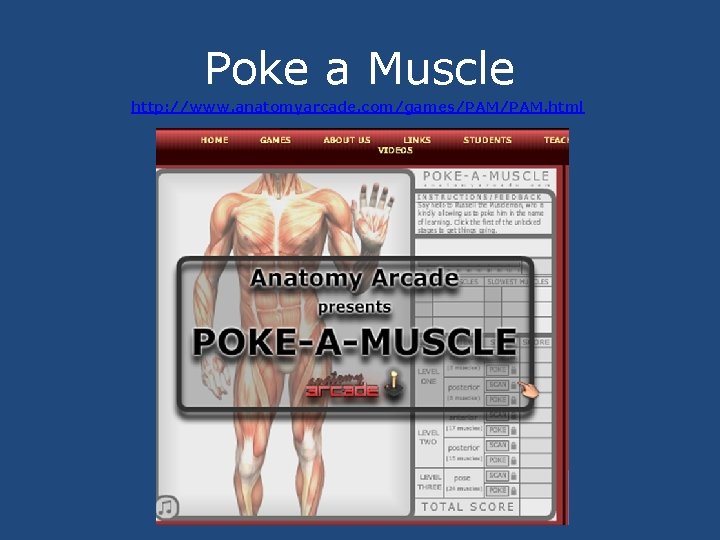

Poke a Muscle http: //www. anatomyarcade. com/games/PAM. html

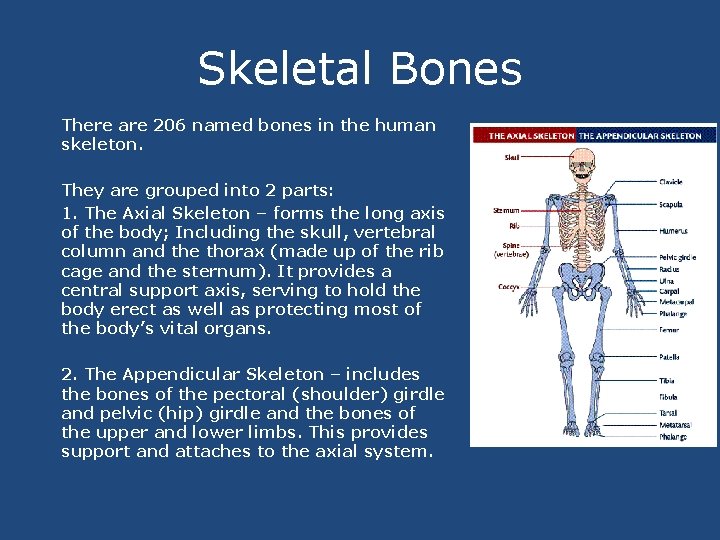

Skeletal Bones There are 206 named bones in the human skeleton. They are grouped into 2 parts: 1. The Axial Skeleton – forms the long axis of the body; Including the skull, vertebral column and the thorax (made up of the rib cage and the sternum). It provides a central support axis, serving to hold the body erect as well as protecting most of the body’s vital organs. 2. The Appendicular Skeleton – includes the bones of the pectoral (shoulder) girdle and pelvic (hip) girdle and the bones of the upper and lower limbs. This provides support and attaches to the axial system.

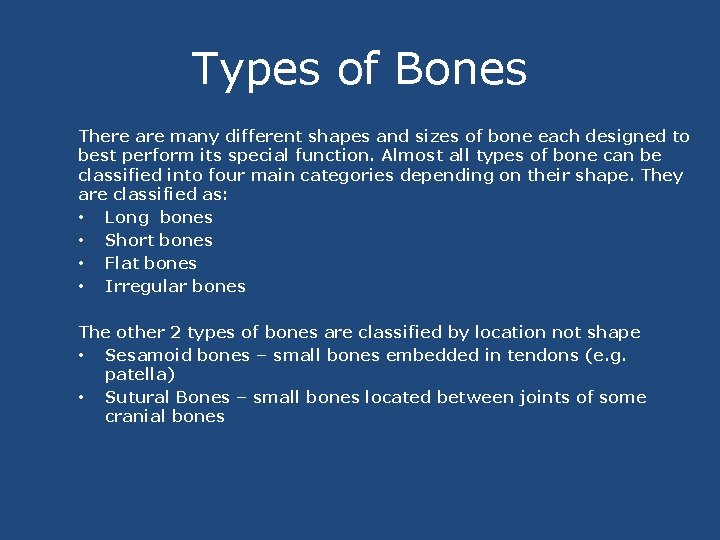

Types of Bones There are many different shapes and sizes of bone each designed to best perform its special function. Almost all types of bone can be classified into four main categories depending on their shape. They are classified as: • Long bones • Short bones • Flat bones • Irregular bones The other 2 types of bones are classified by location not shape • Sesamoid bones – small bones embedded in tendons (e. g. patella) • Sutural Bones – small bones located between joints of some cranial bones

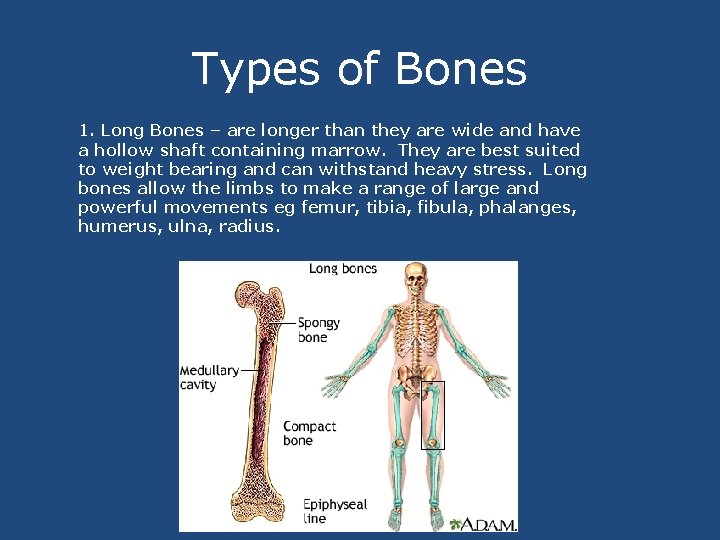

Types of Bones 1. Long Bones – are longer than they are wide and have a hollow shaft containing marrow. They are best suited to weight bearing and can withstand heavy stress. Long bones allow the limbs to make a range of large and powerful movements eg femur, tibia, fibula, phalanges, humerus, ulna, radius.

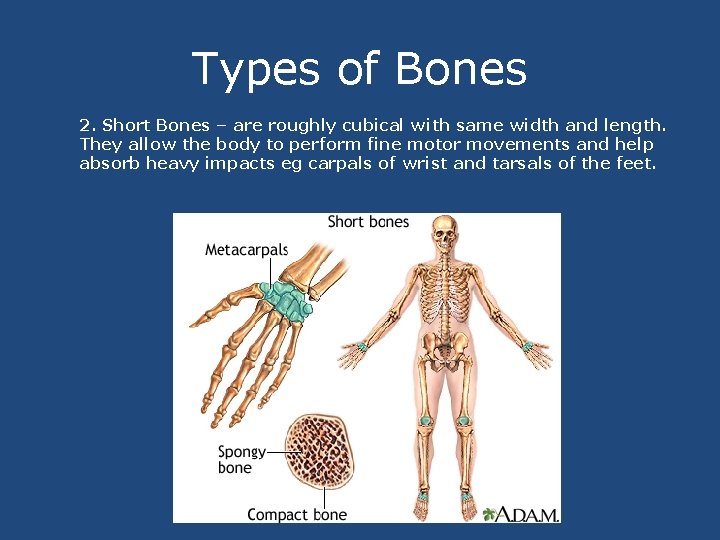

Types of Bones 2. Short Bones – are roughly cubical with same width and length. They allow the body to perform fine motor movements and help absorb heavy impacts eg carpals of wrist and tarsals of the feet.

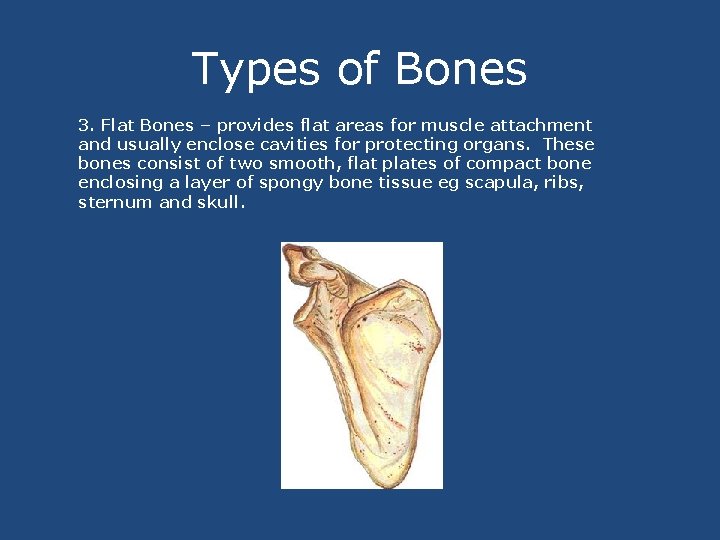

Types of Bones 3. Flat Bones – provides flat areas for muscle attachment and usually enclose cavities for protecting organs. These bones consist of two smooth, flat plates of compact bone enclosing a layer of spongy bone tissue eg scapula, ribs, sternum and skull.

Types of Bones 4. Irregular Bones – have no shape characteristics and include bones not yet classified e. g. vertebrae and bones of the face

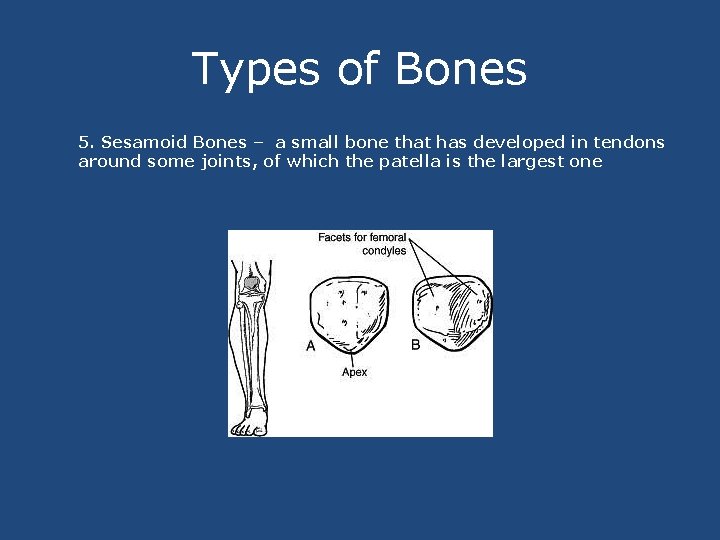

Types of Bones 5. Sesamoid Bones – a small bone that has developed in tendons around some joints, of which the patella is the largest one

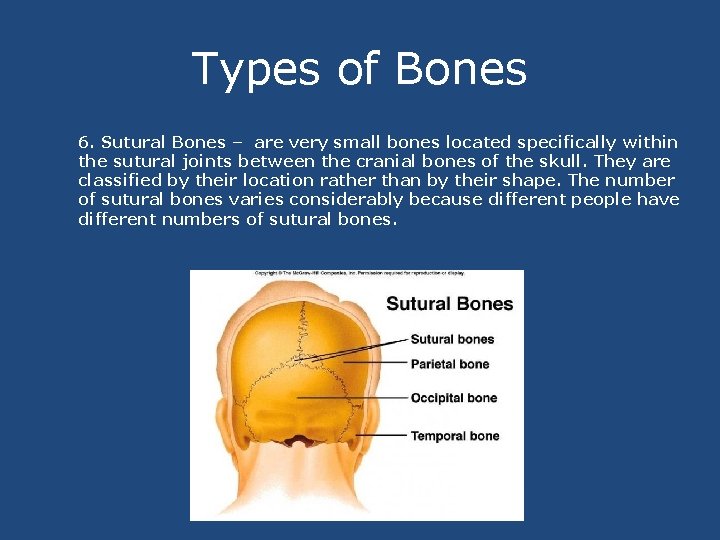

Types of Bones 6. Sutural Bones – are very small bones located specifically within the sutural joints between the cranial bones of the skull. They are classified by their location rather than by their shape. The number of sutural bones varies considerably because different people have different numbers of sutural bones.

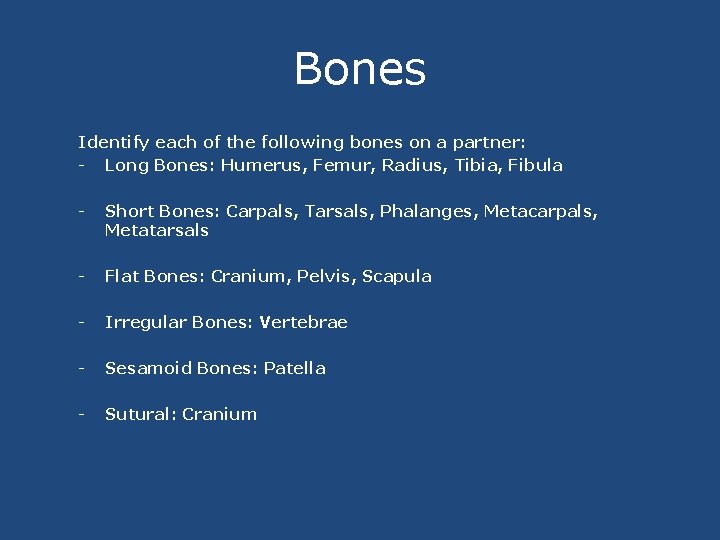

Bones Identify each of the following bones on a partner: - Long Bones: Humerus, Femur, Radius, Tibia, Fibula - Short Bones: Carpals, Tarsals, Phalanges, Metacarpals, Metatarsals - Flat Bones: Cranium, Pelvis, Scapula - Irregular Bones: Vertebrae - Sesamoid Bones: Patella - Sutural: Cranium

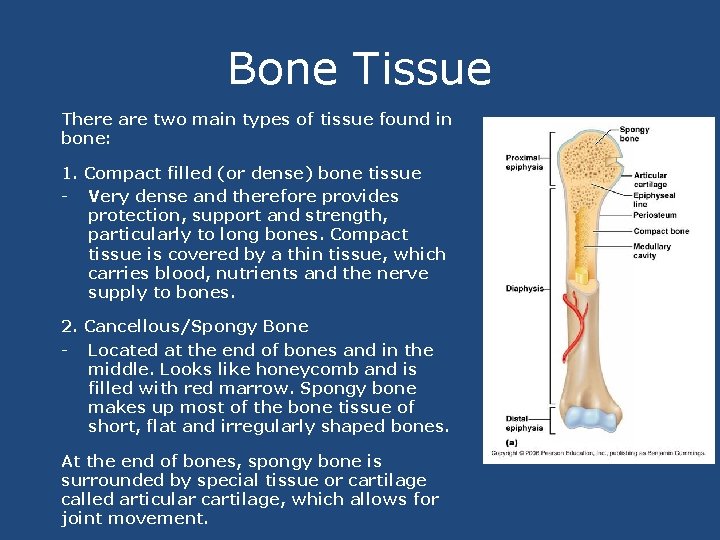

Bone Tissue There are two main types of tissue found in bone: 1. Compact filled (or dense) bone tissue - Very dense and therefore provides protection, support and strength, particularly to long bones. Compact tissue is covered by a thin tissue, which carries blood, nutrients and the nerve supply to bones. 2. Cancellous/Spongy Bone - Located at the end of bones and in the middle. Looks like honeycomb and is filled with red marrow. Spongy bone makes up most of the bone tissue of short, flat and irregularly shaped bones. At the end of bones, spongy bone is surrounded by special tissue or cartilage called articular cartilage, which allows for joint movement.

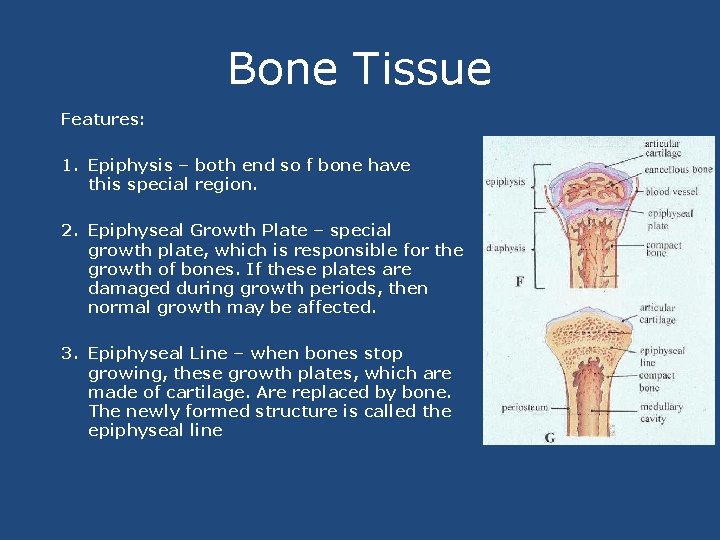

Bone Tissue Features: 1. Epiphysis – both end so f bone have this special region. 2. Epiphyseal Growth Plate – special growth plate, which is responsible for the growth of bones. If these plates are damaged during growth periods, then normal growth may be affected. 3. Epiphyseal Line – when bones stop growing, these growth plates, which are made of cartilage. Are replaced by bone. The newly formed structure is called the epiphyseal line

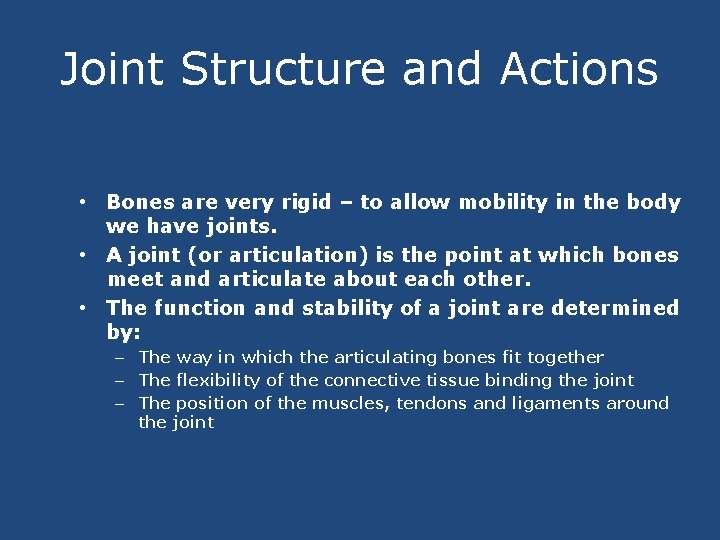

Joint Structure and Actions • Bones are very rigid – to allow mobility in the body we have joints. • A joint (or articulation) is the point at which bones meet and articulate about each other. • The function and stability of a joint are determined by: – The way in which the articulating bones fit together – The flexibility of the connective tissue binding the joint – The position of the muscles, tendons and ligaments around the joint

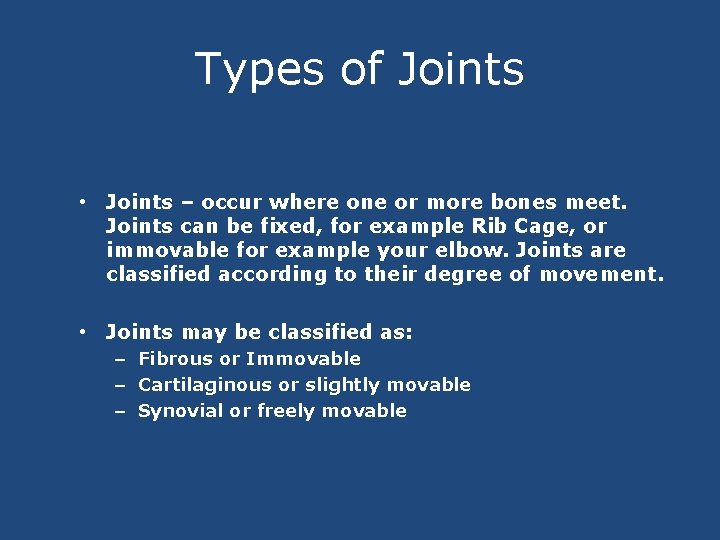

Types of Joints • Joints – occur where one or more bones meet. Joints can be fixed, for example Rib Cage, or immovable for example your elbow. Joints are classified according to their degree of movement. • Joints may be classified as: – Fibrous or Immovable – Cartilaginous or slightly movable – Synovial or freely movable

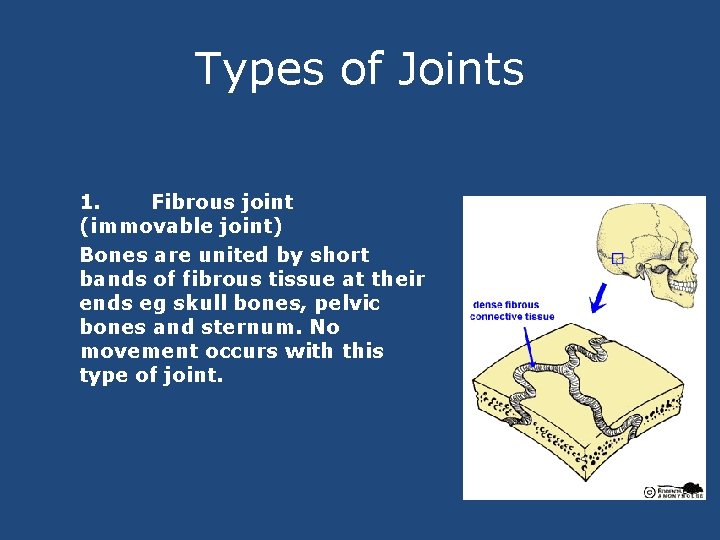

Types of Joints 1. Fibrous joint (immovable joint) Bones are united by short bands of fibrous tissue at their ends eg skull bones, pelvic bones and sternum. No movement occurs with this type of joint.

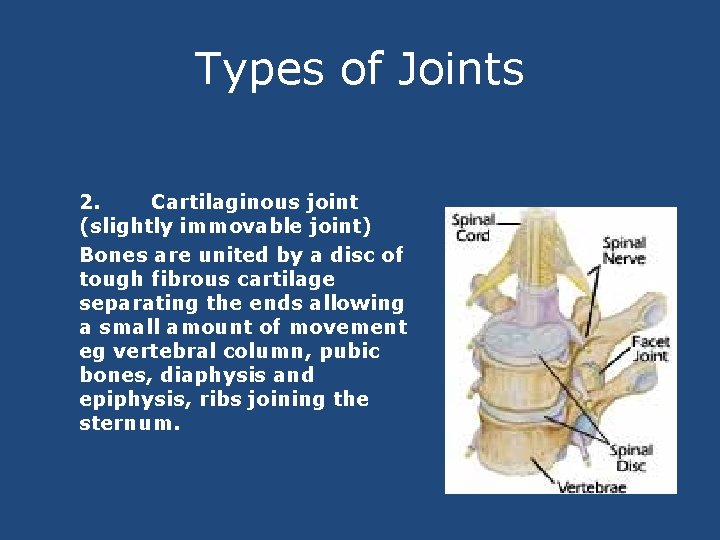

Types of Joints 2. Cartilaginous joint (slightly immovable joint) Bones are united by a disc of tough fibrous cartilage separating the ends allowing a small amount of movement eg vertebral column, pubic bones, diaphysis and epiphysis, ribs joining the sternum.

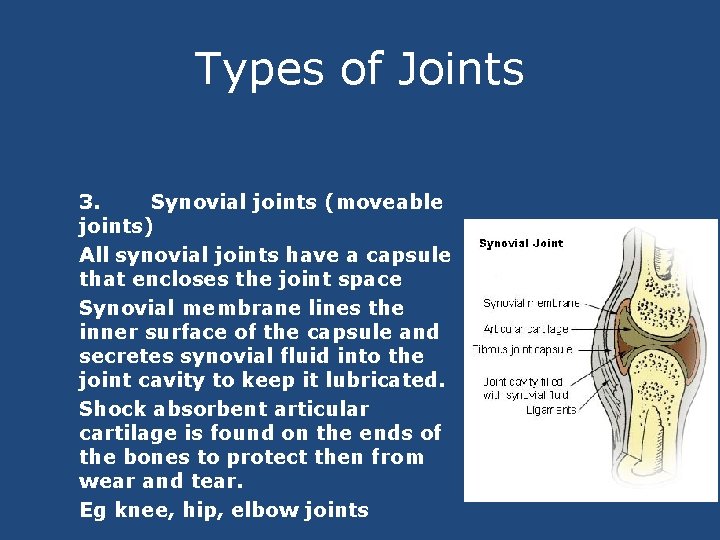

Types of Joints 3. Synovial joints (moveable joints) All synovial joints have a capsule that encloses the joint space Synovial membrane lines the inner surface of the capsule and secretes synovial fluid into the joint cavity to keep it lubricated. Shock absorbent articular cartilage is found on the ends of the bones to protect then from wear and tear. Eg knee, hip, elbow joints

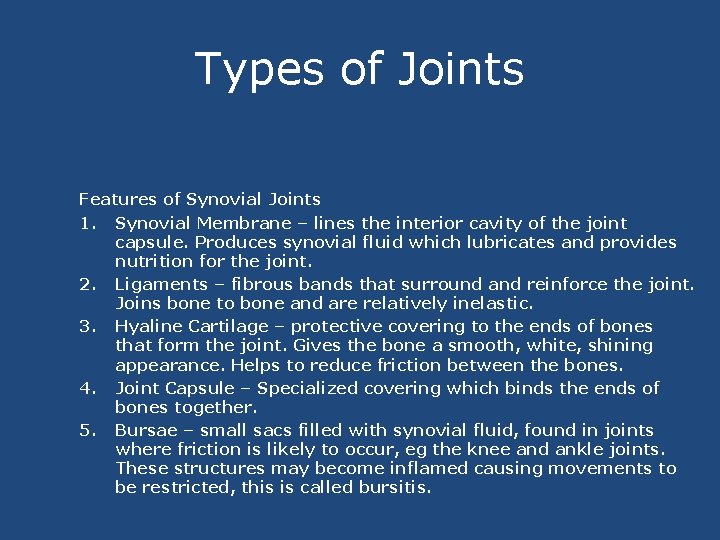

Types of Joints Features of Synovial Joints 1. Synovial Membrane – lines the interior cavity of the joint capsule. Produces synovial fluid which lubricates and provides nutrition for the joint. 2. Ligaments – fibrous bands that surround and reinforce the joint. Joins bone to bone and are relatively inelastic. 3. Hyaline Cartilage – protective covering to the ends of bones that form the joint. Gives the bone a smooth, white, shining appearance. Helps to reduce friction between the bones. 4. Joint Capsule – Specialized covering which binds the ends of bones together. 5. Bursae – small sacs filled with synovial fluid, found in joints where friction is likely to occur, eg the knee and ankle joints. These structures may become inflamed causing movements to be restricted, this is called bursitis.

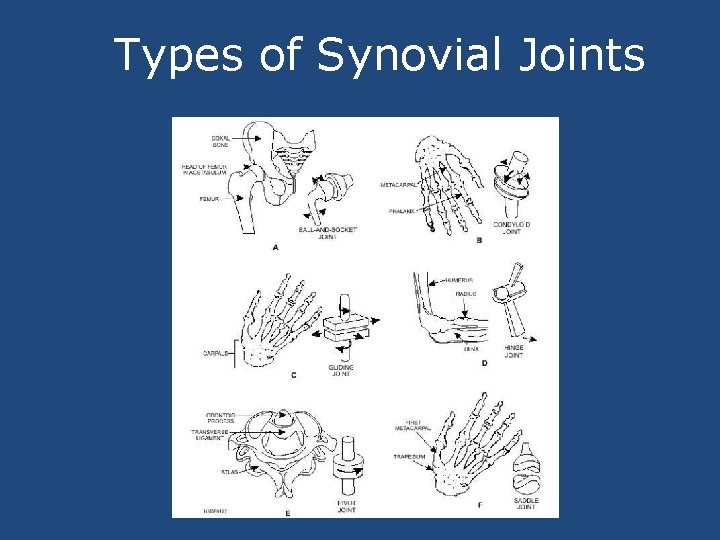

Types of Synovial Joints

Muscle Actions In producing a particular movement, a muscle performs 1 of 3 roles: 1. Agonist (Prime Mover) – the muscle that contracts causing the major action in a moveable joint. 2. Antagonist – this muscle relaxes and lengthens to allow the agonist to contract. The 2 roles are interchangeable depending on the direction of the movement. For example, in flexing the elbow the biceps is the agonist and the triceps are the antagonist. When extending the elbow the triceps are the agonist and the bicep the antagonist. 3. Stabiliser (fixator) – these muscles act at a joint to stabilise and protect it, giving the muscle a fixed base.

Muscle Contraction

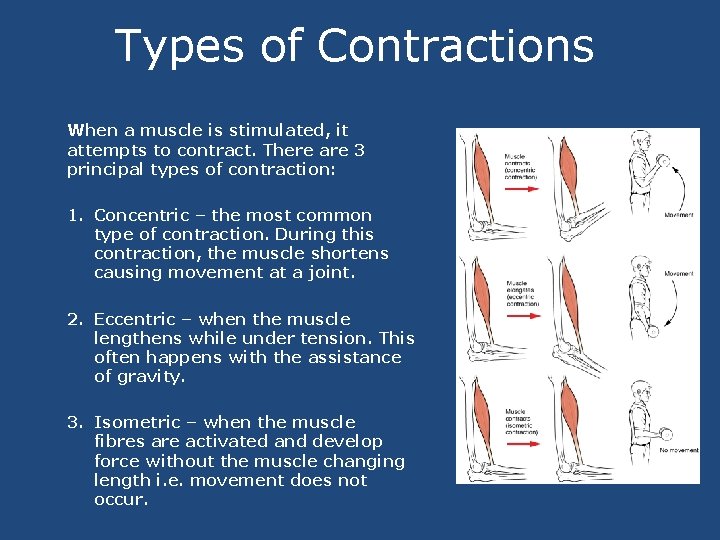

Types of Contractions When a muscle is stimulated, it attempts to contract. There are 3 principal types of contraction: 1. Concentric – the most common type of contraction. During this contraction, the muscle shortens causing movement at a joint. 2. Eccentric – when the muscle lengthens while under tension. This often happens with the assistance of gravity. 3. Isometric – when the muscle fibres are activated and develop force without the muscle changing length i. e. movement does not occur.

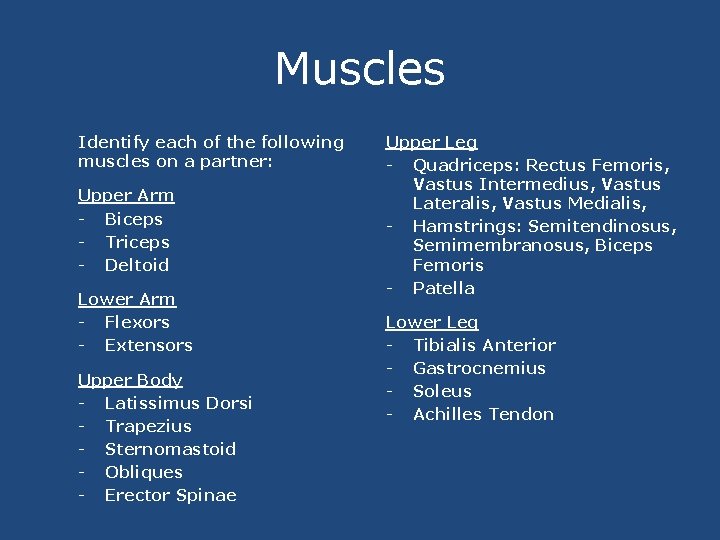

Muscles Identify each of the following muscles on a partner: Upper Arm - Biceps - Triceps - Deltoid Lower Arm - Flexors - Extensors Upper Body - Latissimus Dorsi - Trapezius - Sternomastoid - Obliques - Erector Spinae Upper Leg - Quadriceps: Rectus Femoris, Vastus Intermedius, Vastus Lateralis, Vastus Medialis, - Hamstrings: Semitendinosus, Semimembranosus, Biceps Femoris - Patella Lower Leg - Tibialis Anterior - Gastrocnemius - Soleus - Achilles Tendon

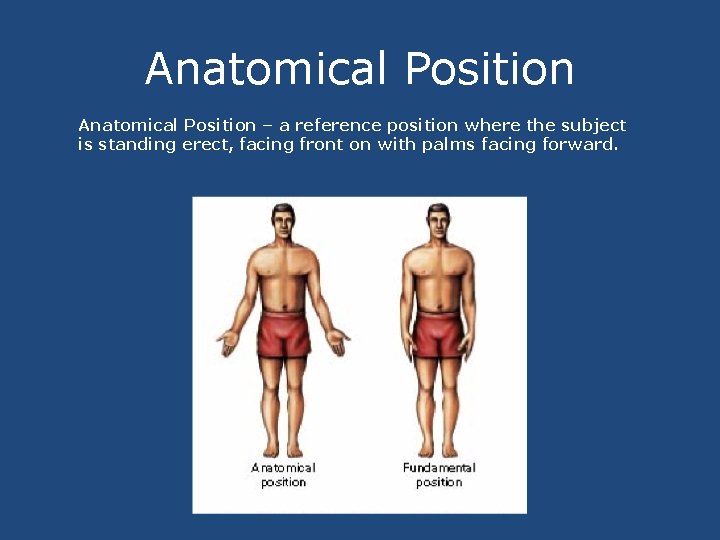

Anatomical Position – a reference position where the subject is standing erect, facing front on with palms facing forward.

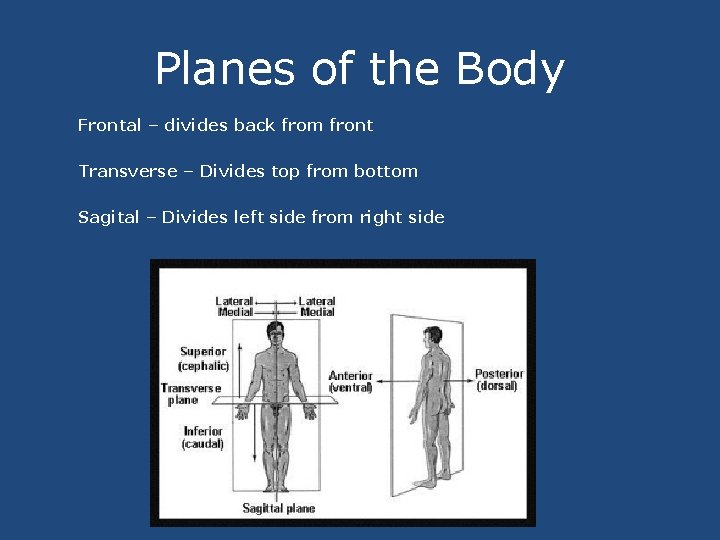

Planes of the Body Frontal – divides back from front Transverse – Divides top from bottom Sagital – Divides left side from right side

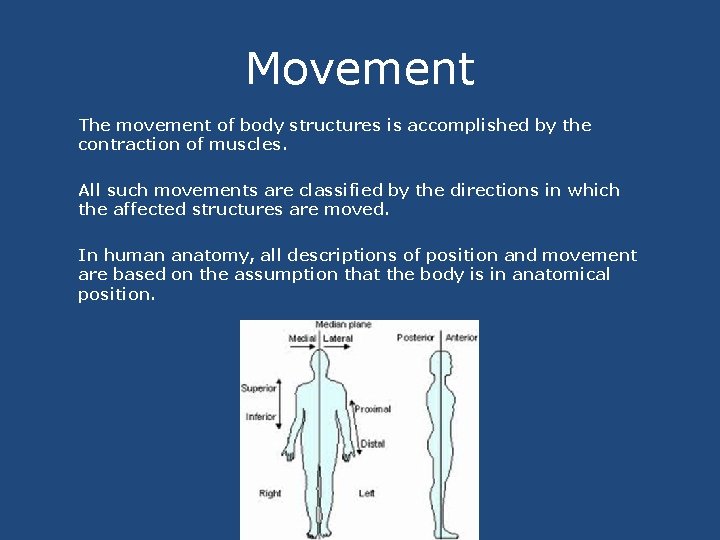

Movement The movement of body structures is accomplished by the contraction of muscles. All such movements are classified by the directions in which the affected structures are moved. In human anatomy, all descriptions of position and movement are based on the assumption that the body is in anatomical position.

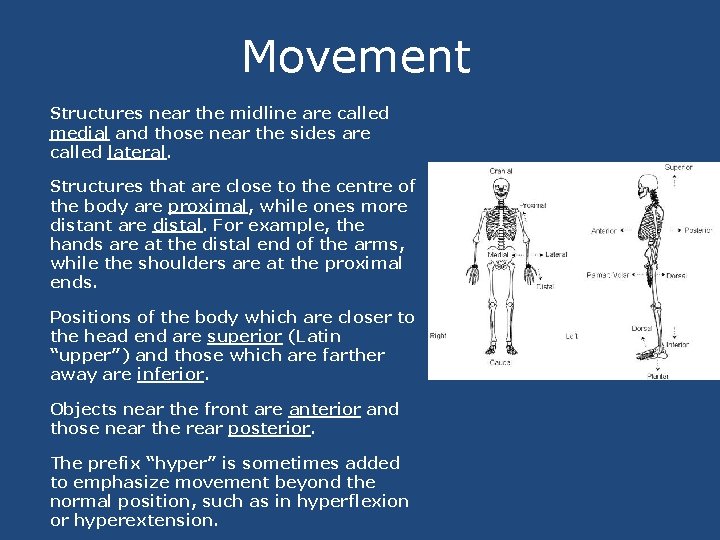

Movement Structures near the midline are called medial and those near the sides are called lateral. Structures that are close to the centre of the body are proximal, while ones more distant are distal. For example, the hands are at the distal end of the arms, while the shoulders are at the proximal ends. Positions of the body which are closer to the head end are superior (Latin “upper”) and those which are farther away are inferior. Objects near the front are anterior and those near the rear posterior. The prefix “hyper” is sometimes added to emphasize movement beyond the normal position, such as in hyperflexion or hyperextension.

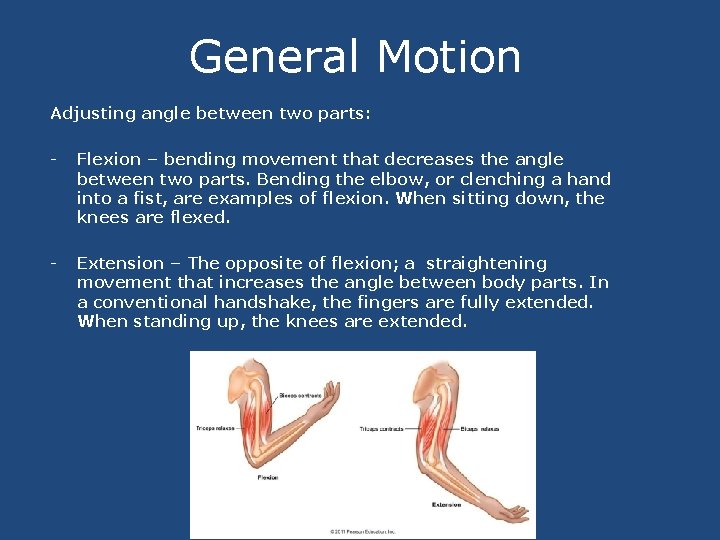

General Motion Adjusting angle between two parts: - Flexion – bending movement that decreases the angle between two parts. Bending the elbow, or clenching a hand into a fist, are examples of flexion. When sitting down, the knees are flexed. - Extension – The opposite of flexion; a straightening movement that increases the angle between body parts. In a conventional handshake, the fingers are fully extended. When standing up, the knees are extended.

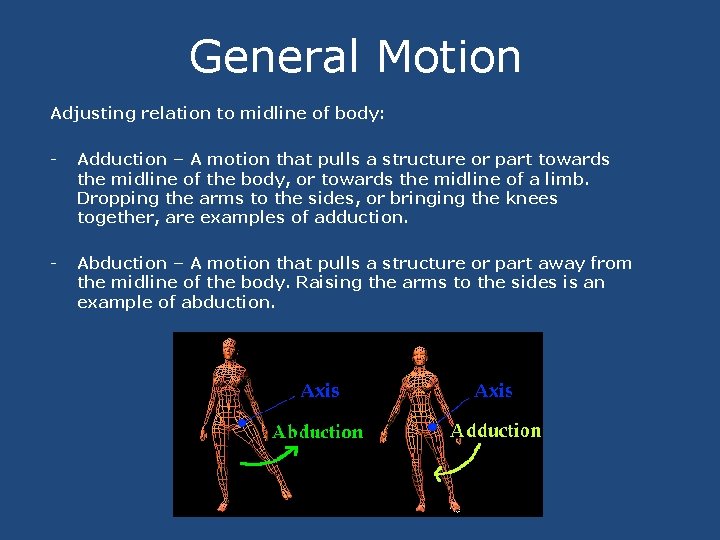

General Motion Adjusting relation to midline of body: - Adduction – A motion that pulls a structure or part towards the midline of the body, or towards the midline of a limb. Dropping the arms to the sides, or bringing the knees together, are examples of adduction. - Abduction – A motion that pulls a structure or part away from the midline of the body. Raising the arms to the sides is an example of abduction.

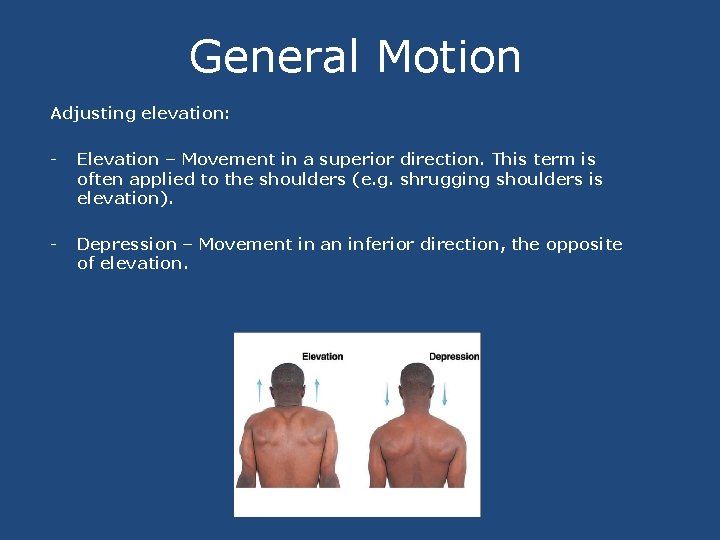

General Motion Adjusting elevation: - Elevation – Movement in a superior direction. This term is often applied to the shoulders (e. g. shrugging shoulders is elevation). - Depression – Movement in an inferior direction, the opposite of elevation.

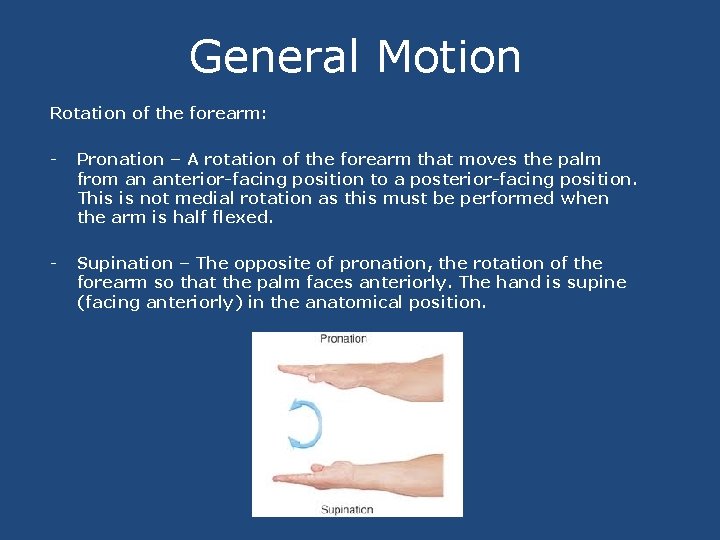

General Motion Rotation of the forearm: - Pronation – A rotation of the forearm that moves the palm from an anterior-facing position to a posterior-facing position. This is not medial rotation as this must be performed when the arm is half flexed. - Supination – The opposite of pronation, the rotation of the forearm so that the palm faces anteriorly. The hand is supine (facing anteriorly) in the anatomical position.

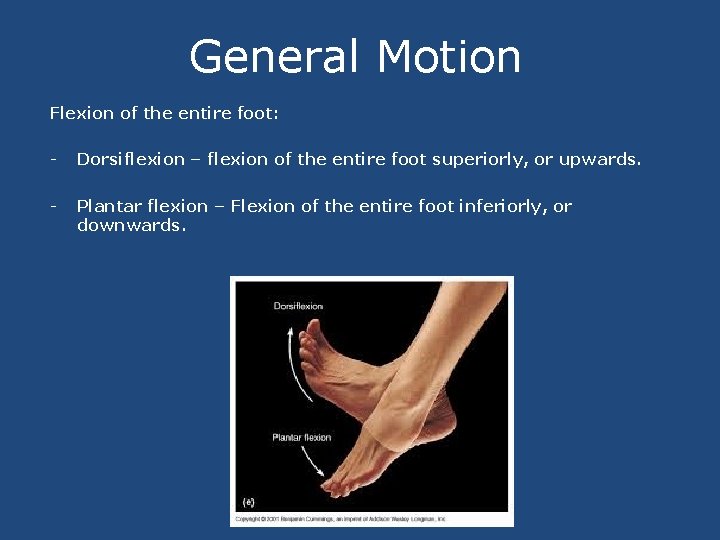

General Motion Flexion of the entire foot: - Dorsiflexion – flexion of the entire foot superiorly, or upwards. - Plantar flexion – Flexion of the entire foot inferiorly, or downwards.

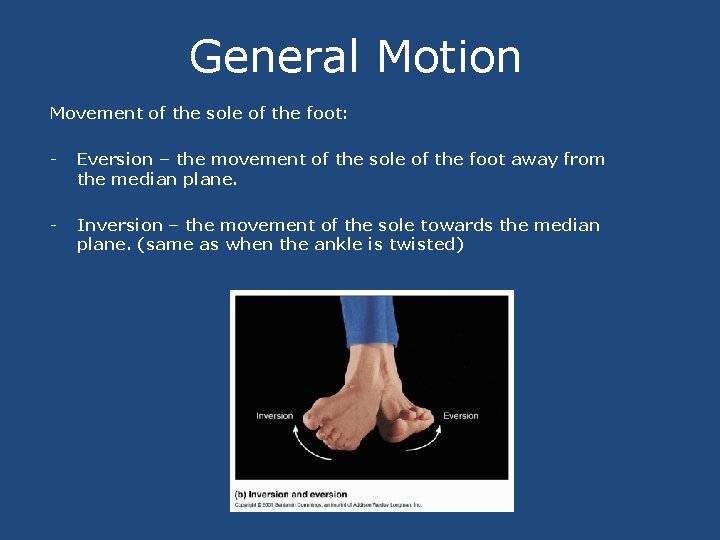

General Motion Movement of the sole of the foot: - Eversion – the movement of the sole of the foot away from the median plane. - Inversion – the movement of the sole towards the median plane. (same as when the ankle is twisted)

General Motion - Rotation – A motion that occurs when a part turns on its axis. The upper arm rotates on the shoulder socket, and the head rotates on the neck. - Circumduction – The circular (or, more precisely, conical) movement of a body part, such as a ball-and-socket joint or the eye. It consists of a combination of flexion, extension, adduction and abduction.

Vertebral Column

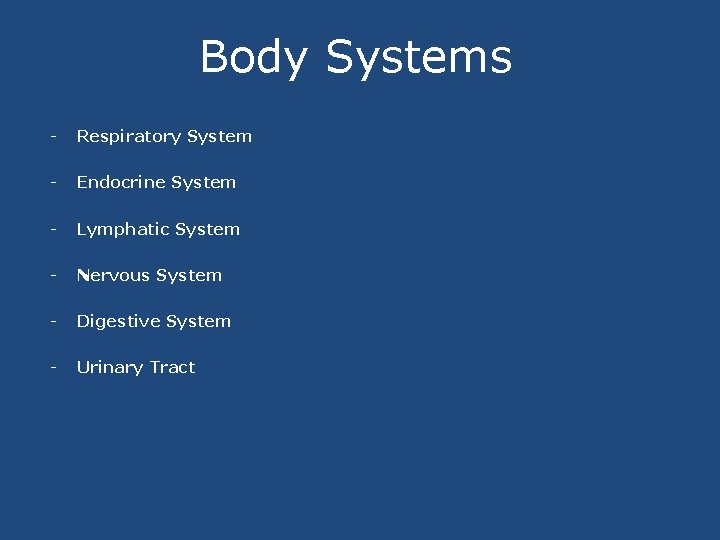

Body Systems - Respiratory System - Endocrine System - Lymphatic System - Nervous System - Digestive System - Urinary Tract

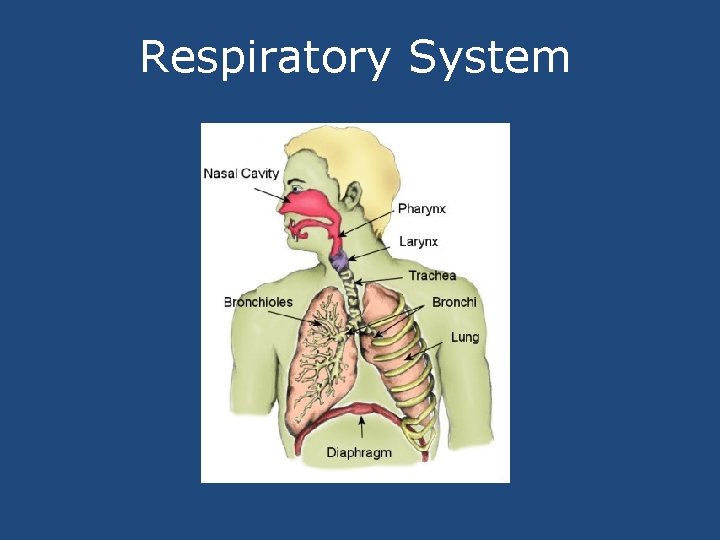

Respiratory System

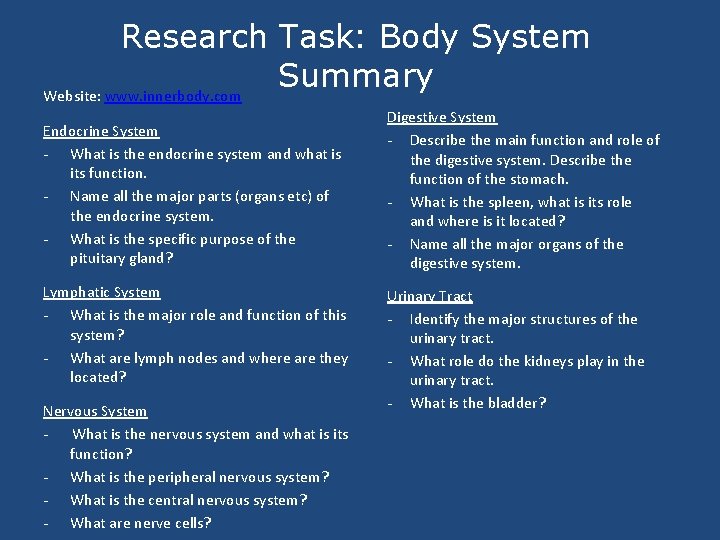

Research Task: Body System Summary Website: www. innerbody. com Endocrine System - What is the endocrine system and what is its function. - Name all the major parts (organs etc) of the endocrine system. - What is the specific purpose of the pituitary gland? Lymphatic System - What is the major role and function of this system? - What are lymph nodes and where are they located? Nervous System - What is the nervous system and what is its function? - What is the peripheral nervous system? - What is the central nervous system? - What are nerve cells? Digestive System - Describe the main function and role of the digestive system. Describe the function of the stomach. - What is the spleen, what is its role and where is it located? - Name all the major organs of the digestive system. Urinary Tract - Identify the major structures of the urinary tract. - What role do the kidneys play in the urinary tract. - What is the bladder?
