ANAMET Canada Inc 100 years of flexible safety

ANAMET Canada Inc. 100 years of flexible safety TO CONNECT AND PROTECT

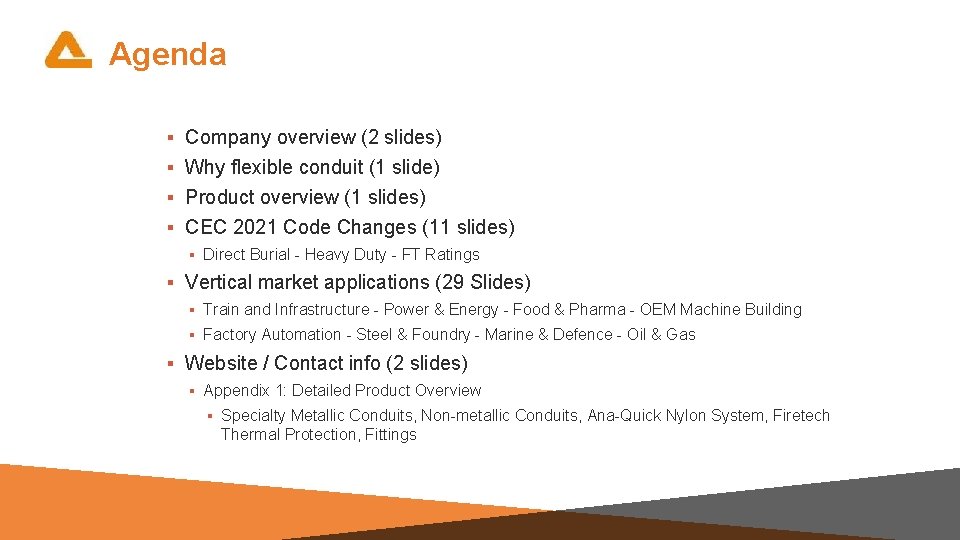

Agenda ▪ ▪ Company overview (2 slides) Why flexible conduit (1 slide) Product overview (1 slides) CEC 2021 Code Changes (11 slides) ▪ Direct Burial - Heavy Duty - FT Ratings ▪ Vertical market applications (29 Slides) ▪ Train and Infrastructure - Power & Energy - Food & Pharma - OEM Machine Building ▪ Factory Automation - Steel & Foundry - Marine & Defence - Oil & Gas ▪ Website / Contact info (2 slides) ▪ Appendix 1: Detailed Product Overview ▪ Specialty Metallic Conduits, Non-metallic Conduits, Ana-Quick Nylon System, Firetech Thermal Protection, Fittings

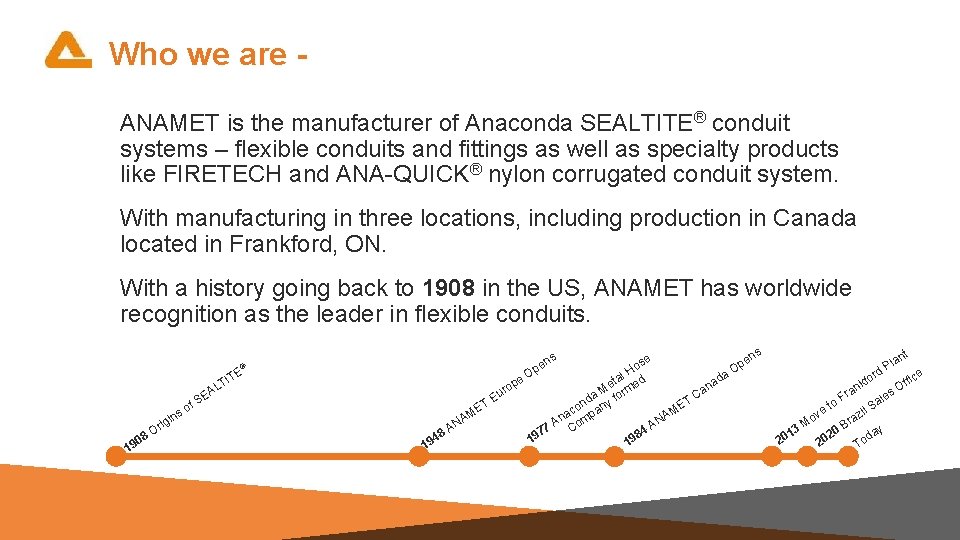

Who we are ANAMET is the manufacturer of Anaconda SEALTITE® conduit systems – flexible conduits and fittings as well as specialty products like FIRETECH and ANA-QUICK® nylon corrugated conduit system. With manufacturing in three locations, including production in Canada located in Frankford, ON. With a history going back to 1908 in the US, ANAMET has worldwide recognition as the leader in flexible conduits. E IT 0 19 SE n igi r 8 O f so T AL s n se pe o O H da e. O tal ed a p e n ro Ca a M form Eu d T y n T n o ME ac mpa ME A n A AN 7 A Co AN 4 7 8 8 19 94 19 s n pe ® 1 t an l d. P e fic for f k O an Fr les a o t S ve zil o a r y 3 M 20 B 1 da o 20 20 T

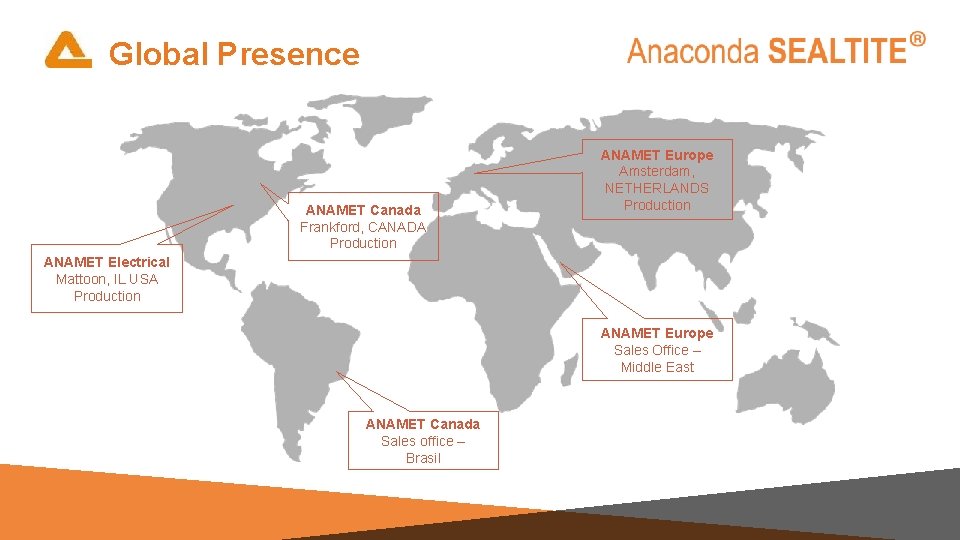

Global Presence ANAMET Canada Frankford, CANADA Production ANAMET Europe Amsterdam, NETHERLANDS Production ANAMET Electrical Mattoon, IL USA Production ANAMET Europe Sales Office – Middle East ANAMET Canada Sales office – Brasil

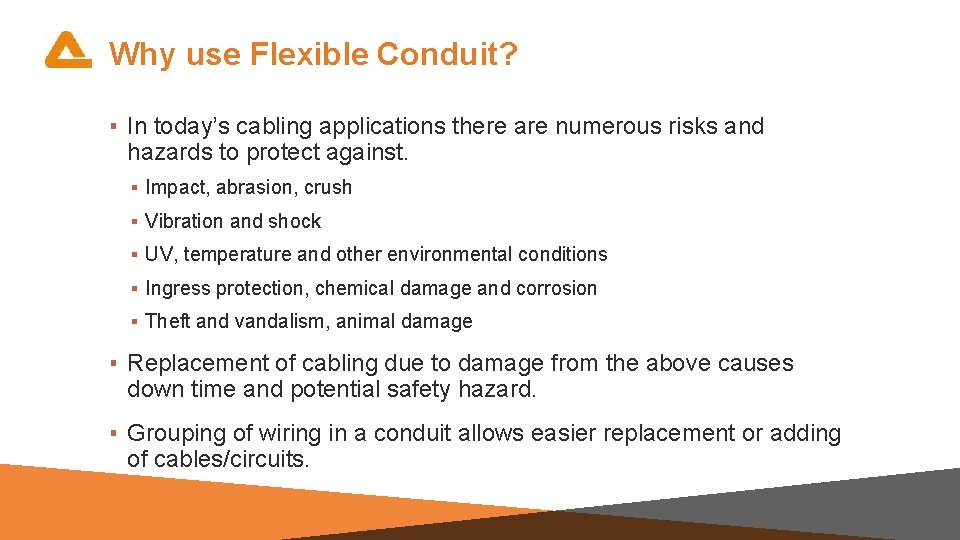

Why use Flexible Conduit? ▪ In today’s cabling applications there are numerous risks and hazards to protect against. ▪ Impact, abrasion, crush ▪ Vibration and shock ▪ UV, temperature and other environmental conditions ▪ Ingress protection, chemical damage and corrosion ▪ Theft and vandalism, animal damage ▪ Replacement of cabling due to damage from the above causes down time and potential safety hazard. ▪ Grouping of wiring in a conduit allows easier replacement or adding of cables/circuits.

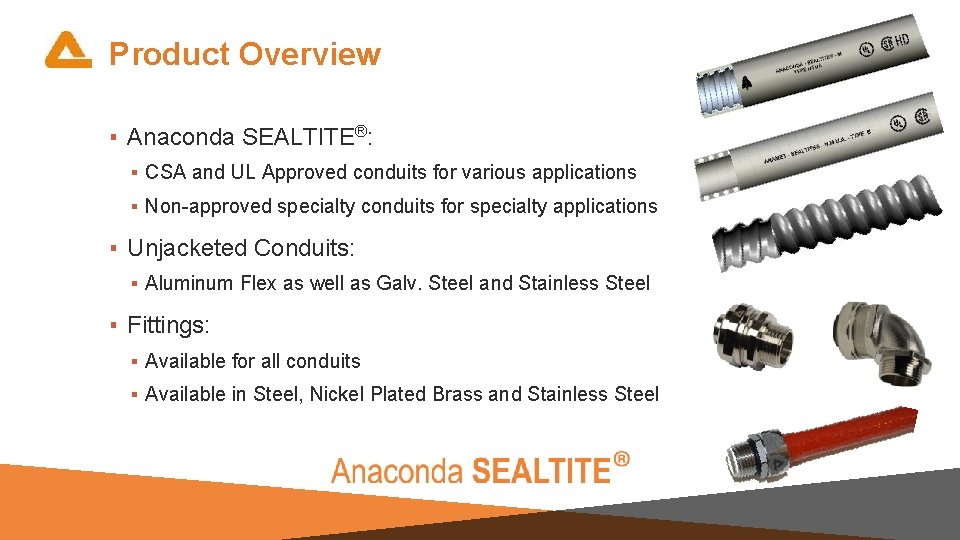

Product Overview ▪ Anaconda SEALTITE®: ▪ CSA and UL Approved conduits for various applications ▪ Non-approved specialty conduits for specialty applications ▪ Unjacketed Conduits: ▪ Aluminum Flex as well as Galv. Steel and Stainless Steel ▪ Fittings: ▪ Available for all conduits ▪ Available in Steel, Nickel Plated Brass and Stainless Steel

CEC Code Changes

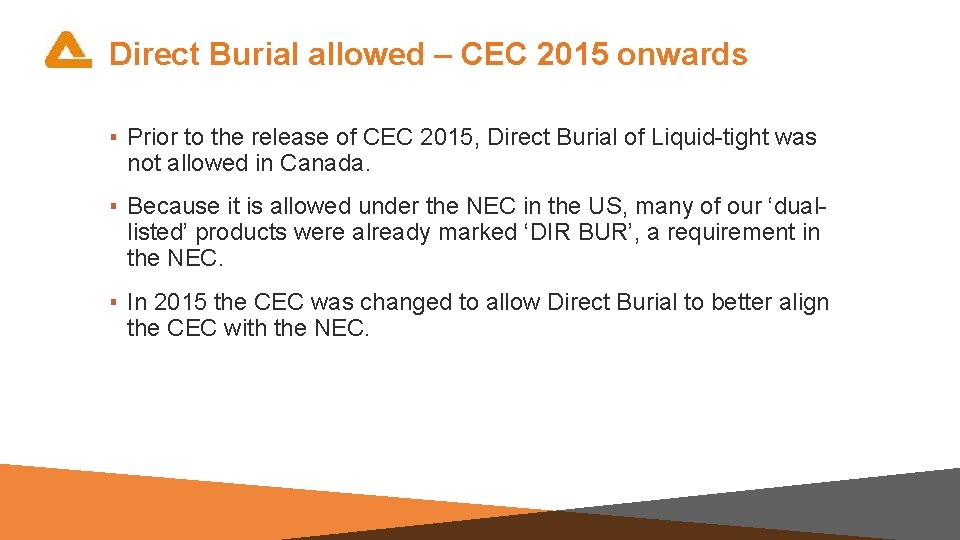

Direct Burial allowed – CEC 2015 onwards ▪ Prior to the release of CEC 2015, Direct Burial of Liquid-tight was not allowed in Canada. ▪ Because it is allowed under the NEC in the US, many of our ‘duallisted’ products were already marked ‘DIR BUR’, a requirement in the NEC. ▪ In 2015 the CEC was changed to allow Direct Burial to better align the CEC with the NEC.

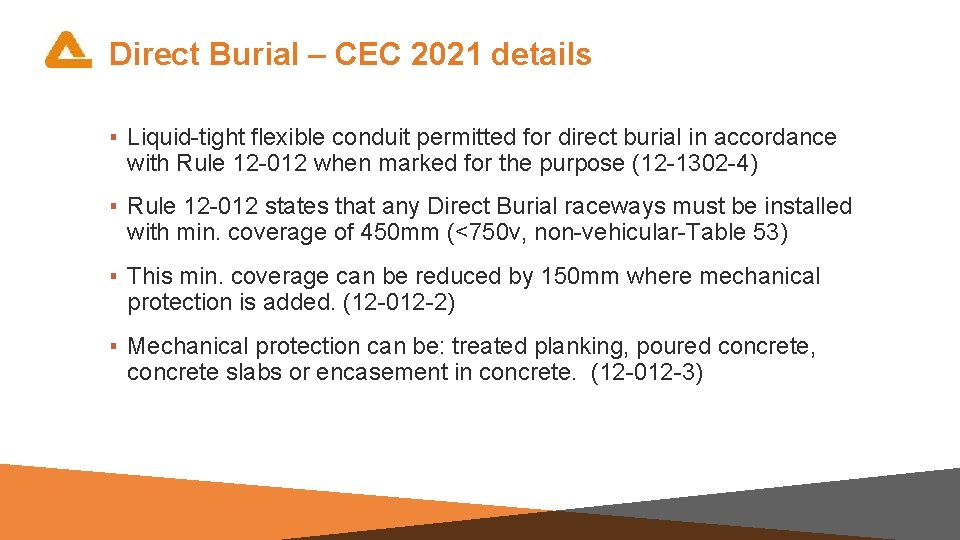

Direct Burial – CEC 2021 details ▪ Liquid-tight flexible conduit permitted for direct burial in accordance with Rule 12 -012 when marked for the purpose (12 -1302 -4) ▪ Rule 12 -012 states that any Direct Burial raceways must be installed with min. coverage of 450 mm (<750 v, non-vehicular-Table 53) ▪ This min. coverage can be reduced by 150 mm where mechanical protection is added. (12 -012 -2) ▪ Mechanical protection can be: treated planking, poured concrete, concrete slabs or encasement in concrete. (12 -012 -3)

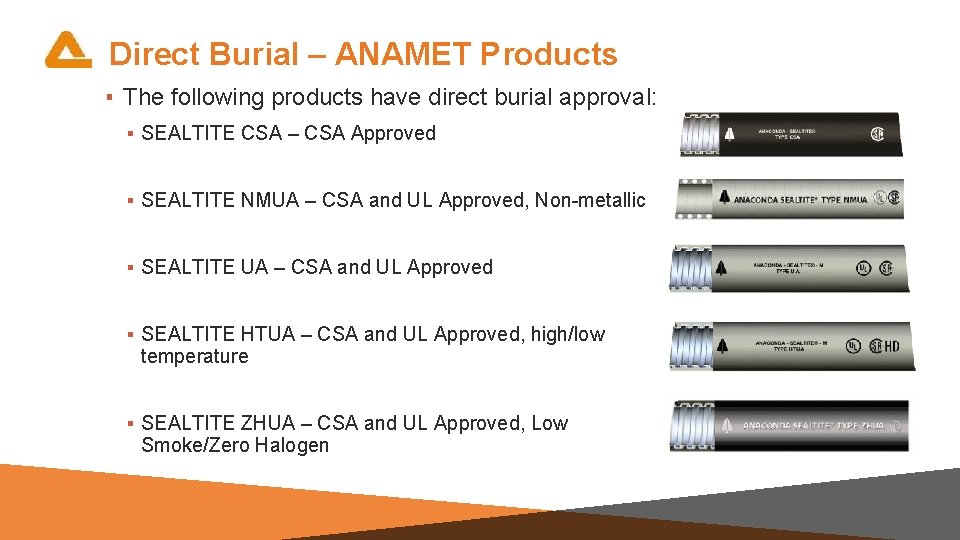

Direct Burial – ANAMET Products ▪ The following products have direct burial approval: ▪ SEALTITE CSA – CSA Approved ▪ SEALTITE NMUA – CSA and UL Approved, Non-metallic ▪ SEALTITE UA – CSA and UL Approved ▪ SEALTITE HTUA – CSA and UL Approved, high/low temperature ▪ SEALTITE ZHUA – CSA and UL Approved, Low Smoke/Zero Halogen

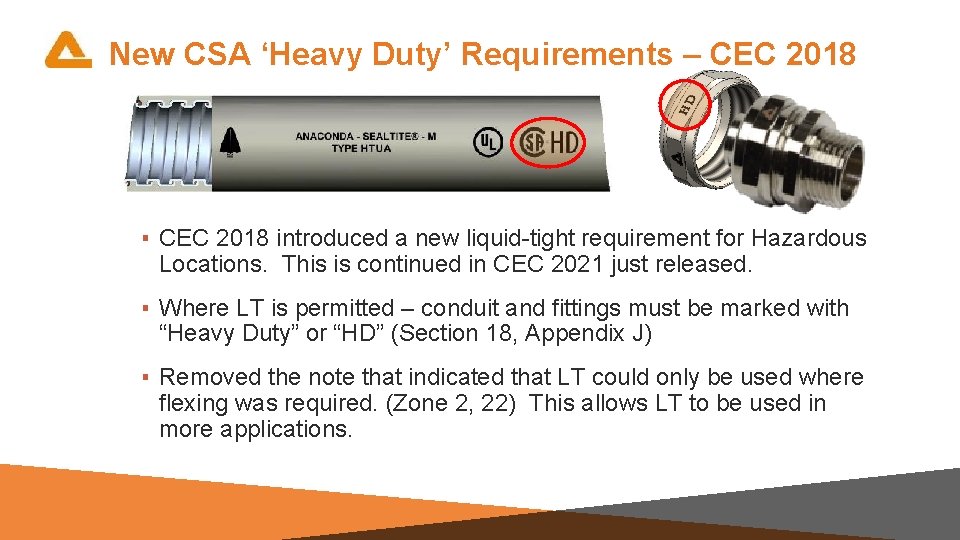

New CSA ‘Heavy Duty’ Requirements – CEC 2018 ▪ CEC 2018 introduced a new liquid-tight requirement for Hazardous Locations. This is continued in CEC 2021 just released. ▪ Where LT is permitted – conduit and fittings must be marked with “Heavy Duty” or “HD” (Section 18, Appendix J) ▪ Removed the note that indicated that LT could only be used where flexing was required. (Zone 2, 22) This allows LT to be used in more applications.

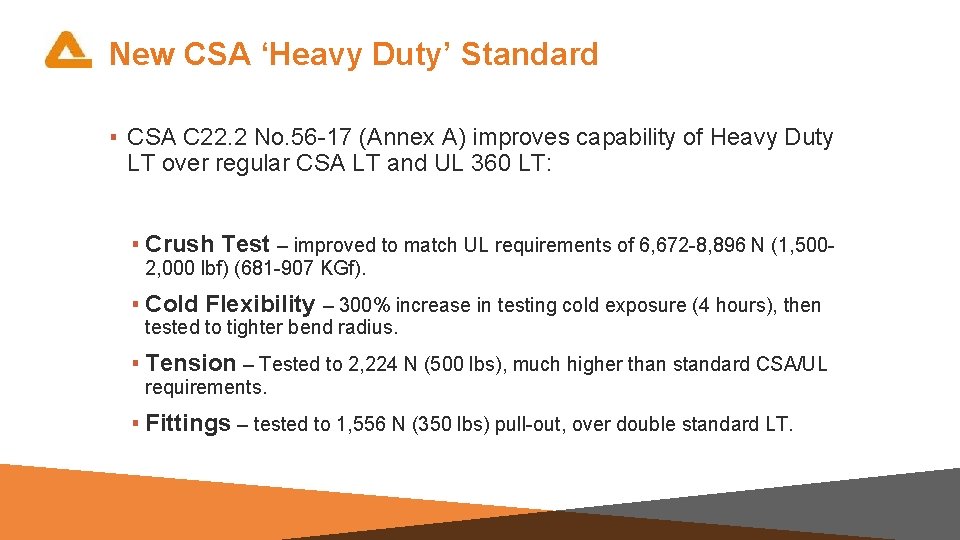

New CSA ‘Heavy Duty’ Standard ▪ CSA C 22. 2 No. 56 -17 (Annex A) improves capability of Heavy Duty LT over regular CSA LT and UL 360 LT: ▪ Crush Test – improved to match UL requirements of 6, 672 -8, 896 N (1, 5002, 000 lbf) (681 -907 KGf). ▪ Cold Flexibility – 300% increase in testing cold exposure (4 hours), then tested to tighter bend radius. ▪ Tension – Tested to 2, 224 N (500 lbs), much higher than standard CSA/UL requirements. ▪ Fittings – tested to 1, 556 N (350 lbs) pull-out, over double standard LT.

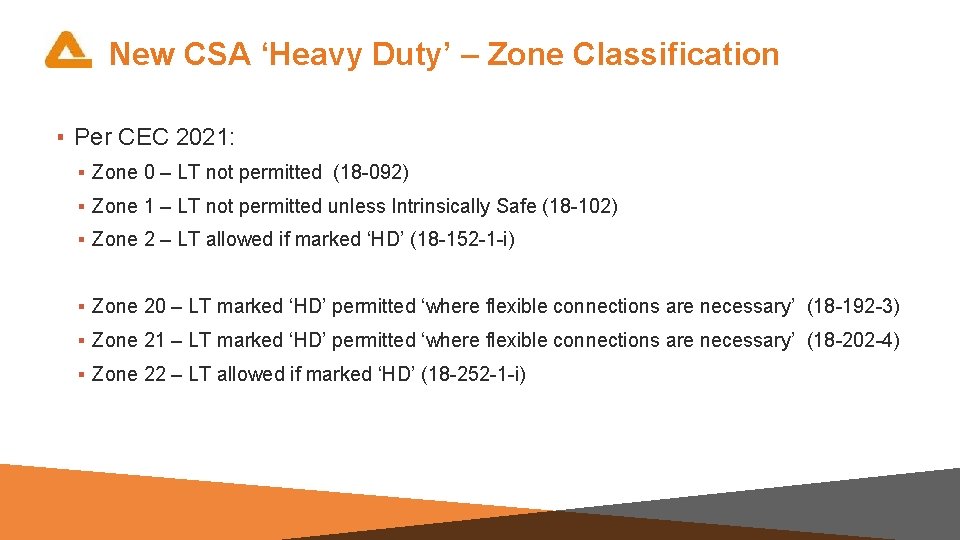

New CSA ‘Heavy Duty’ – Zone Classification ▪ Per CEC 2021: ▪ Zone 0 – LT not permitted (18 -092) ▪ Zone 1 – LT not permitted unless Intrinsically Safe (18 -102) ▪ Zone 2 – LT allowed if marked ‘HD’ (18 -152 -1 -i) ▪ Zone 20 – LT marked ‘HD’ permitted ‘where flexible connections are necessary’ (18 -192 -3) ▪ Zone 21 – LT marked ‘HD’ permitted ‘where flexible connections are necessary’ (18 -202 -4) ▪ Zone 22 – LT allowed if marked ‘HD’ (18 -252 -1 -i)

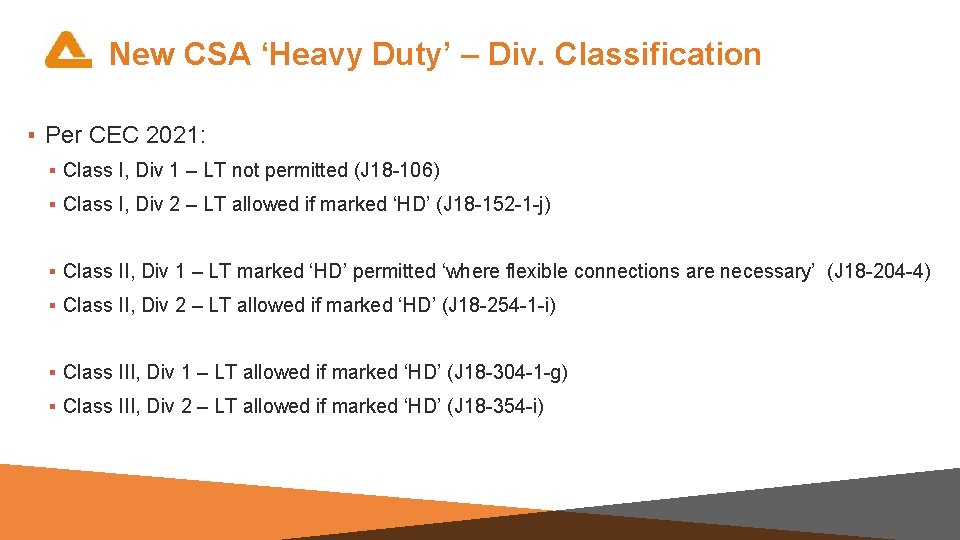

New CSA ‘Heavy Duty’ – Div. Classification ▪ Per CEC 2021: ▪ Class I, Div 1 – LT not permitted (J 18 -106) ▪ Class I, Div 2 – LT allowed if marked ‘HD’ (J 18 -152 -1 -j) ▪ Class II, Div 1 – LT marked ‘HD’ permitted ‘where flexible connections are necessary’ (J 18 -204 -4) ▪ Class II, Div 2 – LT allowed if marked ‘HD’ (J 18 -254 -1 -i) ▪ Class III, Div 1 – LT allowed if marked ‘HD’ (J 18 -304 -1 -g) ▪ Class III, Div 2 – LT allowed if marked ‘HD’ (J 18 -354 -i)

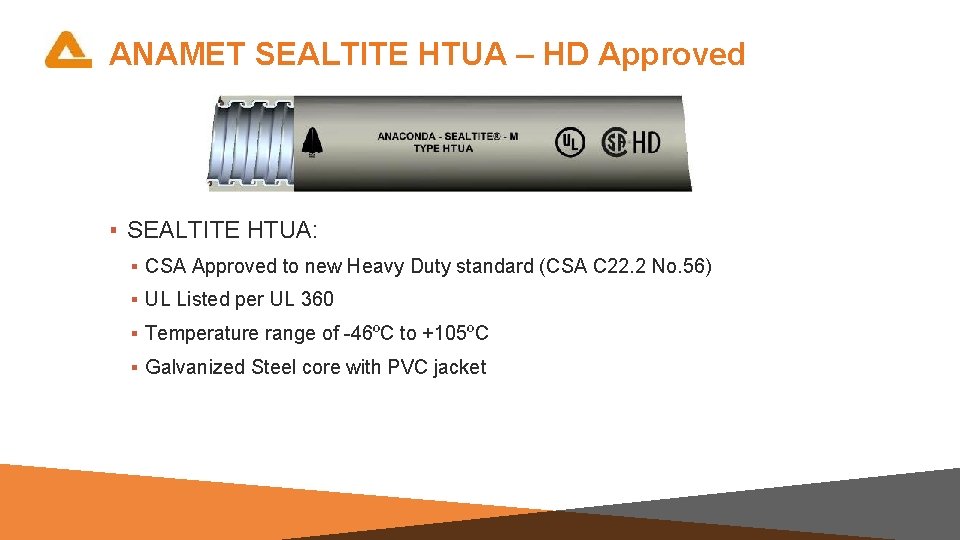

ANAMET SEALTITE HTUA – HD Approved ▪ SEALTITE HTUA: ▪ CSA Approved to new Heavy Duty standard (CSA C 22. 2 No. 56) ▪ UL Listed per UL 360 ▪ Temperature range of -46ºC to +105ºC ▪ Galvanized Steel core with PVC jacket

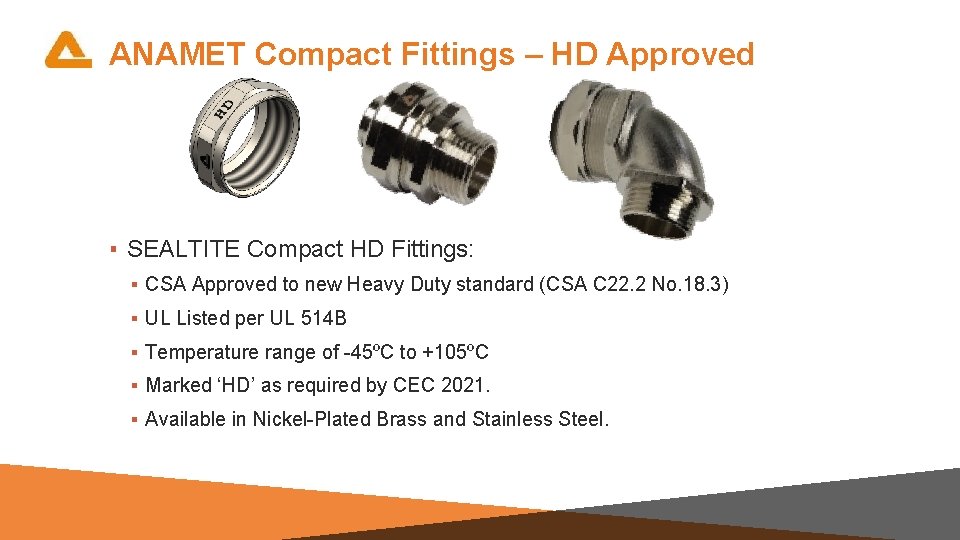

ANAMET Compact Fittings – HD Approved ▪ SEALTITE Compact HD Fittings: ▪ CSA Approved to new Heavy Duty standard (CSA C 22. 2 No. 18. 3) ▪ UL Listed per UL 514 B ▪ Temperature range of -45ºC to +105ºC ▪ Marked ‘HD’ as required by CEC 2021. ▪ Available in Nickel-Plated Brass and Stainless Steel.

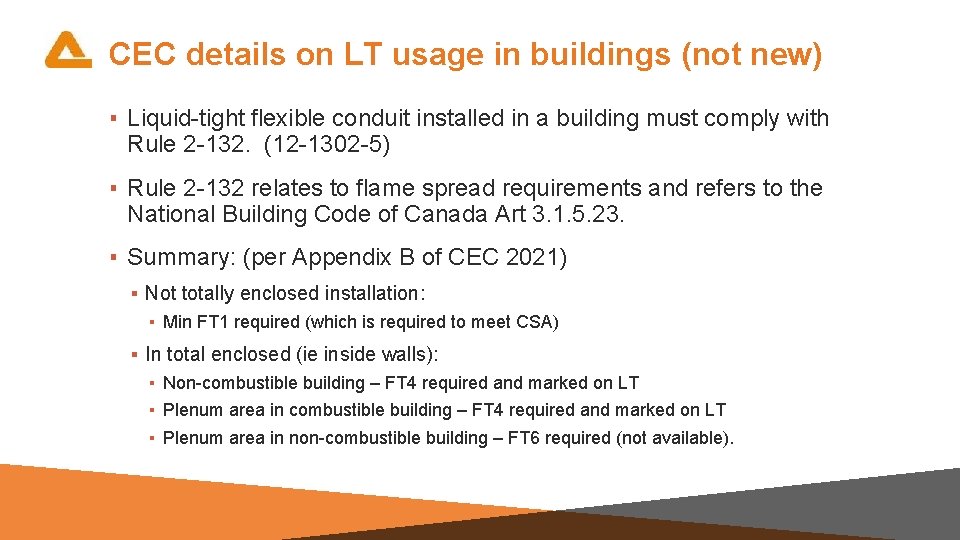

CEC details on LT usage in buildings (not new) ▪ Liquid-tight flexible conduit installed in a building must comply with Rule 2 -132. (12 -1302 -5) ▪ Rule 2 -132 relates to flame spread requirements and refers to the National Building Code of Canada Art 3. 1. 5. 23. ▪ Summary: (per Appendix B of CEC 2021) ▪ Not totally enclosed installation: ▪ Min FT 1 required (which is required to meet CSA) ▪ In total enclosed (ie inside walls): ▪ Non-combustible building – FT 4 required and marked on LT ▪ Plenum area in non-combustible building – FT 6 required (not available).

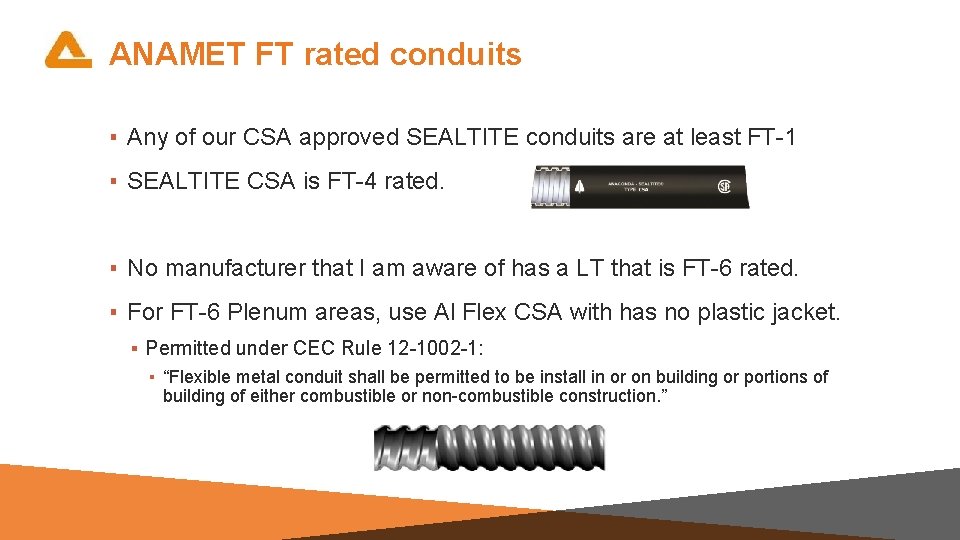

ANAMET FT rated conduits ▪ Any of our CSA approved SEALTITE conduits are at least FT-1 ▪ SEALTITE CSA is FT-4 rated. ▪ No manufacturer that I am aware of has a LT that is FT-6 rated. ▪ For FT-6 Plenum areas, use Al Flex CSA with has no plastic jacket. ▪ Permitted under CEC Rule 12 -1002 -1: ▪ “Flexible metal conduit shall be permitted to be install in or on building or portions of building of either combustible or non-combustible construction. ”

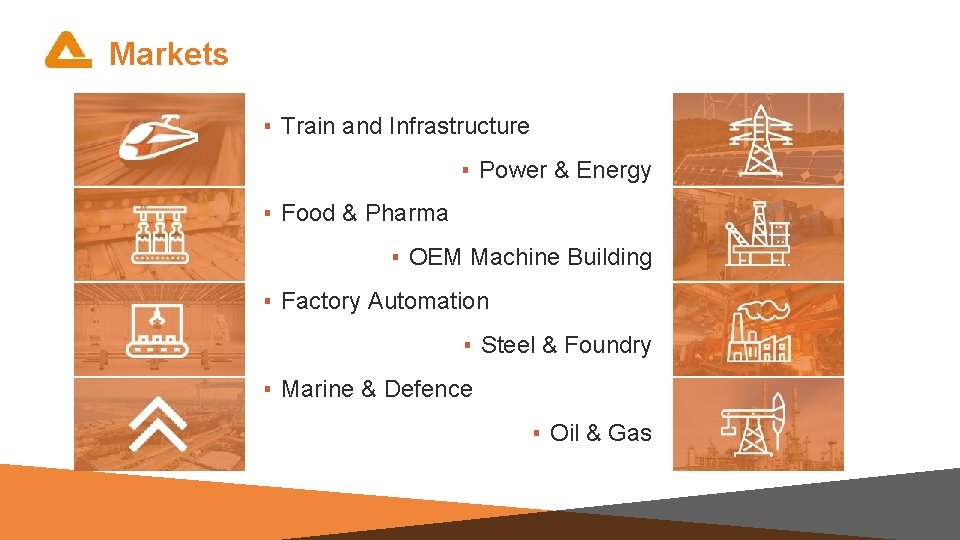

Markets ▪ Train and Infrastructure ▪ Power & Energy ▪ Food & Pharma ▪ OEM Machine Building ▪ Factory Automation ▪ Steel & Foundry ▪ Marine & Defence ▪ Oil & Gas

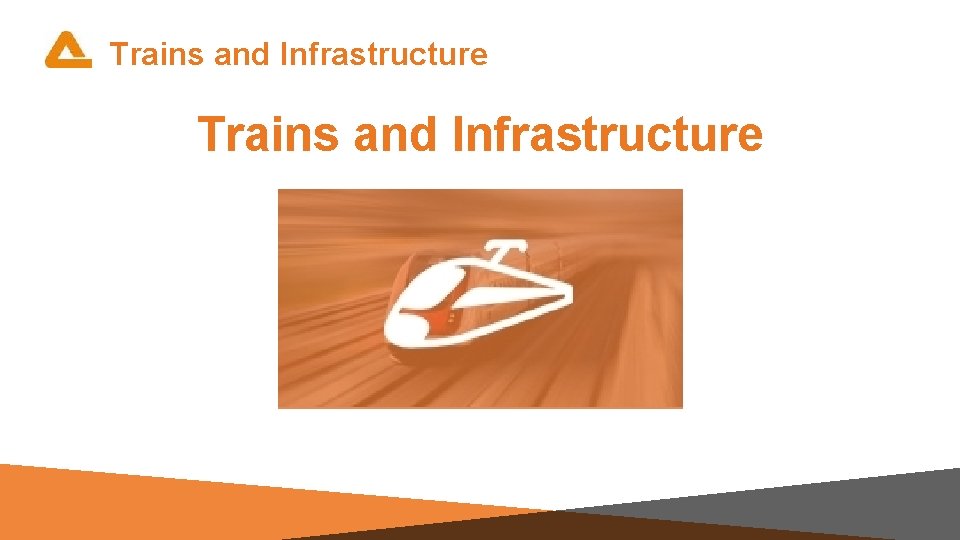

Trains and Infrastructure

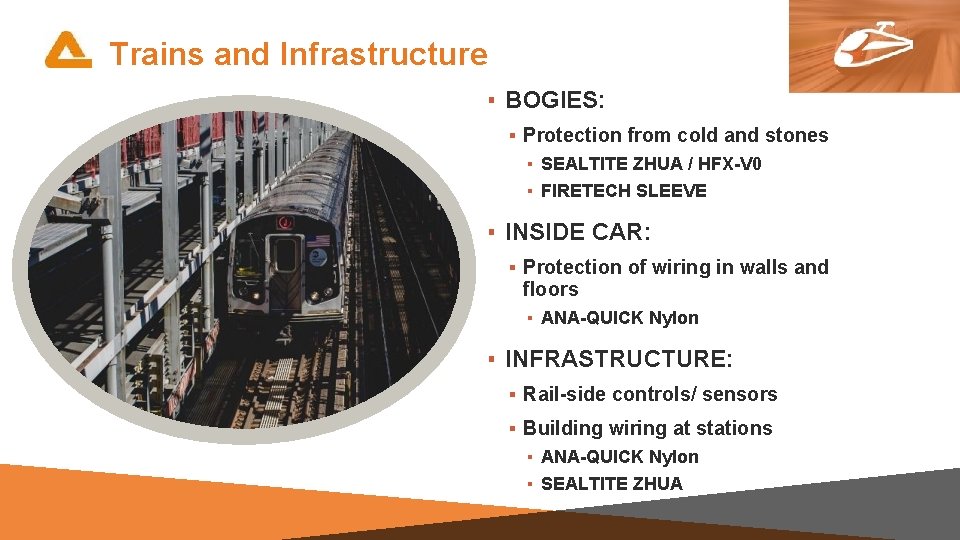

Trains and Infrastructure ▪ BOGIES: ▪ Protection from cold and stones ▪ SEALTITE ZHUA / HFX-V 0 ▪ FIRETECH SLEEVE ▪ INSIDE CAR: ▪ Protection of wiring in walls and floors ▪ ANA-QUICK Nylon ▪ INFRASTRUCTURE: ▪ Rail-side controls/ sensors ▪ Building wiring at stations ▪ ANA-QUICK Nylon ▪ SEALTITE ZHUA

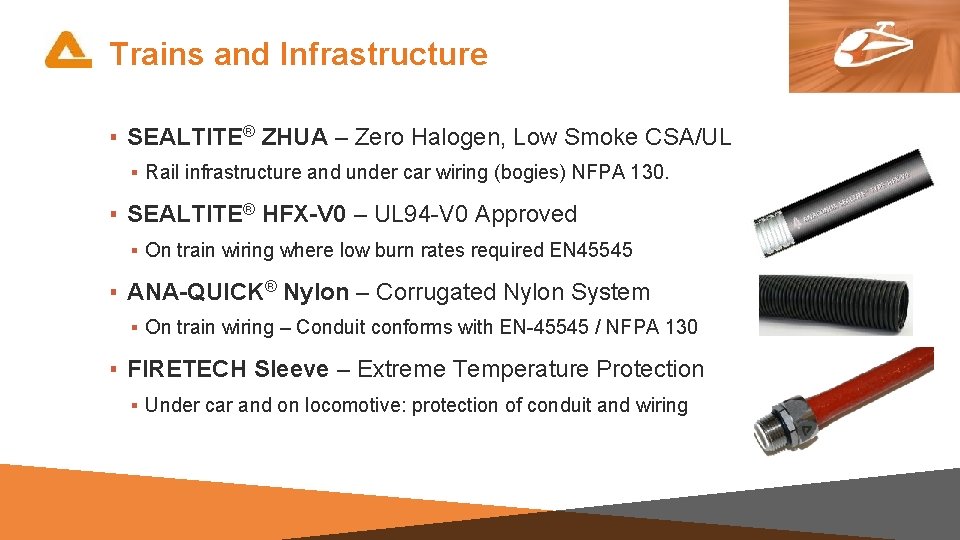

Trains and Infrastructure ▪ SEALTITE® ZHUA – Zero Halogen, Low Smoke CSA/UL ▪ Rail infrastructure and under car wiring (bogies) NFPA 130. ▪ SEALTITE® HFX-V 0 – UL 94 -V 0 Approved ▪ On train wiring where low burn rates required EN 45545 ▪ ANA-QUICK® Nylon – Corrugated Nylon System ▪ On train wiring – Conduit conforms with EN-45545 / NFPA 130 ▪ FIRETECH Sleeve – Extreme Temperature Protection ▪ Under car and on locomotive: protection of conduit and wiring

Food & Pharma

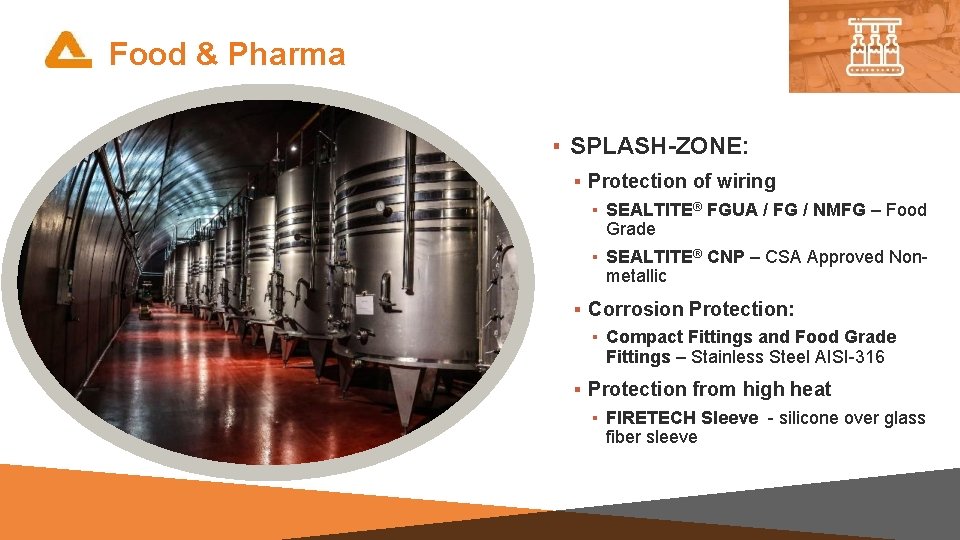

Food & Pharma ▪ SPLASH-ZONE: ▪ Protection of wiring ▪ SEALTITE® FGUA / FG / NMFG – Food Grade ▪ SEALTITE® CNP – CSA Approved Nonmetallic ▪ Corrosion Protection: ▪ Compact Fittings and Food Grade Fittings – Stainless Steel AISI-316 ▪ Protection from high heat ▪ FIRETECH Sleeve - silicone over glass fiber sleeve

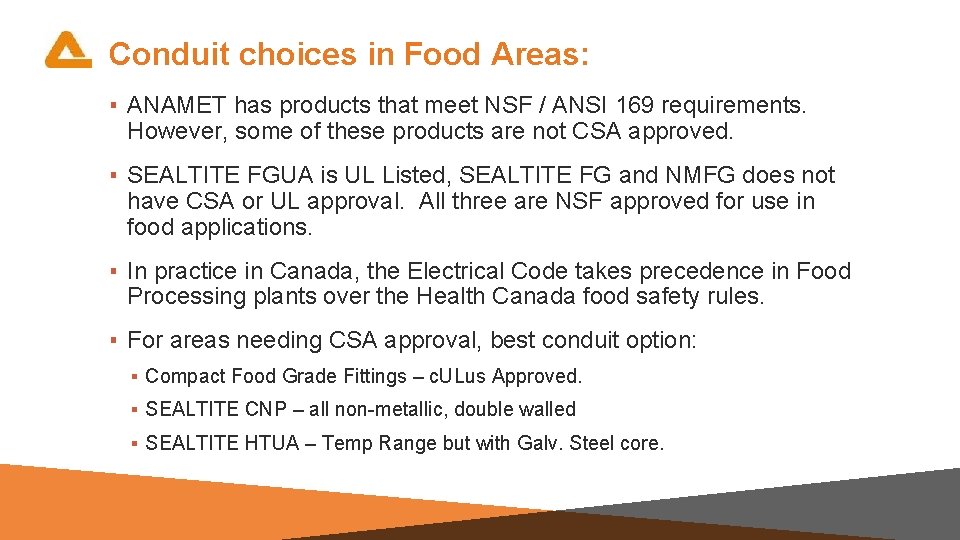

Conduit choices in Food Areas: ▪ ANAMET has products that meet NSF / ANSI 169 requirements. However, some of these products are not CSA approved. ▪ SEALTITE FGUA is UL Listed, SEALTITE FG and NMFG does not have CSA or UL approval. All three are NSF approved for use in food applications. ▪ In practice in Canada, the Electrical Code takes precedence in Food Processing plants over the Health Canada food safety rules. ▪ For areas needing CSA approval, best conduit option: ▪ Compact Food Grade Fittings – c. ULus Approved. ▪ SEALTITE CNP – all non-metallic, double walled ▪ SEALTITE HTUA – Temp Range but with Galv. Steel core.

Food & Pharma ▪ SEALTITE® FGUA – NSF Approved Food Grade Conduit ▪ Approved for Splash Zone areas (UL Listed) ▪ SEALTITE® FG – NSF Approved Food Grade Conduit ▪ Approved for Food Zone – Non Contact areas (non CSA) ▪ SEALTITE® NMFG – NSF Approved Food Grade NM Conduit ▪ Approved for Food Zone – Non Contact areas – non-metallic (non CSA) ▪ Compact Fittings – Stainless and Food Grade (c. ULus Listed) ▪ Approved for Food Zone – Non Contact (c. ULus Approved) ▪ SEALTITE® CNP – CSA/UL Approved non-metallic Conduit ▪ For food areas where CSA and UL approval required

Fittings for Food Areas: ▪ Cable Glands for any non-conduit applications ▪ Available in Nickel Plated Brass and Stainless Steel AISI-316 ▪ SEALTITE Compact Fittings to match conduit: ▪ Available in Nickel Plated Brass and Stainless Steel AISI-316

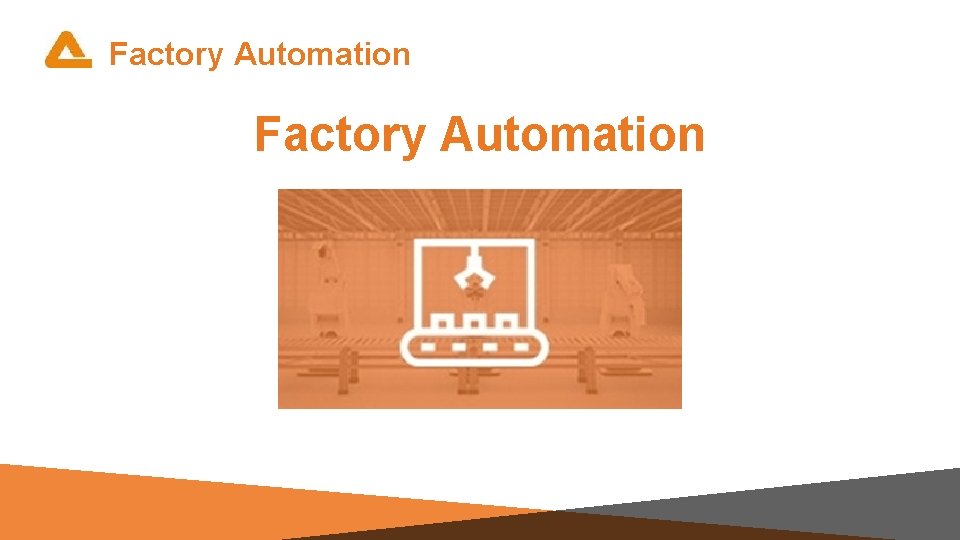

Factory Automation

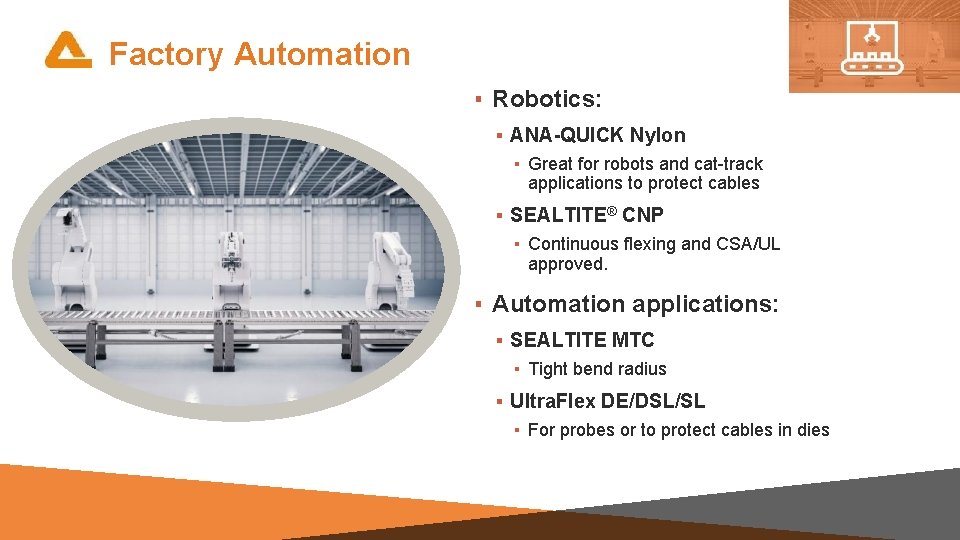

Factory Automation ▪ Robotics: ▪ ANA-QUICK Nylon ▪ Great for robots and cat-track applications to protect cables ▪ SEALTITE® CNP ▪ Continuous flexing and CSA/UL approved. ▪ Automation applications: ▪ SEALTITE MTC ▪ Tight bend radius ▪ Ultra. Flex DE/DSL/SL ▪ For probes or to protect cables in dies

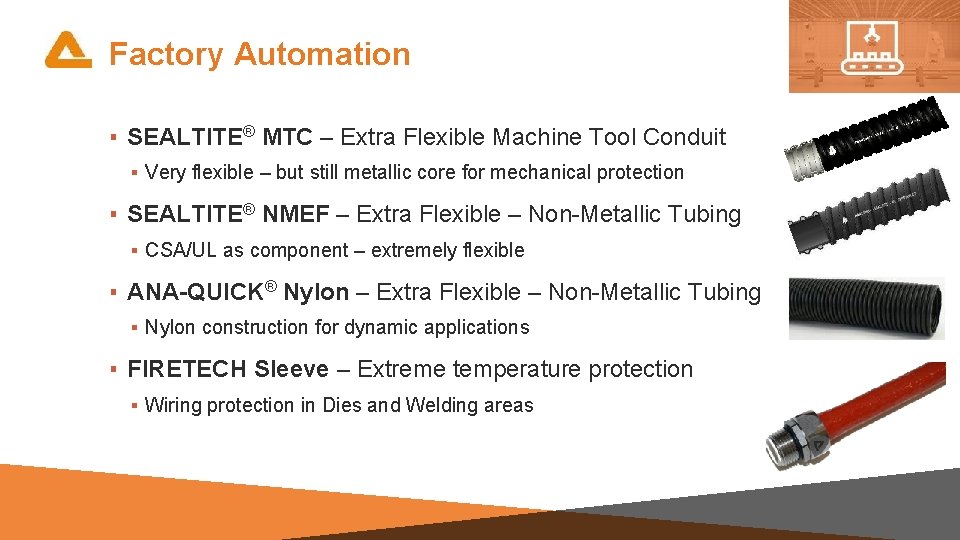

Factory Automation ▪ SEALTITE® MTC – Extra Flexible Machine Tool Conduit ▪ Very flexible – but still metallic core for mechanical protection ▪ SEALTITE® NMEF – Extra Flexible – Non-Metallic Tubing ▪ CSA/UL as component – extremely flexible ▪ ANA-QUICK® Nylon – Extra Flexible – Non-Metallic Tubing ▪ Nylon construction for dynamic applications ▪ FIRETECH Sleeve – Extreme temperature protection ▪ Wiring protection in Dies and Welding areas

Marine & Defence

Marine & Defence ▪ SHIPBOARD: ▪ Protection of wiring: ▪ ▪ ▪ SEALTITE® HCX / HTUA SHIELDTITE® SEALTITE® NWC Stainless Steel 316 Fittings and Cable Glands FIRETECH Sleeve ATEX Fittings ▪ ON VEHICLE: ▪ Protection of wiring: ▪ ▪ SHIELDTITE® SS-316 Fittings and Cable Glands Ultraflex SL Stainless tubing FIRETECH Sleeve

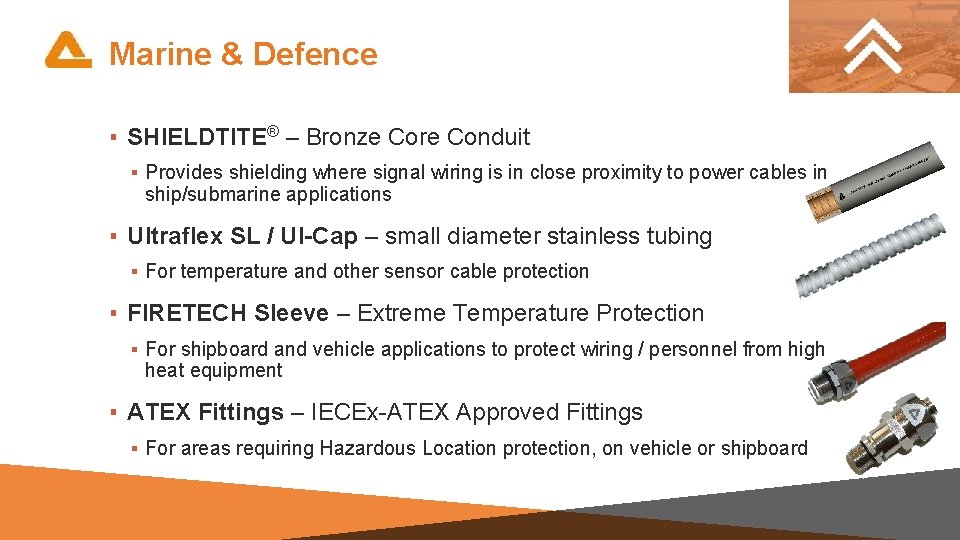

Marine & Defence ▪ SHIELDTITE® – Bronze Core Conduit ▪ Provides shielding where signal wiring is in close proximity to power cables in ship/submarine applications ▪ Ultraflex SL / UI-Cap – small diameter stainless tubing ▪ For temperature and other sensor cable protection ▪ FIRETECH Sleeve – Extreme Temperature Protection ▪ For shipboard and vehicle applications to protect wiring / personnel from high heat equipment ▪ ATEX Fittings – IECEx-ATEX Approved Fittings ▪ For areas requiring Hazardous Location protection, on vehicle or shipboard

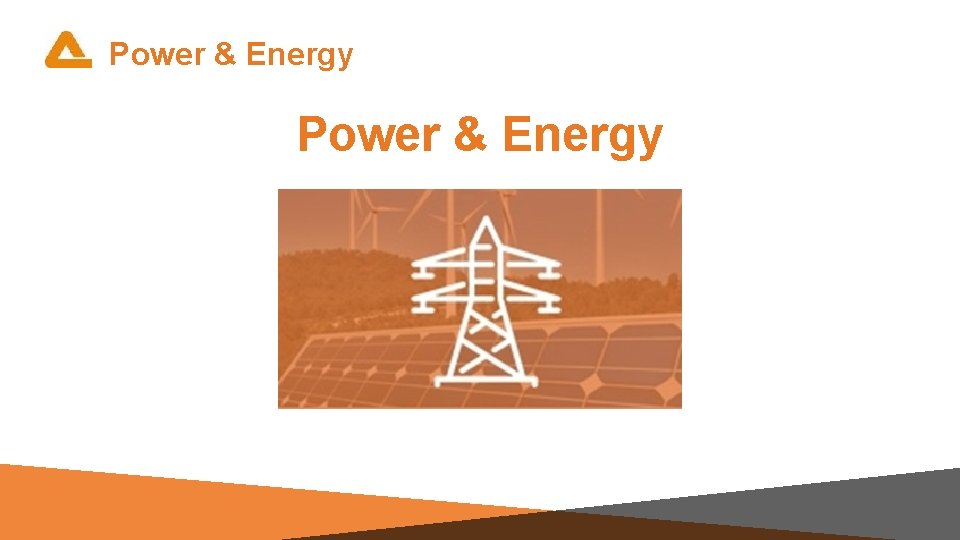

Power & Energy

Power & Energy ▪ Power Generation: ▪ Protection of cabling ▪ SEALTITE ▪ Hazardous Locations ▪ SEALTITE Heavy Duty ▪ ATEX Fittings – IECEx-ATEX Approved Fittings ▪ Harsh Environments ▪ SEALTITE® HCSS / HFSS – Stainless steel core. ▪ SEALTITE® NWC– Containment areas. ▪ Compact Fittings – Nickel plated brass or Stainless Steel AISI-316. Hazardous location protection ▪ High Heat protection: ▪ FIRETECH Sleeve

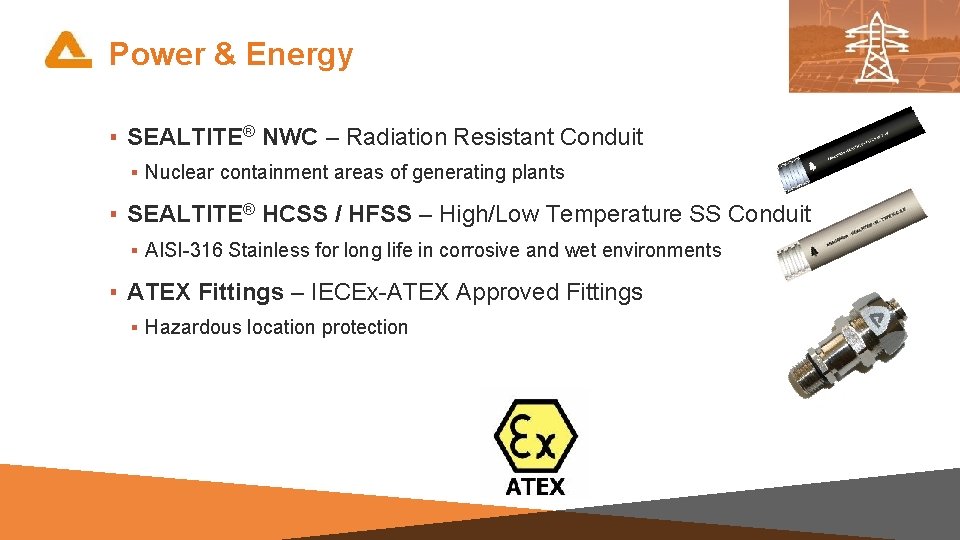

Power & Energy ▪ SEALTITE® NWC – Radiation Resistant Conduit ▪ Nuclear containment areas of generating plants ▪ SEALTITE® HCSS / HFSS – High/Low Temperature SS Conduit ▪ AISI-316 Stainless for long life in corrosive and wet environments ▪ ATEX Fittings – IECEx-ATEX Approved Fittings ▪ Hazardous location protection

OEM Machine Building

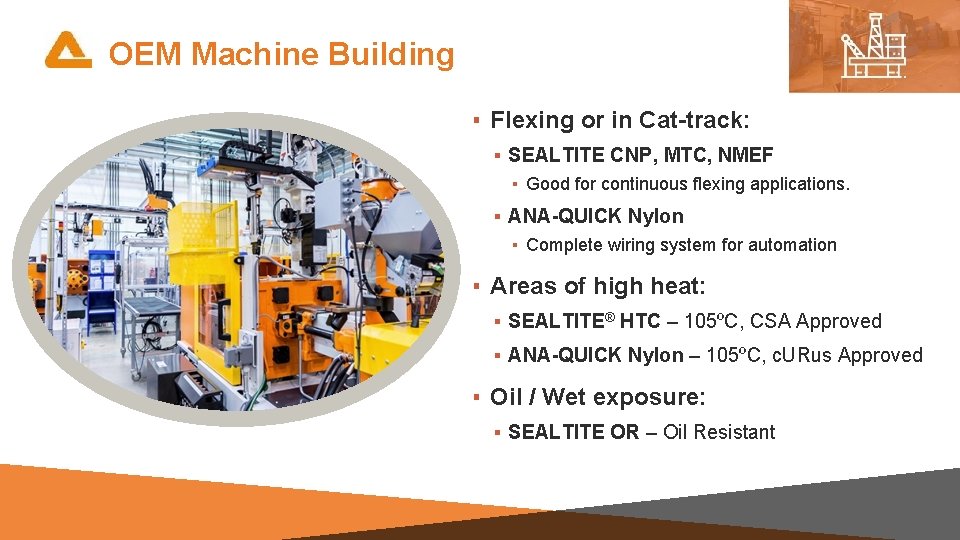

OEM Machine Building ▪ Flexing or in Cat-track: ▪ SEALTITE CNP, MTC, NMEF ▪ Good for continuous flexing applications. ▪ ANA-QUICK Nylon ▪ Complete wiring system for automation ▪ Areas of high heat: ▪ SEALTITE® HTC – 105ºC, CSA Approved ▪ ANA-QUICK Nylon – 105ºC, c. URus Approved ▪ Oil / Wet exposure: ▪ SEALTITE OR – Oil Resistant

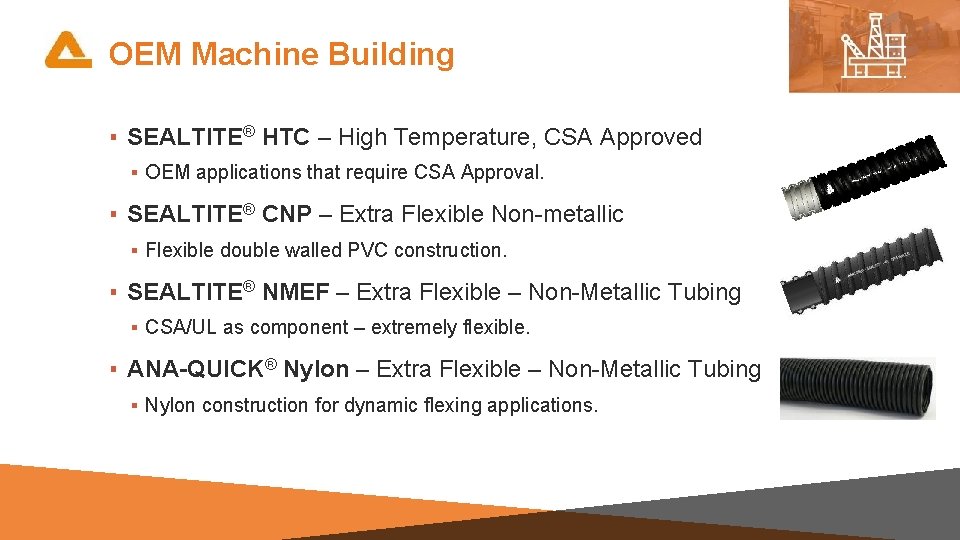

OEM Machine Building ▪ SEALTITE® HTC – High Temperature, CSA Approved ▪ OEM applications that require CSA Approval. ▪ SEALTITE® CNP – Extra Flexible Non-metallic ▪ Flexible double walled PVC construction. ▪ SEALTITE® NMEF – Extra Flexible – Non-Metallic Tubing ▪ CSA/UL as component – extremely flexible. ▪ ANA-QUICK® Nylon – Extra Flexible – Non-Metallic Tubing ▪ Nylon construction for dynamic flexing applications.

Steel & Foundry

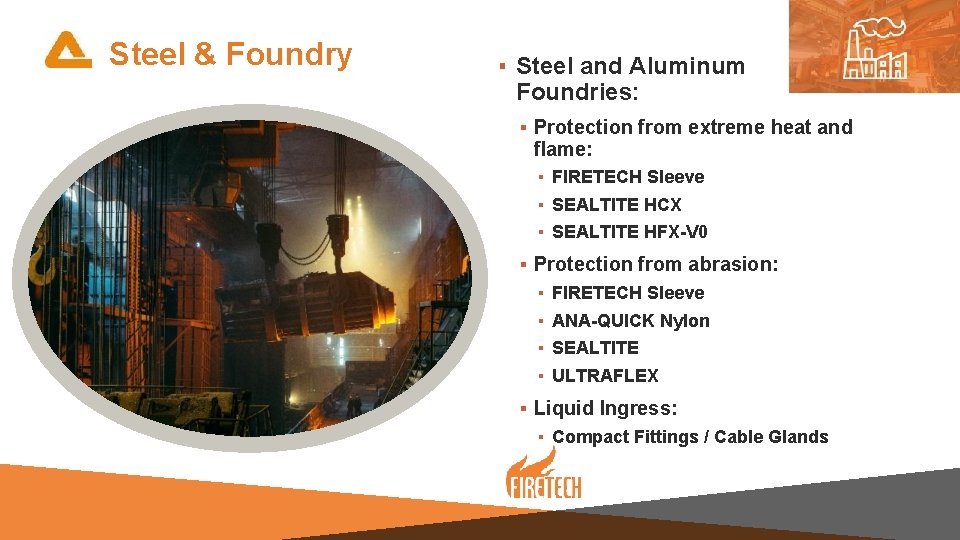

Steel & Foundry ▪ Steel and Aluminum Foundries: ▪ Protection from extreme heat and flame: ▪ FIRETECH Sleeve ▪ SEALTITE HCX ▪ SEALTITE HFX-V 0 ▪ Protection from abrasion: ▪ ▪ FIRETECH Sleeve ANA-QUICK Nylon SEALTITE ULTRAFLEX ▪ Liquid Ingress: ▪ Compact Fittings / Cable Glands

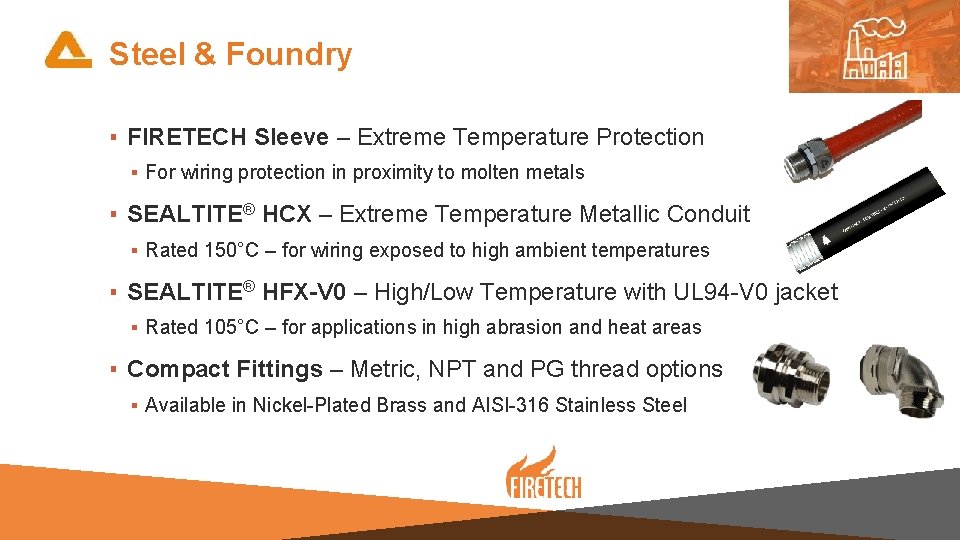

Steel & Foundry ▪ FIRETECH Sleeve – Extreme Temperature Protection ▪ For wiring protection in proximity to molten metals ▪ SEALTITE® HCX – Extreme Temperature Metallic Conduit ▪ Rated 150°C – for wiring exposed to high ambient temperatures ▪ SEALTITE® HFX-V 0 – High/Low Temperature with UL 94 -V 0 jacket ▪ Rated 105°C – for applications in high abrasion and heat areas ▪ Compact Fittings – Metric, NPT and PG thread options ▪ Available in Nickel-Plated Brass and AISI-316 Stainless Steel

Oil & Gas / Haz Loc

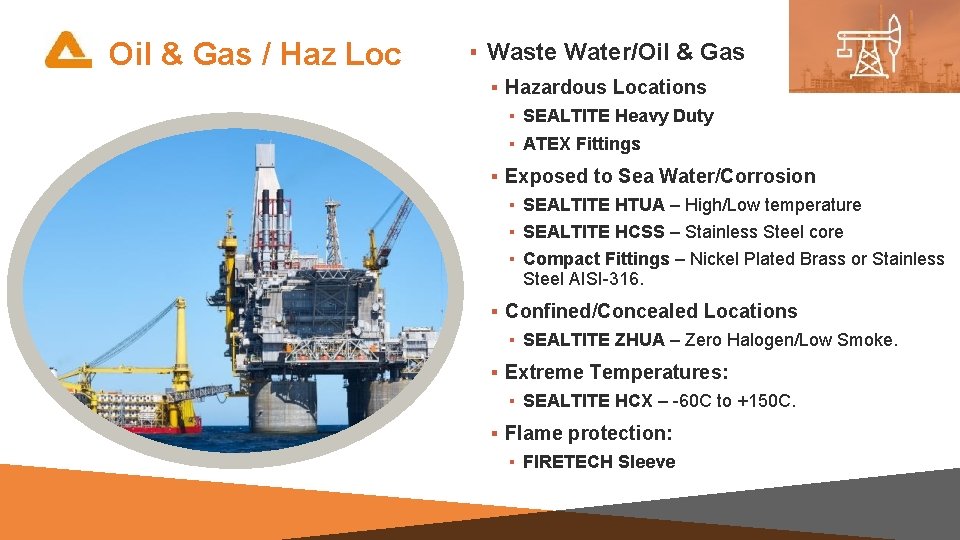

Oil & Gas / Haz Loc ▪ Waste Water/Oil & Gas ▪ Hazardous Locations ▪ SEALTITE Heavy Duty ▪ ATEX Fittings ▪ Exposed to Sea Water/Corrosion ▪ SEALTITE HTUA – High/Low temperature ▪ SEALTITE HCSS – Stainless Steel core ▪ Compact Fittings – Nickel Plated Brass or Stainless Steel AISI-316. ▪ Confined/Concealed Locations ▪ SEALTITE ZHUA – Zero Halogen/Low Smoke. ▪ Extreme Temperatures: ▪ SEALTITE HCX – -60 C to +150 C. ▪ Flame protection: ▪ FIRETECH Sleeve

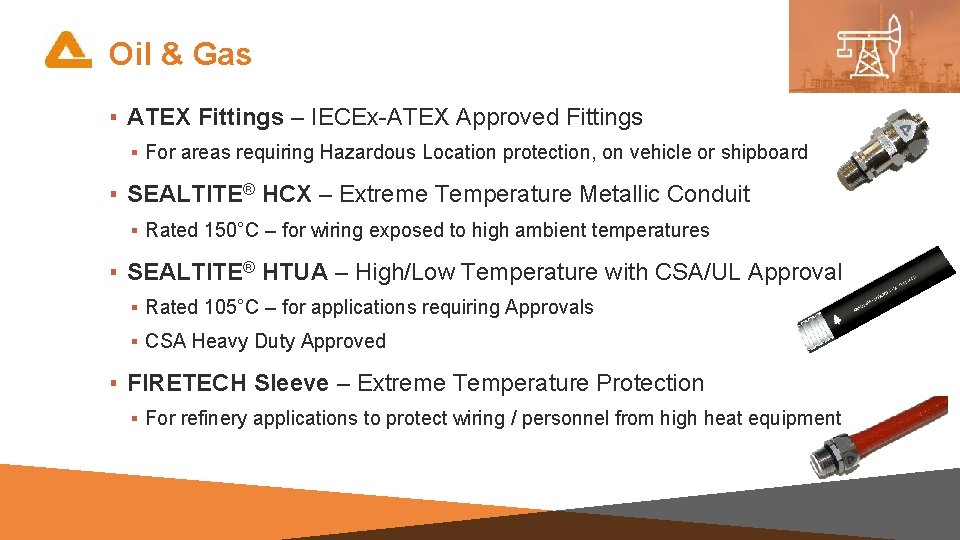

Oil & Gas ▪ ATEX Fittings – IECEx-ATEX Approved Fittings ▪ For areas requiring Hazardous Location protection, on vehicle or shipboard ▪ SEALTITE® HCX – Extreme Temperature Metallic Conduit ▪ Rated 150°C – for wiring exposed to high ambient temperatures ▪ SEALTITE® HTUA – High/Low Temperature with CSA/UL Approval ▪ Rated 105°C – for applications requiring Approvals ▪ CSA Heavy Duty Approved ▪ FIRETECH Sleeve – Extreme Temperature Protection ▪ For refinery applications to protect wiring / personnel from high heat equipment

ATEX Fittings ▪ Nickel Plated Brass or SS-316 ▪ Loose wire sealing with two part epoxy compound ▪ Temperature rating: -45ºC to +105ºC ▪ NPT ½” to 1 -1/4” / Metric M 16 to M 40 ▪ IEC Ex-ATEX certified: ▪ CE 0080 I M 2 / II 2 GD / Ex d II C / Ex e II/ Ex d I / Ex t. D A 21 IP 66

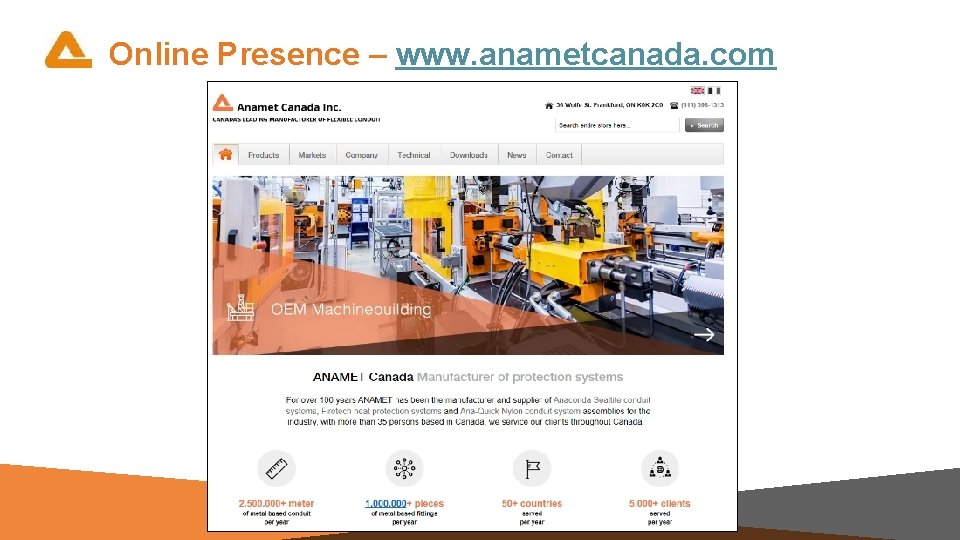

Online Presence – www. anametcanada. com

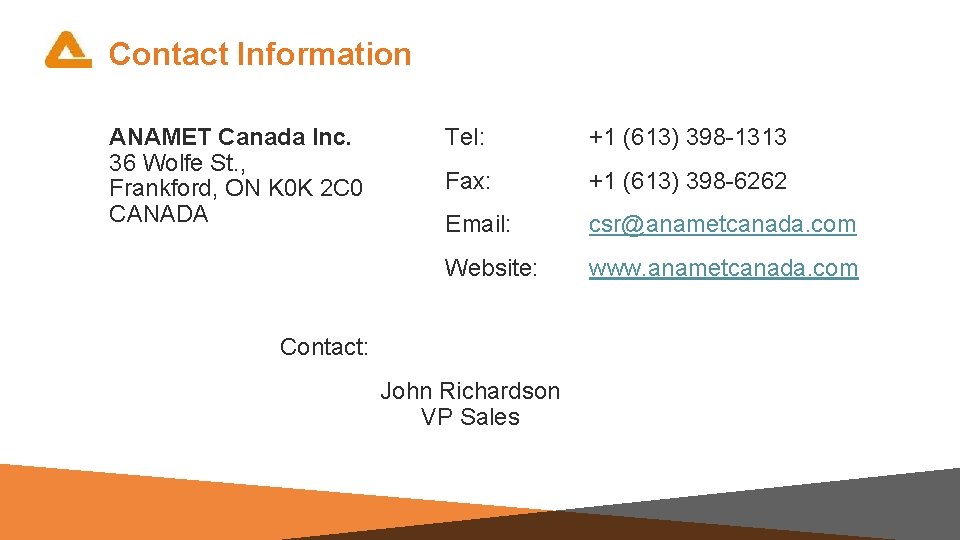

Contact Information ANAMET Canada Inc. 36 Wolfe St. , Frankford, ON K 0 K 2 C 0 CANADA Tel: +1 (613) 398 -1313 Fax: +1 (613) 398 -6262 Email: csr@anametcanada. com Website: www. anametcanada. com Contact: John Richardson VP Sales

Follow us on: www. anametcanada. com

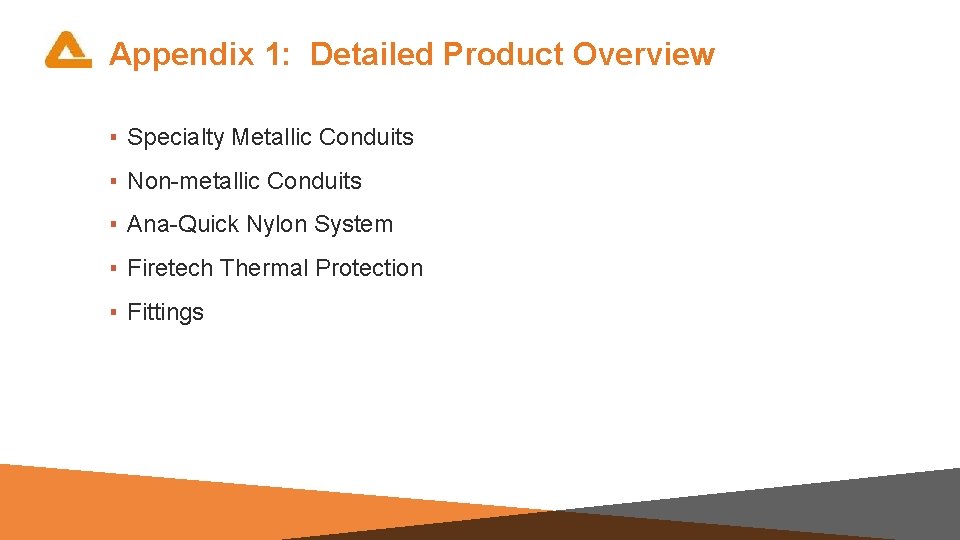

Appendix 1: Detailed Product Overview ▪ Specialty Metallic Conduits ▪ Non-metallic Conduits ▪ Ana-Quick Nylon System ▪ Firetech Thermal Protection ▪ Fittings

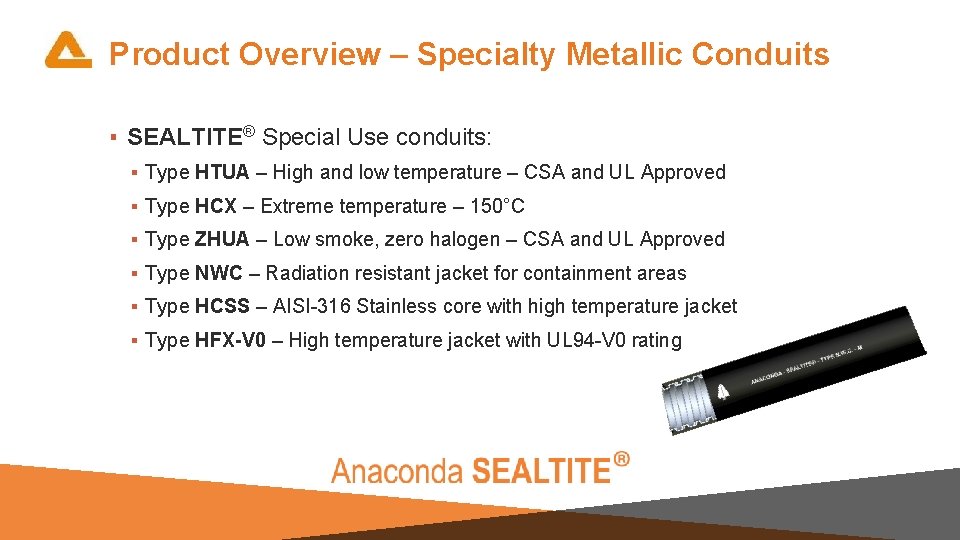

Product Overview – Specialty Metallic Conduits ▪ SEALTITE® Special Use conduits: ▪ Type HTUA – High and low temperature – CSA and UL Approved ▪ Type HCX – Extreme temperature – 150°C ▪ Type ZHUA – Low smoke, zero halogen – CSA and UL Approved ▪ Type NWC – Radiation resistant jacket for containment areas ▪ Type HCSS – AISI-316 Stainless core with high temperature jacket ▪ Type HFX-V 0 – High temperature jacket with UL 94 -V 0 rating

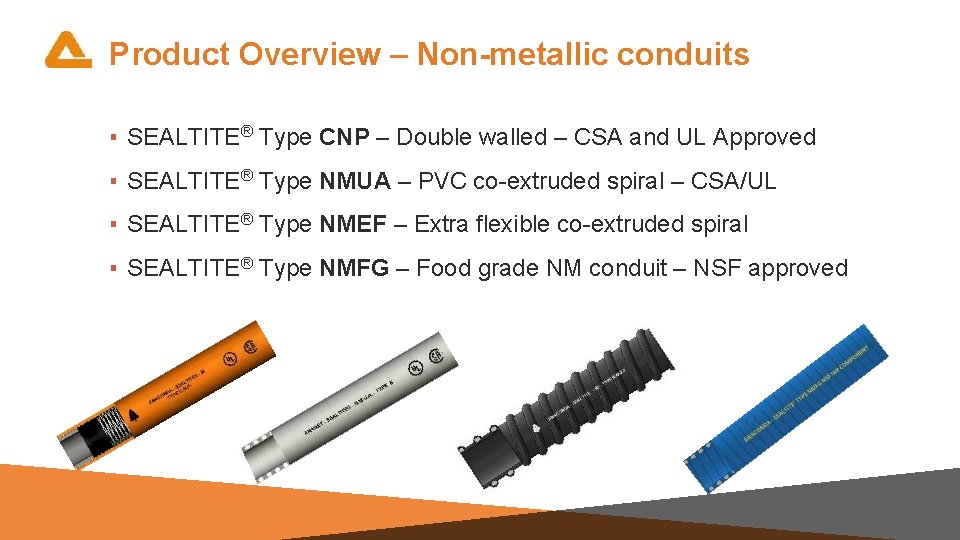

Product Overview – Non-metallic conduits ▪ SEALTITE® Type CNP – Double walled – CSA and UL Approved ▪ SEALTITE® Type NMUA – PVC co-extruded spiral – CSA/UL ▪ SEALTITE® Type NMEF – Extra flexible co-extruded spiral ▪ SEALTITE® Type NMFG – Food grade NM conduit – NSF approved

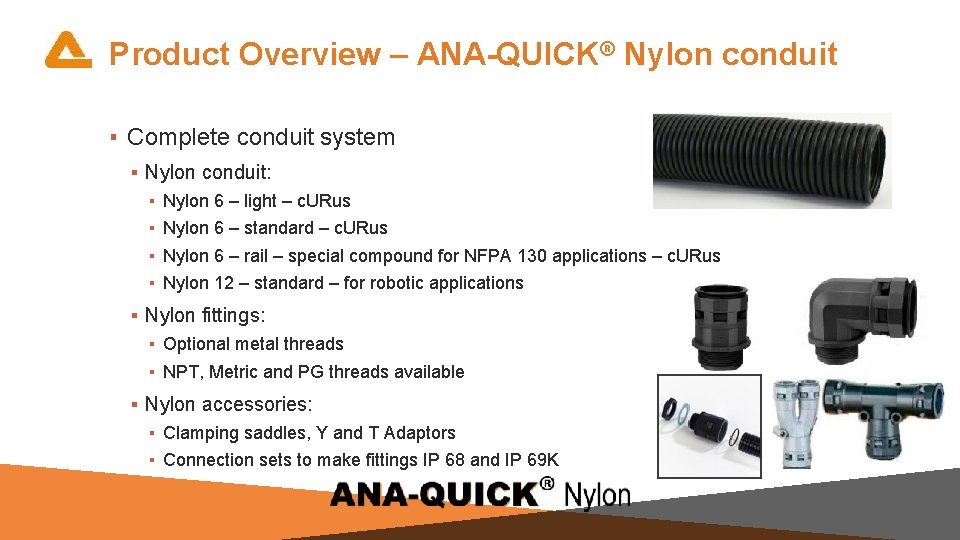

Product Overview – ANA-QUICK® Nylon conduit ▪ Complete conduit system ▪ Nylon conduit: ▪ ▪ Nylon 6 – light – c. URus Nylon 6 – standard – c. URus Nylon 6 – rail – special compound for NFPA 130 applications – c. URus Nylon 12 – standard – for robotic applications ▪ Nylon fittings: ▪ Optional metal threads ▪ NPT, Metric and PG threads available ▪ Nylon accessories: ▪ Clamping saddles, Y and T Adaptors ▪ Connection sets to make fittings IP 68 and IP 69 K

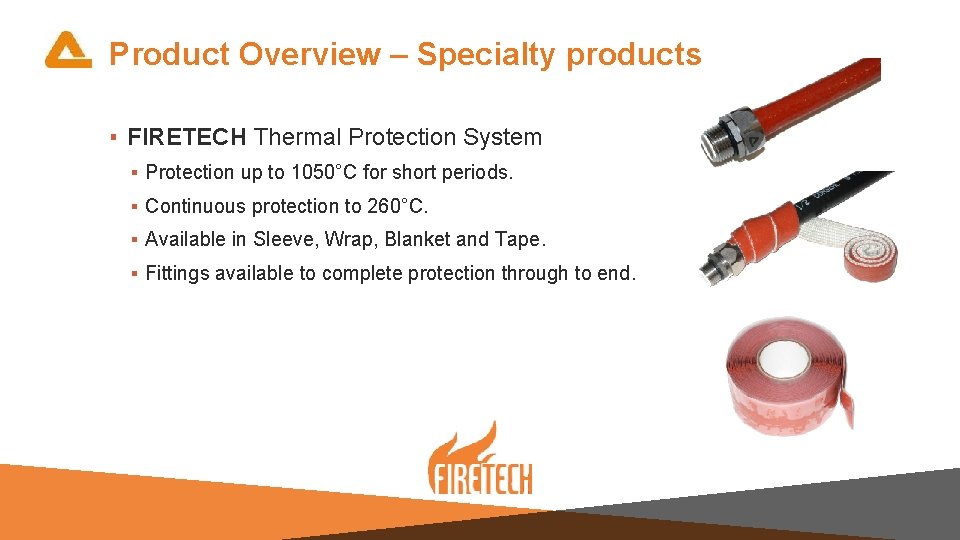

Product Overview – Specialty products ▪ FIRETECH Thermal Protection System ▪ Protection up to 1050°C for short periods. ▪ Continuous protection to 260°C. ▪ Available in Sleeve, Wrap, Blanket and Tape. ▪ Fittings available to complete protection through to end.

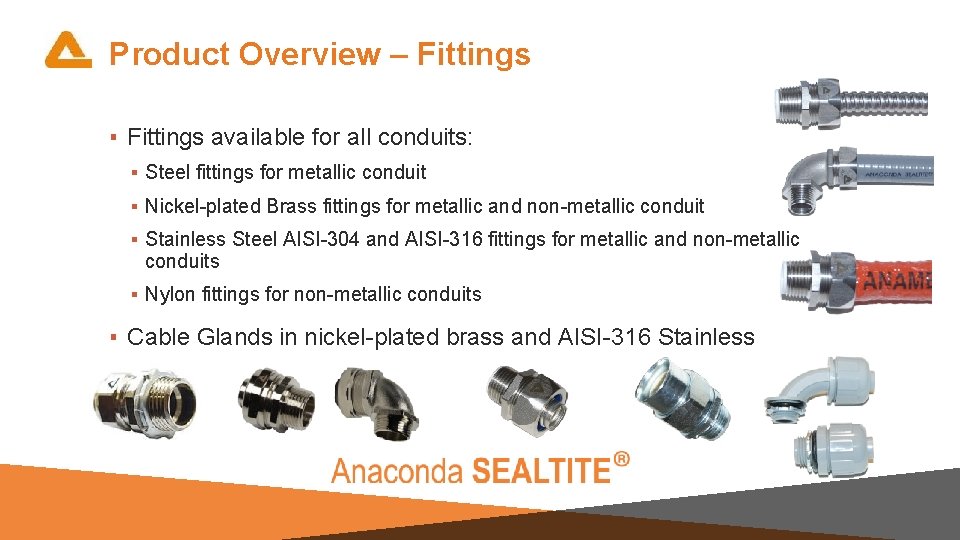

Product Overview – Fittings ▪ Fittings available for all conduits: ▪ Steel fittings for metallic conduit ▪ Nickel-plated Brass fittings for metallic and non-metallic conduit ▪ Stainless Steel AISI-304 and AISI-316 fittings for metallic and non-metallic conduits ▪ Nylon fittings for non-metallic conduits ▪ Cable Glands in nickel-plated brass and AISI-316 Stainless

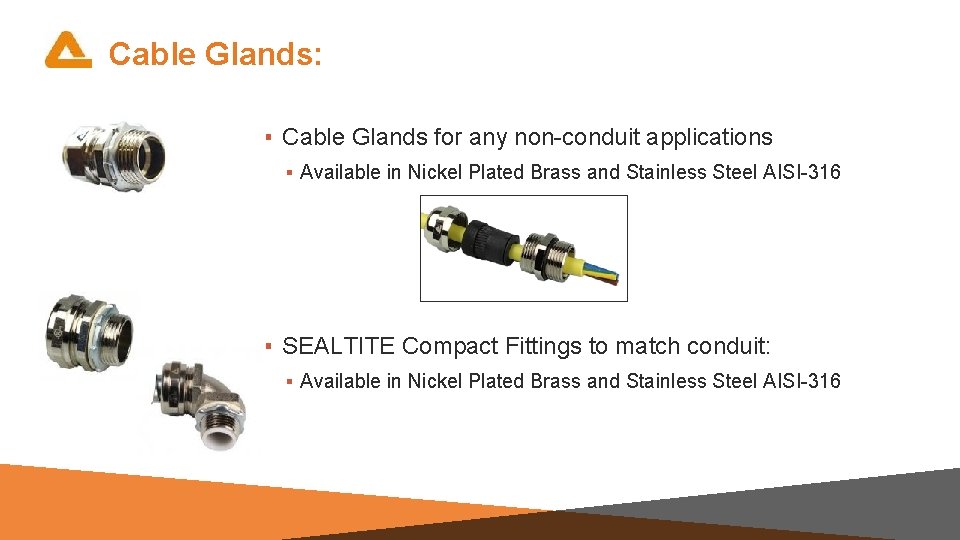

Cable Glands: ▪ Cable Glands for any non-conduit applications ▪ Available in Nickel Plated Brass and Stainless Steel AISI-316 ▪ SEALTITE Compact Fittings to match conduit: ▪ Available in Nickel Plated Brass and Stainless Steel AISI-316
