Analyzing the Geospatial Imbalance of the Primary Care Physician Labor Supply in the Contiguous United States By Russ Frith University of W. Florida Capstone Project in Statistics April, 2016

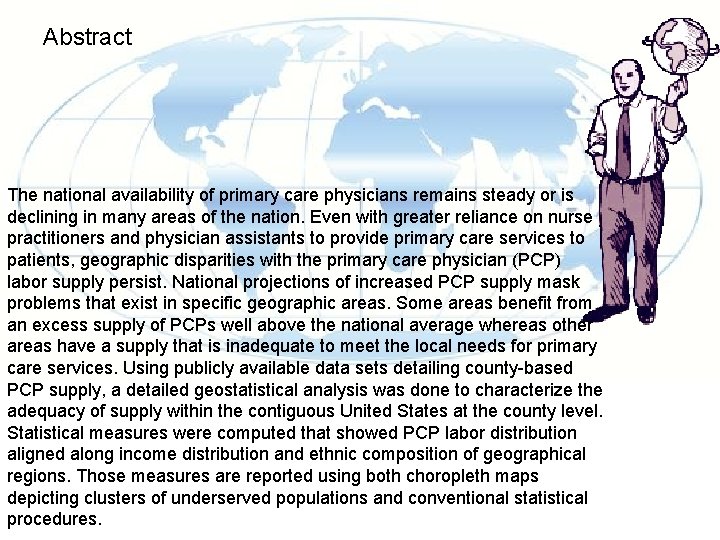

Abstract The national availability of primary care physicians remains steady or is declining in many areas of the nation. Even with greater reliance on nurse practitioners and physician assistants to provide primary care services to patients, geographic disparities with the primary care physician (PCP) labor supply persist. National projections of increased PCP supply mask problems that exist in specific geographic areas. Some areas benefit from an excess supply of PCPs well above the national average whereas other areas have a supply that is inadequate to meet the local needs for primary care services. Using publicly available data sets detailing county-based PCP supply, a detailed geostatistical analysis was done to characterize the adequacy of supply within the contiguous United States at the county level. Statistical measures were computed that showed PCP labor distribution aligned along income distribution and ethnic composition of geographical regions. Those measures are reported using both choropleth maps depicting clusters of underserved populations and conventional statistical procedures.

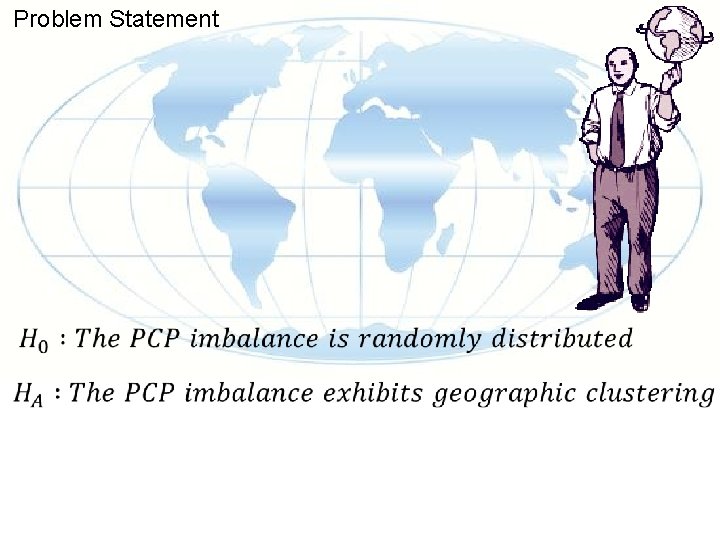

Problem Statement

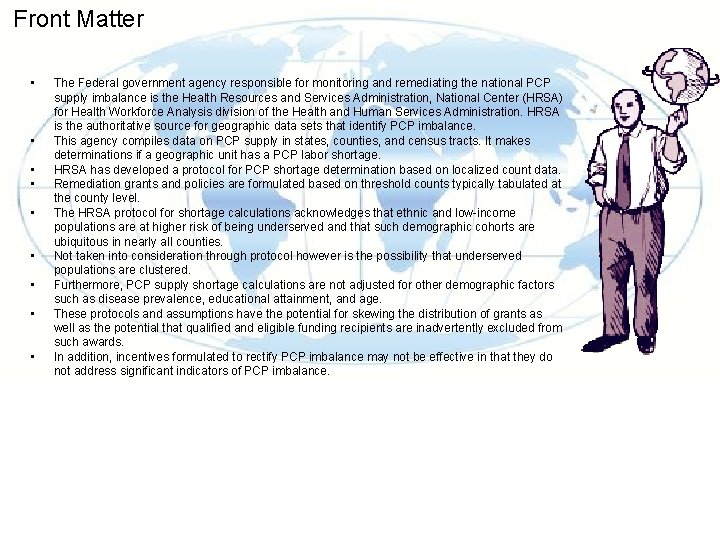

Front Matter • • • The Federal government agency responsible for monitoring and remediating the national PCP supply imbalance is the Health Resources and Services Administration, National Center (HRSA) for Health Workforce Analysis division of the Health and Human Services Administration. HRSA is the authoritative source for geographic data sets that identify PCP imbalance. This agency compiles data on PCP supply in states, counties, and census tracts. It makes determinations if a geographic unit has a PCP labor shortage. HRSA has developed a protocol for PCP shortage determination based on localized count data. Remediation grants and policies are formulated based on threshold counts typically tabulated at the county level. The HRSA protocol for shortage calculations acknowledges that ethnic and low-income populations are at higher risk of being underserved and that such demographic cohorts are ubiquitous in nearly all counties. Not taken into consideration through protocol however is the possibility that underserved populations are clustered. Furthermore, PCP supply shortage calculations are not adjusted for other demographic factors such as disease prevalence, educational attainment, and age. These protocols and assumptions have the potential for skewing the distribution of grants as well as the potential that qualified and eligible funding recipients are inadvertently excluded from such awards. In addition, incentives formulated to rectify PCP imbalance may not be effective in that they do not address significant indicators of PCP imbalance.

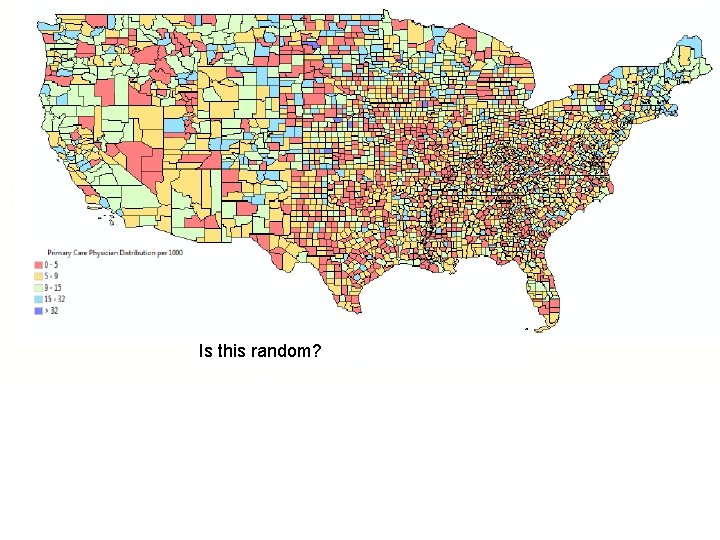

Is this random?

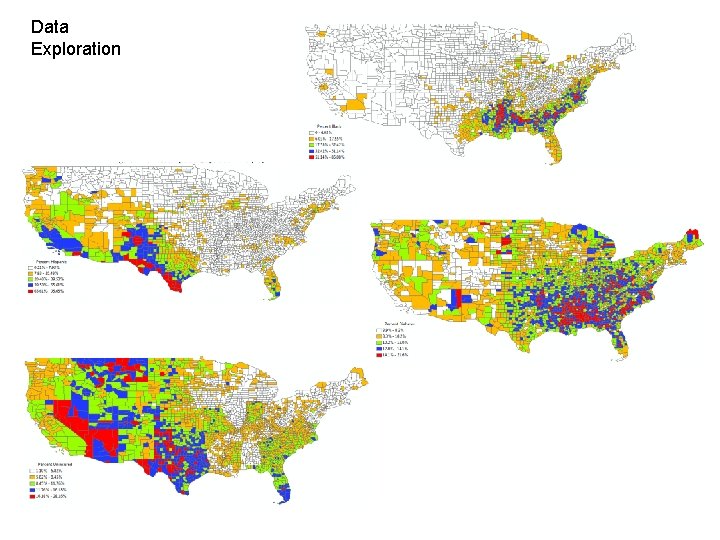

Data Exploration

Research Work Flow

Data Sources § County Health Rankings, http: //www. countyhealthrankings. org/rankings/data § Center for Disease Control Wonderhttp: //wonder. cdc. gov/) § United States Census Bureau, American Community Survey, 2012, http: //api. census. gov/data/2012/acs 5 § Centers for Medicare and Medicaid Services, http: //www. cms. gov Database: http: //rfrith. uaa. alaska. edu/Proseminar. Data. php

Methodology • Factor-Sa. TScan™ Analysis • Ordinary Least Squares and Geographic Weighted Regression • Getis-Ord or “Hot-Spot” Analysis • Poisson-Sa. TScan™ Analysis http: //www. satscan. org

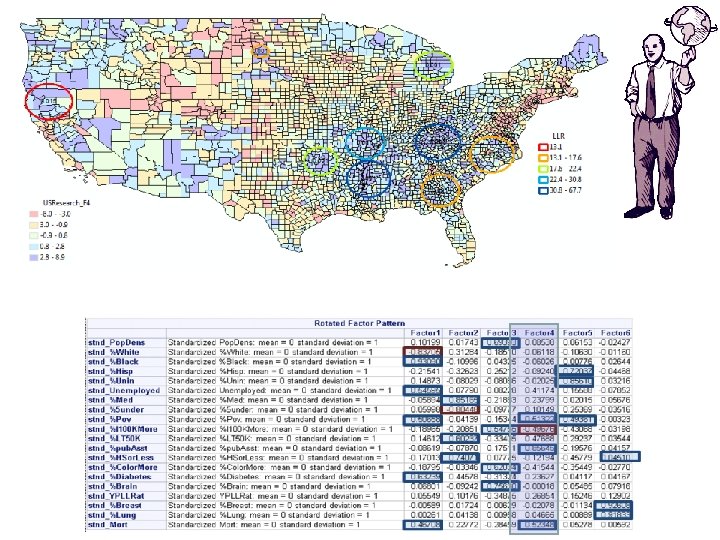

Factor-Sa. TScan™ Analysis

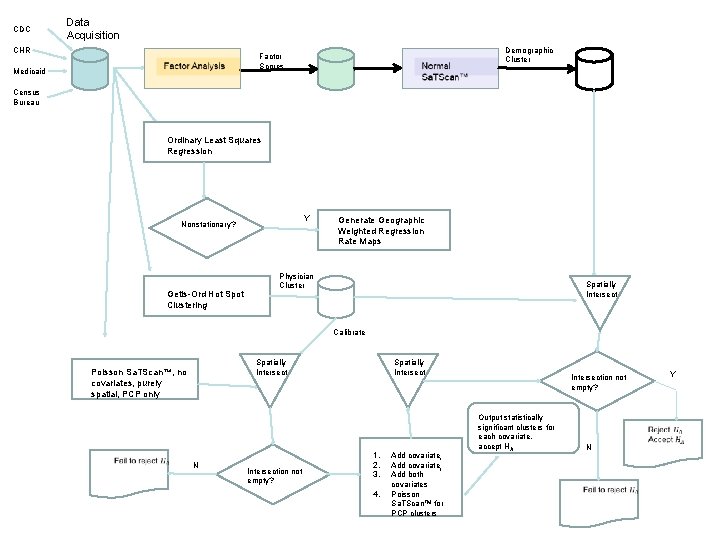

CDC Data Acquisition CHR Demographic Cluster Factor Scores Medicaid Census Bureau Ordinary Least Squares Regression Y Nonstationary? Getis-Ord Hot Spot Clustering Generate Geographic Weighted Regression Rate Maps Physician Cluster Spatially Intersect Calibrate Spatially Intersect Poisson Sa. TScan™, no covariates, purely spatial, PCP only N Intersection not empty? Spatially Intersect 1. 2. 3. 4. Add covariate i Add covariate j Add both covariates Poisson Sa. TScan™ for PCP clusters Intersection not empty? Output statistically significant clusters for each covariate, accept HA N Y

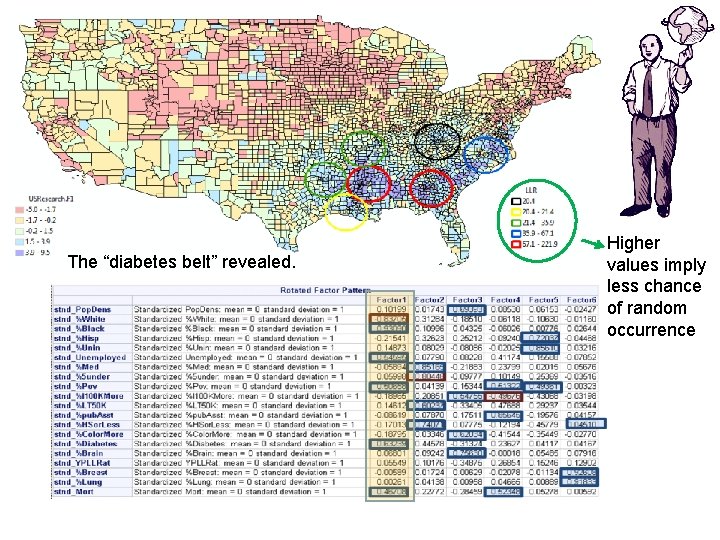

The “diabetes belt” revealed. Higher values imply less chance of random occurrence

CDC Data Acquisition CHR Medicaid Factor Analysis Factor Scores Normal Sa. TScan™ Demographic Cluster Census Bureau Y Getis-Ord Hot Spot Clustering Physician Cluster Spatially Intersect Calibrate Spatially Intersect Poisson Sa. TScan™, no covariates, purely spatial, PCP only N Intersection not empty? Spatially Intersect 1. 2. 3. 4. Add covariate i Add covariate j Add both covariates Poisson Sa. TScan™ for PCP clusters Intersection not empty? Output statistically significant clusters for each covariate, accept HA N Y

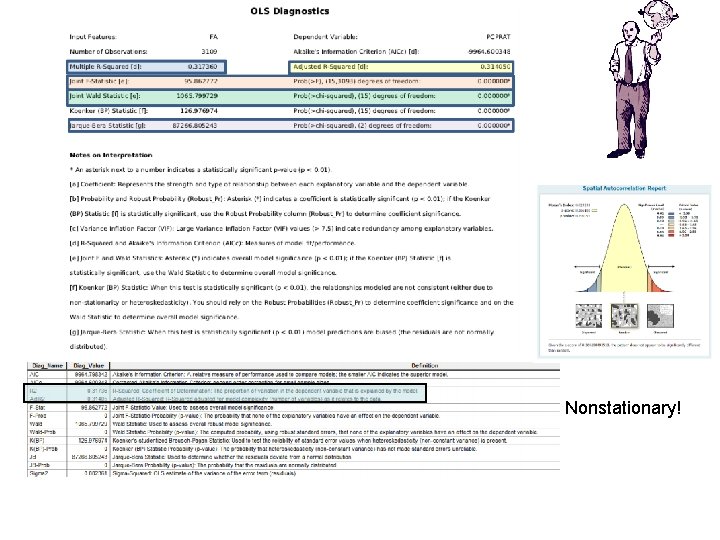

Nonstationary!

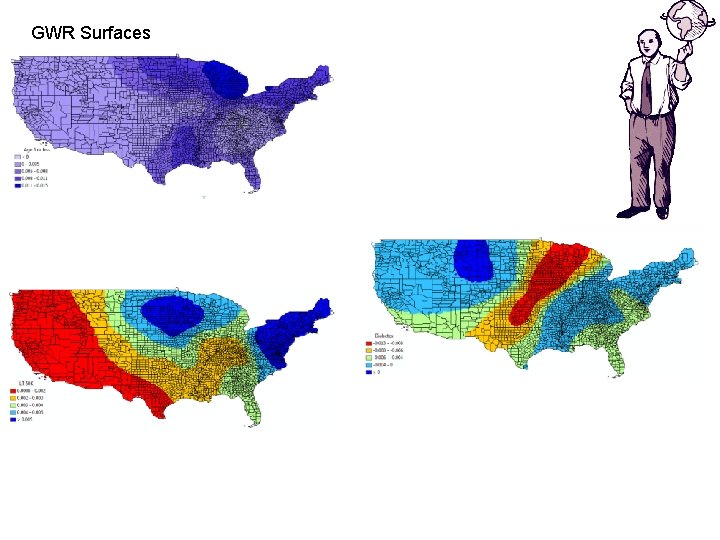

GWR Surfaces

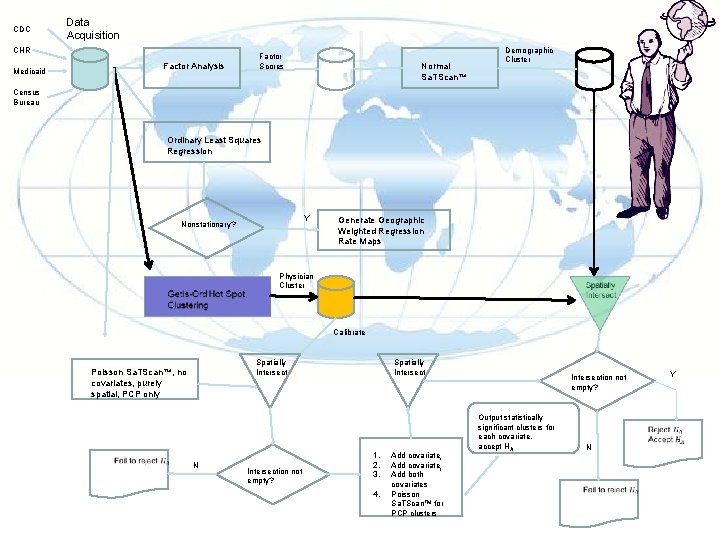

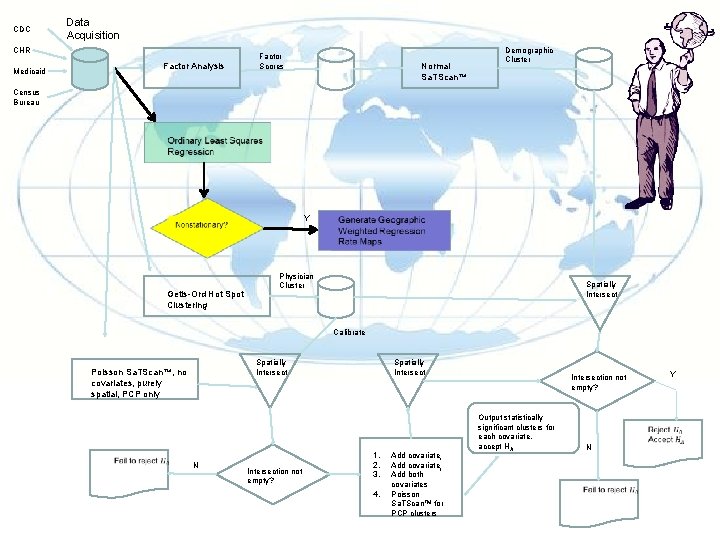

CDC Data Acquisition CHR Medicaid Factor Analysis Factor Scores Normal Sa. TScan™ Demographic Cluster Census Bureau Ordinary Least Squares Regression Y Nonstationary? Generate Geographic Weighted Regression Rate Maps Physician Cluster Calibrate Spatially Intersect Poisson Sa. TScan™, no covariates, purely spatial, PCP only N Intersection not empty? Spatially Intersect 1. 2. 3. 4. Add covariate i Add covariate j Add both covariates Poisson Sa. TScan™ for PCP clusters Intersection not empty? Output statistically significant clusters for each covariate, accept HA N Y

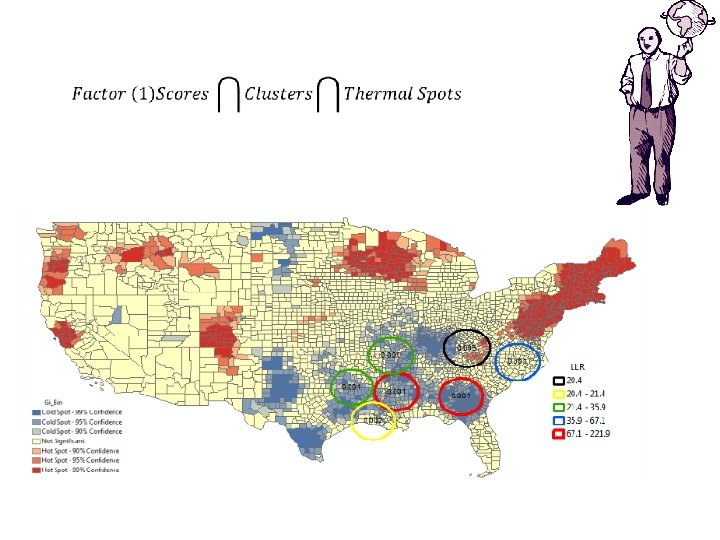

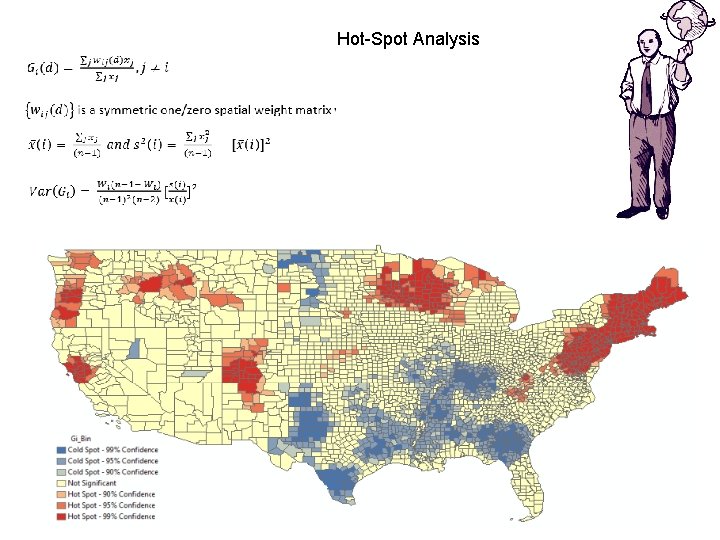

Hot-Spot Analysis

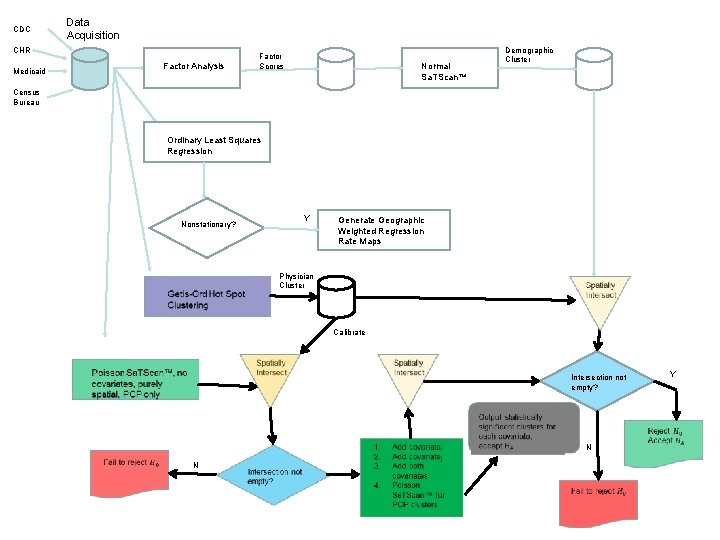

CDC Data Acquisition CHR Medicaid Factor Analysis Factor Scores Normal Sa. TScan™ Demographic Cluster Census Bureau Ordinary Least Squares Regression Nonstationary? Y Generate Geographic Weighted Regression Rate Maps Physician Cluster Calibrate Intersection not empty? N N Y

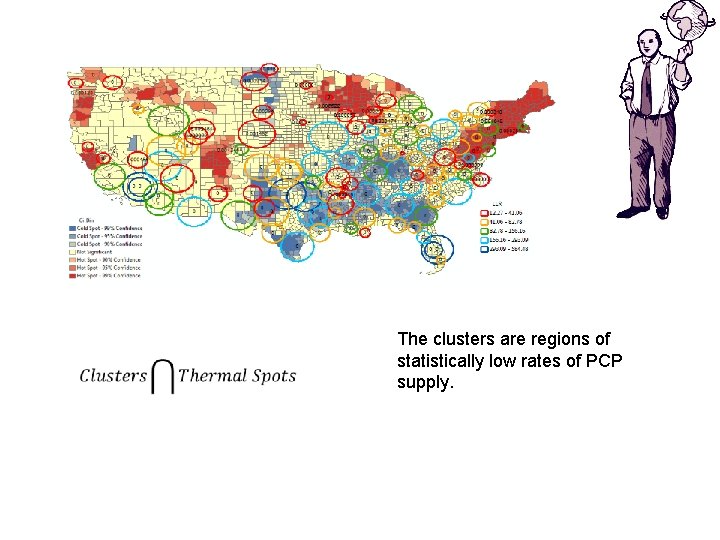

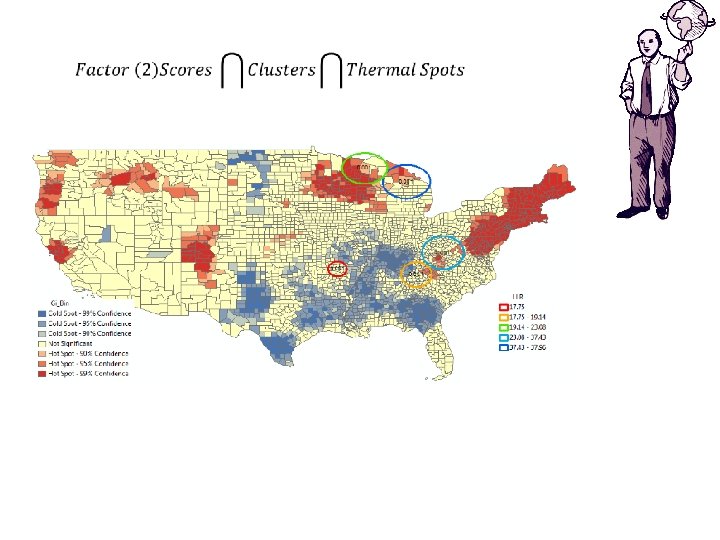

The clusters are regions of statistically low rates of PCP supply.

The clusters are regions of statistically high rates of PCP supply.

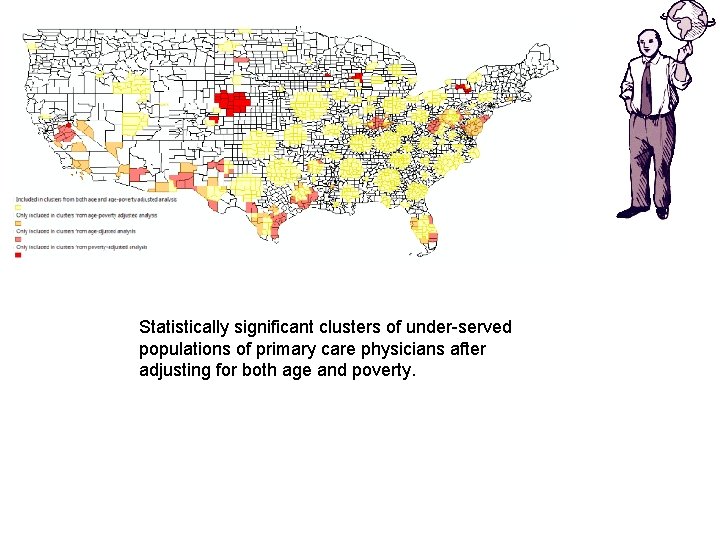

Statistically significant clusters of under-served populations of primary care physicians after adjusting for both age and poverty.

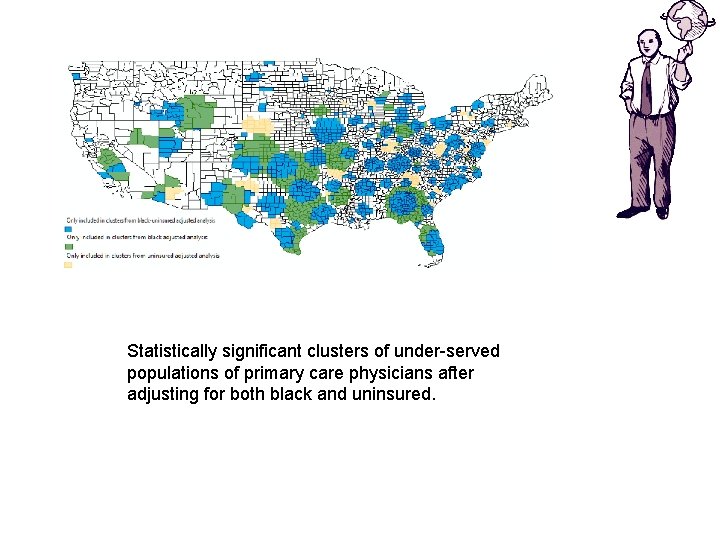

Statistically significant clusters of under-served populations of primary care physicians after adjusting for both black and uninsured.

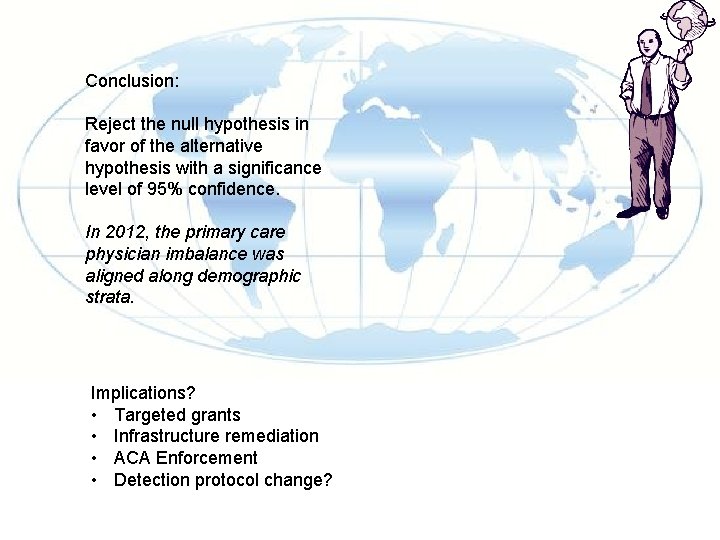

Conclusion: Reject the null hypothesis in favor of the alternative hypothesis with a significance level of 95% confidence. In 2012, the primary care physician imbalance was aligned along demographic strata. Implications? • Targeted grants • Infrastructure remediation • ACA Enforcement • Detection protocol change?
