Analytique analytique noun Architecture an elevation drawing of
- Slides: 15
Analytique

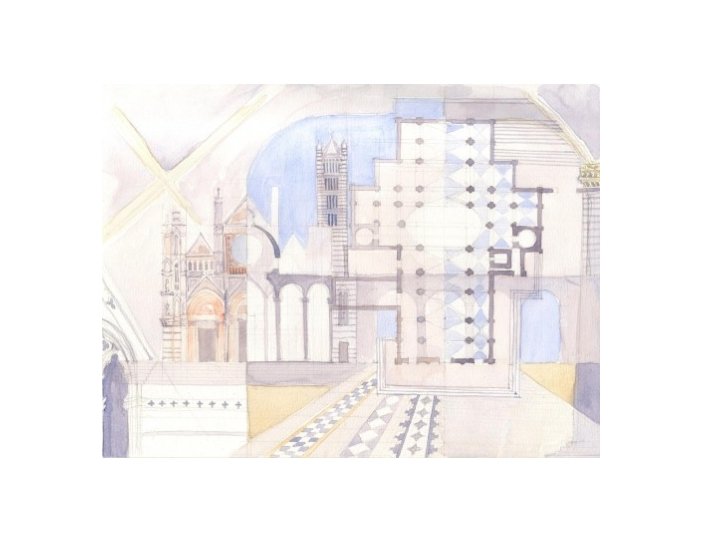

an·a·ly·tique noun Architecture. an elevation drawing of a façade, surrounded by a decorative arrangement composed of drawings of the important details and sometimes a plan or section of the façade. Dictionary. com
• Sometimes the façade of the entire building is present in the Analytique, but in a very small scale so that it seems like just another detail. • http: //www. arch. mcgill. ca/prof/mellin/arch 671/winter 2 000/rmellin/analytique/p 20/20. htm
• "A Pavilion in a Public Place" Fred W. Hauptle, T-Square Club Atelier from The Study of Architectural Design, John Harbeson
• Parthenon
Study of the Column • Temple of Jupiter the Thunderer, Ancient Rome
Assignment • Include: • Plan- can be manual or Auto. CAD • Front Elevation • 2 or 3 Detail • Sketch (orthographic or perspective)
Assignment picture from Sienna Studio Blog 2010 • • • Filippo Brunelleschi Sir Christopher Wren Julia Morgan Steven Holl Toyo Ito Fay Jones Louis Kahn Rem Koolhaas/OMA Kengo Kuma Richard Meier Enric Miralles/ Tagliabue San Lorenzo St. Paul’s Cathedral San Simeon Helsinki Museum of Contemporary Art Sendai Mediatheque Thorncrown Chapel The Salk Institute Seattle Public Library Great Bamboo Wall Commune Jubilee Church Santa Caterina Market
Process • Visit the sight • • http: //okpala. wordpress. com/2009/09/09/the-duomo-analytique/ Okpala’s Blog
Plan & Sketch the Layout

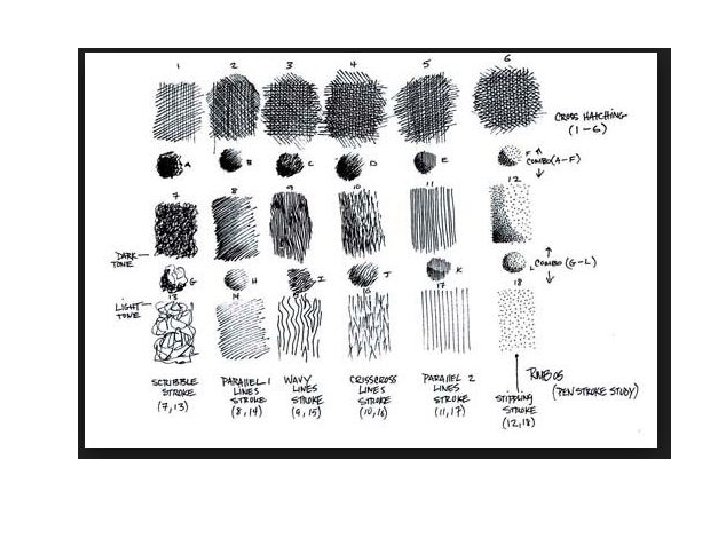

Tips on Adding Color • Monochromatic Technique – Use only one hue – Use different tints and shades of that same hue – Arttalk p. 145 • Shading Techniques – – – Hatching Crosshatching Blending Strippling Arttalk p. 44
