Analysis Process observations conceptual pictures meteorological analysis Observations

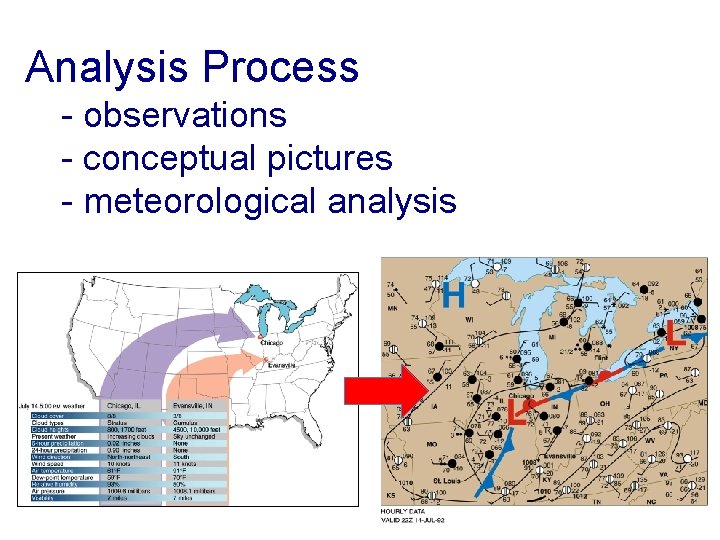

Analysis Process - observations - conceptual pictures - meteorological analysis

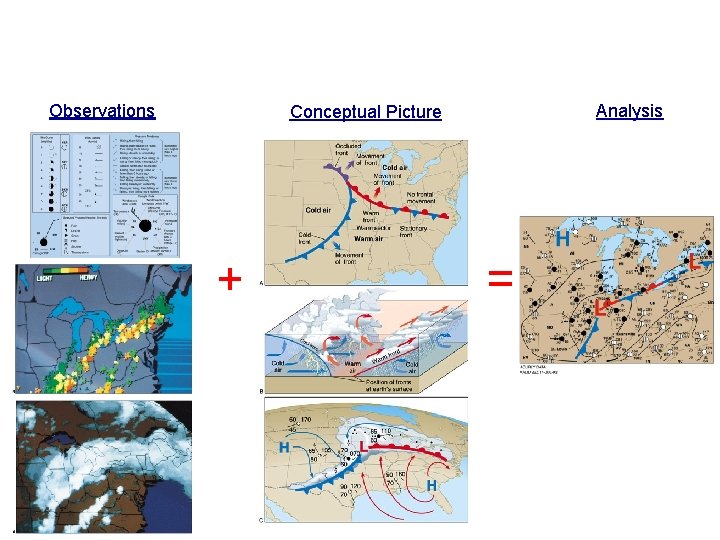

Observations Analysis Conceptual Picture + =

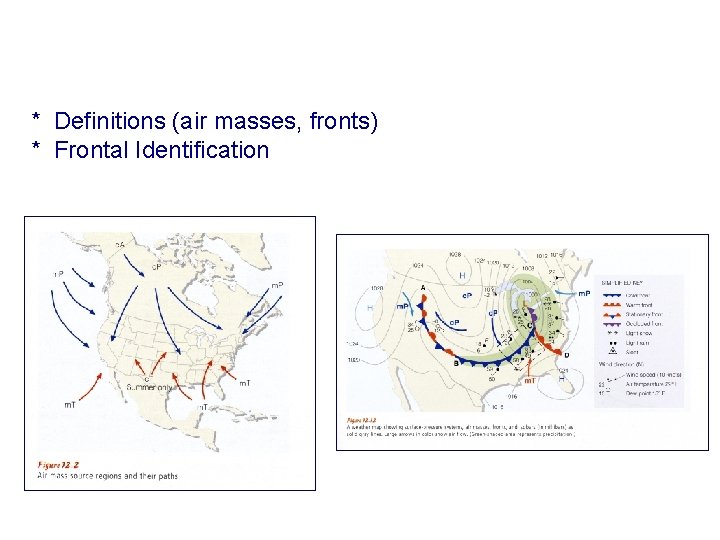

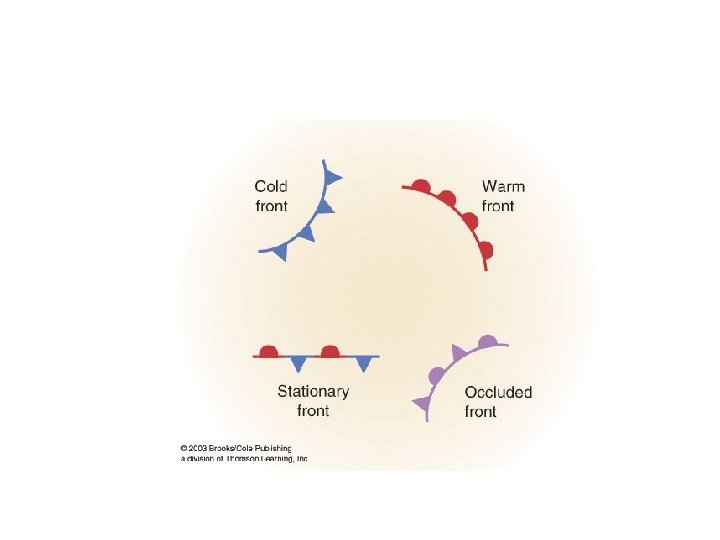

* Definitions (air masses, fronts) * Frontal Identification

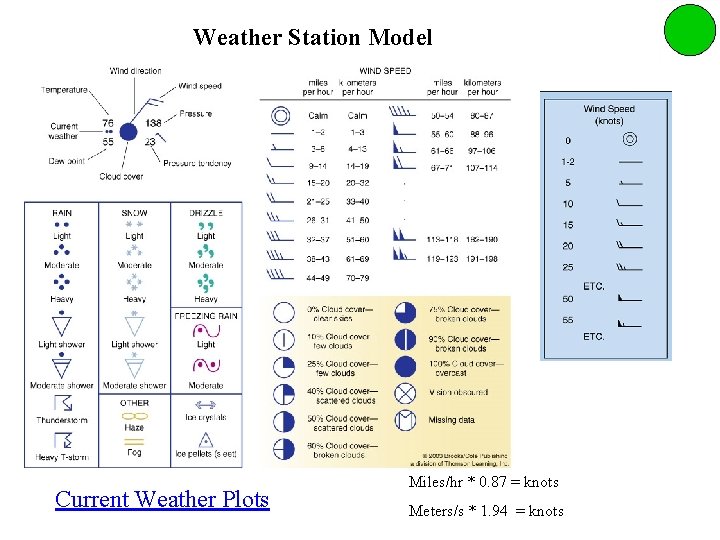

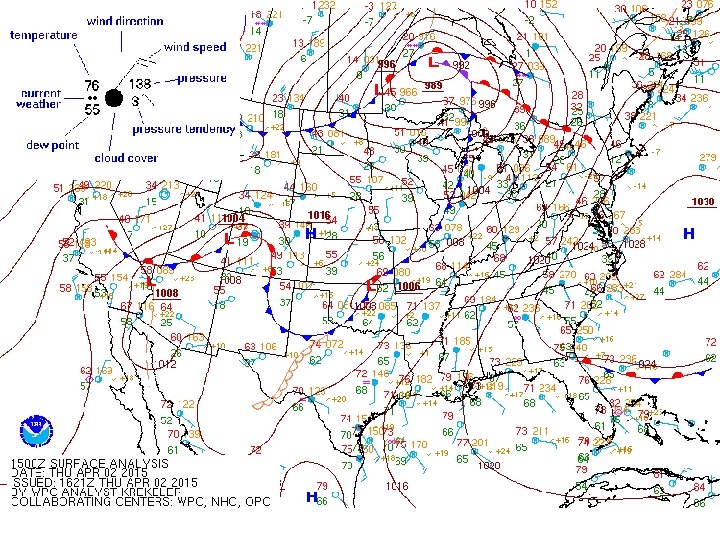

Weather Station Model Current Weather Plots Miles/hr * 0. 87 = knots Meters/s * 1. 94 = knots

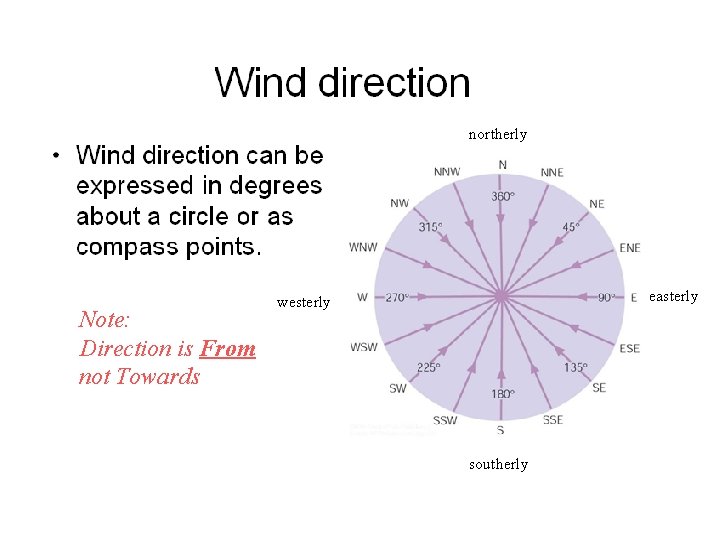

northerly Note: Direction is From not Towards easterly westerly southerly

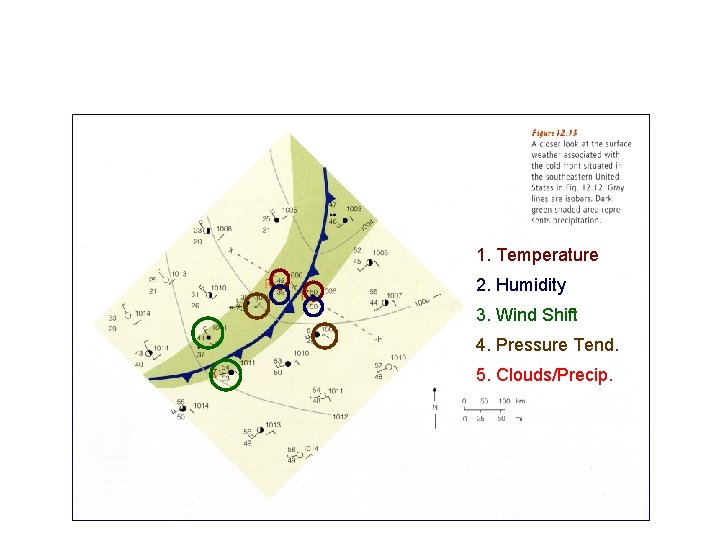

1. Temperature 2. Humidity 3. Wind Shift 4. Pressure Tend. 5. Clouds/Precip.

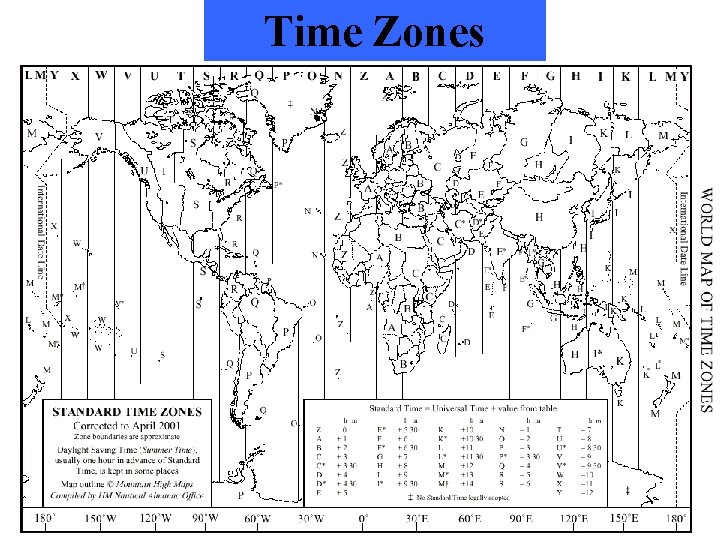

Time Zones

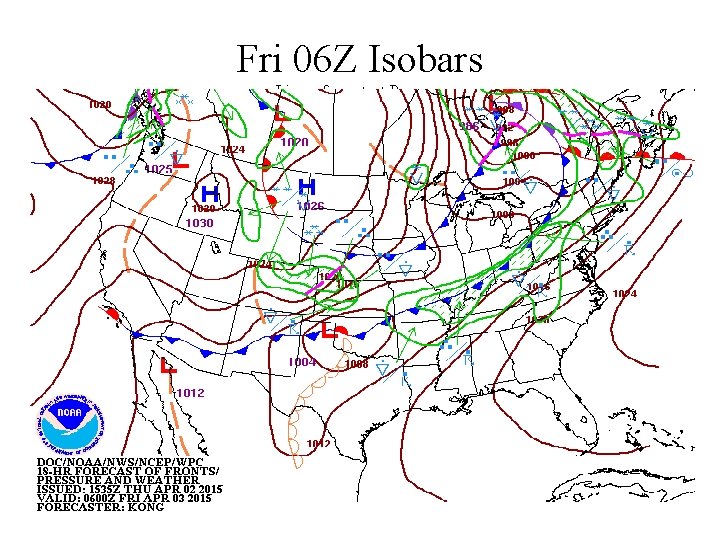

Fri 06 Z Isobars Lines of constant Pressure

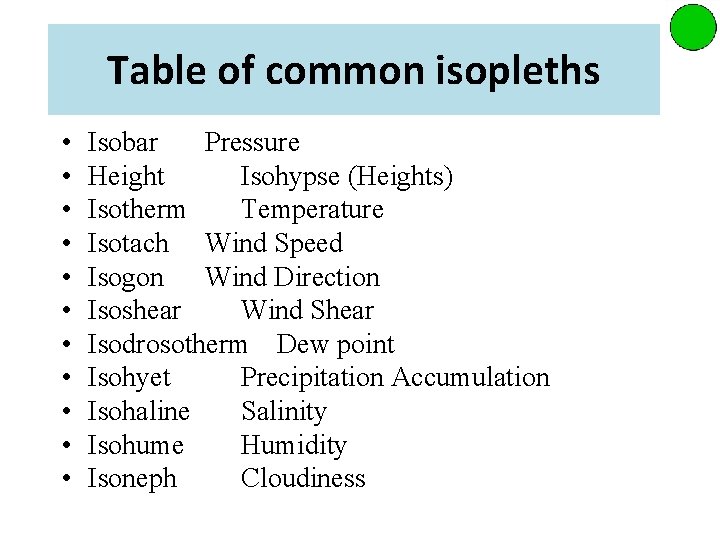

Table of common isopleths • • • Isobar Pressure Height Isohypse (Heights) Isotherm Temperature Isotach Wind Speed Isogon Wind Direction Isoshear Wind Shear Isodrosotherm Dew point Isohyet Precipitation Accumulation Isohaline Salinity Isohume Humidity Isoneph Cloudiness

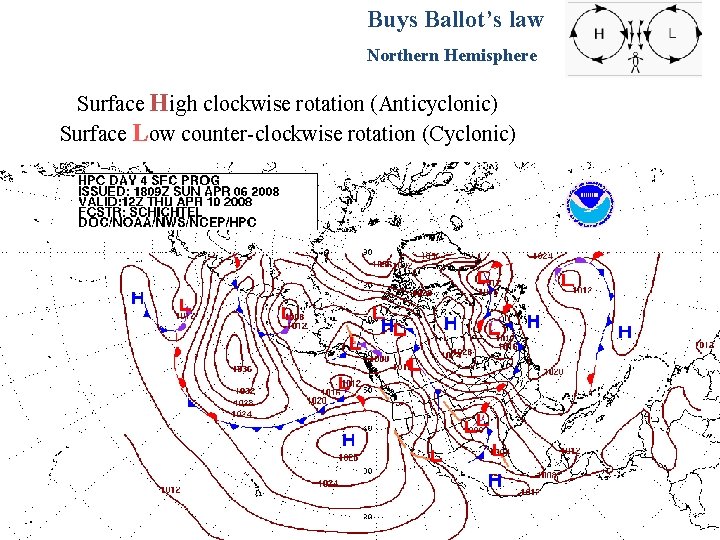

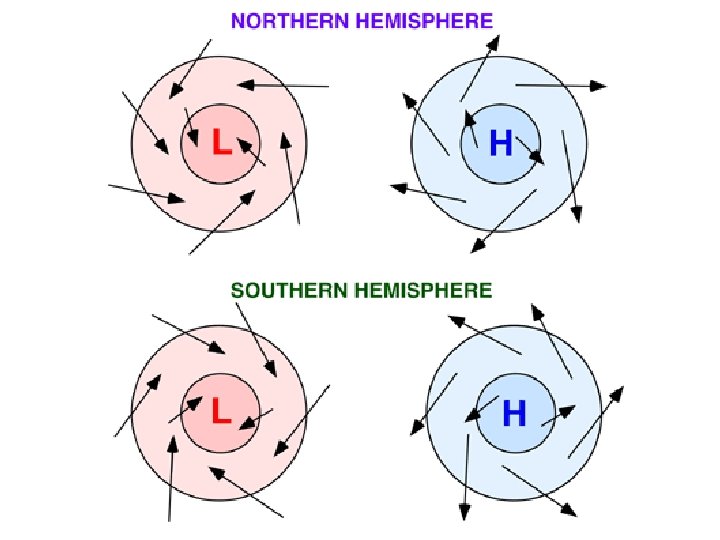

Buys Ballot’s law Northern Hemisphere Surface High clockwise rotation (Anticyclonic) Surface Low counter-clockwise rotation (Cyclonic)
A change of 1 mb with elevation is approximately ~ 10 meters change near the surface. (AK) Fig. 1 -13, p. 15

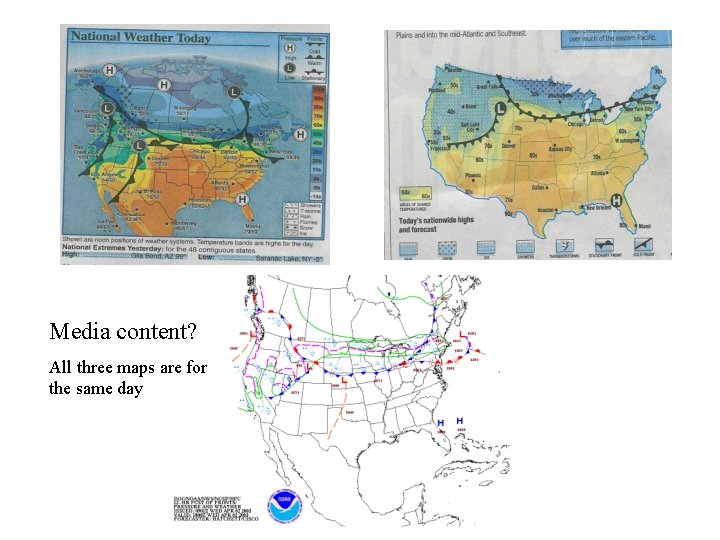

Media content? All three maps are for the same day

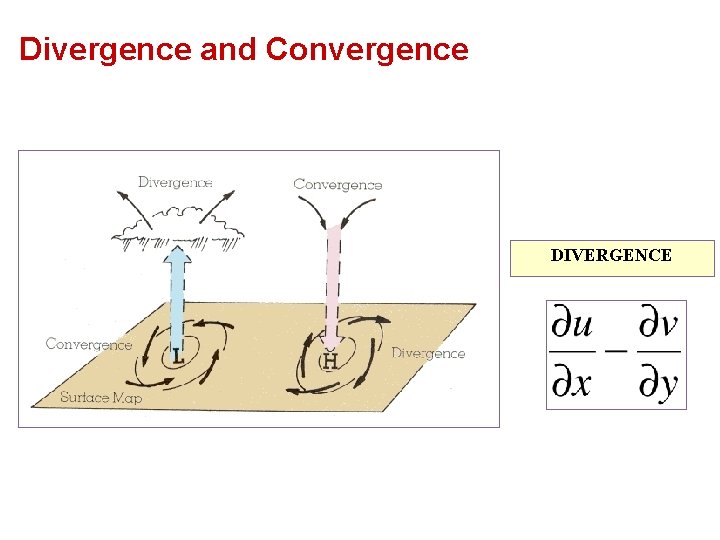

Divergence and Convergence DIVERGENCE
Basic Circulation Model DLA Fig. 1. 16 Knowledge of 3 -dimensional and time-varying patterns and processes helps us make sense of --- and thereby better analyze --- surface, satellite, and radar observations.

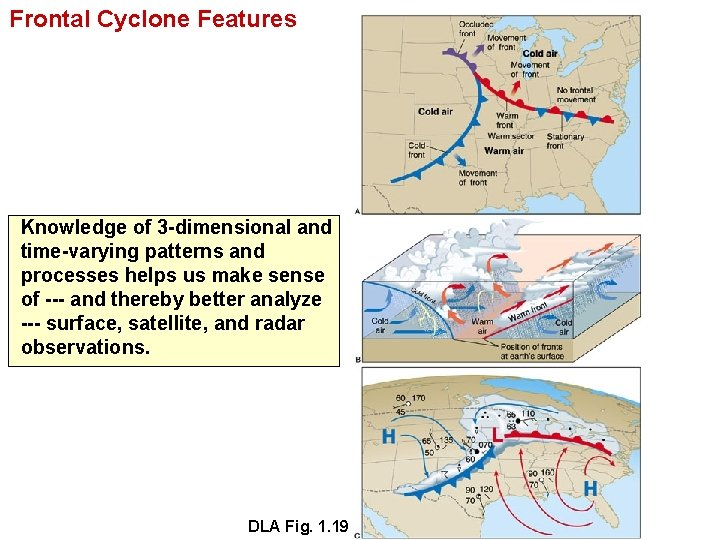

Frontal Cyclone Features Knowledge of 3 -dimensional and time-varying patterns and processes helps us make sense of --- and thereby better analyze --- surface, satellite, and radar observations. DLA Fig. 1. 19

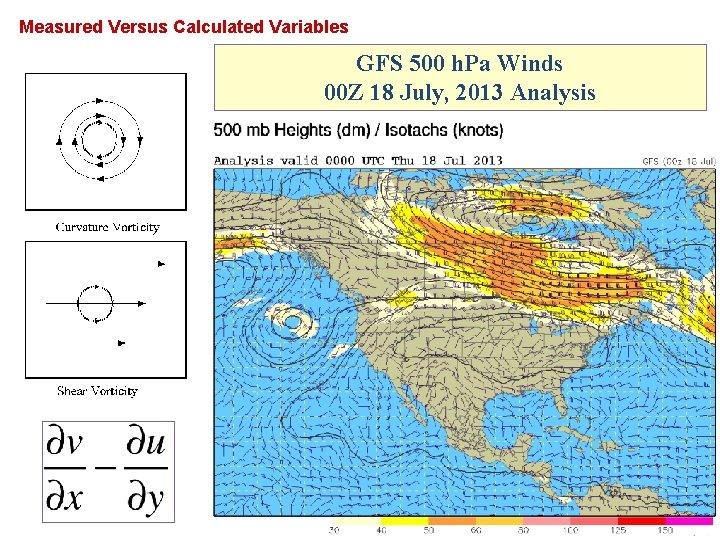

Measured Versus Calculated Variables GFS 500 h. Pa Winds 00 Z 18 July, 2013 Analysis

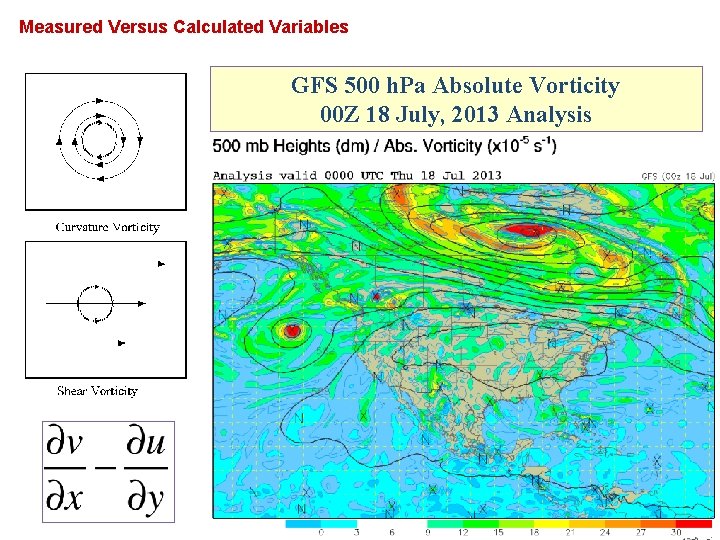

Measured Versus Calculated Variables GFS 500 h. Pa Absolute Vorticity 00 Z 18 July, 2013 Analysis

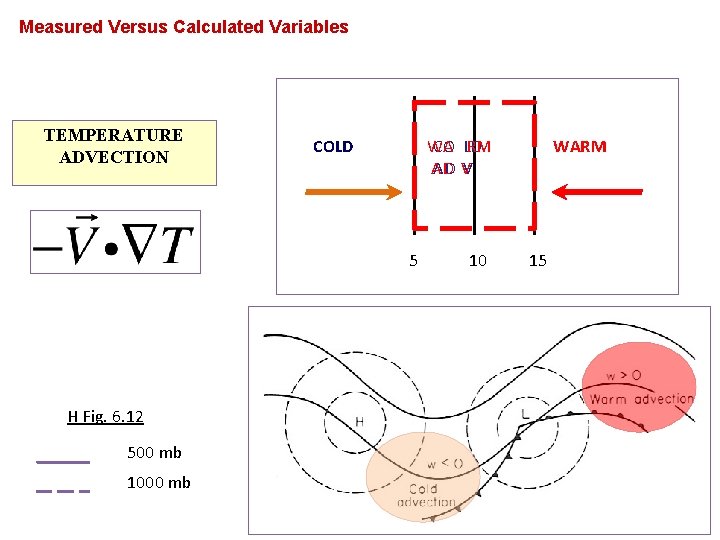

Measured Versus Calculated Variables TEMPERATURE ADVECTION COLD WA CO LD RM AD AD VV 5 H Fig. 6. 12 500 mb 10 WARM 15

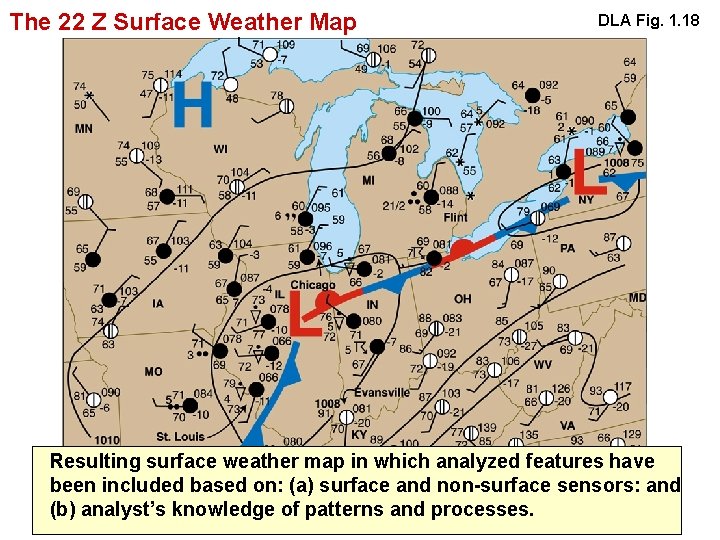

The 22 Z Surface Weather Map DLA Fig. 1. 18 Resulting surface weather map in which analyzed features have been included based on: (a) surface and non-surface sensors: and (b) analyst’s knowledge of patterns and processes.

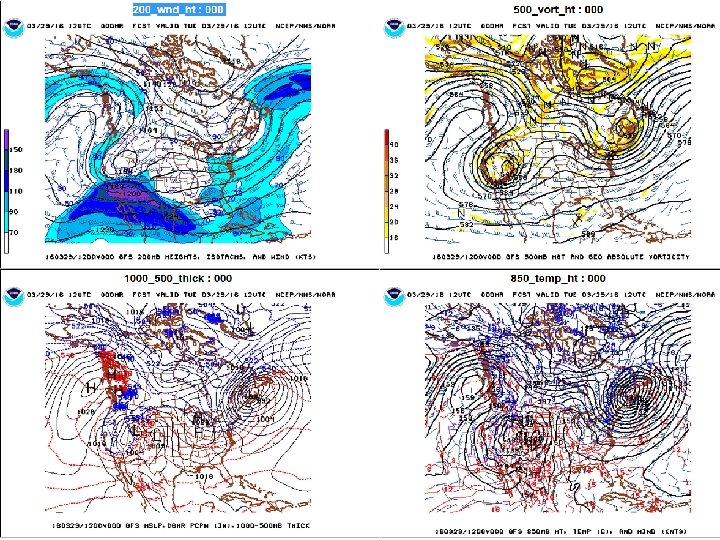

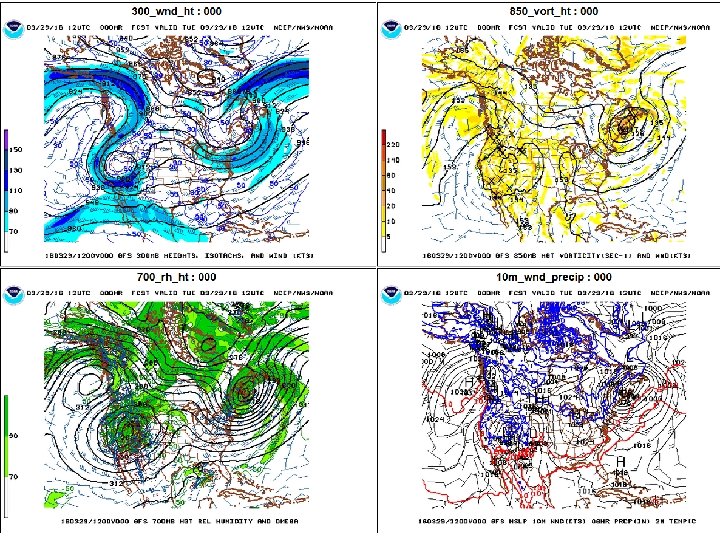

Weather Maps
