Analogue Addressable Networkable Fire Control Panel Main Features

Analogue Addressable Networkable Fire Control Panel

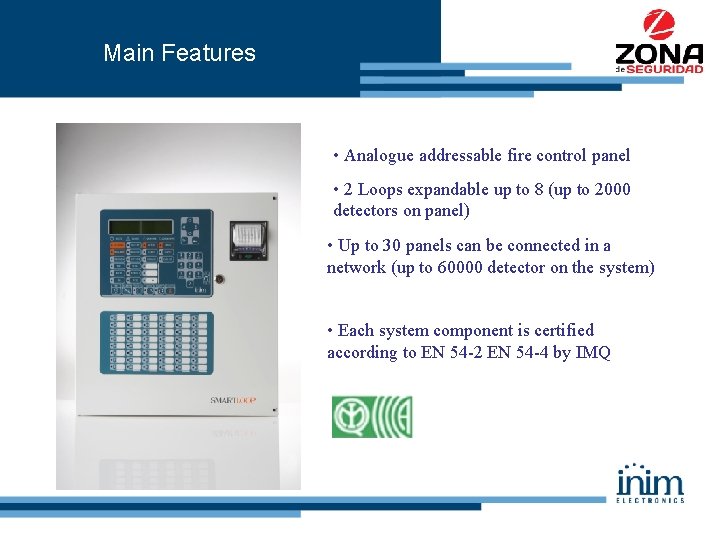

Main Features • Analogue addressable fire control panel • 2 Loops expandable up to 8 (up to 2000 detectors on panel) • Up to 30 panels can be connected in a network (up to 60000 detector on the system) • Each system component is certified according to EN 54 -2 EN 54 -4 by IMQ

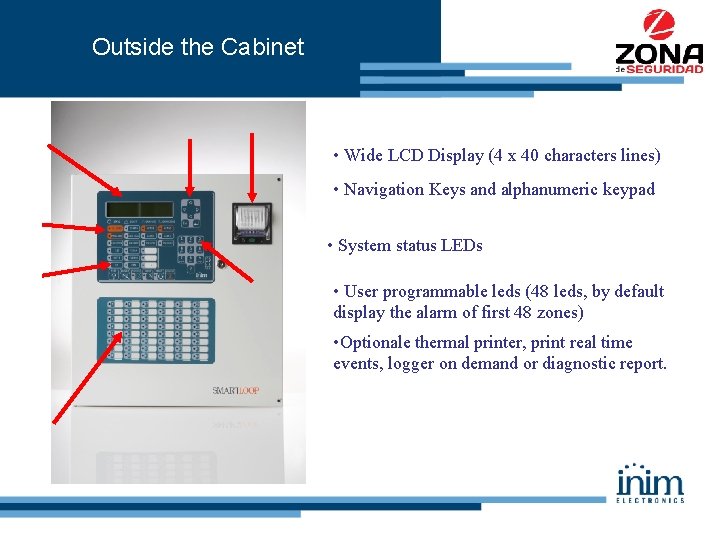

Outside the Cabinet • Wide LCD Display (4 x 40 characters lines) • Navigation Keys and alphanumeric keypad • System status LEDs • User programmable leds (48 leds, by default display the alarm of first 48 zones) • Optionale thermal printer, print real time events, logger on demand or diagnostic report.

Loop Features • New technology developed by Inim Up to. Loop 240 devices on each Loop Protocol • • Each can manage a different • Self addressing feature • Up to 2000 m length • Selectable as open line or loop • Loop Diagnostic features (detectors contamination, loop signal quality, real time value) • Hi noise immunity • Each device is equipped with a short circuit isolator

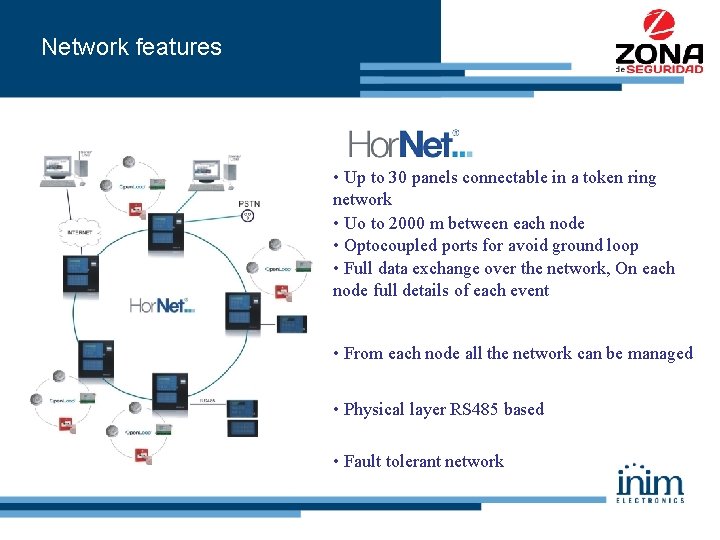

Network features • Up to 30 panels connectable in a token ring network • Uo to 2000 m between each node • Optocoupled ports for avoid ground loop • Full data exchange over the network, On each node full details of each event • From each node all the network can be managed • Physical layer RS 485 based • Fault tolerant network

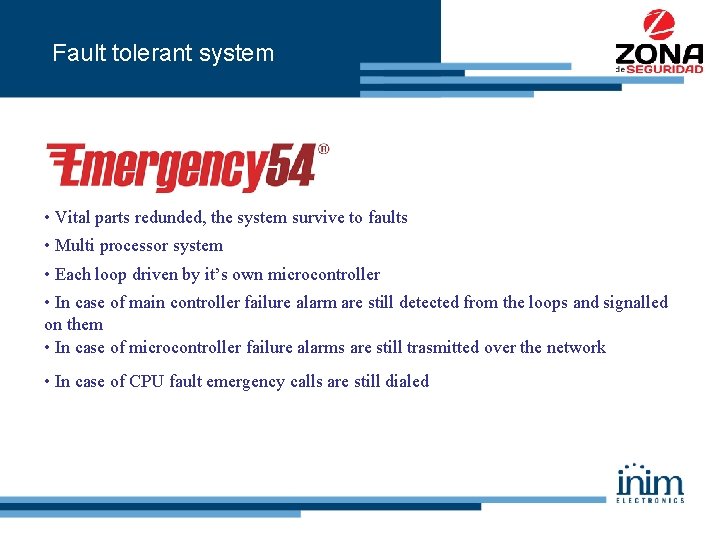

Fault tolerant system • Vital parts redunded, the system survive to faults • Multi processor system • Each loop driven by it’s own microcontroller • In case of main controller failure alarm are still detected from the loops and signalled on them • In case of microcontroller failure alarms are still trasmitted over the network • In case of CPU fault emergency calls are still dialed

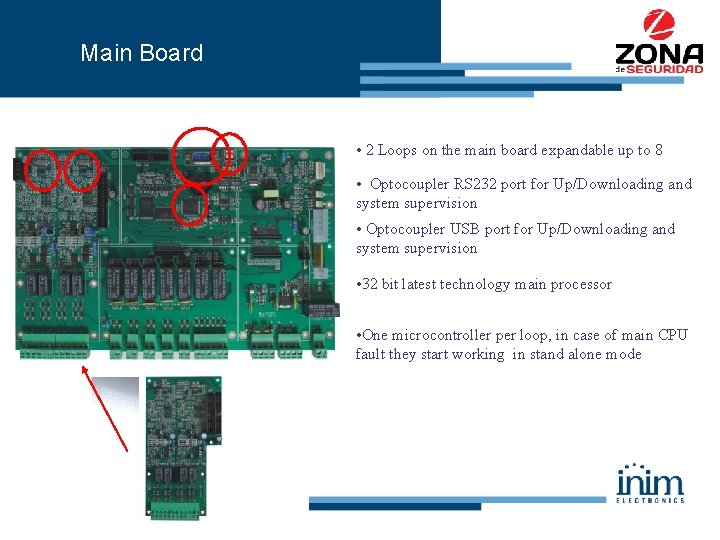

Main Board • 2 Loops on the main board expandable up to 8 • Optocoupler RS 232 port for Up/Downloading and system supervision • Optocoupler USB port for Up/Downloading and system supervision • 32 bit latest technology main processor • One microcontroller per loop, in case of main CPU fault they start working in stand alone mode

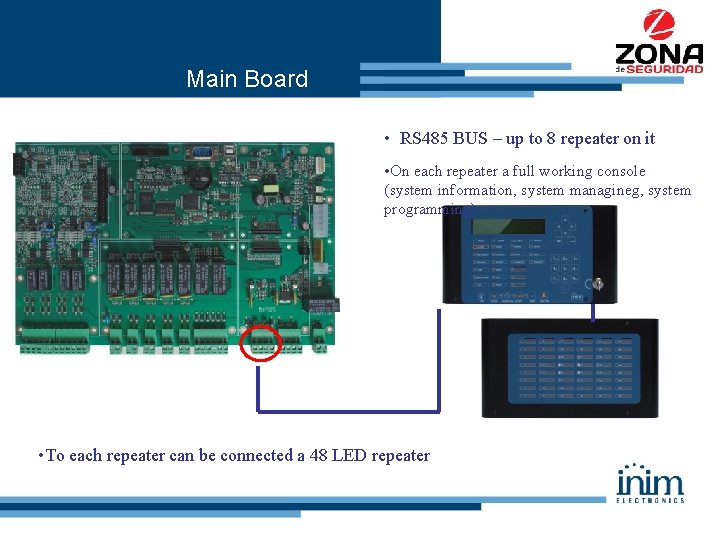

Main Board • RS 485 BUS – up to 8 repeater on it • On each repeater a full working console (system information, system managineg, system programming) • To each repeater can be connected a 48 LED repeater

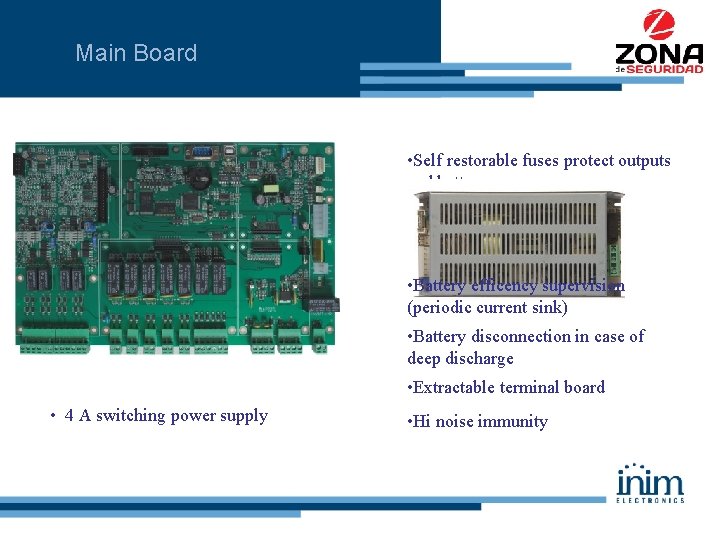

Main Board • Self restorable fuses protect outputs and battery • Thermal compensated battery charger by means of optional “Probe. TH” thermal probe • Battery efficency supervision (periodic current sink) • Battery disconnection in case of deep discharge • Extractable terminal board • 4 A switching power supply • Hi noise immunity

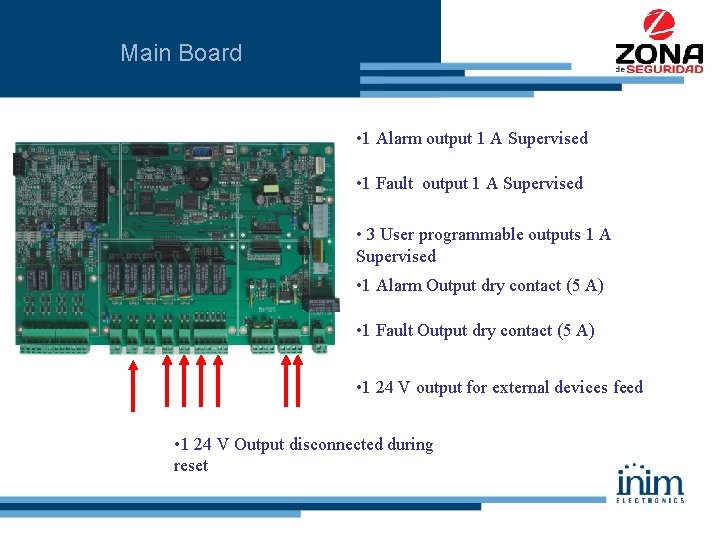

Main Board • 1 Alarm output 1 A Supervised • 1 Fault output 1 A Supervised • 3 User programmable outputs 1 A Supervised • 1 Alarm Output dry contact (5 A) • 1 Fault Output dry contact (5 A) • 1 24 V output for external devices feed • 1 24 V Output disconnected during reset

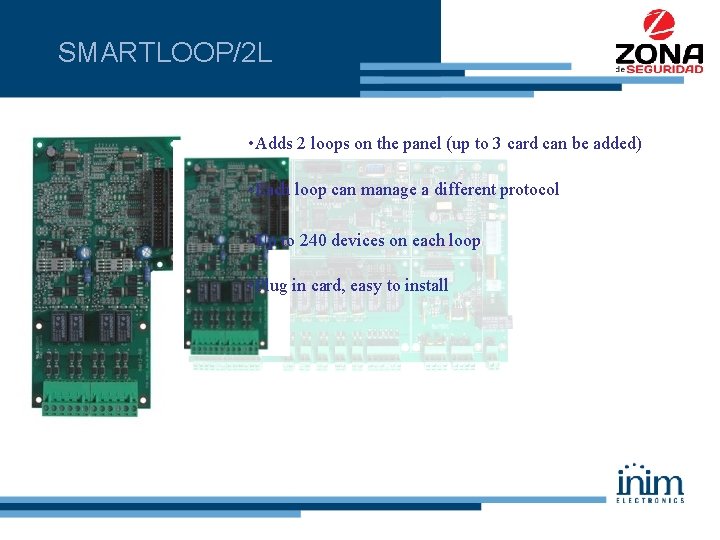

SMARTLOOP/2 L • Adds 2 loops on the panel (up to 3 card can be added) • Each loop can manage a different protocol • Up to 240 devices on each loop • Plug in card, easy to install

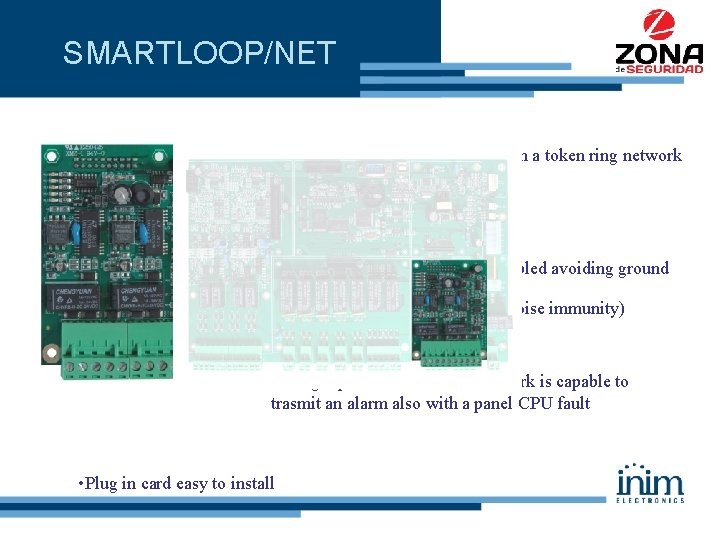

SMARTLOOP/NET • Allow the panel to be connected in a token ring network • Up to 2000 m between each node • Each one of the 2 port is optocoupled avoiding ground loops • Physical layer RS 485 based (hi noise immunity) • Rete in grado di tollerare guasti • Using 5 poles instead 3 the network is capable to trasmit an alarm also with a panel CPU fault • Plug in card easy to install

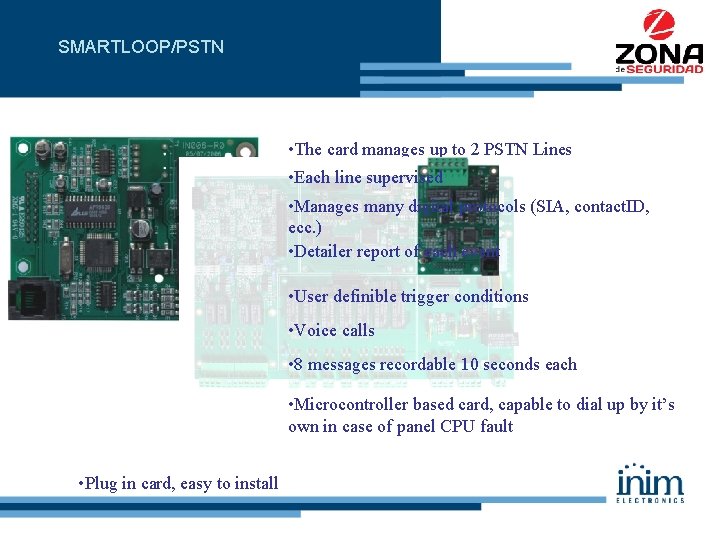

SMARTLOOP/PSTN • The card manages up to 2 PSTN Lines • Each line supervised • Manages many digital protocols (SIA, contact. ID, ecc. ) • Detailer report of each event • User definible trigger conditions • Voice calls • 8 messages recordable 10 seconds each • Microcontroller based card, capable to dial up by it’s own in case of panel CPU fault • Plug in card, easy to install

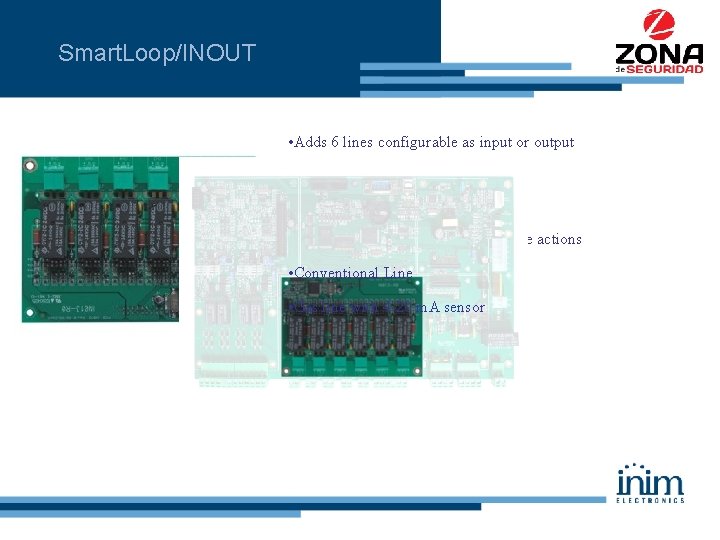

Smart. Loop/INOUT • Adds 6 lines configurable as input or output • Each lines can be configured as: • 1 A supervised user definable output • Supervised input, user programmable actions • Conventional Line • Gas line with 4 -20 m. A sensor

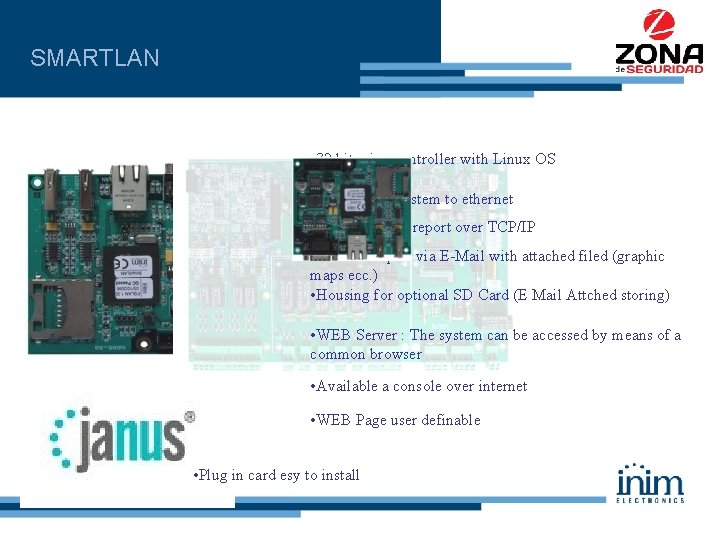

SMARTLAN • 32 bit microcontroller with Linux OS • Connect the system to ethernet • Detailed event report over TCP/IP • Detailed report via E-Mail with attached filed (graphic maps ecc. ) • Housing for optional SD Card (E Mail Attched storing) • WEB Server : The system can be accessed by means of a common browser • Available a console over internet • WEB Page user definable • Plug in card esy to install

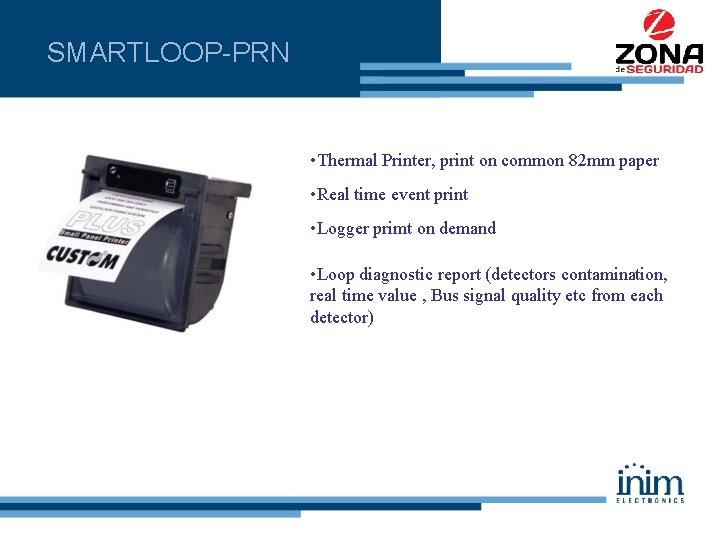

SMARTLOOP-PRN • Thermal Printer, print on common 82 mm paper • Real time event print • Logger primt on demand • Loop diagnostic report (detectors contamination, real time value , Bus signal quality etc from each detector)

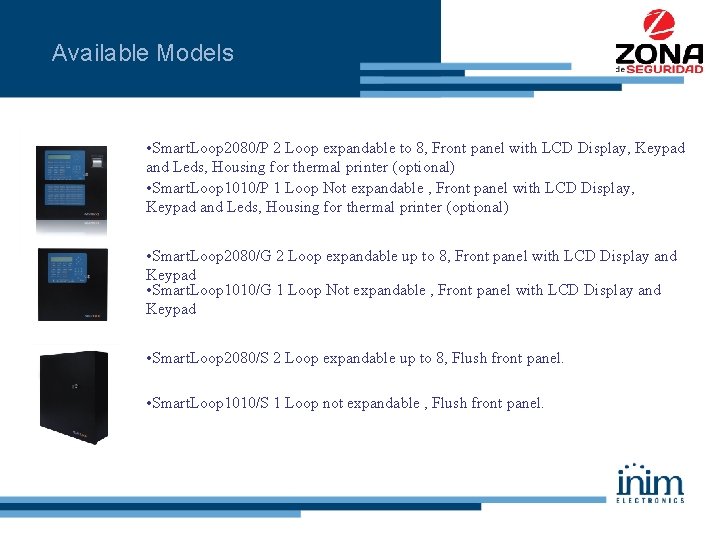

Available Models • Smart. Loop 2080/P 2 Loop expandable to 8, Front panel with LCD Display, Keypad and Leds, Housing for thermal printer (optional) • Smart. Loop 1010/P 1 Loop Not expandable , Front panel with LCD Display, Keypad and Leds, Housing for thermal printer (optional) • Smart. Loop 2080/G 2 Loop expandable up to 8, Front panel with LCD Display and Keypad • Smart. Loop 1010/G 1 Loop Not expandable , Front panel with LCD Display and Keypad • Smart. Loop 2080/S 2 Loop expandable up to 8, Flush front panel. • Smart. Loop 1010/S 1 Loop not expandable , Flush front panel.
