ANALOG TO DIGITAL CONVERTERS Stu Godlasky Nikita Pak

ANALOG TO DIGITAL CONVERTERS Stu Godlasky Nikita Pak James Potter

INTRODUCTION What is an analog to digital converter (ADC) Going from analog to digital Types and properties of ADC

WHAT IS AN ANALOG TO DIGITAL CONVERTER Converts an analog signal to discrete time digital Computers 1/0) need digital. (On / Off , High / Low ,

GOING FROM ANALOG TO DIGITAL Two step process 1) Sampling – Measuring analog signal at uniform time intervals 2) Quantization – Assigning discrete measurements a binary code (each sample will have a binary number associated with it) T 1 T 2 T 3 T 4 Example of digital signal from 3 bit ADC 010 011

ALIASING Every analog signal has a frequency Nyquist Frequency (half sampling frequency) Aliasing occurs when signal above Nyquist frequency

QUANTIZATION ERROR Analog (infinite values) – Digital (finite values) Upon reconstruction of analog signal Increases as resolution decreases Resolution - Q EFSR - full scale voltage range N = Number of discrete voltage intervals N = 2 k where k is the number of bits

QUANTIZATION ERROR • Quantized signal only has values at midpoint of voltage band

TYPES OF ANALOG TO DIGITAL CONVERTERS Dual Slope A/D Converter Successive Approximation A/D Converter Flash A/D Converter Delta – Sigma A/D Converter

DUAL SLOPE ANALOG TO DIGITAL CONVERTER Also referred to as an Integrating ADC Integrator

DUAL SLOPE ANALOG TO DIGITAL CONVERTER Converts in two phases (ramp up / ramp down ) Input voltage measurement not dependant on integrator components

DUAL SLOPE ANALOG TO DIGITAL CONVERTER Pros Conversion result is insensitive to errors in the component values Fewer adverse affects from noise High accuracy Cons o Slow o Accuracy is dependant on the use of precision external components o Cost

SUCCESSIVE APPROXIMATION ANALOG TO DIGITAL CONVERTER DAC = Digital to Analog Converter EOC = End of Conversion SAR = Successive Approximation Register S/H = Sample and Hold Circuit Vin = Input Voltage Vref = Reference Voltage

SUCCESSIVE APPROXIMATION ANALOG TO DIGITAL CONVERTER Uses an n-bit DAC and original analog results Performs a bit by bit comparison of VDAC and Vin If Vin > VREF / 2 MSB set to 1 otherwise 0 If Vin > VDAC Successive Bits set to 1 otherwise 0

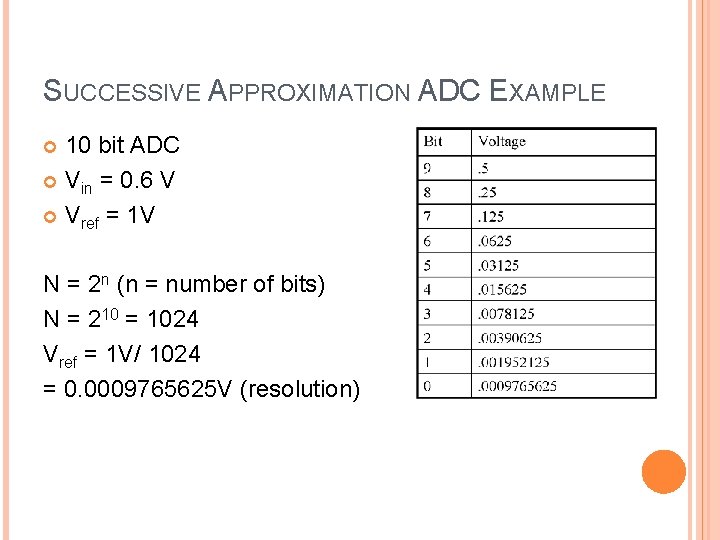

SUCCESSIVE APPROXIMATION ADC EXAMPLE 10 bit ADC Vin = 0. 6 V Vref = 1 V N = 2 n (n = number of bits) N = 210 = 1024 Vref = 1 V/ 1024 = 0. 0009765625 V (resolution)

SUCCESSIVE APPROXIMATION DIGITAL TO ANALOG CONVERTER Pros Capable of high speed and reliable Medium accuracy compared to other ADC types Good tradeoff between speed and cost Capable of outputting the binary number in serial (one bit at a time) format. Cons o Higher resolution successive approximation ADCs will be slower

FLASH ANALOG TO DIGITAL CONVERTER Also called a parallel ADC 2 N – 1 Comparators 2 N Resistors Control Logic (encoder)

FLASH ANALOG TO DIGITAL CONVERTER Uses the resistors to divide reference voltage into intervals Uses comparators to compare Vin and the reference voltages Encoder takes the output of comparators and uses control logic to generate binary digital output

FLASH ANALOG TO DIGITAL CONVERTER Pros Very Fast (Fastest) Very simple operational theory Speed is only limited by gate and comparator propagation delay Cons o Expensive o Prone to produce glitches in the output o Each additional bit of resolution requires twice the comparators and resistors

SIGMA-DELTA ANALOG TO DIGITAL CONVERTER Input over sampled, goes to integrator Integration compared with ground Iteration drives integration of error to zero Output is a stream of serial bits

SIGMA-DELTA ANALOG TO DIGITAL CONVERTER Pros High resolution No need for precision components Cons o. Slow due to over sampling o Only good for low bandwidth

COMPARISON OF ADCS Type Speed (relative) Cost (relative) Resolution Dual Slope Slow Med 12 -16 Flash Very Fast High 4 -12 Successive Approx Medium – Fast Low 8 -16 Sigma – Delta Slow Low 12 -24

ANALOG TO DIGITAL CONVERTER APPLICATIONS Nikita Pak

ANALOG TO DIGITAL CONVERTER APPLICATIONS Music recording Data acquisition/measurement devices thermocouples digital multimeters strain gauges Consumer Products cell phones digital cameras

MUSIC RECORDING A to D used to convert sound pressure waves into discrete digital signal (later, D to A used to convert back to an electrical signal for a speaker) Saves a tremendous amount of space Ex. CD samples at 44. 1 k. Hz (Nyquist frequency = 22. 05 k. Hz is higher than human ear can detect) CD recording often done with flash A to D

DATA ACQUISITION Data acquisition: the process of obtaining signals from sensors that measure physical conditions Sensors give analog voltage that must be converted to work on a computer Most National Instruments DAQ’s use successive approximation A to D

MEASUREMENT DEVICES Thermocouple: a junction of dissimilar metals creates a voltage difference that is temperature dependent Digital multimeter: converts signal to a voltage and amplifies it for measurement More accurate than analog counterparts

MEASUREMENT DEVICES Strain gauge: most common type measures the change in resistance as a metal pattern is deformed

CONSUMER PRODUCTS Cell phones: convert your voice into a digital signal so it can be more efficiently transmitted by compressing the signal Digital camera ccd: absorbed photons create charges that are converted into a sequence of voltages These voltages are converted to a digital signal Both often use flash A to D

ADC ON YOUR MICROCONTROLLER Input Pins ADC Built-into MC 9 S 12 C 32

ADC IN BLOCK DIAGRAM ATD 10 B 8 C Port AD

DETAILS OF ATD 10 B 8 C Analog-To-Digital Resolution: 8 or 10 Bits (manually chosen) 8 -Channel multiplexed inputs Conversion time: 7 µs (for 10 bit mode) Optional external trigger “Successive approximation” type ADC

ATD 10 B 8 C BLOCK DIAGRAM

ATD 10 B 8 C BLOCK DIAGRAM Reference Voltages Results of Successive Approximation Source Vsource “Holds” Source Voltage

REGISTERS AND SETTING UP YOUR ATD 10 B 8 C James Potter

ADC REGISTERS All information about registers found in Chapter 8 of MC 9 S 12 C Family Reference Manual 8 Result Registers 6 Control Registers 2 Status Registers 2 Test Registers 1 Digital Input Enable Register 1 Digital Port Data Register

RESULT REGISTERS

RESULT REGISTERS 8 registers, Each with High and low byte

RESULT REGISTERS: LEFT-JUSTIFIED (DEFAULT) High Byte Low Byte

RESULT REGISTERS: RIGHT-JUSTIFIED High Byte Low Byte

CONTROL REGISTERS

CONTROL REGISTERS: ATDCTL 2

CONTROL REGISTERS: ATDCTL 2

CONTROL REGISTERS: ATDCTL 3

CONTROL REGISTERS: ATDCTL 3

CONTROL REGISTERS: ATDCTL 4

CONTROL REGISTERS: ATDCTL 4

CONTROL REGISTERS: ATDCTL 5

CONTROL REGISTERS: ATDCTL 5

CONTROL REGISTERS: ATDCTL 5

SINGLE CHANNEL (MULT = 0) SINGLE CONVERSION (SCAN = 0) ATDDR 7 ATDDR 6 7 6 5 4 3 2 1 0 ATDDR 5 ATDDR 4 ATDDR 3 Port AD Result Register Interface ATD Converter ATDDR 2 ATDDR 1 ATDDR 0

SINGLE CHANNEL (MULT = 0) CONTINUOUS CONVERSION (SCAN = 1) ATDDR 7 ATDDR 6 7 6 5 4 3 2 1 0 ATDDR 5 ATDDR 4 ATDDR 3 Port AD Result Register Interface ATD Converter ATDDR 2 ATDDR 1 ATDDR 0

MULTIPLE CHANNEL (MULT = 1) SINGLE CONVERSION (SCAN = 0) ATDDR 7 ATDDR 6 7 6 5 4 3 2 1 0 ATDDR 5 ATDDR 4 ATDDR 3 Port AD Result Register Interface ATD Converter ATDDR 2 ATDDR 1 ATDDR 0

SINGLE CHANNEL (MULT = 1) CONTINUOUS CONVERSION (SCAN = 1) ATDDR 7 ATDDR 6 7 6 5 4 3 2 1 0 ATDDR 5 ATDDR 4 ATDDR 3 Port AD Result Register Interface ATD Converter ATDDR 2 ATDDR 1 ATDDR 0

STATUS REGISTERS

STATUS REGISTER 0: ATDSTAT 0

STATUS REGISTER 0: ATDSTAT 0

STATUS REGISTER 1: ATDSTAT 1

SETTING UP YOUR ATD 10 B 8 C

SETTING UP THE ATD Step 1: Power-up the ATD and define settings in ATDCTL 2 ADPU = 1 powers up the ATD ASCIE = 1 enables interrupt Step 2: Wait for ATD recovery time (~ 20μs) before proceeding Step 3: Set number of successive conversions in ATDCTL 3 S 1 C, S 2 C, S 4 C, S 8 C determine number of conversions (see Table 8 -4)

SETTING UP THE ATD Step 4: Configure resolution, sampling time, and ATD clock speed in ATDCTL 4 PRS 0, PRS 1, PRS 2, PRS 3, PRS 4 set sampling rate (see Table 8 -6) SRES 8 sets resolution to 8 -bit (= 1) or 10 -bit (= 0) Step 5: Configure starting channel, single/multiple channel, SCAN and result data signed or unsigned in ATDCTL 5 CC, CB, CA determine input channel (see Table 8 -12) MULT sets single (= 0) or multiple (= 1) inputs SCAN sets single (= 0) or continuous (= 1) sampling DJM sets output format as left-justified (=0) or right-justified (=1) DSGN sets output data as unsigned (=0) or signed (=1)
