Analisa Termal Teknik Analisa Termal Sejumlah teknik pengukuran

Analisa Termal

Teknik Analisa Termal Sejumlah teknik pengukuran dimana sifat-sifat fisik diukur sebagai fungsi dari suhu, dimana sampel dikenakan proses pemanasan atau pendinginan tertentu. Differential Thermal Analysis (DTA) • Perbedaan suhu antara sampel dengan material standar yang inert, DT = TS - TR, diukur saat keduanya diberi perlakuan panas tertentu. Differential Scanning Calorimetry (DSC) • Sampel dan standar dijaga pada suhu yang sama, bahkan selama terjadi perubahan termal tertentu pada sampel. • Variabel yang diukur adalah besarnya energi yang diperlukan untuk menjaga perbedaan suhu sampel dan standar sama dengan nol, d. Dq/dt. Thermogravimetric Analysis (TGA) • Pengukuran dilakukan pada perubahan massa sampel akibat pemanasan.

Prinsip-prinsip dasar analisa termal Instrumentasi modern yang digunakan pada analisa termal biasanya terdiri dari empat bagian: 1)Sample/sample holder 2)Sensor untuk mendeteksi/mengukur sifat-sifat tertentu sampel dan suhu. 3)Pengaturan yang memungkinkan paremeter-parameter eksperimen dapat dikontrol. 4)Komputer yang memungkinkan pengumpulan dan pemrosesan data. DTA power compensated DSC heat flux DSC

Differential Thermal Analysis sample holder alumina block • sample and reference cells (Al) heating coil sensors • Pt/Rh atau chromel/alumel thermocouples • Satu untuk sampel dan satu untuk reference • Dihubungkan dengan pengontrol suhu diferensial furnace • alumina block berisi sampel dan reference temperature controller • Mengontrol program suhu dan atmosfer furnace sample pan reference pan inert gas vacuum Pt/Rh or chromel/alumel thermocouples

Differential Thermal Analysis keuntungan: • Instrumen dapat digunakan pada suhu yang sangat tinggi • Instrumen sangat sensitif • Volume dan bentuk crucible fleksibel • Transisi atau suhu reaksi yang karakteristik dapat ditentukan dengan akurat, kelemahan: • Ketidakpastian estimasi panas bagi reaksi, transisi dan fusi sekitar 20 -50% DTA

Differential Scanning Calorimetry • DSC differs fundamentally from DTA in that the sample and reference are both maintained at the temperature predetermined by the program. • during a thermal event in the sample, the system will transfer heat to or from the sample pan to maintain the same temperature in reference and sample pans • two basic types of DSC instruments: power compensation and heat-flux power compensation DSC heat flux DSC

Power Compensation DSC individual heaters sample pan controller DP reference pan sample holder • Al or Pt pans sensors inert gas vacuum thermocouple DT = 0 • Pt resistance thermocouples • separate sensors and heaters for the sample and reference furnace • separate blocks for sample and reference cells temperature controller • differential thermal power is supplied to the heaters to maintain the temperature of the sample and reference at the program value

Sample Preparation • accurately-weigh samples (~3 -20 mg) • small sample pans (0. 1 m. L) of inert or treated metals (Al, Pt, Ni, etc. ) • several pan configurations, e. g. , open , pinhole, or hermetically-sealed pans • the same material and configuration should be used for the sample and the reference • material should completely cover the bottom of the pan to ensure good thermal contact • avoid overfilling the pan to minimize thermal lag from the bulk of the material to the sensor * small sample masses and low heating rates increase resolution, but at the expense of sensitivity Al Pt alumina Ni Cu quartz

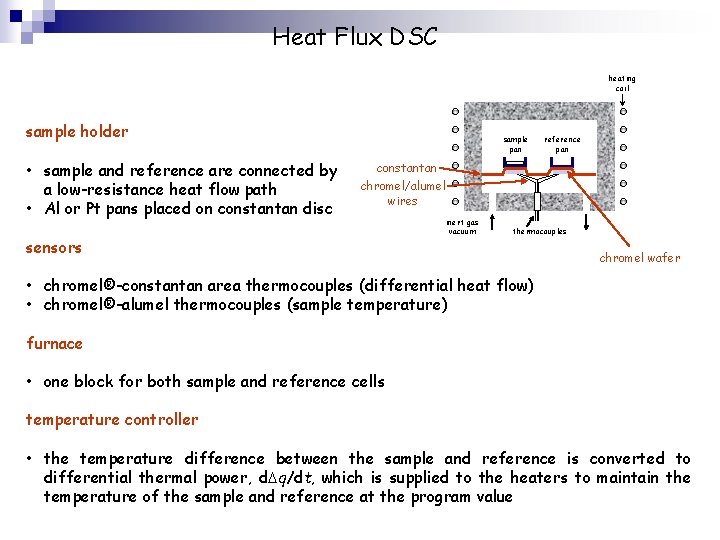

Heat Flux DSC heating coil sample holder • sample and reference are connected by a low-resistance heat flow path • Al or Pt pans placed on constantan disc sample pan reference pan constantan chromel/alumel wires sensors inert gas vacuum thermocouples chromel wafer • chromel®-constantan area thermocouples (differential heat flow) • chromel®-alumel thermocouples (sample temperature) furnace • one block for both sample and reference cells temperature controller • the temperature difference between the sample and reference is converted to differential thermal power, d. Dq/dt, which is supplied to the heaters to maintain the temperature of the sample and reference at the program value

Modulated DSC (MDSC) • introduced in 1993; “heat flux” design • sinusoidal (or square-wave or sawtooth) modulation is superimposed on the underlying heating ramp • total heat flow signal contains all of thermal transitions of standard DSC • Fourier Transformation analysis is used to separate the total heat flow into its two components: heat capacity (reversing heat flow) glass transition melting Modulated DSC Heating Profile kinetic (non-reversing heat flow) crystallization decomposition evaporation enthalpic relaxation cure

Analysis of Heat-Flow in Heat Flux DSC • temperature difference may be deduced by considering the heat flow paths in the DSC system temperature heating block DTR Tfurnace DTS TRP TSP TR reference DTL sample TS thermocouple is not in physical contact with sample • thermal resistances of a heat-flux system change with temperature • the measured temperature difference is not equal to the difference in temperature between the sample and the reference DTexp ≠ TS – TR

DSC Calibration baseline • evaluation of thermal resistance of the sample and reference sensors • measurements over the temperature range of interest 2 -step process • the temperature difference of two empty crucibles is measured • thermal response is then acquired for a standard material, usually sapphire, on both the sample and reference platforms • amplified DSC signal is automatically varied with temperature to maintain a constant calorimetric sensitivity with temperature

DSC Calibration temperature • goal is to match the melting onset temperatures indicated by the furnace thermocouple readouts to the known melting points of standards analyzed by DSC • should be calibrated as close to the desired temperature range as possible heat flow • use of calibration standards of known heat capacity, such as sapphire, slow accurate heating rates (0. 5– 2. 0 °C/min), and similar sample and reference pan weights calibrants • • • high purity accurately known enthalpies thermally stable light stable (hn) nonhygroscopic unreactive (pan, atmosphere) metals • In 156. 6 °C; 28. 45 J/g • Sn 231. 9 °C • Al 660. 4 °C inorganics • KNO 3 128. 7 °C • KCl. O 4 299. 4 °C organics • polystyrene 105 °C • benzoic acid 122. 3 °C; 147. 3 J/g • anthracene 216 °C; 161. 9 J/g

Thermogravimetric Analysis (TGA) • thermobalance allows for monitoring sample weight as a function of temperature • two most common instrument types reflection null • weight calibration weights using calibrated • temperature calibration based on ferromagnetic transition of Curie point standards (e. g. , Ni) • larger sample masses, lower temperature gradients, and higher purge rates minimize undesirable buoyancy effects TG curve of calcium oxalate

Typical Features of a DSC Trace for a Polymorphic System endothermic events melting sublimation solid-solid transitions desolvation chemical reactions exothermic events sulphapyridine crystallization solid-solid transitions decomposition chemical reactions baseline shifts glass transition

Thermal Methods in the Study of Polymorphs and Solvates polymorph screening/identification thermal stability • melting • crystallization • solid-state transformations • desolvation • glass transition • sublimation • decomposition heat flow • heat of fusion • heat of transition • heat capacity mixture analysis • chemical purity • physical purity (crystal forms, crystallinity) phase diagrams • eutectic formation (interactions with other molecules)

Definition of Transition Temperature extrapolated onset temperature peak melting temperature

Melting Processes by DSC pure substances • linear melting curve • melting point defined by onset temperature impure substances eutectic melt • concave melting curve • melting characterized at peak maxima melting with decomposition • exothermic • endothermic • eutectic impurities may produce a second peak

Glass Transitions • second-order transition characterized by change in heat capacity (no heat absorbed or evolved) • transition from a disordered solid to a liquid • appears as a step (endothermic direction) in the DSC curve • a gradual volume or enthalpy change may occur, producing an endothermic peak superimposed on the glass transition

Enthalpy of Fusion

Burger’s Rules for Polymorphic Transitions monotropy endothermic enantiotropy Heat of Transition Rule • endo-/exothermic solid-solid transition • exothermic solid-solid transition Heat of Fusion Rule • higher melting form; lower DHf • higher melting form; higher DHf

Enthalpy of Fusion by DSC single (well-defined) melting endotherm • • area under peak minimal decomposition/sublimation readily measured for high melting polymorph can be measured for low melting polymorph multiple thermal events leading to stable melt • solid-solid transitions (A to B) from which the transition enthalpy (DHTR) can be measured* DHf. A = DHf. B - DHTR crystallization of stable form (B) from melt of (A) DHf. A = area under all peaks from B to the stable melt * assumes negligible heat capacity difference between polymorphs over temperatures of interest

Purity by DSC • eutectic impurities lower the melting point of a eutectic system • purity determination by DSC based on Van’t Hoff equation RTo 2 c Tm = To DHo . 1 f • applies to dilute solutions, i. e. , nearly pure substances (purity ≥ 98%) 97% 99% benzoic acid 99. 9% • 1 -3 mg samples in hermetically-sealed pans are recommended • polymorphism interferes with purity determination, especially when a transition occurs in the middle of the melting peak melting endotherms as a function of purity. Plato, C. ; Glasgow, Jr. , A. R. Anal. Chem. , 1969, 41(2), 330 -336.

Effect of Heating Rate • many transitions (evaporation, crystallization, decomposition, etc. ) are kinetic events … they will shift to higher temperature when heated at a higher rate • the total heat flow increases linearly with heating rate due to the heat capacity of the sample … increasing the scanning rate increases sensitivity, while decreasing the scanning rate increases resolution • to obtain thermal event temperatures close to the true thermodynamic value, slow scanning rates (e. g. , 1– 5 K/min) should be used DSC traces of a low melting polymorph collected at four different heating rates. (Burger, 1975)

Effect of Phase Impurities • lots A and B of lower melting polymorph (identical by XRD) are different by DSC Lot A - pure Lot B - seeds • Lot A: pure low melting polymorph – melting observed • Lot B: seeds of high melting polymorph induce solid-state transition below the melting temperature of the low melting polymorph

Polymorph Characterization: Variable Melting Point • lots A and B of lower melting polymorph (identical by XRD) appear to have a “variable” melting point Lot A Lot B • although melting usually happens at a fixed temperature, solid-solid transition temperatures can vary greatly owing to the sluggishness of solid-state processes

Polymorph Characterization: Variable Melting Point • the low temperature endotherm was predominantly non-reversing, suggestive of a solid -solid transition • small reversing component discernable on close inspection of endothermic conversions occurring at the higher temperatures, i. e. , near the melting point reversing heat flow non-reversing heat flow Lot A Lot B • the “variable” melting point was related to the large stability difference between the two polymorphs; the system was driven to undergo both melting and solid-state conversion to the higher melting form

Polymorph Stability from Melting and Eutectic Melting Data • polymorph stability predicted from pure melting data near the melting temperatures (G 1 -G 2)(Tm 1) = DHm 2(Tm 2 -Tm 1)/Tm 2 (G 1 -G 2)(Tm 2) = DHm 1(Tm 2 -Tm 1)/Tm 1 • eutectic melting method developed to establish thermodynamic stability of polymorph pairs over larger temperature range (G 1 -G 2)(Te 1) = DHme 2(Te 2 -Te 1)/(xe 2 Te 2) (G 1 -G 2)(Te 2) = DHme 1(Te 2 -Te 1)/(xe 1 Te 1) Yu, L. J. Pharm. Sci. , 1995, 84(8), 966 -974. Yu, L. J. Am. Chem. Soc, 2000, 122, 585 -591.

“Hyphenated” Techniques • thermal techniques alone are insufficient to prove the existence of polymorphs and solvates • other techniques should be used, e. g. , microscopy, diffraction, and spectroscopy • development of “hyphenated” techniques for simultaneous analysis TG-DTA TG-DSC TG-FTIR TG-MS evolved gas analysis (EGA) TG-DTA trace of sodium tartrate

Best Practices of Thermal Analysis • small sample size • good thermal contact between the sample and the temperature-sensing device • proper sample encapsulation • starting temperature well below expected transition temperature • slow scanning speeds • proper instrument calibration • use purge gas (N 2 or He) to remove corrosive off-gases • avoid decomposition in the DSC

Reversing and Non-Reversing Contributions to Total DSC Heat Flow total heat flow resulting from average heating rate d. Q/dt = Cp. d. T/dt + f(t, T) reversing signal heat flow resulting from sinusoidal temperature modulation (heat capacity component) non-reversing signal (kinetic component) * whereas solid-solid transitions are generally too sluggish to be reversing at the time scale of the measurement, melting has a moderately strong reversing component

Recognizing Artifacts sample topples over in pan sample pan distortion shifting of Al pan mechanical shock of measuring cell cool air entry into cell sensor contamination electrical effects, power spikes, etc. RT changes intermittant closing of hole in pan lid burst of pan lid
