Anaerobic Baffled Reactor Martin Wafler seecon international gmbh

Anaerobic Baffled Reactor Martin Wafler, seecon international gmbh Anaerobic Baffled Reactor

Find this presentation and more on: www. sswm. info. Copyright & Disclaimer Copy it, adapt it, use it – but acknowledge the source! Copyright Included in the SSWM Toolbox are materials from various organisations and sources. Those materials are open source. Following the opensource concept for capacity building and non-profit use, copying and adapting is allowed provided proper acknowledgement of the source is made (see below). The publication of these materials in the SSWM Toolbox does not alter any existing copyrights. Material published in the SSWM Toolbox for the first time follows the same open-source concept, with all rights remaining with the original authors or producing organisations. To view an official copy of the Creative Commons Attribution Works 3. 0 Unported License we build upon, visit http: //creativecommons. org/licenses/by/3. 0. This agreement officially states that: You are free to: • Share - to copy, distribute and transmit this document • Remix - to adapt this document. We would appreciate receiving a copy of any changes that you have made to improve this document. Under the following conditions: • Attribution: You must always give the original authors or publishing agencies credit for the document or picture you are using. Disclaimer The contents of the SSWM Toolbox reflect the opinions of the respective authors and not necessarily the official opinion of the funding or supporting partner organisations. Depending on the initial situations and respective local circumstances, there is no guarantee that single measures described in the toolbox will make the local water and sanitation system more sustainable. The main aim of the SSWM Toolbox is to be a reference tool to provide ideas for improving the local water and sanitation situation in a sustainable manner. Results depend largely on the respective situation and the implementation and combination of the measures described. An in-depth analysis of respective advantages and disadvantages and the suitability of the measure is necessary in every single case. We do not assume any responsibility for and make no warranty with respect to the results that may be obtained from the use of the information provided. Anaerobic Baffled Reactor

Find this presentation and more on: www. sswm. info. Contents 1. Concept 2. How it can optimize SSWM 3. Design principals 4. Treatment efficiency 5. Operation and maintenance 6. Applicability 7. Advantages and disadvantages 8. References Anaerobic Baffled Reactor 3

Find this presentation and more on: www. sswm. info. 1. Concept Background and working principal (adapted from U. S. EPA 2006, SASSE 1998) • physical and biological (anaerobic) treatment of wastewater • integrated sedimentation chamber for pre -treatment of wastewater • alternating standing and hanging baffles • wastewater passes through the sludge to move to the next compartment • solid retention time (SRT) separated from hydraulic retention time (HRT) • high treatment rates due to enhanced contact of incoming wastewater with residual sludge and high solid retention • low sludge production Cut-away view and longitudinal section of an ABR Source: SANIMAS (2005), MOREL & DIENER (2006) Anaerobic Baffled Reactor 4

Find this presentation and more on: www. sswm. info. 1. Concept Examples Construction of different toilet blocks connected to twopre-fabricated fibreglass reactors comprising a settling chamber, an aerobic baffled reactor and a final anaerobic filter unit Source: BORDA 2009 Anaerobic Baffled Reactor 5

Find this presentation and more on: www. sswm. info. 1. Concept Examples Biogas settler as settlement compartment (near completion) at Pestalozzi School, Zambia Source: http: //www. germantoilet. org/ Anaerobic Baffled Reactor 6

Find this presentation and more on: www. sswm. info. 1. Concept Examples The ABR under construction, down pipes and perforated slabs to support filter media in the Anaerobic Filter (AF) sections, pouring ABR’s concrete slab at Pestalozzi School, Zambia Source: http: //www. germantoilet. org/ Anaerobic Baffled Reactor 7

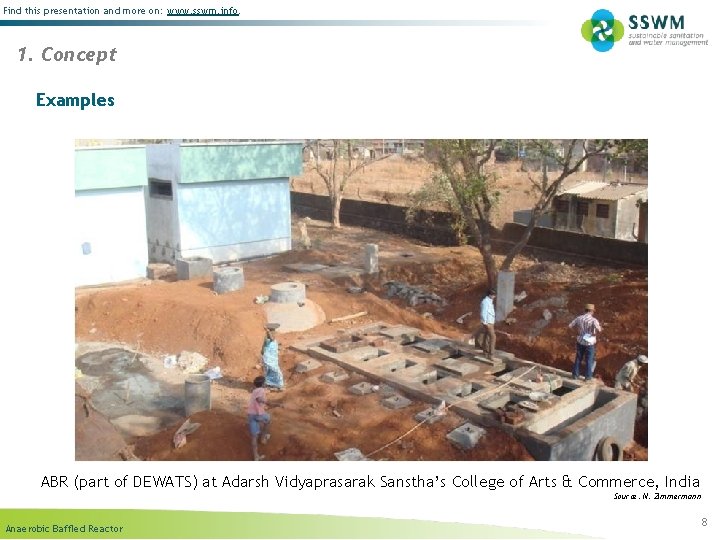

Find this presentation and more on: www. sswm. info. 1. Concept Examples ABR (part of DEWATS) at Adarsh Vidyaprasarak Sanstha’s College of Arts & Commerce, India Source: N. Zimmermann Anaerobic Baffled Reactor 8

Find this presentation and more on: www. sswm. info. 1. Concept Examples ABR (part of DEWATS) at Sunga Wastewater Treatment Plant, Kathmandu, Nepal Source: N. Zimmermann Anaerobic Baffled Reactor 9

Find this presentation and more on: www. sswm. info. 2. How it can optimize SSWM • treatment of all wastewater (grey-, black- and/or industrial wastewater) that it is fit (after secondary treatment) for reuse and/or safe disposal • allows for recovery of biogas, which can be used as a substitute to e. g. LPG or fuel wood in cooking Anaerobic Baffled Reactor 10

Find this presentation and more on: www. sswm. info. 3. Design principals ABRs start with settling chamber for larger solids and impurities followed by series of at least 2 , sometimes up to 5 upflow chambers (SASSE 1998) (MOREL & DIENER 2006) (SASSE 1998) Hydraulic Retention Time (HRT) is relatively short and varies from only a few hours up to two or three days (FOXON et al. 2004; MOREL & DIENER 2006; TILLEY et al. 2008) up-flow velocity is the most crucial parameter for dimensioning, especially with high hydraulic loading. It should not exceed 2. 0 m/h. (SASSE 1998; MOREL & DIENER 2006) organic load <3 kg COD/m 3/day. Higher loading-rates are possible with higher temperature and for easily degradable substrates (SASSE 1998) Anaerobic Baffled Reactor 11

Find this presentation and more on: www. sswm. info. 4. Treatment efficiency Treatment performance of ABRs is in the range of (SASSE 1998; MOREL & DIENER 2006; BORDA 2008) • Chemical Oxygen Demand (COD) removal: 65% to 90%, • Biological Oxygen Demand (BOD) removal: 70% to 95%, • Total Suspended Solids (TSS) removal: up to 90% • Pathogen reduction: low (SINGH 2008) Superior to BOD-removal (30% to 50%) of conventional septic tank. (UNEP 2004) Anaerobic Baffled Reactor 12

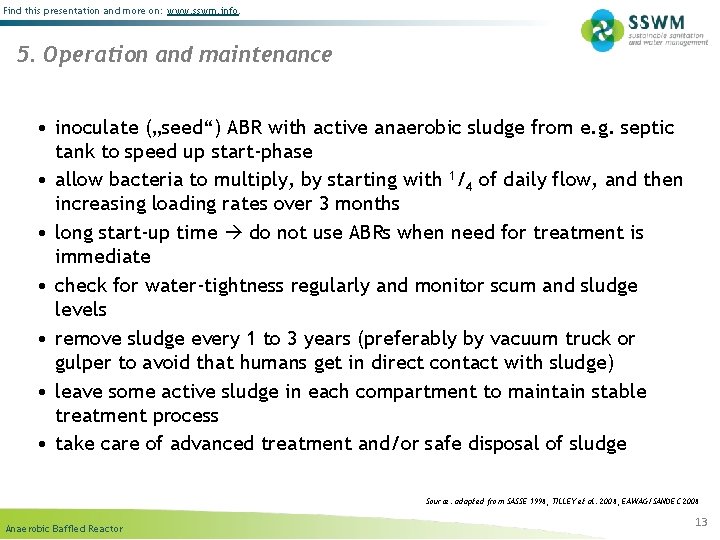

Find this presentation and more on: www. sswm. info. 5. Operation and maintenance • inoculate („seed“) ABR with active anaerobic sludge from e. g. septic tank to speed up start-phase • allow bacteria to multiply, by starting with 1/4 of daily flow, and then increasing loading rates over 3 months • long start-up time do not use ABRs when need for treatment is immediate • check for water-tightness regularly and monitor scum and sludge levels • remove sludge every 1 to 3 years (preferably by vacuum truck or gulper to avoid that humans get in direct contact with sludge) • leave some active sludge in each compartment to maintain stable treatment process • take care of advanced treatment and/or safe disposal of sludge Source: adapted from SASSE 1998, TILLEY et al. 2008, EAWAG/SANDEC 2008 Anaerobic Baffled Reactor 13

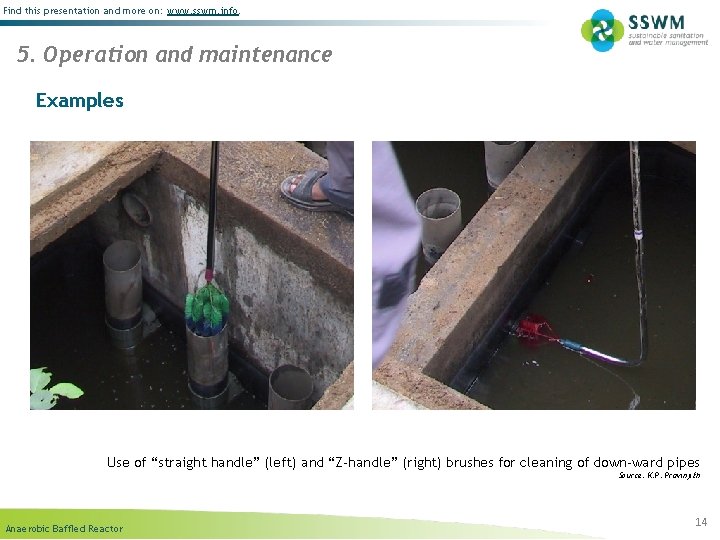

Find this presentation and more on: www. sswm. info. 5. Operation and maintenance Examples Use of “straight handle” (left) and “Z-handle” (right) brushes for cleaning of down-ward pipes Source: K. P. Pravinjith Anaerobic Baffled Reactor 14

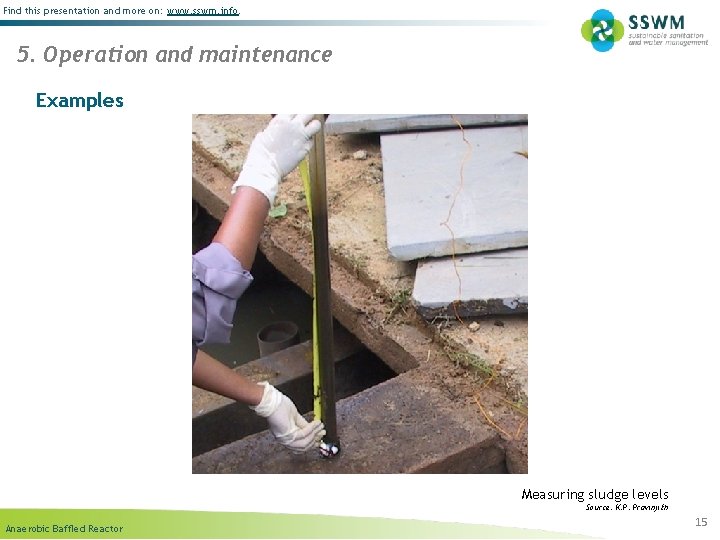

Find this presentation and more on: www. sswm. info. 5. Operation and maintenance Examples Measuring sludge levels Source: K. P. Pravinjith Anaerobic Baffled Reactor 15

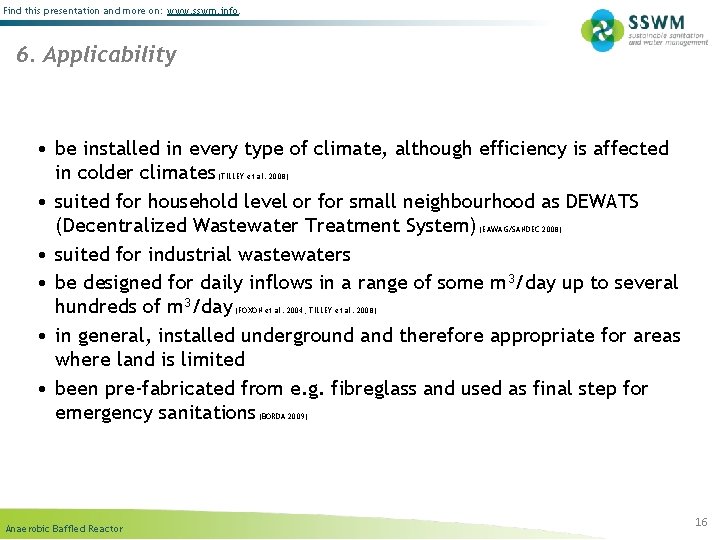

Find this presentation and more on: www. sswm. info. 6. Applicability • be installed in every type of climate, although efficiency is affected in colder climates • suited for household level or for small neighbourhood as DEWATS (Decentralized Wastewater Treatment System) • suited for industrial wastewaters • be designed for daily inflows in a range of some m 3/day up to several hundreds of m 3/day • in general, installed underground and therefore appropriate for areas where land is limited • been pre-fabricated from e. g. fibreglass and used as final step for emergency sanitations (TILLEY et al. 2008) (EAWAG/SANDEC 2008) (FOXON et al. 2004; TILLEY et al. 2008) (BORDA 2009) Anaerobic Baffled Reactor 16

Find this presentation and more on: www. sswm. info. 7. Advantages and disadvantages Advantages: Disadvantages: • extremely stable to hydraulic shock loads • needs expert design • high treatment performance • simple to construct and operate • no electrical requirements • low capital and operating costs, depending on economy of scale • low sludge generation • biogas can be recovered Anaerobic Baffled Reactor • long start-up phase • needs strategy for faecal sludge management • effluent requires secondary treatment and/or appropriate discharge • clear design guidelines are not available yet • low reduction of pathogens 17

Find this presentation and more on: www. sswm. info. 8. References BORDA (2009): Em. San - Emergency Sanitation. An innovative & rapidly installable solution to improve hygiene and health in emergency situations (Concept Note). Bremen: Bremen Overseas Research and Development Association (BORDA) EAWAG/SANDEC (2008): Sanitation Systems and Technologies. Lecture Notes. (=Sandec Training Tool 1. 0, Module 4). Duebendorf: Swiss Federal Institute of Aquatic Science (EAWAG), Department of Water and Sanitation in Developing Countries (SANDEC) FOXON, K. M. , PILLAY, S. , LALBAHADUR, T. , RODDA, N. , HOLDER, F. , BUCKLEY, C. A. (2004): The anaerobic baffled reactor (ABR)- An appropriate technology for on-site sanitation. In=Water SA Vol. 30 No. 5 (Special edition) MOREL A. , DIENER S. 2006. Greywater Management in Low and Middle-Income Countries. Review of different treatment systems for households or neighbourhoods. Duebendorf: Swiss Federal Institute of Aquatic Science and Technology (Eawag). SANIMAS (2005): Informed Choice Catalogue. PPT-Presentation. BORDA and USAID SASSE, L. (1998): DEWATS Decentralised Wastewater Treatment in Developing Countries. Bremen: Bremen Overseas Research and Development Association (BORDA) Anaerobic Baffled Reactor 18

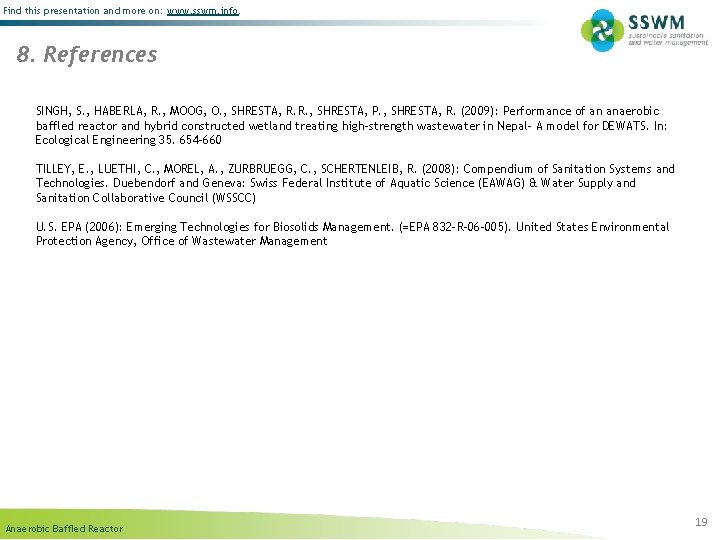

Find this presentation and more on: www. sswm. info. 8. References SINGH, S. , HABERLA, R. , MOOG, O. , SHRESTA, R. R. , SHRESTA, P. , SHRESTA, R. (2009): Performance of an anaerobic baffled reactor and hybrid constructed wetland treating high-strength wastewater in Nepal- A model for DEWATS. In: Ecological Engineering 35. 654 -660 TILLEY, E. , LUETHI, C. , MOREL, A. , ZURBRUEGG, C. , SCHERTENLEIB, R. (2008): Compendium of Sanitation Systems and Technologies. Duebendorf and Geneva: Swiss Federal Institute of Aquatic Science (EAWAG) & Water Supply and Sanitation Collaborative Council (WSSCC) U. S. EPA (2006): Emerging Technologies for Biosolids Management. (=EPA 832 -R-06 -005). United States Environmental Protection Agency, Office of Wastewater Management Anaerobic Baffled Reactor 19
