An overview on optoelectronic methods for detection of xenobiotics in human fluid samples 1

Outline 1. 2. 3. 4. 5. Introduction Gas chromatography mass spectrometry Liquid chromatography with tandem mass spectrometry Graphite furnace atomic absorption spectroscopy Conclusions 2

1. Introduction • Drugs/xenobiotic detection is essential for establishing a proper diagnosis and prescribing an effective treatment; • Among the most discriminatory in substance detection are optoelectronic methods, such as mass spectrometry or infrared spectrometry → analysis of the mass or absorption spectra of the sample, which provides information regarding the nature of the xenobiotic it contains [1, 2]; • Most high-precision investigation methods are a combination of two main techniques: gas/liquid chromatography and mass spectrometry. 3

1. Introduction Fig. 1: Basic structure of a liquid-gas chromatograph 4

1. Introduction Fig. 2: Basic structure of a mass spectrometer 5

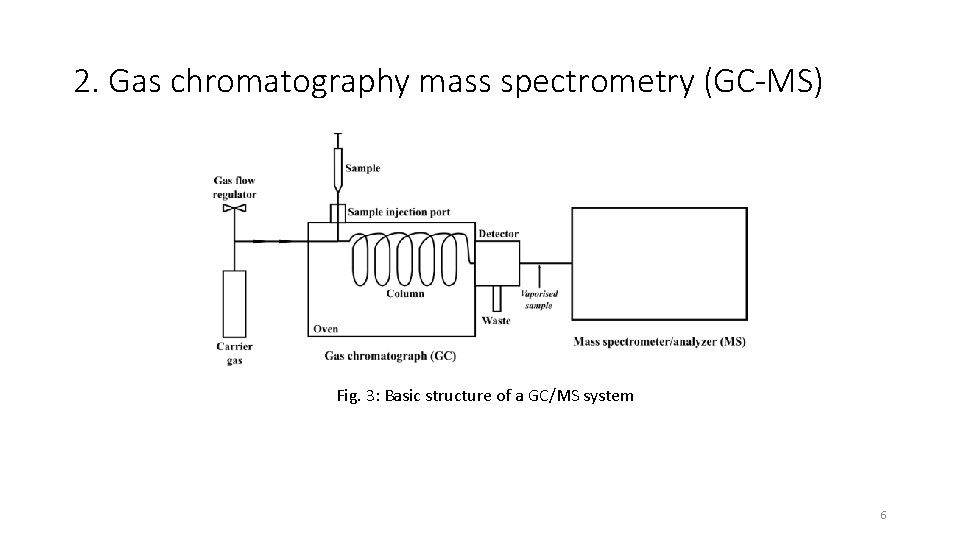

2. Gas chromatography mass spectrometry (GC-MS) Fig. 3: Basic structure of a GC/MS system 6

2. Gas chromatography mass spectrometry (GC-MS) Fig. 4: Molecular structure of several substances detected in human bodily fluid samples, using GC-MS [3 -5] 7

2. Gas chromatography mass spectrometry (GC-MS) Fig. 5: Experimental results obtained following the analysis of blood and urine samples with a GCMS Varian system [3 -5] 8

3. Liquid chromatography with tandem mass spectrometry (LC-MS/MS) Fig. 6: Basic structure of a LC-MS/MS system [6] Fig. : Molecular structure of several subtances detected in human bodily uid samples, using LC-MS/MS[7 -10] 9

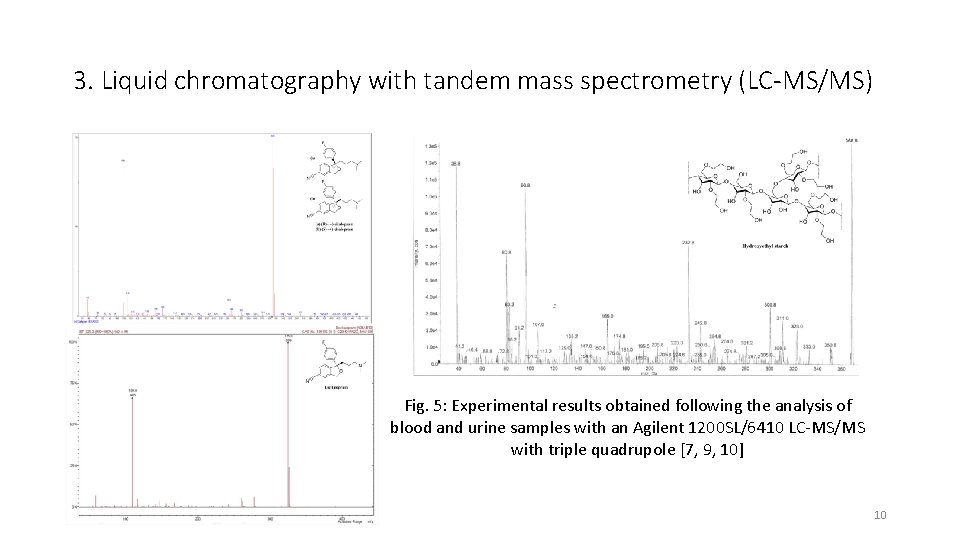

3. Liquid chromatography with tandem mass spectrometry (LC-MS/MS) Fig. 5: Experimental results obtained following the analysis of blood and urine samples with an Agilent 1200 SL/6410 LC-MS/MS with triple quadrupole [7, 9, 10] 10

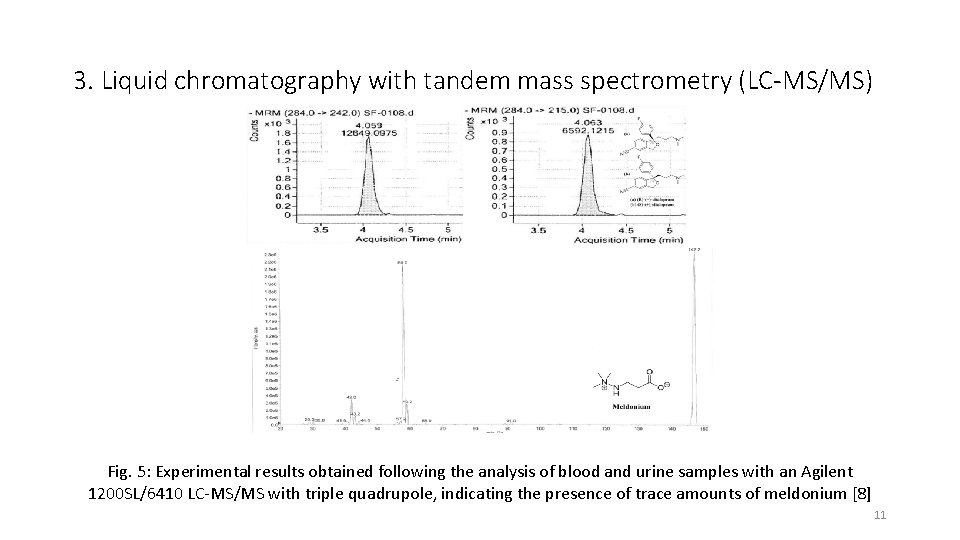

3. Liquid chromatography with tandem mass spectrometry (LC-MS/MS) Fig. 5: Experimental results obtained following the analysis of blood and urine samples with an Agilent 1200 SL/6410 LC-MS/MS with triple quadrupole, indicating the presence of trace amounts of meldonium [8] 11

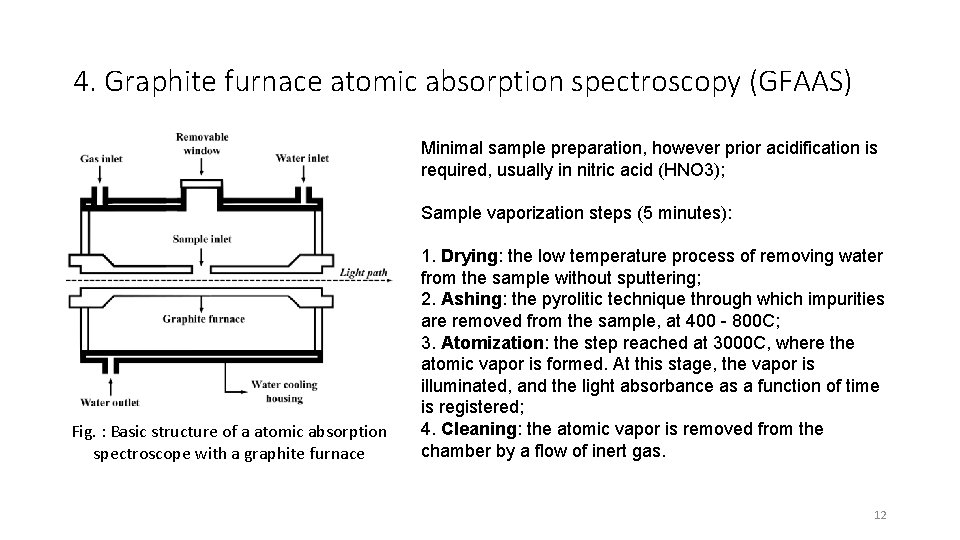

4. Graphite furnace atomic absorption spectroscopy (GFAAS) Minimal sample preparation, however prior acidification is required, usually in nitric acid (HNO 3); Sample vaporization steps (5 minutes): Fig. : Basic structure of a atomic absorption spectroscope with a graphite furnace 1. Drying: the low temperature process of removing water from the sample without sputtering; 2. Ashing: the pyrolitic technique through which impurities are removed from the sample, at 400 - 800 C; 3. Atomization: the step reached at 3000 C, where the atomic vapor is formed. At this stage, the vapor is illuminated, and the light absorbance as a function of time is registered; 4. Cleaning: the atomic vapor is removed from the chamber by a flow of inert gas. 12

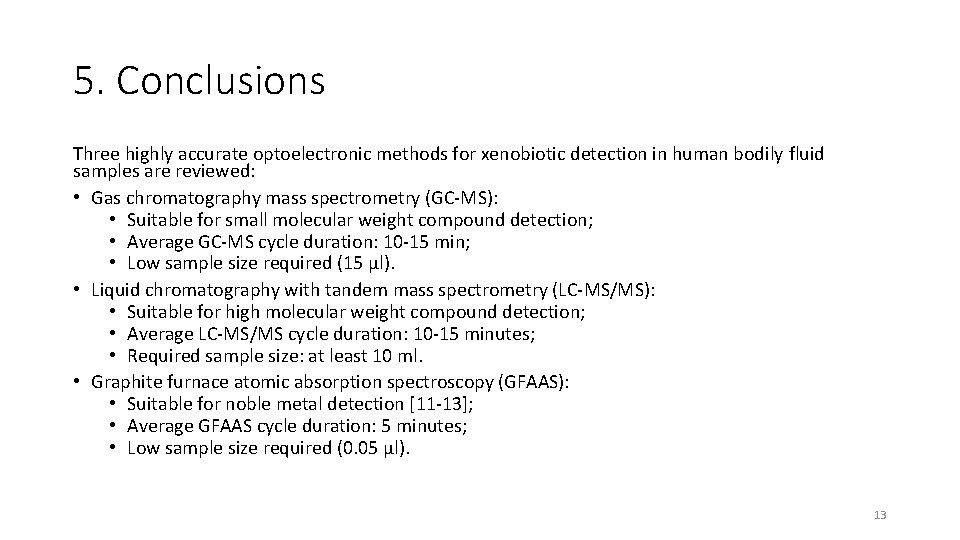

5. Conclusions Three highly accurate optoelectronic methods for xenobiotic detection in human bodily fluid samples are reviewed: • Gas chromatography mass spectrometry (GC-MS): • Suitable for small molecular weight compound detection; • Average GC-MS cycle duration: 10 -15 min; • Low sample size required (15 μl). • Liquid chromatography with tandem mass spectrometry (LC-MS/MS): • Suitable for high molecular weight compound detection; • Average LC-MS/MS cycle duration: 10 -15 minutes; • Required sample size: at least 10 ml. • Graphite furnace atomic absorption spectroscopy (GFAAS): • Suitable for noble metal detection [11 -13]; • Average GFAAS cycle duration: 5 minutes; • Low sample size required (0. 05 μl). 13

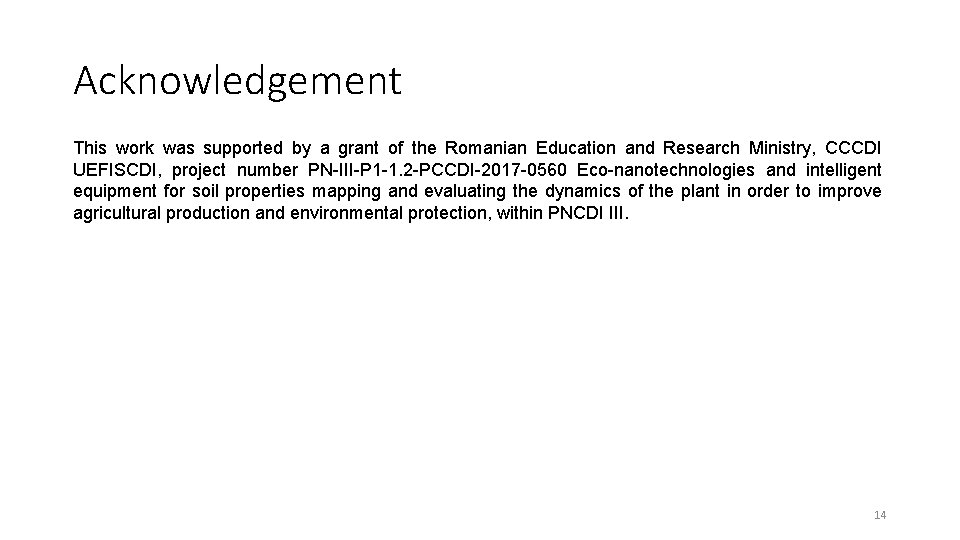

Acknowledgement This work was supported by a grant of the Romanian Education and Research Ministry, CCCDI UEFISCDI, project number PN-III-P 1 -1. 2 -PCCDI-2017 -0560 Eco-nanotechnologies and intelligent equipment for soil properties mapping and evaluating the dynamics of the plant in order to improve agricultural production and environmental protection, within PNCDI III. 14

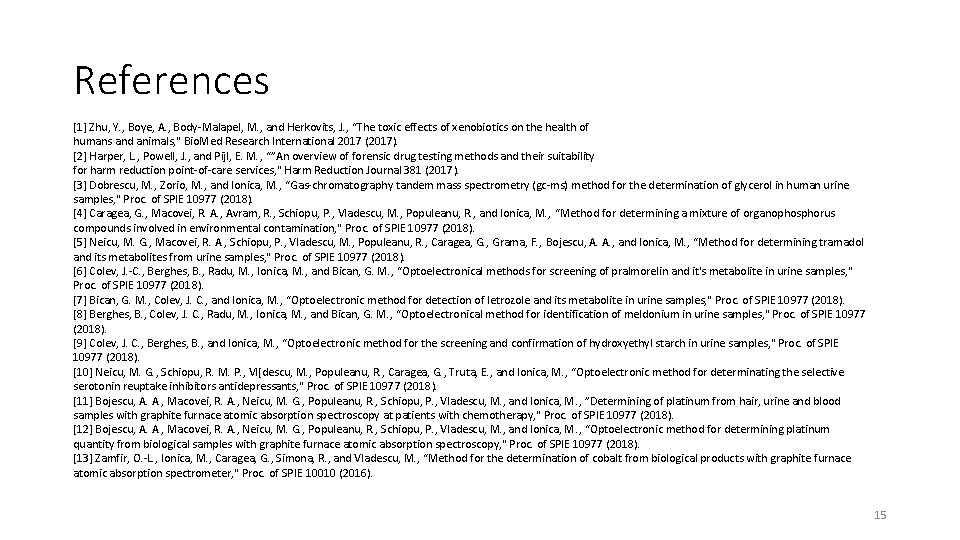

References [1] Zhu, Y. , Boye, A. , Body-Malapel, M. , and Herkovits, J. , “The toxic effects of xenobiotics on the health of humans and animals, " Bio. Med Research International 2017 (2017). [2] Harper, L. , Powell, J. , and Pijl, E. M. , “”An overview of forensic drug testing methods and their suitability for harm reduction point-of-care services, " Harm Reduction Journal 381 (2017). [3] Dobrescu, M. , Zorio, M. , and Ionica, M. , “Gas-chromatography tandem mass spectrometry (gc-ms) method for the determination of glycerol in human urine samples, " Proc. of SPIE 10977 (2018). [4] Caragea, G. , Macovei, R. A. , Avram, R. , Schiopu, P. , Vladescu, M. , Populeanu, R. , and Ionica, M. , “Method for determining a mixture of organophosphorus compounds involved in environmental contamination, " Proc. of SPIE 10977 (2018). [5] Neicu, M. G. , Macovei, R. A. , Schiopu, P. , Vladescu, M. , Populeanu, R. , Caragea, G. , Grama, F. , Bojescu, A. A. , and Ionica, M. , “Method for determining tramadol and its metabolites from urine samples, " Proc. of SPIE 10977 (2018). [6] Colev, J. -C. , Berghes, B. , Radu, M. , Ionica, M. , and Bican, G. M. , “Optoelectronical methods for screening of pralmorelin and it's metabolite in urine samples, " Proc. of SPIE 10977 (2018). [7] Bican, G. M. , Colev, J. C. , and Ionica, M. , “Optoelectronic method for detection of letrozole and its metabolite in urine samples, " Proc. of SPIE 10977 (2018). [8] Berghes, B. , Colev, J. C. , Radu, M. , Ionica, M. , and Bican, G. M. , “Optoelectronical method for identification of meldonium in urine samples, " Proc. of SPIE 10977 (2018). [9] Colev, J. C. , Berghes, B. , and Ionica, M. , “Optoelectronic method for the screening and confirmation of hydroxyethyl starch in urine samples, " Proc. of SPIE 10977 (2018). [10] Neicu, M. G. , Schiopu, R. M. P. , Vl[descu, M. , Populeanu, R. , Caragea, G. , Truta, E. , and Ionica, M. , “Optoelectronic method for determinating the selective serotonin reuptake inhibitors antidepressants, " Proc. of SPIE 10977 (2018). [11] Bojescu, A. A. , Macovei, R. A. , Neicu, M. G. , Populeanu, R. , Schiopu, P. , Vladescu, M. , and Ionica, M. , ”Determining of platinum from hair, urine and blood samples with graphite furnace atomic absorption spectroscopy at patients with chemotherapy, " Proc. of SPIE 10977 (2018). [12] Bojescu, A. A. , Macovei, R. A. , Neicu, M. G. , Populeanu, R. , Schiopu, P. , Vladescu, M. , and Ionica, M. , “Optoelectronic method for determining platinum quantity from biological samples with graphite furnace atomic absorption spectroscopy, " Proc. of SPIE 10977 (2018). [13] Zamfir, O. -L. , Ionica, M. , Caragea, G. , Simona, R. , and Vladescu, M. , “Method for the determination of cobalt from biological products with graphite furnace atomic absorption spectrometer, " Proc. of SPIE 10010 (2016). 15
