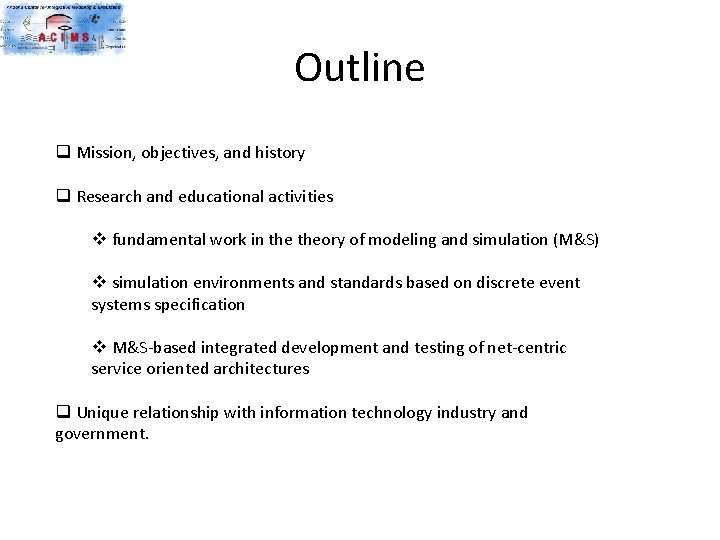

Outline q Mission, objectives, and history q Research and educational activities v fundamental work in theory of modeling and simulation (M&S) v simulation environments and standards based on discrete event systems specification v M&S-based integrated development and testing of net-centric service oriented architectures q Unique relationship with information technology industry and government.

Arizona Center for Integrative Modeling and Simulation (ACIMS) q Mandated by the Arizona Board of Regents in 2001 q Spans University of Arizona and Arizona State University q Mission – Advance Modeling and Simulation through v. Research v. Education v. Technology Transfer M&S will be a corner stone of technology development for the foreseeable future!

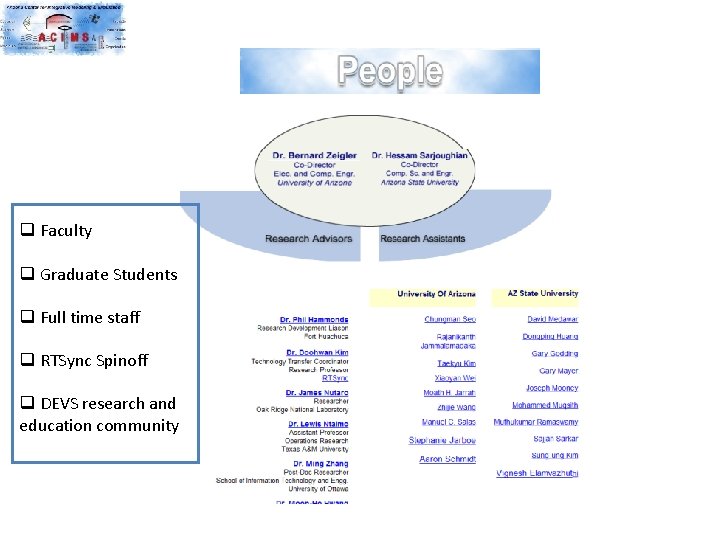

q Faculty q Graduate Students q Full time staff q RTSync Spinoff q DEVS research and education community

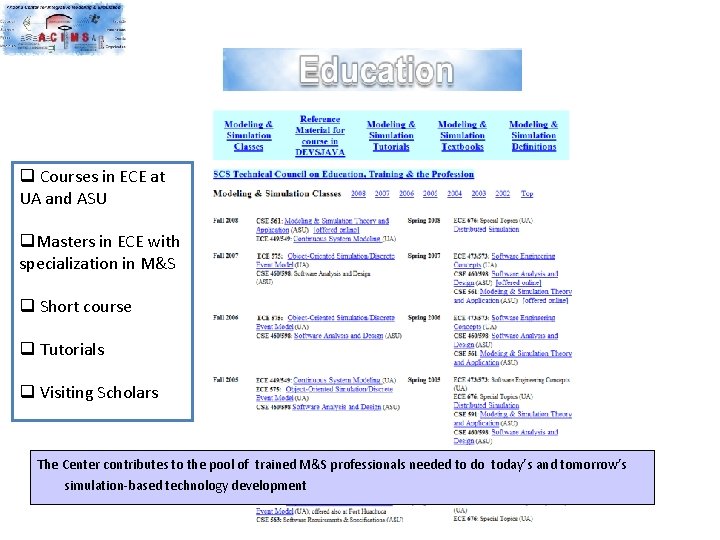

Education q Courses in ECE at UA and ASU q. Masters in ECE with specialization in M&S q Short course q Tutorials q Visiting Scholars The Center contributes to the pool of trained M&S professionals needed to do today’s and tomorrow’s simulation-based technology development

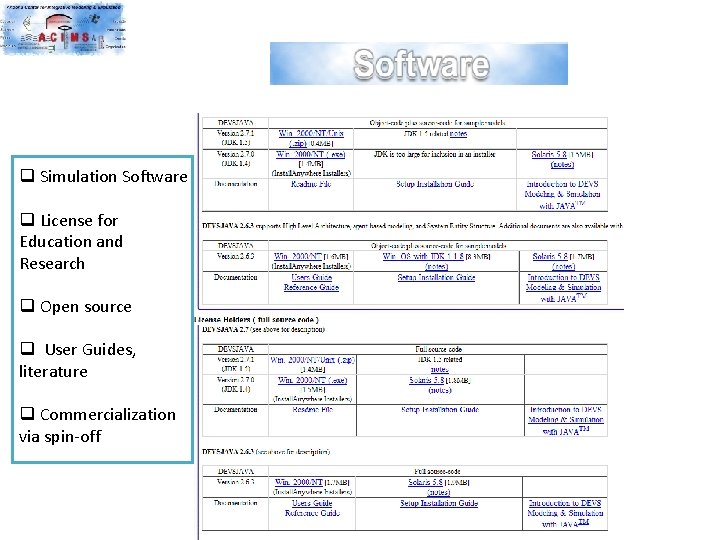

q Simulation Software q License for Education and Research q Open source q User Guides, literature q Commercialization via spin-off

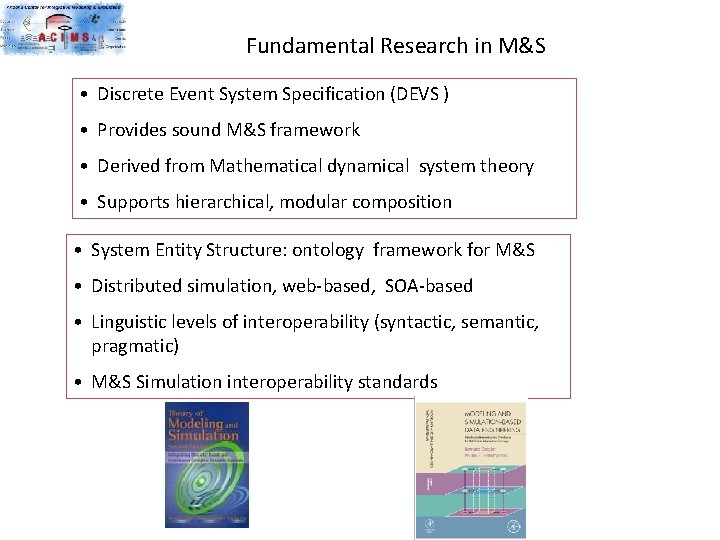

Fundamental Research in M&S • Discrete Event System Specification (DEVS ) • Provides sound M&S framework • Derived from Mathematical dynamical system theory • Supports hierarchical, modular composition • System Entity Structure: ontology framework for M&S • Distributed simulation, web-based, SOA-based • Linguistic levels of interoperability (syntactic, semantic, pragmatic) • M&S Simulation interoperability standards

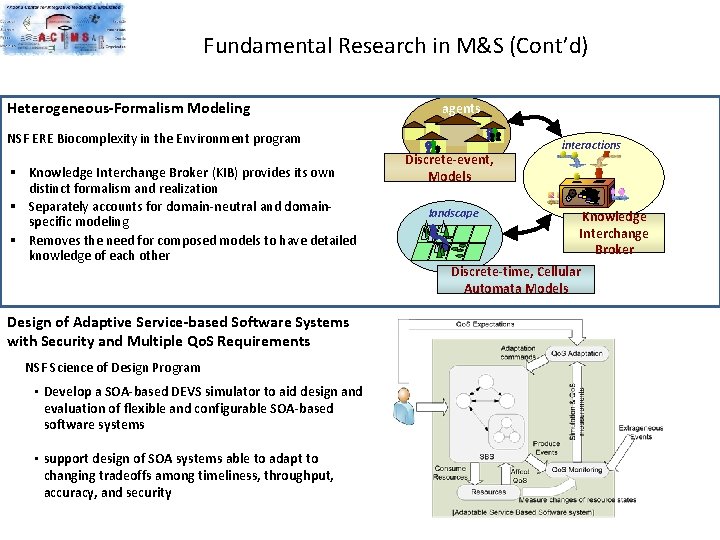

Fundamental Research in M&S (Cont’d) Heterogeneous-Formalism Modeling agents NSF ERE Biocomplexity in the Environment program § Knowledge Interchange Broker (KIB) provides its own distinct formalism and realization § Separately accounts for domain-neutral and domainspecific modeling § Removes the need for composed models to have detailed knowledge of each other Design of Adaptive Service-based Software Systems with Security and Multiple Qo. S Requirements NSF Science of Design Program • Develop a SOA-based DEVS simulator to aid design and evaluation of flexible and configurable SOA-based software systems • support design of SOA systems able to adapt to changing tradeoffs among timeliness, throughput, accuracy, and security Discrete-event, Models landscape interactions Knowledge Interchange Broker Discrete-time, Cellular Automata Models

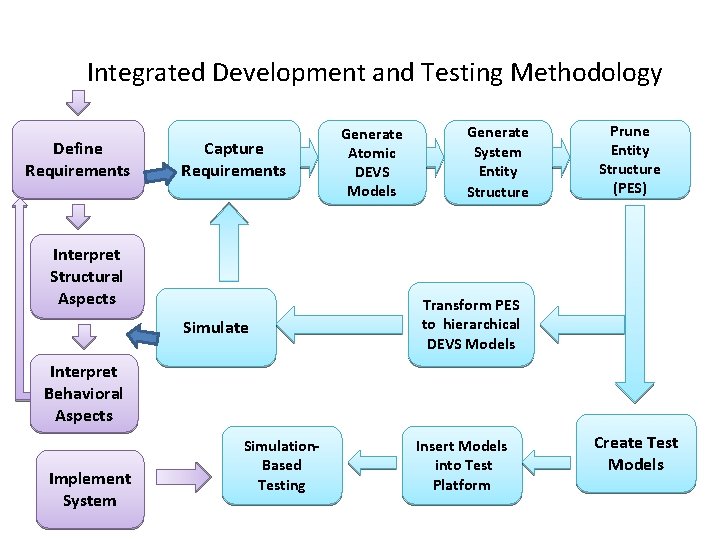

Integrated Development and Testing Methodology Define Requirements Capture Requirements Interpret Structural Aspects Simulate Generate Atomic DEVS Models Generate System Entity Structure Prune Entity Structure (PES) Transform PES to hierarchical DEVS Models Interpret Behavioral Aspects Implement System Simulation. Based Testing Insert Models into Test Platform Create Test Models

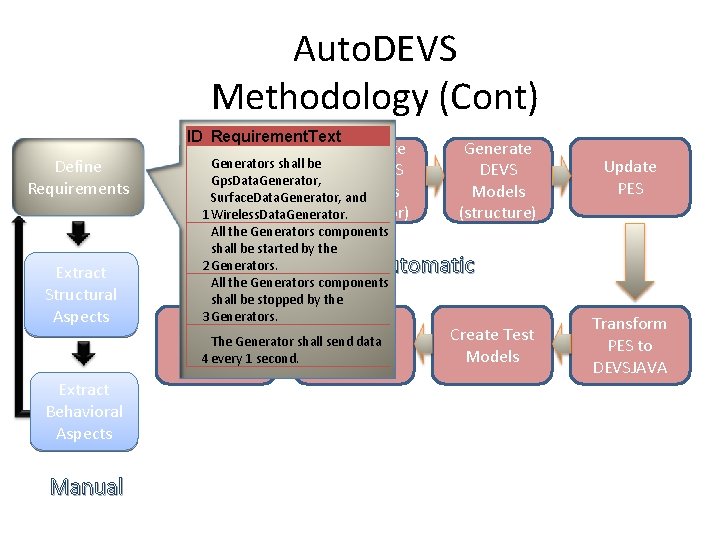

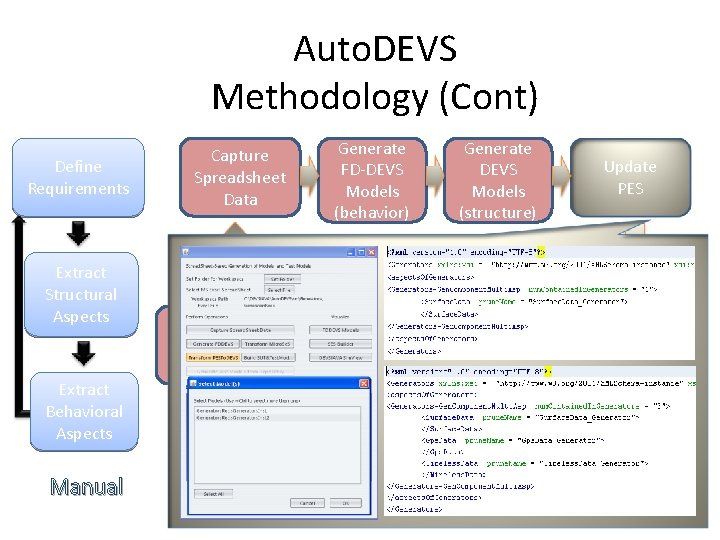

Auto. DEVS Methodology (Cont) ID Requirement. Text Define Requirements Extract Structural Aspects Extract Behavioral Aspects Manual Generate Capture Generators shall be FD-DEVS Spreadsheet Gps. Data. Generator, Models Surface. Data. Generator, and Data (behavior) 1 Wireless. Data. Generator. All the Generators components shall be started by the 2 Generators. All the Generators components shall be stopped by the 3 Generators. Generate DEVS Models (structure) Update PES Automatic Verify The Generator shall Created send data Simulate 4 every 1 second. Models Create Test Models Transform PES to DEVSJAVA

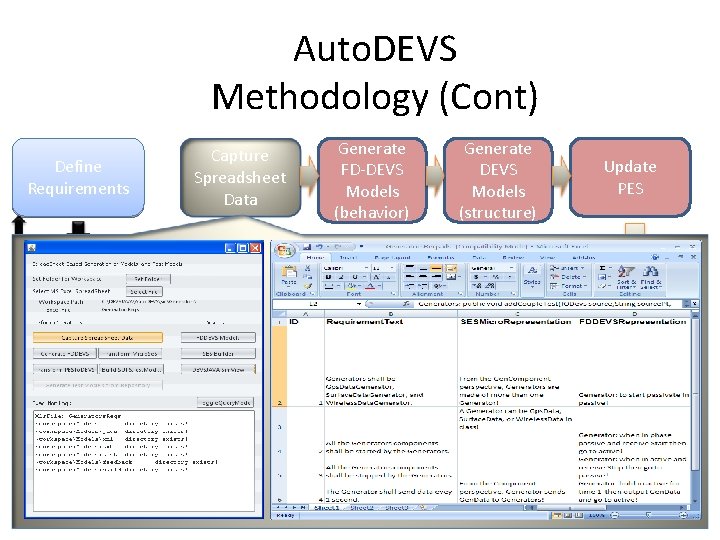

Auto. DEVS Methodology (Cont) Define Requirements Extract Structural Aspects Extract Behavioral Aspects Manual Capture Spreadsheet Data Generate FD-DEVS Models (behavior) Generate DEVS Models (structure) Update PES Automatic SESMicro. Representation Automatic 1. From the Gen. Component perspective, Generators are made of more than one Generator! Verify 2. A Generator can be Gps. Data, Simulate Created Surface. Data, or Wireless. Data in class! Models 3. From the Component perspective, Generator sends Gen. Data to Generators! Create Test Models Transform PES to DEVSJAVA

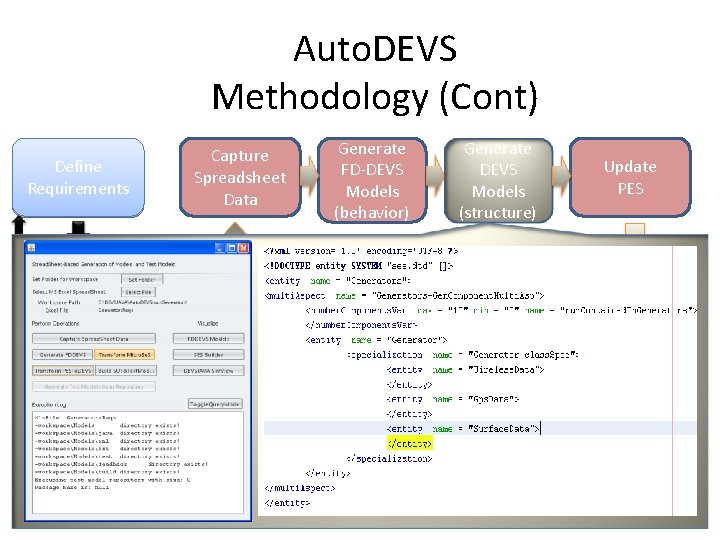

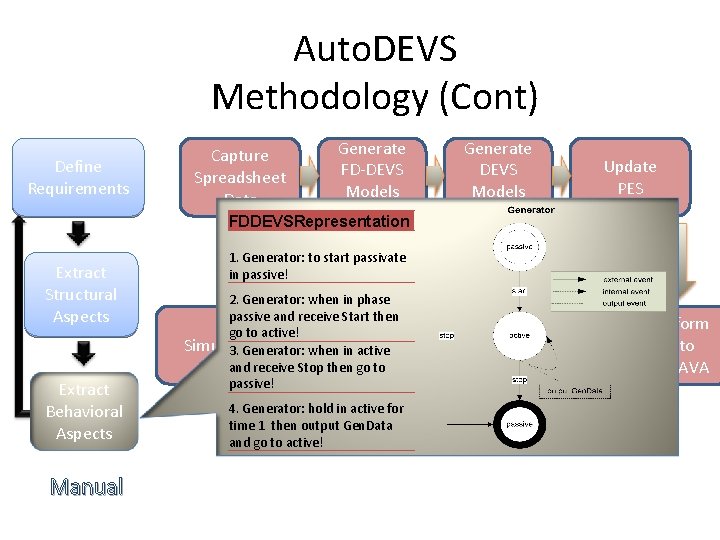

Auto. DEVS Methodology (Cont) Define Requirements Extract Structural Aspects Extract Behavioral Aspects Manual Generate FD-DEVS Models (structure) FDDEVSRepresentation Generate DEVS Models (behavior) Capture Spreadsheet Data 1. Generator: to start passivate in passive! Automatic 2. Generator: when in phase passive and receive Start then Verify go to active! Simulate Created 3. Generator: when in active and receive Stop then go. Models to passive! 4. Generator: hold in active for time 1 then output Gen. Data and go to active! Update PES Create Test Models Transform PES to DEVSJAVA

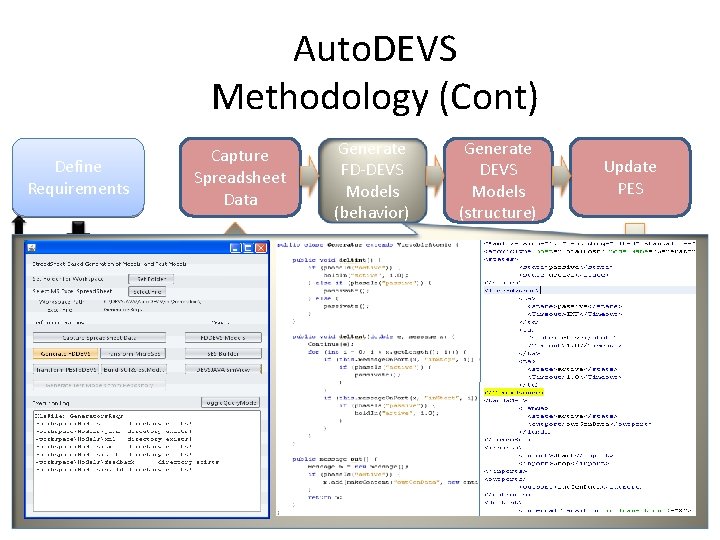

Auto. DEVS Methodology (Cont) Define Requirements Capture Spreadsheet Data Simulate Manual Generate DEVS Models (structure) Update PES Automatic Extract Structural Aspects Extract Behavioral Aspects Generate FD-DEVS Models (behavior) Verify Created Models Create Test Models Transform PES to DEVSJAVA

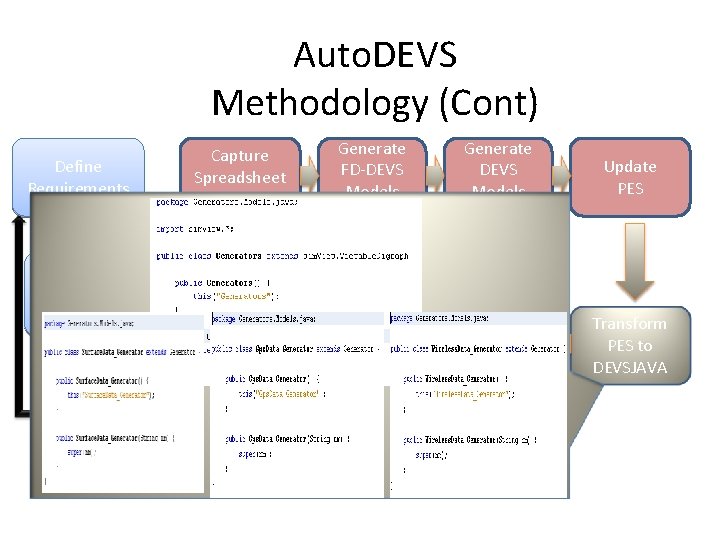

Auto. DEVS Methodology (Cont) Define Requirements Capture Spreadsheet Data Simulate Manual Generate DEVS Models (structure) Update PES Automatic Extract Structural Aspects Extract Behavioral Aspects Generate FD-DEVS Models (behavior) Verify Created Models Create Test Models Transform PES to DEVSJAVA

Auto. DEVS Methodology (Cont) Define Requirements Capture Spreadsheet Data Simulate Manual Generate DEVS Models (structure) Update PES Automatic Extract Structural Aspects Extract Behavioral Aspects Generate FD-DEVS Models (behavior) Verify Created Models Create Test Models Transform PES to DEVSJAVA

Auto. DEVS Methodology (Cont) Define Requirements Capture Spreadsheet Data Simulate Manual Generate DEVS Models (structure) Update PES Automatic Extract Structural Aspects Extract Behavioral Aspects Generate FD-DEVS Models (behavior) Verify Created Models Create Test Models Transform PES to DEVSJAVA

Auto. DEVS Methodology (Cont) Define Requirements Capture Spreadsheet Data Simulate Manual Generate DEVS Models (structure) Update PES Automatic Extract Structural Aspects Extract Behavioral Aspects Generate FD-DEVS Models (behavior) Verify Created Models Create Test Models Transform PES to DEVSJAVA

Auto. DEVS Methodology (Cont) Define Requirements Capture Spreadsheet Data Simulate Manual Generate DEVS Models (structure) Update PES Automatic Extract Structural Aspects Extract Behavioral Aspects Generate FD-DEVS Models (behavior) Verify Created Models Create Test Models Transform PES to DEVSJAVA

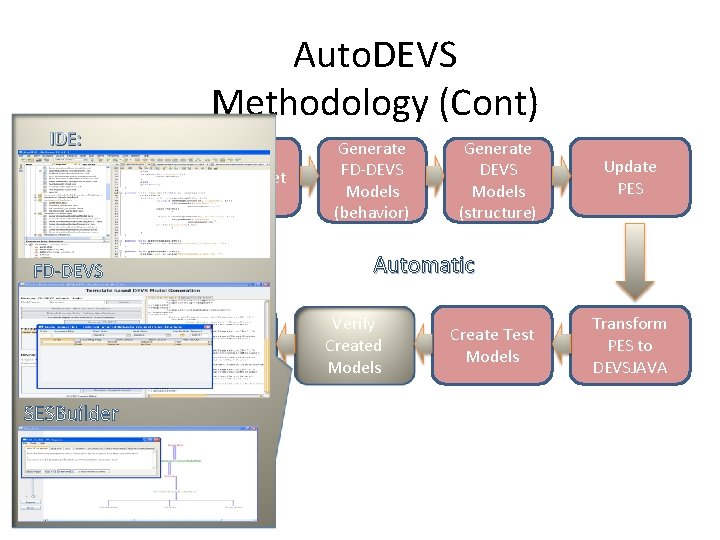

IDE: Define Requirements Auto. DEVS Methodology (Cont) Capture Spreadsheet Data Structural Aspects Simulate Manual Generate DEVS Models (structure) Update PES Automatic FD-DEVS Extract Behavioral SESBuilder Aspects Generate FD-DEVS Models (behavior) Verify Created Models Create Test Models Transform PES to DEVSJAVA

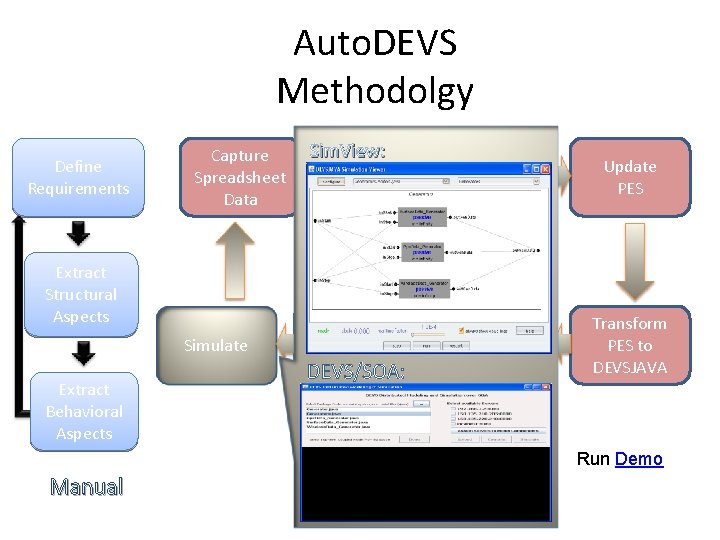

Auto. DEVS Methodolgy Define Requirements Capture Spreadsheet Data FD-DEVS Models (behavior) Generate DEVS Models (structure) Update PES Automatic Extract Structural Aspects Simulate Extract Behavioral Aspects Generate Sim. View: Verify Created Models DEVS/SOA: Create Test Models Transform PES to DEVSJAVA Run Demo Manual

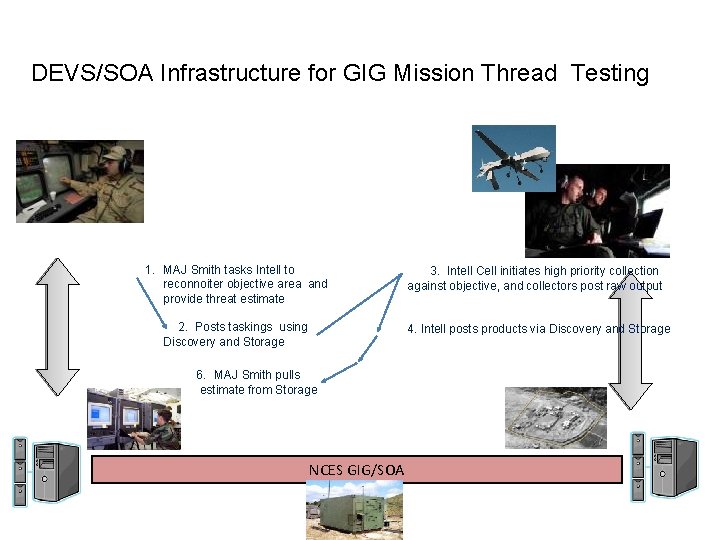

DEVS/SOA Infrastructure for GIG Mission Thread Testing 1. MAJ Smith tasks Intell to reconnoiter objective area and provide threat estimate 2. Posts taskings using Discovery and Storage 3. Intell Cell initiates high priority collection against objective, and collectors post raw output 4. Intell posts products via Discovery and Storage 6. MAJ Smith pulls estimate from Storage NCES GIG/SOA

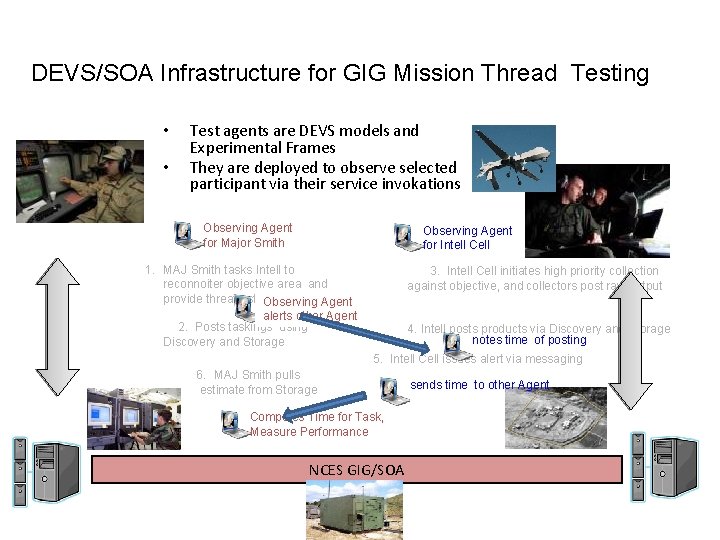

DEVS/SOA Infrastructure for GIG Mission Thread Testing • • Test agents are DEVS models and Experimental Frames They are deployed to observe selected participant via their service invokations Observing Agent for Major Smith Observing Agent for Intell Cell 1. MAJ Smith tasks Intell to reconnoiter objective area and provide threat estimate Observing Agent alerts other Agent 2. Posts taskings using Discovery and Storage 3. Intell Cell initiates high priority collection against objective, and collectors post raw output 4. Intell posts products via Discovery and Storage notes time of posting 5. Intell Cell issues alert via messaging 6. MAJ Smith pulls estimate from Storage Computes Time for Task, Measure Performance NCES GIG/SOA sends time to other Agent

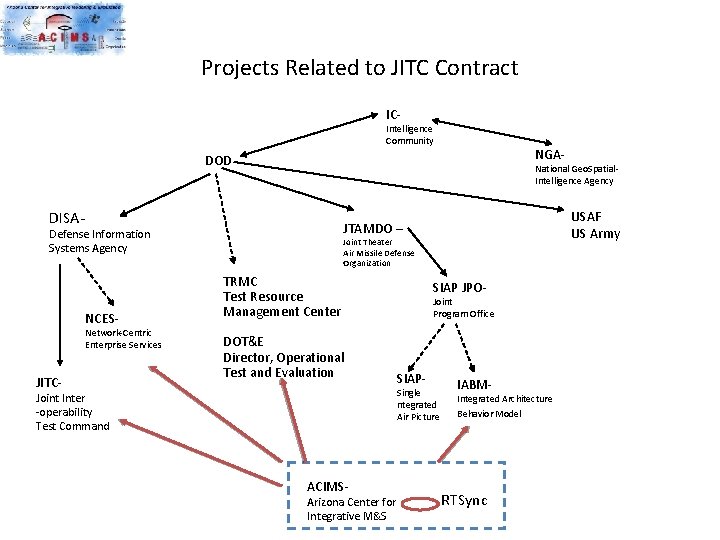

Projects Related to JITC Contract IC- Intelligence Community NGA- DOD National Geo. Spatial. Intelligence Agency DISA- Defense Information Systems Agency NCES- Network-Centric Enterprise Services JITC- USAF US Army JTAMDO – Joint Theater Air Missile Defense Organization TRMC Test Resource Management Center DOT&E Director, Operational Test and Evaluation SIAP JPO- Joint Program Office SIAP- Single ntegrated Air Picture Joint Inter -operability Test Command ACIMS- Arizona Center for Integrative M&S IABM- Integrated Architecture Behavior Model RTSync

Unique ACIMS/{NGIT, RTSync} Relationships • • A long term contractual relationship between Northrop Grumman IT (NGIT) with ACIMS Employs faculty, graduate/undergrad students, others Perform M&S tasks for/at Fort Huachuca • Challenges: – Rationalize different ways of doing business – Deliver quality services on time and on budget Benefits: – Access to well-trained, creative talent – Experience with real world technical requirements and work environments – Transfer of ACIMS technology • RTSync – ACIMS – commercialize/bring to market ACIMS technology – enhance ACIMS education/training – employ ACIMS graduates

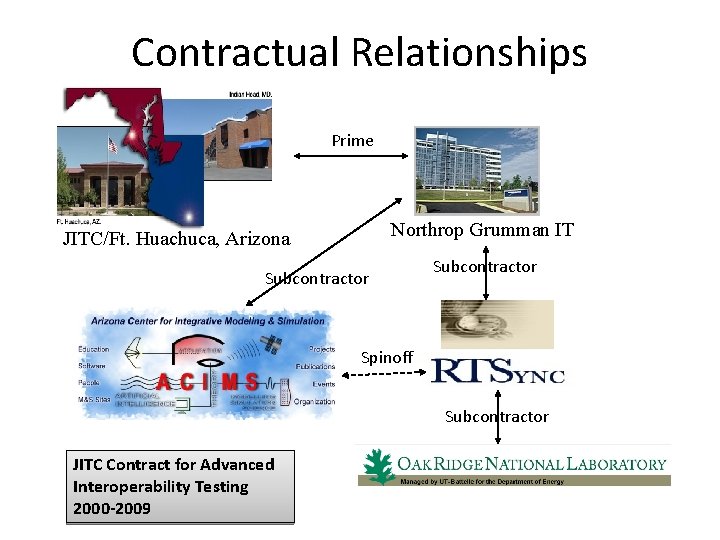

Contractual Relationships Prime Northrop Grumman IT JITC/Ft. Huachuca, Arizona Subcontractor Spinoff Subcontractor JITC Contract for Advanced Interoperability Testing 2000 -2009

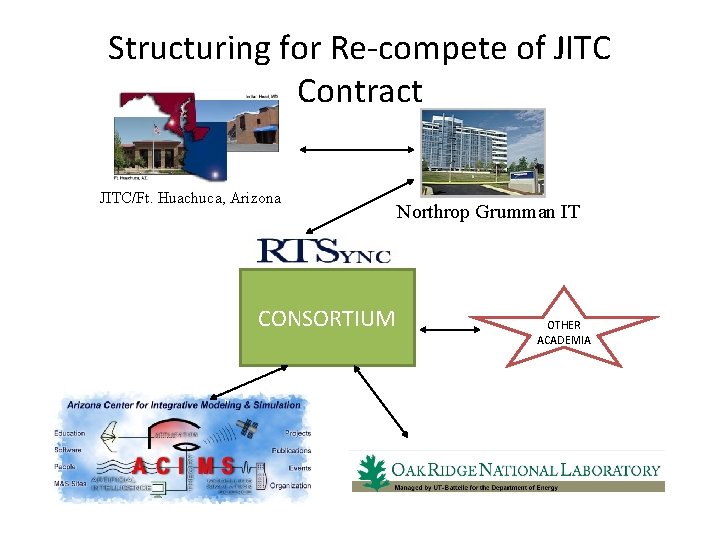

Structuring for Re-compete of JITC Contract JITC/Ft. Huachuca, Arizona CONSORTIUM Northrop Grumman IT OTHER ACADEMIA

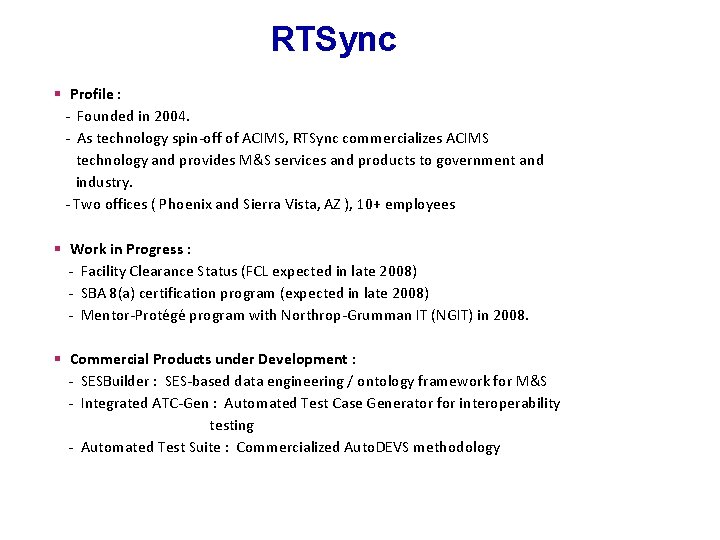

RTSync § Profile : - Founded in 2004. - As technology spin-off of ACIMS, RTSync commercializes ACIMS technology and provides M&S services and products to government and industry. - Two offices ( Phoenix and Sierra Vista, AZ ), 10+ employees § Work in Progress : - Facility Clearance Status (FCL expected in late 2008) - SBA 8(a) certification program (expected in late 2008) - Mentor-Protégé program with Northrop-Grumman IT (NGIT) in 2008. § Commercial Products under Development : - SESBuilder : SES-based data engineering / ontology framework for M&S - Integrated ATC-Gen : Automated Test Case Generator for interoperability testing - Automated Test Suite : Commercialized Auto. DEVS methodology

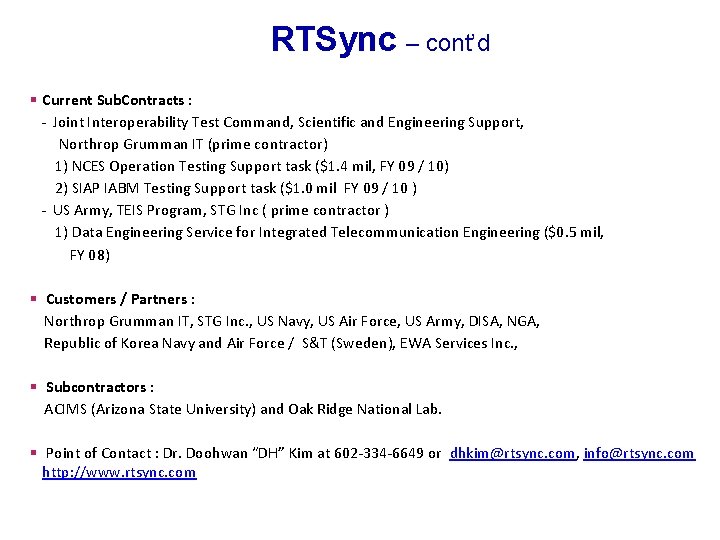

RTSync – cont’d § Current Sub. Contracts : - Joint Interoperability Test Command, Scientific and Engineering Support, Northrop Grumman IT (prime contractor) 1) NCES Operation Testing Support task ($1. 4 mil, FY 09 / 10) 2) SIAP IABM Testing Support task ($1. 0 mil FY 09 / 10 ) - US Army, TEIS Program, STG Inc ( prime contractor ) 1) Data Engineering Service for Integrated Telecommunication Engineering ($0. 5 mil, FY 08) § Customers / Partners : Northrop Grumman IT, STG Inc. , US Navy, US Air Force, US Army, DISA, NGA, Republic of Korea Navy and Air Force / S&T (Sweden), EWA Services Inc. , § Subcontractors : ACIMS (Arizona State University) and Oak Ridge National Lab. § Point of Contact : Dr. Doohwan “DH” Kim at 602 -334 -6649 or dhkim@rtsync. com, info@rtsync. com http: //www. rtsync. com

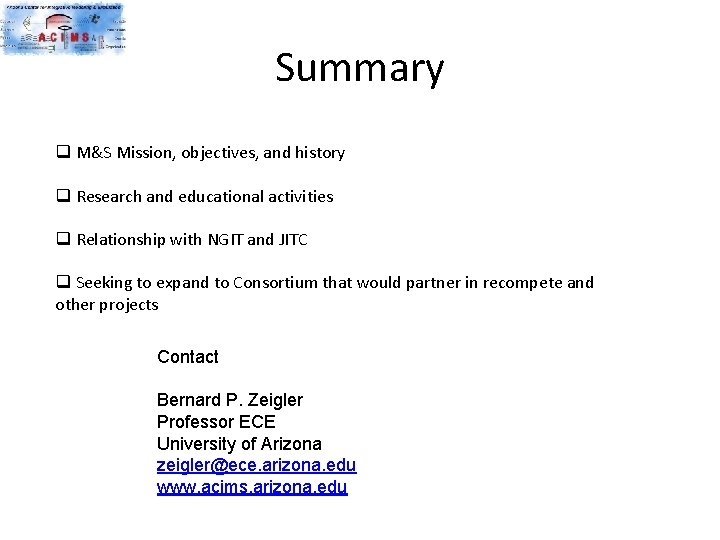

Summary q M&S Mission, objectives, and history q Research and educational activities q Relationship with NGIT and JITC q Seeking to expand to Consortium that would partner in recompete and other projects Contact Bernard P. Zeigler Professor ECE University of Arizona zeigler@ece. arizona. edu www. acims. arizona. edu
