AN OPTIMUM DESIGN OF PHOTOVOLTAIC PUMPING SYSTEM By
AN OPTIMUM DESIGN OF PHOTOVOLTAIC PUMPING SYSTEM By Dalia Hajhamad Supervisor Tamer Khatib
OBJECTIVE: ØDesign a Photovoltaic Pumping system. ØAchieve pre-feasibility to such system. ØStudy and identify the combination of PV’s and pumps as a hybrid/off-grid system and its importance to Palestinian farmers as a challenge to the Israeli occupation.
CASE STUDY LAYOUT DESCRIPTION
IMEC WATER PUMP CPM 200

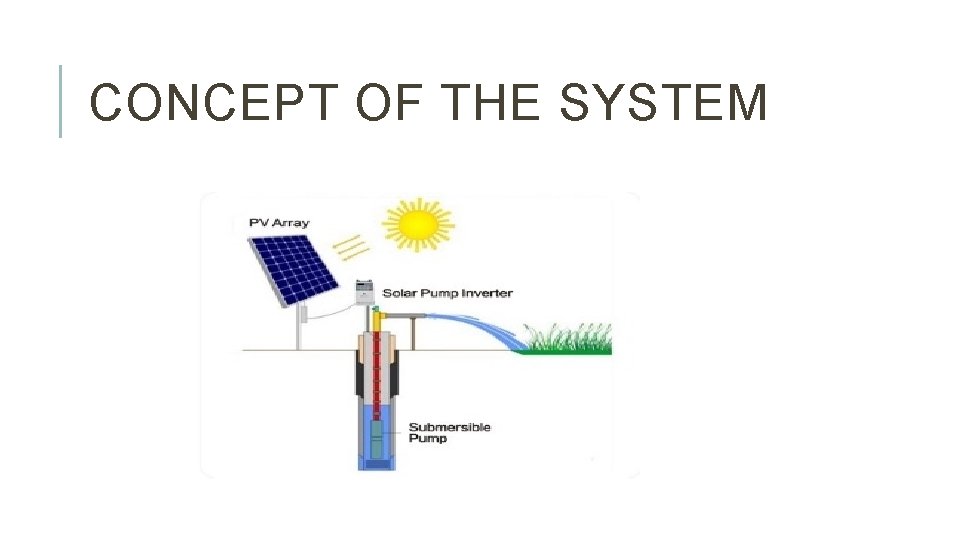

CONCEPT OF THE SYSTEM
PUMP SIZING
SELECTING PROPER PUMP DEPENDING ON TDH AND FLOW RATE
SUBMERSIBLE PUMP Model 50250 D Power (k. W) 3. 7 Efficiency 35 -40%
PHOTOVOLTAIC PANELS Peak Power (Wp) 320 Max voltage (V MPP) 37. 1 Max Current (I MPP) 8. 63 Module efficiency 16. 5
INVERTER CONNECTION
PV MODULES CONNECTION METHOD.
WIRING SYSTEM Ø Cables (DC & AC) Ø Circuit breakers Ø Fuses Ø Surge arresters
FLOATING SYSTEM (HDPE)
![PREFEASIBILITY STUDY Important information Dollar rate Project capacity [k. Wp] Energy tariff Profit($) Selling](http://slidetodoc.com/presentation_image_h2/642cac8b441ff49f24dc743e7308ea92/image-14.jpg "PREFEASIBILITY STUDY Important information Dollar rate Project capacity [k. Wp] Energy tariff Profit($) Selling")
PREFEASIBILITY STUDY Important information Dollar rate Project capacity [k. Wp] Energy tariff Profit($) Selling price k. Wp Cost price [$] Project cost [$] 3. 58 ILS 3. 7 0. 13 2, 770. 98 25, 000. 00 4, 486. 33 16, 599. 42
CONSTRAINS ØArea coverage ØExact amounts and time ØFeasibility
CONCLUSION Photovoltaic power for irrigation costs are competitive with traditional energy sources for small, remote applications, if the total system design and utilization timing are carefully considered and organized to use solar energy as efficiently as possible. In the future, when the prices of fossil fuels rise and the economic advantages of mass production reduce the peak watt cost of the photovoltaic cell, photovoltaic power will become more cost competitive and more common.
