An Introductory Overview Anthony Wiles ETSI PTCCETSI STF
![An Introductory Overview Anthony Wiles ETSI PTCC/ETSI STF 156 TTCN-3 An Introductory Overview, Copyright An Introductory Overview Anthony Wiles ETSI PTCC/ETSI STF 156 TTCN-3 An Introductory Overview, Copyright](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-1.jpg)
![Presentation Outline 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. Basic Concepts Presentation Outline 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. Basic Concepts](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-2.jpg)
![Basic Concepts TTCN-3 An Introductory Overview, Copyright ETSI 2000 Basic Concepts TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-3.jpg)
![History of TTCN • TTCN: Tree and Tabular Combined Notation • Versions 1 and History of TTCN • TTCN: Tree and Tabular Combined Notation • Versions 1 and](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-4.jpg)
![TTCN-3 Standard Documents • Three-part ETSI Standard (ES) – DES/MTS-00063 -1 : Core Language TTCN-3 Standard Documents • Three-part ETSI Standard (ES) – DES/MTS-00063 -1 : Core Language](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-5.jpg)
![Motivation for Producing TTCN -3 Modernization – technology has changed since TTCN was first Motivation for Producing TTCN -3 Modernization – technology has changed since TTCN was first](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-6.jpg)
![Main Capabilities of TTCN-3 • Dynamic concurrent testing configurations • Various communication mechanisms (synch Main Capabilities of TTCN-3 • Dynamic concurrent testing configurations • Various communication mechanisms (synch](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-7.jpg)
![The Core Language Text format Tabular Format TTCN-3 Core Language MSC Format Presentation Format The Core Language Text format Tabular Format TTCN-3 Core Language MSC Format Presentation Format](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-8.jpg)
![Example Core (Text) Format function PO 49901(integer FL) runs on My. MTC { L Example Core (Text) Format function PO 49901(integer FL) runs on My. MTC { L](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-9.jpg)
![Example Tabular Format TTCN-3 An Introductory Overview, Copyright ETSI 2000 10 Example Tabular Format TTCN-3 An Introductory Overview, Copyright ETSI 2000 10](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-10.jpg)
![Example MSC Format TTCN-3 An Introductory Overview, Copyright ETSI 2000 11 Example MSC Format TTCN-3 An Introductory Overview, Copyright ETSI 2000 11](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-11.jpg)
![Use With Other Languages ASN. 1 Types & Values Other types & Values 2 Use With Other Languages ASN. 1 Types & Values Other types & Values 2](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-12.jpg)
![Major Elements of TTCN-3 Core Data Types Test Data Test System Architecture Test Behaviour Major Elements of TTCN-3 Core Data Types Test Data Test System Architecture Test Behaviour](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-13.jpg)
![Structure and Contents of a TTCN-3 Test Suite TTCN-3 An Introductory Overview, Copyright ETSI Structure and Contents of a TTCN-3 Test Suite TTCN-3 An Introductory Overview, Copyright ETSI](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-14.jpg)
![TTCN-3 Modules Module (…) Module Definitions Module Control Attributes • Modules are the building TTCN-3 Modules Module (…) Module Definitions Module Control Attributes • Modules are the building](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-15.jpg)
![Example of Module Structure module My. Module (integer My. TSPar 1) { : // Example of Module Structure module My. Module (integer My. TSPar 1) { : //](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-16.jpg)
![Module Definitions Data Types Constants RP Signatures Data Templates Signature Templates Communication Ports Test Module Definitions Data Types Constants RP Signatures Data Templates Signature Templates Communication Ports Test](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-17.jpg)
![Importing Definitions // Importing single definitions import template My. Template from My. Module; // Importing Definitions // Importing single definitions import template My. Template from My. Module; //](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-18.jpg)
![External Definitions // External constants may be defined external const integer My. External. Const; External Definitions // External constants may be defined external const integer My. External. Const;](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-19.jpg)
![Groups of Definitions // A nested group of function group My. Test. Step. Library Groups of Definitions // A nested group of function group My. Test. Step. Library](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-20.jpg)
![TTCN-3 Data Types TTCN-3 An Introductory Overview, Copyright ETSI 2000 TTCN-3 Data Types TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-21.jpg)
![TTCN-3 Base Types TTCN-3 An Introductory Overview, Copyright ETSI 2000 22 TTCN-3 Base Types TTCN-3 An Introductory Overview, Copyright ETSI 2000 22](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-22.jpg)
![Example of Integer Type /* integer sub-type RANGE definition */ type integer My. Integer. Example of Integer Type /* integer sub-type RANGE definition */ type integer My. Integer.](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-23.jpg)
![Example of a Structured Type // record type definition type record My. Message. Type Example of a Structured Type // record type definition type record My. Message. Type](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-24.jpg)
![Arrays /* Arrays are not considered to be types in TTCN-3. Instead, they are Arrays /* Arrays are not considered to be types in TTCN-3. Instead, they are](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-25.jpg)
![ASN. 1 Type Compatibility • The following ASN. 1 types are considered to be ASN. 1 Type Compatibility • The following ASN. 1 types are considered to be](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-26.jpg)
![Defining Test Data TTCN-3 An Introductory Overview, Copyright ETSI 2000 Defining Test Data TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-27.jpg)
![Different Uses of Data in TTCN-3 Test Specifications • Data in TTCN-3 is used Different Uses of Data in TTCN-3 Test Specifications • Data in TTCN-3 is used](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-28.jpg)
![Constants (and Variables) /* Constants are defined in the definitions part of a module Constants (and Variables) /* Constants are defined in the definitions part of a module](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-29.jpg)
![Example Message Definition // Complex messages can be defined by records Type record My. Example Message Definition // Complex messages can be defined by records Type record My.](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-30.jpg)
![Data Templates • Templates are special data values that have the following characteristics – Data Templates • Templates are special data values that have the following characteristics –](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-31.jpg)
![Matching Mechanisms TTCN-3 An Introductory Overview, Copyright ETSI 2000 32 Matching Mechanisms TTCN-3 An Introductory Overview, Copyright ETSI 2000 32](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-32.jpg)
![Examples of Simple Templates /* Template for a simple integer type */ template integer Examples of Simple Templates /* Template for a simple integer type */ template integer](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-33.jpg)
![Example Message Template template My. Message. Type My. Message : = { field 1 Example Message Template template My. Message. Type My. Message : = { field 1](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-34.jpg)
![Parameterised Templates (1) // Value parameterisation template My. Message. Type My. Message (integer My. Parameterised Templates (1) // Value parameterisation template My. Message. Type My. Message (integer My.](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-35.jpg)
![Parameterised Templates (2) // Type parameterisation type record My. Record. Type(My. Meta. Type) { Parameterised Templates (2) // Type parameterisation type record My. Record. Type(My. Meta. Type) {](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-36.jpg)
![Modified Templates // Writing template My. Message. Type My. Message 1 { field 1 Modified Templates // Writing template My. Message. Type My. Message 1 { field 1](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-37.jpg)
![Local Function Definitions /* Functions can declare local constants, variables and timers */ function Local Function Definitions /* Functions can declare local constants, variables and timers */ function](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-38.jpg)
![Procedure Signatures /* Procedure signatures are needed for synchronous communication over procedure-based ports (remote Procedure Signatures /* Procedure signatures are needed for synchronous communication over procedure-based ports (remote](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-39.jpg)
![Signature Templates signature My. Remote. Proc ( in integer Par 1, out float Par Signature Templates signature My. Remote. Proc ( in integer Par 1, out float Par](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-40.jpg)
![Specifying Elements of Test System Architecture TTCN-3 An Introductory Overview, Copyright ETSI 2000 Specifying Elements of Test System Architecture TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-41.jpg)
![Test Components Test Component Local Declarations Ports Used • Test components are the entities Test Components Test Component Local Declarations Ports Used • Test components are the entities](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-42.jpg)
![Kinds of Test Components • There are three ‘kinds’ of component – MTC (Main Kinds of Test Components • There are three ‘kinds’ of component – MTC (Main](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-43.jpg)
![Communication Ports • Test components communicate via communication ports • A test port is Communication Ports • Test components communicate via communication ports • A test port is](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-44.jpg)
![Example Port Definition // Definition of a message-based port type port My. Message. Port. Example Port Definition // Definition of a message-based port type port My. Message. Port.](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-45.jpg)
![Example Component Definition // Definition of test component type component My. Component. Type { Example Component Definition // Definition of test component type component My. Component. Type {](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-46.jpg)
![Test System Interface /* A user-defined component that defines the port interface to the Test System Interface /* A user-defined component that defines the port interface to the](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-47.jpg)
![Specifying Test System Behaviour TTCN-3 An Introductory Overview, Copyright ETSI 2000 Specifying Test System Behaviour TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-48.jpg)
![TTCN-3 Functions Function (. . . ) Local Declarations Program Part • Functions are TTCN-3 Functions Function (. . . ) Local Declarations Program Part • Functions are](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-49.jpg)
![Pre-defined Functions TTCN-3 An Introductory Overview, Copyright ETSI 2000 50 Pre-defined Functions TTCN-3 An Introductory Overview, Copyright ETSI 2000 50](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-50.jpg)
![Function Definitions(1) // Functions can be parameterised // in, out, inout paramters. Default is Function Definitions(1) // Functions can be parameterised // in, out, inout paramters. Default is](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-51.jpg)
![Function Definitions(2) /* This function performs a generic task. It does not use any Function Definitions(2) /* This function performs a generic task. It does not use any](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-52.jpg)
![Test Case Definitions Test Case (. . . ) Interface Part System Part Behaviour Test Case Definitions Test Case (. . . ) Interface Part System Part Behaviour](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-53.jpg)
![Example Test Case Definitions // Parallel configuration testcase My. Test. Case() runs on My. Example Test Case Definitions // Parallel configuration testcase My. Test. Case() runs on My.](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-54.jpg)
![TTCN-3 Program Statements and Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000 TTCN-3 Program Statements and Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-55.jpg)
![Kinds of Statements and Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000 56 Kinds of Statements and Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000 56](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-56.jpg)
![Basic Program Statements TTCN-3 An Introductory Overview, Copyright ETSI 2000 57 Basic Program Statements TTCN-3 An Introductory Overview, Copyright ETSI 2000 57](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-57.jpg)
![Example Program Statement function My. Function { var integer x, j; for (j: =1; Example Program Statement function My. Function { var integer x, j; for (j: =1;](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-58.jpg)
![Operators TTCN-3 An Introductory Overview, Copyright ETSI 2000 59 Operators TTCN-3 An Introductory Overview, Copyright ETSI 2000 59](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-59.jpg)
![Creating, Building and Controlling Test Configurations TTCN-3 An Introductory Overview, Copyright ETSI 2000 Creating, Building and Controlling Test Configurations TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-60.jpg)
![Configuration Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000 61 Configuration Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000 61](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-61.jpg)
![Creating Components • The MTC is the only component that is automatically created when Creating Components • The MTC is the only component that is automatically created when](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-62.jpg)
![Example of Create // Define a variable of type component My. Component. Type { Example of Create // Define a variable of type component My. Component. Type {](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-63.jpg)
![Connecting and Mapping Components Test System IN My. MTC Connected Ports OUT P 1 Connecting and Mapping Components Test System IN My. MTC Connected Ports OUT P 1](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-64.jpg)
![Example of Connect and Map /* The connect operation is used to connect components Example of Connect and Map /* The connect operation is used to connect components](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-65.jpg)
![Communication Between Test Components TTCN-3 An Introductory Overview, Copyright ETSI 2000 Communication Between Test Components TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-66.jpg)
![Asynchronous Communication send receive MTC PTC non-blocking TTCN-3 An Introductory Overview, Copyright ETSI 2000 Asynchronous Communication send receive MTC PTC non-blocking TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-67.jpg)
![Asynchronous Communication Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000 68 Asynchronous Communication Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000 68](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-68.jpg)
![Examples of Asynchronous Communication Operations My. Port. send(integer: 5); My. Port. receive(My. Template(5, My. Examples of Asynchronous Communication Operations My. Port. send(integer: 5); My. Port. receive(My. Template(5, My.](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-69.jpg)
![Synchronous Communication call getcall PTC MTC getreply or catch exception reply or raise exception Synchronous Communication call getcall PTC MTC getreply or catch exception reply or raise exception](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-70.jpg)
![Synchronous Communication Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000 71 Synchronous Communication Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000 71](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-71.jpg)
![Examples of Synchronous Communication Operations // Calling a remote procedure My. Port. call (My. Examples of Synchronous Communication Operations // Calling a remote procedure My. Port. call (My.](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-72.jpg)
![TTCN-3 Behaviour Trees TTCN-3 An Introductory Overview, Copyright ETSI 2000 TTCN-3 Behaviour Trees TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-73.jpg)
![Behaviour Statements TTCN-3 An Introductory Overview, Copyright ETSI 2000 74 Behaviour Statements TTCN-3 An Introductory Overview, Copyright ETSI 2000 74](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-74.jpg)
![Behaviour Statements // Sequential statements are denoted by a semi-colon function My. Function 1 Behaviour Statements // Sequential statements are denoted by a semi-colon function My. Function 1](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-75.jpg)
![Alternative Behaviour • Alternative behaviour is defined using the alt statement • alt statements Alternative Behaviour • Alternative behaviour is defined using the alt statement • alt statements](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-76.jpg)
![Schematic View of Alternatives • Each alternative consists of – a guard (possibly empty) Schematic View of Alternatives • Each alternative consists of – a guard (possibly empty)](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-77.jpg)
![Example Alt Statement alt { [] My. Port. receive(My. Message 1) { My. Port. Example Alt Statement alt { [] My. Port. receive(My. Message 1) { My. Port.](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-78.jpg)

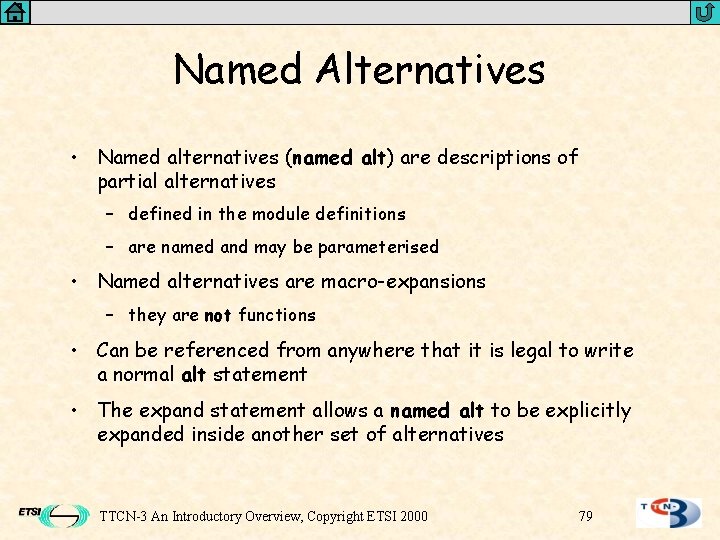

![Named Alternatives • Named alternatives (named alt) are descriptions of partial alternatives – defined Named Alternatives • Named alternatives (named alt) are descriptions of partial alternatives – defined](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-79.jpg)
![Example of Named Alt (1) // Definition in module definitions named alt My. Named. Example of Named Alt (1) // Definition in module definitions named alt My. Named.](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-80.jpg)
![Example of Named Alt (2) // Is the same as testcase TC 101() { Example of Named Alt (2) // Is the same as testcase TC 101() {](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-81.jpg)
![Default Behaviour • Default behaviour is defined using named alternatives • Defaults must be Default Behaviour • Default behaviour is defined using named alternatives • Defaults must be](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-82.jpg)
![Activate and Deactivate named alt My. Default { [] L 1. any. receive } Activate and Deactivate named alt My. Default { [] L 1. any. receive }](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-83.jpg)
![Interleaved Behaviour /* The interleave statement specifies all possible combinations of executing a given Interleaved Behaviour /* The interleave statement specifies all possible combinations of executing a given](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-84.jpg)
![Timers, Verdicts and SUT Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000 Timers, Verdicts and SUT Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-85.jpg)
![Additional Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000 86 Additional Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000 86](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-86.jpg)
![Verdicts • Verdicts: pass, fail, inconc, none, error • each test components has its Verdicts • Verdicts: pass, fail, inconc, none, error • each test components has its](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-87.jpg)
![Timer Operations // Starting, stopping and reading a timer My. Timer. start(20 E-3)// Default Timer Operations // Starting, stopping and reading a timer My. Timer. start(20 E-3)// Default](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-88.jpg)
![Executing and Controlling Test Cases TTCN-3 An Introductory Overview, Copyright ETSI 2000 Executing and Controlling Test Cases TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-89.jpg)
![Module Control Local Control Declarations Test Case Execution • Module control is the ‘dynamic’ Module Control Local Control Declarations Test Case Execution • Module control is the ‘dynamic’](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-90.jpg)
![Local Control Declarations : control { const hexstring My. Const : = ‘FF 00’H; Local Control Declarations : control { const hexstring My. Const : = ‘FF 00’H;](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-91.jpg)
![Executing Test Cases Module My. Module { // Test cases are defined in the Executing Test Cases Module My. Module { // Test cases are defined in the](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-92.jpg)
![Controlling Test Cases // Test Cases return verdicts execute(My. Test. Case()) -> value My. Controlling Test Cases // Test Cases return verdicts execute(My. Test. Case()) -> value My.](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-93.jpg)
![Specifying Additional Attributes TTCN-3 An Introductory Overview, Copyright ETSI 2000 Specifying Additional Attributes TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-94.jpg)
![Defining Attributes Language Element • Special attributes can be associated with most TTCN-3 language Defining Attributes Language Element • Special attributes can be associated with most TTCN-3 language](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-95.jpg)
![Example Attributes type record { integer ia 5 string boolean } with { display Example Attributes type record { integer ia 5 string boolean } with { display](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-96.jpg)
![An Introductory Overview The End TTCN-3 An Introductory Overview, Copyright ETSI 2000 An Introductory Overview The End TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-97.jpg)
![… or just the beginning? TTCN-3 An Introductory Overview, Copyright ETSI 2000 … or just the beginning? TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-98.jpg)
- Slides: 98
![An Introductory Overview Anthony Wiles ETSI PTCCETSI STF 156 TTCN3 An Introductory Overview Copyright An Introductory Overview Anthony Wiles ETSI PTCC/ETSI STF 156 TTCN-3 An Introductory Overview, Copyright](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-1.jpg)
An Introductory Overview Anthony Wiles ETSI PTCC/ETSI STF 156 TTCN-3 An Introductory Overview, Copyright ETSI 2000
![Presentation Outline 1 2 3 4 5 6 7 8 9 10 Basic Concepts Presentation Outline 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. Basic Concepts](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-2.jpg)
Presentation Outline 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. Basic Concepts Structure and Contents of a TTCN-3 Test Suite TTCN-3 Data Types Defining Test Data Specifying elements of Test System Architecture Specifying Test System Behaviour TTCN-3 Program Statements and Operations Creating, Building and Controlling Test Configurations Communication Between Test Components TTCN-3 Behaviour Trees 11. Timers, Verdicts and SUT Operations 12. Executing and Controlling Test Cases 13. Specifying Additional Attributes TTCN-3 An Introductory Overview, Copyright ETSI 2000
![Basic Concepts TTCN3 An Introductory Overview Copyright ETSI 2000 Basic Concepts TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-3.jpg)
Basic Concepts TTCN-3 An Introductory Overview, Copyright ETSI 2000
![History of TTCN TTCN Tree and Tabular Combined Notation Versions 1 and History of TTCN • TTCN: Tree and Tabular Combined Notation • Versions 1 and](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-4.jpg)
History of TTCN • TTCN: Tree and Tabular Combined Notation • Versions 1 and 2 developed by ISO SC 21 WG 3 (1984 1997) as part of the widely-used ISO/IEC 9646 conformance testing standard – ISO/IEC 9646 -3 and ITU-T X. 292 – Updates/maintenance by ETSI in TR 101 666 (TTCN-2++) • Version 3 developed by ETSI TC MTS (1998 - 2000) – Specialist Task Forces STF 133 & STF 156 TTCN-3 An Introductory Overview, Copyright ETSI 2000 4
![TTCN3 Standard Documents Threepart ETSI Standard ES DESMTS00063 1 Core Language TTCN-3 Standard Documents • Three-part ETSI Standard (ES) – DES/MTS-00063 -1 : Core Language](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-5.jpg)
TTCN-3 Standard Documents • Three-part ETSI Standard (ES) – DES/MTS-00063 -1 : Core Language TTCN-3 – DES/MTS-00063 -2 : Tabular Presentation Format – DES/MTS-00063 -3 : MSC Presentation Format • ITU-T equivalents Z. 140, Z. 141, Z. 142 • Additional Documents – DTR/MTS-00069 : TTCN-2 to TTCN-3 Mapping – DTS/MTS-00070 : Library of Predefined Functions TTCN-3 An Introductory Overview, Copyright ETSI 2000 5
![Motivation for Producing TTCN 3 Modernization technology has changed since TTCN was first Motivation for Producing TTCN -3 Modernization – technology has changed since TTCN was first](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-6.jpg)
Motivation for Producing TTCN -3 Modernization – technology has changed since TTCN was first developed Wider scope of application – should be applicable to many kinds of test applications not just conformance (development, system, integration, iop …) Harmonization – should be the first choice for test specifiers, implementors and users both for standardized test suites. . . … and as a generic solution in industrial product development TTCN-3 An Introductory Overview, Copyright ETSI 2000 6
![Main Capabilities of TTCN3 Dynamic concurrent testing configurations Various communication mechanisms synch Main Capabilities of TTCN-3 • Dynamic concurrent testing configurations • Various communication mechanisms (synch](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-7.jpg)
Main Capabilities of TTCN-3 • Dynamic concurrent testing configurations • Various communication mechanisms (synch and asynch) • Data and signature templates with powerful matching mechanisms • Specification of encoding information • Display and user-defined attributes • Test suite parameterization • Test case control and selection mechanisms • Assignment and handling of test verdicts • Harmonized with ASN. 1 • Different presentation formats • Well-defined syntax, static semantics and operational semantics TTCN-3 An Introductory Overview, Copyright ETSI 2000 7
![The Core Language Text format Tabular Format TTCN3 Core Language MSC Format Presentation Format The Core Language Text format Tabular Format TTCN-3 Core Language MSC Format Presentation Format](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-8.jpg)
The Core Language Text format Tabular Format TTCN-3 Core Language MSC Format Presentation Format 3 Presentation Formatn TTCN-3 An Introductory Overview, Copyright ETSI 2000 • Core format is a text based language • Core can be viewed as text or in various presentation formats • Tabular format for conformance testing • Message Sequence Chart (MSC)format • Other standardized formats in the future • Proprietary formats 8
![Example Core Text Format function PO 49901integer FL runs on My MTC L Example Core (Text) Format function PO 49901(integer FL) runs on My. MTC { L](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-9.jpg)
Example Core (Text) Format function PO 49901(integer FL) runs on My. MTC { L 0. send(A_RL 3(FL, CREF 1, 16)); TAC. start; alt { [] L 0. receive(A_RC 1((FL+1) mod 2)) { TAC. cancel; verdict. set(pass) } [] TAC. timeout { verdict. set(inconc) } [] any. receive { verdict. set(fail) } } END_PTC 1() // postamble as function call } TTCN-3 An Introductory Overview, Copyright ETSI 2000 9
![Example Tabular Format TTCN3 An Introductory Overview Copyright ETSI 2000 10 Example Tabular Format TTCN-3 An Introductory Overview, Copyright ETSI 2000 10](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-10.jpg)
Example Tabular Format TTCN-3 An Introductory Overview, Copyright ETSI 2000 10
![Example MSC Format TTCN3 An Introductory Overview Copyright ETSI 2000 11 Example MSC Format TTCN-3 An Introductory Overview, Copyright ETSI 2000 11](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-11.jpg)
Example MSC Format TTCN-3 An Introductory Overview, Copyright ETSI 2000 11
![Use With Other Languages ASN 1 Types Values Other types Values 2 Use With Other Languages ASN. 1 Types & Values Other types & Values 2](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-12.jpg)
Use With Other Languages ASN. 1 Types & Values Other types & Values 2 • TTCN can be integrated with other 'type and value' systems TTCN-3 Core Language • Fully harmonized with ASN. 1 (1997) • Harmonization possible with other type and value systems (possibly from proprietary languages) Other types & Valuesn TTCN-3 An Introductory Overview, Copyright ETSI 2000 12
![Major Elements of TTCN3 Core Data Types Test Data Test System Architecture Test Behaviour Major Elements of TTCN-3 Core Data Types Test Data Test System Architecture Test Behaviour](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-13.jpg)
Major Elements of TTCN-3 Core Data Types Test Data Test System Architecture Test Behaviour • Built-in and user-defined generic data types (e. g. , to define messages, service primitives, information elements, PDUs) • Actual test data transmitted/received during testing • Definition of the components and communication ports that are used to build various testing configurations • Specification of the dynamic test system behaviour TTCN-3 An Introductory Overview, Copyright ETSI 2000 13
![Structure and Contents of a TTCN3 Test Suite TTCN3 An Introductory Overview Copyright ETSI Structure and Contents of a TTCN-3 Test Suite TTCN-3 An Introductory Overview, Copyright ETSI](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-14.jpg)
Structure and Contents of a TTCN-3 Test Suite TTCN-3 An Introductory Overview, Copyright ETSI 2000
![TTCN3 Modules Module Module Definitions Module Control Attributes Modules are the building TTCN-3 Modules Module (…) Module Definitions Module Control Attributes • Modules are the building](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-15.jpg)
TTCN-3 Modules Module (…) Module Definitions Module Control Attributes • Modules are the building blocks of all TTCN-3 specifications • A test suite is a module • A module has a definitions part and a control part • Modules can be parameterised • Modules can import definitions from other modules • Modules can have attributes TTCN-3 An Introductory Overview, Copyright ETSI 2000 15
![Example of Module Structure module My Module integer My TSPar 1 Example of Module Structure module My. Module (integer My. TSPar 1) { : //](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-16.jpg)
Example of Module Structure module My. Module (integer My. TSPar 1) { : // Definitions part control { : } // Control part } with display “ETSI format”; TTCN-3 An Introductory Overview, Copyright ETSI 2000 16
![Module Definitions Data Types Constants RP Signatures Data Templates Signature Templates Communication Ports Test Module Definitions Data Types Constants RP Signatures Data Templates Signature Templates Communication Ports Test](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-17.jpg)
Module Definitions Data Types Constants RP Signatures Data Templates Signature Templates Communication Ports Test Components Functions Named Alternatives • Definitions are global to the entire module • Data Type definitions are based on the TTCN-3 predefined types • Templates and Signatures define the test data • Ports and Components are used in Test Configurations • Functions, Named Alts and Test Cases define behaviour Test Cases TTCN-3 An Introductory Overview, Copyright ETSI 2000 17
![Importing Definitions Importing single definitions import template My Template from My Module Importing Definitions // Importing single definitions import template My. Template from My. Module; //](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-18.jpg)
Importing Definitions // Importing single definitions import template My. Template from My. Module; // Importing definitions of the same kind import all template from My. Module; // Importing all definitions import all from My. Module; // inhibiting recursive import template My. Template from My. Module nonrecursive; /* To avoid name clashes the imported definition is prefixed with the identifier of the source module */ TTCN-3 An Introductory Overview, Copyright ETSI 2000 18
![External Definitions External constants may be defined external const integer My External Const External Definitions // External constants may be defined external const integer My. External. Const;](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-19.jpg)
External Definitions // External constants may be defined external const integer My. External. Const; // External functions may be defined external function My. Function 4() return integer; TTCN-3 An Introductory Overview, Copyright ETSI 2000 19
![Groups of Definitions A nested group of function group My Test Step Library Groups of Definitions // A nested group of function group My. Test. Step. Library](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-20.jpg)
Groups of Definitions // A nested group of function group My. Test. Step. Library { group My. Group 1 { function My. Test. Step 11 { : function My. Test. Step 1 n { } group My. Group 2 { function My. Test. Step 21 { : function My. Test. Step 2 n { } } TTCN-3 An Introductory Overview, Copyright ETSI 2000 definitions … } … } 20
![TTCN3 Data Types TTCN3 An Introductory Overview Copyright ETSI 2000 TTCN-3 Data Types TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-21.jpg)
TTCN-3 Data Types TTCN-3 An Introductory Overview, Copyright ETSI 2000
![TTCN3 Base Types TTCN3 An Introductory Overview Copyright ETSI 2000 22 TTCN-3 Base Types TTCN-3 An Introductory Overview, Copyright ETSI 2000 22](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-22.jpg)
TTCN-3 Base Types TTCN-3 An Introductory Overview, Copyright ETSI 2000 22
![Example of Integer Type integer subtype RANGE definition type integer My Integer Example of Integer Type /* integer sub-type RANGE definition */ type integer My. Integer.](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-23.jpg)
Example of Integer Type /* integer sub-type RANGE definition */ type integer My. Integer. Range (1. . 100) type integer My. Integer. Range (0. . infinity) /* integer sub-type LIST definition */ type integer My. Integer. List (1 , 2, 3, 4) /* integer sub-type as a mixed LIST and RANGE */ type integer My. Integer. List. And. Range (1. . 5, 7, 9) TTCN-3 An Introductory Overview, Copyright ETSI 2000 23
![Example of a Structured Type record type definition type record My Message Type Example of a Structured Type // record type definition type record My. Message. Type](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-24.jpg)
Example of a Structured Type // record type definition type record My. Message. Type { integer field 1 optional, boolean field 2 } // record value notation var My. Message. Type My. Message { field 1 1, field 2 true } // Individual field assignment My. Message. field 2 : = false TTCN-3 An Introductory Overview, Copyright ETSI 2000 24
![Arrays Arrays are not considered to be types in TTCN3 Instead they are Arrays /* Arrays are not considered to be types in TTCN-3. Instead, they are](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-25.jpg)
Arrays /* Arrays are not considered to be types in TTCN-3. Instead, they are specified at the point of variable declaration */ // integer array of 5 elements var integer My. Array[5]; // indexing starts at zero My. Array[0]: = 1; // An initialiser may be used to set array values My. Array : = {1, 2, 3, 4, 5}; TTCN-3 An Introductory Overview, Copyright ETSI 2000 25
![ASN 1 Type Compatibility The following ASN 1 types are considered to be ASN. 1 Type Compatibility • The following ASN. 1 types are considered to be](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-26.jpg)
ASN. 1 Type Compatibility • The following ASN. 1 types are considered to be equivalent to their TTCN-3 counterparts • TTCN-3 value notation, operators etc. may be used on values of these types a TTCN module ASN. 1 types INTEGER BOOLEAN OBJECT IDENTIFIER BIT STRING OCTET STRING SEQUENCE OF SET OF ENUMERATED CHOICE TTCN types integer boolean objectidentifier bitstring octetstring sequence of set of enumerated union TTCN-3 An Introductory Overview, Copyright ETSI 2000
![Defining Test Data TTCN3 An Introductory Overview Copyright ETSI 2000 Defining Test Data TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-27.jpg)
Defining Test Data TTCN-3 An Introductory Overview, Copyright ETSI 2000
![Different Uses of Data in TTCN3 Test Specifications Data in TTCN3 is used Different Uses of Data in TTCN-3 Test Specifications • Data in TTCN-3 is used](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-28.jpg)
Different Uses of Data in TTCN-3 Test Specifications • Data in TTCN-3 is used – internally to the test component – as information passed between test components within the test system – as test data transmitted to and received from the System Under Test (SUT) • The grouping mechanism can be used to collect data definitions of a similar ‘kind’ e. g. , – Service Primitives (ASP) – Protocol Data Units (PDU) – internal coordination messages TTCN-3 An Introductory Overview, Copyright ETSI 2000 28
![Constants and Variables Constants are defined in the definitions part of a module Constants (and Variables) /* Constants are defined in the definitions part of a module](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-29.jpg)
Constants (and Variables) /* Constants are defined in the definitions part of a module (and inside functions and test components) */ constant integer My. Constant : = 1; /* Variables can only be declared in the module control part (and inside functions and test components) TTCN-3 does not support global variables */ var hexstring My. Hex. String; TTCN-3 An Introductory Overview, Copyright ETSI 2000 29
![Example Message Definition Complex messages can be defined by records Type record My Example Message Definition // Complex messages can be defined by records Type record My.](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-30.jpg)
Example Message Definition // Complex messages can be defined by records Type record My. Message. Type My. Message : = { field 1 integer optional, field 2 integer, field 3 integer, field 4 integer, field 5 boolean optional, field 6 hexstring optional, field 7 Another. Message. Type, field 8 bitstring, field 9 charstring (1. . 20) } TTCN-3 An Introductory Overview, Copyright ETSI 2000 30
![Data Templates Templates are special data values that have the following characteristics Data Templates • Templates are special data values that have the following characteristics –](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-31.jpg)
Data Templates • Templates are special data values that have the following characteristics – matching mechanisms – they can be parameterised – they can be modified to provide a simple form of inheritance • Templates can be applied to simple types as well as complex types • Are most often used to define the possible received values of messages and responses to remote procedure calls TTCN-3 An Introductory Overview, Copyright ETSI 2000 31
![Matching Mechanisms TTCN3 An Introductory Overview Copyright ETSI 2000 32 Matching Mechanisms TTCN-3 An Introductory Overview, Copyright ETSI 2000 32](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-32.jpg)
Matching Mechanisms TTCN-3 An Introductory Overview, Copyright ETSI 2000 32
![Examples of Simple Templates Template for a simple integer type template integer Examples of Simple Templates /* Template for a simple integer type */ template integer](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-33.jpg)
Examples of Simple Templates /* Template for a simple integer type */ template integer My. Data 1 : = *; template integer My. Data 2 : = (1, 2, 3); /* This line in a test behaviour description will match any incoming integer value */ P 1. receive(My. Data 1); /* This line will match on one of the incoming integer values 1, 2 or 3 */ P 1. receive(My. Data 2); TTCN-3 An Introductory Overview, Copyright ETSI 2000 33
![Example Message Template template My Message Type My Message field 1 Example Message Template template My. Message. Type My. Message : = { field 1](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-34.jpg)
Example Message Template template My. Message. Type My. Message : = { field 1 1 ifpresent, field 2 (1, 2, 3), field 3 (0. . 255), field 4 not (1, 2, 3), field 5 omit, field 6 * ifpresent, field 7 ? , field 8 ‘ 1011? 110*1’B, field 9 “abc” <*> “xyz” length (20) } TTCN-3 An Introductory Overview, Copyright ETSI 2000 34
![Parameterised Templates 1 Value parameterisation template My Message Type My Message integer My Parameterised Templates (1) // Value parameterisation template My. Message. Type My. Message (integer My.](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-35.jpg)
Parameterised Templates (1) // Value parameterisation template My. Message. Type My. Message (integer My. Par) : = { field 1 My. Par, field 2 true field 3 ‘ 110011’B } // Example use of this template P 1. send(My. Message(1)); TTCN-3 An Introductory Overview, Copyright ETSI 2000 35
![Parameterised Templates 2 Type parameterisation type record My Record TypeMy Meta Type Parameterised Templates (2) // Type parameterisation type record My. Record. Type(My. Meta. Type) {](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-36.jpg)
Parameterised Templates (2) // Type parameterisation type record My. Record. Type(My. Meta. Type) { boolean field 1, My. Meta. Type field 2 // field 2 type not defined } var My. Record. Type(integer) My. Record. Value : = { field 1 : = true, field 2 : = 123 // field 2 now of type integer } TTCN-3 An Introductory Overview, Copyright ETSI 2000 36
![Modified Templates Writing template My Message Type My Message 1 field 1 Modified Templates // Writing template My. Message. Type My. Message 1 { field 1](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-37.jpg)
Modified Templates // Writing template My. Message. Type My. Message 1 { field 1 123, field 2 true } // and template My. Message. Type My. Message 2 modifies My. Message 1 { field 2 false } // Is the same as writing template My. Message. Type My. Message 3 { field 1 123, field 2 false } TTCN-3 An Introductory Overview, Copyright ETSI 2000 37
![Local Function Definitions Functions can declare local constants variables and timers function Local Function Definitions /* Functions can declare local constants, variables and timers */ function](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-38.jpg)
Local Function Definitions /* Functions can declare local constants, variables and timers */ function My. Function { const hexstring My. Const : = ‘FF 00’H; var integer My. Var : =1; timer My. Timer; : } TTCN-3 An Introductory Overview, Copyright ETSI 2000 38
![Procedure Signatures Procedure signatures are needed for synchronous communication over procedurebased ports remote Procedure Signatures /* Procedure signatures are needed for synchronous communication over procedure-based ports (remote](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-39.jpg)
Procedure Signatures /* Procedure signatures are needed for synchronous communication over procedure-based ports (remote procedure calls) */ signature My. Remote. Proc ( in integer Par 1, out float Par 2, inout integer Par 3 ) return integer exception (Except. Type 1, Except. Type 2); TTCN-3 An Introductory Overview, Copyright ETSI 2000 39
![Signature Templates signature My Remote Proc in integer Par 1 out float Par Signature Templates signature My. Remote. Proc ( in integer Par 1, out float Par](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-40.jpg)
Signature Templates signature My. Remote. Proc ( in integer Par 1, out float Par 2, inout integer Par 3 ) return integer exception (Except. Type 1, Except. Type 2); /* templates may be used to define the actual parameters to a remote procedure call */ template My. Remote. Proc Mytemplate : = { Par 1 : = 7, Par 2 : = *, Par 3 : = My. Const } TTCN-3 An Introductory Overview, Copyright ETSI 2000 40
![Specifying Elements of Test System Architecture TTCN3 An Introductory Overview Copyright ETSI 2000 Specifying Elements of Test System Architecture TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-41.jpg)
Specifying Elements of Test System Architecture TTCN-3 An Introductory Overview, Copyright ETSI 2000
![Test Components Test Component Local Declarations Ports Used Test components are the entities Test Components Test Component Local Declarations Ports Used • Test components are the entities](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-42.jpg)
Test Components Test Component Local Declarations Ports Used • Test components are the entities on which test behaviour is executed (in parallel) • Declarations may be made locally in the component • A list of the ports used by the component must also be given • Actual configurations are built dynamically in the test behaviour using operations such as create, connect etc. TTCN-3 An Introductory Overview, Copyright ETSI 2000 42
![Kinds of Test Components There are three kinds of component MTC Main Kinds of Test Components • There are three ‘kinds’ of component – MTC (Main](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-43.jpg)
Kinds of Test Components • There are three ‘kinds’ of component – MTC (Main Test Component) – PTC (Parallel Test Component) – a PTC that defines the Abstract Test System Interface Abstract Test System MTC 1 PTC 2 PTCn Abstract Test System Interface Real test system connected to an SUT TTCN-3 An Introductory Overview, Copyright ETSI 2000 43
![Communication Ports Test components communicate via communication ports A test port is Communication Ports • Test components communicate via communication ports • A test port is](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-44.jpg)
Communication Ports • Test components communicate via communication ports • A test port is modeled as an infinite FIFO queue • Ports have direction (in, out, inout) • There are three types of port – message-based, procedure-based or mixed PTC 1 P 1 (out) P 1 (in) P 1. send(Msg) TTCN-3 An Introductory Overview, Copyright ETSI 2000 PTC 2 P 1. receive(Msg) 44
![Example Port Definition Definition of a messagebased port type port My Message Port Example Port Definition // Definition of a message-based port type port My. Message. Port.](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-45.jpg)
Example Port Definition // Definition of a message-based port type port My. Message. Port. Type message { in Msg. Type 1, Msg. Type 2; out Msg. Type 3; inout integer } // Definition of a procedure-based port type port My. Procedure. Port. Type procedure { out Procedure. Signature 1, Procedure. Signature 2 } TTCN-3 An Introductory Overview, Copyright ETSI 2000 45
![Example Component Definition Definition of test component type component My Component Type Example Component Definition // Definition of test component type component My. Component. Type {](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-46.jpg)
Example Component Definition // Definition of test component type component My. Component. Type { // Local declarations var integer My. Var; timer My. Timer; // Ports used by the component My. Message. Port. Type P 1, P 2; My. Procedure. Port. Type P 3 } TTCN-3 An Introductory Overview, Copyright ETSI 2000 46
![Test System Interface A userdefined component that defines the port interface to the Test System Interface /* A user-defined component that defines the port interface to the](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-47.jpg)
Test System Interface /* A user-defined component that defines the port interface to the underlying real test system */ type component My. Test. System. Inteface. Type { My. Lower. PCOType LT; My. Upper. PCOType UT } TTCN-3 An Introductory Overview, Copyright ETSI 2000 47
![Specifying Test System Behaviour TTCN3 An Introductory Overview Copyright ETSI 2000 Specifying Test System Behaviour TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-48.jpg)
Specifying Test System Behaviour TTCN-3 An Introductory Overview, Copyright ETSI 2000
![TTCN3 Functions Function Local Declarations Program Part Functions are TTCN-3 Functions Function (. . . ) Local Declarations Program Part • Functions are](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-49.jpg)
TTCN-3 Functions Function (. . . ) Local Declarations Program Part • Functions are the building-blocks of test system behaviour • Functions have local declarations and a program part • Can be a 'pure' function doing some internal test system task or specify test behaviour using communication operations such as send and receive • External functions are allowed • There are some pre-defined functions (type conversion etc. ) TTCN-3 An Introductory Overview, Copyright ETSI 2000 49
![Predefined Functions TTCN3 An Introductory Overview Copyright ETSI 2000 50 Pre-defined Functions TTCN-3 An Introductory Overview, Copyright ETSI 2000 50](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-50.jpg)
Pre-defined Functions TTCN-3 An Introductory Overview, Copyright ETSI 2000 50
![Function Definitions1 Functions can be parameterised in out inout paramters Default is Function Definitions(1) // Functions can be parameterised // in, out, inout paramters. Default is](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-51.jpg)
Function Definitions(1) // Functions can be parameterised // in, out, inout paramters. Default is in function My. Function (in integer My. Par) { : } // Functions can return values // Default is void function My. Function return integer { : } TTCN-3 An Introductory Overview, Copyright ETSI 2000 51
![Function Definitions2 This function performs a generic task It does not use any Function Definitions(2) /* This function performs a generic task. It does not use any](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-52.jpg)
Function Definitions(2) /* This function performs a generic task. It does not use any communication operations */ function My. Function { : } /* This function uses communication operations consistent with the ports offered by My. PTC */ function My. Function runs on My. PTC { : } TTCN-3 An Introductory Overview, Copyright ETSI 2000 52
![Test Case Definitions Test Case Interface Part System Part Behaviour Test Case Definitions Test Case (. . . ) Interface Part System Part Behaviour](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-53.jpg)
Test Case Definitions Test Case (. . . ) Interface Part System Part Behaviour Part • Test cases are a special kind of function executed in the control part of a module • The interface part (runs on) references the MTC on which the test case will run • The system part (system) references the test system interface component. Can be omitted if the test case only consists of an MTC • The Behaviour part defines test case behaviour TTCN-3 An Introductory Overview, Copyright ETSI 2000 53
![Example Test Case Definitions Parallel configuration testcase My Test Case runs on My Example Test Case Definitions // Parallel configuration testcase My. Test. Case() runs on My.](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-54.jpg)
Example Test Case Definitions // Parallel configuration testcase My. Test. Case() runs on My. MTCType system My. Test. System. Type { : // behaviour defined here } // Configuration consists only of an MTC testcase My. Test. Case()runs on My. MTCType { : // behaviour defined here } TTCN-3 An Introductory Overview, Copyright ETSI 2000 54
![TTCN3 Program Statements and Operations TTCN3 An Introductory Overview Copyright ETSI 2000 TTCN-3 Program Statements and Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-55.jpg)
TTCN-3 Program Statements and Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000
![Kinds of Statements and Operations TTCN3 An Introductory Overview Copyright ETSI 2000 56 Kinds of Statements and Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000 56](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-56.jpg)
Kinds of Statements and Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000 56
![Basic Program Statements TTCN3 An Introductory Overview Copyright ETSI 2000 57 Basic Program Statements TTCN-3 An Introductory Overview, Copyright ETSI 2000 57](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-57.jpg)
Basic Program Statements TTCN-3 An Introductory Overview, Copyright ETSI 2000 57
![Example Program Statement function My Function var integer x j for j 1 Example Program Statement function My. Function { var integer x, j; for (j: =1;](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-58.jpg)
Example Program Statement function My. Function { var integer x, j; for (j: =1; j<=10; j: =j+1) { if (My. Global. Flag == true) { x: =j*2; log int 2 str(x); } else x : = j*3 } } TTCN-3 An Introductory Overview, Copyright ETSI 2000 58
![Operators TTCN3 An Introductory Overview Copyright ETSI 2000 59 Operators TTCN-3 An Introductory Overview, Copyright ETSI 2000 59](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-59.jpg)
Operators TTCN-3 An Introductory Overview, Copyright ETSI 2000 59
![Creating Building and Controlling Test Configurations TTCN3 An Introductory Overview Copyright ETSI 2000 Creating, Building and Controlling Test Configurations TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-60.jpg)
Creating, Building and Controlling Test Configurations TTCN-3 An Introductory Overview, Copyright ETSI 2000
![Configuration Operations TTCN3 An Introductory Overview Copyright ETSI 2000 61 Configuration Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000 61](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-61.jpg)
Configuration Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000 61
![Creating Components The MTC is the only component that is automatically created when Creating Components • The MTC is the only component that is automatically created when](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-62.jpg)
Creating Components • The MTC is the only component that is automatically created when the test case is executed – all PTCs must be created explicitly using the create operation • The create operation returns the unique component reference for the newly created component • Components can be created at any point in a behaviour description TTCN-3 An Introductory Overview, Copyright ETSI 2000 62
![Example of Create Define a variable of type component My Component Type Example of Create // Define a variable of type component My. Component. Type {](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-63.jpg)
Example of Create // Define a variable of type component My. Component. Type { : } // Define a variable of type component var My. Component. Type My. Component; // create the component My. Component : = Mycomponent. Type. create TTCN-3 An Introductory Overview, Copyright ETSI 2000 63
![Connecting and Mapping Components Test System IN My MTC Connected Ports OUT P 1 Connecting and Mapping Components Test System IN My. MTC Connected Ports OUT P 1](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-64.jpg)
Connecting and Mapping Components Test System IN My. MTC Connected Ports OUT P 1 OUT My. PTC IN OUT Mapped Ports Abstract Test System Interface OUT P 2 IN PCO IN Real Test System Interface SUT TTCN-3 An Introductory Overview, Copyright ETSI 2000 64
![Example of Connect and Map The connect operation is used to connect components Example of Connect and Map /* The connect operation is used to connect components](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-65.jpg)
Example of Connect and Map /* The connect operation is used to connect components within the test system */ connect(My. PTC: P 1, mtc: P 1) /* The map operation is used to ‘connect’ components to the abstract test system interface */ map(My. PTC: P 2, system: PCO) TTCN-3 An Introductory Overview, Copyright ETSI 2000 65
![Communication Between Test Components TTCN3 An Introductory Overview Copyright ETSI 2000 Communication Between Test Components TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-66.jpg)
Communication Between Test Components TTCN-3 An Introductory Overview, Copyright ETSI 2000
![Asynchronous Communication send receive MTC PTC nonblocking TTCN3 An Introductory Overview Copyright ETSI 2000 Asynchronous Communication send receive MTC PTC non-blocking TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-67.jpg)
Asynchronous Communication send receive MTC PTC non-blocking TTCN-3 An Introductory Overview, Copyright ETSI 2000 67
![Asynchronous Communication Operations TTCN3 An Introductory Overview Copyright ETSI 2000 68 Asynchronous Communication Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000 68](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-68.jpg)
Asynchronous Communication Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000 68
![Examples of Asynchronous Communication Operations My Port sendinteger 5 My Port receiveMy Template5 My Examples of Asynchronous Communication Operations My. Port. send(integer: 5); My. Port. receive(My. Template(5, My.](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-69.jpg)
Examples of Asynchronous Communication Operations My. Port. send(integer: 5); My. Port. receive(My. Template(5, My. Var)); My. Port. receive(A<B) from My. Partner; My. Port. receive(My. Type: *) -> value My. Var; My. Port. receive(integer: 5) -> sender My. Peer; TTCN-3 An Introductory Overview, Copyright ETSI 2000 69
![Synchronous Communication call getcall PTC MTC getreply or catch exception reply or raise exception Synchronous Communication call getcall PTC MTC getreply or catch exception reply or raise exception](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-70.jpg)
Synchronous Communication call getcall PTC MTC getreply or catch exception reply or raise exception blocking TTCN-3 An Introductory Overview, Copyright ETSI 2000 blocking 70
![Synchronous Communication Operations TTCN3 An Introductory Overview Copyright ETSI 2000 71 Synchronous Communication Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000 71](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-71.jpg)
Synchronous Communication Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000 71
![Examples of Synchronous Communication Operations Calling a remote procedure My Port call My Examples of Synchronous Communication Operations // Calling a remote procedure My. Port. call (My.](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-72.jpg)
Examples of Synchronous Communication Operations // Calling a remote procedure My. Port. call (My. Proc, 30 ms) to My. Peer { [] My. Port. getreply(My. Proc) -> value My. Result; [] My. Port. catch (My. Proc, Exception 1) } // Replying to a remote procedure My. Port. reply (My. Proc) TTCN-3 An Introductory Overview, Copyright ETSI 2000 72
![TTCN3 Behaviour Trees TTCN3 An Introductory Overview Copyright ETSI 2000 TTCN-3 Behaviour Trees TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-73.jpg)
TTCN-3 Behaviour Trees TTCN-3 An Introductory Overview, Copyright ETSI 2000
![Behaviour Statements TTCN3 An Introductory Overview Copyright ETSI 2000 74 Behaviour Statements TTCN-3 An Introductory Overview, Copyright ETSI 2000 74](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-74.jpg)
Behaviour Statements TTCN-3 An Introductory Overview, Copyright ETSI 2000 74
![Behaviour Statements Sequential statements are denoted by a semicolon function My Function 1 Behaviour Statements // Sequential statements are denoted by a semi-colon function My. Function 1](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-75.jpg)
Behaviour Statements // Sequential statements are denoted by a semi-colon function My. Function 1 { My. Function 2; x: =x+1; My. Port. receive(my. Message); // Blocks execution until message received My. Port. send(My. Message) } TTCN-3 An Introductory Overview, Copyright ETSI 2000 75
![Alternative Behaviour Alternative behaviour is defined using the alt statement alt statements Alternative Behaviour • Alternative behaviour is defined using the alt statement • alt statements](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-76.jpg)
Alternative Behaviour • Alternative behaviour is defined using the alt statement • alt statements may only be the receiving communication operations and timer events – receive, trigger, getcall, getreply, catch, check, timeout S 1 S 3 S 2 S 4 S 5 S 7 S 6 S 8 S 9 S 10 S 1; alt {[ ] S 3; S 6; [ ] S 2; alt { [ ] S 4; S 7; [ ] S 5; S 8; alt { [ ] S 9; [ ] S 10; } } } TTCN-3 An Introductory Overview, Copyright ETSI 2000 76
![Schematic View of Alternatives Each alternative consists of a guard possibly empty Schematic View of Alternatives • Each alternative consists of – a guard (possibly empty)](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-77.jpg)
Schematic View of Alternatives • Each alternative consists of – a guard (possibly empty) – an event, and – an (optional) sequence of actions (including further alts) • The TTCN-2 concept of snapshot semantics still applies alt guard 1 event 1 actions 1 guard 2 event 2 actions 2 guardn eventn actionsn TTCN-3 An Introductory Overview, Copyright ETSI 2000 77
![Example Alt Statement alt My Port receiveMy Message 1 My Port Example Alt Statement alt { [] My. Port. receive(My. Message 1) { My. Port.](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-78.jpg)
Example Alt Statement alt { [] My. Port. receive(My. Message 1) { My. Port. send(My. Message 4) alt { // Next level } } [x>1] My. Port. receive(My. Message 2); [x<1] My. Port. receive(My. Message 3) } TTCN-3 An Introductory Overview, Copyright ETSI 2000 78
![Named Alternatives Named alternatives named alt are descriptions of partial alternatives defined Named Alternatives • Named alternatives (named alt) are descriptions of partial alternatives – defined](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-79.jpg)
Named Alternatives • Named alternatives (named alt) are descriptions of partial alternatives – defined in the module definitions – are named and may be parameterised • Named alternatives are macro-expansions – they are not functions • Can be referenced from anywhere that it is legal to write a normal alt statement • The expand statement allows a named alt to be explicitly expanded inside another set of alternatives TTCN-3 An Introductory Overview, Copyright ETSI 2000 79
![Example of Named Alt 1 Definition in module definitions named alt My Named Example of Named Alt (1) // Definition in module definitions named alt My. Named.](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-80.jpg)
Example of Named Alt (1) // Definition in module definitions named alt My. Named. Alt { [] L 1. receive(My. Message 1) [] L 1. receive(My. Message 2) } // Use of the named alt testcase TC 101() { My. Named. Alt() // In-line reference in test case alt { [] L 1. receive(My. Message 3); [expand] My. Named. Alt(); // Macro expansion here } } TTCN-3 An Introductory Overview, Copyright ETSI 2000 80
![Example of Named Alt 2 Is the same as testcase TC 101 Example of Named Alt (2) // Is the same as testcase TC 101() {](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-81.jpg)
Example of Named Alt (2) // Is the same as testcase TC 101() { alt { [] L 1. receive(My. Message 1) [] L 1. receive(My. Message 2) } alt { [] L 1. receive(My. Message 3) [] L 1. receive(My. Message 1) [] L 1. receive(My. Message 2) } } TTCN-3 An Introductory Overview, Copyright ETSI 2000 81
![Default Behaviour Default behaviour is defined using named alternatives Defaults must be Default Behaviour • Default behaviour is defined using named alternatives • Defaults must be](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-82.jpg)
Default Behaviour • Default behaviour is defined using named alternatives • Defaults must be explicitly activated and deactivated • The expansion of defaults is applied to the end of the toplevel set of alternatives in an alt statement … • … and to all single receiving operations and timeouts // Note that the single statement L 1. receive(My. Message 1); // is equivalent to alt { [] L 1. receive(My. Message 1)} TTCN-3 An Introductory Overview, Copyright ETSI 2000 82
![Activate and Deactivate named alt My Default L 1 any receive Activate and Deactivate named alt My. Default { [] L 1. any. receive }](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-83.jpg)
Activate and Deactivate named alt My. Default { [] L 1. any. receive } // Use of the named alt testcase TC 101() { : activate (My. Default) : // Default applies from here deactivate (My. Default) : // Default does not apply from here } TTCN-3 An Introductory Overview, Copyright ETSI 2000 83
![Interleaved Behaviour The interleave statement specifies all possible combinations of executing a given Interleaved Behaviour /* The interleave statement specifies all possible combinations of executing a given](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-84.jpg)
Interleaved Behaviour /* The interleave statement specifies all possible combinations of executing a given set of alternative statements */ interleave { [] PCO 1. receive(My. Message. One); [] PCO 1. receive(My. Message. Two); [] PCO 1. receive(My. Message. Three); } TTCN-3 An Introductory Overview, Copyright ETSI 2000 84
![Timers Verdicts and SUT Operations TTCN3 An Introductory Overview Copyright ETSI 2000 Timers, Verdicts and SUT Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-85.jpg)
Timers, Verdicts and SUT Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000
![Additional Operations TTCN3 An Introductory Overview Copyright ETSI 2000 86 Additional Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000 86](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-86.jpg)
Additional Operations TTCN-3 An Introductory Overview, Copyright ETSI 2000 86
![Verdicts Verdicts pass fail inconc none error each test components has its Verdicts • Verdicts: pass, fail, inconc, none, error • each test components has its](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-87.jpg)
Verdicts • Verdicts: pass, fail, inconc, none, error • each test components has its own local verdict – can be written (set) and read (get) • Global verdict returned by Test Case (read-only) Verdict returned by the test case when it terminates V MTC V verdict. set(fail) PTC 1 V verdict. set(pass) TTCN-3 An Introductory Overview, Copyright ETSI 2000 PTC 2 V verdict. set(inconc) 87
![Timer Operations Starting stopping and reading a timer My Timer start20 E3 Default Timer Operations // Starting, stopping and reading a timer My. Timer. start(20 E-3)// Default](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-88.jpg)
Timer Operations // Starting, stopping and reading a timer My. Timer. start(20 E-3)// Default unit is secs My. Timer. stop My. Var : = My. Timer. read // Check if a timer is running if (My. Timer. running) { … } // timeout in an alternative : [] My. Timer. timeout : TTCN-3 An Introductory Overview, Copyright ETSI 2000 88
![Executing and Controlling Test Cases TTCN3 An Introductory Overview Copyright ETSI 2000 Executing and Controlling Test Cases TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-89.jpg)
Executing and Controlling Test Cases TTCN-3 An Introductory Overview, Copyright ETSI 2000
![Module Control Local Control Declarations Test Case Execution Module control is the dynamic Module Control Local Control Declarations Test Case Execution • Module control is the ‘dynamic’](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-90.jpg)
Module Control Local Control Declarations Test Case Execution • Module control is the ‘dynamic’ part of a TTCN-3 specification where test cases are executed (execute) • Local declarations, such as variables and timers may be made in the control part • Basic programming statements may be used to select and control the execution of the test cases TTCN-3 An Introductory Overview, Copyright ETSI 2000 90
![Local Control Declarations control const hexstring My Const FF 00H Local Control Declarations : control { const hexstring My. Const : = ‘FF 00’H;](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-91.jpg)
Local Control Declarations : control { const hexstring My. Const : = ‘FF 00’H; var integer My. Var : =1; timer My. Timer; : } : TTCN-3 An Introductory Overview, Copyright ETSI 2000 91
![Executing Test Cases Module My Module Test cases are defined in the Executing Test Cases Module My. Module { // Test cases are defined in the](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-92.jpg)
Executing Test Cases Module My. Module { // Test cases are defined in the module definitions testcase My. Test. Case() runs on My. MTC system My. Test. System { // behaviour defined here } control { // and executed in the control part execute (My. Test. Case()) } } TTCN-3 An Introductory Overview, Copyright ETSI 2000 92
![Controlling Test Cases Test Cases return verdicts executeMy Test Case value My Controlling Test Cases // Test Cases return verdicts execute(My. Test. Case()) -> value My.](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-93.jpg)
Controlling Test Cases // Test Cases return verdicts execute(My. Test. Case()) -> value My. Verdict; // Timeouts may be placed on Test Cases execute(My. Test. Case(), 0. 5) -> value My. Verdict; // Test Cases can be used with program statements while (x<10) { x: =x+1; execute(My. Test. Case()) } // Selection of Test Cases if (My. Selection. Expression) execute(My. Test. Case()) TTCN-3 An Introductory Overview, Copyright ETSI 2000 93
![Specifying Additional Attributes TTCN3 An Introductory Overview Copyright ETSI 2000 Specifying Additional Attributes TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-94.jpg)
Specifying Additional Attributes TTCN-3 An Introductory Overview, Copyright ETSI 2000
![Defining Attributes Language Element Special attributes can be associated with most TTCN3 language Defining Attributes Language Element • Special attributes can be associated with most TTCN-3 language](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-95.jpg)
Defining Attributes Language Element • Special attributes can be associated with most TTCN-3 language elements using the with statement • encoding information (encode) – standardized: ASN. 1 – application specific, proprietary • display information (display) – standardized: tabular and MSC formats Attributes – or proprietary • user-defined (extension) – proprietary TTCN-3 An Introductory Overview, Copyright ETSI 2000
![Example Attributes type record integer ia 5 string boolean with display Example Attributes type record { integer ia 5 string boolean } with { display](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-96.jpg)
Example Attributes type record { integer ia 5 string boolean } with { display encode extension } My. PDU field 1, field 2, field 3 “ETSI Tabular : = PDU”; // Tabular PDU “BER”; // Encoding directive “My. Rule” // User specific TTCN-3 An Introductory Overview, Copyright ETSI 2000 96
![An Introductory Overview The End TTCN3 An Introductory Overview Copyright ETSI 2000 An Introductory Overview The End TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-97.jpg)
An Introductory Overview The End TTCN-3 An Introductory Overview, Copyright ETSI 2000
![or just the beginning TTCN3 An Introductory Overview Copyright ETSI 2000 … or just the beginning? TTCN-3 An Introductory Overview, Copyright ETSI 2000](https://slidetodoc.com/presentation_image_h2/b69b7b7b3d464141422b0ebaa6e5ac6c/image-98.jpg)
… or just the beginning? TTCN-3 An Introductory Overview, Copyright ETSI 2000
Responsabilidade civil
Stf doboj
Louise wiles
Wiles elementary
Keith wiles
Rose wiles
Martin wiles
Wiles miracles
Vnfd
Etsi topografia
Etsi nfv sol 001
Etsi membership
Etsi reitti
Etsi mano architecture
Etsi - ict standards
Etsi ipr database
Cen cenelec etsi
Etsi portal
Etsi ipr database
Www.etsi.org
Etsi gs nfv-ifa 011
Etsi nfv release 4
Etsi ipr database
Etsi security week
Portal etsi
New standard institute
Comma introductory clause
Army traffic safety introductory course
What is an introductory element
Anecdote
Paragraphs "conclusion introduction" introductory
Phrases and clauses with examples
Introductory slide
"introductory paragraph" "thesis sentence"
Introductory chemistry concepts and critical thinking
Wonnacott and wonnacott introductory statistics pdf
Example of paragraph
Core focus on introductory algebra
Conclusion paragraph formula
Introductory material
Introductory chemistry 5th edition nivaldo j. tro
Conclusion examples
Modifying clause
Appositive and prepositional phrases
Minimum wage essay outline
Introductory phrases and commas
Introductory statistics chapter 2 answers
International project example
Army traffic safety training program
Indirect questions introductory phrases
Introductory paragraph examples
Lucy in the sky
News story example
Introductory rites clipart
Activity 1 introductory activity
Nivaldo j. tro introductory chemistry
Exodus 12:2
How to start an introduction paragraph
Introductory clause
Advanced maxqda course
Introductory clause
Www.atlasti.com
Nature of econometrics
Paragraphs "conclusion introduction" introductory
Basic essay and paragraph format
Comma after introductory phrase
Introductory rite
First paragraph of an essay
Introductory adverb clause
Introductory chemistry 4th edition
Introductory dependent clause
Lesson 1-1 variables and expressions answer key
Definition of introductory paragraph
Signal phrase example
Introductory performance review
Canterbury tales setting
Introductory adverb
Introductory prepositional phrase
Hit introduction paragraph
What is a numerical expression
Conclusion paragraph pyramid
Introductory paragraph literary analysis
Elements of therapeutic communication
Or comma rules
Introductory paragraph examples high school
Meeting agenda introduction
Introduction paragraph strategies
List of introductory phrases
Adverbal clause
Prefix multipliers
Introductory verbs in reported speech
Keeping your hands clean and dry essay
Example of introductory paragraph with thesis statement
Introductory elements examples
Anthony penn columbus ohio
Anthony tyrer
Edward anthony 1963
Anthony badea
Anthony fernandez
