AN INTRODUCTION TO THE 966 AL 3 TRUNK

AN INTRODUCTION TO THE 966 A-L 3 TRUNK SIGNALING ANALYZER TEST SET 1

This presentation is designed to give you an overview of all the keys, buttons, displays and other gadgets on the front panel of your 966 A Trunk Signaling Analyzer test set. Please refer to your USER’S MANUAL for more information about any of the functions discussed here. If you have any questions, please feel free to contact us at your convenience at don. brehm@itcmail. net, or 402 -498 -8400. TO VIEW THIS PRESENTATION, USING Power. Point, SELECT [View] AND [Slide Show]. USE YOUR COMPUTER [PAGE UP] OR [PAGE DOWN] KEYS, OR CLICK ANYWHERE ON THE SLIDE TO ADVANCE. THE [HOME] KEY WILL TAKE YOU TO THE FIRST SLIDE. THE [END] KEY WILL TAKE YOU TO THE LAST SLIDE. 2

THE FACEPLATE OF THE 966 A-L 3 TRUNK SIGNALING ANALYZER 966 A TRUNK SIGNALING ANALYZER BERRY TEST SETS REC 1 1700 1500 REC 2 3203545825 SHORT 1300 1100 900 700 LOW ERROR MS OVERFLOW DBM ORIGINATING ON HOOK TEST F TERMINATING OFF HOOK PULSE LIMIT TR READ SET MS OFF SET DBM X EXAMINE ERROR T 1 R 1 VOLUME TRUNK TYPE 1 LOOP NORMAL FUNCTION 5 E&M MONITOR DISPLAY 2 LOOP REVERSE 6 SIMULATE WINK 3 E&M ORIGNATING 7 4 E&M TERMINATING 8 9 RESET MODE REC 1 NORM AUTO SIMULATE 10 DELAY DIAL REC 2 IDDD HOLD SIMULATE BYLINK BOTH 11 MANUAL -48 V OUT POWER 3

Berry Test Sets-966 A-L 3 966 A TRUNK SIGNALING ANALYZER BERRY TEST SETS REC 1 1700 1500 REC 2 3203545825 SHORT 1300 1100 900 700 LOW ERROR MS OVERFLOW DBM ORIGINATING MAIN DISPLAY consists of 16 sevensegment red LED readouts. Up to 16 digits of either MF, DTMF or DP pulsing can be displayed at one time. F Refer to your Manual for more information. 2 ON HOOK TEST READ SET MS OFF SET DBM X EXAMINE ERROR VOLUME TRUNK TYPE 1 TERMINATING OFF HOOK PULSE LIMIT 1700, 1500, 1300, 1100, 900, 700 - red LED indicators show the different tones present when TR MF pulsing (1700 Hz, 1500 Hz, 1300 Hz, 1100 Hz, 900 Hz, 700 Hz). These are used to indicate the tones present. T 1 R 1 in mutilated MF digits when the EXAMINE ERROR key is depressed. FUNCTION ORIGINATING AND TERMINATING - OFFLOOP 5 MONITOR NORMALand ON-HOOK Red. DISPLAY LED indicators are RESET MODE used to display the OFF-HOOK and ON-HOOK LOOP SIMULATE 6 9 REC 1 NORM status of the Originating REVERSE WINK and Terminating offices of the trunk under test. 3 E&M ORIGNATING 7 SIMULATE 10 DELAY DIAL REC 2 4 E&M TERMINATING 8 SIMULATE BYLINK BOTH 11 IDDD E&M AUTO -48 V OUT HOLD MANUAL POWER NOTE: Please refer to your Operator’s Manual for more information about any key, button, knob or jack. 4

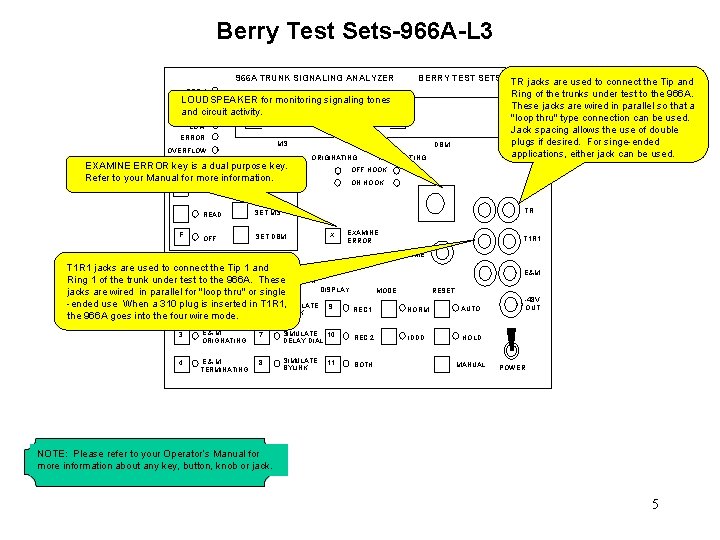

Berry Test Sets-966 A-L 3 966 A TRUNK SIGNALING ANALYZER BERRY TEST SETS REC 1 LOUDSPEAKER for monitoring signaling tones REC 2 and circuit activity. SHORT 3203545825 LOW ERROR MS OVERFLOW EXAMINE ERROR key is a dual purpose key. PULSE LIMIT Refer to your Manual for more information. DBM ORIGINATING OFF HOOK ON HOOK TEST F TERMINATING TR jacks are used to connect the Tip and Ring 1700 of the trunks under test to the 966 A. 1500 These jacks are wired in parallel so that a 1300 "loop thru" type connection can be used. 1100 Jack 900 spacing allows the use of double plugs 700 if desired. For singe-ended applications, either jack can be used. TR READ SET MS OFF SET DBM X EXAMINE ERROR T 1 R 1 VOLUME FUNCTION TRUNK TYPE T 1 R 1 jacks are used to connect the Tip 1 and LOOP 5 Ring 1 of the trunk under 1 test to. NORMAL the 966 A. These MONITOR DISPLAY jacks are wired in parallel for "loop thru" or single LOOP -ended use When a 310 2 plug is inserted in 6 T 1 R 1, SIMULATE 9 REVERSE WINK the 966 A goes into the four wire mode. E&M REC 1 NORM AUTO IDDD HOLD 3 E&M ORIGNATING 7 SIMULATE 10 DELAY DIAL REC 2 4 E&M TERMINATING 8 SIMULATE BYLINK BOTH 11 RESET MODE MANUAL -48 V OUT POWER NOTE: Please refer to your Operator’s Manual for more information about any key, button, knob or jack. 5

Berry Test Sets-966 A-L 3 966 A TRUNK SIGNALING ANALYZER BERRY TEST SETS REC 1 1700 1500 REC 2 3203545825 SHORT 1300 1100 900 700 LOW ERROR MS OVERFLOW DBM ORIGINATING ON HOOK TEST F TR READ SET MS OFF SET DBM E & M jacks are used to connect the E & M leads of the trunk under test to the 966 A. The E leads should FUNCTION TRUNK TYPE be connected to the tip of the 1 jack and LOOPM lead to the 5 MONITOR NORMAL ring. These jacks are wired in parallel. 2 LOOP REVERSE TERMINATING OFF HOOK PULSEoutput LIMIT level. VOLUME control for setting audio 6 SIMULATE WINK X EXAMINE ERROR T 1 R 1 VOLUME E&M DISPLAY 9 RESET MODE REC 1 -48 VEOUT be SIMULATE used to supply battery & M jack may 7 10 REC 2 ORIGNATING DELAY DIAL to external equipment or to an M lead for OFFHOOK condition fused at. 5 A. This jack is not SIMULATE 11 E & M on the Model 4 provided 8 BOTH 966 R. BYLINK TERMINATING 3 NORM AUTO IDDD HOLD MANUAL -48 V OUT POWER switch applies power to the 966 A and initiates the microprocessor self-test. Following the self-test, the 966 A will set itself up in the most commonly used mode of operation. NOTE: Please refer to your Operator’s Manual for more information about any key, button, knob or jack. 6

Berry Test Sets-966 A-L 3 966 A TRUNK SIGNALING ANALYZER REC 1 REC 2 3203 SHORT LOW ERROR Reset Key group is used to select the method of resetting the 966 A. The three Reset keys 5 are: 4 5 AUTO; 8 2 5 HOLD; MANUAL. MS OVERFLOW AUTO: When selected, the 966 A is automatically reset whenever a new MF, DTMF or DP PULSE LIMITrecord is received. The 966 A can also be manually reset TEST reset. while in AUTO by using MANUAL F 1700 1500 1300 1100 900 700 DBM ORIGINATING TERMINATING OFF HOOK ON HOOK TR READ SET MS OFF SET DBM HOLD: When selected, prevents the 966 A FUNCTION TRUNK TYPE from being automatically reset. In HOLD, the LOOP 1 5 MONITOR 966 A can only be reset by using. NORMAL MANUAL reset. 2 LOOP REVERSE 6 SIMULATE WINK 3 E&M ORIGNATING 7 8 MANUAL: Momentary action key used to E&M 4 manually reset the 966 A. TERMINATING BERRY TEST SETS X EXAMINE ERROR T 1 R 1 VOLUME E&M DISPLAY 9 RESET MODE REC 1 NORM AUTO SIMULATE 10 DELAY DIAL REC 2 IDDD HOLD SIMULATE BYLINK BOTH 11 MANUAL -48 V OUT POWER NOTE: Please refer to your Operator’s Manual for more information about any key, button, knob or jack. 7

Berry Test Sets-966 A-L 3 966 A TRUNK SIGNALING ANALYZER BERRY TEST SETS REC 1 1700 1500 REC 2 3203545825 SHORT 1300 LOW The Display key group is used to select the 966 AERROR method of operation for MS either single or OVERFLOW multiple-stage outpulsing trunks. ORIGINATING The Mode DBM key group is 966 A operating mode. TERMINATING ON HOOK NORM: Used for all trunks except IDDD TR READ OFF the OFF HOOK PULSEtrunks. LIMIT REC 1: Used for single-stage outpulsing Pulses are stored in RECORD 1 and displayed TEST as received. Also used to select RECORD 1 for MAIN DISPLAY. SET MS F 1100 900 used 700 to select SET DBM X EXAMINE ERROR T 1 R 1 VOLUME TRUNK TYPE LOOP 1 REC 2: Used for dual-stage outpulsing trunks NORMALand to select RECORD 2 for the MAIN DISPLAY. FUNCTION 5 MONITOR DISPLAY 2 LOOP REVERSE 6 SIMULATE WINK 3 E&M ORIGNATING 7 8 BOTH: Used for three-stage outpulsing trunks and to command alternate display 4 of RECORD 1 E&M TERMINATING and RECORD 2 every 4 seconds. 9 RESET MODE REC 1 NORM AUTO SIMULATE 10 DELAY DIAL REC 2 IDDD HOLD SIMULATE BYLINK BOTH 11 MANUAL E&M IDDD: Used for International Direct Distance Dialing trunks either inside or outside -48 V the North American switched OUT network. POWER NOTE: Please refer to your Operator’s Manual for more information about any key, button, knob or jack. 8

Berry Test Sets-966 A-L 3 966 A TRUNK SIGNALING ANALYZER BERRY TEST SETS REC 1 1700 1500 REC 2 3203545825 SHORT ERROR MS OVERFLOW ORIGINATING TERMINATING MONITOR: Allows the 966 A to MONITOR trunks on a high-impedance bridging basis to insure no interference with normal trunk operation. OFF HOOK PULSE LIMIT ON HOOK TEST F 1300 1100 Function key group is used to select the function of the 966 A. The 900 966 A can be used either as a pulsing and supervising monitor or it DBM can be used to actually simulate the terminating 700 office. LOW TR READ SET MS OFF SET DBM X EXAMINE ERROR T 1 R 1 VOLUME TRUNK TYPE 1 LOOP NORMAL FUNCTION 5 MONITOR DISPLAY 2 LOOP REVERSE 6 SIMULATE WINK 3 E&M ORIGNATING 7 4 E&M TERMINATING 8 NOTE: Please refer to your Operator’s Manual for more information about any key, button, knob or jack. 9 MODE SIMULATE WINK: Causes the 966 A simulates a WINK start Terminating office, i. e. , 200 m. S after the Originating office seizes the E&M trunk under test, the 966 A provides a momentary Terminating office OFF-HOOK of 150 m. S RESET (WINK is adjustable -48 V in 850 level software). REC 1 NORM AUTO SIMULATE 10 DELAY DIAL REC 2 IDDD HOLD SIMULATE BYLINK BOTH 11 OUT SIMULATE DELAY DIAL: Causes the 966 A to simulate a DELAY DIAL start Terminating office, MANUAL POWER i. e. , within 80 m. S after the Originating office seizes the trunk under test, 966 A provides a momentary Terminating office OFF-HOOK (Delay Dialing Signal) of 150 m. S. SIMULATE BYLINK: Causes the 966 A to simulate a BYLINK (IMMEDIATE DIAL) Terminating office. 9

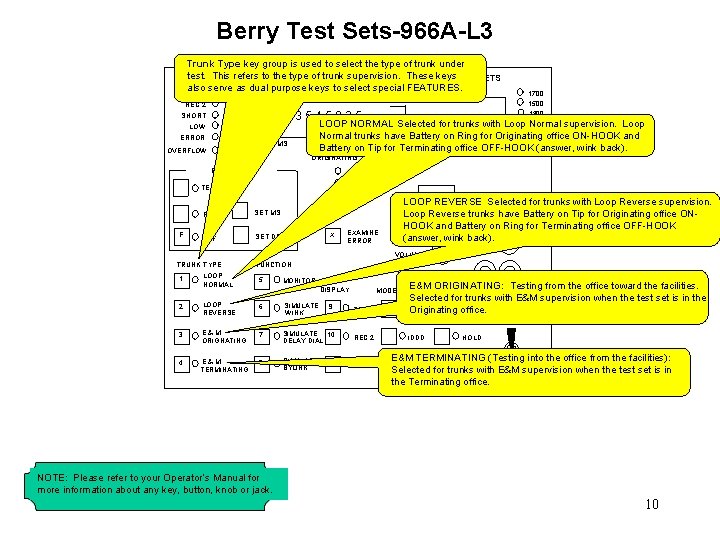

Berry Test Sets-966 A-L 3 Trunk Type key group is used to select the type of trunk under test. This refers to the type of trunk ANALYZER supervision. These keys. TEST SETS BERRY 966 A TRUNK SIGNALING also serve as dual purpose keys to select special FEATURES. REC 1 REC 2 3203545825 SHORT ERROR MS ORIGINATING TERMINATING OFF HOOK PULSE LIMIT ON HOOK TEST F 1300 1100 LOOP NORMAL Selected for trunks with Loop Normal supervision. Loop 900 office ON-HOOK and Normal trunks have Battery on Ring for Originating DBM Battery on Tip for Terminating office OFF-HOOK 700 (answer, wink back). LOW OVERFLOW 1700 1500 READ SET MS OFF SET DBM X LOOP REVERSE Selected for trunks with Loop Reverse supervision. TR Loop Reverse trunks have Battery on Tip for Originating office ONHOOK and Battery on Ring for Terminating office OFF-HOOK T 1 R 1 (answer, wink back). EXAMINE ERROR VOLUME TRUNK TYPE FUNCTION E&M LOOP NORMAL 5 2 LOOP REVERSE 6 SIMULATE WINK 3 E&M ORIGNATING 7 4 E&M TERMINATING 8 1 MONITOR REC 1 E&MRESET ORIGINATING: Testing from the office toward the facilities. Selected for trunks with E&M -48 V supervision when the test set is in the OUT AUTO NORM Originating office. SIMULATE 10 DELAY DIAL REC 2 IDDD SIMULATE BYLINK BOTH DISPLAY 9 11 MODE HOLD E&M TERMINATING (Testing into the office from the facilities): MANUAL POWER Selected for trunks with E&M supervision when the test set is in the Terminating office. NOTE: Please refer to your Operator’s Manual for more information about any key, button, knob or jack. 10

Berry Test Sets-966 A-L 3 The F KEY is used to select one of several special FEATURES. This key initiates the FEATURE selection process. Individual FEATURES are selected by the numbered keys. BERRY TEST SETS 966 A TRUNK SIGNALING ANALYZER located in the Trunk Type, Function, REC and Display key groups. Features are selected by 1 first activating the "F" key and then REC selecting the appropriate Feature key. 2 1700 1500 3203545825 SHORT 1300 1100 LOW 1: DETECT MISSING KP/ST-Detects and holds MF pulsing records which do not begin with KP and end with 900 ERROR ST, STP, ST 2 P or ST 3 P. Note: FEATURE 1 disables DTMF reception MS DBM 700 when selected. OVERFLOW 2: NO KP REQUIRED-Accepts MF records without the normally required beginning KP. Note: FEATURE 2 ORIGINATING TERMINATING disables DTMF reception when selected. OFF HOOK PULSE LIMIT 3: DETECT ”NO ANSWER” and holds pulsing records when the Originating office ONSUPERVISION-Detects HOOK TEST remains OFF-HOOK for over two minutes without the Terminating office ever going OFF-HOOK. 4: DTMF (TOUCHTONE) ENABLE-Allows unit to accept DTMF signaling. NOTE: DTMF receivers remain TR SET MS testing and may cause voice hits. READ open during 5: AUTOMATICALLY BILLED CALLS (ABC) DISPLAY-Records and displays the three-record pulsing EXAMINE F X DBM OFF format. SET employed in Automatically records are MF for the Called and Calling ERROR Billed Calls (ABC). The first two T 1 R 1 number. The third record is DTMF for. VOLUME the credit card number. TRUNK TYPE 1 LOOP NORMAL FUNCTION 5 E&M MONITOR DISPLAY 2 LOOP REVERSE 6 SIMULATE WINK 3 E&M ORIGNATING 7 4 E&M TERMINATING 8 9 RESET MODE REC 1 NORM AUTO SIMULATE 10 DELAY DIAL REC 2 IDDD HOLD SIMULATE BYLINK BOTH 11 MANUAL -48 V OUT POWER NOTE: Please refer to your Operator’s Manual for more information about any key, button, knob or jack. 11

Berry Test Sets-966 A-L 3 FEATURE GROUP D SERVICE TRUNKS for "EQUAL ACCESS. ” 6: RECEIVE EA RECORD-When testing the FEATURE GROUP D type protocol for EQUAL ACCESS, BERRY TEST SETS 966 A 1 TRUNK SIGNALING ANALYZER select this feature when expecting one record per call. REC 1 1700 7: 2 RECEIVE 2 EA RECORDS-When testing the FEATURE GROUP D type 1500 protocol for a EQUAL ACCESS, REC select this feature when expecting two records per call. 1300 SHORT 3203545825 8: RECEIVE 3 EA RECORDS-When testing the FEATURE GROUP D type 1100 protocol for EQUAL ACCESS, LOW 900 select this feature when expecting three records per call. ERROR MS DBM 700 9: WINK AFTER 1 st RECORD-When testing the FEATURE GROUP D EQUAL ACCESS, select this feature OVERFLOW ORIGINATING when protocol requires a WINK back after. TERMINATING RECORD 1. OFF HOOK 10: PULSE WINKLIMIT AFTER 2 nd RECORD-When testing the FEATURE GROUP D EQUAL ACCESS, select this ON HOOK feature when protocol requires a WINK back after RECORD 2. TEST 11: WINK AFTER 3 rd RECORD-When testing the FEATURE GROUP D EQUAL ACCESS, select this feature when protocol requires a WINK back after RECORD 3. TR SET MS READ F OFF SET DBM X EXAMINE ERROR T 1 R 1 VOLUME TRUNK TYPE 1 LOOP NORMAL FUNCTION 5 E&M MONITOR DISPLAY 2 LOOP REVERSE 6 SIMULATE WINK 3 E&M ORIGNATING 7 4 E&M TERMINATING 8 9 RESET MODE REC 1 NORM AUTO SIMULATE 10 DELAY DIAL REC 2 IDDD HOLD SIMULATE BYLINK BOTH 11 MANUAL -48 V OUT POWER OFF: Deactivates the Pulse Limit Feature. Also used to initiate the FEATURE selection mode. NOTE: Please refer to your Operator’s Manual for more information about any key, button, knob or jack. 12

Berry Test Sets-966 A-L 3 966 A TRUNK SIGNALING ANALYZER BERRY TEST SETS REC 1 1700 1500 REC 2 3203545825 SHORT 1300 1100 900 700 LOW ERROR MS OVERFLOW DBM ORIGINATING ON HOOK TEST F TERMINATING OFF HOOK PULSE LIMIT TR READ SET MS OFF SET DBM X EXAMINE ERROR T 1 R 1 VOLUME TRUNK TYPE 1 LOOP NORMAL FUNCTION 5 E&M MONITOR DISPLAY 2 LOOP REVERSE 6 SIMULATE WINK 3 E&M ORIGNATING 7 SIMULATE 10 DELAY DIAL 4 E&M TERMINATING 8 SIMULATE BYLINK 9 11 RESET MODE REC 1 NORM AUTO -48 V OUT PULSE LIMIT TEST key group is located on the left side of the IDDD HOLD panel enclosed in a white outline. When activated, the Pulse Limit Test allows the operator to set predetermined limits for amplitude BOTH and width of MF and/or. MANUAL DTMF pulses POWERand to compare these limits for amplitude and width of each MF or DTMF pulse received. When pulses fail to meet these limits, the LOW and/or SHORT LED indicators located to the left of the MAIN DISPLAY are illuminated as appropriate. By using the EXAMINE ERROR key the operator can tell which pulses failed which limits. REC 2 NOTE: Please refer to your Operator’s Manual for more information about any key, button, knob or jack. 13

Berry Test Sets-966 A-L 3 966 A TRUNK SIGNALING ANALYZER REC 1 1700 TEST: Activates the Pulse Limit Test feature. Any MF or DTMF pulses which fail 1500 to meet the operator-set amplitude and width limits cause the LOW and/or SHORT 1300 3203545825 LED indicators to illuminate as appropriate and the 966 A to 1100 jump from AUTO to 900 failures. HOLD. This feature is useful for trapping intermittent pulsing REC 2 SHORT LOW ERROR MS OVERFLOW DBM ORIGINATING TERMINATING ON HOOK READ: Commands the MAIN DISPLAY to indicate the present MF and DTMF pulse limits used in the Pulse Limit Test. TEST TR READ SET MS OFF SET DBM SET MS: Sets the pulse width limit. Each time the SET MS key EXAMINE T 1 R 1 is. X pressed, 5 milliseconds. ERROR the MS display value increases by The pulse width. VOLUME may be set over a range of 30 m. S to 120 m. S. FUNCTION TRUNK TYPE 1 700 OFF HOOK PULSE LIMIT F BERRY TEST SETS LOOP NORMAL 5 E&M MONITOR DISPLAY RESET MODE 2 LOOP SET d. Bm: Sets the pulse amplitude SIMULATE 6 9 REC 1 REVERSE WINK limit. NORM Each time the SET DBM key is pressed, the DBM display value increases 2 d. Bm. SIMULATE 3 E&M ORIGNATING 7 4 E&M TERMINATING 8 DELAY DIAL SIMULATE BYLINK 10 REC 2 11 BOTH IDDD AUTO -48 V OUT HOLD MANUAL POWER OFF: Deactivates the Pulse Limit Feature. Also used to initiate the FEATURE selection mode. NOTE: Please refer to your Operator’s Manual for more information about any key, button, knob or jack. 14

Berry Test Sets-966 A-L 3 966 A TRUNK SIGNALING ANALYZER BERRY TEST SETS REC 1 1700 1500 REC 2 3203545825 SHORT 1300 LOW ERROR MS OVERFLOW DBM ORIGINATING TERMINATING OFF HOOK PULSE LIMIT ON HOOK TEST F 1100 900 700 READ SET MS OFF SET DBM TR X EXAMINE T 1 R 1 ERROR REC 1: When illuminated, indicates that RECORD 1 is being displayed or, if no display is present, indicates that VOLUME RECORD 1 will be next record displayed. FUNCTION TRUNK TYPE REC 2: When illuminated, indicates that RECORD 2 is being displayed. E&M LOOP 1 DTMF SHORT: Indicates that an MF or pulse has 5 been. MONITOR received that is shorter than the operator-set Pulse Limit Test NORMAL DISPLAY value. Also used to indicate that the digit being examined by the EXAMINEMODE ERROR key, RESET is shorter than the Pulse Limit -48 V test value. LOOP SIMULATE 2 6 9 OUT AUTO REC 1 NORM REVERSE WINK LOW: Only operates when the Pulse Test Limit is in the TEST condition. When illuminated, indicates that an MF or DTMF pulse has been received that. Eis& lower than the operator-set Pulse Limit Test value. Also used to indicate that the M SIMULATE 10 3 7 IDDD Value. HOLD REC 2 Limit Test digit being examined by the EXAMINE ERROR Key, is. DELAY lower. DIAL than the Pulse ORIGNATING ERROR: When illuminated, indicates an incorrect digit has been received. SIMULATE E&M 4 indicates 8 11 have OVERFLOW: When illuminated, that more than 16 digits been entered into a record. BOTH MANUAL POWER BYLINK TERMINATING NOTE: Please refer to your Operator’s Manual for more information about any key, button, knob or jack. 15

966 A & 966 R DESCRIPTION OF ACCEPTING AND RECORDING DIGITS FOR VIEWING The 966 A Trunk Signaling Analyzer is capable of receiving, storing and analyzing MF & DTMF digits. The 966 A can also receive and store DP digits. The received digits are stored in RECORD 1 (REC 1), RECORD 2 (REC 2) & OVERFLOW. The total number of digits stored or viewed is 96. Please refer to the “ 966 A & 966 R DESCRIPTION OF ACCEPTING AND RECORDING DIGITS FOR VIEWING” section of your Operator’s Manual for more information. A printer can also be connected to your 966 A to record the events. Please refer to the“PRINTER INSTRUCTIONS” section of your Operator’s Manual for more information and step-by-step instructions. Now - On to the tests! 16

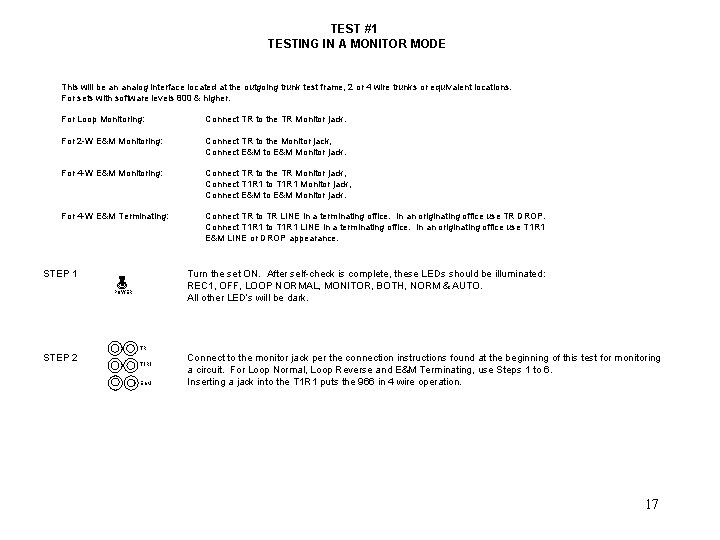

TEST #1 TESTING IN A MONITOR MODE This will be an analog interface located at the outgoing trunk test frame, 2 or 4 wire trunks or equivalent locations. For sets with software levels 800 & higher. For Loop Monitoring: Connect TR to the TR Monitor jack. For 2 -W E&M Monitoring: Connect TR to the Monitor jack, Connect E&M to E&M Monitor jack. For 4 -W E&M Monitoring: Connect TR to the TR Monitor jack, Connect T 1 R 1 to T 1 R 1 Monitor jack, Connect E&M to E&M Monitor jack. For 4 -W E&M Terminating: Connect TR to TR LINE in a terminating office. In an originating office use TR DROP. Connect T 1 R 1 to T 1 R 1 LINE in a terminating office. In an originating office use T 1 R 1 E&M LINE or DROP appearance. STEP 1 Turn the set ON. After self-check is complete, these LEDs should be illuminated: REC 1, OFF, LOOP NORMAL, MONITOR, BOTH, NORM & AUTO. All other LED’s will be dark. POWER TR STEP 2 T 1 R 1 E&M Connect to the monitor jack per the connection instructions found at the beginning of this test for monitoring a circuit. For Loop Normal, Loop Reverse and E&M Terminating, use Steps 1 to 6. Inserting a jack into the T 1 R 1 puts the 966 in 4 wire operation. 17

TEST #1 TESTING IN A MONITOR MODE STEP 3 F OFF Depress the OFF/F key to enable the eleven possible feature selections. The F key LED will blink when feature selection is enabled. NOTE: If equal access testing is chosen keep in mind you must select the correct relationship between records and winks. STEP 4 Select the desired features. 1 FEATURE 1: DETECT MISSING KP/ST 2 FEATURE 2: NO KP REQUIRED 3 FEATURE 3: DETECT “NO ANSWER” SUPERVISION 4 FEATURE 4: DTMF (TOUCHTONE) ENABLE 5 FEATURE 5: AUTOMATICALLY BILLED CALLS (ABC) DISPLAY 6 FEATURE 6: EQUAL ACCESS ONE RECORD CALL 7 FEATURE 7: EQUAL ACCESS TWO RECORD CALLS 8 FEATURE 8: EQUAL ACCESS THREE RECORD CALLS 9 FEATURE 9: WINK BACK AFTER RECORD ONE 10 FEATURE 10: WINK BACK AFTER RECORD TWO 11 FEATURE 11: WINK BACK AFTER RECORD THREE Certain feature selections will not allow other features to be selected. (6 = 1 record, 7 = 2 records, 8 = 3 records). The associated LEDs will blink after selections. Key 9, 10 or 11 must be selected to match the wink back required for each record (9 = wink back after record 1, 10 = wink back after record 2, and 11 = wink back after record 3). For example: If 2 records are needed to complete the IDDD call and a wink is required after each record, press keys 7, 9 and 10. 18

TEST #1 TESTING IN A MONITOR MODE STEP 5 X EXAMINE ERROR The first depression of this key will result in the word [AUTO] appearing in the first set of brackets. A second depression will result in the word [SUPER] appearing in the second bracket. A third depression will result in both AUTO and SUPER flashing. If you are on the receive side of the DS 1 circuit select [AUTO]. If you are on the transmit side, select [AUTO] and [SUPER]. AUTO blinks on and off and prepares the set to automatically print any record with an error and then return to testing. Without this feature the 966 A will hold the record until the operator reviews the errors. SUPER blinks on and off and prepares the set to give interdigit and wink times. Wink timing details will only be printed if you are monitoring or simulating a wink start circuit. If no wink is sent or if a wink is mutilated, no time is recorded. If you are monitoring or simulating an equal access line, the last time given is called END-WINK to TERM OFF-HOOK. STEP 6 STEP 7 STEP 8 F OFF 1 LOOP NORMA L 2 LOOP REVERSE 3 E&M ORIGNATING 4 E&M TERMINATING READ Depress the OFF/F key to lock in feature selections. When LED is solid, feature selection is locked. Select trunk type in accordance with location, cable connections and trunk type. If you wish to alter the default thresholds for digit power and duration, select READ. The default settings are 30 ms and -24 d. Bm. 19

TEST #1 TESTING IN A MONITOR MODE STEP 9 SET MS SET DBM STEP 10 STEP 11 STEP 12 TEST REC 1 AUTO If READ was selected in STEP 8 use the SET MS and SET DBM keys to change the default settings. A change will occur and be displayed with each key depression. SET DBM will step from -24 to +4 in 2 db steps. SET MS will step from 30 ms to 120 ms in 5 ms steps. Select TEST which will lock in previous MS and d. Bm selection and prepare the unit to highlight and capture any digits that have a low power or short duration problem. Select REC 1, REC 2 or BOTH. Select AUTO. The 966 A will now display all recorded digits. If no printer was connected at power on, any record with an error will be captured and held until examined by the operator. If a printer was connected and operating at power on, proceed to the next step to set up the AUTO capture mode. SOFTWARE LEVEL 850 REQUIRED - If the Printer Port on the Test Set was connected in the beginning of this test and interfaced properly the Test Set will now receive and forward multiple records to the printer or computer. When an “event” occurs, the test set will switch to HOLD until the event is logged via the Printer Port. The Test Set will automatically switch to AUTO after the event is logged. STEP 13 AUTO Select AUTO. NOTE: The Printer Port on the test set must be connected to a printer or PC, and working. If not turn the test set off and return to the NOTE prior to STEP 1. The Test Set will now receive and forward multiple records to the printer or computer. When an “event” occurs, the test set will switch to HOLD until the event is logged via the Printer Port. The Test Set will automatically switch to AUTO after the event is logged. If logging is not desired, disconnect the Printer or PC. 20

TEST #2 TESTING IN A TERMINATING MODE For Loop Terminating: Connect TR to TR "LINE" in a terminating office. In an originating office use TR "DROP". For 2 -W E&M Terminating: Connect TR to TR "LINE" in a terminating office. In an originating office use TR DROP. Connect E&M to the appropriate E&M "LINE" or "DROP" appearance. NOTE: If you wish to have a printer or PC attached to the 966 A, connect the printer or PC before turning on the power in STEP 1. If the printer was set for 1200 bps 7 data bits, even parity, one stop bit, Xon -Xoff disabled and attached to the 966 A prior to Step 1, a message stating copyright and 966 A switch settings would have been printed (assuming the ON-LINE mode of the printer was enabled). If no copyright message appears, turn the 966 A off and check all connections and printer settings. The only thing that the 966 A can change via the front panel is the baud rate which is done during the self-check cycle. Refer to your Operator’s Manual for complete details. STEP 1 POWER TR STEP 2 Turn the set ON. After self-check is complete, these LEDs should be illuminated: REC 1, OFF, LOOP NORMAL, MONITOR, BOTH, NORM & AUTO. All other LEDs will be dark. Connect the test set as stated at the beginning of this test. T 1 R 1 E&M STEP 3 F OFF Depress the OFF/F key to enable the eleven possible feature selections. The F key LED will blink when the Feature Select is enabled. Use Feature 1 through 5 for Non-equal Access. Use Feature 6 through 11 for Equal Access calls. 21

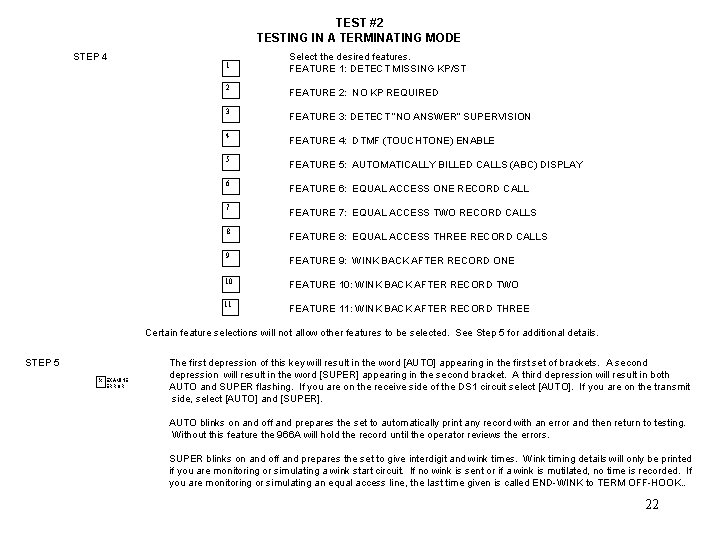

TEST #2 TESTING IN A TERMINATING MODE STEP 4 1 Select the desired features. FEATURE 1: DETECT MISSING KP/ST 2 FEATURE 2: NO KP REQUIRED 3 FEATURE 3: DETECT “NO ANSWER” SUPERVISION 4 FEATURE 4: DTMF (TOUCHTONE) ENABLE 5 FEATURE 5: AUTOMATICALLY BILLED CALLS (ABC) DISPLAY 6 FEATURE 6: EQUAL ACCESS ONE RECORD CALL 7 FEATURE 7: EQUAL ACCESS TWO RECORD CALLS 8 FEATURE 8: EQUAL ACCESS THREE RECORD CALLS 9 FEATURE 9: WINK BACK AFTER RECORD ONE 10 FEATURE 10: WINK BACK AFTER RECORD TWO 11 FEATURE 11: WINK BACK AFTER RECORD THREE Certain feature selections will not allow other features to be selected. See Step 5 for additional details. STEP 5 X EXAMINE ERROR The first depression of this key will result in the word [AUTO] appearing in the first set of brackets. A second depression will result in the word [SUPER] appearing in the second bracket. A third depression will result in both AUTO and SUPER flashing. If you are on the receive side of the DS 1 circuit select [AUTO]. If you are on the transmit side, select [AUTO] and [SUPER]. AUTO blinks on and off and prepares the set to automatically print any record with an error and then return to testing. Without this feature the 966 A will hold the record until the operator reviews the errors. SUPER blinks on and off and prepares the set to give interdigit and wink times. Wink timing details will only be printed if you are monitoring or simulating a wink start circuit. If no wink is sent or if a wink is mutilated, no time is recorded. If you are monitoring or simulating an equal access line, the last time given is called END-WINK to TERM OFF-HOOK. . 22

TEST #2 TESTING IN A TERMINATING MODE STEP 6 STEP 7 F OFF 1 LOOP NORMA L 2 LOOP REVERSE 3 E&M ORIGNATING 4 E&M TERMINATING Depress the OFF/F key to lock in feature selection(s). Select trunk type in accordance with location and cable connections and trunk type. To set variable wink timing, see Note A at the end of this test. NOTE: If the Digital Interface is being used for access to a DS 0 circuit, E & M TERMINATING MUST be the selection. STEP 8 5 MONITOR 6 SIMULATE WINK 7 SIMULATE DELAY DIAL 8 SIMULATE BYLINK STEP 9 READ SET MS STEP 10 SET DBM TEST STEP 11 STEP 12 STEP 13 STEP 14 11 Select the correct function in accordance with trunk type. All equal access trunks use SIMULATE WINK, as do 911 and DID circuits. Select READ, If you wish to alter the default thresholds for digit power and duration. The default settings are 30 ms and -24 d. Bm. If READ was selected in STEP 9 use the SET MS and SET DBM keys to change the default settings. A change will occur and be displayed with each key depression. SET DBM will step from -24 to +4 in 2 db steps. SET MS will step from 30 ms to 120 ms in 5 ms steps. Select TEST BOTH Select BOTH NORM Select NORM. AUTO Select AUTO. After a record with an error occurs the 966 A will change to HOLD while the event is logged. After the event is logged, the Test Set will automatically switch to AUTO. SEE NOTES ON NEXT SLIDE 23

TEST #2 TESTING IN A TERMINATING MODE First go to Feature Select. You will see [AUTO] [SUPER] displayed. Press and release the MANUAL button. You will see PR 1 110. Press the EXAMINE button. You will see DUR 1 150. Press the EXAMINE button two more times. You will cycle past DUR 2 200 and then return to PR 1 110. You can adjust whichever value is showing in the display. PR means pre-wink or idle time. DUR means wink of off-hook duration time. All readings are in milliseconds. The limits are 20 MS to 500 MS. Pressing the AUTO button causes the count to go up. Pressing the HOLD button causes the count to go down. At first the count changes by 1, but if you hold the AUTO or HOLD button, after 10 counts, the count will change by 10 each time. If you release and press the button again, the count changes by 1. When you approach the limits, the count will change by 1 for approximately the last 10 digits, even if you were moving by tens. When you reach the end limit, the count will flash. To reset the wink timing to default timing press the HOLD and AUTO keys at the same time. If takes about 1 second for the defaults to be reset. You must be in wink adjust mode to reset to default timing. There is a 90 MS stand off built into the first pre-wink (PR 1). This means that if you adjust the PR 1 setting to its minimum of 20 MS, you will record a pre-wink time of 110 MS (90 + 20). Always add the stand off time to the display to figure total expected time from line seizure to wink. PR 1 and DUR 1 refer only to the starting wink. DUR 2 refers to all other winks except IDDD winks, which are set to 100 MS and are not adjustable. To exit the wink adjust mode, press the MANUAL button. This returns you to the [AUTO][SUPER] display. 24

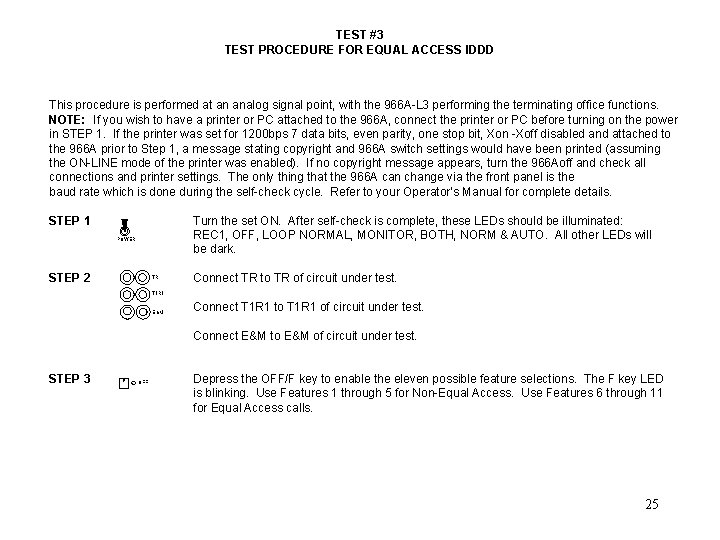

TEST #3 TEST PROCEDURE FOR EQUAL ACCESS IDDD This procedure is performed at an analog signal point, with the 966 A-L 3 performing the terminating office functions. NOTE: If you wish to have a printer or PC attached to the 966 A, connect the printer or PC before turning on the power in STEP 1. If the printer was set for 1200 bps 7 data bits, even parity, one stop bit, Xon -Xoff disabled and attached to the 966 A prior to Step 1, a message stating copyright and 966 A switch settings would have been printed (assuming the ON-LINE mode of the printer was enabled). If no copyright message appears, turn the 966 Aoff and check all connections and printer settings. The only thing that the 966 A can change via the front panel is the baud rate which is done during the self-check cycle. Refer to your Operator’s Manual for complete details. STEP 1 Turn the set ON. After self-check is complete, these LEDs should be illuminated: REC 1, OFF, LOOP NORMAL, MONITOR, BOTH, NORM & AUTO. All other LEDs will be dark. POWER STEP 2 TR Connect TR to TR of circuit under test. T 1 R 1 E&M Connect T 1 R 1 to T 1 R 1 of circuit under test. Connect E&M to E&M of circuit under test. STEP 3 F OFF Depress the OFF/F key to enable the eleven possible feature selections. The F key LED is blinking. Use Features 1 through 5 for Non-Equal Access. Use Features 6 through 11 for Equal Access calls. 25

TEST #3 TEST PROCEDURE FOR EQUAL ACCESS IDDD STEP 4 1 Select the desired features. FEATURE 1: DETECT MISSING KP/ST 2 FEATURE 2: NO KP REQUIRED 3 FEATURE 3: DETECT “NO ANSWER” SUPERVISION 4 FEATURE 4: DTMF (TOUCHTONE) ENABLE 5 FEATURE 5: AUTOMATICALLY BILLED CALLS (ABC) DISPLAY 6 FEATURE 6: EQUAL ACCESS ONE RECORD CALL 7 FEATURE 7: EQUAL ACCESS TWO RECORD CALLS 8 FEATURE 8: EQUAL ACCESS THREE RECORD CALLS 9 FEATURE 9: WINK BACK AFTER RECORD ONE 10 FEATURE 10: WINK BACK AFTER RECORD TWO 11 FEATURE 11: WINK BACK AFTER RECORD THREE NOTE: Certain feature selections will not allow other features to be selected. (6 = 1 record, 7 = 2 records, 8 = 3 records). The associated LEDs will blink after selections. Key 9, 10 or 11 must be selected to match the wink back after required for each record (9 = wink back after record 1, 10 = wink back after record 1, and 11 = wink back after record 3). For example: If 2 records are needed to complete the IDDD call and a wink is required after each record, press keys 7, 9 and 10. The 966 A will also send more than 1 wink between records. 26

TEST #3 TEST PROCEDURE FOR EQUAL ACCESS IDDD STEP 5 X EXAMINE ERROR The first depression of this key will result in the word [AUTO] appearing in the first set of brackets. A second depression will result in the word [SUPER] appearing in the second bracket. A third depression will result in both AUTO and SUPER flashing. If you are on the receive side of the DS 1 circuit select [AUTO]. If you are on the transmit side, select [AUTO] and [SUPER]. AUTO blinks on and off and prepares the set to automatically print any record with an error and then return to testing. Without this feature the 966 A will hold the record until the operator reviews the errors. SUPER blinks on and off and prepares the set to give interdigit and wink times. Wink timing details will only be printed if you are monitoring or simulating a wink start circuit. If no wink is sent or if a wink is mutilated, no time is recorded. If you are monitoring or simulating an equal access line, the last time given is called END-WINK to TERM OFF-HOOK. STEP 6 F OFF LOOP NORMA L STEP 7 LOOP REVERSE E&M ORIGNATING E&M TERMINATING STEP 8 6 STEP 9 11 SIMULATE WINK BOTH Depress the OFF/F key to lock in feature selection(s). Select Trunk Type in accordance with location and cable connections. The 966 A will now display all recorded digits. NOTE: If the Digital Interface is being used for access to a DS 0 circuit, E & M TERMINATING MUST be the selection. Select SIMULATE WINK. Select BOTH. 27

TEST #3 TEST PROCEDURE FOR EQUAL ACCESS IDDD STEP 10 NORM Select IDDD STEP 11 STEP 12 READ SET MS SET DBM STEP 13 AUTO Select READ, If you wish to alter the default thresholds for digit power and duration. The default settings are 30 ms and -24 d. Bm. If READ was selected in STEP 11 use the SET MS and SET DBM keys to change the default settings. A change will occur and be displayed with each key depression. SET DBM will step from -24 to +4 in 2 db steps. SET MS will step from 30 ms to 120 ms in 5 ms steps. Select AUTO. After a record with an error occurs, the 966 A will change to "HOLD. " Use the manual key to change back to "AUTO. " After the IDDD call is completed, the 966 A will transmit an answer back tone of 1004 Hz at +7 d. Bm in E&M Originating or -16 d. Bm in E&M terminating. 28

CONGRATULATIONS !!! You made it through this document. That’s a good thing!! Now refer to your manual to set up and run a test. We appreciate you support and your business. If you have any questions please contact us at 402 -498 -8400 or email - don. brehm@itcmail. net. 29
