AN INTRODUCTION TO SUBSURFACE DRIP IRRIGATION SSDI GEOFLOW

AN INTRODUCTION TO SUBSURFACE DRIP IRRIGATION SSDI GEOFLOW 1 -800 -828 -3388 www. geoflow. com

Program How it works l The advantages of and when to use SSDI l A few examples l Geoflow Products l GEOFLOW

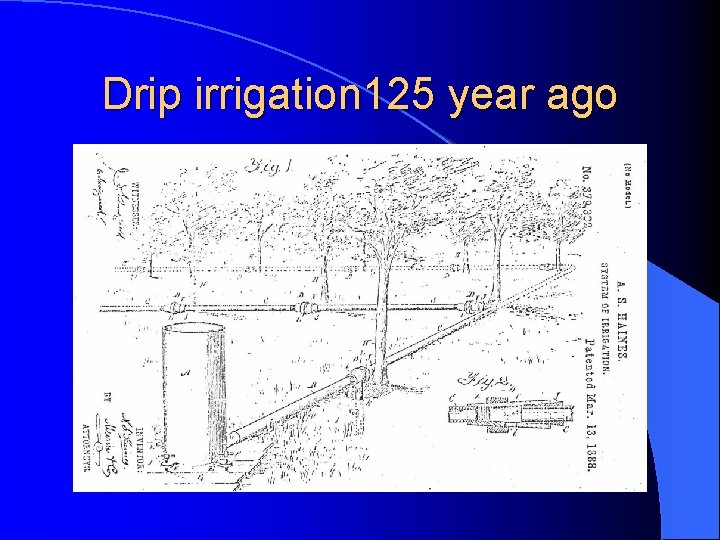

Drip irrigation 125 year ago

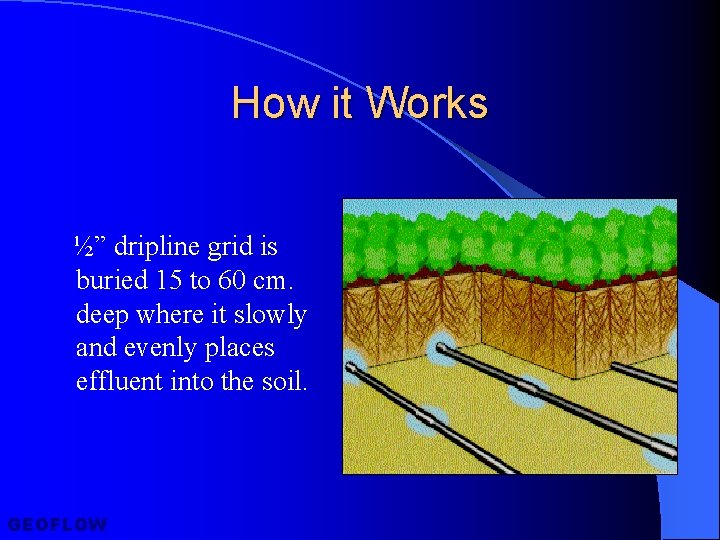

How it Works ½” dripline grid is buried 15 to 60 cm. deep where it slowly and evenly places effluent into the soil. GEOFLOW

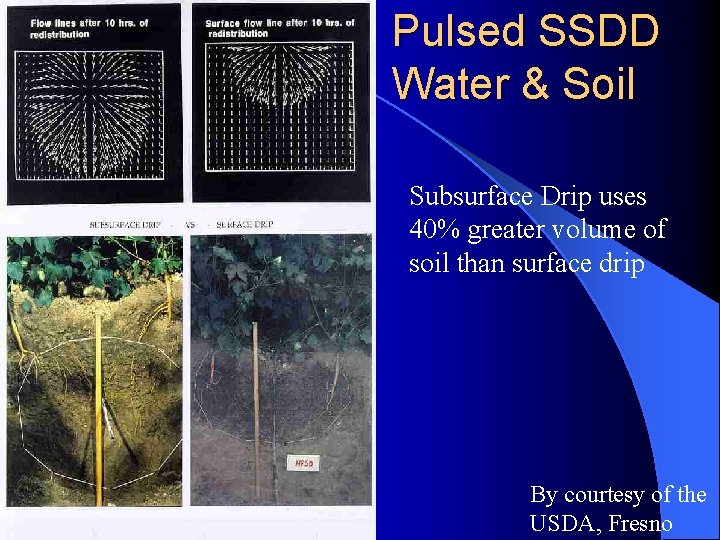

Pulsed SSDD Water & Soil Subsurface Drip uses 40% greater volume of soil than surface drip By courtesy of the USDA, Fresno

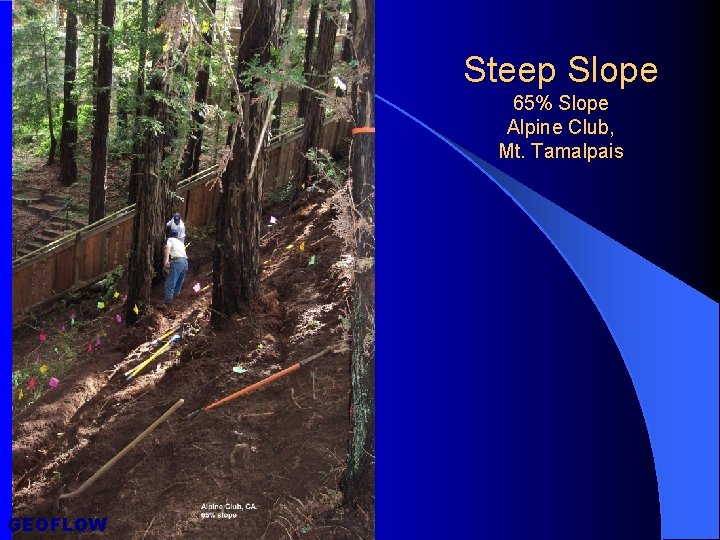

Steep Slope 65% Slope Alpine Club, Mt. Tamalpais GEOFLOW

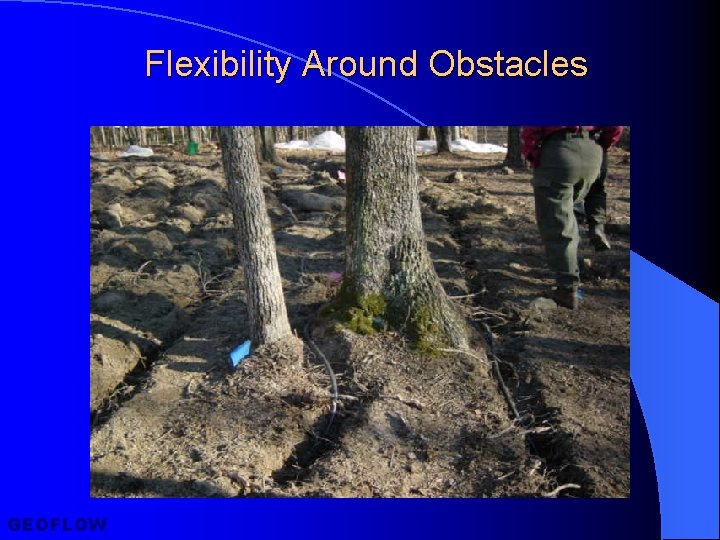

Flexibility Around Obstacles GEOFLOW

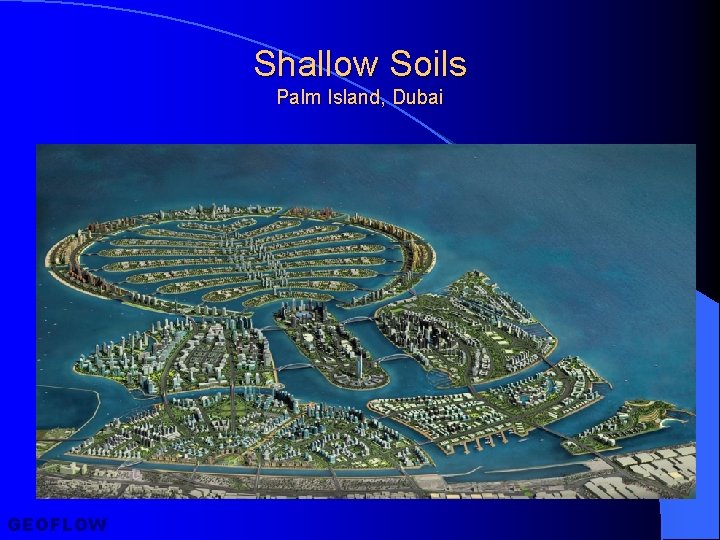

Shallow Soils Palm Island, Dubai GEOFLOW

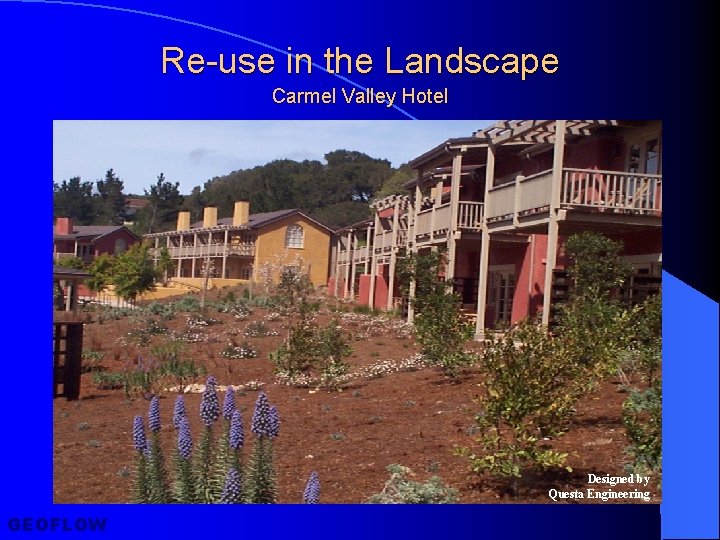

Re-use in the Landscape Carmel Valley Hotel Designed by Questa Engineering GEOFLOW

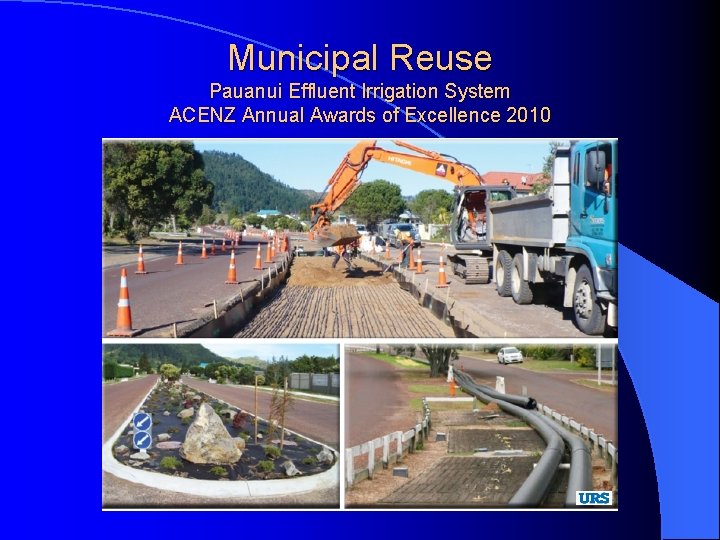

Municipal Reuse Pauanui Effluent Irrigation System ACENZ Annual Awards of Excellence 2010

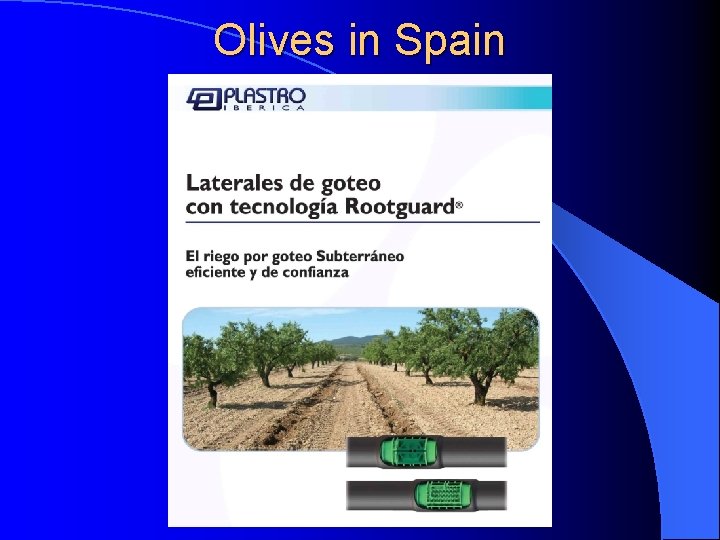

Olives in Spain

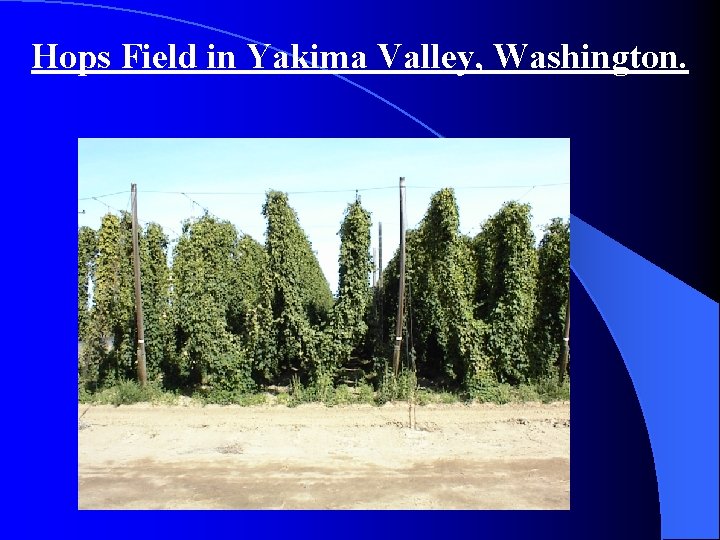

Hops Field in Yakima Valley, Washington.

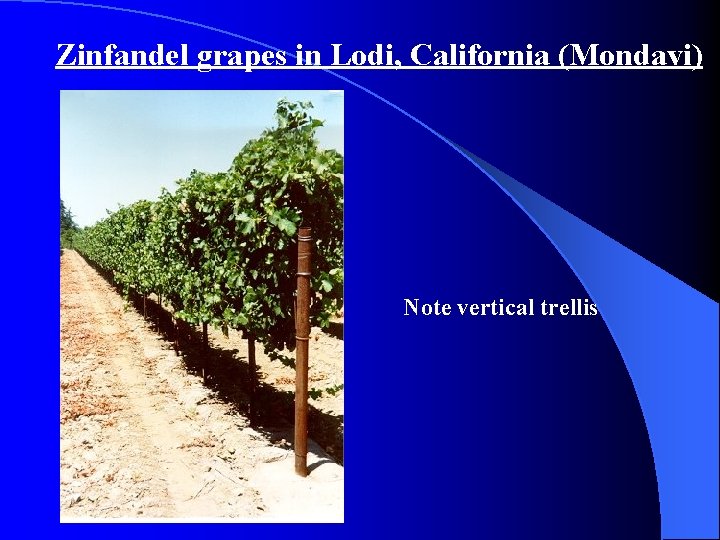

Zinfandel grapes in Lodi, California (Mondavi) Note vertical trellis

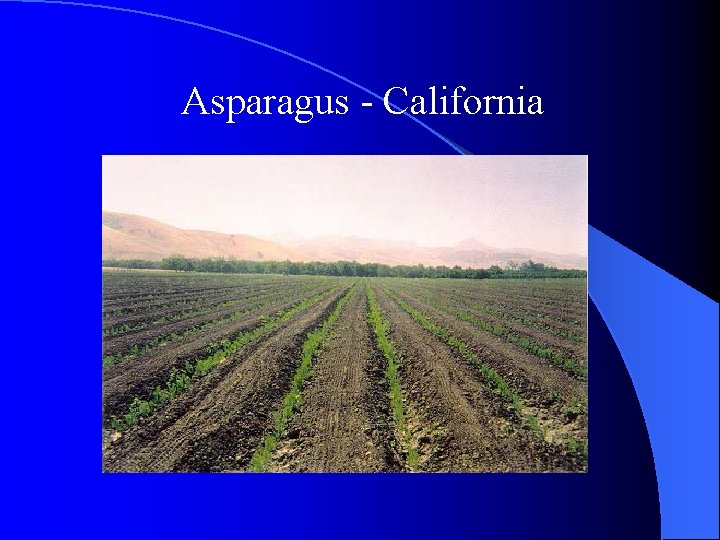

Asparagus - California

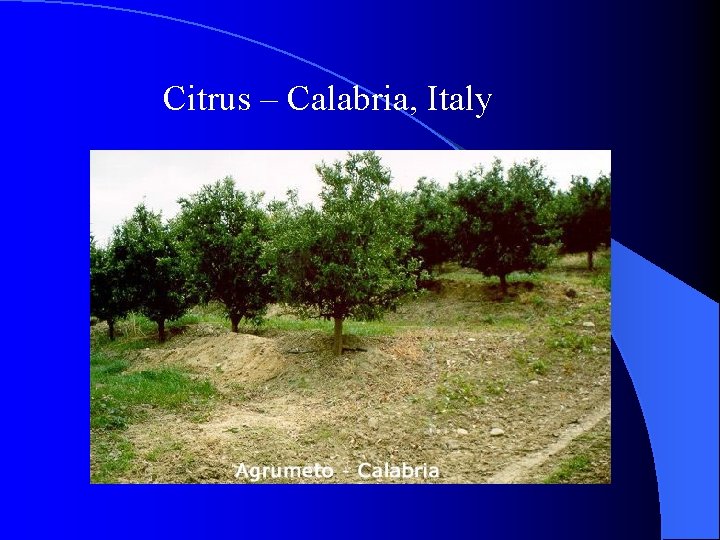

Citrus – Calabria, Italy

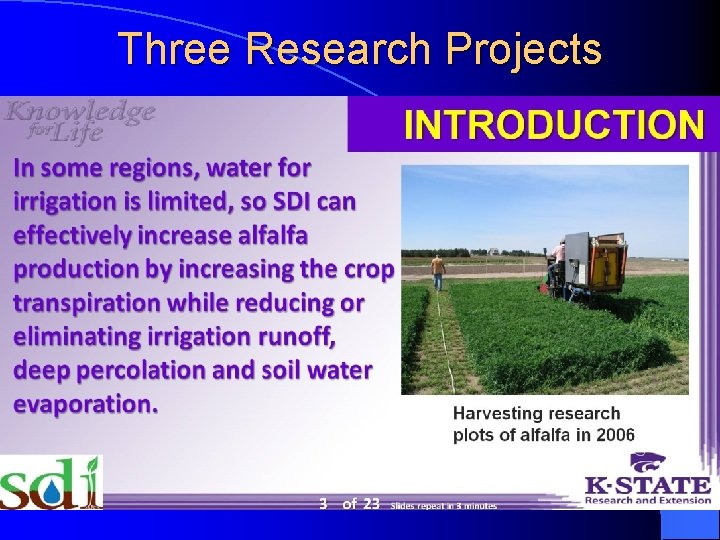

Three Research Projects

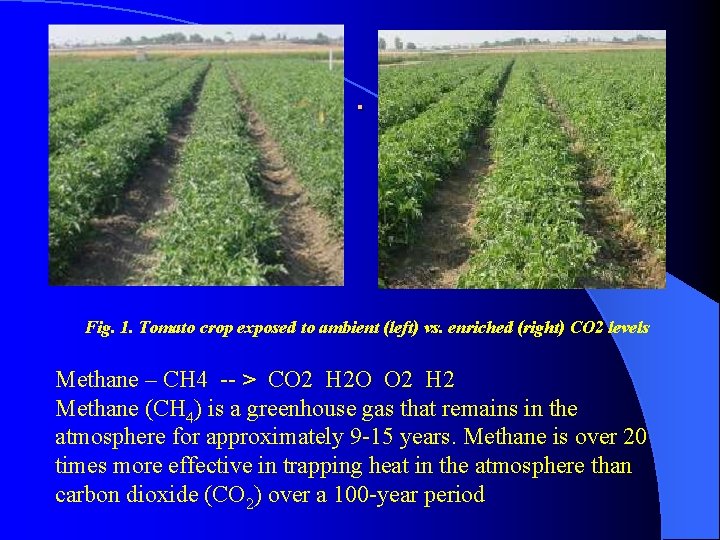

. Fig. 1. Tomato crop exposed to ambient (left) vs. enriched (right) CO 2 levels Methane – CH 4 -- > CO 2 H 2 O O 2 H 2 Methane (CH 4) is a greenhouse gas that remains in the atmosphere for approximately 9 -15 years. Methane is over 20 times more effective in trapping heat in the atmosphere than carbon dioxide (CO 2) over a 100 -year period

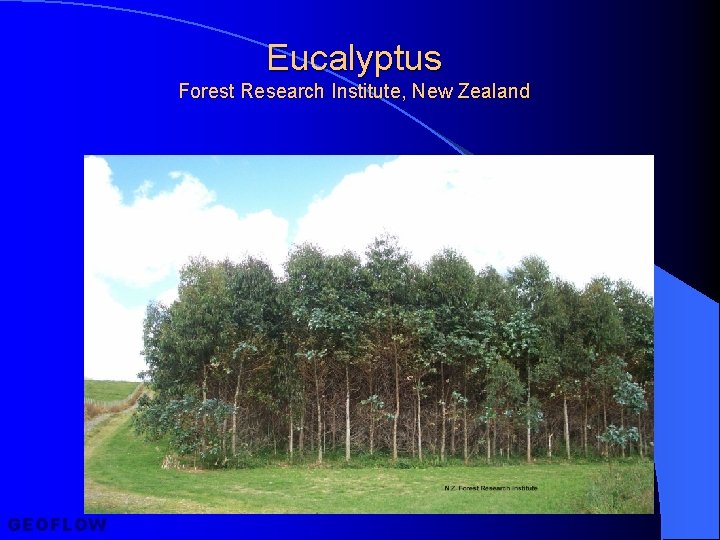

Eucalyptus Forest Research Institute, New Zealand GEOFLOW

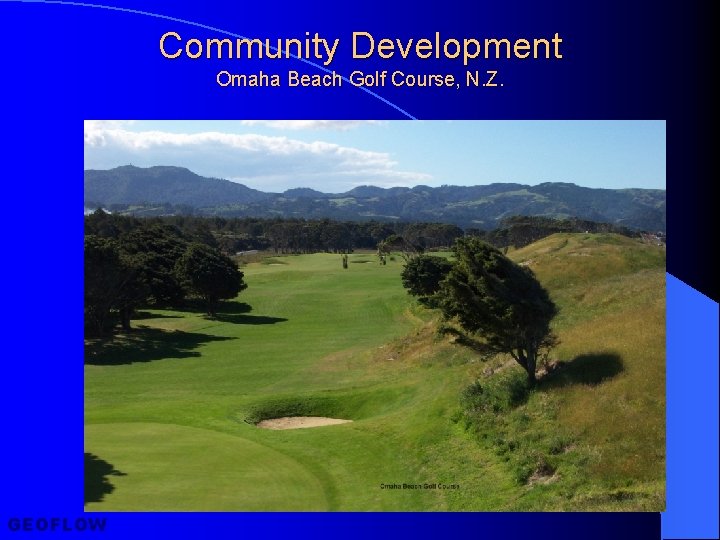

Community Development Omaha Beach Golf Course, N. Z. GEOFLOW

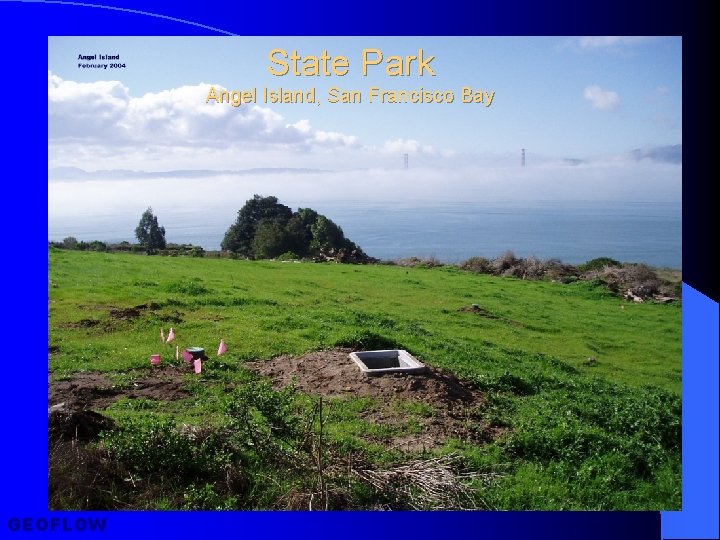

State Park Angel Island, San Francisco Bay GEOFLOW

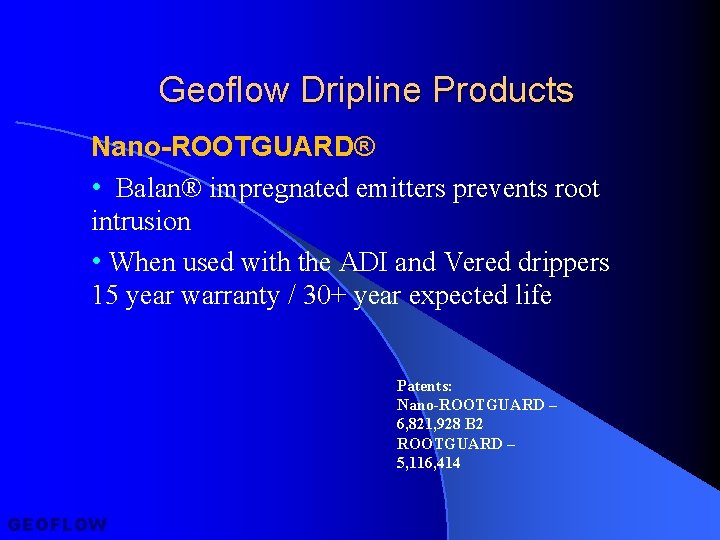

Geoflow Dripline Products Nano-ROOTGUARD® • Balan® impregnated emitters prevents root intrusion • When used with the ADI and Vered drippers 15 year warranty / 30+ year expected life Patents: Nano-ROOTGUARD – 6, 821, 928 B 2 ROOTGUARD – 5, 116, 414 GEOFLOW

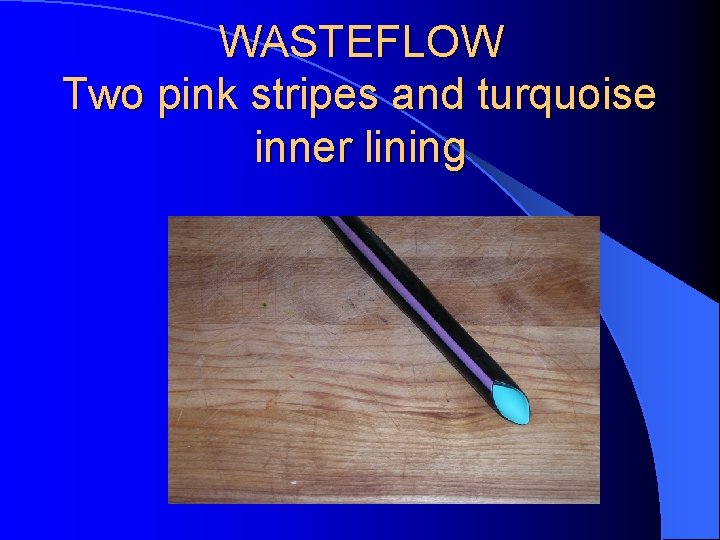

WASTEFLOW Two pink stripes and turquoise inner lining

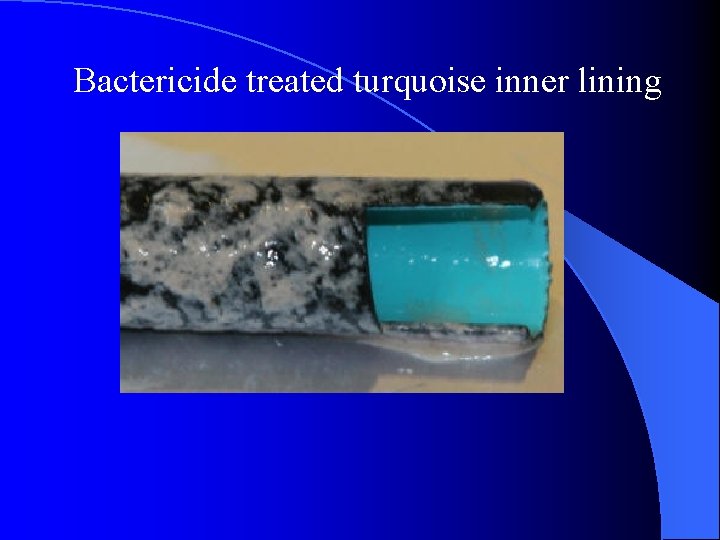

Bactericide treated turquoise inner lining

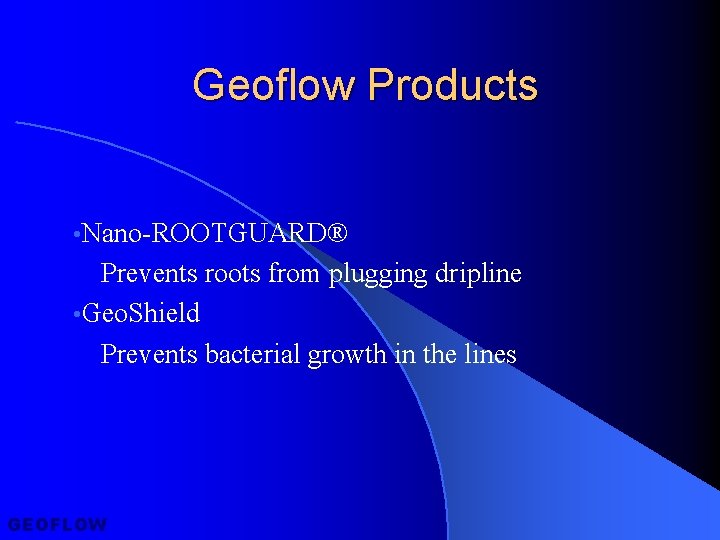

Geoflow Products • Nano-ROOTGUARD® Prevents roots from plugging dripline • Geo. Shield Prevents bacterial growth in the lines GEOFLOW

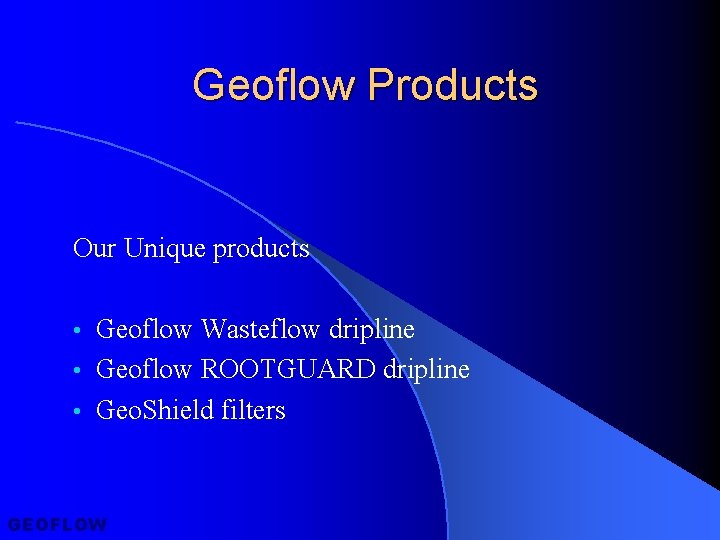

Geoflow Products Our Unique products • Geoflow Wasteflow dripline • Geoflow ROOTGUARD dripline • Geo. Shield filters GEOFLOW

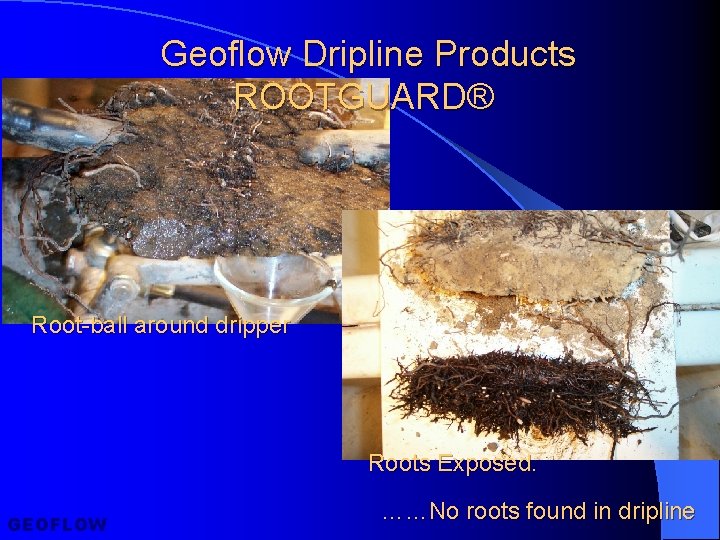

Geoflow Dripline Products ROOTGUARD® Root-ball around dripper Roots Exposed. GEOFLOW ……No roots found in dripline

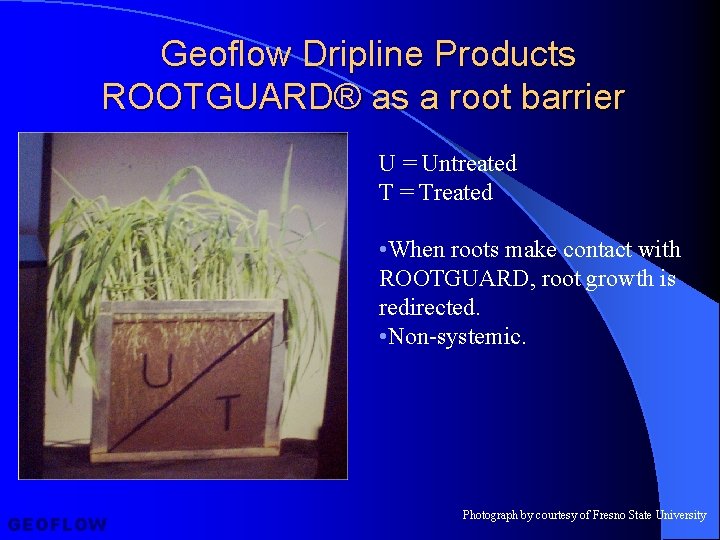

Geoflow Dripline Products ROOTGUARD® as a root barrier U = Untreated T = Treated • When roots make contact with ROOTGUARD, root growth is redirected. • Non-systemic. GEOFLOW Photograph by courtesy of Fresno State University

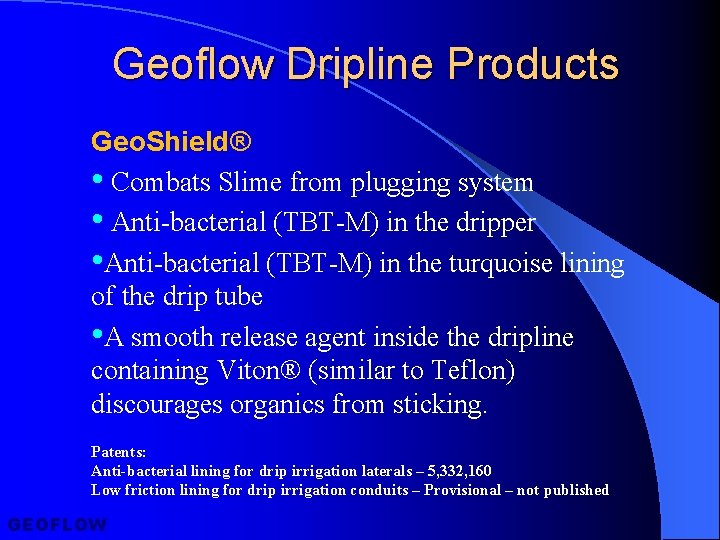

Geoflow Dripline Products Geo. Shield® • Combats Slime from plugging system • Anti-bacterial (TBT-M) in the dripper • Anti-bacterial (TBT-M) in the turquoise lining of the drip tube • A smooth release agent inside the dripline containing Viton® (similar to Teflon) discourages organics from sticking. Patents: Anti-bacterial lining for drip irrigation laterals – 5, 332, 160 Low friction lining for drip irrigation conduits – Provisional – not published GEOFLOW

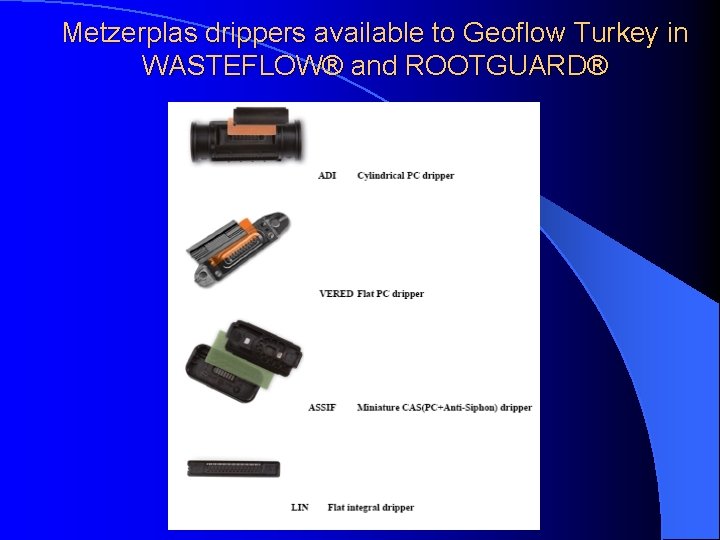

Metzerplas drippers available to Geoflow Turkey in WASTEFLOW® and ROOTGUARD®

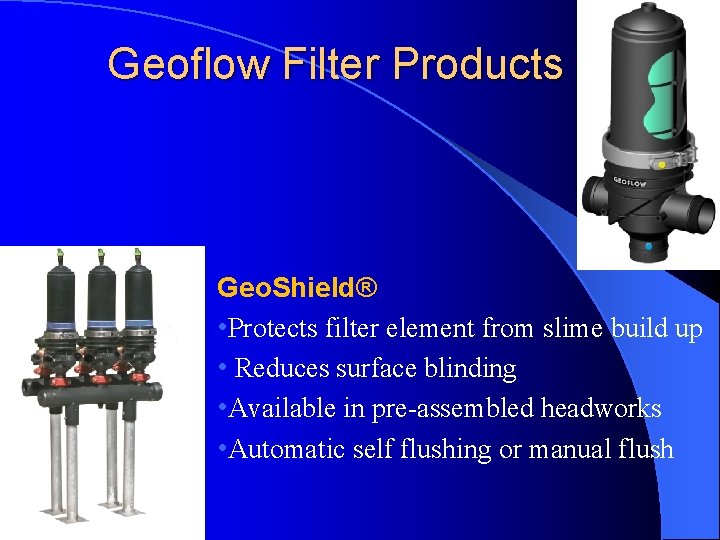

Geoflow Filter Products Geo. Shield® • Protects filter element from slime build up • Reduces surface blinding • Available in pre-assembled headworks • Automatic self flushing or manual flush GEOFLOW

Thank you Rodney Ruskin
