An Introduction to Statecharts Modelling and Simulation Simon Van Mierlo simon. vanmierlo@uantwerpen. be Hans Vangheluwe hans. vangheluwe@uantwerpen. be

Complex Systems • Complexity: timed, autonomous, reactive (to events) behaviour. • In contrast to transformational systems, which take input and, eventually, produce output.

Modelling Reactive Systems • Interaction with the environment: reactive to events. l ve e l w • Autonomous behaviour: timeouts. ” o l w o o o h t “ s. i s ) v S ” O • Describe system with modes (hierarchical) and concurrent units. t a d h n w (a “ : e g m a s i u l • Use programming language + threads and timeouts (OS)? g a n m a l r o g f n i e t m a i r m a“Nontrivial psoftware written with threads, semaphores, and r o g r o p p Pr a t s 1 o mutexes are incomprehensible to humans” m -> 1 E. A. Lee, "The problem with threads, " in Computer, vol. 39, no. 5, pp. 33 -42, May 2006.

Discrete-Event Abstraction

Statecharts • Visual (topological, not geometric) formalism. • Precisely defined syntax and semantics. • Many uses: • • • Documentation (for human communication) Analysis (of behavioural properties) Simulation Code synthesis … and derived, such as testing, optimization, …

Statecharts History • Introduced by David Harel in 19871 • Notation based on higraphs = graphs combined with Venn diagrams • Semantics extend deterministic finite state automata with: • • • Depth (Hierarchy) Orthogonality Broadcast Communication Time History Syntactic sugar, such as enter/exit actions 2 David Harel, Statecharts: a visual formalism for complex systems, Science of Computer Programming, Volume 8, Issue 3, 1987, Pages 231 -274

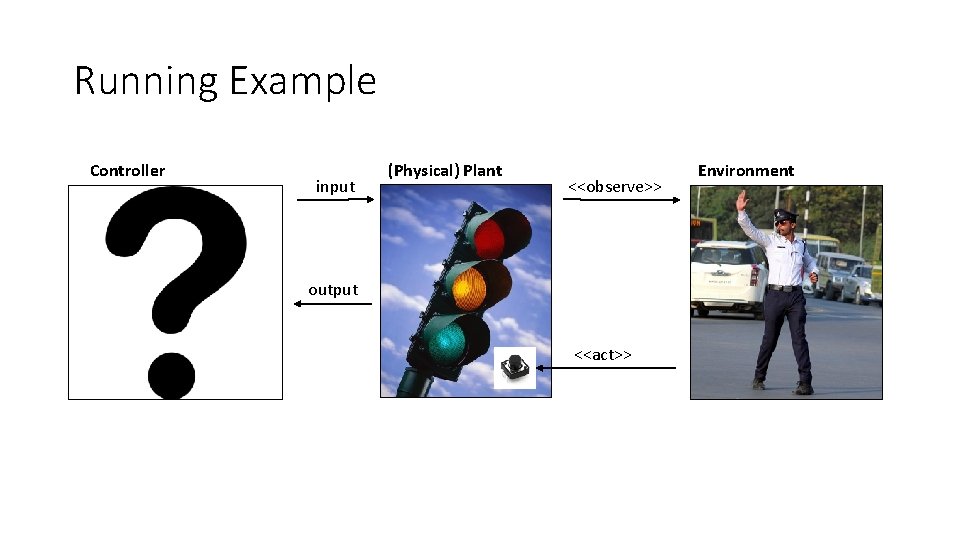

Running Example Controller input (Physical) Plant <<observe>> output <<act>> Environment

Deployment (Simulated) Plant (Physical) Plant Controller system input system output 1 Environment <<observe>> <<act>> 2

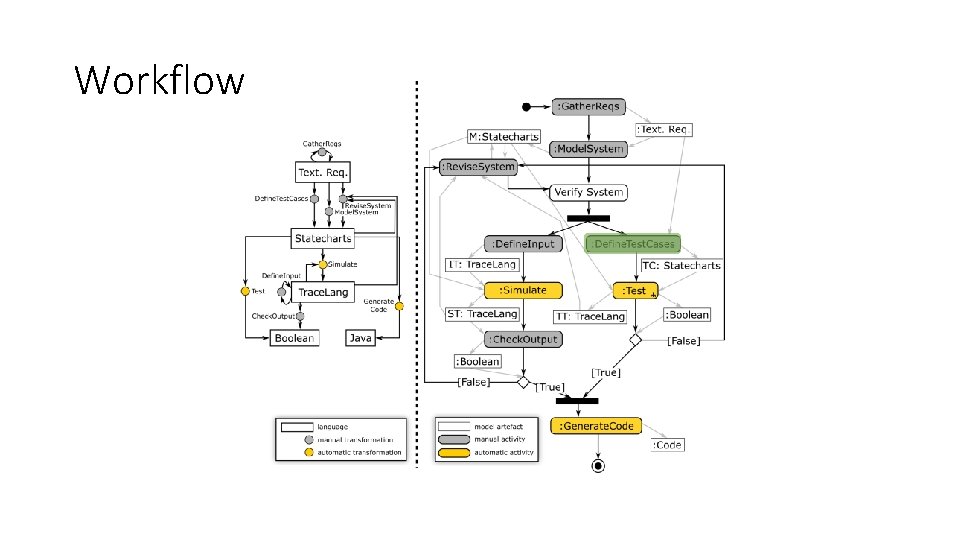

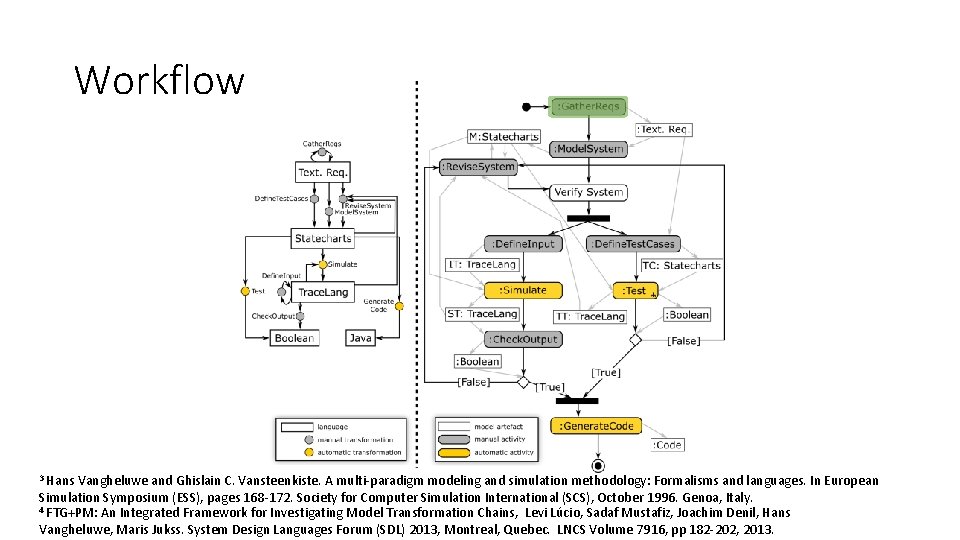

Workflow 3 Hans Vangheluwe and Ghislain C. Vansteenkiste. A multi-paradigm modeling and simulation methodology: Formalisms and languages. In European Simulation Symposium (ESS), pages 168 -172. Society for Computer Simulation International (SCS), October 1996. Genoa, Italy. 4 FTG+PM: An Integrated Framework for Investigating Model Transformation Chains, Levi Lu cio, Sadaf Mustafiz, Joachim Denil, Hans Vangheluwe, Maris Jukss. System Design Languages Forum (SDL) 2013, Montreal, Quebec. LNCS Volume 7916, pp 182 -202, 2013.

Requirements • R 1: Three differently colored lights: red, green, yellow. • R 2: At most one light is on at any point in time. • R 3: Initially, the red light is on. • R 4: Cycles through red on, green on, and yellow on. 5 s 3 s 2 s • R 5: Duration: Red -> 60 s, Green -> 50 s, Yellow -> 10 s • R 6: Police can interrupt autonomous operation. • Result = blinking yellow light (on -> 1 s, off -> 1 s). • R 7: Police can resume an interrupted traffic light. • Result = light which was on at time of interrupt is turned on again.

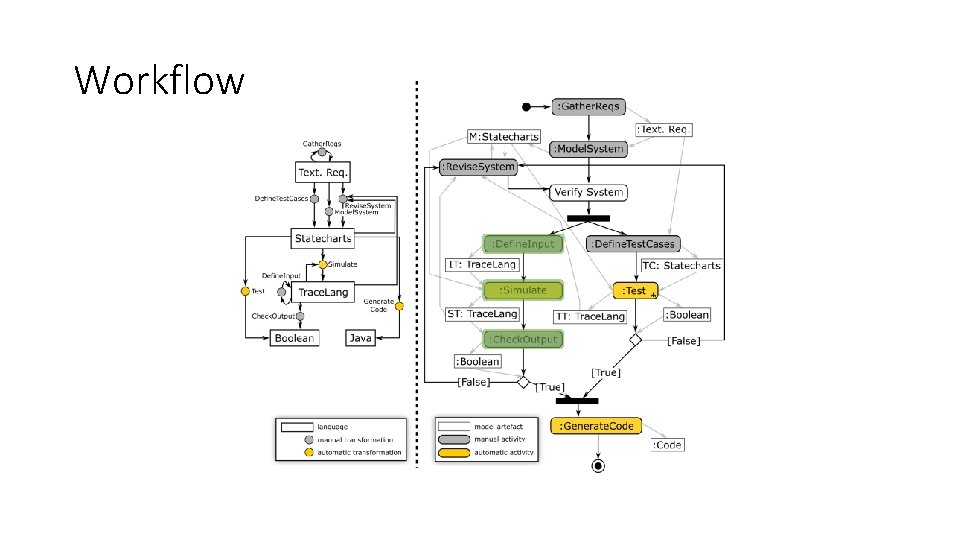

Workflow

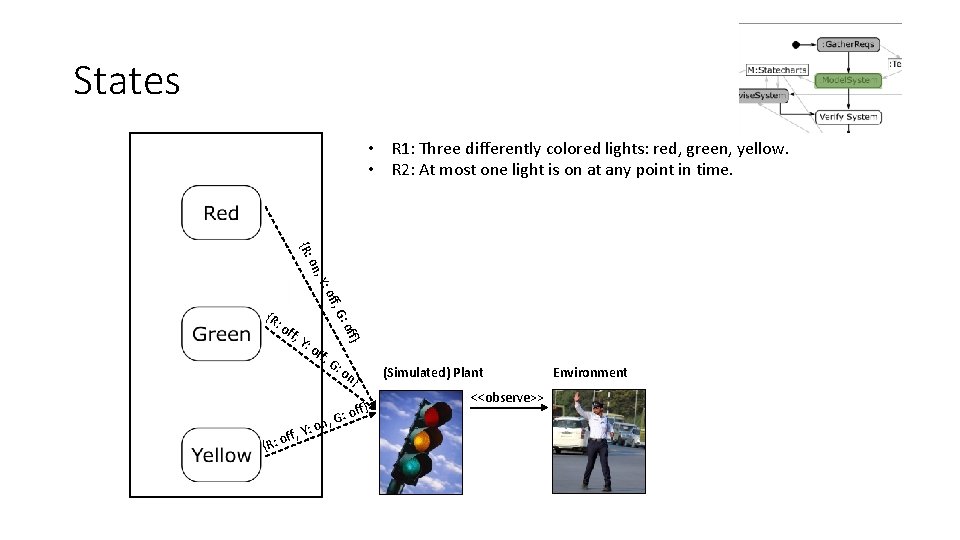

States • R 1: Three differently colored lights: red, green, yellow. • R 2: At most one light is on at any point in time. ff, Y: o ff, f} : of : o f, G of , Y: on {R: {R on } } : off G , n Y: o ff, {R: o G : (Simulated) Plant <<observe>> Environment

Default State • R 1: Three differently colored lights: red, green, yellow. • R 2: At most one light is on at any point in time. • R 3: Initially, the red light is on. ff, Y: o ff, f} : of : o f, G of , Y: on {R: {R on } ff} o : G n, Y: o ff, {R: o G : (Simulated) Plant <<observe>> Environment

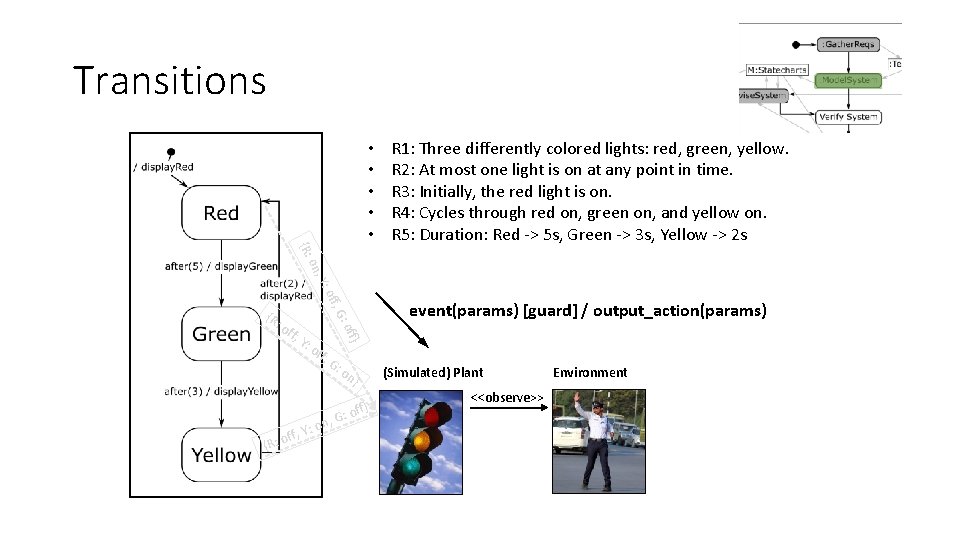

Transitions • • • R 1: Three differently colored lights: red, green, yellow. R 2: At most one light is on at any point in time. R 3: Initially, the red light is on. R 4: Cycles through red on, green on, and yellow on. R 5: Duration: Red -> 5 s, Green -> 3 s, Yellow -> 2 s ff, Y: o ff, f} : of : o f, G of , Y: on {R: {R on } ff} o : G n, Y: o ff, {R: o G : event(params) [guard] / output_action(params) (Simulated) Plant <<observe>> Environment

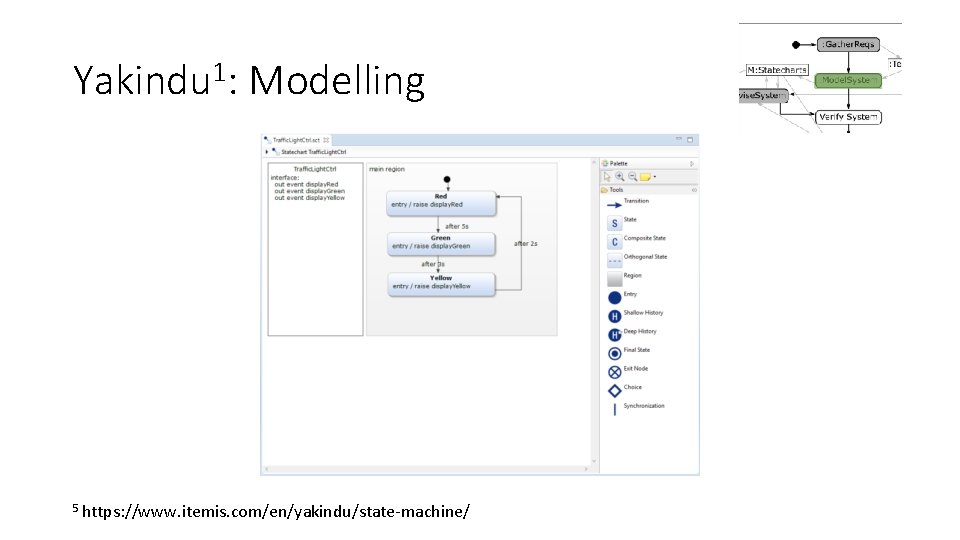

Yakindu 1: Modelling 5 https: //www. itemis. com/en/yakindu/state-machine/

Workflow

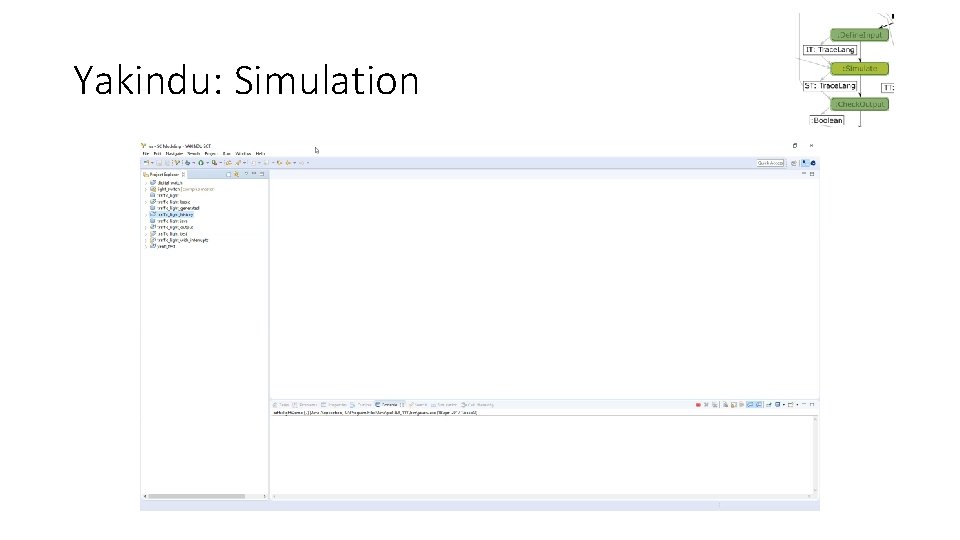

Yakindu: Simulation

Workflow

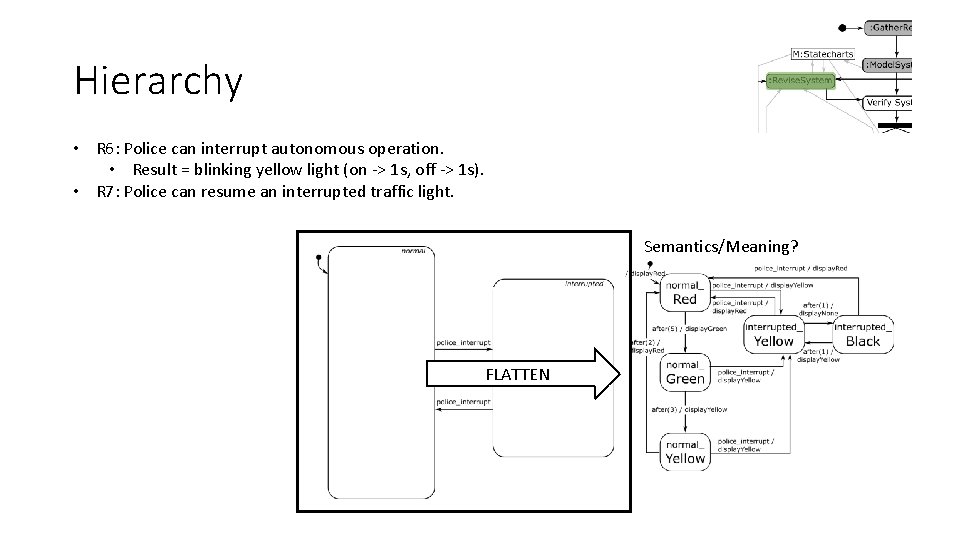

Hierarchy • R 6: Police can interrupt autonomous operation. • Result = blinking yellow light (on -> 1 s, off -> 1 s). • R 7: Police can resume an interrupted traffic light. Semantics/Meaning? FLATTEN

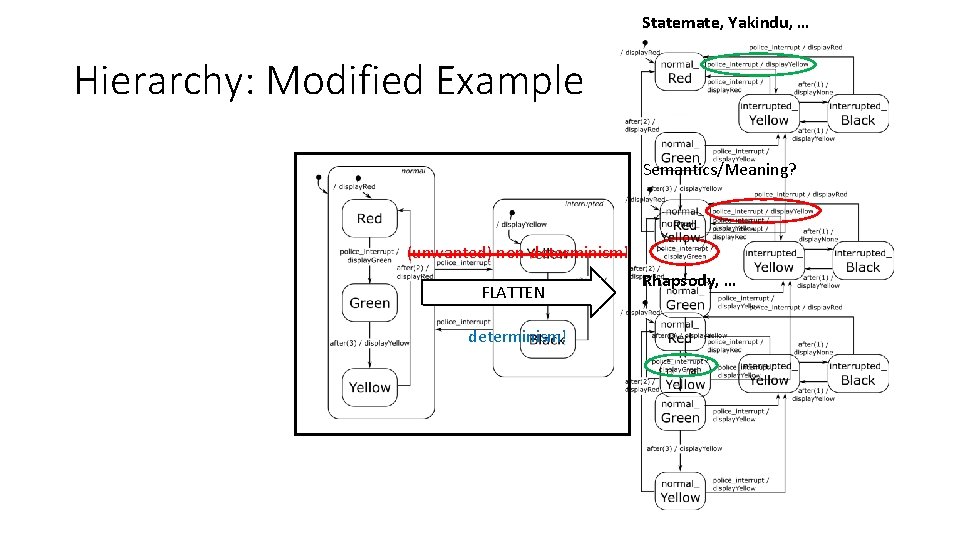

Statemate, Yakindu, … Hierarchy: Modified Example Semantics/Meaning? (unwanted) non-determinism! FLATTEN determinism! Rhapsody, …

Yakindu: Hierarchy

History • R 7: Police can resume an interrupted traffic light. • Result = light which was on at time of interrupt is turned on again. H shallow history H* deep history

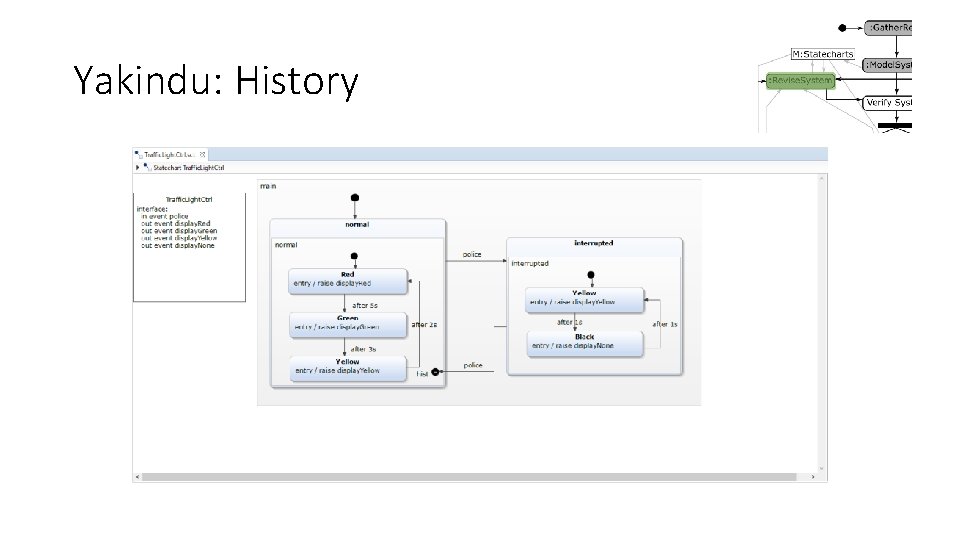

Yakindu: History

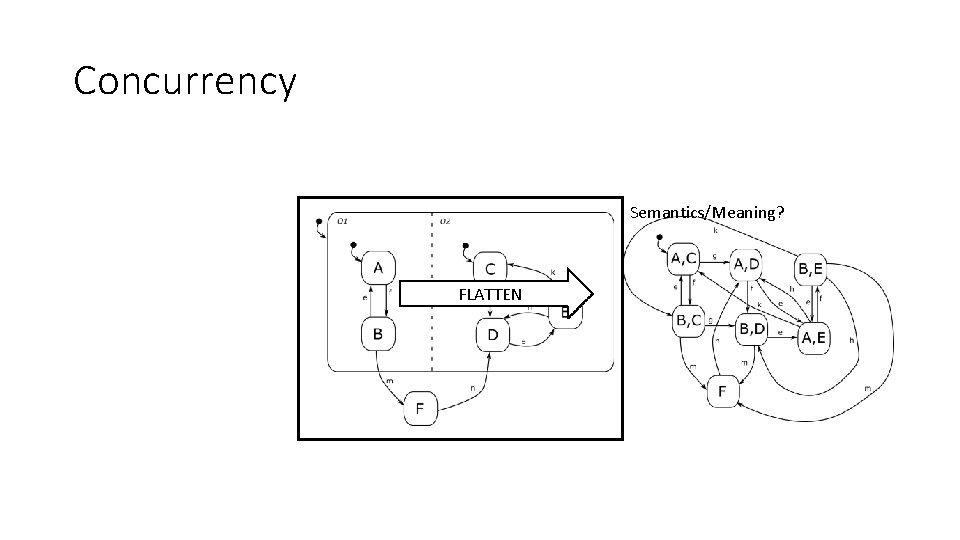

Concurrency Semantics/Meaning? FLATTEN

Workflow

Yakindu: Simulation

Workflow

Statecharts Testing Generator System Under Study 6 Zeigler BP. Theory of modelling and simulation. New York: Wiley-Interscience, 1976. Acceptor 7 Mamadou K. Traoré, Alexandre Muzy, Capturing the dual relationship between simulation models and their context, Simulation Modelling Practice and Theory, Volume 14, Issue 2, February 2006, Pages 126 -142

Orthogonal Components (White-Box)

Workflow

Yakindu: Testing

Yakindu: Testing Interface Callback Synchronization

Yakindu: Testing

Workflow

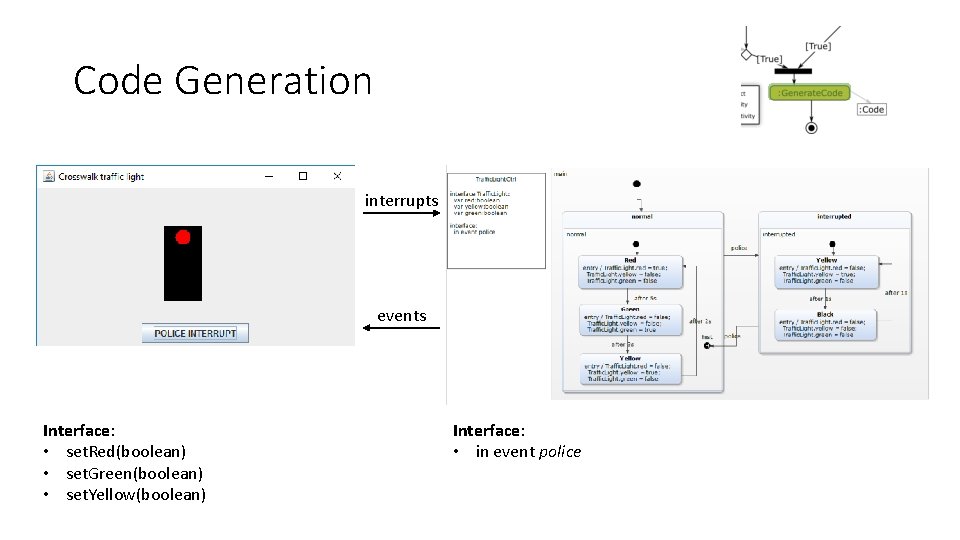

Code Generation interrupts events Interface: • set. Red(boolean) • set. Green(boolean) • set. Yellow(boolean) Interface: • in event police

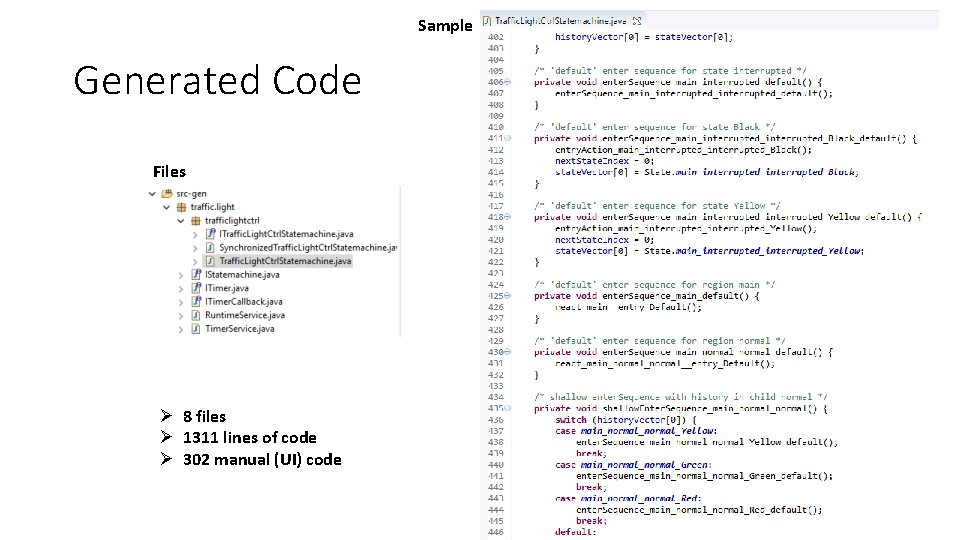

Sample Generated Code Files Ø 8 files Ø 1311 lines of code Ø 302 manual (UI) code

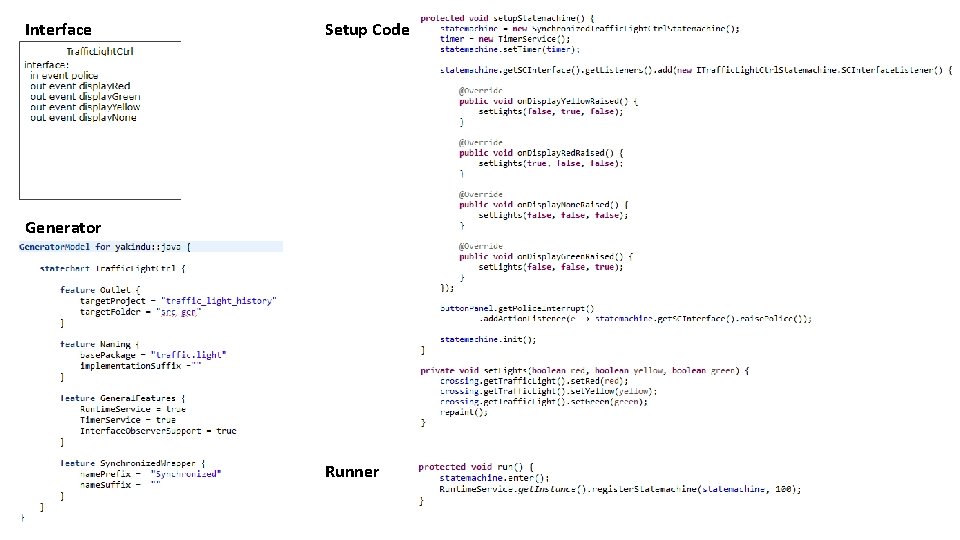

Interface Setup Code Generator Runner

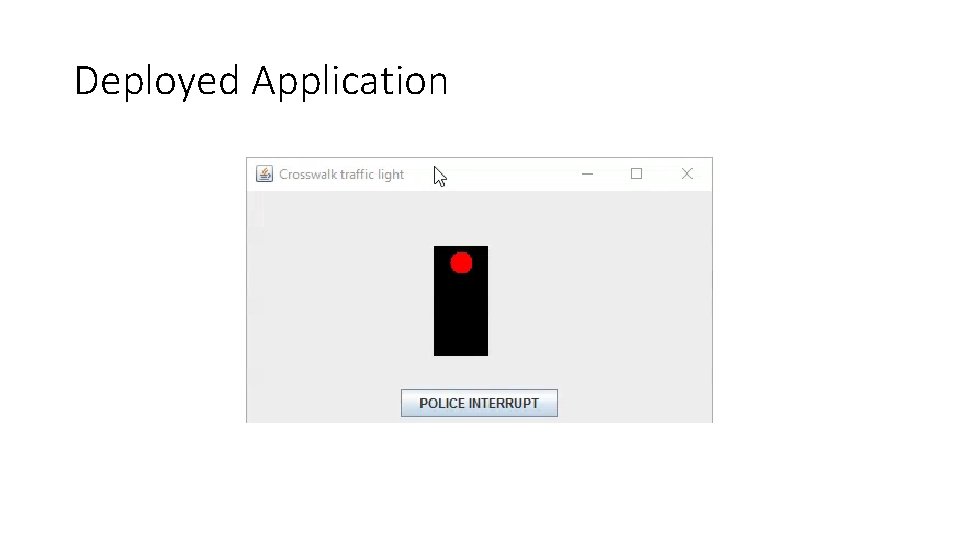

Deployed Application

Recap • Model the behaviour of complex, timed, reactive, autonomous systems. • “What” instead of “How” (= implemented by Statecharts compiler) • Abstractions: • • States (composite, orthogonal) Transitions Timeouts Events • Tool support: • Yakindu • SCCD 8 8 Simon Van Mierlo, Yentl Van Tendeloo, Bart Meyers, Joeri Exelmans, and Hans Vangheluwe. SCCD: SCXML extended with class diagrams. In 3 rd Workshop on Engineering Interactive Systems with SCXML, part of EICS 2016, 2016.
