An Introduction to On-line Partial Discharge Surveys

An Introduction to On-line Partial Discharge Surveys

PARTIAL DISCHARGE When high voltage insulating material breaks down Partial Discharges are created, measured

PARTIAL DISCHARGE When high voltage insulating material breaks down Partial Discharges are created, measured in units of charge known as pico-Coulombs or millivolts.

WHAT IS PARTIAL DISCHARGE? • Electrical discharges occurring inside medium and high voltage insulation

WHAT IS PARTIAL DISCHARGE? • Electrical discharges occurring inside medium and high voltage insulation (flaws, cracks, voids, irregularities). • These imperfections create voltage stresses and cause eventual failure of the insulation. • Insulation failures begin with and are characterized by small but detectable releases of energy or Partial Discharge.

PARTIAL DISCHARGE TESTING USED FOR QUALITY ASSURANCE • For many years partial discharge testing

PARTIAL DISCHARGE TESTING USED FOR QUALITY ASSURANCE • For many years partial discharge testing has been an IEEE/ANSI standard to identify insulation problems in electrical apparatus before it leaves the factory floor. • Many U. S. and International standards have been developed for partial discharge testing. • Until recently Partial Discharge testing was limited to testing at manufacturer’s laboratories. • Now computers and sophisticated equipment can isolate and detect Partial Discharge occurrences in the field.

NO OUTAGE EVALUATION These proven technologies exist today to evaluate medium or high voltage

NO OUTAGE EVALUATION These proven technologies exist today to evaluate medium or high voltage systems while the system is energized. 1. Oil testing/DGA – limited to oil transformers 2. Infrared testing – visible loose connections only 3. Visual inspections – problems may not be visible 4. Power Quality – cannot detect insulation failures 5. Vibration – limited to motors and transformers 6. Partial Discharge Testing – single best all-around test

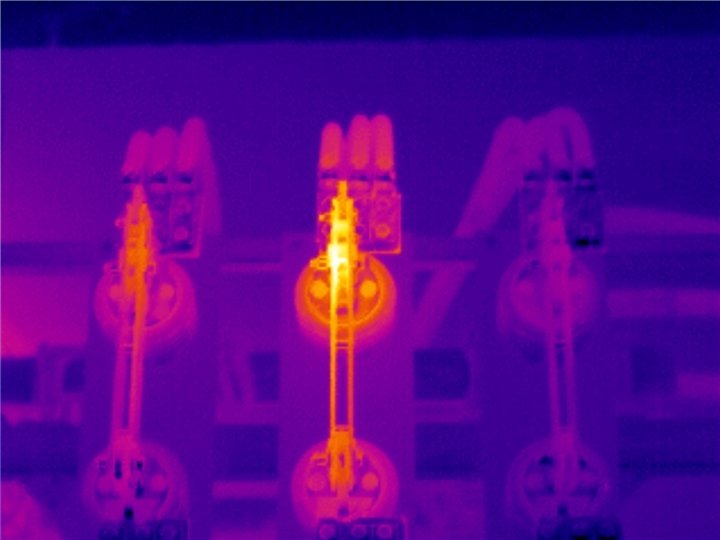

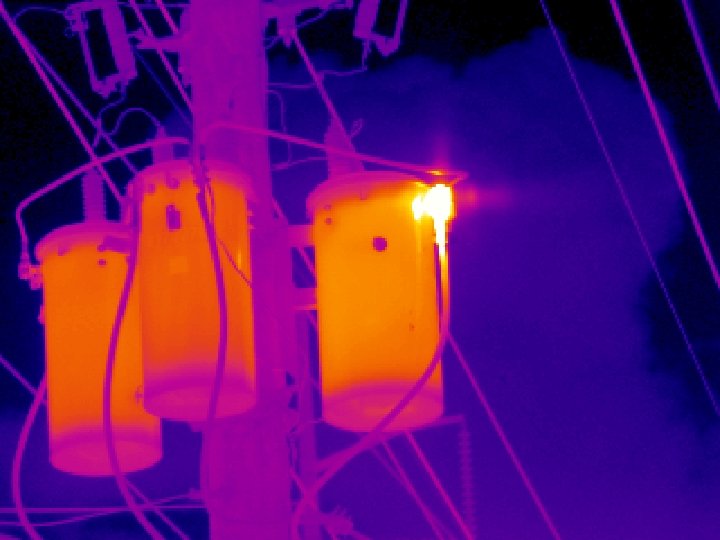

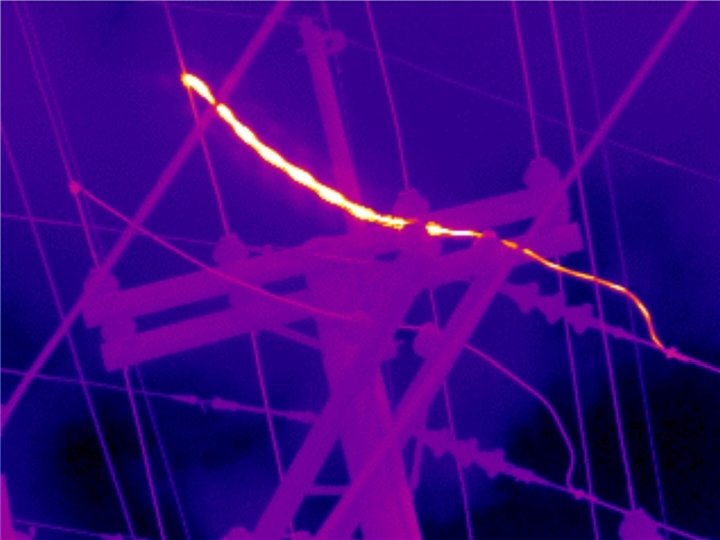

PARTIAL DISCHARGE VS. INFRARED How are Partial Discharge Inspections different from Infrared Inspections? •

PARTIAL DISCHARGE VS. INFRARED How are Partial Discharge Inspections different from Infrared Inspections? • Infrared identifies electrical current problems (loose connections) that result in heat. The specimen must be visible to the naked eye for the infrared camera to detect a problem. • Partial Discharge identifies voltage problems that result in insulation breakdown and generation of Partial Discharges. The specimen does not need to be visible for Partial Discharges to be detected.

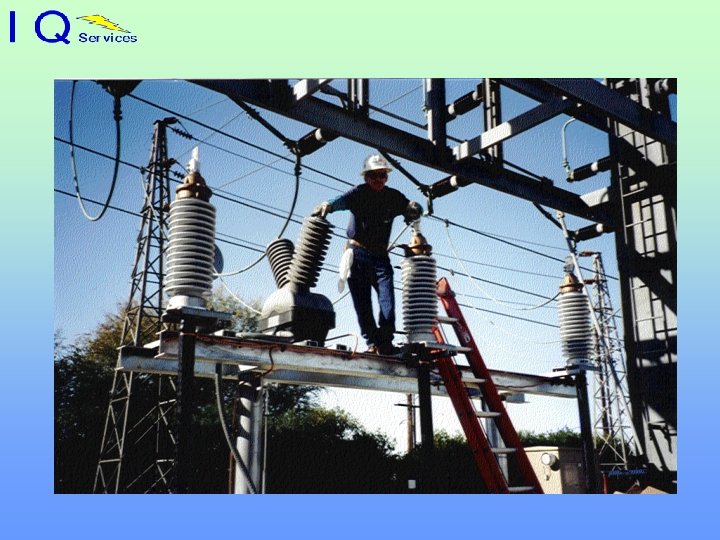

INSULATION BREAKDOWN Why should we be concerned with insulation breakdown and Partial Discharges?

INSULATION BREAKDOWN Why should we be concerned with insulation breakdown and Partial Discharges?

INSULATION BREAKDOWN • NFPA 70 B states that insulation breakdown is the number one

INSULATION BREAKDOWN • NFPA 70 B states that insulation breakdown is the number one cause of electrical failures. • In medium and high voltage equipment, partial discharges are the first indication of insulation breakdown.

Total Failures due to Insulation Breakdown

Total Failures due to Insulation Breakdown

WHAT TYPE OF FACILITES ARE AFFECTED? • INDUSTRIAL - Large Manufacturing, Cogeneration • COMMERCIAL

WHAT TYPE OF FACILITES ARE AFFECTED? • INDUSTRIAL - Large Manufacturing, Cogeneration • COMMERCIAL - Research Parks, High Rises • INSTITUTIONAL - Campuses, Hospitals • GOVERNMENTAL - Military Bases, Large Office Complexes • UTILITY - Investor Owned, Municipalities

WHERE DO PARTIAL DISCHARGES OCCUR? • Electrical Systems > 600 V (2. 4 KV,

WHERE DO PARTIAL DISCHARGES OCCUR? • Electrical Systems > 600 V (2. 4 KV, 4. 16 KV, 12 KV, etc. ) • Types of Equipment Subject to Partial Discharge -Cables -Circuit Breakers -Switchgear -Insulators -Generators -Surge Arrestors -Transformers - Instrument Transformers (CT’s, PT’s) - Bushings - Motors - Capacitors

ADVANTAGES OF PARTIAL DISCHARGE SURVEYS • PREDICTIVE - failures can be prevented. • NO

ADVANTAGES OF PARTIAL DISCHARGE SURVEYS • PREDICTIVE - failures can be prevented. • NO OUTAGE NECESSARY - does not interrupt operations. • NON-DESTRUCTIVE - no damage to electrical system. • TRENDING - comparison to previous tests possible • PRIORITIZE MAINTENANCE ACTIVITIES determine which equipment to service first. • PLANNING - allows time to schedule repairs. • FINANCIAL CONTROL – repairs can be budgeted.

 TYPICAL MEDIUM VOLTAGE POWER CABLE CONSTRUCTION

TYPICAL MEDIUM VOLTAGE POWER CABLE CONSTRUCTION

TYPICAL HIGH VOLTAGE UNDERGROUND CABLE SYSTEM Load Unit Substation Source Switchgear Visible Cable Terminations

TYPICAL HIGH VOLTAGE UNDERGROUND CABLE SYSTEM Load Unit Substation Source Switchgear Visible Cable Terminations Ground Level Underground Cable in Conduit (not visible)

3 STAGES OF CABLE INSULATION FAILURE

3 STAGES OF CABLE INSULATION FAILURE

STAGE 1 No problems, minor voids therefore minor partial discharges Jacket, Shield, Semi-conducting shield

STAGE 1 No problems, minor voids therefore minor partial discharges Jacket, Shield, Semi-conducting shield INSULATION Imperfections and voids / /CONDUCTOR / / / / / / / / / / / INSULATION voids Jacket, Shield, Semi-conducting shield

STAGE 2 Tracking begins Jacket, Shield, Semi-conducting shield INSULATION / /CONDUCTOR / / /

STAGE 2 Tracking begins Jacket, Shield, Semi-conducting shield INSULATION / /CONDUCTOR / / / / / / / / / / / INSULATION Jacket, Shield, Semi-conducting shield

STAGE 3 CABLE FAILURE! Jacket, Shield, Semi-conducting shield INSULATION / /CONDUCTOR / / /

STAGE 3 CABLE FAILURE! Jacket, Shield, Semi-conducting shield INSULATION / /CONDUCTOR / / / / / / / / / / / INSULATION Jacket, Shield, Semi-conducting shield Blow-up Phase-to-ground

HOW CAN PARTIAL DISCHARGES BE DETECTED? Discharges are detected by special signal processing equipment

HOW CAN PARTIAL DISCHARGES BE DETECTED? Discharges are detected by special signal processing equipment designed to eliminate outside interference. Capacitive Methods - For Unshielded Components - Dry Type Transformers - Instrument Transformers - Switchgear Inductive Methods - metal enclosed components - Shielded Cables and Components - Oil Filled Transformers - Rotating Apparatus Acoustic Emission Methods - Dry & Oil Transformers - Switchgear - Unshielded Cables

Test Equipment & Sensors

Test Equipment & Sensors

Partial Discharge detection of a flaw in a dry type transformer using capacitive coupling

Partial Discharge detection of a flaw in a dry type transformer using capacitive coupling Transformer Coil flaw Detector Capacitive sensor

Propagation of Transient Earth Voltages (TEV) in Switchgear High Voltage Bus Partial discharge site

Propagation of Transient Earth Voltages (TEV) in Switchgear High Voltage Bus Partial discharge site (inside) Metallic Switchgear cover (signal detected outside)

Measurement s using Capacitive PD sensors

Measurement s using Capacitive PD sensors

Switchgear failure due to internal tracking

Switchgear failure due to internal tracking

Tracking on epoxy resin busbar

Tracking on epoxy resin busbar

Start of tracking on insulation

Start of tracking on insulation

Failed Switchgear Insulation

Failed Switchgear Insulation

Detecting PD Using Airborne Acoustic (Ultrasonic) Sensors Busbar Sensor Insulator

Detecting PD Using Airborne Acoustic (Ultrasonic) Sensors Busbar Sensor Insulator

Airborne Acoustic Sensor

Airborne Acoustic Sensor

Insulator Failure Prevented

Insulator Failure Prevented

Partial Discharge detection of a void in a shielded cable using inductive coupling. Insulation

Partial Discharge detection of a void in a shielded cable using inductive coupling. Insulation Conductor Void Shield (grounded) + Detector Inductive Sensor

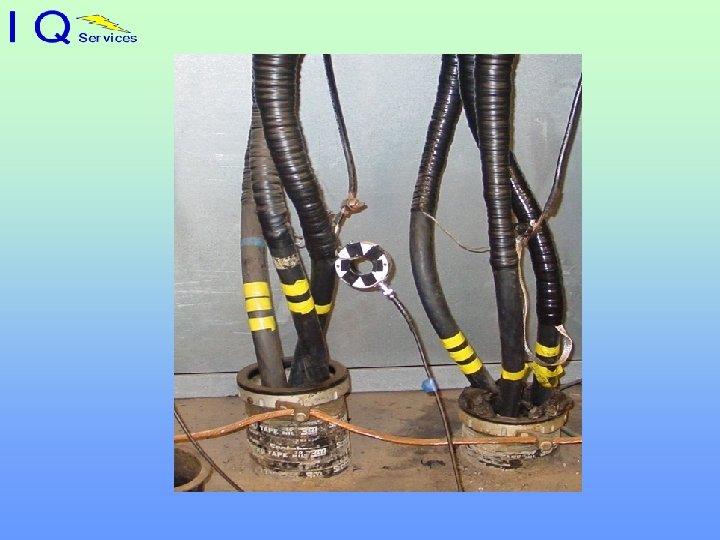

High Frequency Current Transformer Used to Test Cable in High Voltage Substation

High Frequency Current Transformer Used to Test Cable in High Voltage Substation

Failing Terminations

Failing Terminations

Molded Cable Accessory Failure

Molded Cable Accessory Failure

Splice Void

Splice Void

Shield Delamination Causing Partial Discharge

Shield Delamination Causing Partial Discharge

Poor Workmanship Causing Partial Discharge

Poor Workmanship Causing Partial Discharge

Case Study Testing 15 k. V cables On-line testing of cables PD damage to

Case Study Testing 15 k. V cables On-line testing of cables PD damage to termination

Identifying & Prioritising Circuits Most at Risk Using On-Line PD Survey

Identifying & Prioritising Circuits Most at Risk Using On-Line PD Survey

PD Survey - Worst 30 Results

PD Survey - Worst 30 Results

PERFORMING A PARTIAL DISCHARGE SURVEY • Analyze the single line drawing to develop plan

PERFORMING A PARTIAL DISCHARGE SURVEY • Analyze the single line drawing to develop plan • Onsite Measurement – Removal of equipment covers. – Record field data. – Obtain signatures of atypical components. • Offsite Data Analysis – – Correlate measurements to single line drawing. Compare atypical results to like insulation from database. Analyze signatures. Trend Results. • Report Generation – Recognize immediate failure possibilities. – Recommend possible repairs. – Recommend possible resurvey frequency.

SUMMARY • Electric Insulation will fail. • Predicting failures is now possible through Partial

SUMMARY • Electric Insulation will fail. • Predicting failures is now possible through Partial Discharge Analysis. • No outage is required to survey the equipment. • Results can be prioritized and trended. • Partial Discharge Surveys should be performed annually.
