An Introduction to Geology Sedimentary Rocks Back to

An Introduction to Geology Sedimentary Rocks

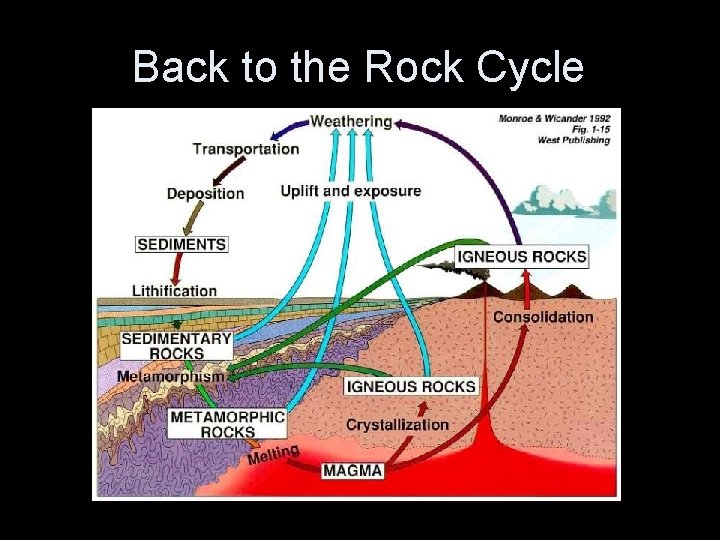

Back to the Rock Cycle

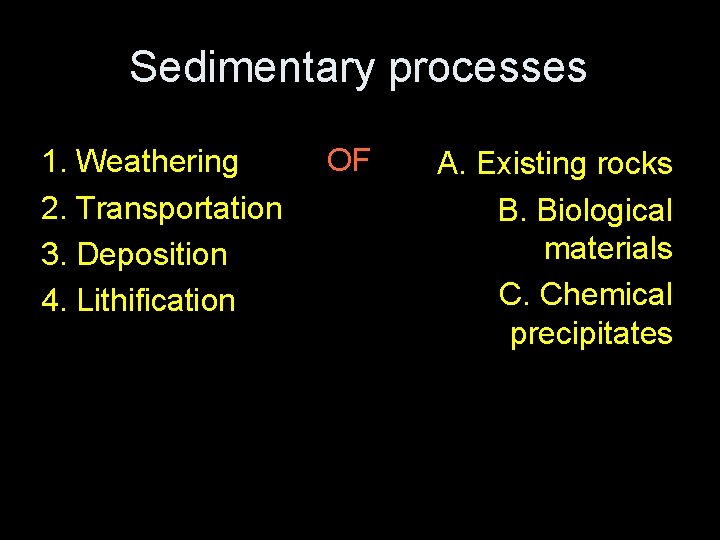

Sedimentary processes 1. Weathering 2. Transportation 3. Deposition 4. Lithification OF A. Existing rocks B. Biological materials C. Chemical precipitates

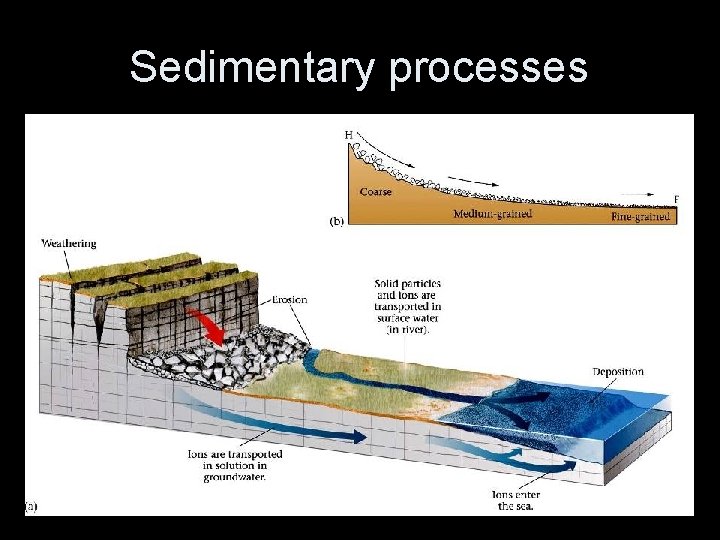

Sedimentary processes

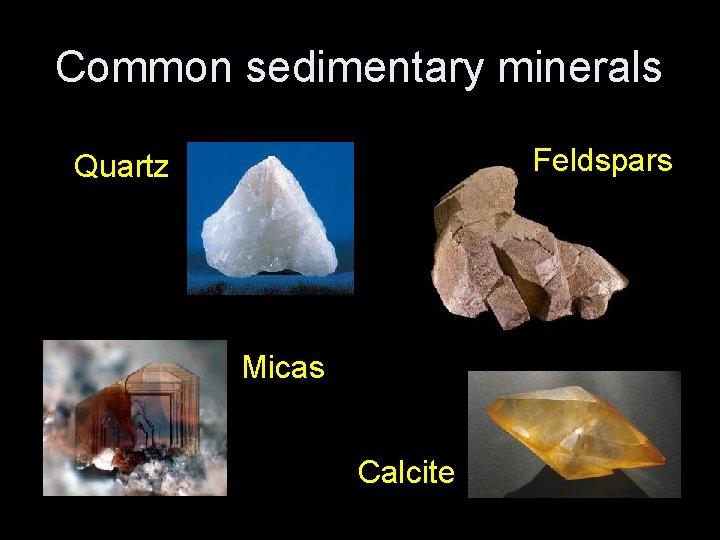

Common sedimentary minerals Feldspars Quartz Micas Calcite

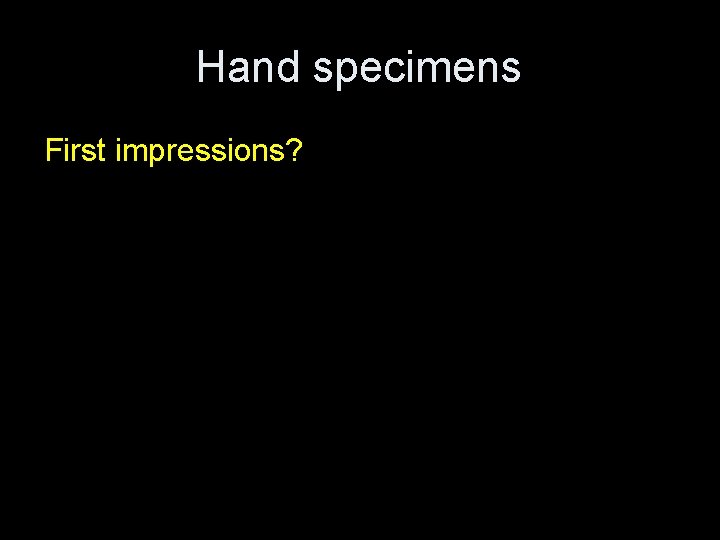

Hand specimens First impressions?

Weathering Physical / Mechanical

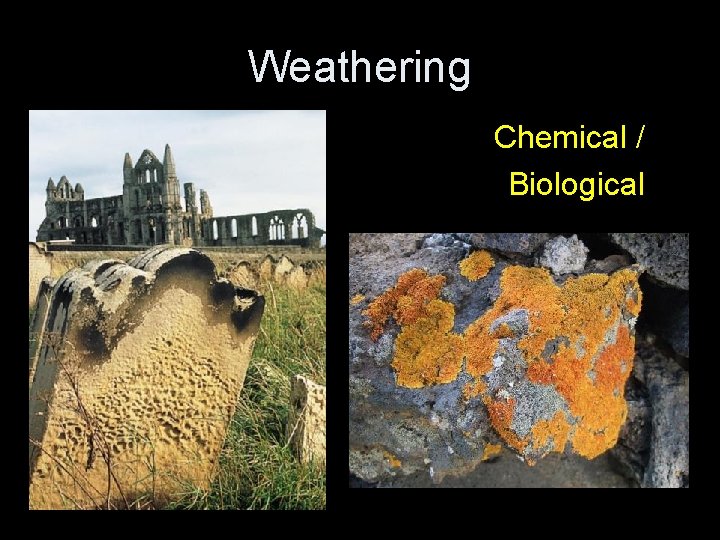

Weathering Chemical / Biological

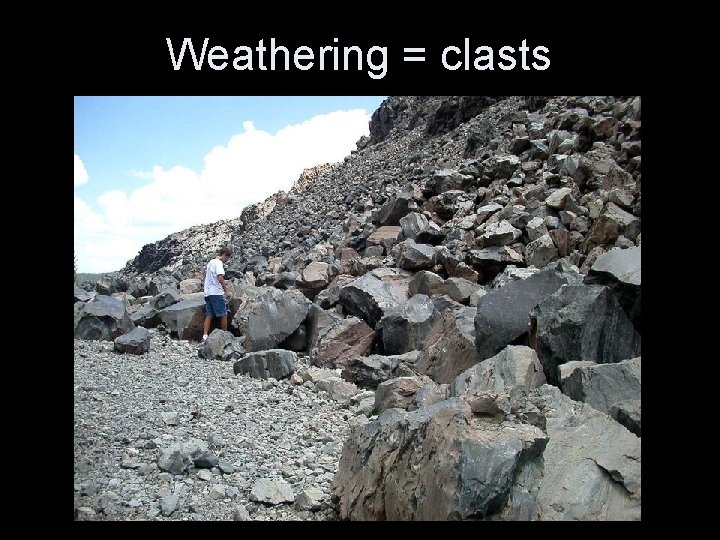

Weathering = clasts

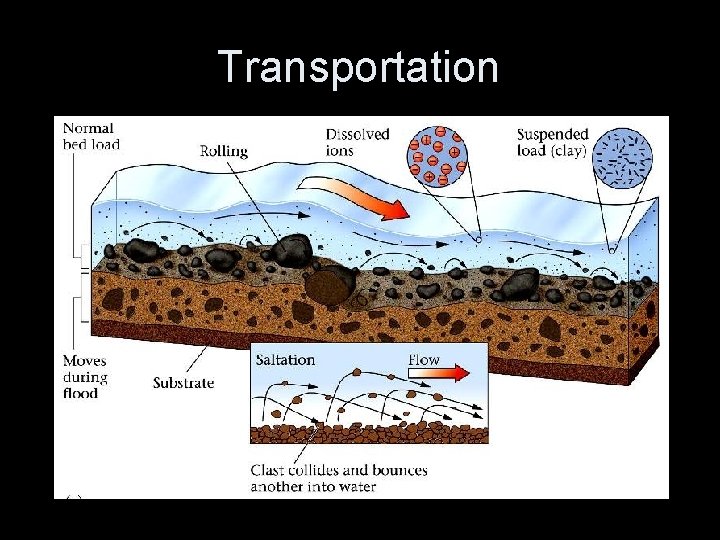

Transportation

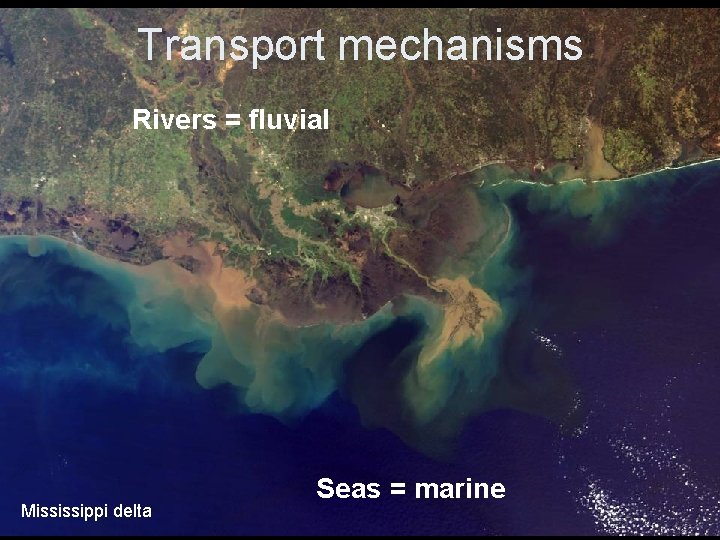

Transport mechanisms Rivers = fluvial Mississippi delta Seas = marine

Transport mechanisms AEOLIAN (wind) Can only transport small grains GLACIAL (ice) Huge volumes of sediment

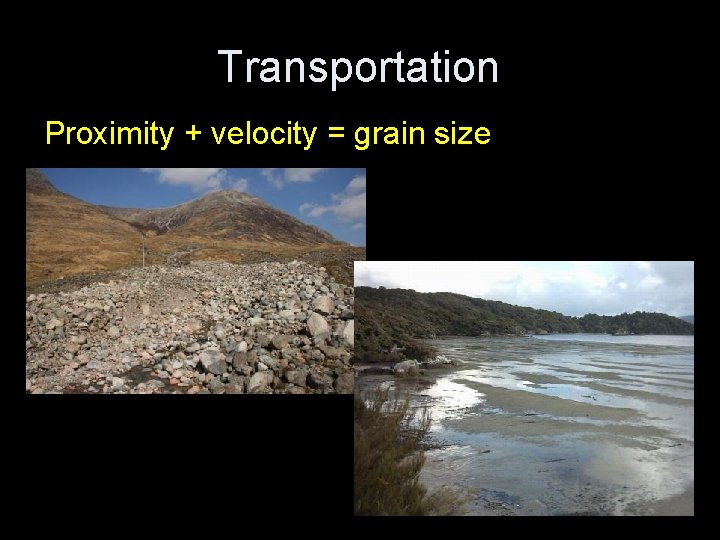

Transportation Proximity + velocity = grain size

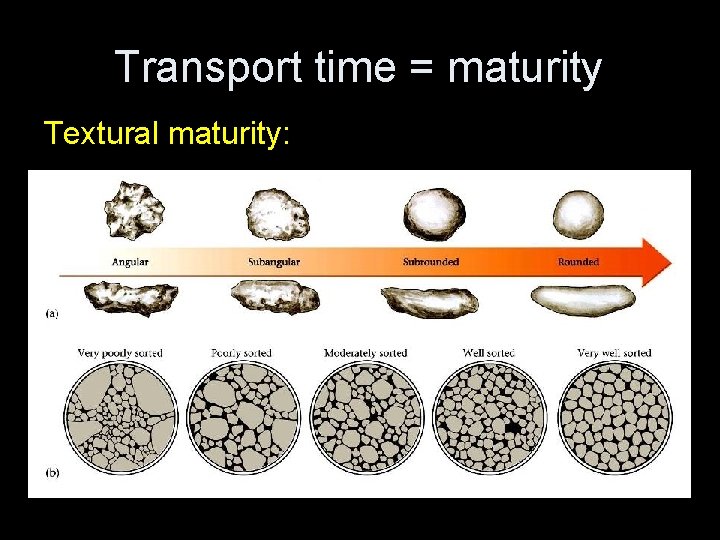

Transport time = maturity Textural maturity:

Transport time = maturity Mineralogical maturity:

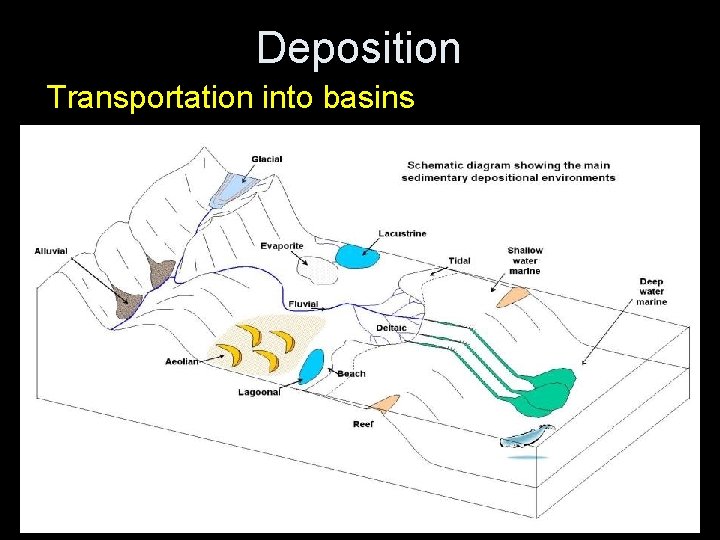

Deposition Transportation into basins

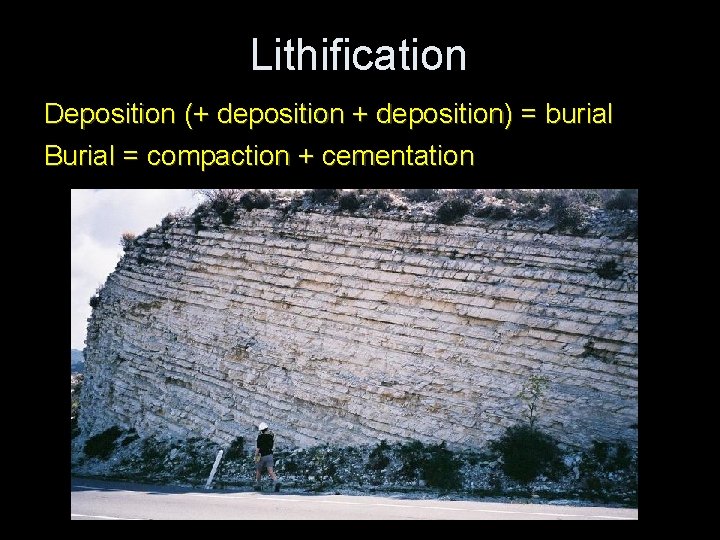

Lithification Deposition (+ deposition) = burial Burial = compaction + cementation

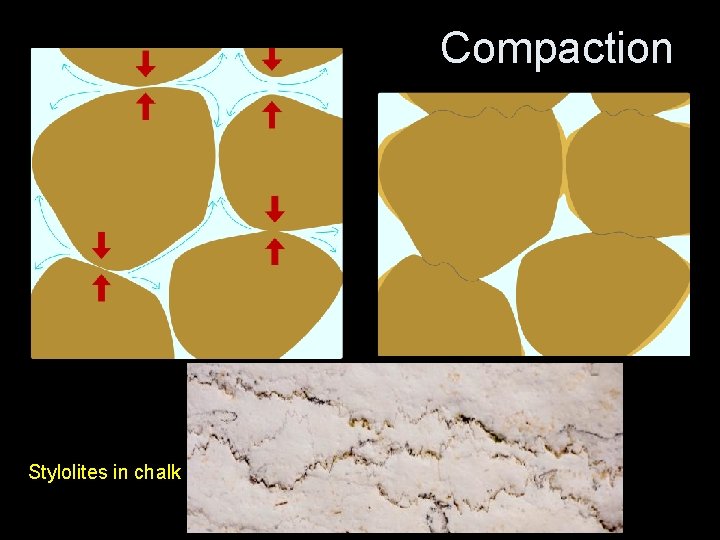

Compaction Stylolites in chalk

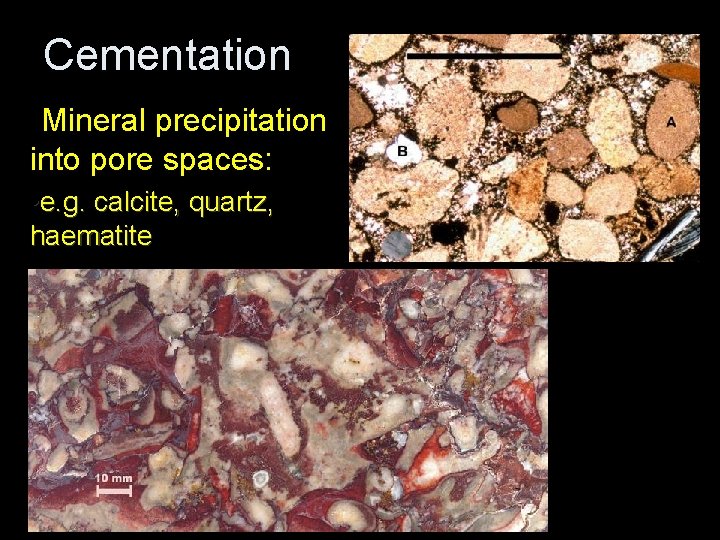

Cementation • Mineral precipitation into pore spaces: • e. g. calcite, quartz, haematite

Hand specimens Second impressions?

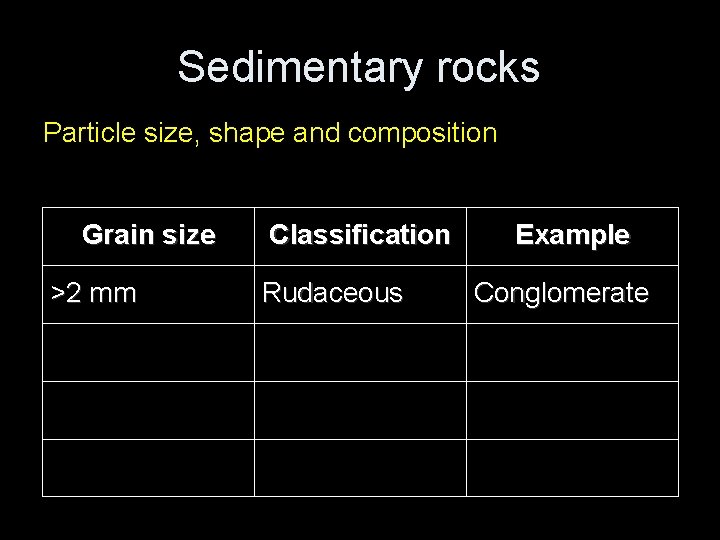

Sedimentary rocks Particle size, shape and composition Grain size >2 mm Classification Rudaceous Example Conglomerate

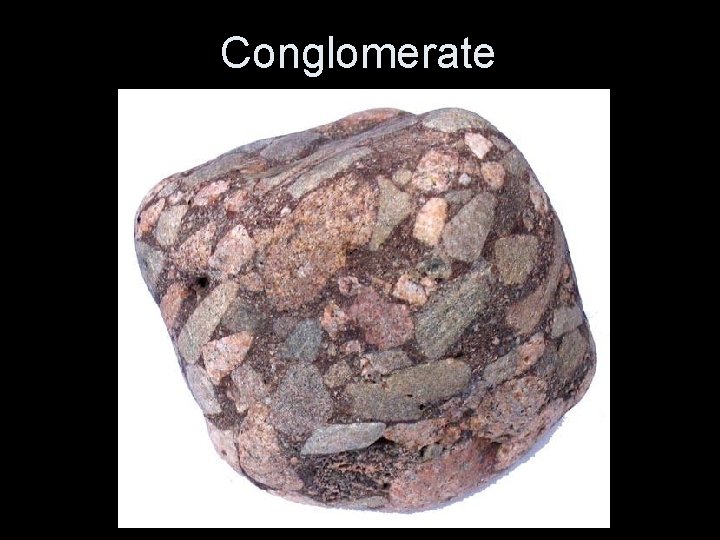

Conglomerate

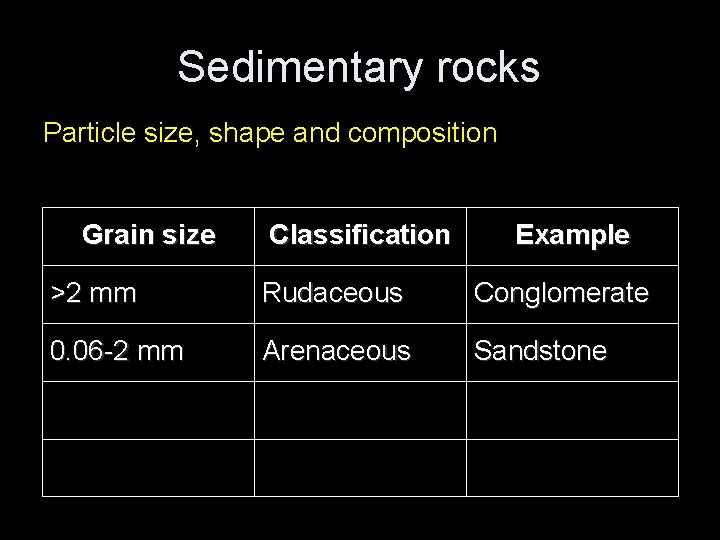

Sedimentary rocks Particle size, shape and composition Grain size Classification Example >2 mm Rudaceous Conglomerate 0. 06 -2 mm Arenaceous Sandstone

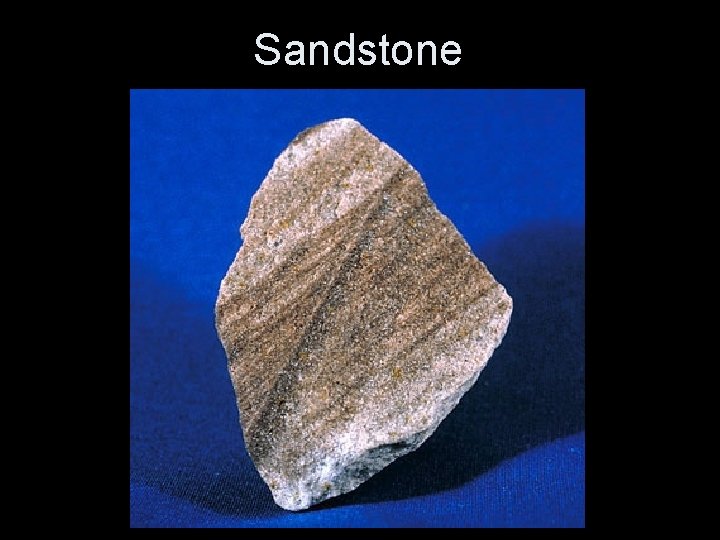

Sandstone

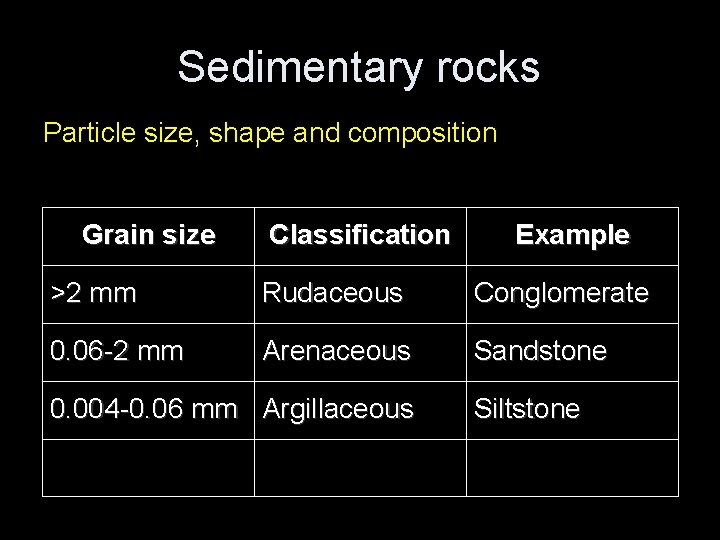

Sedimentary rocks Particle size, shape and composition Grain size Classification Example >2 mm Rudaceous Conglomerate 0. 06 -2 mm Arenaceous Sandstone 0. 004 -0. 06 mm Argillaceous Siltstone

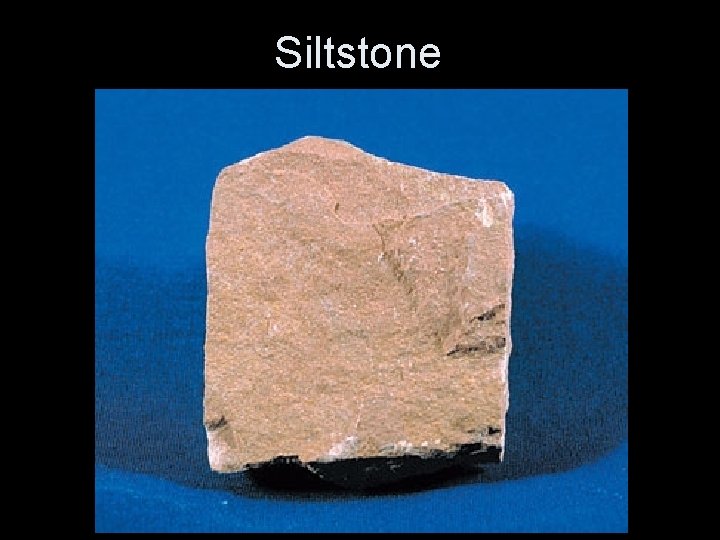

Siltstone

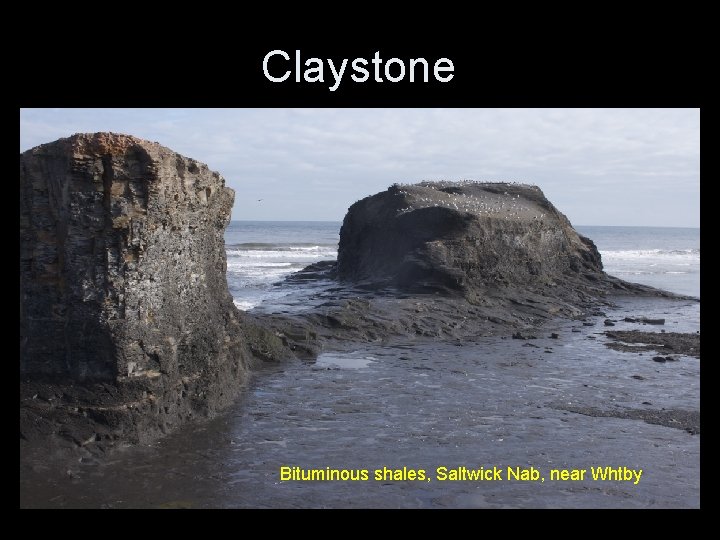

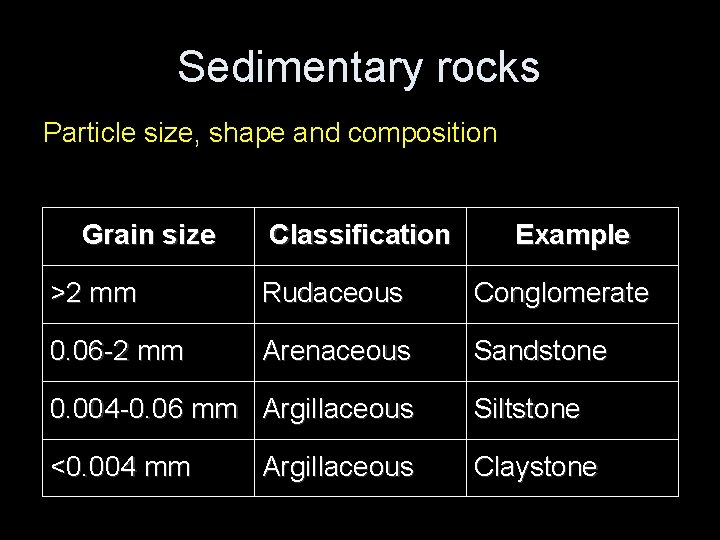

Sedimentary rocks Particle size, shape and composition Grain size Classification Example >2 mm Rudaceous Conglomerate 0. 06 -2 mm Arenaceous Sandstone 0. 004 -0. 06 mm Argillaceous Siltstone <0. 004 mm Claystone Argillaceous
